INVENTOR B2VI-09 User manual

Wall Mounted Unit
Owner’s Manual
Models
Thank you for choosing INVENTOR air
conditioning system. For correct use of this unit,
please read this manual carefully and keep it for
future reference.
B2VI-09/B2VO-09
B2VI-12/B2VO-12
66129912898

■ 1
■ 4
■ 5
■ 11
■ 13
■ 19
■ 20
■ 22
■ 16
■ 23
■ 3
■ 10
Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment
is necessary.
CONTENTS
Operation and maintenance
Notices for operation ............................................................
Notices for use ...................................................................
Names and functions of each part ..........................................
Operation of Remote Controller .............................................
Care and Cleaning .............................................................
Troubleshooting ................................................................
Installation service
Notices for Installation ........................................................
Installation Drawing ...........................................................
Installation of Indoor Unit ....................................................
Installation of Outdoor Unit ..................................................
Check after Installation and Operation Test ............................
This symbol stands for the items
should be forbidden
This symbol stands for the items
should be followed
Emergency operation .........................................................
The figures in this manual may be different with the material objects, please refer
to the material objects for reference.
■24
Installation and Maintenance of Healthy Filter(Optional) ............
■25
Configuration of connection pipe and additional volume of refrigerant ...........

1
★
★
★
★
★ The power supply
must adopt the
special circuit that with air
switch protection and assure
★
★Keep combustilble
spray away from the
units more than 1m.
★
Don't block the air
intake or outlet vents
of both the outdoor and indoor
units.
It can decrease the air conditioning
capacity or cause a malfunction.
Don’ t leave windows
and doors open for
a long time while operating
the air conditioner.
It can decrease the air
conditioning capacity.
It can cause a fire or explosion
Don’t attempt to
repair the air
conditioner by yourself.
The wrong repair will lead to
an electric shock or fire, so
you should contact the service
center to repair.
Be sure to pull out
the power plug as
the air conditioner not in use
for a long time.
Otherwise, the accumulated
dusts that may cause over
heating or fire.
Never splice the
power cord or use
an extended cord.
It can cause overheating or
fire.
When having a
burning smell or
smoke, please turn off the
power supply and contact
with the service center.
If the abnormity still exists,
the unit may be damaged,
and may cause electric
shock or fire.
Please read the following carefully before operating
Notices for operation
components would be easily
damaged, when the voltage
is very low, the compressor
vibrates terribly and that the
refrigerant system will be
damaged, the compressor
and electric components
cannot work, the voltage
should be stable; there
shouldn’t be big fluctuation.
When the voltage
is very high, the
it has enough capacity.
The unit will be turned
on or off according to your
requirement automatically,
please do not turn on or turn
off the unit frequently, other-
wise disadvantage effect may
be caused to the unit.

2
★ ★
★★
★
★
★
★
Don’t apply the cold wind to
the body for a long time.
It can cause the health problems.
Splashing water on the air
conditioner can cause an electric
shock and malfunction.
Don’t place a space heater
near the air conditioner.
Don’t blow the wind to animals
and plants directly. It can cause
a bad influence to them.
Don’t insert your hands or stick into
the air intake or outlet vents.
Don’t use the air conditioner
for other purposes, such as
drying clothes, preserving foods, etc.
To adjust the airflow direction
appropriately. When operating
the unit, to adjust the vertical and lateral air
flow direction by use of remote controller.
Swing louver Guide louver
Please don't cut off or damage the
power cords and control cords.
If they are damaged, please ask the qualified
personnel to change them.
Notices for operation

3
Working principle and special functions for cooling
Working principleand special functions for heating
Defrosting:
*When outdoor temperature is low but high humidity, after a long while running, frost will
form on outdoor unit, that will effect the heating effect, at this time, the auto defrosting
function will act, the heat running will stop for 8-10mins.
*During the auto defrosting, the fan motors of indoor unit and outdoor unit will stop.
*During the defrosting, the indoor indicator flashes, the outdoor unit may emit vapor.
This is due to the defrosting, it isn't malfunction.
*After defrosting finished,the heating will recover automatically.
Notices for use
Air conditioner absorbs heat in the room and transmit to outdoor and discharged, so that
indoor ambient temperature decreased, its cooling capacity will increase or decrease by
outdoor ambient temperature.
If the unit is running in COOL mode and in low temperature, there will be frost formed on
the heat exchanger, when indoor heat exchanger temperature decreased below 0 , the
indoor unit microcomputer will stop compressor running and protect the unit.
℃
Principle:
*Air conditioner absorbs heat from outdoor and transmits to indoor, in this way to increase
room temperature. This is the heat pump heating principle, its heating capacity will be
reduced due to outdoor temperature decrease.
*If outdoor temperature becomes very low, please operate with other heating equipments.
Principle:
Anti-freezing function:
Anti-cool wind function:
In "Heat" mode, under the following three kinds of state, if indoor heat exchanger doesn't
arrive at certain temp., indoor fan will not act, in order to prevent cool wind blowing(within
2 mins):
1. Heating starts. 2.After Auto Defrost finished. 3.Heating under the low temperature.
The operating temperature range (outdoor temperature) for cooling unit is -7℃~ 43℃；
for cooling and heating unit is -7~43℃.
Working temperature range
Maximum cooling
Minimum cooling
Maximum heating
Minimum heating
Indoor sideDB/WB(oC) Outdoor sideDB/WB(oC)
32/23
21/15
27/---
20/---
43/26
21/
24/18
-5/-6

4
⑴
⑹
⑶
⑵
⑸
⑷
⑺
⑼
⑹
⑵
⑻
⑼
⑷
⑺
⑶
⑻

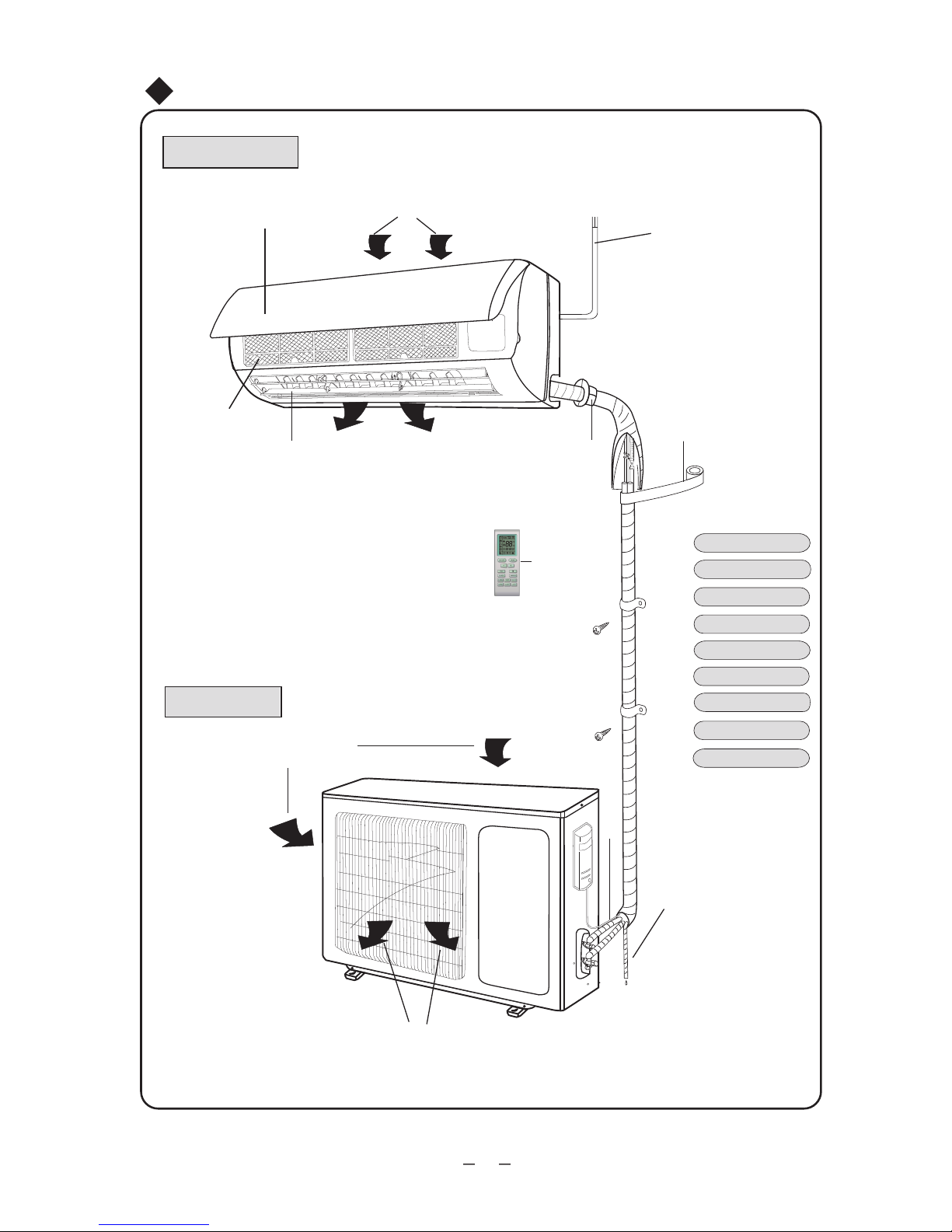

Names and functions of each part
Indoor unit
Air in
Air out
Front panel
Filter
Guide louver
Bind tape
Connection wire
Drainage pipe
Remote control
Outdoor unit
Air in
Air out
⑴
⑸
Power cable
Wall pipe

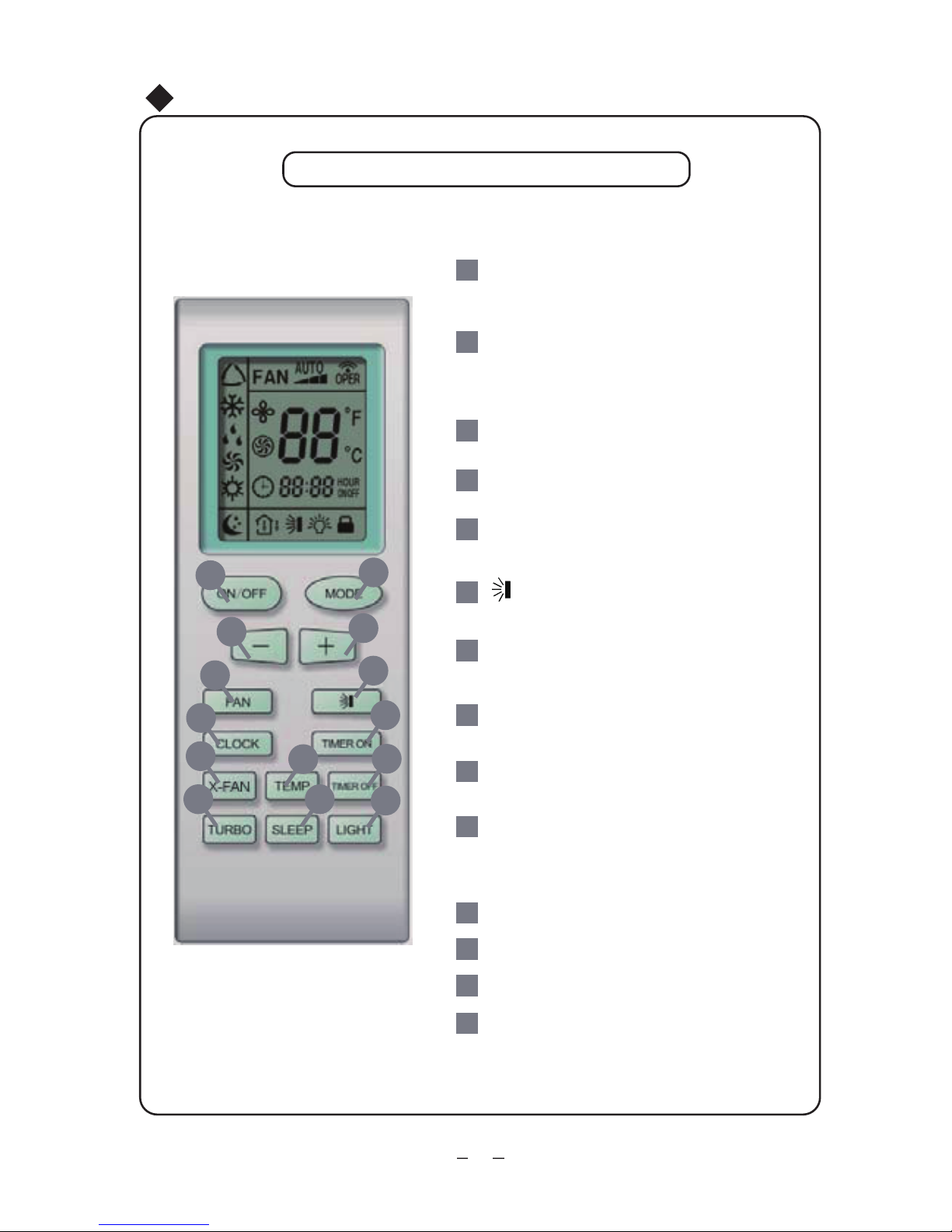

Remote Controller Description
2
8
9
10
3
4
11
12
7
6
13 14
5
1
Press it to start or stop operation
ON/OFF
MODE
Press it to select operation mode
(AUTO/COOL/DRY/FAN/HEAT)
+ :Press it to increase temperature
setting
-
: Press it to decrease temperature
setting
FAN
Press it to set swing angle
TIMER ON
TIMER OFF
CLOCK
X-FAN (page 8)
TEMP (page 8)
TURBO(page 8)
SLEEP(page 8)
Press it to turn on/off the light.
LIGHT
Press it to set fan speed
Press it to set auto-on timer
Press it to set auto-off timer
Press it to set clock
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Operation of Remote Controller
5
(NOTE:X-FAN is the alternative expression
of BLOW for the purpose of understanding.)

Operation of Remote Controller
6
This area will show the set tempe-
rature. In SAVE mode,"SE" will be
displayed. During defrosting opera-
tion, “H1” will be displayed.
DIGITAL display:
23
Press FAN button to select the
desired fan speed setting(AUTO-
Low-Med-High).Your selection will
be displayed in the LCD windows,
except the AUTO fan speed.
FAN SPEED display:
25
LOCK icon:
is displayed by pressing "+"
and “-” buttons simultaneously.Press
them again to clear the display.
20
LIGHT icon:
is displayed by pressing the
LIGHT button.Press LIGHT button
again to clear the display.
19
MODE icon:
If MODE button is pressed,
current operation mode icon
(AUTO), ( COOL),
(DRY), (FAN) or (HEAT
is only for heat pump models)
will show.
15
is displayed when pressing
the up & down swing button.
Press this button again to clear the
display.
18
Up & down swing icon:
After pressing TIMER button, ON
or OFF will blink.This area will
show the set time.
SET TIME display:
21
Pressing TEMP button,
(set temperature),
ambient temperature)
(outdoor ambient temperature)
and blank is displayed circularly.
(indoor
TEMP icon:
17
SLEEP icon :
is displayed by pressing
the SLEEP button. Press this
button again to clear the display.
16
is displayed when pressing the
nottubsihtsserP.nottubOBRUT
again to clear the display.
TURBO icon:
22
is displayed when pressing the
X-FAN button. Press this button
again to clear the display.
X-FAN icon:
24
15
16 20
23
24
22
25
17 18 19
21

Remote Controller Description
Press this button to turn on the unit. Press this button again to turn off the unit.
ON/OFF :
MODE :
Each time you press this button,a mode is selected in a sequence that goes from AUTO,
COOL,DRY, FAN, and HEAT *, as the following:
AUTO COOL DRY FAN HEAT *
*Note: Only for modelswith heating function.
+ :
Press this button to increase set temperature. Hold it down for above 2 seconds to
Press this button to decrease set temperature. Hold it down for above 2 seconds to rapidly
.
FAN :
This button is used for setting fan speed in the sequence that goes from AUTO,
to then back to Auto.
,
,,
Auto
Low speed Medium speed High speed
:
Press this button to set up & down swing angle, which circularly changes as below:
OFF
1
2
3
4
5
6
Operation of Remote Controller
7
After energization, AUTO mode is defaulted. In AUTO mode, the set temperature will not
be displayed on the LCD, and the unit will automatically select the suitable operation
mode in accordance with the room temperature to make indoor room comfortable.
rapidly increase set temperature. In AUTO mode, set temperature is not adjustable.
decrease set temperature. In AUTO mode, set temperature is not adjustable.
This remote controller is universal. If any command , or is sent out,
the unit will carry out the command as
indicates the guide louver swings as:

11 TEMP:
Press this button, could select displaying the indoor setting temperature or indoor ambient
temperature.When the indoor unit firstly power on it will display the setting temperature,
if the temperature's displaying status is changed from other status to" ",displays the
ambient temperature, 5s later or within 5s, it receives other remote control signal that will
return to display the setting temperature. if the users haven't set up the temperature
displaying status,that will display the setting temperature.
Pressing X-FAN button in COOL or DRY mode,the icon is displayed and the indoor
fan will continue operation for 10 minutes in order to dry the indoor unit even though you
X-FAN:
evah turned off the unit.
After energization, X-FAN OFF is defaulted. X-FAN is not available in AUTO, FAN or
HEAT mode.
TURBO:
Press this button to activate / deactivate the Turbo function which enables the unit to
reach the preset temperature in the shortest time. In COOL mode, the unit will blow strong
cooling air at super high fan speed. In HEAT mode, the unit will blow strong heating air
at super high fan speed. (This function is not applicable for some models).
SLEEP:
Press this button to go into the SLEEP operation mode. Press it again to cancel this
function. This function is available in COOL, HEAT (Only for models with heating
function) or DRY mode to maintain the most comfortable temperature for you.
10
12
13
8
Pressing CLOCK button, blinks ehtstsujdanottub-ro+gnisserp,sdnoces5nihtiW.
present time. Holding down either button above 2 seconds increases or decreases the
CLOCK :
time by 1 minute every 0.5 second and then by 10 minutes every 0.5 second. During
blinking after setting, press CLOCK button again to confirm the setting, and then
9
TIMER OFF:
Press this button to initiate the auto-off timer. To cancel the auto-timer program, simply
press the button again.TIMER OFF setting is the same as TIMER ON.
8
TIMER ON:
Press this button to initiate the auto-ON timer. To cancel the auto-timer program, simply
press this button again.
7
After pressing this button, disappears and "ON "blinks
. 00:00 is displayed for ON time
setting. Within 5 seconds, press + or - button to adjust the time value. Every press of either
button changes the time setting by 1 minute. Holding down either button rapidly changes the
time setting by 1 minute and then 10 minutes. Within 5 seconds after setting, press TIMER
ON button to confirm.
will be constantly displayed.
Operation of Remote Controller

9
Press "+ " and "-" buttons simultaneously to lock or unlock the keypad. If the remote
controller is locked, is
displayed. In this case, pressing any button, blinks
three times.
At unit OFF, press "MODE" and"- " buttons simultaneously to switch between and .
℃℉
About switch between Fahrenheit and Centigrade
★
●
●
●
●
●

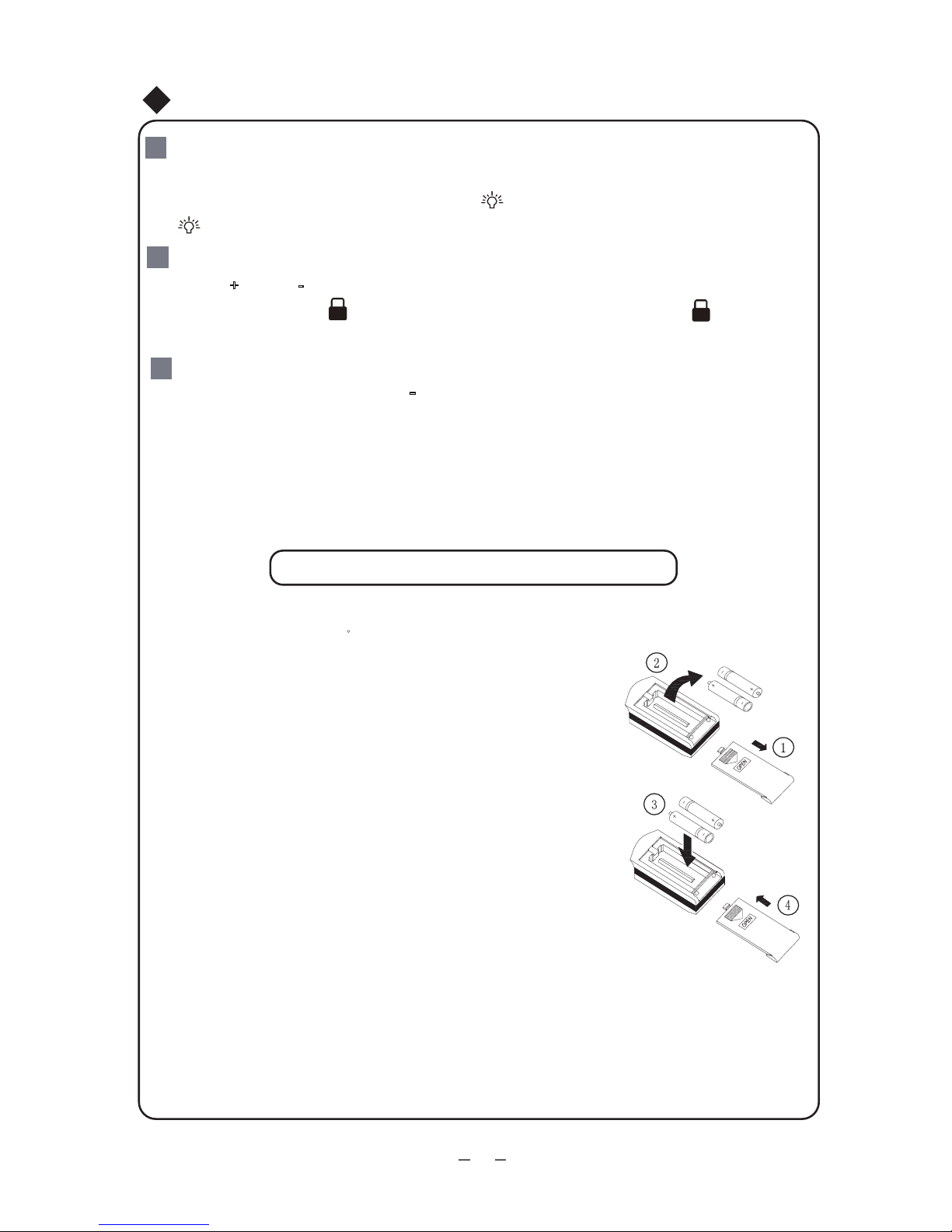

1.Remove the battery cover plate from the rear of the remote controller.
(As shown in the figure)
2.Take out the old batteries.
3.Insert two new AAA1.5V dry batteries, and pay attention to the polarity.
4. Reinstall the battery cover plate.
When replacing the batteries, do not use old or different types of batteries.
If the remote controller will not be used for a long time, please
Otherwise, it may cause malfunction.
remove batteries to prevent batteries from leaking.
The operation should be performed in its receiving range.
It should be kept 1m away from the TV set or stereo sound sets.
If the remote controller does not operate normally, please take the
batteries out and reinsert them after 30 seconds. If it still can't operate
Sketch map for
replacing batteries
Notes:
Replacement of Batteries
properly, replace the batteries.
Press LIGHT button to turn on the display's light and press this button again to turn off
LIGHT:
the display's light. If the light is turned on , is displayed. If the light is tunrned off,
14
disappears.
Operation of Remote Controller
Combination of "+" and "-" buttons: About lock
15
Combination of "MODE" and "-" buttons:
16

10
●
●
●
●

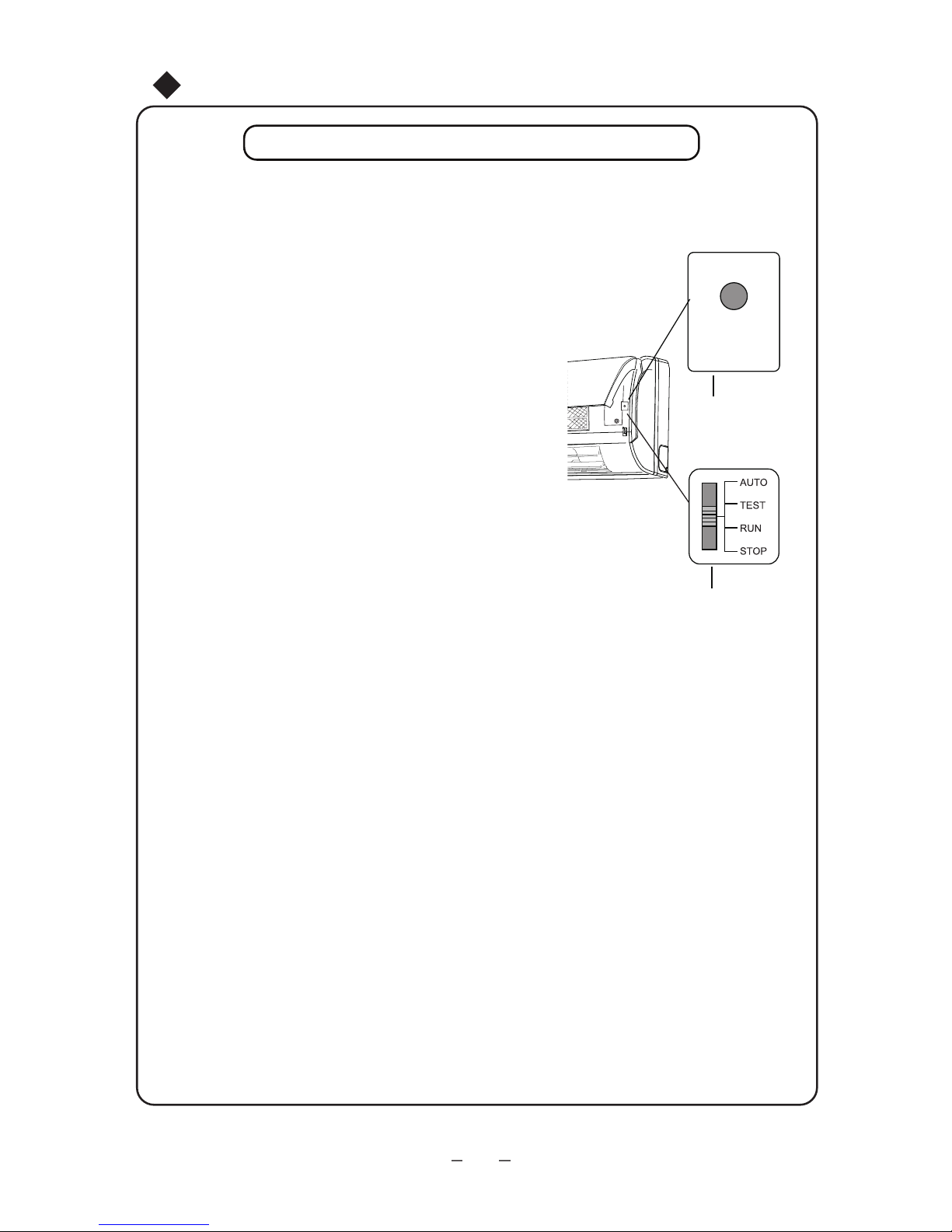

Emergency Operation
Emergency Operation
When the wireless remote control is lost or damaged, please use the manual switch, at this
time, it is running in Auto Run mode that will not change the temperature setting value and
fan speed.
The manual switch can be operated as follow:
At operation: When the unit stopped running,
press ON/OFF button, unit will enter into AUTO
RUN mode. The microcomputer will accord to
the room temperature to select the (COOL,
HEAT, FAN) mode automatically, to obtain the
comfortable effect.
At stopping: When the unit is running, press the
ON/OFF button of the manual switch, the unit
will stop work.
The code switch can be operated as follow:
At operation: When the unit is stopped running,
adjust the code switch to AUTO, the unit will
enter into AUTO RUN mode. The microcomputer
will accord to the room temperature to select the
(COOL, HEAT, FAN) mode automatically, to
obtain the comfortable effect.
At stopping: When the unit is running, adjusts
the code switch to STOP position, the unit will
stop work.
Code Switch
Manual Switch
AUTO/STOP
（only for some models）

℃
?
?
( a)
(b)
Caution
Wipe the units with a dry soft cloth, or a cloth slightly moistened with water or cleaner (not with
volatile liquid such as thinner or gasoline).
Note:Do not touch the fin of indoor unit during cleaning to avoid personal injury.
Remove the front panel.
●
●
●
Disconnect the power supply before cleaning and maintenance.
Do not splash water on the units for cleaning, as electric shocks may occur.
Dip a piece of cloth into the water colder than 45 and dry it. Then wipe
the dirty part of front panel.
Note: Do not immerse the front panel into water so as to protect microprocessor components and circuit
diagram on the front panel.
Care and Cleaning
11
℃

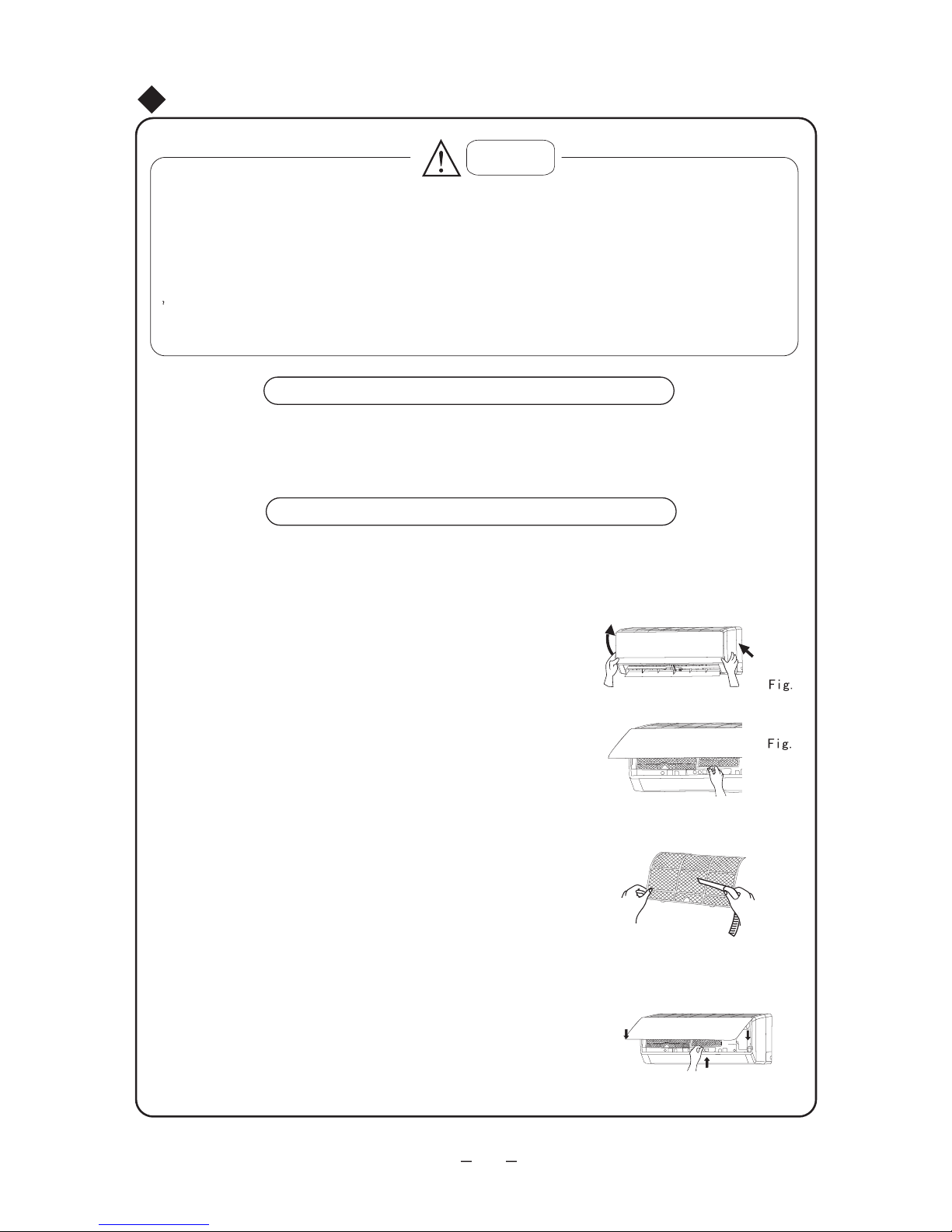

②Clean the air filter
③
①Take down the air filter
Lift up the front panel.
Pull the air filter downwards to take it off,
as shown in Fig.(a,b).
Use a vacuum cleaner to remove dust.
If the filters are dirty, wash them with warm water
and mild detergent.
Dry the filters in the shade.
Note: Never use water above 45 to clean the air
filter as it may cause deformation or discoloration.
Reinstall the air filter
Reinstall the filters along the direction of arrowhead.
Close the panel.
Cleaning the Air Filter (every 3 months)
Cleaning the Front Panel

12
①Be sure that nothing obstructs the air outlet and inlet.
②
③
①
②
③
④
Check before Use
Maintenance after Use
Switch off the power supply.
Clean the filters and
Clear obstructions from the outdoor unit.
Check if the batteries of remote controller are replaced.
Check if the installation stand of the outdoor unit is damaged.
If damaged, consult the technicians.
bodies of indoor and outdoor units.
Repaint the rubiginous place on the outdoor unit to prevent it from spreading.
Care and Cleaning

●
●
●
●
●
●

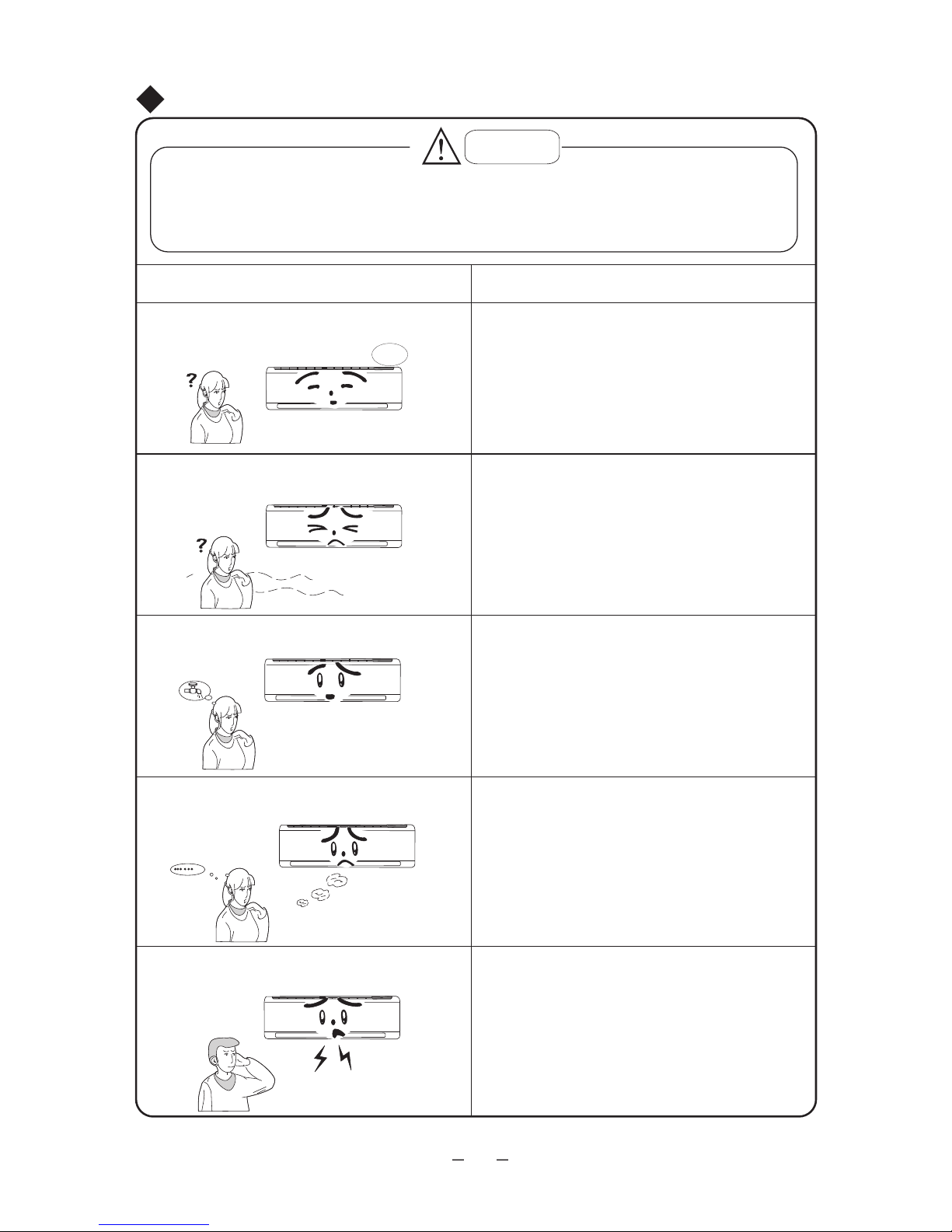

Troubleshooting
CAUTION
Phenomenon Troubleshooting
Waiting
The unit does not operate: The unit does not operate if it is turned on
immediately after being turned off. This is to
Odours are emitted: Some odours may be emitted from the indoor
unit. This is the result of room smells (such as
furniture, tobacco, ect.) which have been taken
Consult authorized service center for cleaning
if the odours still exist.
"Water flowing" noise: The swishing noise like water flowing is the
sound of refrigerant flowing inside the unit.
Mist is emitted in COOL mode During cooling operation, a thin mist may be
seen emitted from the indoor unit due to high
room temperature and humidity.
After a period of time,the mist will disappear
with the decrease of room temperature and
humidity.
13
The air conditioner is not expected to be serviced by users. Incorrect repair may cause
electric shock or fire, so please contact an authorized service center for professional
service. The following checks prior to contact may save your time and money.
Cracking noise:
This is the sound of friction caused by expansion
and/or contraction of panel or other parts due
to the change of temperature.
protect the unit. You are expected to
wait
for
about 3 minutes.
into the air conditioner.

●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
Troubleshooting
Phenomenon Troubleshooting
The unit can not be started up: Is the power cut off?
Is the power plug loose? (If applicable )
Is the circuit protection device tripped off?
Is voltage higher or lower?
(Tested by professionals)
Is the TIMER correctly used?
Cooling/Heating effect is poor: Is temperature setting appropriate?
Is
Is filter dirty?
Is low fan speed set?
Remote controller is not available:
The humidity is high.
Condensate
Drain hose is loose.
Noise from indoor unit . The noise emitted when the fan or compressor
relay is switching on or off.
Breaking off
inlet or outlet blocked?
Are there heat sources in the room?
the
the
Check if there is magnetic or electrical interference
near the unit that may affecting operation of
the controller. In this case, pull the plug out and
reinsert it.
Is the remote controller within its operating range
or obstructed? Check the condition of the
batteries and replace them if necessary.
Check if the remote controller is damaged.
Water leakage of indoor unit :
Water leakage of outdoor unit :
overflows.
During cooling operation, condensate is
generated around the pipes and connection joints.
During defrosting operation, the thaw water flows
out.
●During heating operation,the water on the heat
exchanger drips out.
When the defrosting operation is started or stopped,
there is a sound of refrigerant flowing in the
reverse direction.
Is the window or the door open?
14

15
In HEAT mode, when the temperature of indoor
heat exchanger is very low, air flow is stopped
in order to prevent cold air. (Within 2minutes)
In HEAT mode, when the outdoor temperature
is low or humidity is high, frost will be formed on
the outdoor heat exchanger. The unit will defrost
automatically and indoor unit will stop blowing
air for 3-12minutes.
During defrosting operation, water or vapour may
be emitted.
●In DRY mode, the indoor fan will stop blowing air
for 3-12 minutes in order to avoid condensate
being vaporised again.
If the unit operates at high humidity for a
long time, moisture will be generated on
the air outlet grill and then drip off.
If any one of the following situations occurs, immediately stop all operations,
cut off the power supply, and contact the authorized personnel
Strong odours are emitted during operation.
The air switch or protection switch often trips.
Power cord and power plug is overheating.
noitarepopotS
and cut off the power supply.
●
●
●
●
Troubleshooting
Phenomenon Troubleshooting
Indoor unit can not blow air:
Moisture on air outlet :
C5: Malfunction of connector jumper: Check if the connector jumper contacts
properly. If the PCB is to be replaced,
please take off the old for the new PCB.
●
F1: Malfunction of indoor ambient temperature
sensor
sensor
Check if indoor room temperature sensor is
connected properly
●
F2: Malfunction of evaporator temperature Check if the evaporator temperature is
connected properly.
There is harsh sound during operation.
Water is leaking from the unit.
Water or other liquid is splashed into the unit.
●
H1: Defrosting It is normal.
●

4.Warning:Before obtaining access to terminals, all supply circuits must be disconnected.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
6. The appliance must be positioned so that the plug is accessible.
7. The temperature of refrigerant line will be high; please keep the interconnection cable
away from the copper tube.
8.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge,
unless they have been
given supervision or instruction concerning use of the appliance by a person responsible
for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Notices for Installation
Caution
Installation Site Instructions
16
The unit should be installed only by authorized service center according to local or
government regulations and in compliance with this manual.
Before installing, please contact with local authorized maintenance center. If the unit is
not installed by the authorized service center, the malfunction may not be solved
due to incovenient contact between the user and the service personnel.
When removing the unit to the other place, please firstly contact with the local authorized
service center.
●
●
●
●
●
●
Proper installation site is vital for correct and efficient operation of the unit. Avoid the
following sites where:
Strong heat sources, vapours, flammable gas or volatile liquids are emitted.
High-frequency electro-magnetic waves are generated by radio equipment,
welders and medical equipment.
Salt-laden air prevails (such as close to coastal areas).
The air is contaminated with industrial vapours and oils.
The air contains sulphures gas such as in hot spring zones.
Corrosion or poor air quality exists.
1.
2.
3.

Note:
Notices for Installation
Safety Precautions for Electric Appliances
Installation Site of Outdoor Unit
17
1.Select a site where noise and outflow air emitted by the unit will not annoy neighbors.
Select a site where there is sufficient ventilation.
Select a site where there is no obstruction blocking the inlet and outlet.
The site should be able to withstand the full weight and vibration.
Select a dry place, but do not expose the unit to direct sunlight or strong wind.
Make sure that the outdoor unit is installed in accordance with the installation instructions,
and is convenient for maintenance and repair.
The height difference between indoor and outdoor units is within 5 m, and the length of
the connecting tubing does not exceed 10 m.
Select a place where it is out of reach of children.
Select a place where the unit does not have negative impact on pedestrians or on the city.
5. The minimum distance between the unit and combustive surface is 1.5m.
1. A dedicated power supply circuit should be used in accordance with local electrical
safety regulations.
2. Don't drag the power cord with excessive force.
3.
The appliance shall be installed in accordance with national wiring regulations.
An all-pole disconnection switch with a contact separation of at least 3mm in all poles
should be connected in fixed wiring.
The unit should be reliably earthed and connected to an exclusive earth device by the
professionals.
4. The air switch must have the functions of magnetic tripping and heat tripping to prevent
short circuit and overload.
Makesurethelivewire,neutralwireandearthwireinthefamilypowersocketareproperly
connected. There should be reliable circuit in the diagram.
Inadequate or incorrect electrical connections may cause electric shock or fire.
●
●
6.
7.
2.
3.
4.
5.
6.
7.
8.
9.
Installation Site of Indoor Unit
Select a site where the condensate can be easily drained out, and where it is
easily connected to outdoor unit.
Select aplace where the wall is strong enough to withstand the full weight and vibration
of the unit.
Make sure that the indoor unit is installed in accordance with installation dimension
Select a place where it is out of reach of children.
The air inlet and outlet should be away from the obstructions. Ensure the air can be
blown through the whole room.
Be sure to leave enough space to allow access for routine maintenance. The installation
site should be 250cm or more above the floor.
Select a place about 1m or more away from TV set or any other electric appliance.
Select a place where the filter can be easily taken out.
instructions.
6.
7.
8.
5.
4.
1.
2.
3.
9. Do not use the unit in the laundry or by swimming pool etc.
