INVENTOR K2VI32-09WFI User manual

ENGLISH | ΕΛΛΗΝΙΚΑ | ROMANA | DEUTSCH
AIR CONDITIONING SYSTEMS
WALL MOUNTED UNIT
• USER’S MANUAL
• ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΗΣ
• MANUALUL DE UTILIZARE
• BENUTZERHANDBUCH
MODELS:
K2VI32-09WFI/K2VO32-09
K2VI32-12WFI/K2VO32-12

WARNING:
·If the supply cord is damaged, it must be replaced by the manufacturer,its service agent or
similarly qualified persons in order to avoid a hazard.
·This appliance can be used by children aged 8 years and above and persons with reduced
physical, sensory or mentao capabilities or lack of experience and knowledge if they have
been given superivision or instruction concering use of the appliance in a safe way and un-
derstand the hazards involved. Children shall not play with the appliance. Cleaning and
·The wiring method should be in line with the local wiring standard.
user maintenance shall not be made by children without supervision.
All the cables shall have got the European authentication certificate. During installation, wh-
·en the connecting cables break off, it must be assured that the grouding wire is the last one
to be broken off. The explosion-proof breaker of the air conditioner should be all-pole switch.
Distance between its two contacts should not be no less than 3mm. Such means for discon-
·Make sure installation is done according to local wiring regulation by professional persons.
·A leakage explosion-proof breaker must be installed.
Make sure ground connection is correct and reliable.
Read the precautions in this manual
carefull before operating the unit. This appliance is filled with R32.
Do not use means to accelerate the defrosting process or to clean, other than those recom-
mended by the manufacturer.
·
Keep this manual where the user can easily find it.
The appliance must be stored in a room without continuously operating ignition sources (for
example: open flames, an operating gas appliance or an operating electric heater).
Do not pierce or burn.
·
·Be aware that refrigerants may not contain an odour.
·The appliance must be installed, operated and stored in a room with a floor area larger than
3.
·
Do not use a refrigerant other than the one indicated on the outdoor unit(R32) when installing,
moving or repairing. Using other refrigerants may cause trouble or damage to the unit, and
personal injury.
nection must be incorporated in the wiring.
·
·

1
21
2
3
20
17
22
Contents
PARTS AND FUNCTIONS
OPERATION
INDOOR UNIT INSTALLATION
MAINTENANCE
CAUTIONS
TROUBLE SHOOTING
Visual air quality function
This product has built-in dust sensor and
humidity sensor, which can detect the
humidity and quality of the indoor ambient
air intelligently. It gives alarm when the PM2.5
exceeding the standards with the lamp belt
turning red which shall be green under normal
conditions. It can realize accurate judgment,
and enable you to learn about the air
conditions in your house at all times.
PM2.5 removal function
This product has two methods to remove
particle pollutants with one using HEPA
high-e fficiency dust removal filter to remove
PM2.5 and PM10 etc. powerfully, and the
other one using international leading IFD light
ion high-efficiency dust collection technology
to remove PM0.3 and PM2.5 etc. powerfully.
They show not only significant effects, but also
high safety relying on the automatic detection,
reminder and removal functions. However, the
two functions cannot be used simultaneously.
WiFi function
This product can realize remote control,
operation, management, energy consumption
quer y , sleep curve setting and other functions
through WiFi to have the users enjoy
comfortable temperature quietly. Equipment
needing to be provided by the users: smart
phone with Android or IOS operating system,
and wireless router (needing to be connected
to the Internet).
Quiet function
Haier air conditioner has quiet function to
have the machine operate quietly.

2

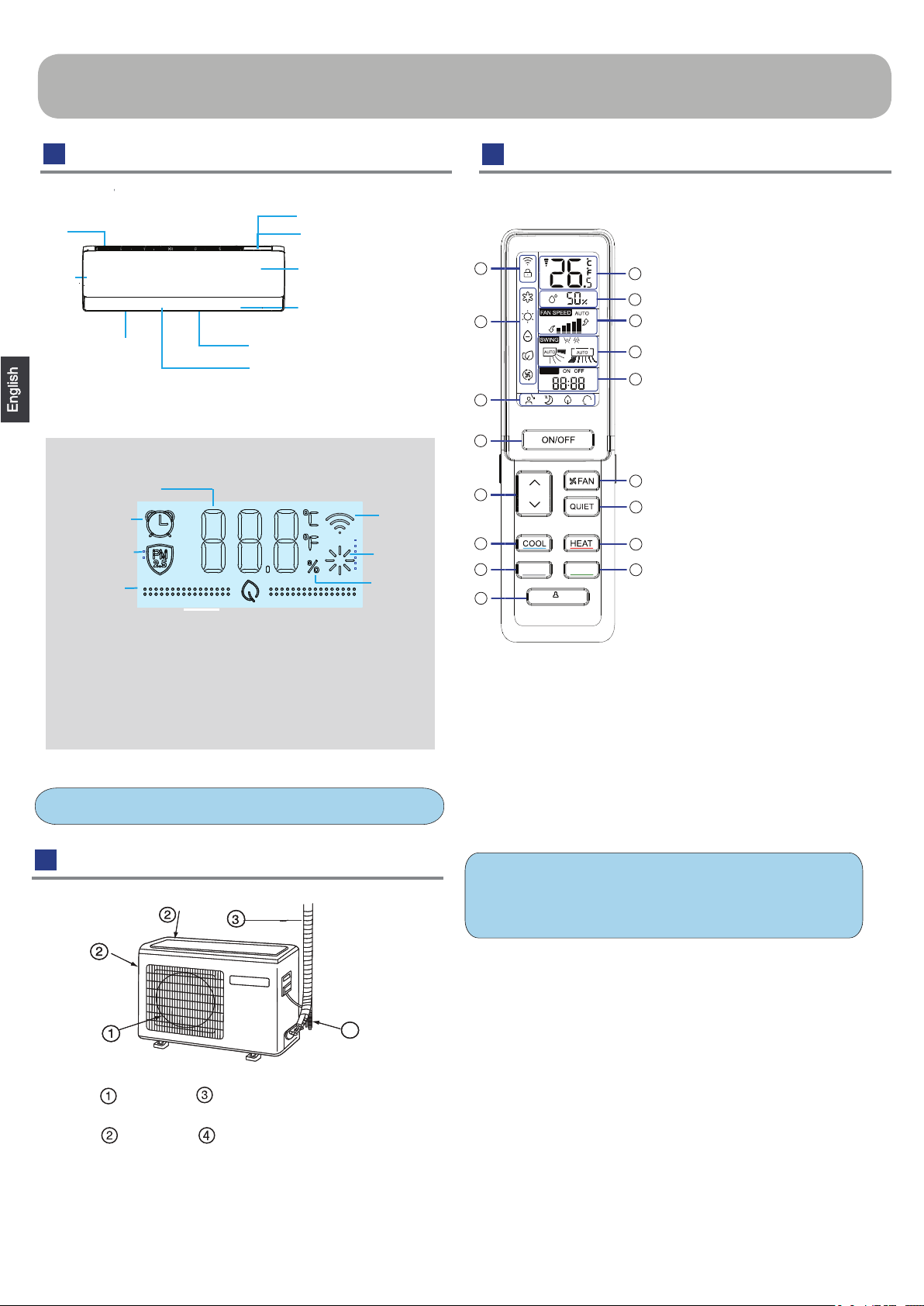

Parts and Functions
Indoor Unit
Outdoor Unit
Remote controller
Outer side of the controller
OUTLET CONNECTING PIPING
AND ELECTRICAL WIRING
INLET DRAIN HOSE
4
Actual inlet grille may vary from the one shown in the
manual according to the product purchased
1. ECO SENSOR button
2. PURIFY button
3. COOL button
Used to set COOL operation.
4.
5.
6. Display of each function
status
7. Operation mode display
8. WIFI and LOCK display
9. TEMP display
11. FAN SPEED display
12. SWING display
Swing up/down display
swing left/right display
14. FAN button
15. QUIET button
16. HEAT button
17. FAN MODE button
Used to set PURIFY operation.
13. TIMER ON display
TIMER OFF display
CLOCK display
TIMER
1
2
3
4
5
6
7
89
10
11
12
13
15
16
17
14
TEMP button
used to change setting
temperature
ON / OFF button
ECO SENSOR
2
NOTE:
If the model you buy has a WIFI function, press the“ON/OFF”
button for 5s to emit the WIFI binding signal. Once in the
binding mode, the APP will show how to bind.
Air inlet
Front panel
Air outlet
Vertical flab (internal)
Left and right air flow direction regulation
Internal air deflector (internal)
Up and down air flow direction regulation
External air deflector
Air quality sensor (internal)
Display (internal)
Humidity sensor (internal)
Temperature
display
Air
quality
The operation mode symbol displays
the corresponding color when setting
Cooling: blue Heating: red Drying: blue
Good air quality: Air quality light turns green
Bad air quality: Air quality light turns red
Warning air quality: Air quality light turns yellow
WiFi
Operation
mode
Timing
Humidity
display
PM2.5
reminder
FAN MODE
PURIFY
10. Humidity display

3
Operation
Clock and Lock set
Note:
The distance between the signal transmission head and
the receiver hole should be within 7m without any obstacle
change-over wireless telephone is installed in the type
in receiving the signals, so the distance to the indoor unit
should be shorter.
Full display or unclear display during operation indicates the
batteries have been used up. Please change batteries.
If the remote controller can’t run normally during operation,
please remove the batteries and reload several minutes later
Hint:
Remove the batteries in case unit won’t be in usage for
a long period.
20.
18. buttonTIMER
19. CLOCK button
10 ºC button
special heating set
function: 10 degree
heating maintaining
19
20
21
22
23 24
25
26
27
28
29
30
18
21. SMART HUMIDITY button
22. SMART button
Used to set SMART
operation.
23. SWING up/down button
24. SWING left/right button
25. SLEEP button
26. HEALTH AIRFLOW button
27. AIR STATUS button
28. CODE button
A-b yard
29. APPLY button
30. LIGHT button
Control the lightening and
extinguishing of the indoor
LED display board.
Press CLOCK button,
Press “+” or “-” to set
correct time.
Each press will increase or
decrease 1min. If the button is
kept pressed, time will change
quickly.
press APPLY, “AM” and
starts working.
1
2
3
3
Press “ SMART HUMIDITY”+“HEALTH AIRFLOW”
set and cancel the “LOCK”
function ( )
SMART
HUMIDITY
AIR
STATUS
AIR
STATUS
SMART
HUMIDITY
simultaneously can

4
QUIET Operation
Operation
QUIET Operation Operation
Operation
QUIET Operation
You can use this function when silence is needed for rest or
reading.
For each press, is displayed Air conditioner starts
QUIET function operation. In QUIET operation mode, fan
speed automatically takes low speed of AUTO fan mode.
Press QUIET button again, disappears, the operation
stops.
QUIET
Unit start.
Select operation mode.
Press the COOL button on
the remote control.
Press the HEAT button on
the remote control.
1
2
4
QUIET
PURIFY
ECO SENSOR
PURIFY
ECO SENSOR
FAN MODE FAN MODE
COOL, HEAT

5
OperationOperation
Press the PURIFY button on
the remote control.
PURIFY
ECO SENSOR
PURIFY
PURIFY Operation
FAN MODE
5
In the cooling/heating/fan mode, if you press down the
PURIFY button of the remote controller, the dust
removal filter will slide to the working position within
three minutes and start purifying.
In the smart operation mode, the product will determine
whether the purifying function needs to be turned on or
not automatically according to the PM2.5 concentration
value actually detected by the indoor air quality sensor.
If yes, then the purifying function will turn on
automatically. When the PM2.5 concentration drops to a
certain value, the purifying function will turn off
automatically and you do not need to press the remote
controller.
Purifying Function:
IFD filter:
Exit method:
1. While the air conditioner is operating in the purifying mode, if your press down the PURIFY button, then the purifying function
will be cancelled and the dust removal filter will slide back its original position.
Matters needing attention:
1. Users can set whether to turn on the automatic purifying mode through the APP.
2. When the purifying function is turned on, due to the sliding of the dust removal filter, slight noise may be generated and this is
a normal phenomenon.
3. If the air quality indicator light still shows red after the purifying has been operated for a long time period, we recommend you
to replace and clean the dust removal filter.
4. In the purifying mode, low fan speed operation will affect the purifying effects.
5. You cannot enter the purifying mode from the self-cleaning mode directly.
6. The purifying module of this product has transmission mechanism, so please do not switch on and off the purifying function
frequently.

6
Unit will start running to reach the
temp. setting on LCD.
AN Operation
changes as follows:
Unit will run at selected fan speed.
button.
pressed, temp. setting
increases 0.5 ºC.
pressed, temp. setting
decreases 0.5ºC.
1
2
PURIFY
ECO SENSOR ECO SENSOR
ECO SENSOR
PURIFY
1ECO SENSOR Operation
Press ECO SENSOR button,For each press,changes
as follows:
cancel
A human sensor is used to detect changes in the infrared radiationemitted by
human bodies. In case of the following conditions, the detection may not be
accurate:
temperature
objects due to the wind.
sharply.
Besides, if a person is at the border of two or three air blowing areas, the
automatically.
NOTE :
The speed of human movement exceeds the sensitivity of the sensor.
Moving targets go beyond the detection range of the sensor.
6
FAN MODE FAN MODE
ECO SENSOR Operation
Operation
TEMPERATURE and FAN SPEED Setting

7
and outlet grills of the air conditioner are opened, and
the unit goes on working under the condition before the
grille will close automatically.
Notice:
Cannot pull direct the outlet grille by hand. Otherwise, the
grille will run incorrectly. If the grille is not run correctly,
stop for a minute and then start, adjusting by remote
controller.
Remote controller can memorize each operation status.
when starting it next time, just press ON/OFF button and
unit will run in previous status.
The setting of
function
The cancel of
function
HEALTH AIRFLOW Operation
Operation
FAN MODE Operation
appears on the display. Avoid
the body.
again, appears on the display.
direct to the body.
Note:
2. In heating, it is better to select the mode.
3. In cooling, it is better to select the mode.
4. In cooling and dry, using the air conditioner for a
long time under the high air humidity, a phenomenon
falling drips of water occurs at the outlet grille.
5. Select the appropriate fan direction according to the
actual conditions.
TIMER
SMART
HUMIDITY
AIR
STATUS
7
ECO SENSOR
PURIFY
FAN MODE
Fan mode: default low fan speed,fan
mode , the setting temperature will
not display, the temperature of indoor
display is 24℃
FAN
MODE

8

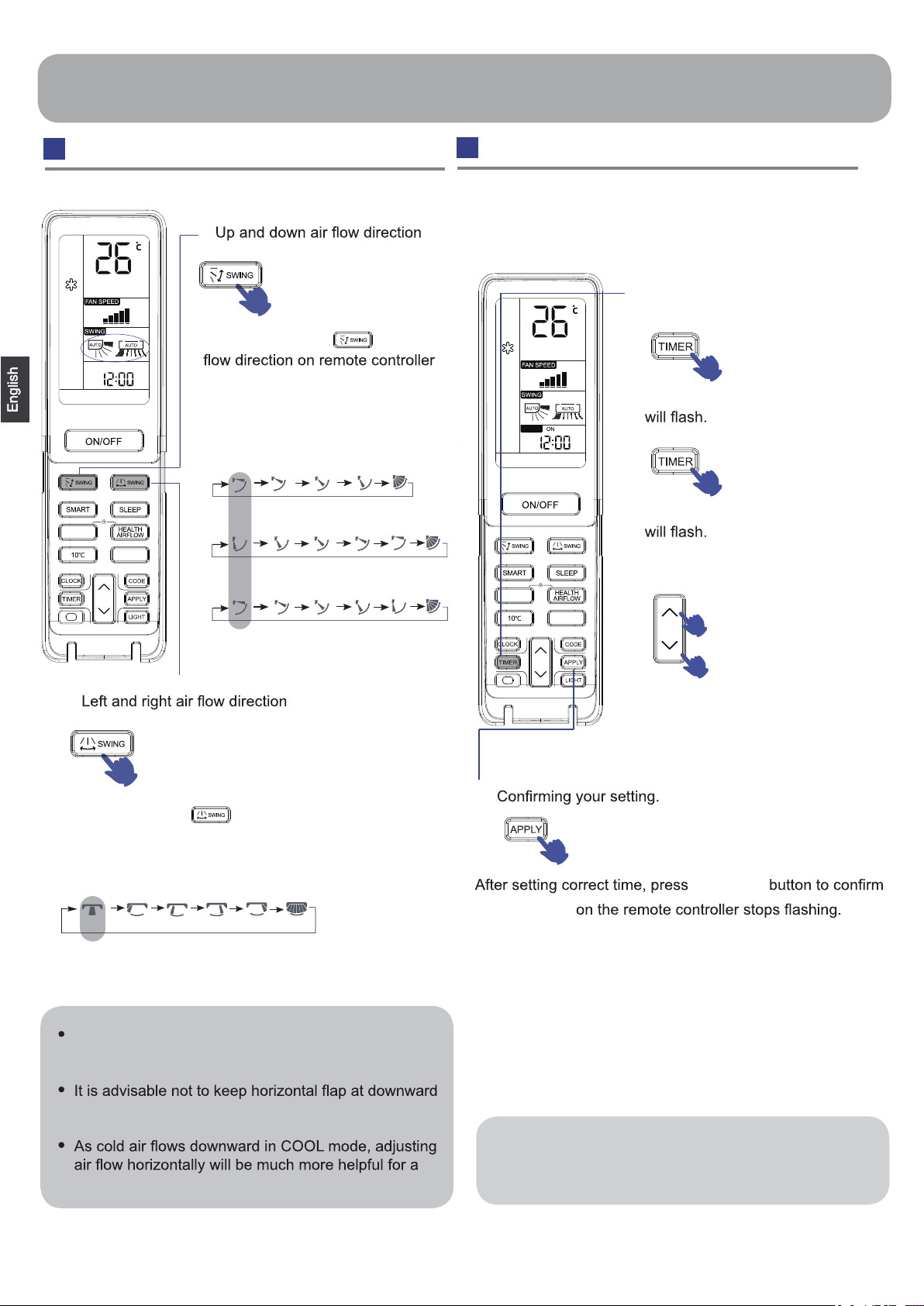

SWING Operation
To cancel TIMER mode.
Just press TIMER button several times until TIMER
display disappear.
Operation
TIMER
Set Clock correctly before starting Timer operation. You can
let unit start or stop automatically a following times: Before
you wake up in the morning, or get back from outside or
after you fall asleep at night.
mode.
Time setting.
Remote controller: “
TIMER ON
”
Remote controller: “
TIMER OFF
”
“
ON
” or “
OFF
”
Every time the button is pressed,
time setting increases or decreases
Select your desired
TIMER ON.
Select your desired
TIMER OFF.
TIMER Operation
1
1
2
1 min, if kept depressed, it will increase rapidly. It can be
adjusted within 24 hours.
APPLY
Select your desired operation
3
COOL/DRY:
For each press of “ ” button, air
displays as follows according to
different operation modes:
When humidity is high, condensate water might occur
at air outlet if all vertical louvers are adjusted to left or
right.
position for a long time in COOL or DRY mode,
otherwise, condensate water might occur.
1
2
HEAT:
SMART:
Initial state
Initial state
For each press of “ ” button, remote controller
displays as follows:
remote controller:
8
SMART
HUMIDITY
AIR
STATUS
SMART
HUMIDITY
AIR
STATUS
better air circulation

9
Before going to bed, you can simply press the SLEEP
button and unit will operate in SLEEP mode and bring you
a sound sleep.
3 hours then stops. Temp. is lower than temp. setting
so that room temperature won’t be too high for your
sleep.
Approx. 6hrs
Temp. setting
Decreases 2 ºC
Decreases 2 ºC
Unit stop
Rises 1 ºC
Rises 1 ºC
Rises 1 ºC
Temp. setting
In COOL, DRY mode
In HEAT mode
Unit stop
1 hr
1 hr
1 hr
3 hrs
3 hrs
1 hr
SLEEP
operation starts
SLEEP
operation starts
SLEEP
operation stops
SLEEP
operation stops
Press SLEEP
button.
Operation Mode
1. In COOL, DRY mode
1 hours after SLEEP mode
starts, temp. will become 1 ºC
higher than temp. setting. After
another 1 hours, temp. rises by
1 ºC further. The unit will run for
further 6 hours then stops Temp.
is higher than temp. setting so
that room temperature won’t be
too low for your sleep.
2. In HEAT mode
1 hours after SLEEP mode starts, temp will become
2 ºC lower than temp. setting. After another 1 hours,
temp decrease by 2 ºC further. After more another
3 hours, temp. rises by 1 ºC further. The unit will run for
further
3. In SMART mode
The unit operates in corresponding sleep mode, which
adapted to the automatically selected operation mode.
4. When quiet sleeping function is set to 8 hours the
quiet sleeping time can not be adjusted. When TIMER
function is set, the quiet sleeping function can’t be
set up. After the sleeping function is set up, if user
resets TIMER function, the sleeping function will be
cancelled; the machine will be in the state of timing-
on, if the two modes are set up at the same time, either
automatically, and the other mode will be cancelled.
Power Failure Resume Function
not start running unless 3 minutes have elapsed. When
the power resumes after power failure, the unit will run
automatically, and 3 minutes later the compressor starts
running.
Note to the power failure resume:
enter function after hearing four sounds. And press the
this function after hearing two sounds.
SLEEP
Operation
9
SMART
HUMIDITY
AIR
STATUS

10

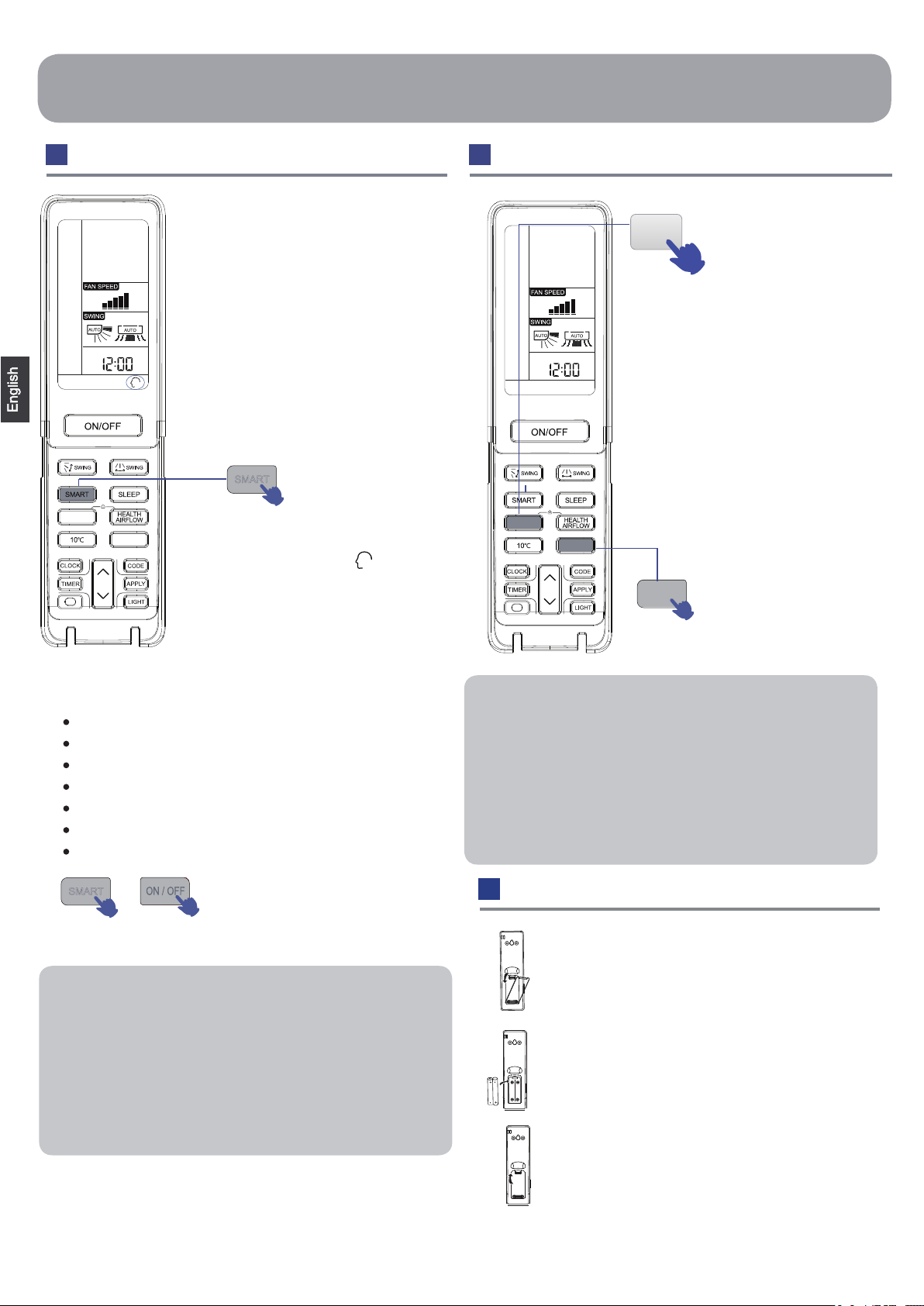

(This function is unavailable on
some models)
One key can give you a
comfortable room!
The air conditioning unit can
judge the indoor temperature and
humidity, and make the adjustment
accordingly.
SMART start
or SMART stops
Press ON/OFF button, unit starts.
Press SMART button “ ” is
displayed on the remote controller.
Under the cooling, heating and dehumidifying mode,
press the smart key to enter the smart function. Under
the smart running mode, when the air conditioning is
running, it will automatically select cooling, heating,
dehumidifying or blowing mode as When the smart
function is running, press the “cooling” “heating” or
“dehumidifying” key to switch to the other mode, you
will exit from the smart function.
SMART FRESH
SMART Defrost
SMART FAN SPEED
SMART FAN HEALTH
SMART DRY
SMART SOFT
SMART Control temperature
SMART Operation
AIR STATUS and SMART HUMIDITY
SMART
Operation
10
SMART
HUMIDITY
AIR
STATUS
SMART
HUMIDITY
AIR
STATUS
AIR STATUS function
AIR STATUS
If you press the button of query, the LCD display will show
the temperature of the indoor environment.
If you press the button twice continuously, the LCD display
will show the humidity value of the indoor air;
If you press the button three times continuously, the LCD
display will show the PM2.5 concentration of the indoor air.
Note: Time intervals of continuous button pressing shall be
less than 5s.
Press SMART HUMIDITY
button
SMART
HUMIDITY
In the SMART Humidity mode, the
When the fan speed is displayed as
smart humidity mode and the air conditioner
regulates automatically and controls the
within 40%-55%. If you manually adjust the
fan speed to high/medium/low position,
If the fan speed is set to automatic,then
the machine enters smart humidity mode again.
thermoregulation range is 16°C-30°C.
automatic (default initial state), it is
relative humidity of the indoor environment
then the AC enters ordinary drying.
Operation
Loading of the battery
Remove the battery cover;
1
Load the batteries as illustrated. 2 R-03 batteries,
resetting key (cylinder); Be sure that the loading is
in line with the “+”/“-”;
Load the battery, then put on the cover again.
2
3

11
11
1.Brief introduction of the mechanism (the figure is the sketch of the parts, please refer to the real object)
2. Install the filter element
①
Unplug the power plug of the air conditioner,
and open the panel upwards by about 90° (the
panel will automatically get stuck).
②
Snap the upper buckle of the filter element into
the upper bracket slot and ensure that it is in
place.
③
Snap the lower buckle of the filter element into
the lower bracket slot and ensure that the buckle
is in place.
④
Install the other filter element in the right frame
according to the operating steps ② and ③;
Check and make sure that the filter element is
flush with the arc surface of the mounting
frame.
Note: Before the installation and removal of the dust removal filter element, the air conditioner should exit
3
Lower buckle
Lower bracket slot
Right mounting frame
Upper buckle
Upper bracket slot
Left mounting frame
3. Remove the filter element
Turn the lower buckle of the filter element by hand to
make the buckle out of the slot, rotate it in the
direction shown in the figure and pull the filter
element out.
LR
L
the purification state and shut down after 5 minutes to replace the filter element.
Do not cut off the power supply directly and replace the filter element when the air conditioner is in
the process of purification.
The operating steps of the filter element on the right are the same as those of the filter element on
the left.
The IFD filter elements include a left one and a right one (L/R).
*
Operation -- Installation and removal of IFD *

12

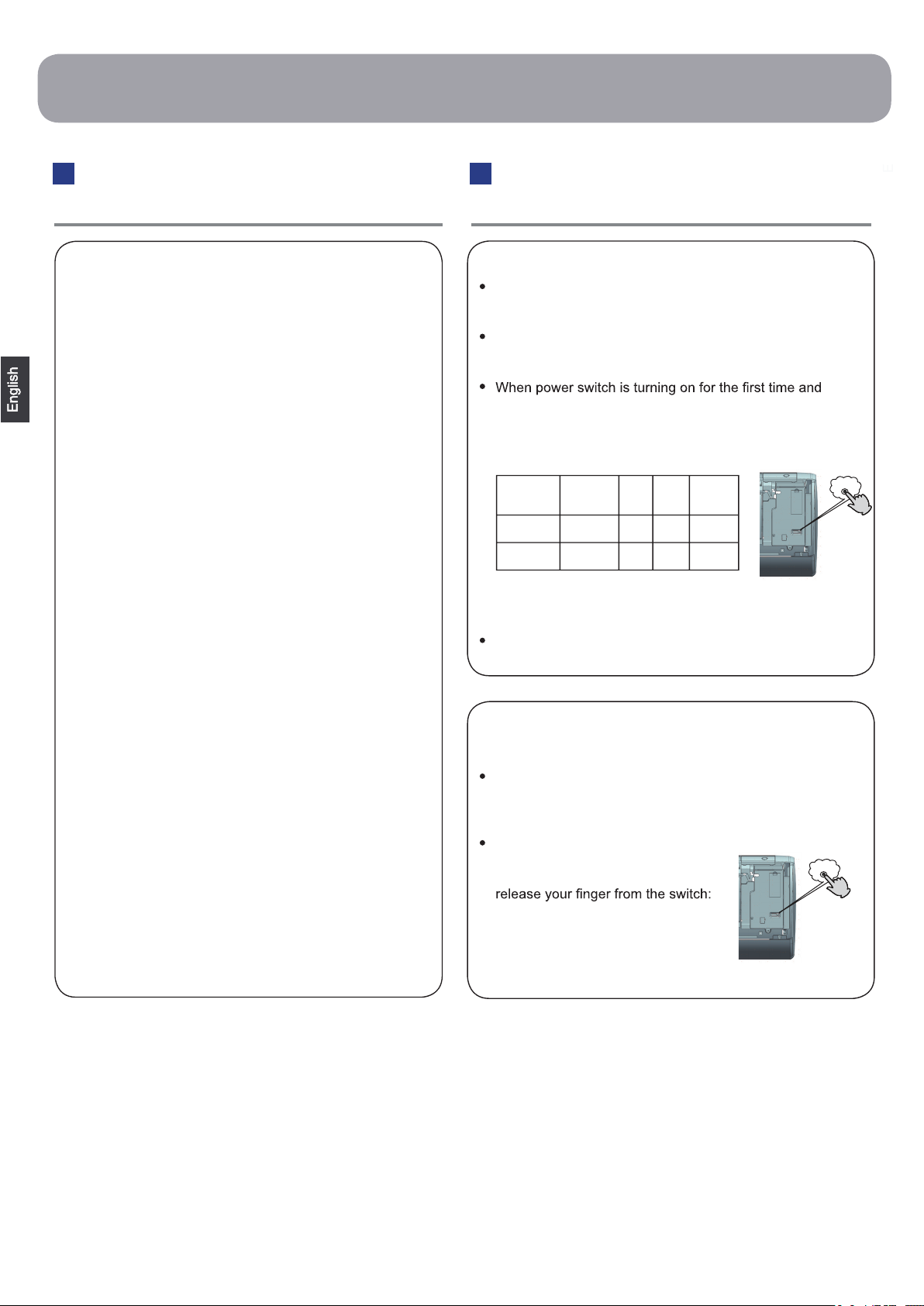

ON/OFF Operation:
Use this operation only when the remote controller is
defective or lost, and with function of emergency running,
air conditoner can run automatically for a while.
When the emergency operation switch is pressed, the
“Pi” sound is heard once, which means the start of this
operation.
emergency operation starts, the unit will run automatically in
the following modes:
Room
temperature
Designated
temperature
Timer
mode
Fan
speed
Operation
mode
Above 24 ºC 24 ºC No AUTO COOL
Below 24 ºC 24 ºC No AUTO HEAT
It is impossible to change the settings of temp. and fan
speed, It is also not possible to operate in timer or dry mode.
Test operation:
Test operation switch is the same as emergency switch.
Use this switch in the test operation
when the room temperature is below
16 ºC, do not use it in the normal
operation.
Continue to press the test operation
switch for more than 5 seconds.
After you hear the “Pi” sound twice,
Pi
the cooling operation starts with the
air flow speed “Hi”.
Pi Pi
IFD dust removal module can be used all the time,
generally does not need to be replaced, and can be
washed. According to the actual conditions of the air
conditioner, just clean it by yourself or when prompted
by the APP. Additionally, clean the dust on the
negative ion emitter on the right inner wall of the air
duct with dry brush and other items.
When disassembling and cleaning the IFD module,
cut off the power supply in advance, and wait 1
minute before removing the dust screen for cleaning!
1. Shut down the machine and switch off the power
switch, hold the handle of the air inlet grilles to open
them, and remove the dust screen;
2. Hold the handle on the IFD dust removal module
and pull the module out;
3. After the dust removal module is taken out, place it
on a flat surface and use the nozzle of the vacuum
cleaner or the suction head with a brush to clean the
dust along the surface of the module. Suck both sides
of the module.
4. Add warm water in a basin and gently shake the
module in the water to clean it.
5. Let the module soak in water for 2-3 minutes, do
not take soak it for a too long time, then rinse the
module with clean tap water, shake off the water in
the module, and place it on a dry towel.
6. After the IFD dust removal module becoming
completely dry and without water, load it into the
machine, and then install the dust screen.
Notes:
1. After installation of the air conditioner, the installer
shall load the IFD dust removal module into the air
conditioner.
2. After cleaning, color of the module cannot restore to
its original condition, but this will not affect its
performance.
3. Dust removal effects of IFD relate closely to the
room structure, room size and pollutants content in
the room. The effects may vary depending on different
models and environments.
4. IFD dust removal module must be installed in place
before operation of the machine. It is prohibited to
operate the machine without installing the dust
removal module.
12
Operation
ON/OFF operation and
test operation
Care and cleaning of IFD dust
removal module

13
56°C Sterilization
When the 56°C Sterilization function is required, you can activate it through the Inventor
Control app.
Introduction to 56°C Sterilization
Stage 1 - 56°C Sterilization: to remove dirt away this function freezes the evaporator with
moisture in the air, and removes dirt during the melting process.The hydrophilic aluminium
coating with smaller angle (α≈5°) helps increase water drainage eciency.)
Stage 2 - 56°C High Temperature Sterilization: It utilizes smart temperature monitoring and
frequency control technology to adjust the compressor operation, so that we maintain the
evaporator temperature at high temperature for over 30mins to kill any bacteria and virus inside
the air conditioner.
Stage 3 - Rapid evaporator cooling to enhance the Sterilization Performance: The foil surface
is coated with silver nano-particles which has an anti-bacterial eciency up to 99%.
Attention:
•The function lasts 60-80 minutes.
•Hot air may come out during the process when evaporator is heated to 56°C or maintains at
56°C in summer.
•This function may cause changes in room air temperature in winter.
•When outdoor ambient temperature is above 36°C, the function cannot be performed.
Instead, Self Clean function will be turned on and lasts 21mins when 56°C Sterilization is
turned on.
SELF-CLEAN Operation
Functional description: The purpose of this function is to clean the evaporator.
Entry and exit:
If this function is needed, you can activate it through the Inventor Control app.
Press SELF CLEAN button to enter this function. The display will show “CL” on the panel of the
indoor unit and on the remote controller. Maximum running time in this function is no more than
21 minutes. This function will exit automatically with a sound twice, then the unit return to original
state. During SELF CLEAN operation, pressing the button repeatedly will not exit the process.
Press the “power” button to exit this mode.
Note:
1. This function is invalid in timer / sleep mode.
2. After this mode starts, the air volume may reduce, have no airow, or even cold airow blowing.
3. It is normal if the unit make some sound when the air expands with heat and contract with cold.
4. The “CL” display time may last dif ferently on the remote controller and panel.
5. If the outside ambient temperature is below zero, error code “F25“ may be show up during self-
cleaning operation,which is normal protection, please turn of f the power and restart after 10
seconds.
6. The best condition to run this mode, is when the temperature is 20°C~27°C and the humidity is
35%~60% indoors, the temperature is 25°C~38°C (cooling season) outdoors.
7. It is hard for the air to frost if the air is too dry (humidity ~20%) and if the humidity is too high
(humidity ~70%) the condensate water may increase.

14
Before you start:
lVerify that the router is broadcasting at 2.4GHz.
lIf the router has dual band broadcasting, verify that the network names (SSIDs) are dierent.
For additional help, contact your router/internet provider.
lVerify that the Wi-Fi password is WPA2-PSK encrypted, and the authorization type is set to AES.
lMake sure that the router is close to the air conditioner for unhindered pairing prossess and
wireless operation.
Step 1: Download and install the “Inventor Control” application from the Google Play Store or IOS
App Store.
Step 2: Select “Register” to create a new
account or “Log in with Existing Account”
Notes:
Carefully read the Privacy Policy and
select “Agree” to continue.
To create an account, an email or a
mobile number are required. Enter the
code that you received in your registered
email or phone number, in the “Enter
Verication Code” eld to proceed with
the pairing process.
Step 3: To add the device, select “My
appliances” and press “+” on the top right
corner, or “Add Device”. Select on the left
side the “Air Conditioner” option, and
select the model of the air conditioner you
want to pair.
Pair the Air Conditioner
with the Inventor Control application

15
Step 4: Select the Wi-Fi
Network and enter the
password. Press Conrm
to proceed. The pairing
process may take some
time.
Note: The pairing
indication on the display
of the air conditioner, may
disappear during this step.
Step 7: Press “Conrm hot
spot connection, next” as
marked in the image above
to start the pairing process.
Step 6: Press “Go to Connect” to enter your mobile
device settings. Connect to the WiFi with name (SSID)
“U-AC-XXXX”. Return to Inventor Control once connected.
Step 5: Plug in the air
conditioner to the power
supply and turn it on. Set the
air conditioner to Cooling
Mode, Low Fan Speed and
30°C Temperature. The
indication on the display of
the air conditioner will start
blinking. Press Conrm to
proceed.
Troubleshooting:
If the pairing process is not successful:
lVerify that the router is broadcasting at 2.4GHz.
lIf the router has dual band broadcasting, verify that the
network names (SSIDs) are dierent. For additional help,
contact your router/internet provider.
lVerify that the Wi-Fi password is WPA2-PSK encrypted, and
the authorization type is set to AES.
lMake sure that the router is within WLAN range of the air
conditioner and no repeaters are installed.
lPower o the router, the air conditioner, and the device
(tablet or mobile) and allow 5 minutes.
lRestart the pairing process from Step 2.
lIf the pairing is not successful, repeat the process with a
dierent smart device (tablet or mobile).
lContact Inventor’s After Sales Dept.

16
The products are fulfilled with the requirements in the
directive 2011/65/EU of the European parliament and of
council on the Restriction of the use of Certain Hazardous
Substances in Electrical and Electronic Equipment (EU
RoHS Directive)
WEEE
In accordance with the directive of the European
parliament, herewith we inform the consumer about the dis-
posal requirements of the electrical and electronic products.
DISPOSAL REQUIREMENTS:
Your air conditioning product is marked with this
symbol.This means that electrical and electronic
products shall not be mixed with unsorted
household waste. Do not try to dismantle the
system yourself : the dismantling of the air
EUROPEAN REGULATIONS
CONFORMITY FOR THE MODELS
1
1+2= kg
R32
2kg
2=
1=
B
C
D
FE
kg
A
This product contains fluorinated greenhouse gases covered by
the Kyoto Protocol. Do not vent into the atmosphere.
Refrigerant type:R32
GWP* value:675
GWP=global warming potential
Please fill in with indelible ink,
and
on the refrigerant charge label supplied with the product.
The filled out label must be adhered in the proximity of the product
charging port (e.g. onto the inside of the stop value cover).
A contains fluorinated greenhouse gases covered by the Kyoto
Protocol
B factory refrigerant charge of the product: see unit name plate
C additional refrigerant amount charged in the field
D total refrigerant charge
E outdoor unit
F refrigerant cylinder and manifold for charging
IMPORTANT INFORMATION REGA-
RDING THE REFRIGERANT USED
Contains fluorinated greenhouse gases
covered by the Kyoto Protocol
-Wireless maximum transmit power (20dBm)
-Wireless operating frequency range (2400~2483.5MHz)
Climate:T1 Voltage:220-240V
CE
All the products are in conformity with the following
European provision:
- 2014/53/EU(RED)
- 2014/517/EU(F-GAS)
- 2009/125/EC(ENERGY)
- 2010/30/EU(ENERGY)
- 2006/1907/EC(REACH)
RoHS
conditioning system,treatment of the refrigerant, of oil and of
other part must be done by a qualified installer in accordance
with relevant local and national legislation. Air conditioners
must be treated at a specialized treatment facility for reuse,
recycling and recovery. By ensuring this product is disposed
of correctly, you will help to prevent potential negative cons-
equences for the environment and humen health. Please
contact the installer or local authority for more information.
Battery must be removed from the remote controller and dis-
posed of separately in accordance with relevant local and
nationl legislation.
Wi-Fi

17
Indoor Unit Installation
Driver Torque wrench
(17mm,22mm,26mm)
Nipper
Reamer
Hacksaw Pipe cutter
Gas leakage detector or
soap-and-water solution
Hole core drill Flaring tool
Spanner(17,19 and 26mm) Knife
Measuring tape
Necessary Tools for Installation Power Source
Before inserting powerinto receptacle, check the voltage without
fail.
The power supply is the same as the corresponding nameplate.
Install an exclusive branch circuit of the power.
A receptacle shall be set up in a distance where the power cable
can be reached.Do not extend the cable by cutting it.
Selection of Installation Place
Place, robust not causing vibration, where the body can be
Place, not affected by heat or steam generated in the vicinity,
where inlet and outlet of the unit are not disturbed.
Place, possible to drain easily, where piping can be
connected with the outdoor unit.
Place, where cold air can be spread in a room entirely.
Place, nearby a power receptacle, with enough space around.
Place where the distance of more than lm from televisions,
radios, wireless apparatuses a
left.
where the indoor unit can
scent lamps in the room are lightened.
The distance between the indoor unit and the floor should be more than 2m.
The models adopt HFC free refrigerant R32
more than
10cm
more than 15cm
more than 10cm
Please be subject to the actual product purchased,the above picture is just for your reference.
If using the left side drain pipe, make sure the hole is got through.
Arrangement of piping
directions
Rear left
Left Rear
right
Right
Below
Attention must be paid to
the rising up of drain hose
FOR 09K 12K
Selection of Pipe
Drawing for the installation of indoor units

18
Indoor Unit Installation
Fix to side bar and lintel a mounting bar, Which is separately sold, and
then fasten the plate to the fixed mounting bar.
Refer to the previous article, “ When the mounting plate is fi rst fixed “,
for the position of wall hole.
Make a hole of 60 mm in diameter, slightly descending to outside the wall
Install piping hole cover and seal it off with putty after installation
1.Carryout,basedontheneighboringpillarsorlintels,a
for the plate to be fixed against the wall, then temporarily fasten the plate
with one steel nail.
2. Make sure once more the proper level of the plate, by hanging a thread
with a weight from the central top of the plate, then fasten securely the
plate with the attachment steel nail.
3. Find the wall hole location A/C using a measuring tape
When the mounting plate is fixed side bar and lintel
Fitting of the Mounting Plate and Positioning of the wall Hole
Lid for right
piping
Lid for under piping pipe
Lid for left piping
Fix with adhesive tape
Indoor/outdoor electric cable and drain hose must be bound with
efrigerant piping by protecting tape.
[ Other direction piping ]
Cut away, with a nipper, the lid for piping according to the piping
direction and then bend the pipe according to theposition of wall
hole. When bending, be careful not to crash pipes.
Connect beforehand the indoor/outdoor electric cable, and then
pull out the connected to the heat insulation of connecting part
specially.
proper leveling
Making a Hole on the Wall and Fitting the Piping Hole Cover
Drawing of pipe
Installation of the Indoor Unit
[ Rear piping ]
Draw pipes and the drain hose, then fasten them with the adhesive tape
[ Left Left-rear piping ]
In case of left side piping, cut away, with a nipper, the lid for left
piping.
In case of left-rear piping, bend the pipes according to the piping
direction to the mark of hole for left-rear piping which is marked on
heat insulation materials.
1. Insert the drain hose into the dent of heat insulation materials of
indoor unit.
2. Insert the indoor/outdoor electric cable from backside of indoor
unit, and pull it out on the front side, then connect them.
3. Coat the flaring seal face with refrigerant oil and connect pipes.
Cover the connection part with heat insulation materials closely,
and make sure fixing with adhesive tape
Hangsurelytheunitbodyontotheupper
notches of the mounting plate. Move the body
from side to side to verify its secure fixing.
In order to fix the body onto the mounting
plate,hold up the body aslant from the
underside and then put it down perpendicularly.
Remove terminal cover at right bottom corner of
indoor unit, then take off wiring cover by removing
its screws.
mounting plate
When you unload the indoor unit,please use your hand to arise
the body to leave agraffe,then lift the bottom of the body outward
slightly and lift the unit aslant until it leaves the mounting plate.
agraffe mounting plate
Heat insulation
material
Drain hose
Piping
Pipe supporting
plate
Indoor/outdoor electric cable
Indoor side Outdoor side
Ø60mm
Wall hole
Thickness of wall
(Section of wall hole) GPiping hole pipe
When the mounting plate is first fixed
Fixing the indoor unit body
Unloading of indoor unit body
Connecting the indoor/outdoor Electric Cable
Removing the wiring cover
Ø 65mm
33.3
Ø 65mm
206 116.5
