IOGear GUC2015V User manual

1
GUC2015V/GUC2020DW6
PART NO. M1110
Installation
Installation Guide
USB 2.0 External VGA Video Card (GUC2015V)
USB 2.0 External DVI Video Card (GUC2020DW6)

2
3
©2009 IOGEAR. All Rights Reserved. Part No. M1110
IOGEAR, the IOGEAR logo, MiniView®, VSE are trademarks or registered trademarks of IOGEAR, Inc. Microsoft and
Windows are registered trademarks of Microsoft Corporation. IBM is a registered trademark of International Business
Machines, Inc. Macintosh, G3/G4 and iMac are registered trademarks of Apple Computer, Inc. IOGEAR makes no warranty
of any kind with regards to the information presented in this document. All information furnished here is for informational
purposes only and is subject to change without notice. IOGEAR, Inc. assumes no responsibility for any inaccuracies or
errors that may appear in this document.

2
3
Table of Contents
Package Contents 4
Overview 5
System Requirements 6
Software Installation 7
- For Windows XP user: 7
- For Windows Vista user: 8
- For Mac OS X 10.4 and above user: 9
Conguration 10
Software Un-installation 15
Specications 16
Federal Communications Commission (FCC) Statement 18
CE Statement 20
Limited Warranty 21
Contact 22

4
5
Package Contents
GUC2015V:
1 x USB 2.0 External VGA Video Card–
1 x USB 2.0 Cable–
1 x Installation CD–
1 x User Manual–
1 x Warranty/Registration Card–
GUC2020DW6:
1 x USB 2.0 External DVI Video Card–
1 x USB 2.0 Cable–
1 x Installation CD–
1 x User Manual–
1 x Warranty/Registration Card–

4
5
Easily connect up to six monitors using a USB 2.0 Cable•
Enjoy resolutions of up to 1280 x 1024 at 32 bit color with GUC2015V USB External VGA Video Card;•
or 1600 x 1200 with GUC2020DW6 USB External DVI Video Card..
Allows for effortless multitasking•
Bus Powered - No external power supply needed•
Supports usage through powered KVMP's or USB hubs•
Overview

6
7
System Requirements
Minimum system requirements:
Computer with 1.2GHz or higher processor speed. Intel Pentium/Celeron family, or AMD K6/Athlon/•
Duron family, or compatible processor recommended.
256MB or RAM or higher (512MB recommended)•
Available USB 2.0 port•
30MB of available disk space•
Super VGA (800 x 600) or higher resolution video adapter and monitor CD-ROM or DVD-ROM•
Windows XP/Vista 32 and 64-bit OS•
Mac OS X 10.4 or higher with Intel based CPU•
The USB VGA Video Card or USB DVI Video Card support all analogue CRT and LCD monitors or displays
with a VGA connector. Monitors or displays that equipped with DVI-A or DVI-I can also be connected
using a suitable VGA to DVI adapter.

6
7
Software Installation
For Windows XP user:
Insert the included CD to the CD-ROM/1.
DVD-ROM of your computer. The installation
process will automatically load. Select the
preferred language for the installation and click
on I Accept to continue.
Restart your system after the installation2.
completes.

8
9

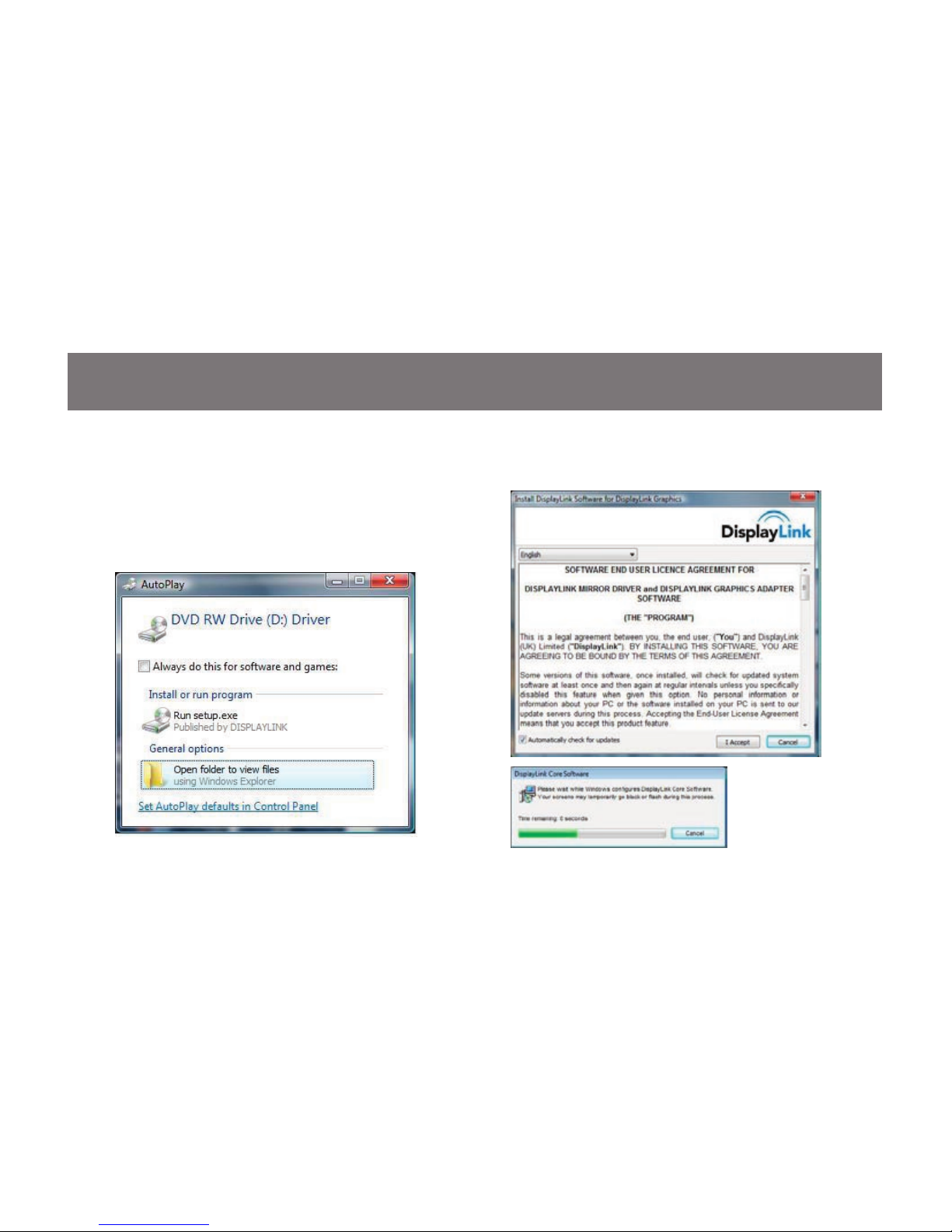

For Windows Vista user:
Insert the included CD to the CD-ROM/1.
DVD-ROM of your computer. The installation
process will automatically load.
Click on Run setup.exe to continue.
Select the preferred language for installation and2.
click on I Accept to continue.
Restart your3.
system after
installation
completes

8
9

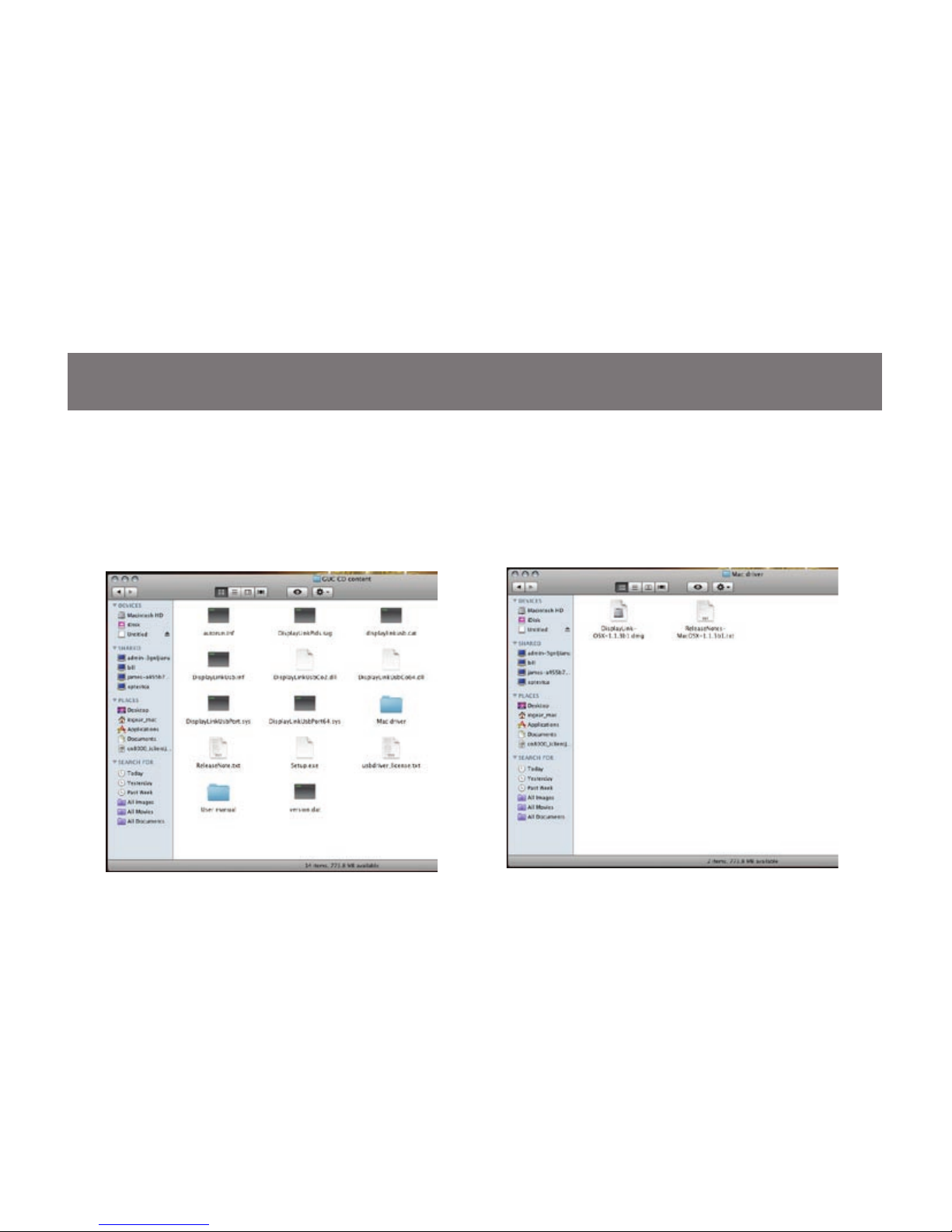

For Mac OS X 10.4 and above user:
Insert the included CD to the CD-ROM/DVD-1.
ROM of your computer. Browse through the
contentontheCDandndafoldernamed
Mac driver.
Execute the Displaylink-OSX01.1.3b1.dmg to2.
begin the installation for Mac OS.

10
11

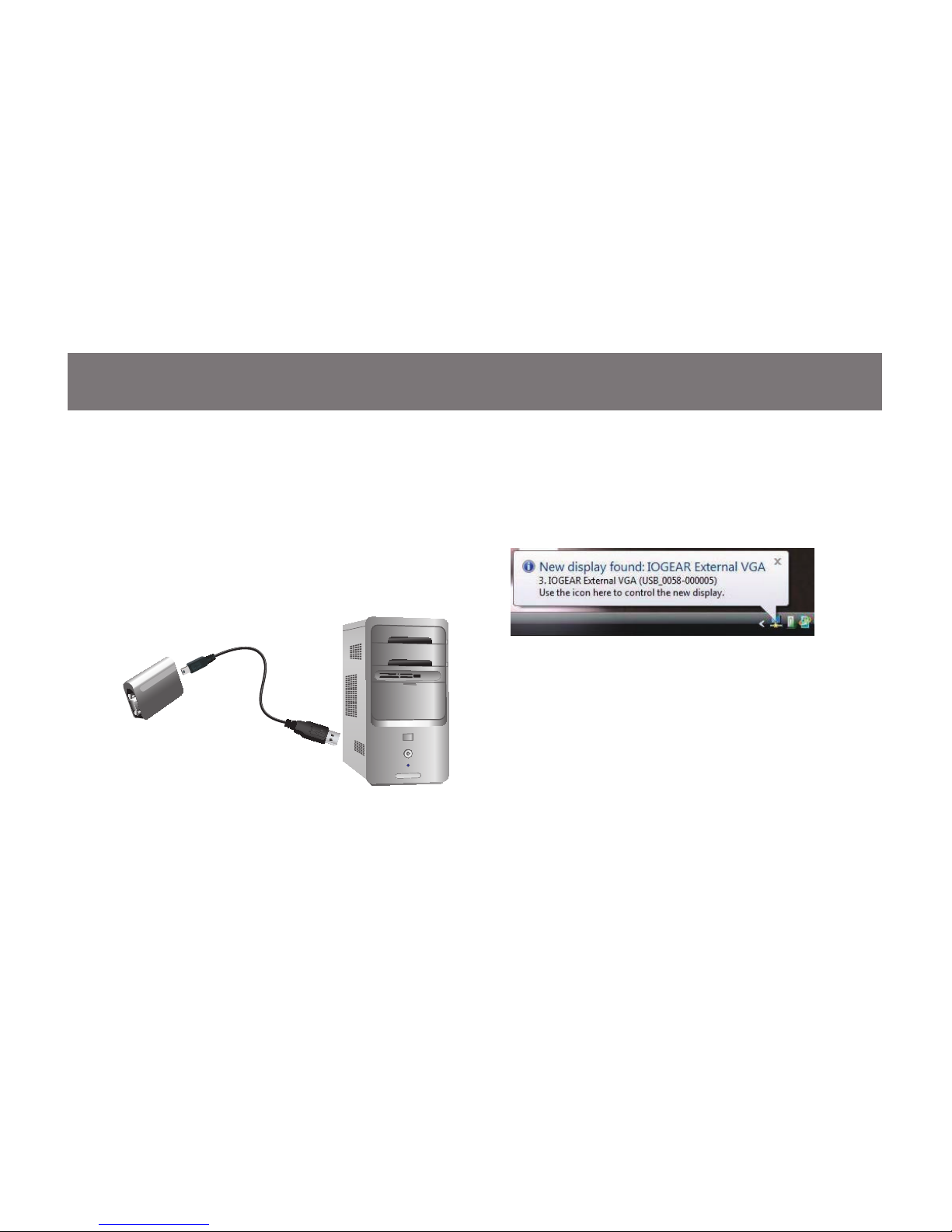

Conguration
Connect the mini-B end of the included USB1.
cable to the mini-B port on the USB External
VGA Video Card or USB External DVI Video
Card. Then connect the USB Type-A end of
the cable to any available USB port on your
computer.
For both Windows XP and Vista users:
Once plugged in, you will see a monitor icon
showing up in the system tray.
USB External VGA Video
Card (GUC2015V)
or
USB External DVI Video
Card (GUC2020DW6)

10
11

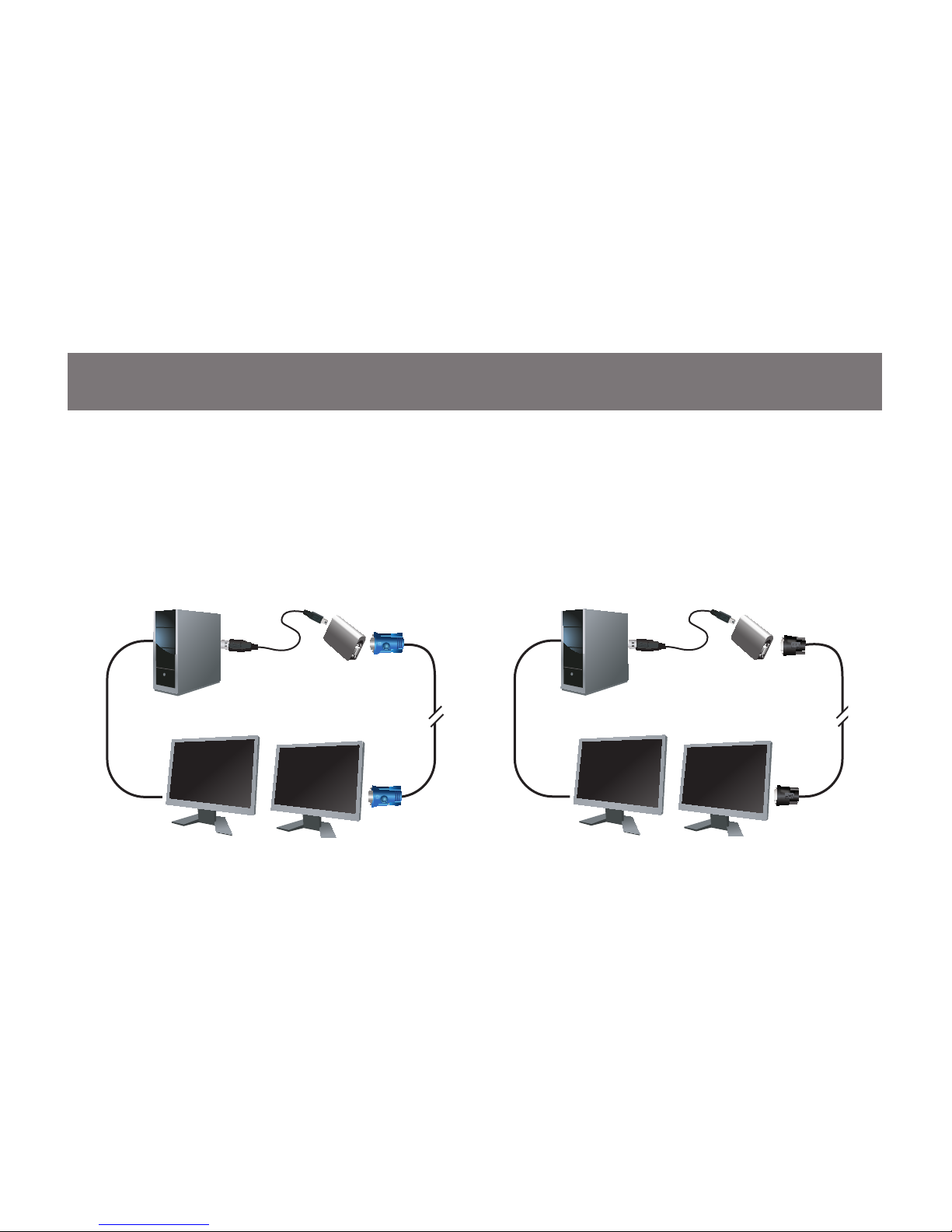

For2. GUC2015V, USB External VGA Video
Card, connect the male end of the VGA cable
(not included) to the VGA port on the USB
External Video Card. Then connect the other
male end of the VGA cable (not included) to
the VGA port on your monitor/display.
For GUC2020DW6, USB External DVI Video
Card, connect the male end of the DVI cable
(not included) to the DVI port on the USB
External DVI Video Card. Then connect the
other male end of the DVI cable (not included) to
the DVI port on your monitor/display.
GUC2015V
VGA cable
(not included)
USB cable
(included)
Primary
VGA monitor
Secondary
VGA monitor
USB cable
(included) GUC2020DW6
DVI cable
(not included)
Primary
DVI monitor
Secondary
DVI monitor

12
13

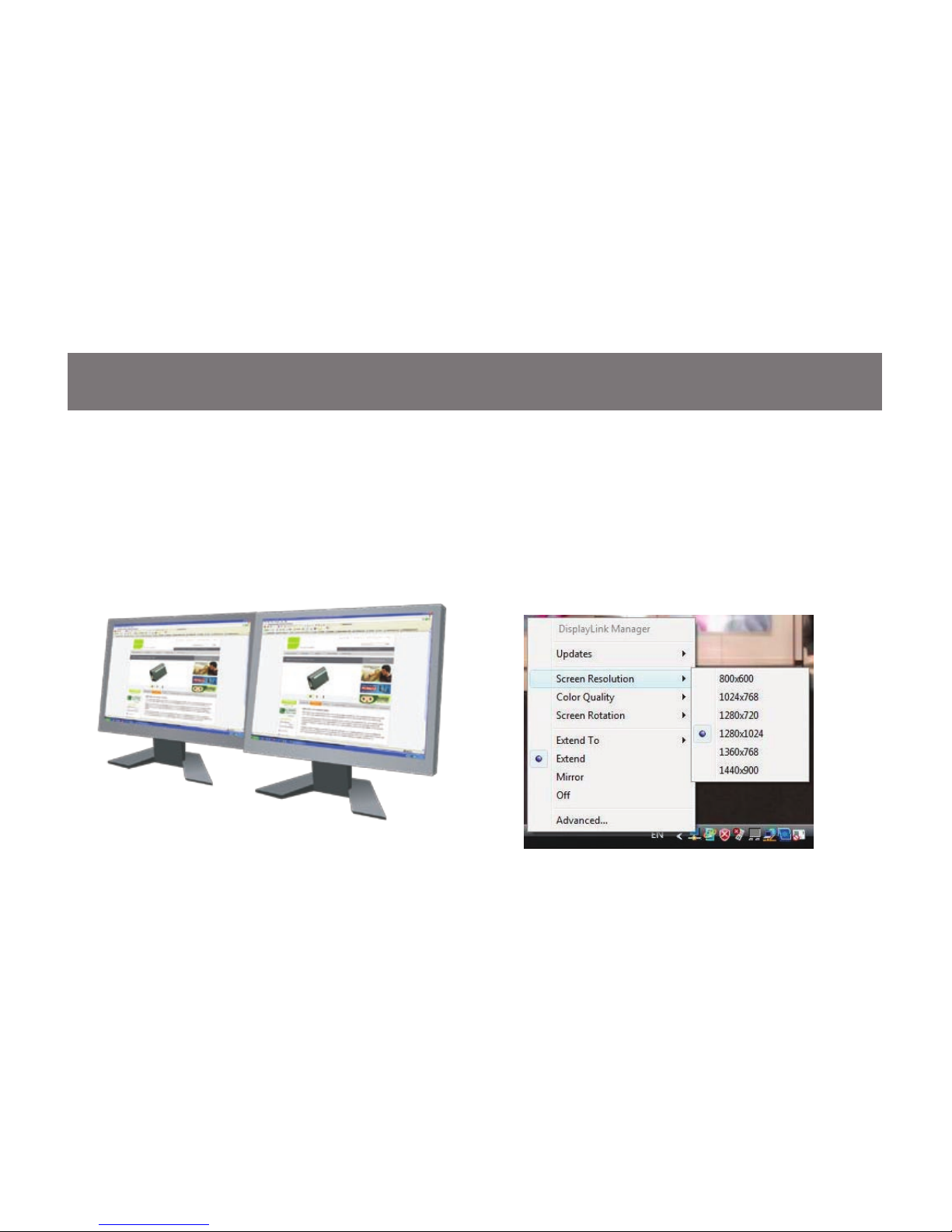

Note:
When in Extended Mode, you will see the
wallpaper displaying on the monitor/display that is
connected to the USB External VGA Video Card
or USB External DVI Video Card.
Click on the monitor icon to bring up the3.
congurationmenu.Whenconnecting
the USB External VGA Video Card or USB
External DVI Video Card to your computer, it is
conguredtofunctionastheExtendedMode
by default, and you can also change to Mirror
mode as you prefer.

12
13
When in Mirror Mode, you will see a clone
desktop displaying on the monitor/display that is
connected to the USB External VGA Video Card or
USB External DVI Video Card.
You can also adjust the screen resolution using4.
this menu. The supported resolution of your
monitor/display will show up on the right side
of the menu and you can select any preferred
setting as you wish. When resetting your
resolution, you will see your monitor/display
ickersorturnsintoblackforfewseconds,
then it will resume back to normal.

14
15
Anotherwaytocongureyoursettingisto5.
select Advanced… and it will bring up the
Display Settings window. You may apply
different adjustments to your USB External VGA
Video Card or USB External DVI Video Card.

14
15
Software Un-installation
For Windows XP user:
Click on Start, then select Control Panel. Double
click on Add/Remove Programs then select
Displaylink Graphics and click on Remove button
to uninstall the program.
Whenitisnished,restartyourcomputer.
For Windows Vista user:
Click on the Vista icon on your desktop, then se-
lect Control Panel. Double click on Programs and
Features. Select Displaylink Graphics and click on
Uninstall button to uninstall the program. When it
isnished,restartyourcomputer.

16
17
Specications
Function GUC2015V
Power Consumption 5V
Video Resolution 1280 x 1024
Ports 1 Female VGA / 1 USB 2.0 Type mini-B
Operating Temperature 68 ~ 122 ° F ( 20 ~ 50 ° C)
Storage Temperature 32 ~ 158 ° F ( 0 ~ 70 ° C)
Operating System Support Windows XP, Vista
USBspecicaton 2.0 compliant
Humidity 20-80% RH, (Non Condensing)
Power Connections Optional Power Port
Connectors
USB 1
Video Ouput 1
Color Depth 32-bit true color
GUC2015V USB External VGA Video Card

16
17
Function GUC2020DW6
Power Consumption 5V
Video Resolution Max. 1600 x 1200
Ports 1 Female DVI / 1 USB 2.0 Type mini-B
Operating Temperature 68 ~ 122 ° F ( 20 ~ 50 ° C)
Storage Temperature 32 ~ 158 ° F ( 0 ~ 70 ° C)
Operating System Support Windows 2000, XP, Vista
USBspecicaton 2.0 compliant
Humidity 20-80% RH, (Non Condensing)
Power Connections Bus Powered
Connectors USB: 1, Video: 1
Video Connections Input: USB, Output: DVI
Power Mode USB
Color Depth 32-bit true color
GUC2020DW6 USB External DVI Video Card

18
19
Federal Communications Commission (FCC) Statement
15.21
Youarecautionedthatchangesormodicationsnotexpresslyapprovedbythepartresponsiblefor
compliance could void the user’s authority to operate the equipment.
15.105(b)
his equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

18
19
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOL-
LOWING TWO CONDITIONS:
1. this device may not cause interference and
2. this device must accept any interference, including interference that may cause undesired operation
of the device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End
usersmustfollowthespecicoperatinginstructionsforsatisfyingRFexposurecompliance.Thistransmit-
ter must not be co-located or operating in conjunction with any other antenna or transmitter.

20
21
This device has been tested and found to comply with the requirements set up in the council directive on
the approximation of the law of member states relating to EMC Directive 89/336/EEC, Low Voltage
Directive 73/23/EEC and R&TTE Directive 99/5/EC.
The product has been approved for LVD and covered the following countries:
Belgium, Denmark, France, Germany, Italy, Portugal, U.K., Spain, Sweden
CE Statement
