Ion House party User manual

Confidential ION Audio Service Manual

ION Audio

House Party

[iPA18D]

Service Manual

v1.0

2015.03.17

The information in this document contains privileged and confidential information. It is intended

only for the use of those authorized by ION Audio. If you are not the authorized, intended

recipient, you are hereby notified that any review, dissemination, distribution or duplication of

this document is strictly prohibited. If you are not authorized, please contact ION Audio and

destroy all copies of this document. You may contact ION Audio at suppo[email protected].

ATTENTION!

This document contains sensitive proprietary

information.

All recipients must have a current non-disclosure

agreement on file with ION Audio.

Do not make illegal copies of this document.

Confidential ION Audio Service Manual

Preface

This document is intended to assist the service technician in the operation, maintenance and

repair of the ION Audio device. Together with the User Reference Manual, this document

provides a complete description of the functionality and serviceability of the Device. Any

comments or suggestions you may have pertaining to the document are welcome and

encouraged.

Read This!

In addition to any purchase price that ION Audio may charge as consideration for ION Audio

selling or otherwise transferring this service manual (“Manual”) to you, if you are not a service

and repair facility (“Service Center”) authorized by ION Audio in writing to be an authorized

Service Center, ION Audio sells or transfers the Manual to you on the following terms and

conditions:

Only Service Centers authorized by ION Audio in writing are authorized to perform service and

repairs covered by an ION Audio warranty (if any), and transfer of the Manual to you does not

authorize you to be an authorized Service Center. Therefore, if you perform, or if the Manual

is used to perform, any service or repairs on any ION Audio product or part thereof, any

and all warranties of ION Audio as to that product and any service contract with ION Audio

for that product shall be voided and shall no longer apply for such product, even if your

services or repairs were done in accordance with the Manual.

All service or repairs done by you or with reference to the Manual shall be solely your

responsibility, and ION Audio shall have no liability for any such repairs or service work. All such

service or repairs are performed at the sole risk of the person performing the service or

repairs. You agree that all such work will be performed in a competent, professional and safe

manner at all times and to indemnify and fully hold ION Audio and its successors and assigns

harmless in the event of any failure to so perform.

Your purchase of the Manual shall be for your own ultimate use and shall not be for purposes of

resale or other transfer.

As the owner of the copyright to the Manual, ION Audio does not give you the right to copy the

Manual, and you agree not to copy the Manual without the written authorization of ION Audio.

ION Audio has no obligation to provide to you any correction of, or supplement to, the Manual,

or any new or superseding version thereof.

ION Audio shall have the right to refuse to sell or otherwise transfer repair parts or materials to

you in its sole discretion. You shall not use, sell or otherwise transfer spare or replacement parts

supplied by ION Audio to you (i) to repair or be used in products manufactured for or by third

parties or (ii) to any third parties for any purpose.

You shall not make any warranties or guarantees with respect to the products of ION Audio or

the use thereof on behalf of ION Audio or in your own name.

The foregoing describes the entire understanding related to sale or transfer of the Manual to you,

and no other terms shall apply unless in a writing signed by an authorized representative of ION

Audio.

All Trademarks are property of their respective companies.

Confidential ION Audio Service Manual

Warnings

TO REDUCE THE RISK OF ELECTRIC SHOCK OR FIRE, DO NOT EXPOSE

THIS PRODUCT TO WATER OR MOISTURE.

The arrowhead symbol on a lightning flash inside a triangle is

intended to alert the user to the presence of uninsulated

“dangerous voltage” within the enclosed product which may be of

sufficient magnitude to constitute a risk of electric shock to

persons.

The exclamation point inside a triangle is intended to alert the user

to the presence of important operating, maintenance and servicing

instructions in the literature which accompanies the product.

REPAIR BY ANY PERSON OR ENTITY OTHER THAN AN AUTHORIZED ION

AUDIO SERVICE CENTER WILL VOID THE ION AUDIO WARRANTY.

PROVISION OF THIS MANUAL DOES NOT AUTHORIZE THE RECIPIENT TO

COMPETE WITH ANY ION AUDIO DISTRIBUTOR OR AUTHORIZED REPAIR

SERVICE CENTER IN THE PROVISION OF REPAIR SERVICES OR TO BE OR

MAKE REPAIRS AS AN AUTHORIZED SERVICE CENTER.

ALL REPAIRS DONE BY ANY ENTITY OTHER THAN AN AUTHORIZED ION

AUDIO SERVICE CENTER SHALL BE SOLELY THE RESPONSIBILITY OF

THAT ENTITY, AND ION AUDIO SHALL HAVE NO LIABILITY TO THAT

ENTITY OR TO ANY OTHER PARTY FOR ANY REPAIRS BY THAT ENTITY.

Regarding the Power Supply Fuse

Caution: The product under service may employ the use of a

replaceable fuse. Danger of fire or electrocution if fuse is

incorrectly replaced. Replace with only the same type or equivalent

type recommended by the equipment manufacturer.

Regarding the Internal Battery

Caution: The product under service may employ the use of a

internal battery. Danger of explosion if battery is incorrectly

replaced. Replace only with the same or equivalent type

recommended by the manufacturer. Dispose of used batteries

according to the manufacturer’s instruction.

Confidential ION Audio Service Manual

Safety Instructions

Carefully read the applicable items of the operating instructions and these safety suggestions

before using this product. Use extra care to follow the warnings written on the product itself and

in the operating instructions. Keep the operating instructions and safety suggestions for

reference in the future.

1. Power Source. The product should only be connected to a power supply which is

described either in the operating instructions or in markings on the product.

2. Power Cord Protection. AC power supply cords should be placed such that no one is likely

to step on the cords and such that nothing will be placed on or against them.

3. Periods of Non-use. If the product is not used for any significant period of time, the

product’s AC power supply cord should be unplugged from the AC outlet.

4. Foreign Objects and Liquids. Take care not to allow liquids to spill or objects to fall into

any openings of the product.

5. Water or Moisture. The product should not be used near any water or in moisture.

6. Heat. Do not place the product near heat sources such as stoves, heat registers, radiators

or other heat producing equipment.

7. Ventilation. When installing the product, make sure that the product has adequate

ventilation. Improperly ventilating the product may cause overheating, which may damage

the product.

8. Mounting. The product should only be used with a rack which the manufacturer

recommends. The combination of the product and rack should be moved carefully. Quick

movements, excessive force or uneven surfaces may overturn the combination which may

damage the product and rack combination.

9. Cleaning. The product should only be cleaned as the manufacturer recommends.

10. Service. The user should only attempt the limited service or upkeep specifically described in

the operating instructions for the user. For any other service required, the product should be

taken to an authorized service center as described in the operating instructions.

11. Damage to the Product. Qualified service personnel should service the unit in certain

situations including without limitation when:

a. Liquid has spilled or objects have fallen into the product,

b. The product is exposed to water or excessive moisture,

c. The AC power supply plug or cord is damaged,

d. The product shows an inappropriate change in performance or does not operate

normally, or

e. The enclosure of the product has been damaged.

Confidential ION Audio Service Manual

UL version (US)

Part number Part name Description Unit Q'ty T/P

DR001537

Final Assembly IPA18D Final Assembly PCS 1 3.6706

20020107 Top panel DN-PC2077,ABS,UL94V-2, black painting, ROHS,V1.0 PCS 1 0.8298

20160019 flue pipe DN-PT2014,ABS(UL94HB),black, texture,ROHS,V1.0 PCS 2 0.1592

54020049 Top panel DN-PC2077,ABS(UL94-HB),texture, white silkscreen,ROHS,V1.0 PCS 1 0.0017

54040005 Rear panel

DN-PC4010,ABS(UL94HB), texture, black, white

silkscreen,ROHS,V1.0

PCS 1 0.0017

20040020 Rear panel

DN-PC4010,ABS(UL94V-2),black,texture,black

painting,ROHS,V1.0

PCS 1 0.3709

30060361 Foam foam-2,EVA1030,T=1mm,black,3M glue,V1.0 PCS 1 0.022

30060362 Foam foam-3,EVA1030,T=2mm,black,3M glue,V1.0 PCS 1 0.0593

20260067 LED sleeve LED3B-10-B PCS 2 0.0164

12030031 rocker switch AN-S331,RF-1003,BBG8E2L1T PCS 1 0.254

30010016 heat-shrinkable T bush Φ4*20*0.20mm,UL,black PCS 3 0.0026

16040743 plug cable AN-W4308,2P,22#,UL1007,100MM PCS 1 0.0491

16040767 plug cable AN-W4332,6P,26#,UL1569,250mm PCS 1 0.2371

30010052 heat-shrinkable T bush Φ25*25*0.45mm,UL,black PCS 1 0.018

10080239 heat sink DN-MH0160,aluminium alloy,V1.0 PCS 1 0.3048

10070017 crystal heat sink DN-MH7011,aluminium alloy,natural,35*23.5 PCS 1 0.1694

70010082 screw AN-C10082,M3*8mm,screw headD5.5mm PCS 3 0.0061

30050006 mica plate 13*18*0.1mm, transparent PCS 1 0.0063

20500001 insulation W06-263A, fire rating:94V-0 PCS 1 0.0085

10250078 bracket PCB-2(M3) PCS 2 0.1097

20200042 switch cap DN-PN1038,ABS,black,(MT-11000)black painting,ROHS,V1.0 PCS 1 0.0762

20210118 knob DN-PN2087,ABS, chrome plating,V1.0 PCS 2 0.2337

CR010461

PRE assembly IPA18D PRE assembly PCS 1 2.5019

12040001 Touch switch AN-S401,TSF6273DJ-250AH PCS 1 0.0257

12010115 Slide switch AN-S248,SS-23D15-G6,2P3T PCS 1 0.0847

15010459

rotational

potentiometer

AN-V1162,R0915N1D2-17.5F7-7-A10K-R90,L=17.5MM PCS 2 0.4024

18040072 LED DIP,Φ3*5,Φ3BW4,blue PCS 2 0.3726

16050216 shiedled cable AN-W5211,2P,24#,UL1533,320mm,grey PCS 1 0.1135

16010378 cable AN-W285,1P,16#,UL1015,380mm,black PCS 1 0.0881

16050125 shiedled cable AN-W5123,3P,24#,UL2547,50mm PCS 1 0.1016

16050215 shiedled cable AN-W5210,2P,26#,UL1533,170mm,grey PCS 1 0.0881

16040800 plug cable AN-W4360,2P,24#,UL1007,200mm PCS 1 0.0474

16010184 cable AN-W13N,3P,24#,UL1007,200mm PCS 1 0.066

24100001 magnetic bead FPR011-08303507,1.6uH±25%,3.5*7*0.8 PCS 1 0.0203

40370002 male jack AN-JP401,XH2.5-3P,HT-2.5-03P-01A,180degree,P=2.5mm) PCS 1 0.0084

40370149 male jack AN-JP418,2021-02 PCS 1 0.0058

40370001 male jack AN-JP401,XH2.5-2P,2532-02 PCS 2 0.0122

40030051 6.35 jack AN-J0350,SJ6305-5P PCS 1 0.1761

40040017 3.5 jack AN-J0418,PJK-0358, silver plating PCS 1 0.1372

17020004

sub electrolytic

capacitor

0.22uF/50V,±20%,-40/+85℃,Φ4*7mm,P=1.5mm,black, PCS 2 0.0143

17020063

sub electrolytic

capacitor

100uF/16V,±20%,-40/+85℃,Φ5*7mm,P=2.0mm,black, PCS 5 0.0549

17020032

sub electrolytic

capacitor

10uF/50V,±20%,-40/+85℃,Φ5*7mm,P=2.0mm,black, PCS 7 0.0512

17020061

sub electrolytic

capacitor

220uF/16V,±20%,-40/+85℃,Φ6.3*7mm,P=2.5mm,black, PCS 1 0.011

17010512 electrolytic capacitor 470uF/16V,±20%,-40/+85℃,Φ8*12mm,P=3.5mm,black PCS 1 0.0207

17010282 electrolytic capacitor 1000uF/16V,±20%,-40/+85℃,Φ8*16mm,P=3.5mm,black PCS 1 0.0304

17020013

sub electrolytic

capacitor

1uF/50V,±20%,-40/+85℃,Φ4*7mm,P=1.5mm,black, PCS 2 0.0134

CR010460

IPA18D PRE SMD PCS 1 1.6758

26020654 PCB PCS 1 0.5584

50050031 SMT ceramic capacitor PCS 1 0.0011

50050036 SMT ceramic capacitor PCS 7 0.0078

50050045 SMT ceramic capacitor PCS 5 0.0056

50050115 SMT ceramic capacitor PCS 3 0.0051

50050285 SMT ceramic capacitor PCS 2 0.0049

50050121 SMT ceramic capacitor PCS 1 0.0011

50050110 SMT ceramic capacitor PCS 1 0.002

50050074 SMT ceramic capacitor PCS 6 0.0096

50050332 SMT ceramic capacitor PCS 2 0.0129

50050365 SMT ceramic capacitor PCS 1 0.0054

50050343 SMT ceramic capacitor PCS 9 0.1372

11170350 SMT resistor PCS 3 0.0012

11170353 SMT resistor PCS 1 0.0004

11170364 SMT resistor PCS 4 0.0016

11170464 SMT resistor PCS 2 0.0011

11170377 SMT resistor PCS 1 0.0004

11170483 SMT resistor PCS 2 0.0011

11170388 SMT resistor PCS 3 0.0012

11170493 SMT resistor PCS 1 0.0005

11170494 SMT resistor PCS 1 0.0005

11170394 SMT resistor PCS 1 0.0004

11170506 SMT resistor PCS 1 0.0005

11170398 SMT resistor PCS 5 0.002

11170518 SMT resistor PCS 2 0.0011

11170525 SMT resistor PCS 1 0.0005

11170399 SMT resistor PCS 2 0.0008

11170406 SMT resistor PCS 11 0.0045

11171046 SMT resistor PCS 1 0.0005

11170411 SMT resistor PCS 2 0.0008

11170549 SMT resistor PCS 9 0.0049

11170416 SMT resistor PCS 2 0.0008

11171105 SMT resistor PCS 1 0.0005

11170561 SMT resistor PCS 1 0.0005

11170417 SMT resistor PCS 3 0.0012

11170421 SMT resistor PCS 2 0.0008

11170576 SMT resistor PCS 1 0.0005

11170001 SMT resistor PCS 1 0.0008

14040164 IC PCS 1 0.1229

14040897 IC PCS 1 0.0546

14010161 NPN audion PCS 4 0.1425

24040045 SMT inductor PCS 4 0.0339

24010033 SMT magnetic bead PCS 6 0.0691

24010028 SMT magnetic bead PCS 2 0.0237

40330016 connector PCS 1 0.0762

CR010357

IPA BLUETOOTH V3.0 PCS 1 3.5634

26060053 PCB PCS 1 0.1016

50050340 SMT ceramic capacitor PCS 5 0.0047

50050350 SMT ceramic capacitor PCS 1 0.001

50050386 SMT ceramic capacitor PCS 1 0.0012

50050268 SMT ceramic capacitor PCS 2 0.0019

50050334 SMT ceramic capacitor PCS 3 0.0127

50050347 SMT ceramic capacitor PCS 3 0.0102

50050365 SMT ceramic capacitor PCS 1 0.0054

50050323 SMT ceramic capacitor PCS 2 0.0169

50050343 SMT ceramic capacitor PCS 3 0.0457

11171122 SMT resistor PCS 2 0.0024

11171121 SMT resistor PCS 1 0.0005

11171116 SMT resistor PCS 1 0.0005

24040053 SMT inductor PCS 1 0.0046

24040059 SMT inductor PCS 1 0.0777

25020030 SMT crystal resonator PCS 1 0.2879

14040898 IC PCS 1 0.1829

14040899 IC PCS 1 1.89

14040835 IC PCS 1 0.1238

CR010459

IPA18D POWER&AMP IPA18D POWER&AMP ASSY PCS 1 1.4526

26010484 PCB AN-B10378,POWER&AMP,94V0,109*86*1.6m,V1.2 PCS 1 0.1031

50010064 ceramic capacitor 104,VDC50,±10%,Y5P,brownOD=11mm PCS 4 0.0975

50010051 ceramic capacitor 102,VDC50,±10%,Y5P,brownOD=5mm PCS 1 0.0035

50010057 ceramic capacitor 103,VDC50,±10%,Y5P,brown, OD=5mm PCS 2 0.0176

17010031 electrolytic capacitor 1000uF/16V,-10/+30%,-40/+105℃,Φ10*16mm,P=5mm,black PCS 1 0.0329

17010119 electrolytic capacitor 100uF/25V,±20%,-40/+85℃,Φ5*11mm,P=2mm,black, PCS 3 0.0208

17010136 electrolytic capacitor 2.2uF/50V,±20%,-40/+85℃,Φ5*11mm,P=2mm,black, PCS 2 0.0132

17010256 electrolytic capacitor 470uF/25V,±20%,-40/+85℃,Φ8*1,P=3.5mm,black, PCS 3 0.0768

50030001

metallized polyester

capacitor

102,VDC63,±5%, yellow,7.2(W)*6.5(H)*2.5(T) PCS 1 0.0242

11080021 metal jump Φ0.8*6mm PCS 2 0.0043

11080022 metal jump Φ0.8*7.5mm PCS 1 0.0022

11080028 metal jump Φ0.8*12.5mm PCS 1 0.0022

40370001 male jack AN-JP401,XH2.5-2P,2532-02 PCS 2 0.0122

40370149 male jack AN-JP418,2021-02 PCS 1 0.0058

40370197 male jack AN-JP426,2600PS-04 PCS 1 0.0152

18010017 Common diode AN-D10017,DO-41,1N4004 PCS 2 0.0125

18010009 Common diode AN-D10009,DO-35,1N4148 PCS 1 0.0039

40010022 power socket AN-J0122,DC-05-2.1 PCS 1 0.0254

14040194 IC NJM7809A,TO220 PCS 1 0.1744

14040801 IC TDA7266M, Multiwatt15,ST PCS 1 0.5723

24100001 magnetic bead FPR011-08303507,1.6uH±25%,3.5*7*0.8, PCS 1 0.0203

11130141 Carbon resistor 1/8W,100KΩ,±5% PCS 1 0.0016

11130067 Carbon resistor 1/8W,10KΩ,±5%, PCS 4 0.0062

11130040 Carbon resistor 1/8W,1KΩ,±5%, PCS 2 0.0031

11130052 Carbon resistor 1/8W,3KΩ,±5%, PCS 1 0.0016

11130169 Carbon resistor 1/4W,0Ω,±5%, PCS 2 0.0064

11130135 Carbon resistor 1/8W,15KΩ,±5% PCS 3 0.0047

11130049 Carbon resistor 1/8W,2.4KΩ,±5%, PCS 1 0.0016

11130078 Carbon resistor 1/8W,24KΩ,±5%, PCS 1 0.0016

14010039 NPN audion KTC3198-GR-AT/P,TO-92 PCS 2 0.0248

14020137 PNP audion KTA1266-GR-AT/P,TO-92,KEC PCS 1 0.0124

CR010462

IPA18D CONTROL IPA18D CONTROL ASSY PCS 1 0.4823

17010168 Electrolytic capacitor 47uF/16V,±20%,-40/+85℃,Φ5*11mm,P=2mm,black, PCS 1 0.008

17010282 Electrolytic capacitor 1000uF/16V,±20%,-40/+85℃,Φ8*16mm,P=3.5mm,black PCS 1 0.0304

24060116 Magnetic core inductor PK0608-47UH,47uH,1A, add UL sleeve PCS 3 0.1219

12040036 Touch switch AN-S436,RM-021-01A PCS 1 0.083

40370149 male jack AN-JP418,2021-02, (P=2mm,180 degree) PCS 1 0.0058

40370197 male jack AN-JP426,2600PS-04,180degree,P=2.5 PCS 1 0.0152

40370321 male jack 2600PS-06,180degree,P=2.5 PCS 1 0.0203

40370001 male jack AN-JP401,XH2.5-2P,2532-02,(180 degree,P=2.5mm) PCS 3 0.0183

40370002 male jack AN-JP401,XH2.5-3P,HT-2.5-03P-01A,180 degree,P=2.5mm) PCS 1 0.0084

40370004 male jack AN-JP401,HT-2.5-05P-01A PCS 1 0.015

40360300 Pin AN-FP364, P1022-1*04SGF11,A=2.8,L=8.8,H=2.0,P=2.0 PCS 1 0.0149

16040766 plug cable AN-W4331,2P,26#,UL1007,200mm, PCS 1 0.0339

CR010397

CONTROL SMT PCS 1 2.637

26020627 PCB PCS 1 0.5648

50050042 SMT ceramic capacitor PCS 1 0.0011

50050069 SMT ceramic capacitor PCS 8 0.0115

50050322 SMT ceramic capacitor PCS 1 0.002

50050321 SMT ceramic capacitor PCS 1 0.0186

50050353 SMT ceramic capacitor PCS 2 0.0169

11170385 SMT resistor PCS 1 0.0004

11170394 SMT resistor PCS 1 0.0004

11170406 SMT resistor PCS 6 0.0024

11170413 SMT resistor PCS 2 0.0008

11170901 SMT resistor PCS 2 0.0011

11171152 SMT resistor PCS 3 0.0112

11171153 SMT resistor PCS 1 0.0014

11170949 SMT resistor PCS 1 0.0019

11170378 SMT resistor PCS 3 0.0012

24010020 SMT magnetic bead PCS 1 0.0102

24010016 SMT magnetic bead PCS 1 0.0677

18010123 Common diode PCS 3 0.1372

18010075 Common diode PCS 1 0.0042

14010077 NPN audion PCS 1 0.0068

14060010 PFET PCS 1 0.0924

14040920 IC PCS 1 0.1125

14040900 IC PCS 1 0.3465

14040921 IC PCS 3 0.4014

14040052 IC PCS 1 0.1355

14040922 IC PCS 1 0.1008

CR010463

IPA18D LED ASSY IPA18D LED ASSY PCS 1 3.3345

26100002 PCB PCS 1 0.1887

18040187 LED VZK1WBAV12CAZ1Z4,high light,3W,red,SMD PCS 2 0.779

18040188 LED VZK1WBAG72CAZ1Z4,high light,3W,green,SMD PCS 2 0.8468

18040189 LED VZK1WBAB12CAZ1Z4,high light,3W,blue,SMD PCS 2 0.779

ER000427

IPA18D packaging ASSY IPA18D packaging ASSY PCS 1 33.109

60230001 electrical machine W-28BYJ48-018,12VDC, PCS 1 1.0331

60110041 fan DFS602012L,12V,P=2.5MM,cable length=160mm PCS 1 1.0669

60100011 antenna rubber antenna,2.4G,2DBi,black,ROHS PCS 1 0.2964

80250004 4" woofer AN-LM004,8W,4ohm,99-08-0IPA14-03 PCS 1 1.2363

80280002 tweeter AN-L28002,5W,4ohm,99-08-Y0313N-00 PCS 1 0.5081

16010188 cable AN-W13S,2P,24#,UL1007,250mm PCS 1 0.0398

16010371 cable AN-W279,2P,22#,UL1007,L=200mm PCS 1 0.0677

17050013

nonpolarity electrolytic

capacitor

4.7uF/50V,±20%,-40/+85℃,Φ6*17mm PCS 1 0.0346

16040765 cable AN-W4330,4P,22#,UL1007,450mm PCS 1 0.2015

16150041 3.5 cable AN-W1540,UL2547,26#,610mm,nickel plating,black PCS 1 0.2274

30090002 cable 2.5*80mm,black PCS 7 0.0136

10410131 grill DN-ME5092,SPCC,T=0.6mm,V1.0 PCS 1 0.5335

21010393 cabinet MDF,T=6mm blackPVC wraper,CARB,V1.0 PCS 1 4.0645

20660017 rail DN-PC6016,ABS,UL94HB,black, texture,ROHS,V1.0 PCS 2 0.1456

20630086 PC dome PC,UL94V-2, transparent,V1.0 PCS 1 0.5944

10260004 fixed bottom DN-MF26003,aluminium alloy,V1.0 PCS 1 0.1626

20460013 fixed button KY-CLT-2 PCS 1 0.0396

10360015 corner DN-ME1009,corner-1,SPCC,T=0.6mm, chrome plating,V1.0 PCS 2 0.2981

10360017 corner DN-ME1011,corner-3,SPCC,T=0.6mm,chrome plating,V1.0 PCS 6 0.9145

20660007 rail DN-PC6006,ABS,UL94HB,black,ROHS,texture,V1.0 PCS 1 0.066

20290042 bracket DN-PB0032,ABS(UL94HB)black,texture,ROHS,V1.1 PCS 1 0.1643

10330032 spring DN-MP3026, steel,V1.0 PCS 4 0.0881

10330033 spring DN-MP3026,sprint-2,steel,V1.0 PCS 1 0.0931

70090106 gasket innerΦ6*outer Φ13.5*height5mm,rubber gasket PCS 4 0.1321

30160013 rubber pad rubber pad-2,black rubber，T=2mm,Φ4*Φ12mm,V1.0 PCS 4 0.0542

20440026 interval PC19-5,Φ6.5*6.95mm PCS 4 0.0623

30060336 foam foam-2,blackEVA1030,1000*8*0.5mm,V1.0 PCS 1 0.0508

30060337 foam foam-3,blackEVA1030,1000*5*0.5mm,V1.0 PCS 1 0.0677

30060095 foam 10*1000*1mm,EVA1030black PCS 1 0.0288

30060360 foam EVA1030,T=4mm,V1.0 PCS 2 0.0115

30060338 foam foam-4,blackEVA1030,T=1.5mm,V1.0 PCS 1 0.0085

20300093 foot NF-005ST PCS 4 0.2506

70010777 screw Φ3*9mm,screw headD6mm PCS 22 0.0671

70010693 screw Φ3*12mm,screw headD5.5mm PCS 11 0.0326

70010151 screw Φ3*15mm,screw headD5.5mm PCS 8 0.0203

70010602 screw AN-C10602,Φ3*32mm,screw headD5.5mm PCS 4 0.0303

70070014 nut Φ6*M3*2.5mm PCS 2 0.003

70010129 screw AN-C10129,M3*12mm,screw headD5.5mm PCS 1 0.0064

70010747 screw Φ3*12mm,screw headD7.5mm, PCS 4 0.0149

70010006 screw Φ2.6*5mm,screw headD6mm PCS 2 0.0041

70010048 screw AN-C10048,M3*6mm,screw headD5.5mm PCS 2 0.0037

70010771 screw Φ2.5*8,screw headD10mm PCS 4 0.0149

70010605 screw Φ2.6*7mm,screw headD4.5mm PCS 2 0.0066

70010064 screw M3*6mm PCS 2 0.0102

70010770 screw M3*40,M3+Φ3.5 PCS 1 0.0762

70010661 screw AN-C10661,M3*8mm,screw headD6mm PCS 3 0.0254

70010088 screw Φ3*8mm,screw headD5.5mm PCS 1 0.0019

70090028 gasket Φ8*Φ3.2*1.0mm, steel PCS 1 0.0026

23020230 polyfoam polyfoam(top),V1.0 PCS 1 0.1694

23020231 polyfoam polyfoam(bottom)V1.0 PCS 1 0.3895

23070041 pearl wool IPA18D/WT=1mm, PCS 2 0.0508

23010151 polybag PE,440*540*0.08mm PCS 1 0.0834

23010295 polybag PE,160*260*0.025mm PCS 1 0.0046

23010413 polybag PE,60*200*0.06mm PCS 1 0.0032

22050008 desiccant 20g,DMT,SGS PCS 1 0.0254

23090443 giftbox colored printing,V1.0 PCS 1 0.8383

23031106 master carton IPA18D,A3A,T=3mm,black,V1.0 PCS 1 0.3302

90240006 label 38*10mm,V1.1 PCS 1 0.0225

90220078 label ALESIS,30*30mm,PANTONE 361C,V1.0 PCS 1 0.0032

22150001 service card ION serial,V1.1 PCS 1 0.0644

22010743 manual IPA18D, user manual,V1.0 PCS 1 0.0677

90041178 label IPA18D,38*26mm,V1.0 PCS 2 0.0152

90021146 label IPA18D,64*13mm,V1.0 PCS 4 0.0406

90200071 circle label green PCS 1 0.0017

90080001 Destination label GA0/GA1/GA2 PCS 1 0.0017

22010705 safety manual ION, safety manual,V14.7 PCS 1 0.0762

90200056 label BLACK&361CΦ30mm,V1.0 PCS 1 0.0017

90250027 CARB label ION series,64*22mm,V1.6 PCS 6 0.0203

13010098 Adapter AN-T10102,HK-X142-A12,DC12V/3A,内正外负,L=1.5m,UL,凤冠 PCS 1 5.49

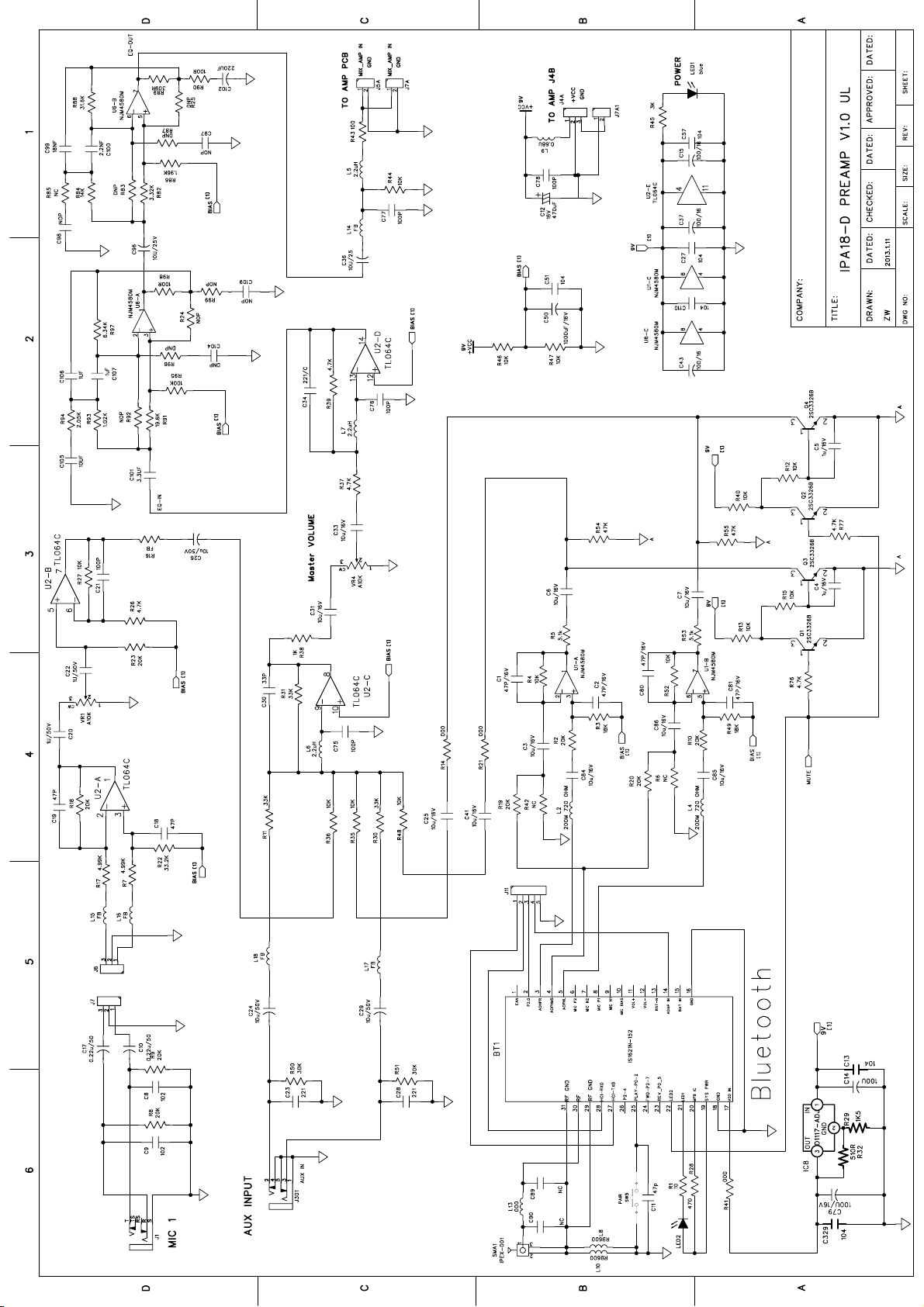

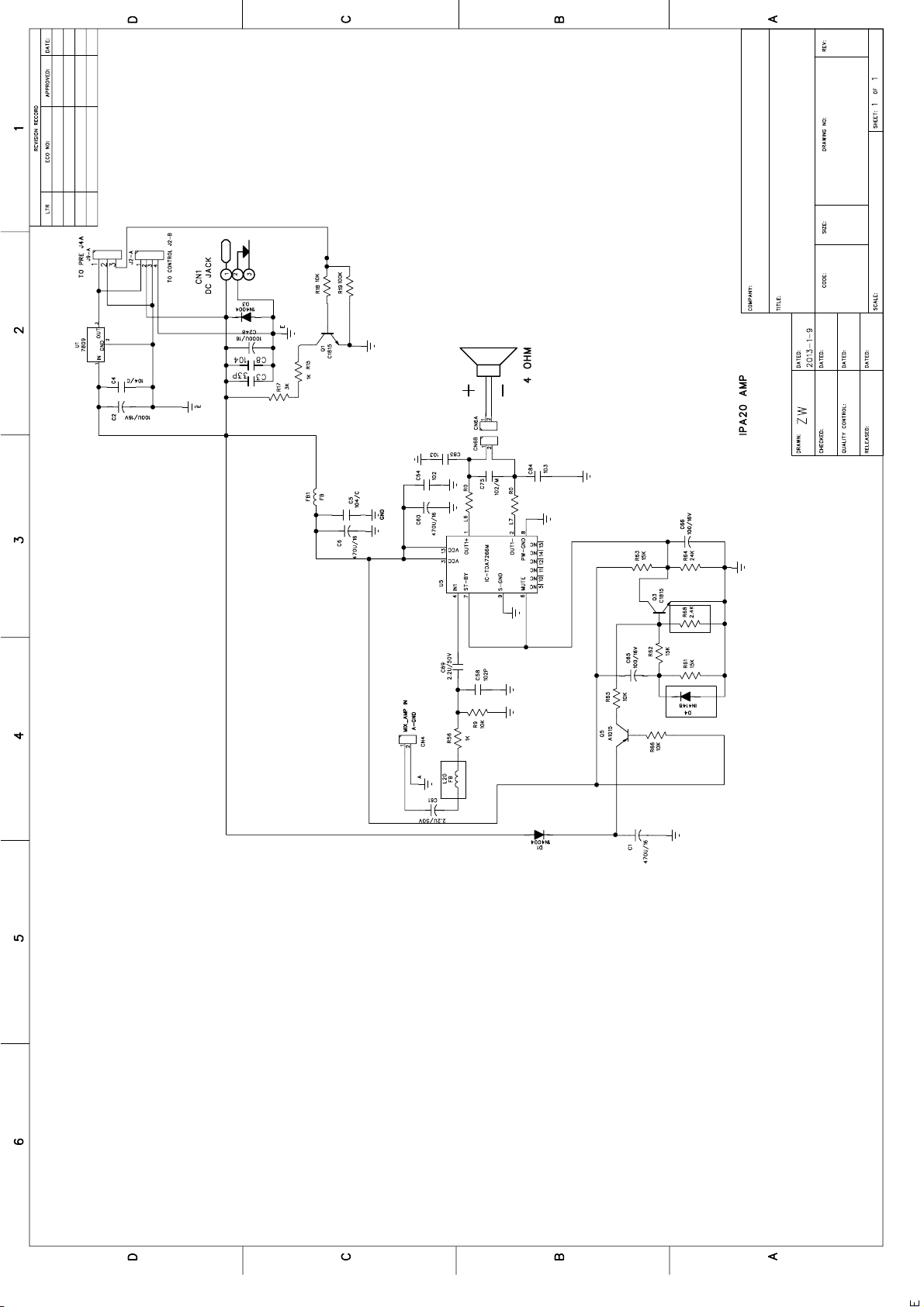

IPA22 CONTROL&LED

2013.03.06

V1.3 SHEET: OF

Zhang H

1SCALE: REV:

HOMNI ENTERPRISES CO,.LTD.

DWG NO.: PT-X-XXXXX-XX SIZE:A3

DATED:APPROVED:DATED:CHECKED:DATED:DRAWN:

TITLE:

DCBA

ABCD

COMPANY:

LIMIT SW

TO LED PCB TO J3-A

LED PCB

Simulation JACK

TO PRE J3

TO AMP J5-B

TO AMP J2-A

TO FAN

TO MOTOR

OFF

ON(party mode)

ON(beats mode)

Beats mode: would be the current program that spins fast and flashes to the

music, like HMS sample 1 when music is playing.

Party mode: would be spinning quickly even though there is no more music.

MCP6001

1PD4

2PD5

3PD6

4NRST

5OSCIN/PA1

6OSCOUT/PA2

7VSS

8VCAP

9VDD

10 PA3 11

PB5

PB4

PC3

PC4

PC5

PC6

PC7

PD1

PD2

PD3

STM8S103F3P6

1SW

2GND

3DIM 4

CSN

VIN

PT4115

D1 SS14

104

0.15

L1 47uH

104

105

104

R6 1K

J1-A 1

J1-B

1SW

2GND

3DIM 4

CSN

VIN

PT4115

D2 SS14

104

0.15

L2 47uH

1SW

2GND

3DIM 4

CSN

VIN

PT4115

D3 SS14

C10

104

0.15

L3 47uH

J3-A

10K

75.0K

C12.2uf

82pF

10K

10uf

LED1

LED2

LED3

LED4

LED5

LED6

J3-B

47uF

C11

104 C13

104

J4-A

J5-A

J2-B

10K

J7-A

R10 61.9

L4 301

L5 121

J8-A

11B

22B

33B

44B

55B

66B

77B

8E9

COM

ULN2003ADR S1

CEM4435A

J9-A

J9-B

1N4148

R14 5.6

MMBT3904

R15

R16

10K

R17

10K

R18

20K

C15

1000uF

1IN

GND

3EN

4BYP

OUT

LP2985AIM5-5.0

C14

104

R11

75K

R12

20K

C12

10uF

R13 510

R19 510

R20 510

R-

R+

+VDD

RED_LED

GREEN_LED

BLUE_LED

+5V

NRST

SWIM

+5V

SWIM

NRST

G-

G+

+VDD

GREEN_LED

B-

B+

+VDD

BLUE_LED R+

R-

G+

G-

B+

B-

+5V

R+

G+

B+

R-

G-

B-

+VDD_ON/OFF

GND

GND GND GND

+VDD

GND

+5V

DGND

+VDD

AMP_ON/OFF

+VDD_ON/OFF

AMP_ON/OFF

Confidential ION Audio Service Manual

EU version
