iPazzPort NC-812-16HV User manual

User Manual
iPazzPort cast
Model:NC-812-16HV
联力胜科技
Protocol Identification:
2.AirPlay ( )
3.Miracast
1.DLNA ( / )
Thank you for purchasing the iPazzPort iPazzCast Media Streaming Player. This is a brand new
technology and the iPazzCast will work differently with different devices. DON'T GET FRUSTRATED!
Please give us an e-mail and let us help you get the most out of your iPazzCast. We want to help! You
can e-mail us directly at [e-mail]. All inquires will be answered within 8 business
hours.
Music and video downloaded from iTunes is not available for this device
艾宝

1
1.Introduction
Unisen iPazzPort Cast is a mini engine to turn your Home HDMI
Screen become a All Media Sharing Center by Smart phone or
tablet you already own.
The iPazzPort Cast is so tiny, so portable, don't leave it at home.
You need it for sharing your favourite Video or lovely photos with
family and friends. Just plug in iPazzPort Cast to HD socket of
the HDMI Screen set with at everywhere, family home, hotel room
or business meeting room?
Yes. You still need a local WiFi connection.
iPazzPort Cast is a fully Compatible to Android and iOS operating
system, Wi-Fi display technology, it supports DLNA, Airplay and
Miracast Protocol which is enable to mirror or cast streaming
video, pictures from your Smart phone or tablet onto HDMI Screen.

2
Mini USB-Power
VGA Port
Audio out
HDMI Port
For switch mode between
DLNA and M /
Long press the restart
iracast

3
2.iPazzPort cast
Smart phone Table PC
iPazzPort cast
PC

4
HDMI
DLN A Me d i a S ha re M od e
Ai rP l a y M ir ro ri n g
Device N am e:
Status :
Local IP O:
AP SSID:
Local IP 1:
Discon ne cted from AP
Mira cast Mode
iPazzP or t-AF1EB8
192.16 8. 49.1
DLNA Media Share Mode
AirPlay Mirroring
HDMI
or VGA
3.Start up
(Recommended)
or
USB
Power
Screen
Power
Adapter
(Recommended)
or
1.Hold the iPazzPort Cast, then plug in the USB power cord from the
power adapter which plug in with either 210V AC or 110V AC power
source.
2.The blue power light next to the mini USB socket should be lit up.
3.Then either locate HDMI socket or VGA socket from TV screen, plug
in the iPazzPort Cast into the Socket(either HDMI OR VGA).
4.Power on TV screen or Projector, look for the“source”, that you plugged
with, if you plug in VGA port, the TV screen should be set up with VGA
mode, if you connected to HDMI port, the selection from TV screen
or Projector should be under HDMI mode. access VGA
port is Mirroring video only please cable connect audio port from
iPazzPort Cast to the audio input port of TV screen or Projector.
5.If the above set up and cable-connections are right in places, either
your TV screen or Projector screen will show up our “iPazzPort Cast”
from screen, if not, please redo the above item 1 to 5 once again.
please note,
Open Wi-F i an d connect
'iPazzP or t-AF1EB 8' (passw or d: 123456 78 )or'123 45 678'.
And then op en w eb browse r on y our devic e and visit :
http:// 19 2.168.4 9.1/ind ex .html whe n co nneted to ' iP azzPort -AF1EB8 '

6

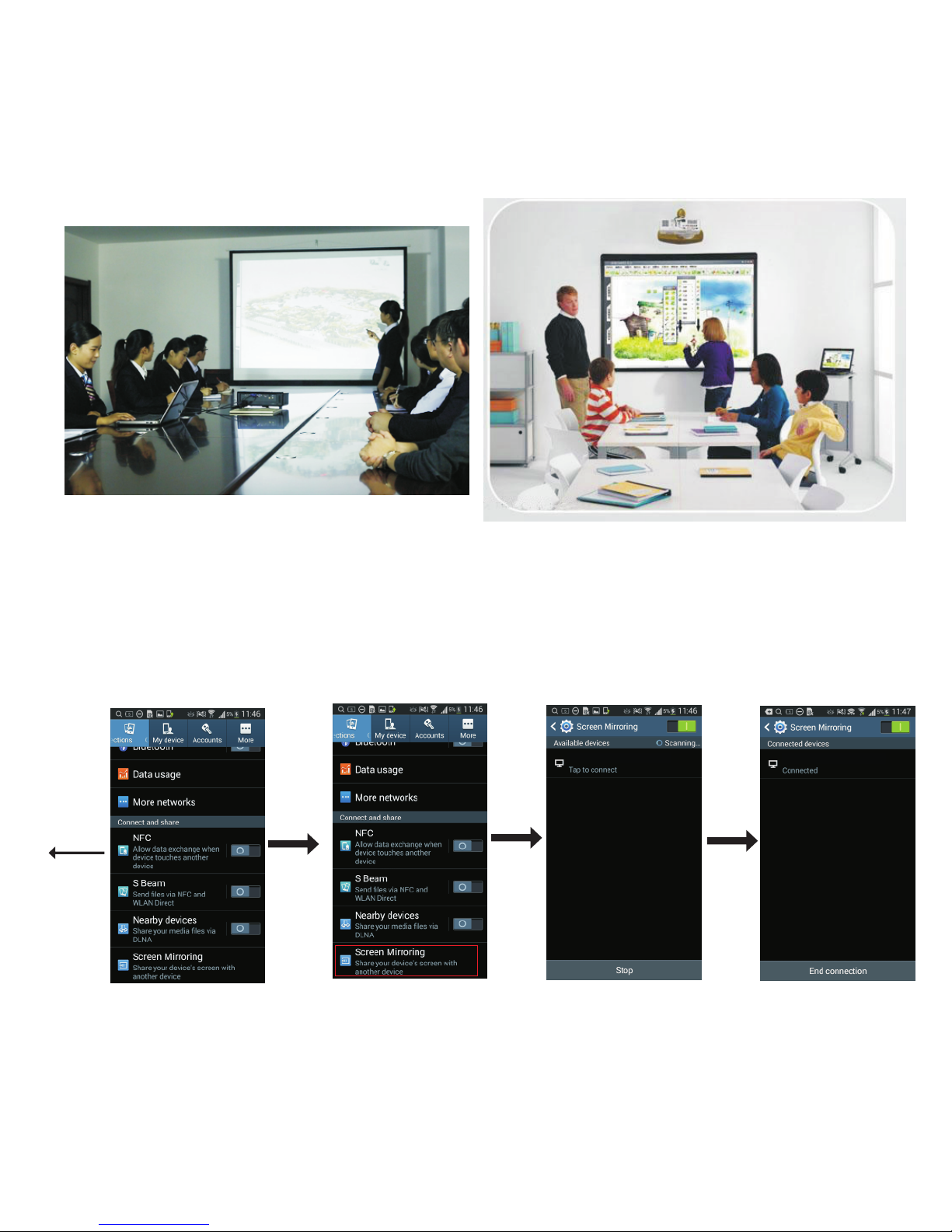

4.Conference and Education
1.Android phone
Turn on your phone,tap “settings” -->> -->>
-->> connect“iPazzPort-XXXXXX” -->> connected successful
Touch“Screen Mirroring” Open“Screen
Mirroring”
Android
screen
Use your cell phone or computer projection file in the meeting
or training, please according to following steps.
iPazzPort-AF1EB8 iPazzPort-AF1EB8

7

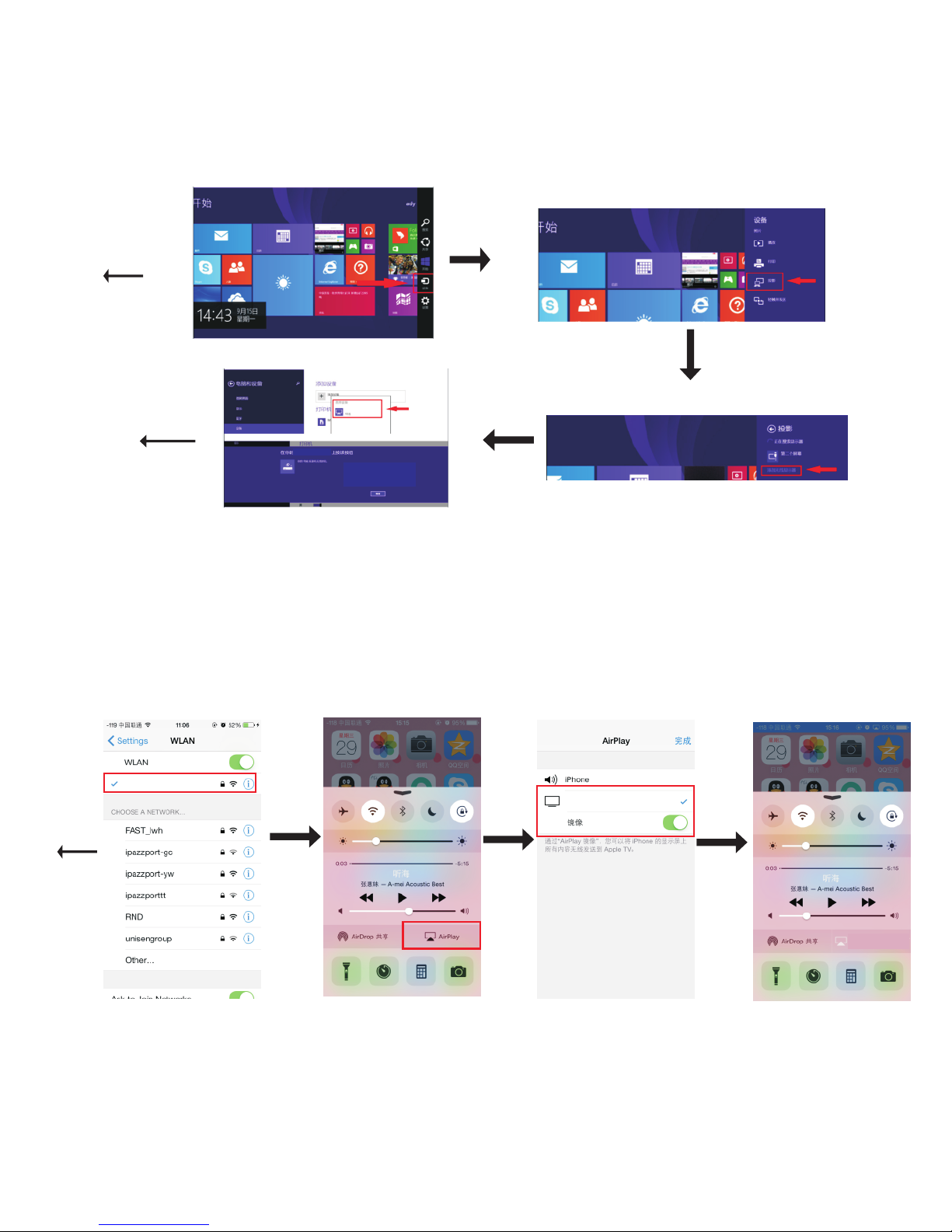

2.Win8.1 system
Turn on your computer, -->> -->>
-->> XXXXXX” -->>
connected successful
Choose“device” Choose“projection” Click“Add
wireless monitor” Automatic search advice,click“iPazzPort-
Computer
screen
Computer
screen
iPazzPort_Cast_33D808
iPa zzP ort_ Cas t_3 3D80 8
3.iPhone
iPhone
screen
Go to settings,WiFi connected “iPazzPort-XXXXXX”
Open the taskbar Click AirPlay icon Choose“iPazzPort- ”,
turn on“Mirroring”,click “Done”
-->> Turn on your iPhone,
-->> -->> XXXXXX
-->> connected successful
iPazzPort-AF1EB8
iPazzPort-AF1EB8
iPazzPort-AF1E
B8

8
5.1.Go to settings,displays
iPazzPort-XXXXXX
5.Connect WiFi
5.2.Enter password
“12345678”Press
“connect/Join”
5.3.Connected
Successfully
The iPazzPort
cast screen
iPhone
screen
DLNA Mode
iPhone
screen
5.4.Open the mobile browser
input “192.168.49.1 ” 5.5.Click “ ”
DLNA Media Share Mode
AirPlay Mirroring
Device Name:
Status:
Local IPO:
AP SSID:
Local IP1:
Disconnected from AP
Miracast Mode
iPazzPort-AF1EB8
192.168.49.1
DLNA Media Share Mode
AirPlay Mirroring
Open W i-Fi and connec t
'iPa zzPort-AF1E B8' (password : 12345678)or '12345678'.
And th en open web brows er on your device a nd visit:
http ://192.168. 49.1/index. html when conne ted to 'iPazzPo rt-AF1EB8'
iPazzPort-AF1EB8
iPazzPort-AF1EB8
iPazzPort-AF1EB8
5.6.Click “ ”

9
5.8.Input password
---Click connect
The iPazzPort
cast screen
iPhone
screen
DLNA Me d i a S ha re Mode
AirP l a y M ir roring
Device Name:
Status:
Local IPO:
AP SSID:
Local IP1:
Disconnected from AP
Miracast Mode
iPazzPort-AF1EB8
192.168.49.1
DLNA Media Share Mode
AirPlay Mirroring
Open Wi-Fi and connect
'iPazzPort-AF1EB8' (passw ord: 1234 5678)or'12345678'.
And then open web browser on your dev ice and visit:
http://192.168.49.1/ind ex.html when conneted to 'iPazzPort-AF1EB 8'
5.7.Choose the WiFi router 5.9.Connected
Successfully
The iPazzPort
cast screen
iPhone
screen
DLNA Media S h a r e M o d e
AirPlay M i r r o r i n g
Device Name:
Status:
Local IPO:
AP SSID:
Local IP1:
Disconnected from AP
Miracast Mode
iPazzPort-AF1EB8
192.168.49.1
DLNA Media Share Mode
AirPlay Mirroring
Open W i- Fi and connect
'iPa zz Port-AF1EB8 ' (p assword: 1234 56 78)or'12345 67 8'.
And th en o pen web browser o n your device and vis it:
http :/ /192.168.49 .1 /index.html w he n conneted to 'iP azzPort-AF1EB 8'
ipazzport-yw
192.168.0.136
5.10.Go to settings,conncet
iPazzPort-XXXXXX

10
6.1.Enter Photos,
click icon.
6.Using AirPaly share pictures, music and video(iPhone)
The iPazzPort
cast screen
iPhone
screen
6.2.Choose AirPlay icon.
(Most people probably never realize that their device or apps have
support for DLNA. On Android, apps that support DLNA has an option
to scan for nearby devices. For example, the default video player app
on Samsung Galaxy phone supports DLNA and allows us to use it by
just tapping on an icon on the screen. we can then control the video
playback on the TV using my phone. Alternatively, you can download
the iMediaShare app from the Google Play store or Apps store. This app
allows you to share photos, music and videos via DLNA.)
iPazzPort-AF1EB8
6.3.Choose “iPazzPort-XXXXXX”.
(Due to protocol compatibility,if fail
to find this icon, wait 10s or restart
the app or refer chapter 5 to reconnect
WiFi or restart your devices.)
Such as “pictures”
DLNA M edi a S har e Mode
Air Pla y M irr orin g
Device Name:
Status:
Local IPO:
AP SSID:
Local IP1:
Disconnected from AP
Miracast Mode
iPazzPort-AF1EB8
192.168.49.1
DLNA Media Share Mode
AirPlay Mirroring
Open Wi-Fi and connect
'iPazzPort-AF1EB8' (password: 12345678)or'12345678'.
And then open web browser on your device and visit:
http://192.168.49.1/index.html when conneted to 'iPazzPort-AF1EB8'

11
The iPazzPort
cast screen
6.4.success
iPhone
screen

12
7.Signal confirmation
This product is mini portable wireless design,before using, please follow steps to
confirm the Wi-Fi signal strength. Place the “iPazzPort Cast” at the correct position,
and get the best using for it.
7.1.Test the signal strength of Wi-Fi Router.
7.1.1 Download “WiFi Analyzer” in App Store to your phone or tablet.
.1.2 Place your phone or tablet at the position,where the “iPazzPort Cast” will be
placed.

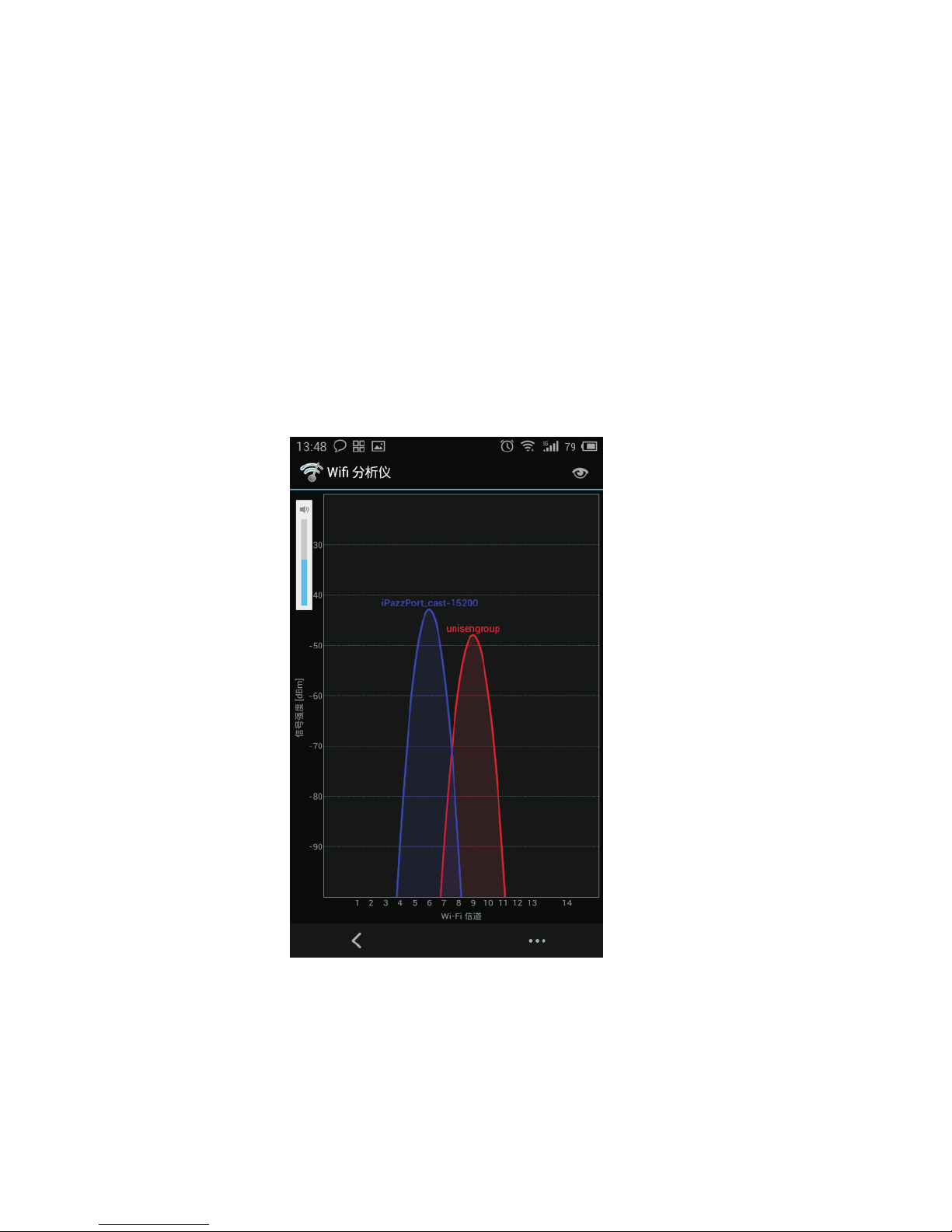

.1.3 Run “WiFi Analyzer” to confirm the Wi-Fi Router signal strength is -60dB or
above as show below. If the signal strength is low, please move the Wi-Fi
router or iPazzPort Cast to match the best using.
7
7
7
7 Download “WiFi Analyzer” in App Store to your phone or tablet.
7.2.2 Place the “iPazzPort Cast”at the correct position. Power it on, switch to
DLNA method.
.2.Test the receiving signal strength of iPazzPort Cast.
.2.1

13
.3 Take the phone or tablet away 4m from iPazzPort Cast.
.4 Run “WiFi Analyzer”to confirm the receiving signal strength is -60dB or above,
as show below.
.5 If the signal is low, please move “iPazzPort Cast” or connect to HD extented
cable.Please make sure to no block the Wi-Fi signal.
7
7
7
eg.HD screen is made by metal components.If the Wi-Fi router or moblie is at the
front of the HD screen,while “iPazzPort Cast” plug at the back of the HD screen.
At the moment,HD screen sites between “iPazzPort Cast” and “Wireless Router
(or cell phone)”,which will affect the “iPazzPort Cast” receiving signal from
wireless router or cell phone.
