IPC Eagle Barrel Vac Guide

1
Industrial Vacuums
Barrel Vac
Operations and Parts Manual
Models:
BV190
BV290
BV390

2
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precaution must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
This machine is for commercial use.
WARNING
DANGER: Failure to read and observe all DANGER statements could result in severe bodily injury
or death. Read and observe all DANGER statements found in your Owner’s Manual and on your
machine.
WARNING: Failure to read and observe all WARNING statements could result in injury to you or to
other personnel; property damage could occur as well. Read and observe all WARNING statements
found in your Owner’s Manual and on your machine.
CAUTION: Failure to read and observe all CAUTION statements could result in damage to the
machine or to other property. Read and observe all CAUTION statements found in your Owner’s
Manual and your machine.
DANGER: Failure to read the Owner’s Manual prior to operating or attempting any service or
maintenance procedure to your machine could result in injury to you or to other personnel; damage to
the machine or to other property could result as well. You must have training in the operation of this
machine before using it. If you or your operator(s) cannot read English, have this manual explained
fully before attempting to operate this machine.
DANGER: Operating a machine that is not completely or fully assembled could result in injury or
property damage. Do not operate this machine until it is completely assembled. Inspect the machine
carefully before operation. Use only as described in this manual. Use only the manufacturer’s
recommended attachments.
DANGER: Machines can cause an explosion when operated near flammable materials and vapors.
Do not use this machine with or near fuels, grain dust, solvents, thinners, or other flammable
materials.
DANGER: Do not pick up flammable fluids, dust or vapors.
DANGER: Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot
ashes.
DANGER: This machine is not suitable for picking up health endangering dust.
DANGER: Using a machine with a damaged power cord could result in an electrocution. Do not use
the machine if the power cord is damaged. Do not use the electrical cord to move the machine. Keep
cord away from heated surfaces. Do not unplug by pulling on the cord; grasp the plug, not the cord.
Turn off all controls before unplugging. Do not close a door on cord or pull around sharp edges or
corners.
DANGER: Electrocution could occur if maintenance and repairs are performed on a unit that is not
properly disconnected from the power source. Disconnect the power supply before attempting any
maintenance or service.

3
Warning: Operating a machine without observing all labels, decals, etc., could result in injury or
damage. Read all machine labels before attempting to operate the machine. Make sure all of the
labels are attached or fastened to the machine. Get replacement labels and decals from the
manufacturer’s distributor.
Warning: Electrical components can “short-out” if exposed to water or moisture. Keep the electrical
components of the machine dry. Always store the machine in a dry area.
Warning: Use of this machine to move other objects or to climb on could result in injury to the opera-
tor or damage to the machine. Do not use this machine as a step or furniture. Do not allow to be used
as a toy. Close attention is necessary when used by or near children.
Warning: Moving parts of this machine can cause injury and/or damage. Keep hands, feet, loose
clothing, hair, fingers, and all parts of the body away from openings and moving parts.
Warning: Electrocution could occur if you handle the plug or appliance with wet hands. Do not handle
plug or appliance with wet hands.
Warning: The machine employs a removable float for wet pick-up operation to reduce risk of electrical
shock. Always install float before any wet pick-up operation.
Warning: Rotating fan blades inside the cover. Before opening cover, switch off machine. Wait until
the fan/brush stops completely or dust and debris may be ejected.
Warning: If the machine is not working properly, has been dropped, damaged, left outdoors, or
dropped into water, return it to an Authorized service center.
Warning: Damage could occur to machine if openings are blocked. Do not put any object into
openings. Do not use any opening blocked: keep free of dust, lint, hair, and anything that may reduce
air flow.
Warning: Injury could occur to the operator or the machine if used without the dust bag and/or filters
in place. Do not use the machine without the dust bag and/or filters in place.
Warning: Injury to the operator and/or damage to the machine could occur when cleaning on stairs,
unless caution is used. Use extreme caution when cleaning on stairs.
Warning: To reduce the risk of electrical shock, always use a 3-wire electrical system connected to
the electrical ground. Whenever possible connect the machine to an outlet protected by a ground fault
interrupter (GFCI). See “Grounding Instructions.”
SAVE THESE INSTRUCTIONS

4
120 Volt Machine Instructions For
Connection To The Power Supply And The
Electrical Ground
This machine must be connected to the electrical ground
to protect the operator from electrical shock. The machine
has an approved power cord with three conductors and a
plug with three terminals. Connect the plug to a recepta-
cle that has three holes and is connected to the electrical
ground. The green (or green and yellow) conductor in the
cord is the ground wire. Never connect this wire to any
terminal other than the ground terminal.
This machine uses a 120 volt AC 60 cycle electrical
circuit. Make sure you have the correct frequency and
voltage before connecting the power cord to an outlet.
The machine has a plug as shown in Figure 1. If a recep-
tacle connected to the electrical ground as shown in Fig-
ure 1 is not available, have one installed by an electrical
contractor. Do not use an adapter.
Warning: To reduce the risk of electrical shock, protect the machine from rain. Keep the machine in
a dry area.
Warning: To reduce the risk of electrical shock, always use a 3-wire electrical system connected to
the electrical ground. Whenever possible connect the machine to an outlet protected by a ground fault
interrupter (GFCI).
Warning: Do not cut, remove or break the ground pin. If the outlet does not fit the plug, consult your
electrical contractor.
Warning: Have worn, cut or damaged cords and plugs replaced by an authorized service person.
Warning: If it becomes necessary to use an extension cord to reach an electrical outlet, you must
use one that is at least one size larger in wire size. Such as a power cord that is marked 12/3 would
need to use an extension cord that is marked 10/3. Do not use an extension cord that is undersized.

5
IMPORTANT INSTRUCTIONS
 Before use the equipment must be correctly assembled with all of its components
 Check that the electrical outlet is correct for use with the plug on the machine
 Before connecting, check that the specified motor voltage corresponds to the main
voltage available
 Never use the equipment near flammable, explosive or toxic substances: sparks from
the motor could cause dangerous reactions.
 Always unplug the machine from the electrical outlet when leaving machine unattended
or before attempting any repair.
 Service and repair should be done by qualified personnel only. Use only original
manufacturer’s replacement parts.
Operation
This machine is a commercial vacuum designed for wet and dry pick up. The motors can be run
simultaneously or independently as the job requires. The machine is designed to sit on top of a standard 55
gallon steel drum.
It may be necessary to clean the filter before it is time to empty the drum. Turn off all of the motor switches
and allow the motors to stop running. Remove the motor head from the top of the barrel ring, next remove
the filter from the barrel ring opening and tap or brush the filter surface clean.
To extend the life of the filter you may want to occasionally remove the complete filter assembly and wash
the filter bag. Allow the fabricto dry fully before returning it to the inside of the machine.
Filtration can also be enhanced by adding one of the various cartridge filters to the bottom of the motor head
assembly and also by adding one of the Corolon Filters to the outside of the main polyester filter assembly.
These optional filters can be purchased from your Distributor, the optional filters available are listed below:
S82852 Cartridge Filter, Paper (will fit GC190, GC290 & GC390)
S76061 Cartridge Filter, Polyester (will fit GC190, GC290 & GC390)
S82995 Cartridge Filter, Hepa (will fit GC190, GC290 & GC390)
S82855 Cartridge Filter Retainer (necessary to use optional cartridge filters on GC190, GC290 & GC390)
T80086 Corolon Filter

6
Periodic Maintenance
(Every six to twelve months)
1. Check filter for wear, replace dirt saturated filters that do
not respond to normal cleaning.
2. Inspect gasket seals and replace those which have begun
to leak.
3. Examine carbon motor brushes and commutator.
Servicing The Filter
The filter is accessed by lifting the head assembly off the tank.
The Polyester filter assembly is easily removed by simply lifting the filter basket out of the tank.
If the machine is equipped with one of the optional cartridge filters they are removed very easily. First
remove the filter retainer by turning the black knob 90 degrees counter-clockwise. The cartridge filter will
then slide off of the support assembly.
If the machine is equipped with a Corolon filter it is easily removed from the outside of the Polyester filter
assembly by grasping it and sliding it off. The elastic band will stretch and the filter will easily slide off of the
Polyester filter.
Note:
 Be sure to frequently clean the filters.
 Allow filters to thoroughly air dry after washing them before returning them to the machine.
 Worn filters can affect vacuum performance. Replace the filters when they become worn out and normal
cleaning will not restore vacuum performance.
Servicing The Vac Motor
Motor Replacement
1. Disconnect power cord from power source.
2. To access the vac motor, remove the screws that attach the main cover to the head assembly and set the
cover to one side.
3. Disconnect the motor’s 2 red lead wires from the main wiring bridge.
4. Disconnect green/yellow wire by removing the screw from the motor core.
5. Remove the four motor mounting screws.
6. Remove motor plate and set aside.
7. Take out the motor and remove the upper and lower gaskets.
8. Inspect gaskets. If they show signs of wear replace the.
9. Install gaskets onto new motor ensuring that they are properly seated.
10. Install the new motor. Make sure foam mufflers are positioned properly.
11. Attach motor plate to motor.
12. Connect green/yellow wire to motor core.
13. Connect motor’s 2 red lead wires to main wiring bridge.
14. Re-assemble vac cover.

7

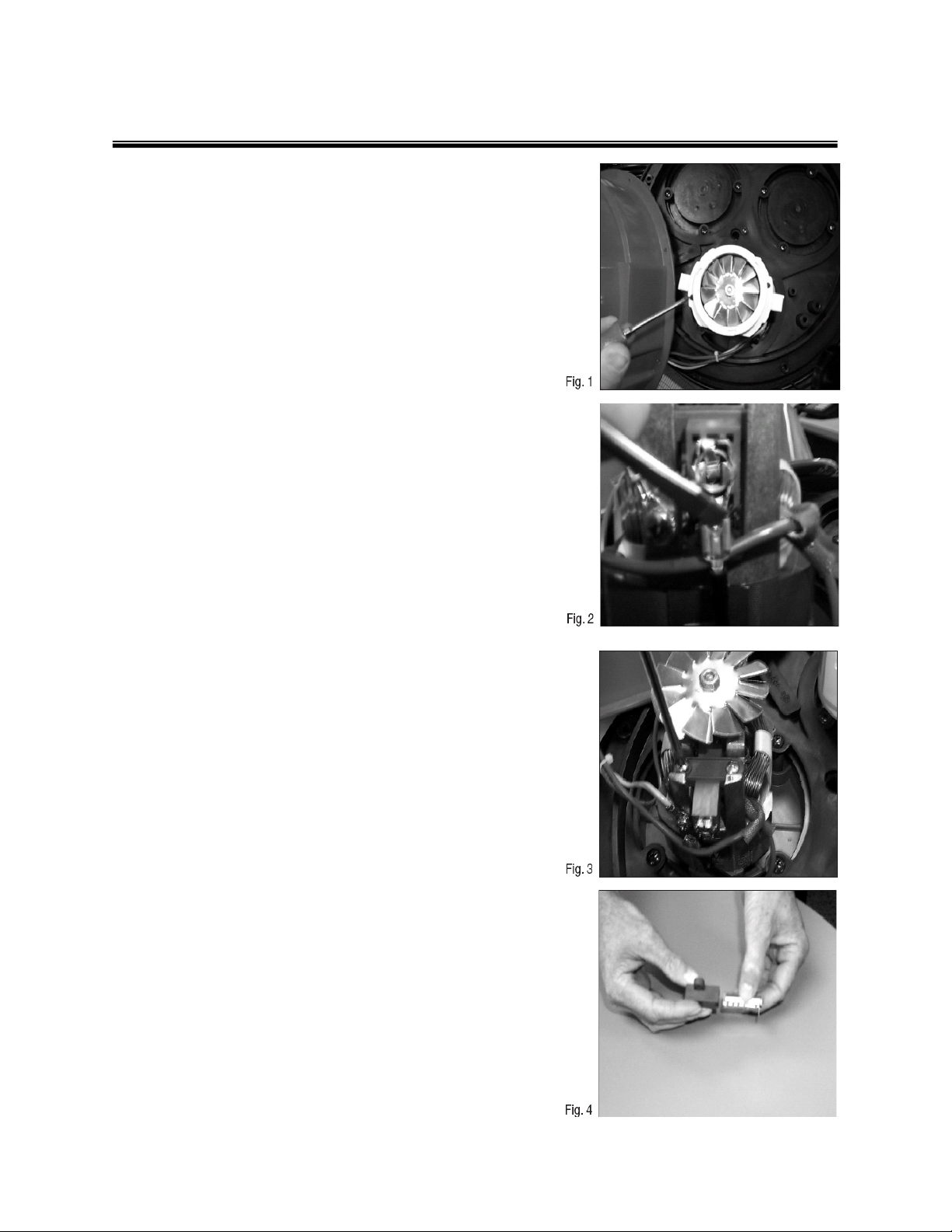

Servicing The Vac Motor
Carbon Brush Replacement
1. Disconnect power cord from power source.
2. To access the vac motor, remove the screws
that attach the main cover to the head
assembly and set the cover to one side.
3. Remove the motor cover by removing two
screws. See Fig. 1
4. Remove the wire terminal from carbon brush
housing. See Fig. 2
5. Remove the carbon brush assembly by
removing the 2 screws that attach it to the vac
motor. See Fig.3
6. Inspect armature commutator. If it is
extremely pitted, grooved or not concentric
then the motor will need to be replaced or
sent to a qualified service center.
7. Slide the yellow brush housing from plastic
holder. See Fig. 4
8. Reverse steps 7 through 4 to install new brush
and housing (part number S8TOEG845)
9. Repeat steps 4 through 8 for the other carbon
brush.
10.Reverse steps 3 and 2 for re-assembly.
11.Test for proper operation.

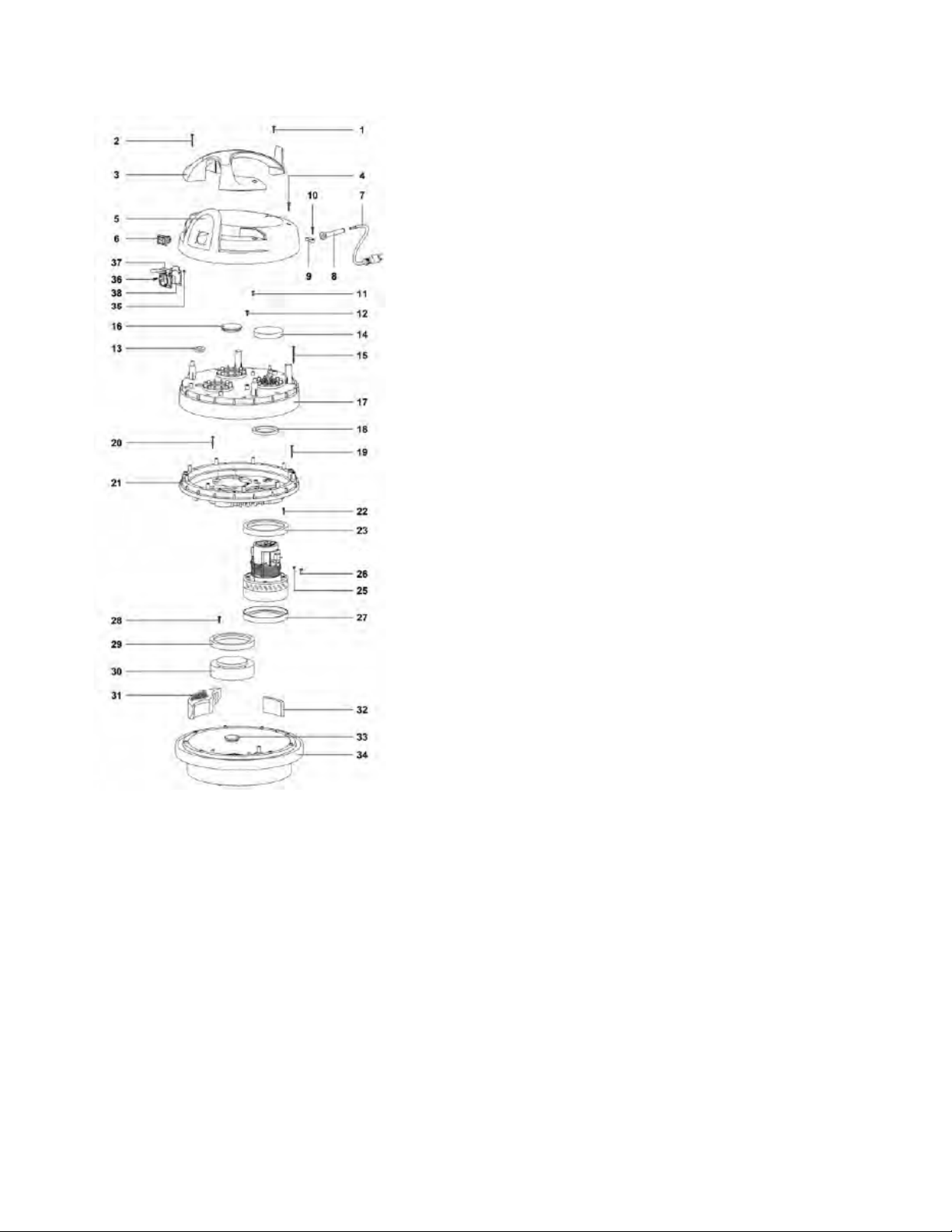

No. Part # Qty.Description
GC 1/90 Vacuum Motor Assembly
* PMQE00258
* MECB01827
* FSVR00127
* MECB01694
* MECB01702
* MECB01527
* MECB01705
0001 KTRI03437
KTRI03765
MPVR11825
VTVT72055
MPVR12004
MECI72195
MECB01211
KTRI03358
MPVR28690
KTRI03437
KTRI03436
KTRI03436
MEVR72017
FTDP38064
VTVT40007
MPVR09575
MPVR08501
KTRI04227
KTRI03765
KTRI03765
MPVR09319
KTRI03437
KTRI04216
MOMO00909
VTRS00393
VTVT01037
KTRI04216
KTRI03437
KTRI04216
MPVR08575
KTRI04140
KTRI04141
MPVR38058
PMBA00209
VTDD00232
VTVT01192
MEVR01792
1,00
1,00
1,00
1,00
1,00
2,00
1,00
1,00
2,00
1,00
2,00
1,00
1,00
1,00
1,00
1,00
2,00
1,00
1,00
1,00
9,00
2,00
1,00
1,00
9,00
3,00
1,00
4,00
1,00
1,00
1,00
1,00
1,00
8,00
2,00
2,00
3,00
3,00
2,00
1,00
4,00
4,00
1,00
1,00
Filter Assembly
No. Part # Qty.Description
0002
0003
0004
0005
0006
0007
0008
0009
0010
0011
0012
0013
0014
0015
0016
0017
0018
0019
0020
0021
0022
0023
0024
0025
0026
0027
0028
0029
0030
0031
0032
0033
0034
0035
0036
0037
0038
0039
GUVR38060
KIT ELETRIC 600 1MOT.AUTOEST.
WIRING 50CM MOTOR POKE-IN UL
CLAMP
CONNECTING WIRE AWG-400-G/V-FF-4,2
CONNECTING WIRES AWG-350-ROS-FF-SP9
CONN.WIRE M.AWG-200-G/V-5,2-5,2
SCREW PFU TMT PHL 5X20 BLACK
SCREW PAT TMT PHL 5X40 BLACK
HANDLE TOPPER 600 VERDE IPC AU
SCREW PFU TMT PHL 5X25 ZN BLACK
COVER TOPPER 600 NERO AU P/S
ANTISPLASH SWITCH
CABLE E.3X14AWG SJTW MT8,5 N5
FAIR-LEAD LONG
CABLE CLAMP
SCREW PFU TMT PHL 5X20 BLACK
SCREW PAT TMT PHL 5X14 ZN BLACK
SCREW PAT TMT PHL 5X14 ZN BLACK
GUIDING SLIT FOR QUICK COUPLING
FILTER MTP/65 H=15 D.95
SCREW PAT TMT PHL 5X55 BLACK
CAP COVER SELF-EXTINGUISHING
WASHER H8 D85X65
SCREW PAT TMT PHL 5X40 BLACK
SCREW PAT TMT PHL 5X40 BLACK
MOTOR-FASTENER NEV.600 BLACK S-EXT.
SCREW PFU TMT PHL 5X20 BLACK
"L" GASKET W/O HOLES H=5,5
MOTOR BD381 AU 1000W 120/60
TOOTHED WASHER M4 UNI 8842
SCREW TC CROSS M 4X8 UNI 7687
"L" GASKET W/O HOLES H=5,5
SCREW PFU TMT PHL 5X20 BLACK
"L" GASKET W/O HOLES H=5,5
FAKE MOTOR LOWERED AU
ANTINOISE TRIANGLE H=51
GASKET MTP/30 AU-AD 50X10X85
BASE CAP
NUT M 4 UNI 5588
SCREW TSP CROSS M 4X12 UNI 7688
DOOR UL W/DOOR
SCHUKO GASKET SOCKET
MOTOR CARBON
1,00
A
0001
0002
0003
0004
0005
0006
0007
KTRI02332
MPVR35807
FTDP00523
MPVR09199
MPVR40521
RCGR40008
MPVR35796
VTVT36751
KIT RING+FILT+BASK.400 CONIC.SAN
FILTER RING 400
FILTER POLY AN4-600 CON REG H320
CONICAL BASKET 400
NET ANTIFOAM BODY HIGH
HIGH FLOAT 99 W/GASKET 37 SHA
PLASTIC SLEEVE D.8
SCREW PAT TMT PHL 5X25
1,00
1,00
1,00
1,00
1,00
1,00
4,00
4,00
24
39
SPPV01964 2,00
8

No. Part # Qty.Description

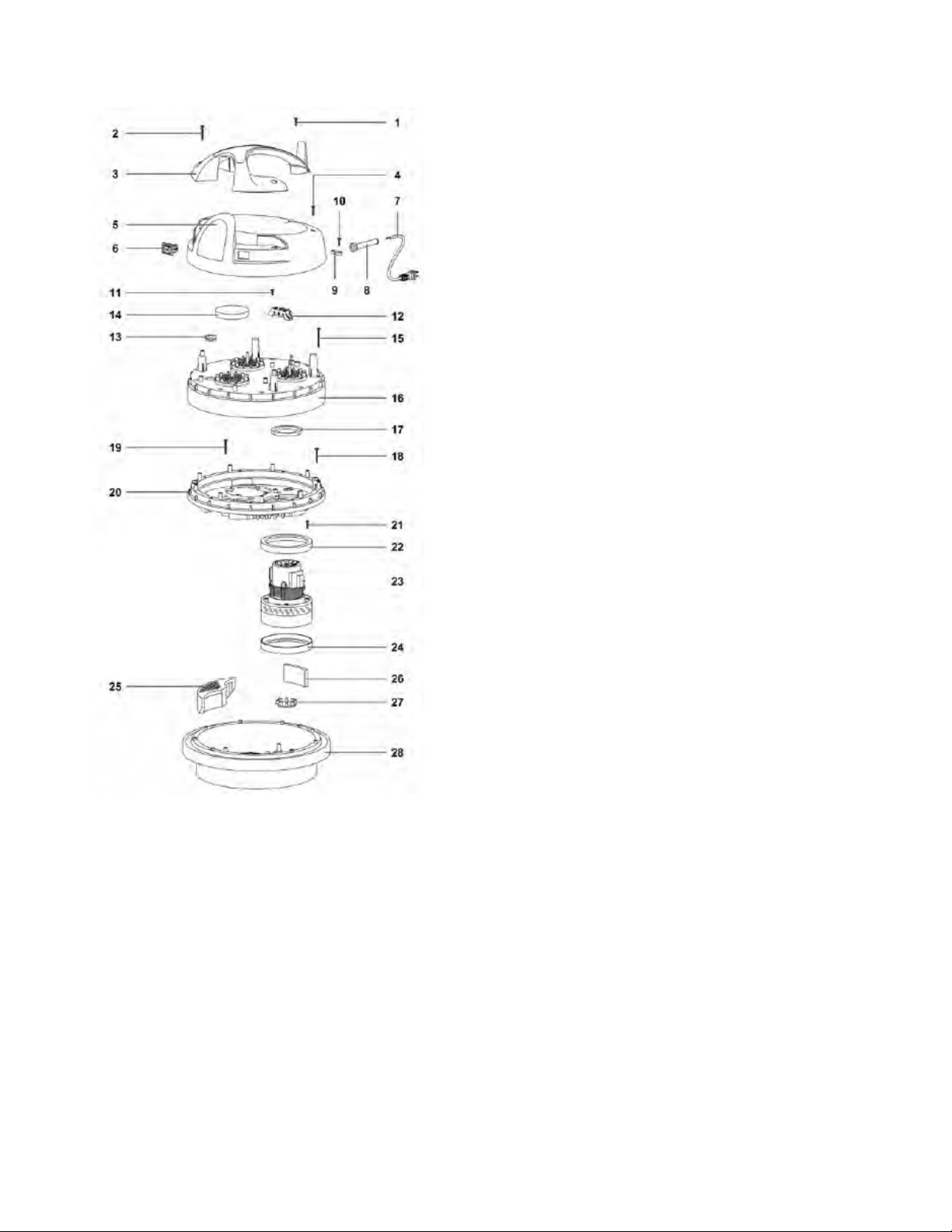

GC 2/90 Vacuum Motor Assembly
* PMQE00259
* MECB01827
* FSVR00127
0001
0002
0003
0004
0005
0006
0007
0008
0009
0010
0011
0012
0013
0014
0015
0016
0017
0018
0019
0020
0021
0022
0023
0024
0025
0026
0027
0028
0029
0030
0031
0032
0033
0034
0035
0036
KTRI03437
KTRI03765
MPVR11825
VTVT72055
PMVR06457
MECI28744
MECB01211
KTRI03358
MPVR28690
KTRI03437
KTRI03436
VTRS00393
VTVT01037
MEVR72017
FTDP38064
VTVT40007
MPVR09575
MPVR08501
KTRI04227
KTRI03367
KTRI03765
KTRI03765
MPVR09319
KTRI03437
KTRI04216
MOMO00908
KTRI04216
KTRI03437
KTRI04216
MPVR08575
KTRI04140
KTRI04141
MPVR38058
KTRI03379
PMBA00202
SPPV01964
ELECTRIC KIT 600 2MOT. AUTOEST.
WIRING 50CM MOTOR POKE-IN UL
CLAMP
SCREW PFU TMT PHL 5X20 BLACK
SCREW PAT TMT PHL 5X40 BLACK
HANDLE TOPPER 600 VERDE IPC AU
SCREW PFU TMT PHL 5X25 ZN BLACK
COVER TOPPER 600 NE AU 2INT
ANTISPLASH RED LIGHT SWITCHER
CABLE E.3X14AWG SJTW MT8,5 N5
FAIR-LEAD LONG
CABLE CLAMP
SCREW PFU TMT PHL 5X20 BLACK
SCREW PAT TMT PHL 5X14 ZN BLACK
TOOTHED WASHER M4 UNI 8842
SCREW TC CROSS M 4X8 UNI 7687
GUIDING SLIT FOR QUICK COUPLING
FILTER MTP/65 H=15 D.95
SCREW PAT TMT PHL 5X55 BLACK
CAP COVER SELF-EXTINGUISHING
WASHER H8 D85X65
RING MOTORE H=7 (15) PLAST.AUT
SCREW PAT TMT PHL 5X40 BLACK
SCREW PAT TMT PHL 5X40 BLACK
MOTOR-FASTENER NEV.600 BLACK S-EXT.
SCREW PFU TMT PHL 5X20 BLACK
"L" GASKET W/O HOLES H=5,5
MOTOR BD301 AU 800W 120/60
"L" GASKET W/O HOLES H=5,5
SCREW PFU TMT PHL 5X20 BLACK
"L" GASKET W/O HOLES H=5,5
FAKE MOTOR LOWERED AU
ANTINOISE TRIANGLE H=51
GASKET MTP/30 AU-AD 50X10X85
BASE CAP
AUTOMATIC VALVE
MOTOR CARBON
1,00
2,00
3,00
1,00
2,00
1,00
2,00
1,00
2,00
1,00
1,00
1,00
1,00
2,00
2,00
2,00
1,00
2,00
9,00
1,00
1,00
2,00
2,00
9,00
3,00
1,00
8,00
2,00
2,00
2,00
4,00
1,00
1,00
3,00
3,00
1,00
2,00
1,00
Ref. K Part N. Description Quantity
A
1
2
3
4
5
6
7
FTDP28733 KIT RING+FILT+BASK.400 CONIC.SAN 1,00
MPVR35807 FILTER RING 400 1,00
FTDP00523 FILTER POLY AN4-600 CON REG H320 1,00
1,00
MPVR09199 CONICAL BASKET 400
MPVR40521 NET ANTIFOAM BODY HIGH 1,00
RCGR40008 HIGH FLOAT 99 W/GASKET 37 SHA 1,00
MPVR35796 PLASTIC SLEEVE D.8 4,00
VTVT36751 SCREW PAT TMT PHL 5X25 4,00
36
2,00
9

No. Description Qty.Part #
GC 3/90 Vacuum Motor Assembly
Filter Assembly
* MECB01620
* MECB01617
* MECB01827
* FSVR00127
0001
0002
0003
0004
0005
0006
0007
0008
0009
0010
0011
0012
0013
0014
0015
0016
0017
0018
0019
0020
0021
0022
0023
0024
0025
0026
0027
0028
0029
KTRI03437
KTRI03765
MPVR11825
VTVT72055
PMVR06458
MECI28744
MECB01972
KTRI03358
MPVR28690
KTRI03437
KTRI03436
MECB01402
MEVR72017
FTDP38064
VTVT40007
MPVR08501
KTRI04227
KTRI03765
KTRI03765
MPVR09319
KTRI03437
KTRI04216
MOMO00914
KTRI04216
KTRI04140
KTRI04141
KTRI03379
PMBA00209
CONNEC.WIRES AWG-350-GRI-FF-FF
CONNECTING WIRES AWG-350-ROS-FF-FF
WIRING 50CM MOTOR POKE-IN UL
CLAMP
SCREW PFU TMT PHL 5X20 BLACK
SCREW PAT TMT PHL 5X40 BLACK
HANDLE TOPPER 600 VERDE IPC AU
SCREW PFU TMT PHL 5X25 ZN BLACK
COVER TOPPER 600 NE AU 3INT
ANTISPLASH RED LIGHT SWITCHER
CABLE 2X14AWG SJTW MT8,5 N1-15P
FAIR-LEAD LONG
CABLE CLAMP
SCREW PFU TMT PHL 5X20 BLACK
SCREW PAT TMT PHL 5X14 ZN BLACK
CLAMPS 400-600 2P 2MOT AWG RAD
GUIDING SLIT FOR QUICK COUPLING
FILTER MTP/65 H=15 D.95
SCREW PAT TMT PHL 5X55 BLACK
WASHER H8 D85X65
SCREW PAT TMT PHL 5X40 BLACK
SCREW PAT TMT PHL 5X40 BLACK
MOTOR-FASTENER NEV.600 BLACK S-EXT.
SCREW PFU TMT PHL 5X20 BLACK
"L" GASKET W/O HOLES H=5,5
MOTOR BD302 500W 120 50/60
"L" GASKET W/O HOLES H=5,5
ANTINOISE TRIANGLE H=51
GASKET MTP/30 AU-AD 50X10X85
AUTOMATIC VALVE
MOTOR CARBON
1,00
1,00
3,00
3,00
1,00
2,00
1,00
2,00
1,00
3,00
1,00
1,00
1,00
1,00
2,00
1,00
1,00
2,00
9,00
1,00
3,00
9,00
3,00
1,00
12,00
3,00
3,00
3,00
3,00
3,00
3,00
1,00
No. Description Qty.Part #
A
0001
0002
0003
0004
0005
0006
0007
KTRI02332
MPVR35807
FTDP00523
MPVR09199
MPVR40521
RCGR40008
MPVR35796
VTVT36751
KIT RING+FILT+BASK.400 CONIC.SAN
FILTER RING 400
FILTER POLY AN4-600 CON REG H320
CONICAL BASKET 400
NET ANTIFOAM BODY HIGH
HIGH FLOAT 99 W/GASKET 37 SHA
PLASTIC SLEEVE D.8
SCREW PAT TMT PHL 5X25
1,00
1,00
1,00
1,00
1,00
1,00
4,00
4,00
29
SPPV01964 2,00
10
