IPD F28 User manual

Electric Pruning Shear
CAUTION: READ THIS MANUAL BEFORE USE THIS MACHINE
User’s Manual for
F28

CAUTION: READ ALL OF PAGE WITH FIGURE FIRST
BEFORE USE
CONTENT
Note of safety……………………………………………………………………….1
Symbols. ………………………………………………………………………… ….1
General safety instruction for power tools …………………….. ….........…..…3
Special safety instruction …………………………… …………………………….6
Purpose. ……………………………………………………………………….8
Function description..………………………………………………………………8
Summary. …………….……………………………………………………..……..8
Parts ………………………………………… ……… …………….….….9
Parts list. ……………… ………… … ……………………………………….….9
Charging the battery……………..………………………………………………..10
Take out/assemble battery……………………………………………………….11
Working environment. .…………….………………………………………………11
Operating…………………………………………………………………………...12
Cutting artifice……………… … ………… …… ………………...………….…13
Cleaning and Maintenance. ……… …………………………………………….13
Storage. ………………………………………………………………..……….13
Waste disposal and Environmental protection………………………...……….14
Spare parts…………………………………….…………………….…………….14
Warranty. ……………………………………………………………………………15
Trouble shooting..…………………………………………………….…….…….16
CE Certificate..……………………………………………………….…….…….17

Note Of Safety：
Before first using the machine, please read this instruction
manual carefully, for your own safety and for the safety of others.
Keep the manual in a safe place and pass it on to any subsequent
owner to en-sure that the information contained therein is available at
any times.
Safety symbols:
This part include safety indication at use the machine
Symbols in manual：
Warning symbols
Instruction symbols
Help symbols with information on improving tool handling.
Read through the instruction manual carefully.
Wear glove to protection
Wear eye and ear protection.
Don’t use the pruning shear in the rain or wet hedge or branch.
Machines are not being place with domestic waster.

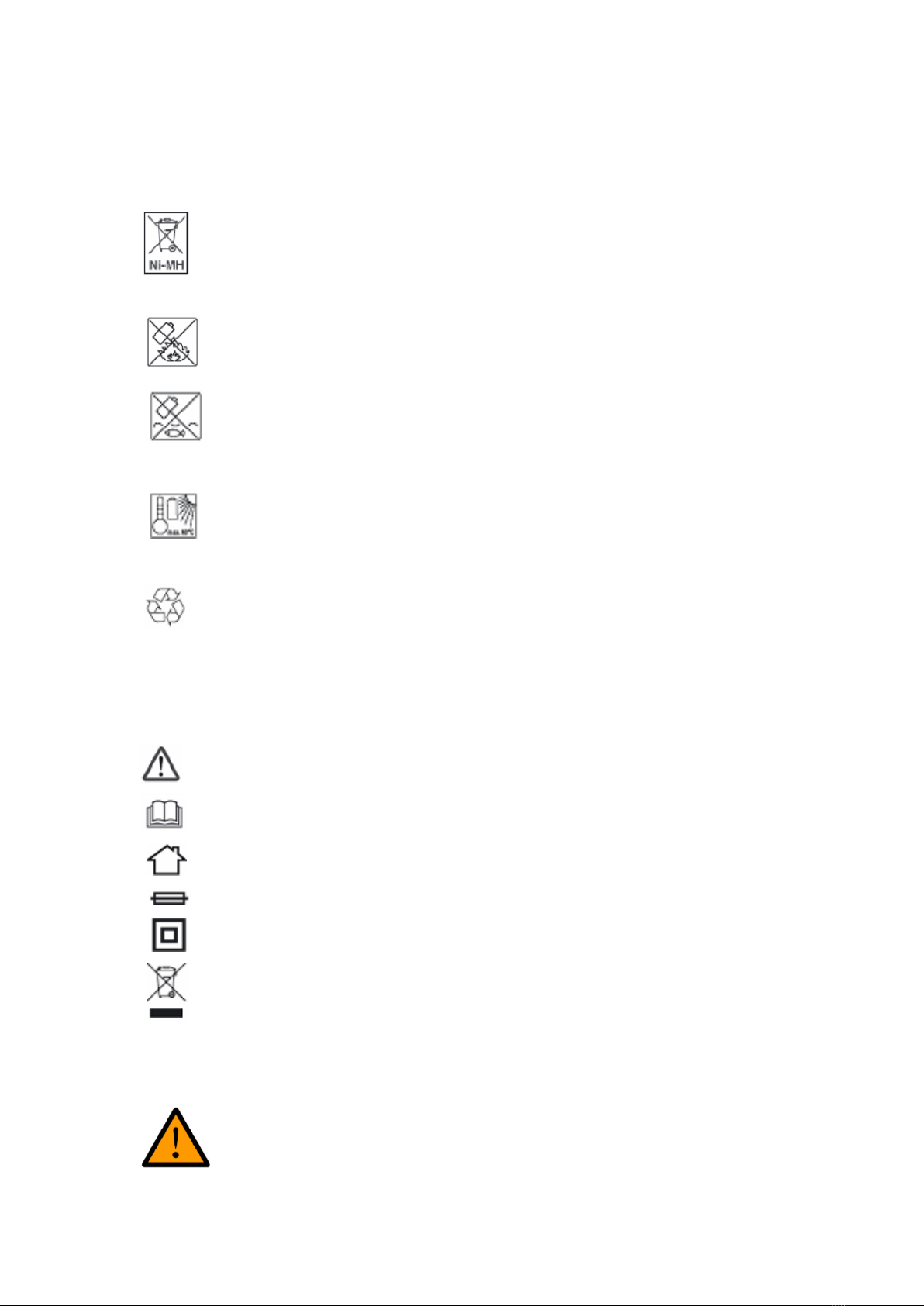

Symbols on battery：
Ni-MH or Li-on battery marked. Don’t dispose household waster.
Don’t dispose the battery in fire that does will be exploded.
Don’t dispose the battery in water or dank environment that does will
be exploded.
Don’t dispose the battery in stronger light or hot surface (Max
temperature 60℃), that’s will be exploded
The battery can be recharge and recycle use. Failure batteries are not be
place with domestic waster.
Symbols on charger:
Warnings
Read manual before use the machine
Only use indoor
Protection of temperature
Class II
Electrical equipment cannot disport to domestic waster.
General safety instructions for power tools：
Warning! Read all safety directions and instructions.

Omissions in the compliance with safety directions and instructions can cause
Electrical shock and fire and/or severe injuries.
Retain all safety directions and instructions for future use.
The term “Power Tools” used in the safety instructions refers to mains-operated
power tools (with power cord) and to battery-operated power tools (without
power cord).
1、Work area safety：
1）、 Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2）、 Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks, which
may ignite the dust or fumes.
3）、 Keep children and by standers away while operating a power tool.
Distractions can cause you to lose control.
2、Electrical：
1）、Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodified
plugs and matching outlets will reduce risk of electrical shock.
2）、 Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric shock if
your body is earthed or grounded.
3）、 Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
4）、 Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of electric shock.
5）、 When operating a power tool out-doors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric
shock.
6）、 If operating a power tool in a damp location is unavoidable, use a residual
current device (RCD) protected supply. Use of an RCD reduces the risk of electric
shock.
3、Notice of using the tools：
1）、Don’t over load the tool, select suitable tool to work make you safe and high
efficiency.
2）、 Don’t use the tool if the switch can’ work. Tool should be repaired if switch
not work.
3）Sure power disconnects the tool before adjusting, repair, replace or storage
the tool. It’s avoiding injury in use tool.
4）、 Storage the tool away the children, don’t put tool to non-training person
operate.

5）、 Maintain tools. Always check tool, moving parts, any damage parts are all
can cause injury, always maintain can avoid injury.
6）、 Keep blade sharp and clean. Sharp and clean blade can easy be control and
not jams
7）、 Read manual before use tool, Select suitable tool, right accessory to be
avoid injury.
4、Notice using cordless tool ：
1）、Sure switch off position at insert battery. Insert battery and connect tool at
switch on position will cause damage.
2）、 The tool design only use original charger. Use other charger charging
battery cause damage.
3）、 The tool design only use original battery. Use other battery match the tool
cause damage.
4）、 Storage battery away metal parts, like clip, coin, key, nail, screw or other
small metal parts. Short circuit battery will cause fire.
If liquid leakage out and touch you body, flush by clean water. Must see a doctor if
liquid touch eyes. Liquid of battery will canker or burning.
5、Repair：
Have your power tool serviced by a qualified repairperson using only identical
Replacement parts. This will ensure that the safety of the power tool is
maintained.
Special safety instruction
1）Pruning shear special safety instruction
a)、Keep anybody away at least 15cm, don’t move cutting parts at blade working.
Carefully operate the equipment can avoid injury.
b) 、Move the tool at blade not moving. Protection guard is must at storage the tool.
Protect blade to reduce damage.
2）Other safety instruction
Wear suitable work clothes such as boots with non-slip soles, sturdy long
trousers, gloves and goggles.
Do not wear long flowing clothing or jewelry, as moving parts may catch
this.
Do not use this tool while walking barefooted or while wearing open
sandals.
a) Do not use the pruning shear in the rain.

b) The appliance is designed for trimming hedges or branches. Do not use to
cut twigs, hard wood or other objects.
c) Do not attempt to dislodge a blocked/trapped blade before switching the
tool off.
d) Before commencing with the trimming check the hedge or branch for
hidden objects such as wire etc.
e) When operating the appliance, always hold it well with both hands and at
some distance away from your body.
f) Do not use the tool in the vicinity of flammable liquids or gasses. Fire and
Explosion risk exists in the event of a short circuit.
g) The blades have to be checked for wear in regular intervals and reshape
ended. Blunt blades will overload the machine. Resulting damages are
not covered by warranty.
h) Do not attempt to repair the tool your-self, unless you are schooled in
this field. All works, which are not described in this manual, may only be
performed by our Service-Centre
3) Special safety instruction for battery tool
a) Sure switch at “off” position before insert battery. Equipment will damage if
insert battery at switch on.
b) Charger design for use only indoor.
c) Disconnect power at clean the charger to avoid damage.
d) Don’t disport battery in stronger light. Don’t put battery on hot surface. It’s
will cause explode.
e) Fully cold battery before charging.
f) Don’t take part battery, avoid damage battery, its will cause injury.
g) Don’t use non-recycle battery.
4) Use charger correctly
a) Charger only use on recycles batter. If not cause fire or explode. Use original
charger to keep safety.
b) Always check charger, wire and plug before use. If damage, please move to
professional person to repair. Don’t use damage charger, or repair by yourself
to keep safety.
c) Check voltage of charger match your use, if not may be injury yourself.
d) Disconnect power before switch on/off tool with connect battery and
equipment.
e) Keep charger cleaner, away drippy or rain environment. Don’t use the charger
outdoor, dirt or water cause injury.
f) The charger design for only original battery. Otherwise may be cause damage
or fire.
g) Avoid damage charger will reduce injury.
h) Don’t use charger on tinder surface (e.g. paper or dry goods).
i) Replace wire must be professional service or person to do.

j) The battery not fully when you buy, you must charge 4-5hours before first use
the tool. Connect the battery to charger before power on.
k) Cut off power after fully charging.
l) Normal charging time is 4-5hours, don’t charging battery long time, it will be
damage battery. Make sure charging at indicate just 1 LED light, it’s good at
battery life.
5）Caution
Keep use the tool carefully avoid risk as below:
a) Sharp damage
b) Noise will damage your ear without ear protection.
c) Long times operate or irrationally use the tool will damage your body.
Warning！
The equipment will bring electromagnetism; it may be damage some device in body.
Suggest ask for doctor which it can do or not.
Warning!
Don’t touch blade in use tool avoid injury.
Purpose
The device design only uses for cutting hedge, brush, and branch.
Other not suitable work may be damage tool and yourself.
The equipment design for adult use, don’t use in rain or damp brush. Any not follow
manual damage, vender not responsible it.
Check blade sharp or not before use, sharp the blade before use. Blunt
blade damage tool and it not be warranty.
Function description
The tool made by special class steel. Stronger blades, Lighter design to easy single
hand operate. Excellent designer let use the tool safety, easy operation, and efficiency
in use. Blade very close branch, cutting softly, not damage plant. Any abnormal
operation, just loose trigger, blade will open maximum position to reduce damage.
Summary

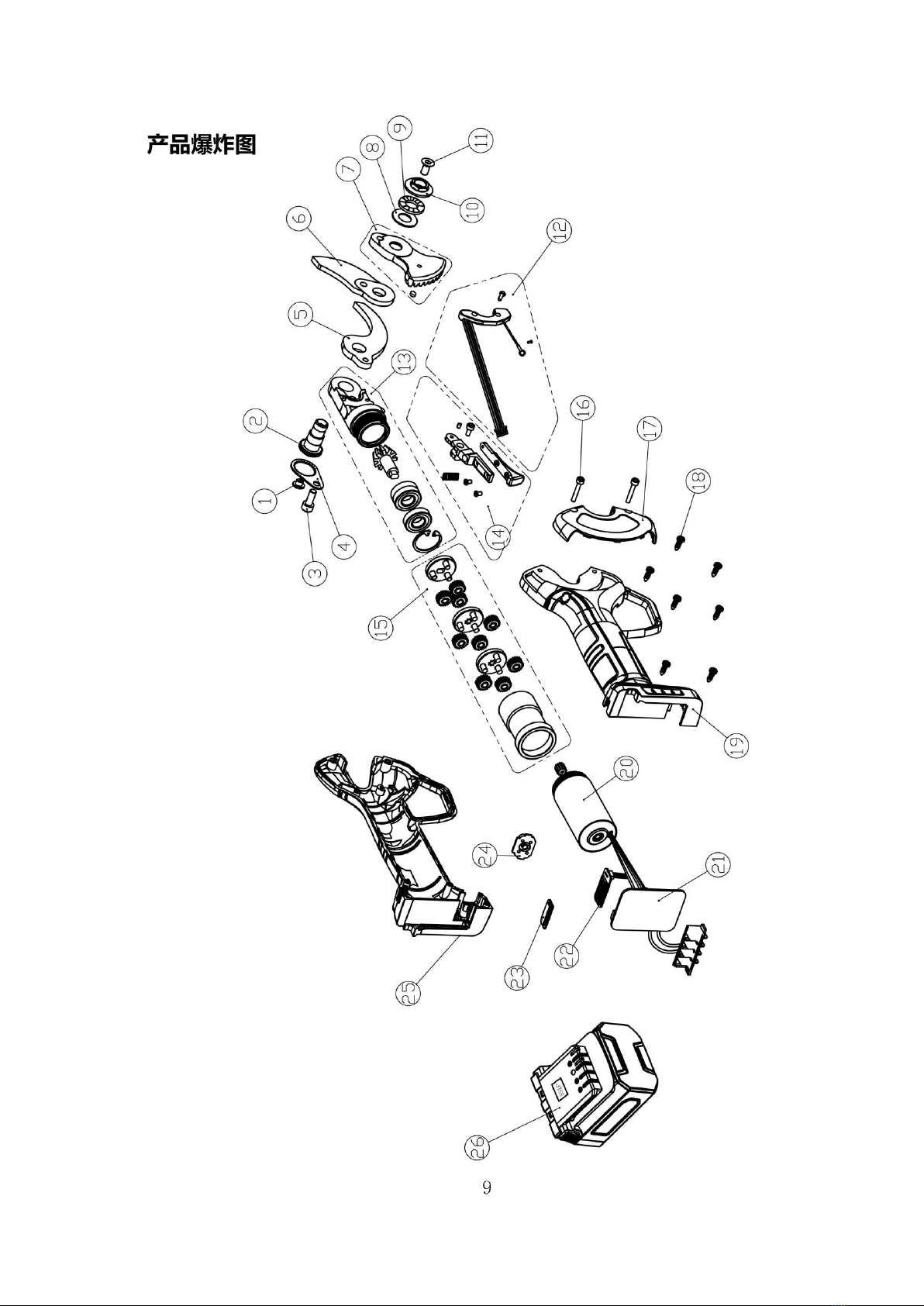

Parts:
8
Part list ：
1．moving blade
2．stable blade
3．adjustable cutting system
4．trigger loop protection
5．trigger
6．handle
7．switch
8．battery
9. charger

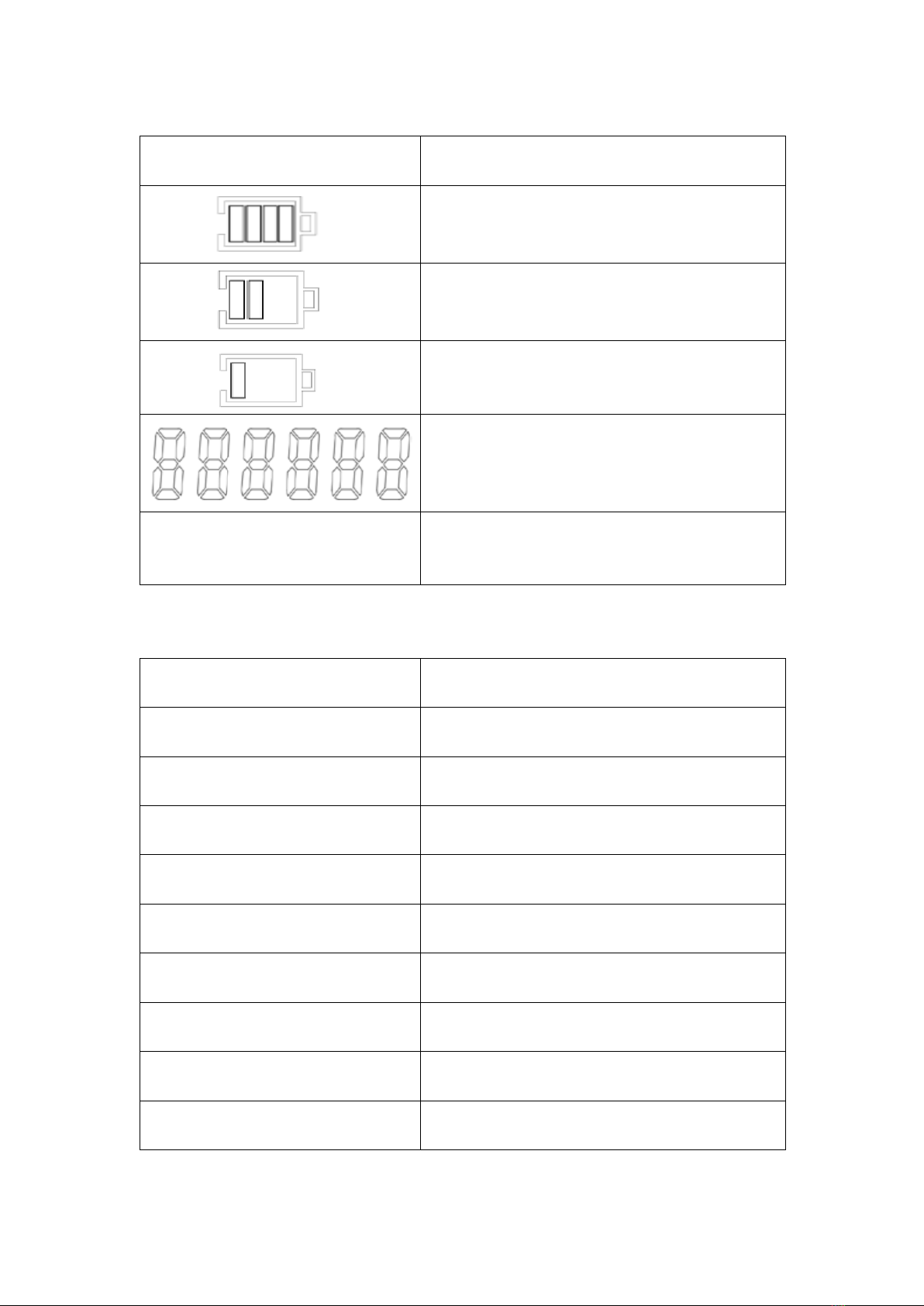

Display:
2
4
6
5
8
9
1
3
7

Display
Description
Battery 80%-100%
Battery 40%-60%
Battery under 30%
The total number of cuts is displayed
within 10 seconds of starting up
The number of cuts every switch on.
E 1/11
Fault
Fault code
Code
Description
1
Software high current
3
PCB Current error
4
The gear is stuck or jammed
5
low voltage
6
High voltage
7
Hardware high current
9
Battery low capacity
10
Default phase
11
Hall sensor error

Specification
Specification
Cordless pruning shear
1
Max cutting
32mm living plant
25mm dry plant
2
Rated voltage
DC21.6V
3
Rated power
300 W
4
Rated current
45.0A
5
Current protection
≥60A
6
Class
Ⅱ
7
Weight
0.79Kg
Battery lithium
1
Capacity
2.6 Ah
2
Voltage
21.6V
3
Running time
3 h
4
Weight
0.33kg
Charger
1
Rated voltage
100-240VAC ,50-60Hz
2
Output voltage
DC21V
3
Charging current
1.4A
4
Class II
Ⅱ
5
Charging time
2h
First use
Part list
Open package carefully, inspection part below:
-Cordless pruning shear
-Tool box
-Battery
-Charger
Charging the battery
Don’t’ dispose battery high temperature or vibration environment avoid liquid
leakage hurt body.
Always check battery dry and clean before charging.
·The first time use battery, need to full charging first.
·The battery not fully when you buy, you must charging 3-5hours before first use the

tool. Re-charging battery when indicate just one LED light.
·Don’t charging battery over 5hour or use up absolutely all reduce battery life.
·Need replace battery if battery running time not enough.
·Caution safety rule and environment protection information
Charging battery
1．charging temperature at ＋10℃~＋22℃indoor.
2．Checking switch at “OFF”position at charging.
3．Connect adaptor of charger with battery correctly.
4．Always check specification are all match before charging.
5．Red LED light Indicate charging now, green LED light at charging full,
average charges time about 4-5hours.
6．Pull out connector from power and battery after charging finish.
7．Please make sure you will charge the battery at least one time per month
when the battery without using.
Caution
Must disconnect battery with tool before charging.
Assemble
Please check pruner, cable and battery are all clean and dry. Assemble as below:
1. Take out the backpack from the case and wear it.
2. Put battery into the backpack.
3. Double check nobody around of you and keep yourself away from the pruner
and connect the cable with battery tightly.
4. Connect the cable with pruner tightly
5. Fasten your belt of the backpack
6. Check the closed position of blade
7. Grip the pruning shear handle part tightly
8. Connect the cable from the left side; Please reverse the direction of the battery
for left-hander
9.Turn on the power switch, then Please drive the trigger 2 times continuously, Then it
will be opened. Then you can begin to work.
Working environment
1. Keep environment temperature at 0℃~ 45℃when charging battery, keep
-10℃~ +60℃when battery work.
2. Keep tool in -5℃~ 30℃temperature when work.

Operation
Please wear suitable cloth and glove when operate this tool. Always
check tools before use, sure on/off switch and safe switch are all ok.
The power should be put off when you loosen the trigger. Must stop
use tool if switch failure. Always check rated voltage of battery match
pruning shear. Use safety guard device can reduce risk in work.
Check frequency of blade work,
Keep good work condition anytime
Switch off the machine, blade will stop in many second, must sure blade
stop fully before touch it, otherwise blade will hurt your body.
1. For the output direction of the cable and the direction of holding the pruner,
2. Please keep they are the same. It is decided by you habit, you can connect to
right side if you are right hand or left side if you are left hand.
3. Adjusting your backpack and fasten your belt.
4. Connect the cable with pruner tightly
5. Turn on the power switch. After warning tone, please pull the trigger two
times without holding. And the shear will be on working condition after one
more warning tone. If the shear keeps unmovable during working, please
check whether the screw of wire connecting the shear and battery is tightly
enough. If the screw loose, please tight it and open the power again. If shear
keeps unmovable after long time working, and it comes four continuous
warning notes, it means the electricity is running out. Please charge the
battery immediately.
6. Don’t overload cutting, it will protect pruning shear and battery not be
damaged. Don’t cutting over 28mm living plant or 20mm dry branch.
7. User just loose trigger when the blade has been jammed by branch, the blade
will resume maximum position. Caution: Don’t sway the pruner from the left
to right in order not to damage the edge of blade during the resume process of
blade.
8. Changing the open size of blade: We can adjust the open size of blade from big
open size to small open size by pressing the black button on the shear. Please
identify the length of warning note when press the black button on the shear.
If warning note is long, it means the cutting size is big, if it is short, it means
the cutting size is small. Please see as below: When the open size of blade
maintain maximum position, Please press the trigger and maintain 5 seconds
unchanged Then the blade will keep closed state forever. When you loose the
trigger and press the trigger 2 times continuously, the open size of blade will

be changed into small open size. If you want to change the small open size into
big size, the method is the same. You can adjust them again and again.
9. When you stop working, please press the trigger and maintain 5 seconds
unchanged then the blade will keep closed state. Then turn off the power
switch and pull out the cable from the battery.
Cutting artifice
1．One hand operate tool, another should be away the pruning shear working area
15cm, mustn’t close anybody.
2．Blade will be hurt or jammed if cutting bigger branch forcedly.
3．Don’t move the tool during the pruning shear cutting; it will not keep you
safety.
4．Use sleeve to fix the wire of device avoid wire be draw by branch, that’s will
cause risk in working.
5．Don’t use the device in rain or humidity environment.
6．Should storage the device after use, take off wire from battery and pruning,
shut up power switch before storage.
Caution: please check battery capacity or blade sharp or not when cutting
difficult or not smooth.
Maintain
Repair mush sent to service. Use original part keeps the tool good condition
and safe.
Switch batter power if you need check the pruning shear.
Please wear glove before you check the blade sharp or not, that’s avoid blade
hurt you. Always check the pruning shear termly, keep tool safe and running
reliable

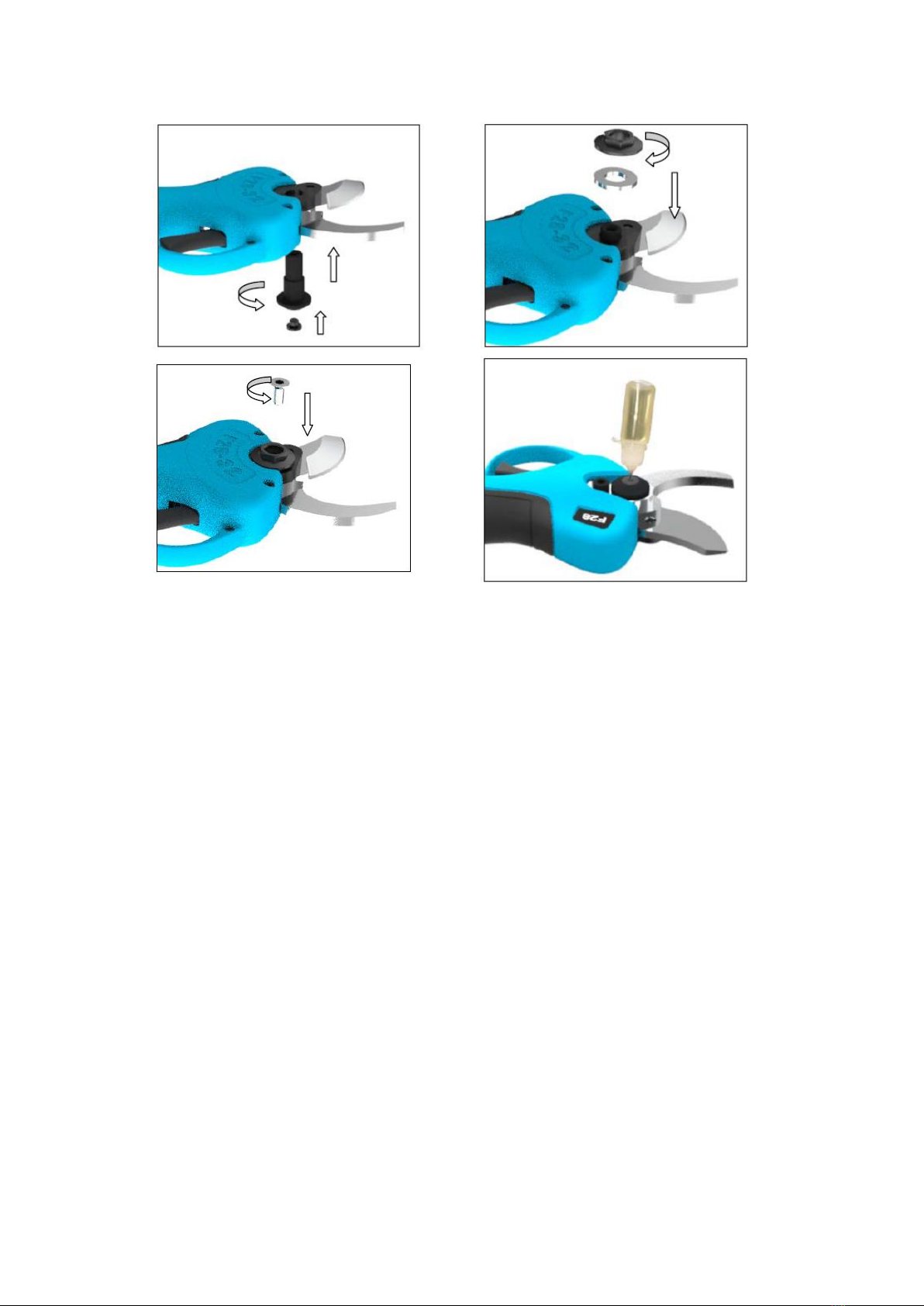

Remove blade

Cleaning
Don’t flush the tools or put it in water, it will cause short circuit or damage the
device.
Keep ventilation, motor and handle cleaning, always use feather clean the device.
Don’t use cleanser flush device, it will rust parts.
Cleaning the blade after every use, protect by oil or spray protection.
Open the front cover of the pruner for keep on working 8 hours for cleaning
the impurity( follwing the maintenance picture)
Sharp
This maintains is very important to keep blade good condition and life.
The tool have attach accessory to sharp blade, always check blade at early, sure
blade have good condition to work.
Adjusting clearance of blade
Always check and adjusting the clearance of blade to 0.1mm will let cutting work
turn too easy. Open holder by screw; clockwise rotate screw, set clearance to
0.1mm.
Storage
-Don’t disport the battery hot or cold environment.
-Move battery from device if storage long time.
-Storage the battery and charger to box to keep it away hot, dust and humidity.
Check switch at off position before storage.

Battery should be storage to dry environment, see below:
Storage less than 1 month
-20℃~ +60℃
Storage less than 6 month
-10℃~ +35℃
Storage over 6 month
0℃~ +30℃
-Maintain the battery; please full charging before storage, charging battery
every 1 month at long time storage.
-Don’t operate switch at storage.
Indication of charger
Li-Battery
LED
Battery capacity
Three squares green
80%-100%
Two squares green
50%-80%
One squares green
30%-50%
One squares red
Below 30%
Lithium battery
LED indication
Voltage
Green
34＜Vcc≤42
Red
Vcc≤34
Charger
Indication
Situation
Red
Charging
Green
Charging finish
Remark: voltage (V);

Waster and environment protection
Move battery from equipment; recycle battery, tool, accessory and package to kind of
waster.
Don’t disport Electrical equipment to domestic waster. Please solve the machine
to electrical waster center
Don’t disport battery to domestic waster. Waster gas will damage environment.
·Don't throw away the battery, if no need it, please send to the battery
callback place. After pruning, put the battery the right place. Don’t put the
battery together with life rubbish
Spare parts
Manufacture can provide high quality spare parts.
Battery
Charger
Blade
Warranty
1、The tool provides 24 months warranty for core parts, including Li-battery, Charge,
Motor & transmission mechanism，Trigger & signal wire, controller ; and 3
month for machinery parts barring except following condition:
Any normal wear and overload the tool
Missing normal maintain to damage the tool
Abnormal use the tool
Damage in carrying, drop or impact etc.
Failure after amateurish repairing.
Nature disaster (fire,fire-flag,flood) or dispute reason.
Heavy impact
Without warranty card

Use non-original battery or accessory.
2、caution: please replace part in warranty period.
Trouble shooting
problem
reason
solve
equipment can not start
battery use up
charging battery
disconnect battery
connect battery
switch off
switch on
switch fail
connect service repair
run abnormal
connect not good
connect service repair
switch fail
blade super heat
blade dull
sharp blade or replace
blade damage
sharp blade or replace
lubricate not enough,
use grease on blade
cutting surface bad
Friction force added
use grease on blade
dirt on blade
clean blade
blade dull
sharp blade or replace
artifice not enough
read instruction carefully
battery empty
charging battery
Can’t charging, red LED
flash
Battery not fully insert
charger
Re-insert the battery to
charger
Charger not connect power
Re-connect
Electrode dirt
Clean dirt
Battery failure
Replace battery
Charger fail
Replace charger
Two warning note appears and
the two warning note repeat 10
times
The signal for cutting
opening positioning fail,
shear is out of work
Send shear to service
center for repairing
Three warning note
appears and the two
warning note repeat 10
times
The signal for cutting
closing positioning fail,
shear is out of work
Send shear to service
center for repairing
Four warning note appears
and the two warning note
repeat 10 times
Motor winding fail, shear
is out of work
Send shear to service
center for repairing
Ten warning note appears
and the two warning note
repeat 10 times
Small maintenance
To add oil for screw pin
5S long warning note, and
repeat 10 times
Big maintenance
Send shear to service
center for repairing, to add
oil for gear box and make
