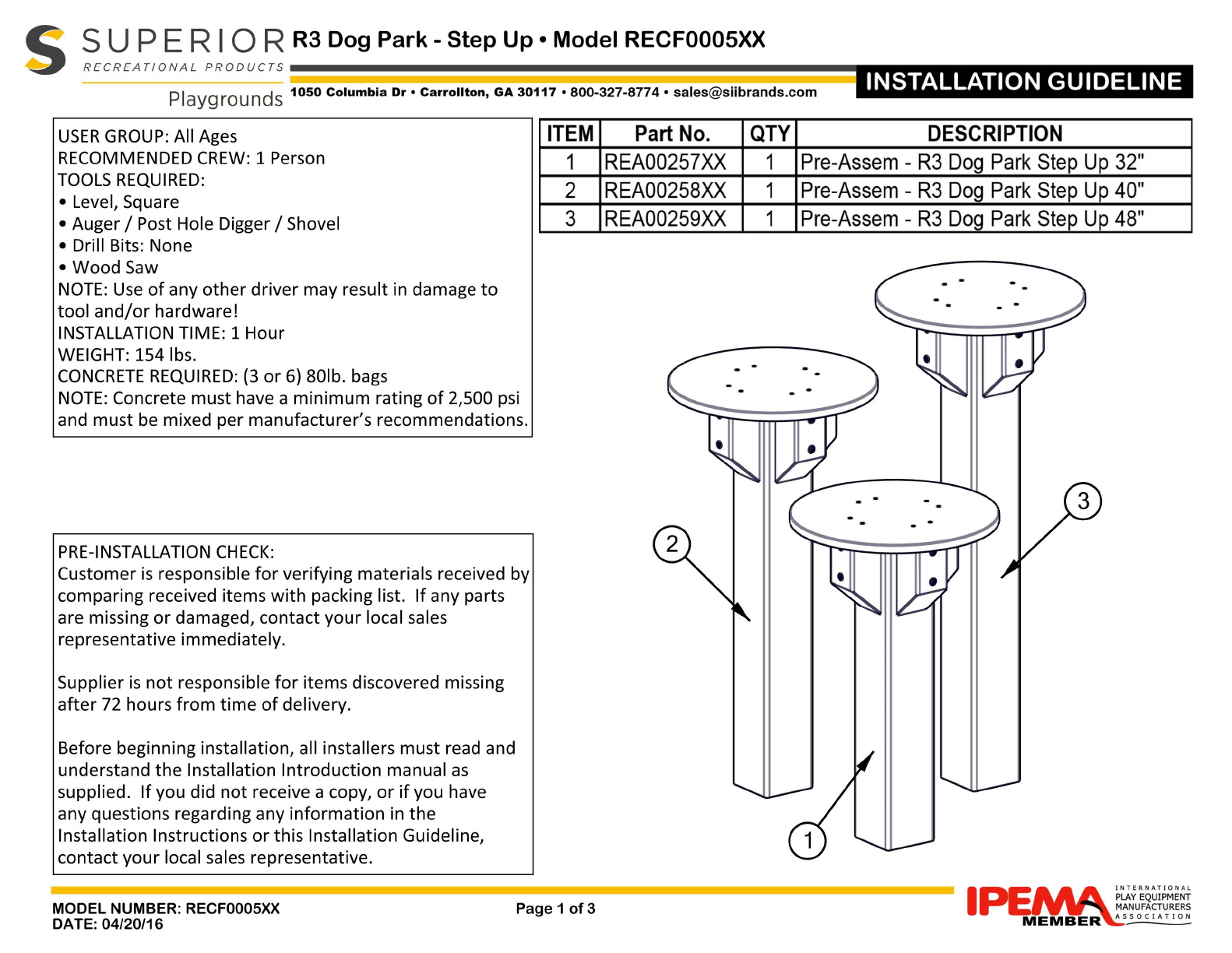

IPEMA SUPERIOR RECF0005XX User manual
SU PERIO RR3 Dog
Park
-
Step
Up
• Model RECF0005XX
RECREATIONAL
PRODUCTS
________________________________________________
__
Playgrounds
1050
Columbia
Dr•
Carrollton,
GA
30117
•
800-327-8774
• [email protected] INSTALLATION GUIDELINE
USER
GROUP:
All Ages
RECOMMENDED
CREW
: 1 Person
TOOLS
REQUIRED:
• Level, Square
• Auger I Post Hole Digger I Shovel
• Drill Bits: None
•
Wood
Saw
NOTE:
Use
of
any
other
driver
may result in damage
to
tool
and/or
hardware!
INSTALLATION TIME: 1 Hour
WEIGHT: 154 lbs.
CONCRETE
REQUIRED:
(3
or
6)
801b.
bags
NOTE:
Concrete
must
have a
minimum
rating
of
2,500
psi
and must be mixed per manufacturer's recommendations.
PRE-INSTALLATION
CHECK:
Customer
is
responsible
for
verifying materials received by
comparing received items
with
packing list.
If
any parts
are missing
or
damaged, contact
your
local sales
representative immediately.
Supplier
is
not
responsible
for
items discovered missing
after
72 hours
from
time
of
delivery.
Before beginning installation, all installers must read and
understand
the
Installation
Introduction
manual
as
supplied.
If
you did
not
receive a copy,
or
if
you have
any questions regarding any
information
in
the
Installation Instructions
or
this Installation Guideline,
contact
your
local sales representative.
ITEM
1
2
3
MODEL NUMBER: RECF0005XX
DATE: 04/20/16 Page 1
of
3
Part
No.
QTY
REA00257XX
1
REA00258XX
1
REA00259XX
1
DESCRIPTION
Pre-Assem
-
R3
Dog
Park
Step
Up
32"
Pre-Assem
-
R3
Dog
Park
Step
Up
40"
Pre-Assem
-
R3
Dog
Park
Step
Up
48"
lp
~
NTERNATIONAL
PLA
YEQUIPMENT
MANUFACTURERS
MEMBER
ASSOCIATION
SU PERIO RR3 Dog
Park
-
Step
Up
• Model RECF0005XX
RECREATIONAL
PRODUCTS
______________________________________________
___
Playgrounds
1050
Columbia
Dr•
Carrollton,
GA
30117
•
800-327-8774
STEP
1
Determine depth
for
setting support posts. Recommended
minimum
depth
of
support posts
is
12".
If
support posts are set at 12" depth,
cut
off
12"
from
each support post.
If
support posts are set
at
24"
depth, support posts do
not
require modification.
For 12" Footing Hole
Depth:~
Cut Off 12" of Support Post
Typ. All
For 24" Footing Hole Depth:
~
Do
Not Cut Support Post
Typ.AII
MODEL NUMBER: RECF0005XX
DATE: 04/20/16 Page 2
of3
INSTALLATION GUIDELINE
lp
~
NTERNATIONAL
PLA
YEQUI
PME
NT
MANU
FA
CTUR
E
RS
MEMBER
ASSOCIATION
SU PERIO RR3 Dog
Park
-
Step
Up
• Model RECF0005XX
RECREATIONAL
PRODUCT
S
__________________________________________________
__
Playgrounds
1050
Columbia
Dr•
Carrollton,
GA
30117
•
800-327-8774
STEP
2
Set support posts. Refer
to
site plan drawing and site elevation drawing
for
placement
of
all support posts. Installer
is
responsible
for
proper location
of
all support posts.
See
Detail 2-1
for
support post spacing. Footing holes
for
support posts must
be
a minimum
of
12" diameter and 12" deep. Footing holes
should
be
24" deep
if
support posts aren't cut.
Place
assembly
into
footing
holes and plumb. Fill
each
footing hole
with
concrete
to
within
3"
from
ground
surface. Allow concrete
to
cure based upon manufacturer's instructions. Backfill
each footing hole
with
dirt, flush
with
grade.
See
Detail 2-2. Installation
is
complete.
Detail
2-1
Shortest Step
··f··········································· ············-~·-··········
··
·1·
Longest Step
10"
1
--t--
..
....
..
.
...
..l
...
......
...
..
...
Medium Step 20"
10"
:
,.
17-5/16"---1-
MODEL NUMBER: RECF0005XX
DATE:
04/20/16
Detail 2-2
Support Post
Backfill
Ground I Dirt
Page 3
of3
INSTALLATION GUIDELINE
12"
lp
~
NTERNATIONAL
PLA
YEQUIPMENT
MANUF
A
CTURERS
MEMBER
ASSOCIATION
