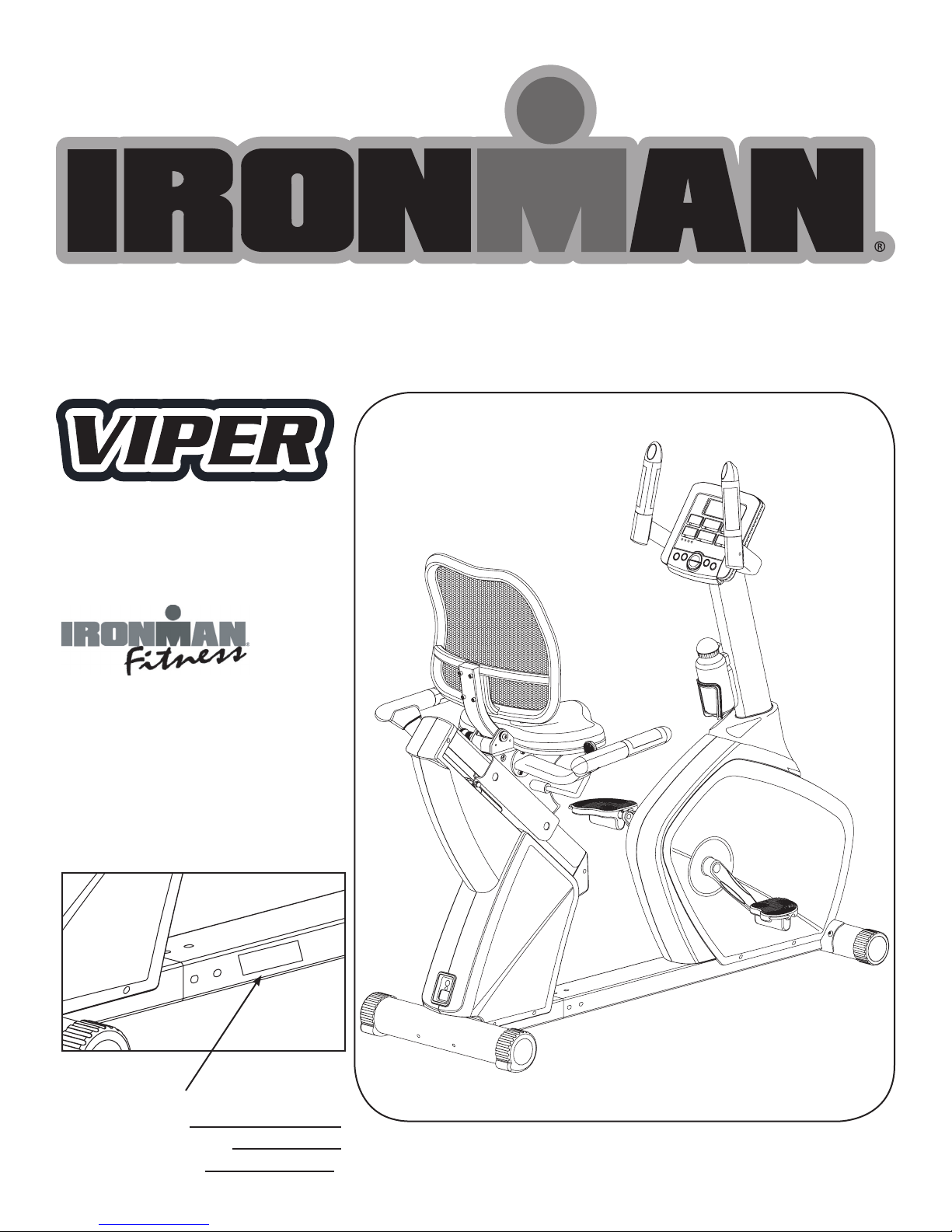

Ironman Fitness Viper 315-00109 User manual

315-00109
07/07 Rev A
Owner’s Manual
SERIAL TAG IS LOCATED ON THE FRAME
Model Name: Viper
Date of Purchase:
Serial Number:
Customer Service
1.800.750.IRON
1.800.750.4766
4009 Distribution Drive
Suite 250
Garland, TX 75041
www.ironmanfitness.com

2
Important Safety Information 3-4
Parts Identifier 5-6
Assembly 7-12
Console Instructions 13-17
Monitoring Your Heart Rate 18
Warm-Up Exercises 19
General Instructions 20
Moving Instructions 21
Parts List 22
Exploded Views 23
Warranty Information 24
Table of Contents

3
WARNING! Before using this unit or starting any exercise program, consult your physician.
This is especially important for persons over the age of 35 and/or persons with pre-existing
health problems. The manufacturer or distributor assumes no responsibility for personal injury
or property damage sustained by or through the use of this product.
WARNING! To reduce the risk of electrical shock, burns, fire, or other possible injuries to the
user, it is important to review this manual and the following precautions before operation.
SAFETY PRECAUTIONS AND TIPS
1. It is the owner's responsibility to ensure that all users of this unit have read the Owner's
Manual and are familiar with warnings and safety precautions.
2. This unit has a user maximum capacity of 300 pounds.
3. The unit should only be used on a level surface and is intended for indoor use only. The unit
should not be placed in a garage, patio, or near water and should never be used while you are
wet. Ironman Fitness recommends a mat be placed under the unit to protect floor or carpet
and for easier cleaning.
4. Follow safety information in regards to plugging in your unit. Do not run the power cord
underneath your unit. Do not operate the unit with a damaged or frayed power cord.
5. Wear comfortable, good-quality walking or running shoes and appropriate clothing. Do not
use the unit with bare feet, sandals, socks or stockings.
6. Always examine your unit before using to ensure all parts are in working order.
7. Allow the unit to fully stop before dismounting.
8. Pets should never be allowed near the unit.
9. Do not leave children unsupervised near or on the unit.
10. Never operate the unit where oxygen is being administered, or where aerosol products are
being used.
11. Never insert any object or body parts into any opening.
12. For safety and to prevent damage to your unit, no more than one person should use the
unit at a time.
13. Always unplug the unit before cleaning and/or servicing. Service to your unit should only be
performed by an authorized service representative, unless authorized and/or instructed by the
manufacturer.
14. Failure to follow these instructions will void the unit warranty.
Important Safety Information

4
Thank you for purchasing the Ironman Fitness Viper Recumbent Bike! The quality product
you have chosen was designed to meet your needs for cardiovascular exercise. Before you
start, please read the Owner’s Manual and become familiar with the operation of your new unit.
Remember to take time to perform stretching exercises, provided in this manual, to help avoid
injury.
If you are taking medication, consult your physician to see what effect the medication will have
on your exercise heart rate.
If you have heart problems, you are not active, and/or are over the age of 35 years, do not
use the pre-set programs or start an exercise program without first contacting and receiving
approval from your physician.
To avoid the risk of electrical shock, always keep the console dry. Do not spill liquids on the
console. Ironman Fitness recommends a sealed water bottle for beverages consumed while
using the unit.

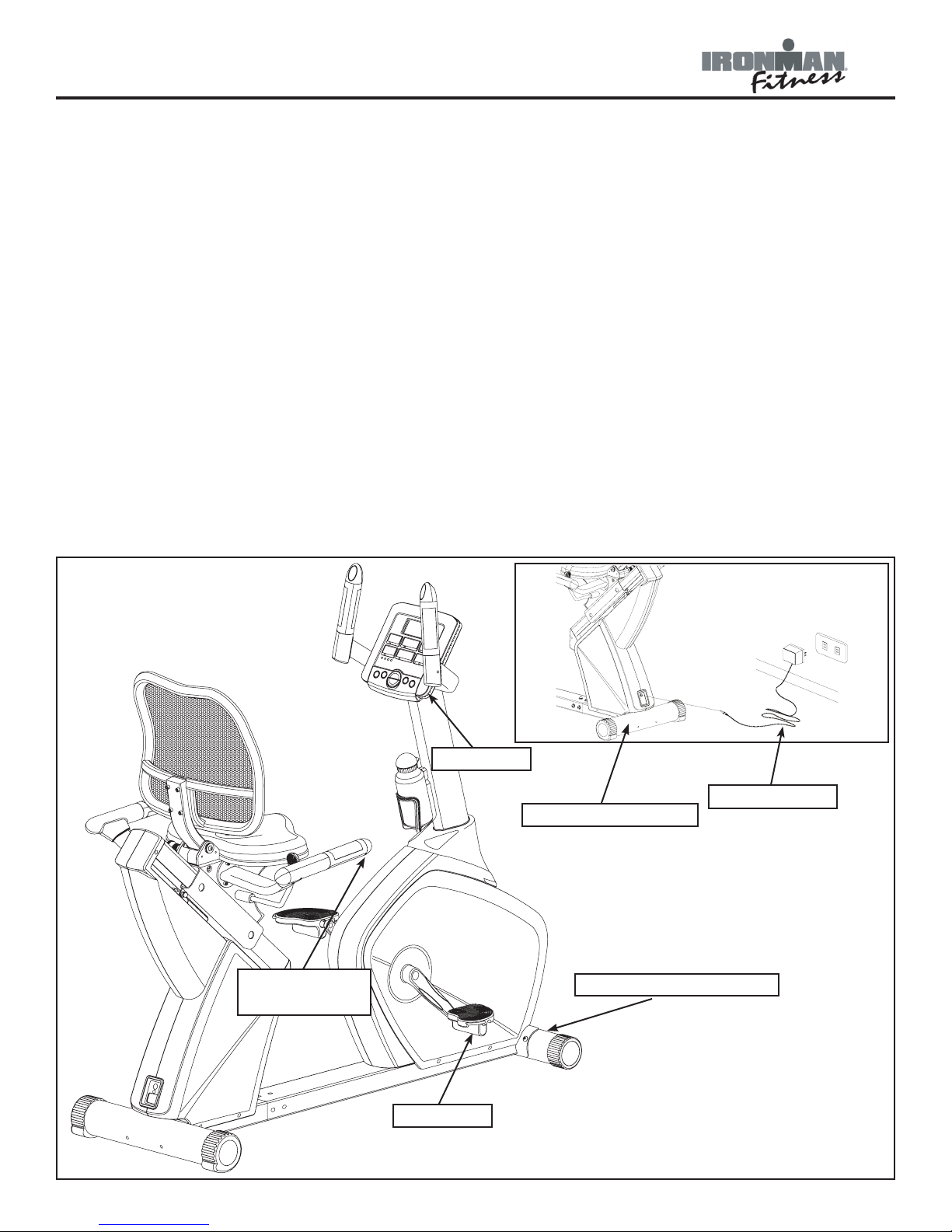

Please review the following drawing below to familiarize yourself with the listed
parts.
Important Safety Information

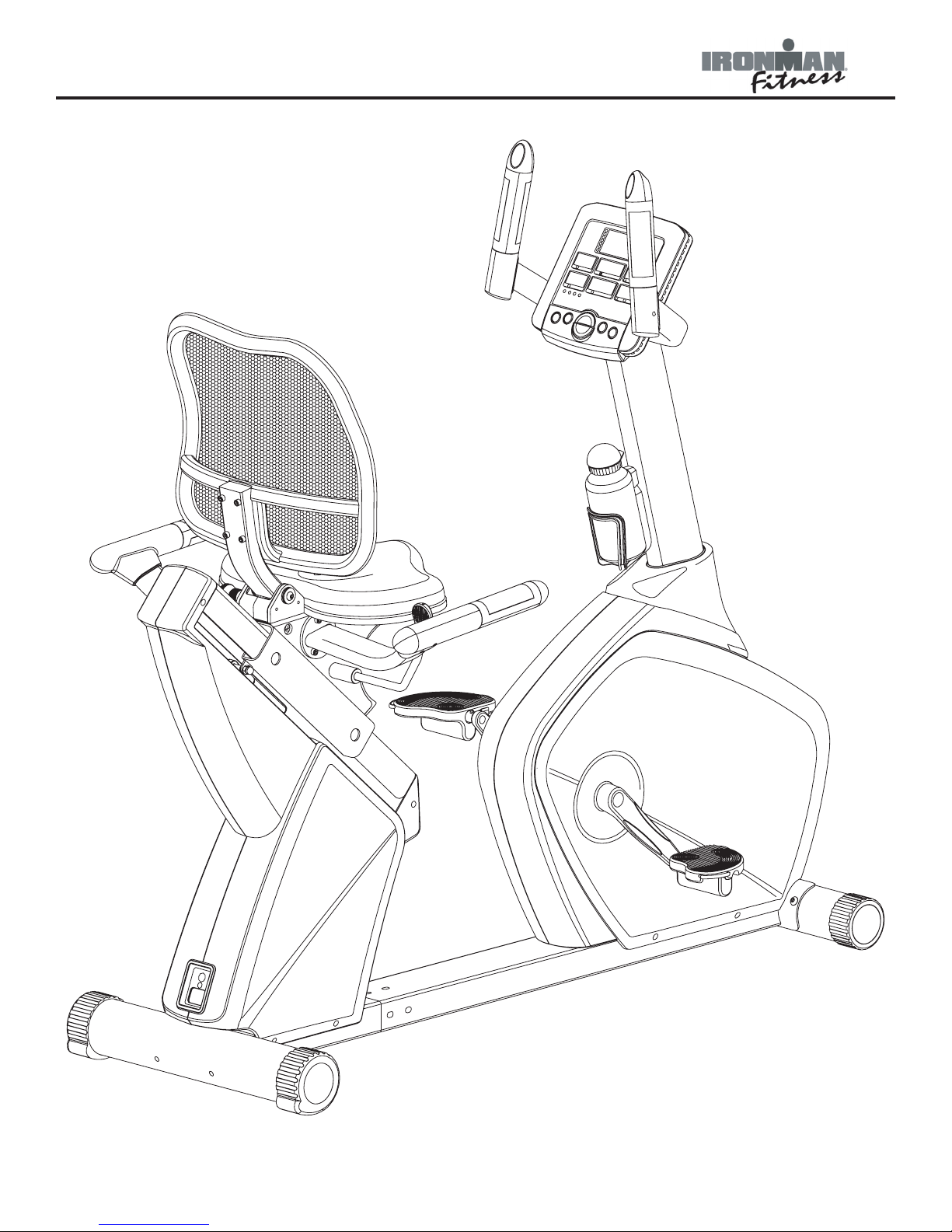

CONSOLE
AC ADAPTER
PEDAL
PULSE GRIP
HANDLEBARS
REAR STABILIZER
FRONT STABILIZER

Parts Identifier
5
Seat Slide
Adjustment
Handle
Main Frame Front
Rear
Handle Bar Console
Front Stabilizer
Rear Stabilizer
Main Support Tube
Back
Rest
Seat Pad
INSTRUCTIONS FOR ASSEMBLY:
Unpack the box in a clear area. Check to make sure all components are present and in good
condition. Do not dispose of the packing material until the assembly is completed. Tools have
been provided for you to use when assembling this product.

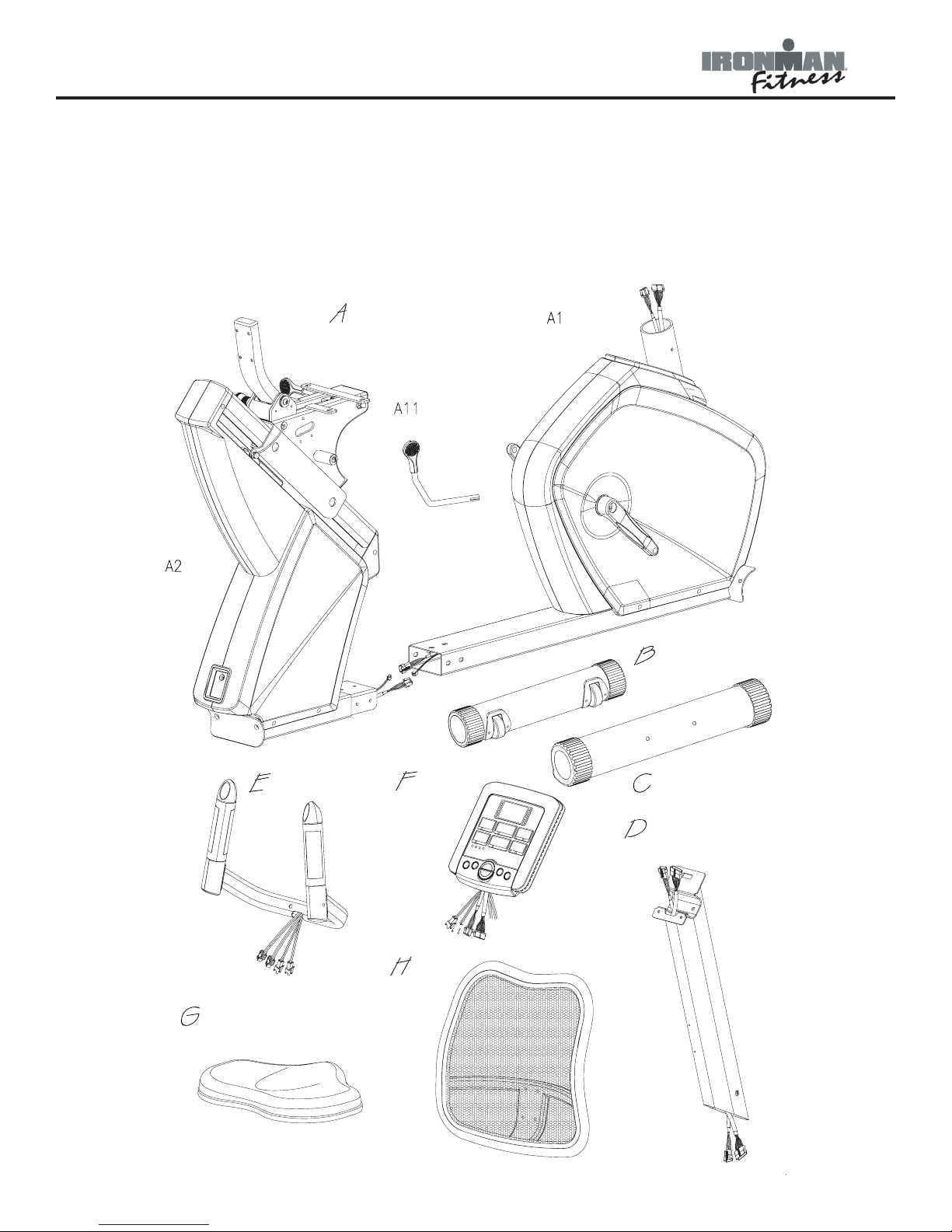

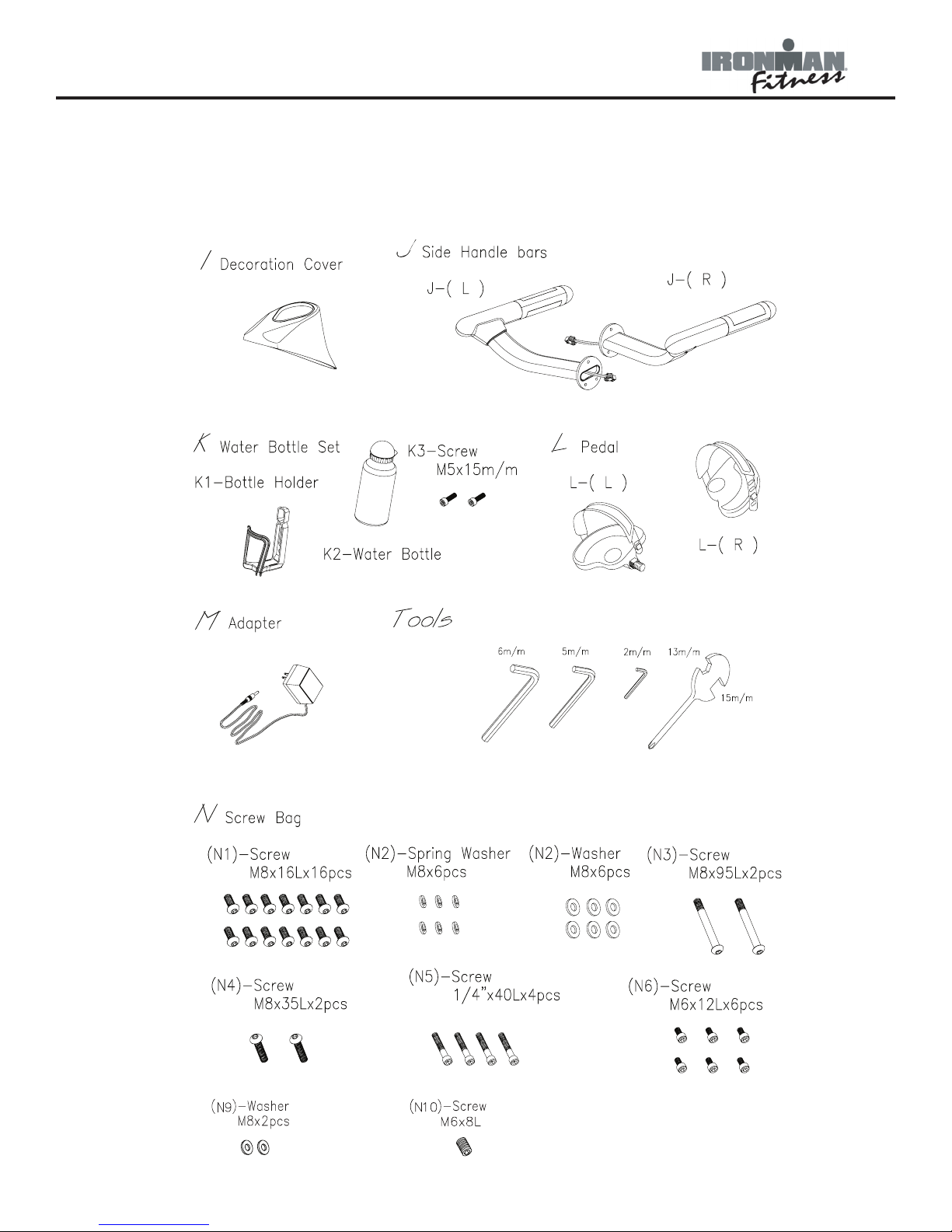

Locate the hardware pack and identify the following parts required for assembly.

6
Parts Identifier
INSTRUCTIONS FOR ASSEMBLY:
Unpack the box in a clear area. Check to make sure all components are present and in good
condition. Do not dispose of the packing material until the assembly is completed. Tools have
been provided for you to use when assembling this product.

7
Getting Started - The Ironman Fitness Viper Recumbent Bike will require some assembly.
Unpack the box in a clear area. Remove packing material. Do not dispose of packing material
until assembly is complete and unit is working properly. Place the unit on a clean level surface
for assembly. Make sure there is easy access to an electrical outlet. Before assembling, the
unit should be placed as close as possible to its final location. If you are missing any parts,
please call Ironman Fitness at 1-800-750-4766. Tools have been provided to assist with prod-
uct assembly.
Assembly
Figure 1

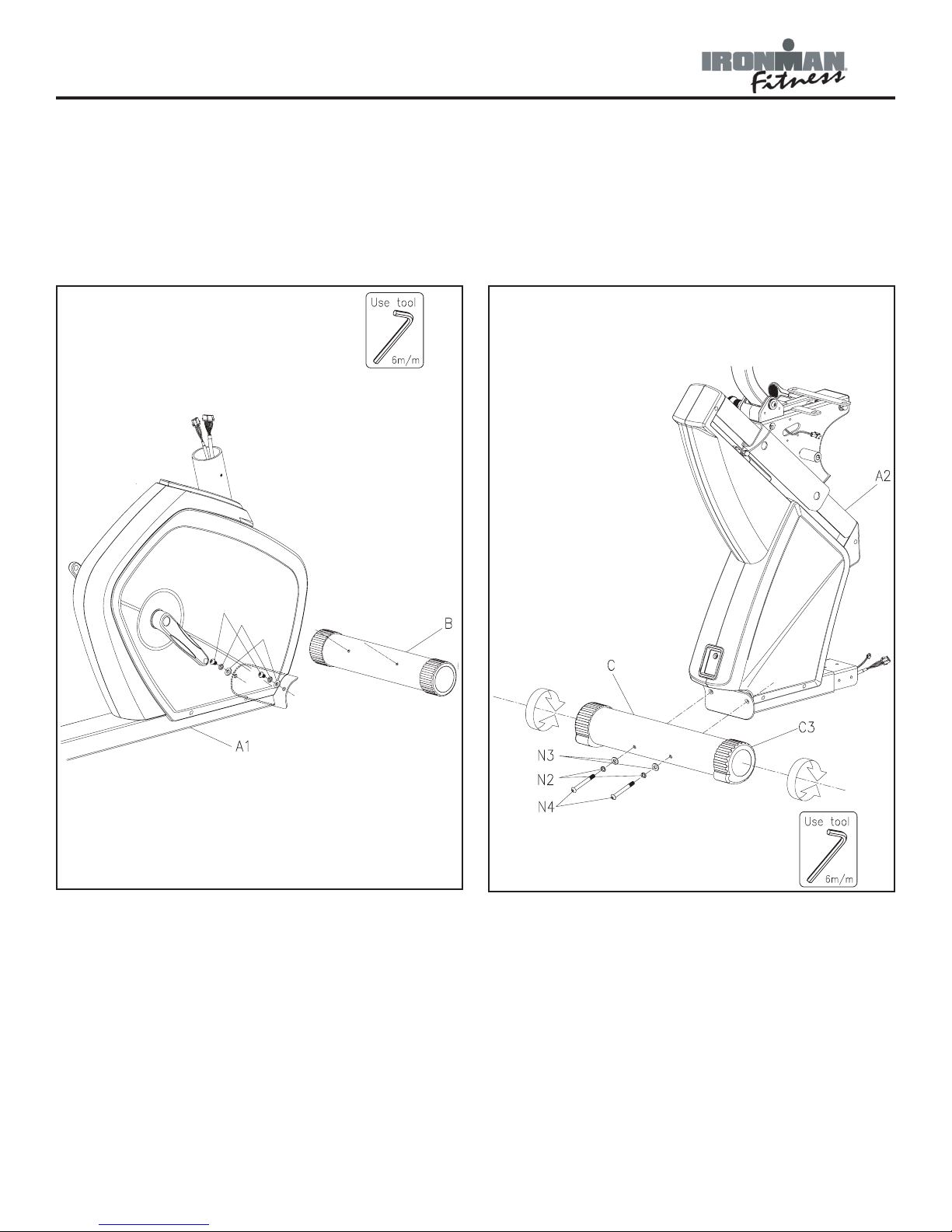

Step 1:
Secure front stabilizer bar (B) to main
frame (A1) using two bolts (N1), spring
washers (N2) and two washers (N3).
Note: Bolts will already be installed onto
the front stabilizer.
N8
N2
N3
Figure 1 Figure 2
Figure 2
Step 1:
Secure rear stabilizer (C) to the main
frame (A2) using bolts (N4), two spring
washers (N2) and two washers (N3),
already attached to stabilizer.

8
Assembly
Figure 3
Step 1:
Connect hand pulse sensor wire-rear (A24)
to the hand pulse sensor wire-middle (A23).
Connect the power cord (A31) to power
cord (A32).
Step 2:
Locate the front (A1) and rear (A2) main
frames. Connect both front and rear
frames. To secure, use six bolts (N1), six
spring washers (N2) and six washers (N3) -
make sure all holes are lined up correctly.
Note: Ensure that all wires are secure
inside tube during the entire time both
frames are being secured. Be careful not to
pinch wires.
Figure 3
D
I
Figure 4
Step 1:
Locate main support tube (D) and console
tube cover (I). Slide main tube cover up
the main support tube.
Step 2:
Connect hand pulse sensor wire - front
(A25) coming from main support tube to
hand sensor wire - middle (A23) coming
from the main frame.
Connect power wire (A26) coming from
main support tube (D) to power wire (A21)
coming from the main frame.
Step 3:
Secure main support tube to main frame
(A1) using four bolts (N1) and four spring
washers (N2) and two washers (N3). Slide
main support tube cover down until it meets
the main frame.
Figure 4

9
Assembly
N10
A9
Figure 5
Step 1:
Slide the seat adjustment handlebar (A11)
into the main frame and secure using stop-
ping screw (N10).
Step 2:
Connect sensor wire (A32) to sensor wire
(J1) and side handlebar (J-R) onto sliding
track (A9). Secure using three bolts (N7).
Figure 5
N3
A9
Figure 6
Step 1:
Connect sensor wires (A32) to sensor wire
(J1) and side handlebar (J-L) onto sliding
track (A9). Secure using three bolts (N7).
Step 2:
Locate seat pad (G) and secure onto slid-
ing track (A9) with four screws (N1) and
four washers (N3).
Note: Screws are attached underneath seat
pad.
Figure 6

10
Assembly
Figure 7
Step 1:
Locate backrest (H) and secure onto the
backrest tube (A10) using four screws (N6).
Step 2:
Locate plastic bottle holder (K1) and
secure to the middle of the main support
tube (D) using two screws (K3). Place
water bottle (K2) into water bottle holder
(K1).
Figure 7
N9
E
N5
Figure 8
Step 1:
Locate small handlebar (E) and attach
onto the iron plate of the console tube (D)
and use two bolts (N5) and two washers
(N9) to secure tightly.
Figure 8

F
Figure 9

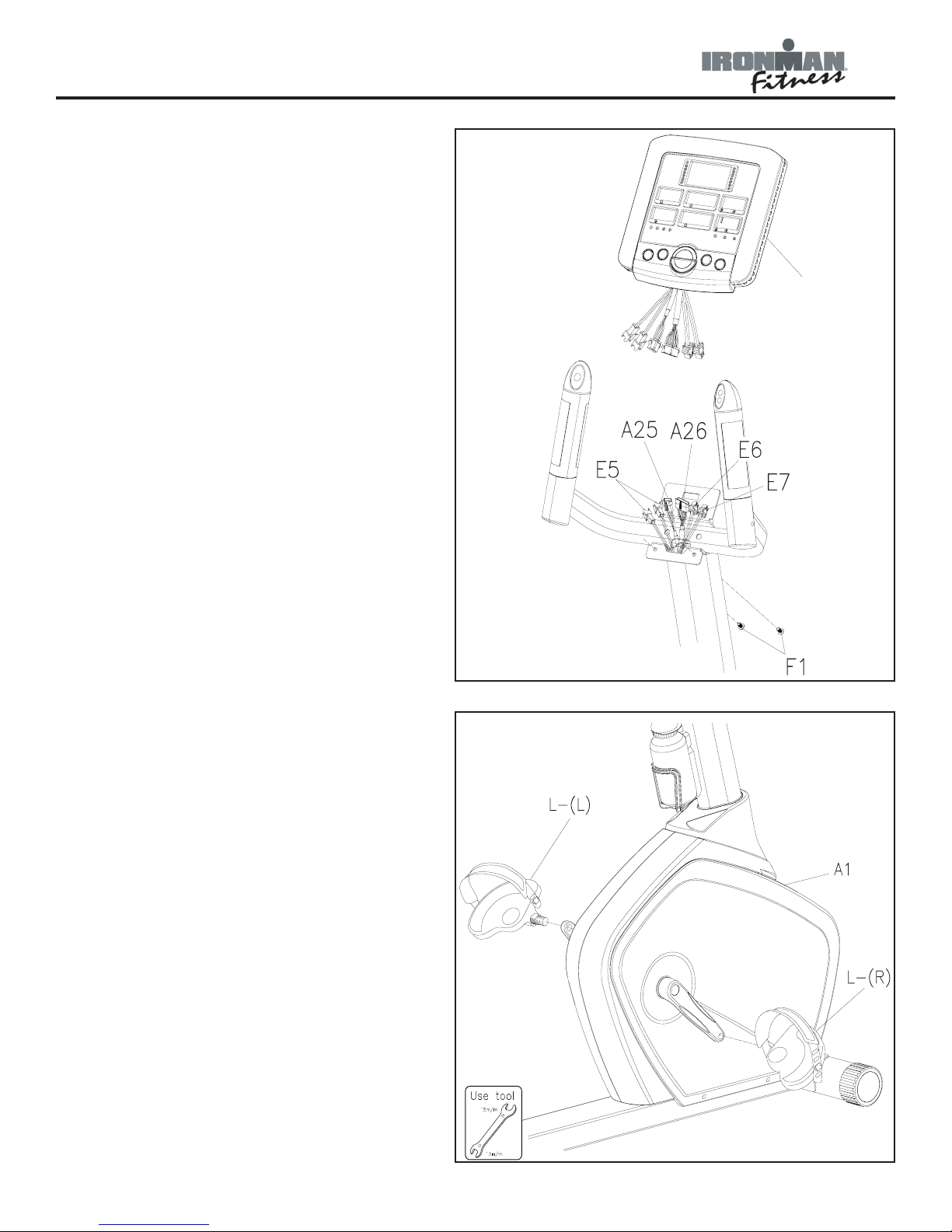

Step 1:
Locate console (F), and connect sensor
wires (E5, A25, A26, E6, E7) to the wires
coming from the console.
Step 2:
Gently push all of the wires into the con-
sole tube. Slide console onto the console
tube. Secure using two screws (F1).
Note: Screws (F1) will already be attached
on the backside of the console. Remove
before sliding onto console tube.
Figure 9
11
Assembly
Figure 10
Step 1:
Thread the right pedal (L-R) into the right
crank area of main frame (A1). Secure in
place by turning it clockwise to tighten.
Note: Right pedal (L-R) is marked with an
“R”.
Step 2:
Thread the left pedal (L-L) into the left
crank area of main frame (A1). Secure in
place by turning it counter-clockwise to
tighten.
Note: Left Pedal (L-L) is marked with an “L”
Figure 10

12
Assembly
CONGRATULATIONS!
You have completed assembly of your Viper Recumbent Bike.

13
Console Instructions
Take a few moments to review the console layout. Below is an overview of the console and
their different functions.
CONSOLE BUTTONS
MODE:
This button is used as an enter key, and will allow user to move to the next setting that can be
changed. When pressed and held for 2 seconds or more, console will go back to the user pro-
file selection screen.
RESET:
This button is used to return to program selection screen when workout is paused.
START/STOP:
This button is used to start or stop training.
RECOVERY:
This button is used to begin the Recovery feature of the console (refer to "Console Functions"
for more information).
UP/DOWN:
When changing settings of a program, these buttons are used to increase/decrease TIME,

14
Console Instructions
WEIGHT and AGE. During your workout, these buttons are used to increase/decrease the
resistance level from 1 to 16. Press and hold for two seconds to rapidly increase/decrease val-
ues.
BUTTONS ON UPRIGHT HANDLEBAR
In order to offer more flexibility during your workout, additional toggle switches are placed on
the upright handlebar. The buttons are the +/- and MODE. They are used the same way as
the buttons on the console. These buttons may be used at anytime as a substitute to pressing
the buttons located on the console.
CONSOLE FUNCTIONS
TIME:
If a target time was not selected, time will count up from 00:00 to maximum 99:59. When
working out with a target time, time will count down from target to 00:00. When selecting
target time, use the +/- buttons, the time will change in 1 minute increments and can range
from 1:00 min to 99:00 mins.
SPEED:
Displays current training speed from 0.0 to maximum 99.9 KM or MPH.
RPM:
Displays current training revolutions per minute.
DISTANCE:
If a target distance was not selected, distance will count up from 0.00 to maximum 99.90.
When working out with a target distance, distance will count down from target to 0.0. When
selecting target time, use the +/- buttons, the distance will change in 0.1 mile increments and
can range from 0.00 miles to 99.90 miles.
CALORIES:
If target calories were not selected, calories will count up from 0 to maximum 990. When
working out with target calories, calories will count down from target to 0. When selecting
target calories, use the +/- buttons, the calories will change in 10 calorie increments and can
range from 0 calories to 990 calories.
PULSE:
Displays your current heart rate as soon as both hands are holding the pulse sensor. The mon-
itor will detect your heart rate through hand grip sensors that are located on the upright and
near the seat. Note: It may take several seconds for the electronics to detect and display an
accurate heart rate reading.
WATT:
Displays current training watt figures. A watt is a measurement of the amount of power gener-
ated by the user based on the resistance and speed.

15
Console Instructions
RECOVERY:
After your workout, keep holding on hand grips and press “RECOVERY” button. All function dis-
play will stop except “TIME” starts counting down from 01:00 to 00:00. Screen will display
your heart rate recovery status rating between F1-F6. F1 is the best, F6 is the worst. User may
keep exercising to improve the heart rate recovery status. (Press the RECOVERY button again
to return the main display.)
GENERAL INFORMATION
1. Start pedaling or press any button to start Console.
2. The console will shut down after 4 minutes of no activity, and will display room temperature.
Begin pedaling or press any button to bring console back to operational state.
3. To reset console press and hold the MODE or RESET button for 2 seconds.
4. To begin workout without inputting any values (Quick Start Mode), simply press START/STOP
once the console is turned on. Change resistance during workout by pressing the +/-but-
tons.
Note: The values calculated or measured by the console are for exercise purposes only, not for
medical purposes.
GETTING STARTED
When console is first turned on, user will be able to select a user profile. There are four pro-
files to choose from, U1-U4. Each profile allows the user to enter his/her information, such as
Gender, Age, Height and Weight.
To begin, first select desired profile (U1-U4) that will be edited. Press MODE button to confirm
selection. The console will now allow user to select his/her gender. Use the +/- buttons on
the console or on the upper handlebars to select user's gender. Press MODE to confirm selec-
tion. Next, enter user's age. Use the +/- buttons on the console or on the upper handlebars
to select user's age. Press MODE to confirm selection. The console will now allow user to
enter his/her height. Use the +/- buttons on the console or on the upper handlebars to select
user's height. Note: Height will be shown in inches. Press MODE to confirm your selection.
Finally, enter user's weight. Use the +/- buttons on the console or on the upper handlebars to
select user's weight. Press MODE to confirm selection. The console remembers these settings
until the power is lost or disconnected, at which point, the console will revert back to default
settings.
PROGRAM INSTRUCTIONS
Once profile is either created or selected, user will select the type of workout desired. The
available workouts include Manual, Program, Watt, User and HRC.
MANUAL PROGRAM:
After selecting user profile, use the +/- buttons until the red light is blinking next to Manual.
The manual program allows the user to manually adjust tension settings throughout his/her
workout. The default tension level is 1. You may set desired time, distance, calories, resis-
tance, distance, and pulse rate for your workout. If desired, user may bypass all of this, and
simply press START/STOP button and enter into quick start mode.

16
Console Instructions
Time will flash in the display. Use the +/- buttons to set desired time. Press MODE to con-
firm selection. Repeat steps for distance, pulse, resistance, and calories. Press START/STOP to
begin exercising at any time. You can change the tension level at any time during your workout
session by pressing the +/- buttons.
PROGRAMS:
The console comes with 12 preset programs (see program profiles on page 17 for programs
available). After selecting user profile, use the +/- buttons until Program is selected (the blink-
ing red light will be next to the word Program). Press MODE button to confirm selection. Use
the +/- buttons until desired program is blinking (P1-P12). Press MODE button to confirm
selection. The console will now allow user to select the level of workout (resistance shown as
L1-L10) by using the +/- buttons until the desired level is selected. Press MODE button to con-
firm selection. Time will flash in the display. Use the +/- buttons to set desired time. Press
MODE to confirm selection. Repeat steps for distance, pulse, resistance, and calories. Press
START/STOP to begin exercising at any time. You can change the level at any time during your
workout session by pressing the +/- buttons.
USER PROGRAM:
The console allows user to customize a workout session. This program is divided into 15 seg-
ments. Resistance can be set for each segment. The program will be stored in the console’s
memory after set-up.
After selecting user profile, use the +/- buttons until User Setting is selected (the blinking red
light will be next to the word User Setting). Press MODE button to confirm selection. The first
segment will now be flashing in the main window. Use the +/- buttons to increase or decrease
the desired resistance. Press the MODE button to confirm selection and proceed to the next
segment. Repeat until all segments contain desired resistance.
HEART RATE PROGRAM (HRC):
Heart rate control programs are designed to automatically change resistance to keep your
heart rate at a predetermined level based on the selected Heart Rate program. Each heart rate
program is designed with a specific goal in mind. Note: This calculation is based on your age
which must be entered correctly into your user profile.
See MONITORING YOUR HEART RATE section for more information.
After selecting user profile, use the +/- buttons until Program is selected (the blinking red light
will be next to the word Program). Press MODE button to confirm selection. Use +/- to select
desired HRC Program. There are four different programs - heart rate 55% HRC (Heart Rate
Control), 75% HRC, 90% HRC, and Target HRC (user specifies the percentage of maximum
heart rate desired). Press MODE button to confirm selection.
Program Goal
55% HRC Weight Loss
75% HRC Cardio
90% HRC Performance
TRG HRC Custom

Console Instructions
17
If TRG is selected, use the +/- buttons until desired target heart rate is selected. Press
MODE button to confirm selection.
Time will flash in the display. Use the +/- buttons to set desired time. Press MODE to confirm
selection. Repeat steps for distance, pulse, resistance, and calories. Press START/STOP to
begin exercising at any time.
Note: For a more accurate reading, hold the hand grips with both hands. This is
especially important in Heart Rate Mode.

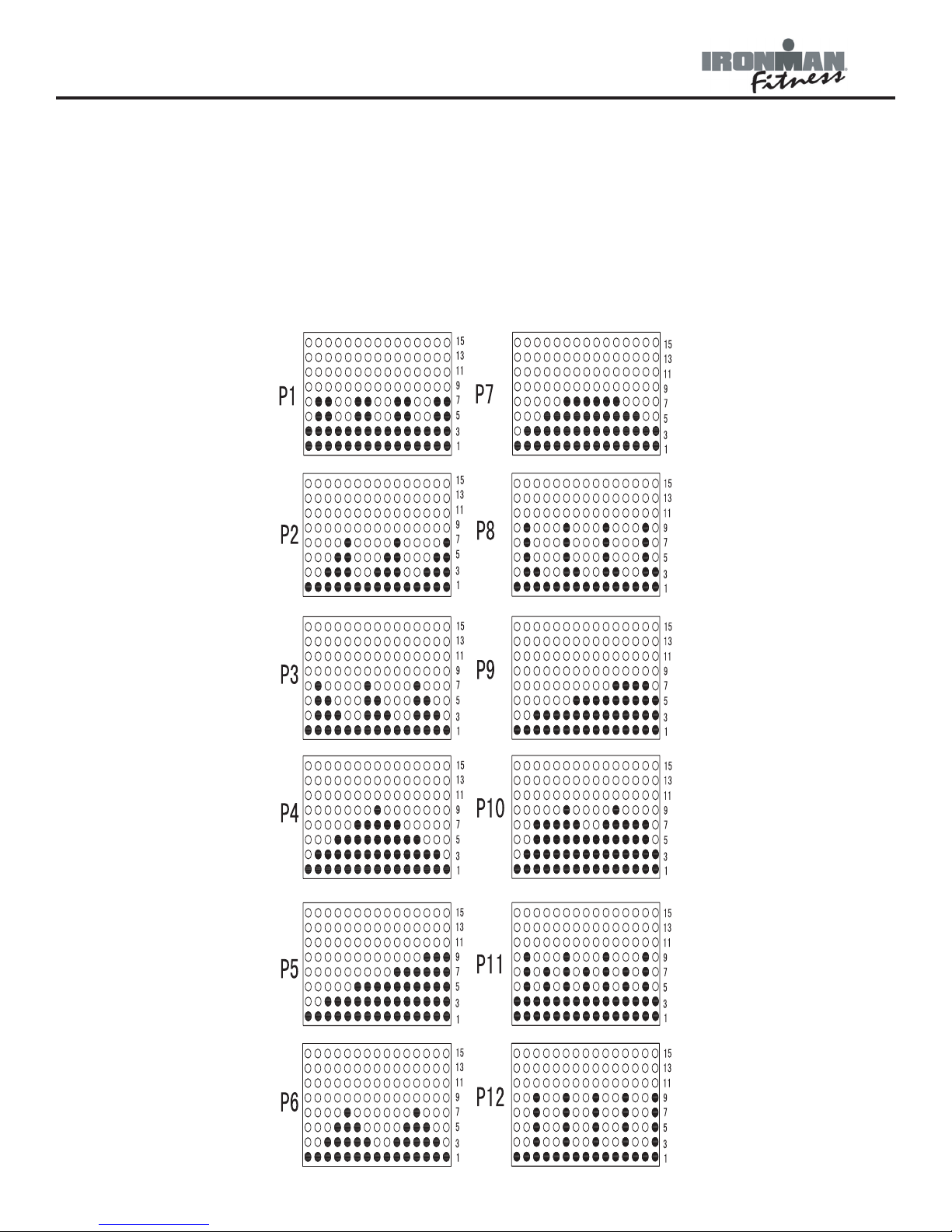

PROGRAM PROFILES

18
Monitoring Your Heart Rate
Monitoring Your Heart Rate
To obtain the greatest cardiovascular benefits from your exercise workout, it is important to
work within your target heart rate zone. The American Heart Association (AHA) defines this
target as 60%-75% percent of your maximum heart rate.
Your maximum heart rate may be roughly calculated by subtracting your age from 220. Your
maximum heart rate and aerobic capacity naturally decreases as you age. This may vary from
one person to another, but use this number to find your approximate effective target zone. For
example, the maximum heart rate for an average 40 year-old is 180 bpm. The target heart
rate zone is 60%-75% of 180 or 108-135 bpm. See Fitness Safety below.
Before beginning your workout, check your normal resting heart rate. Place your fingers lightly
against your neck, or against your wrist over the main artery. After finding your pulse, count
the number of beats in 10 seconds. Multiply the number of beats by six to determine your
pulse rate per minute. We recommend taking your heart rate at these times; at rest, after
warming up, during your workout and two minutes into your cool down, to accurately track
your progress as it relates to better fitness.
During your first several months of exercising, the AHA recommends aiming for the lower part
of the target heart rate zone-60%, then gradually progressing up to 75%.
According to the AHA, exercising above 75% of your maximum heart rate may be too strenu-
ous unless you are in top physical condition. Exercising below 60% of your maximum will result
in minimal cardiovascular conditioning.
Check your pulse recovery rate – If your pulse is over 100 bpm five minutes after you stop
exercising, or if it’s higher than normal the morning after exercising, your exertion may have
been too strenuous for your current fitness level. Rest and reduce the intensity next time.
Fitness Safety The Heart Rate chart indicates average rate zones for different ages. A variety
of different factors (including medication, emotional state, temperature and other conditions)
can affect the target heart rate zone that is best for you. Your physician or health care profes-
sional can help you determine the exercise intensity that is appropriate for your age and condi-
tion.
(MHR) = Maximum Heart Rate
(THR) = Target Heart Rate
220 - age = maximum heart rate (MHZ)
MHZ x .60 = 60% of your maximum heart rate.
MHZ x .75 = 75% of your maximum heart rate.
For example, if you are 30 years old, your calculations will be as
follows:
220 - 30 = 190
190 x .60 = 114 (low end or 60% of MHZ)
190 x .75 = 142 (high end or 75% of MHZ)
30 year-old (THR) Target Heart Rate would be 114-142

19
TOE TOUCH STRETCH
Stand, bending your knees slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. This will stretch your hamstrings, back of knees, and
back.
HAMSTRING STRETCH
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. This will stretch your hamstrings, lower back,
and groin.
CALF/ACHILLES STRETCH
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. To
cause further stretching of the Achilles tendon, bend your back
leg as well. This will stretch your calves, Achilles tendons, and
ankles.
QUADRICEPS STRETCH
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. This will
stretch your quadriceps and hip muscles.
INNER THIGH STRETCH (Image not Shown)
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. This will stretch your quadriceps and hip
muscles.
EXERCISE GUIDELINES
WARNING! Before beginning this or any exercise program, you should consult your physician.
This is especially important for individuals over the age of 35 or individuals with pre-existing
health problems.
Warming up prepares the body for the exercise by increasing circulation, supplying more oxy-
gen to the muscles and raising body temperature. Begin each workout with 5 to 10 minutes of
stretching and light exercise to warm up. The photos on this page show several forms of basic
stretching you may perform before your workouts. In order to achieve an adequate warm-up,
perform each stretch three times.
Warm Up Exercises

General Instructions
20

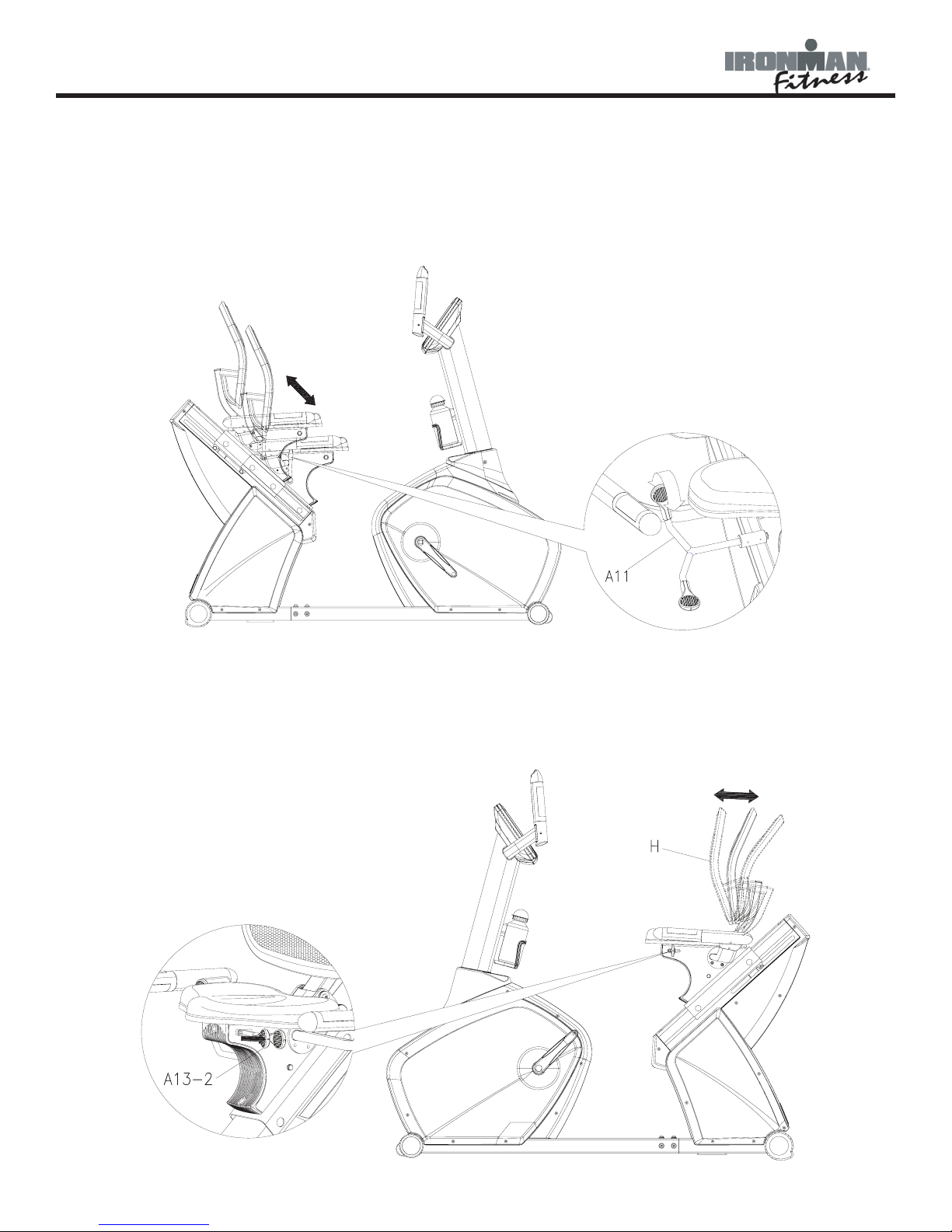

How To Use The Seat Adjustment Bar To Find A Proper Seat Position
Push the seat slide adjustment handle forward, then slide the seat up and
down until desired position is found. When desired position is found, pull the
adjustment handle back into the upward position.
How To Adjust The Backrest
Push the bar located underneath the seat backward to adjust the backrest to de-
sired position. Release the bar when desired position is found.
