Ironman4x4 IAWNLED270012 User manual

1 of 8Telephone: [phone]
IMPORTANT: Please read all procedures and precautions before using the Ironman 4x4
270˚ Awning LED Light Kit. If you have any questions please contact our customer service department.
www.ironman4x4.com www.ironman4x4america.com
IAWNLED270012
270 Degree Awning
LED Light Kit
Owners Manual
Suits DeltaWing Eclipse
& Pro Awnings
WARRANTY

Features
2 of 8 www.ironman4x4.com
FEATURES
• Energy Saving LED Technology
• Adjustable Light Color Settings
• Max Lumen Output - 830L
• Inline Power & Brightness control system
• IP65 rated connections
• 3M Adhesive Mounting Strips
SPECIFICATIONS
DIMENSIONS: 350 x 30 x 30mm
LIGHT COLOR: Cool White / Bright White / Yellow
OUTPUT: Max 276 Lumen per Light Bar / Bright White
VOLTAGE: 12VDC
MAX POWER DRAW: Bright White @ 100% brightness = 2.15A (3 x Light Bar)
CONNECTION
• Inline Power and Brightness control
• 3-way splitter
• Multi Use Cigarette Lighter fitting – Length: 3000mm
NOTE: Inlet cable length 130mm
350mm
30mm
30mm

3 of 8

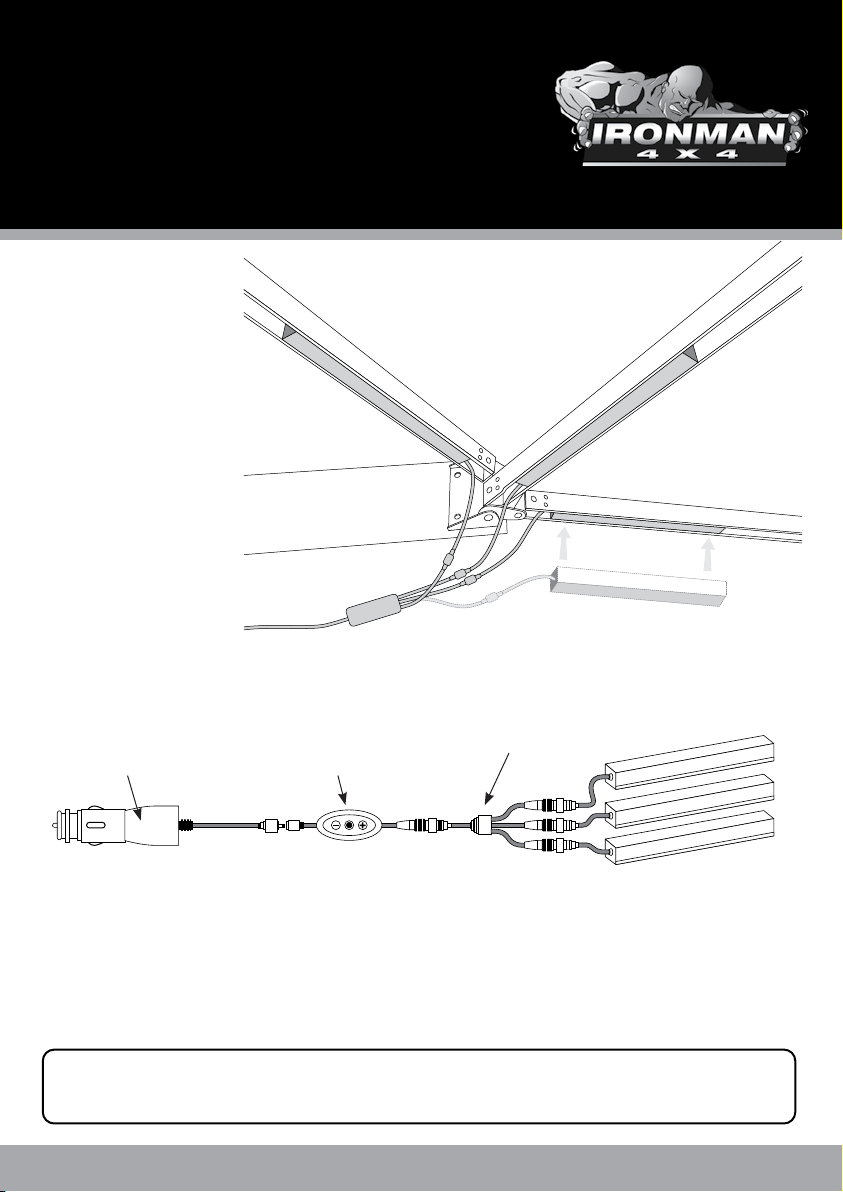

Installation and Connection
www.ironman4x4america.com
Each LED light bar is
designed to be located
inside the three (3) roof
frames fixed to the rear
awning mounting plate.
It is important that the
mounting surface for the
adhesive mounting strips
is clean and free from
dirt and debris before
the light bar is attached.
It is recommended that
the each light bar is
positioned 100mm from
the end of the roof frame.
Connect the 3-way splitter to the light bars, connect to the inline control and then to the power lead.
CONNECTION DIAGRAM
NOTE: Ensure that the light bars are disconnected, and the cables are tucked away inside the roof frame
before packing the awning away, failure to do so may result in damage to the light kit or awning.
Multi Use
Cigarette Lighter Fitting
3 Way SplitterPower/Brightness
Control
OPERATION
• Connect to a suitable 12VDC power source
• Press the Power / Mode button (Center of controller)
• Select the light color by pressing the Power / Mode button until the desired color is achieved
• Adjust the brightness by pressing the + or – button
• Turn off pressing Power/Mode button

IAWNLED270012/310921
