Ironman4x4 INSTANT AWNING User manual
USER GUIDE
IMPORTANT: Please read all procedures and precautions before installing and
using the Ironman 4x4 Instant Awning. If you have any questions please contact
our customer service department listed on the back of the user guide.
2.0m (wide) x 2.5m (out)
2.5m (wide) x 2.0m (out)
1.4m (wide) x 2.0m (out)
INSTANT AWNING
THIS USER GUIDE ALSO INCLUDES
INSTALLATION & SETUP FOR OPTIONAL
IRONMAN 4X4 ROOM ENCLOSURE
& MOSQUITO NET
ROOM ENCLOSURE
MOSQUITO NET
2 - 9
Thank you for purchasing an Ironman 4x4 Instant Awning.
Your Ironman 4x4 Instant Awning is designed to fit a variety of different roof rack styles. The
following User Guide will help you adapt your new Instant Awning to suit your application.
INSTALLATION
IMPORTANT: Before mounting your Instant Awning make sure that it clears the
door openings, lift up tailgate, aerials or other obstructions on the vehicle.

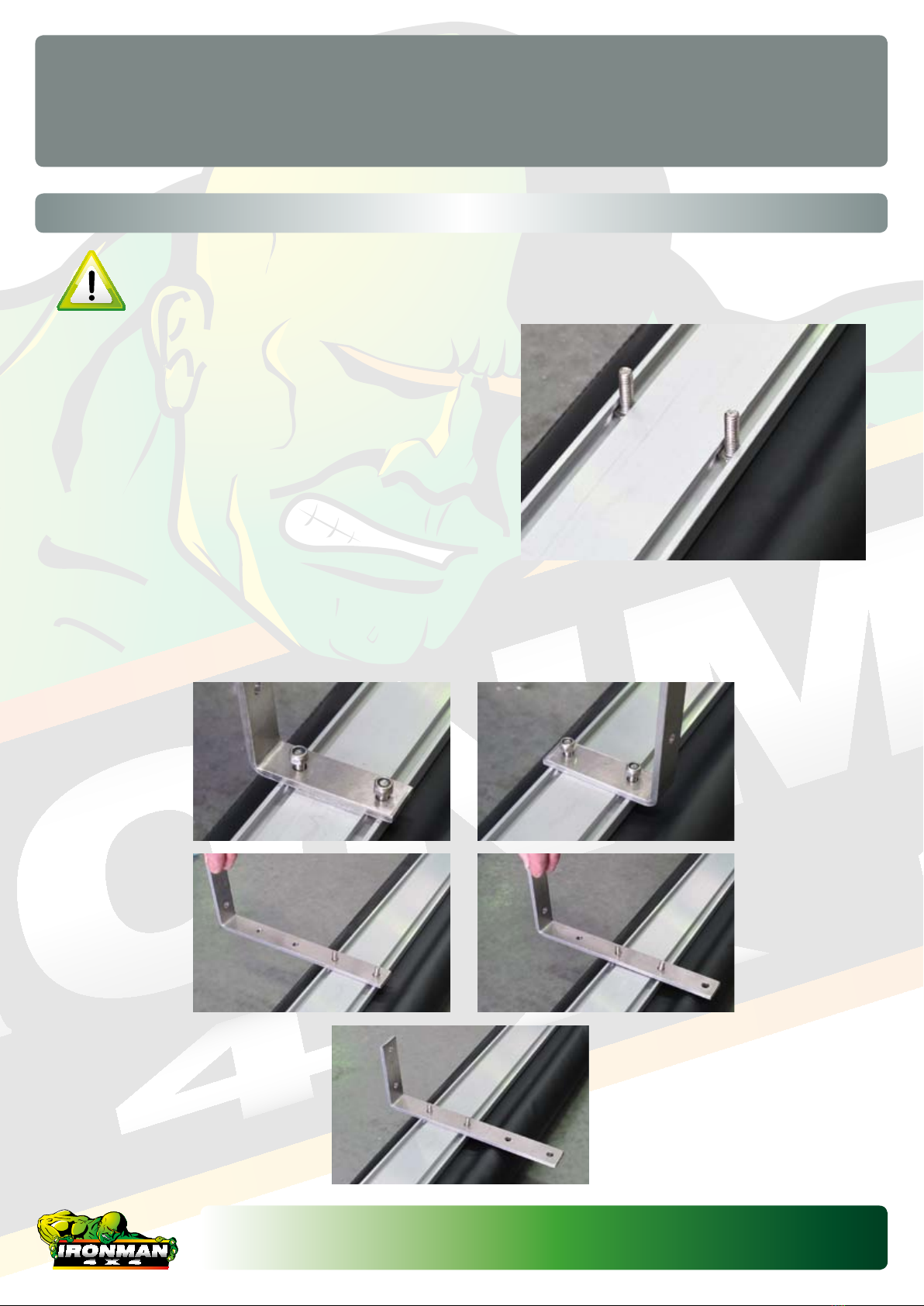

• Insertboltheadsintotheslotsinthealuminiumextrusion.
NOTE: Your Instant Awning can be mounted directly to the side of a roof cage by simply drilling four
6.5mm holes into the side supports and attaching using the bolts and nyloc nuts supplied.

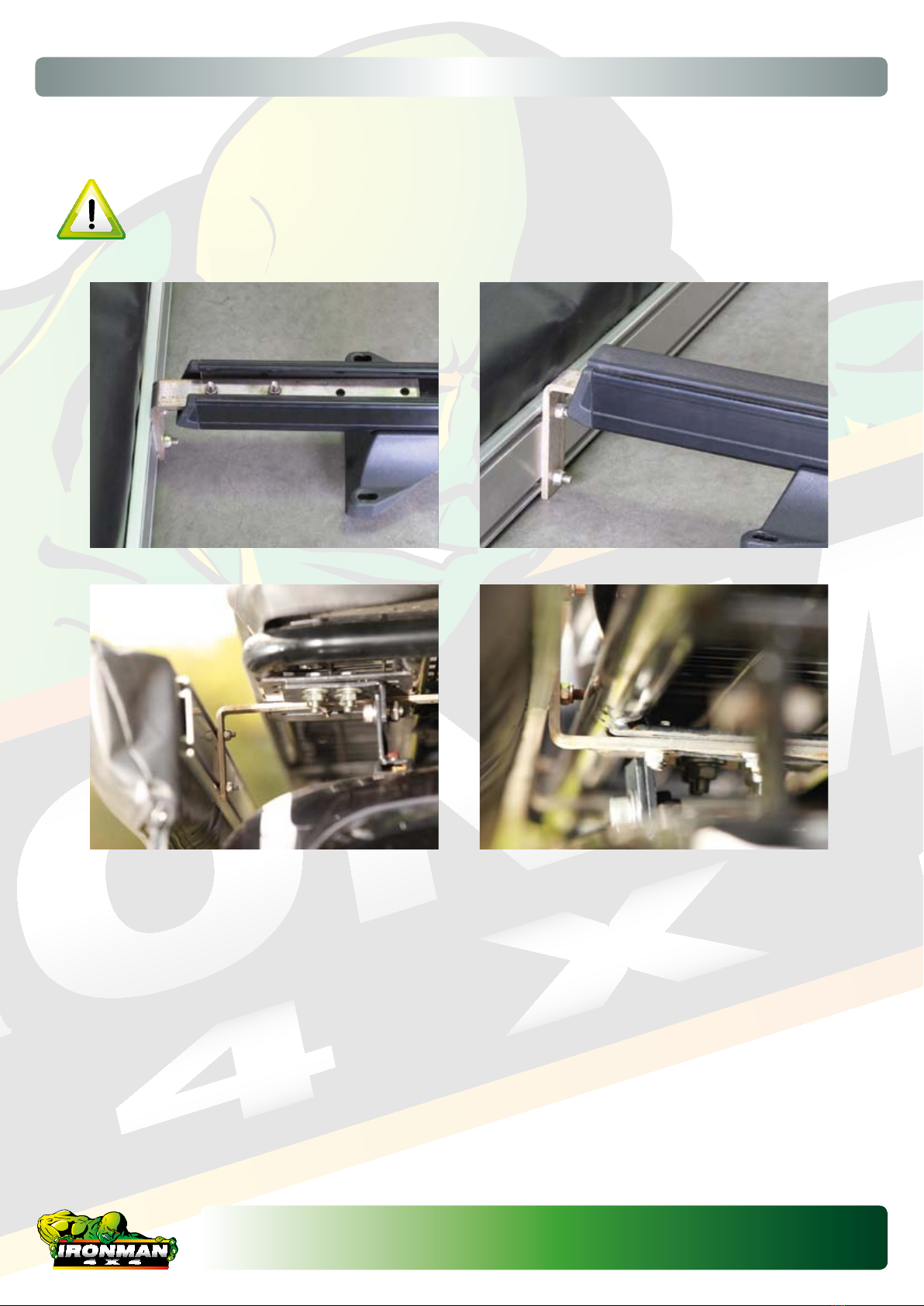

Alternatively, you can use the supplied ‘L’ brackets and mounting hardware in the various
configurations shown below.
IMPORTANT: In some cases, 6.5mm holes will need to be drilled to attach brackets.
INSTALLATION
• Theawningcannowbeattachedtoaroofrackorroofbarasshowninthefollowingdiagrams.
3 - 9
AWNING SETUP
1. Unzip the weather resistant awning cover.
2. Unbuckle all awning retaining straps.
3. Lift awning to reveal the two extendable poles and pull out
to either side of awning.
4. Unroll awning.
4 - 9
AWNING SETUP
5. Whilst supporting the centre of the awning, disengage the
two vertical poles. Twist lower section to extend and lock
into position at desired height.
6. Twist and extend horizontal poles. Insert end pin into hole
as shown. Pull tight and twist to lock. Repeat for other side.
7. Attach all Velcro straps around horizontal poles as shown.
8. Although the Ironman 4x4 Instant Awning can be free-
standing, it is recommended that you use the supplied guy
ropes and pegs to secure the awning in potentially windy
conditions.
• TopackupyourIronman4x4InstantAwning,reversesetupprocedure.
• Whenrepackingawning,besuretorollthematerialunderneathitself.
5 - 9
CARE & MAINTENANCE
ROOM ENCLOSURE SETUP (OPTIONAL)
• Ifyourawninghasbeenpackedupwetorhasbecomedamp,werecommendthatitbeairedouttoprevent
staining of the material.
• Ifyourawningrequirescleaning,werecommendtouselukewarmsoapywaterandacleanspongetowipedown
the material.
6 - 9

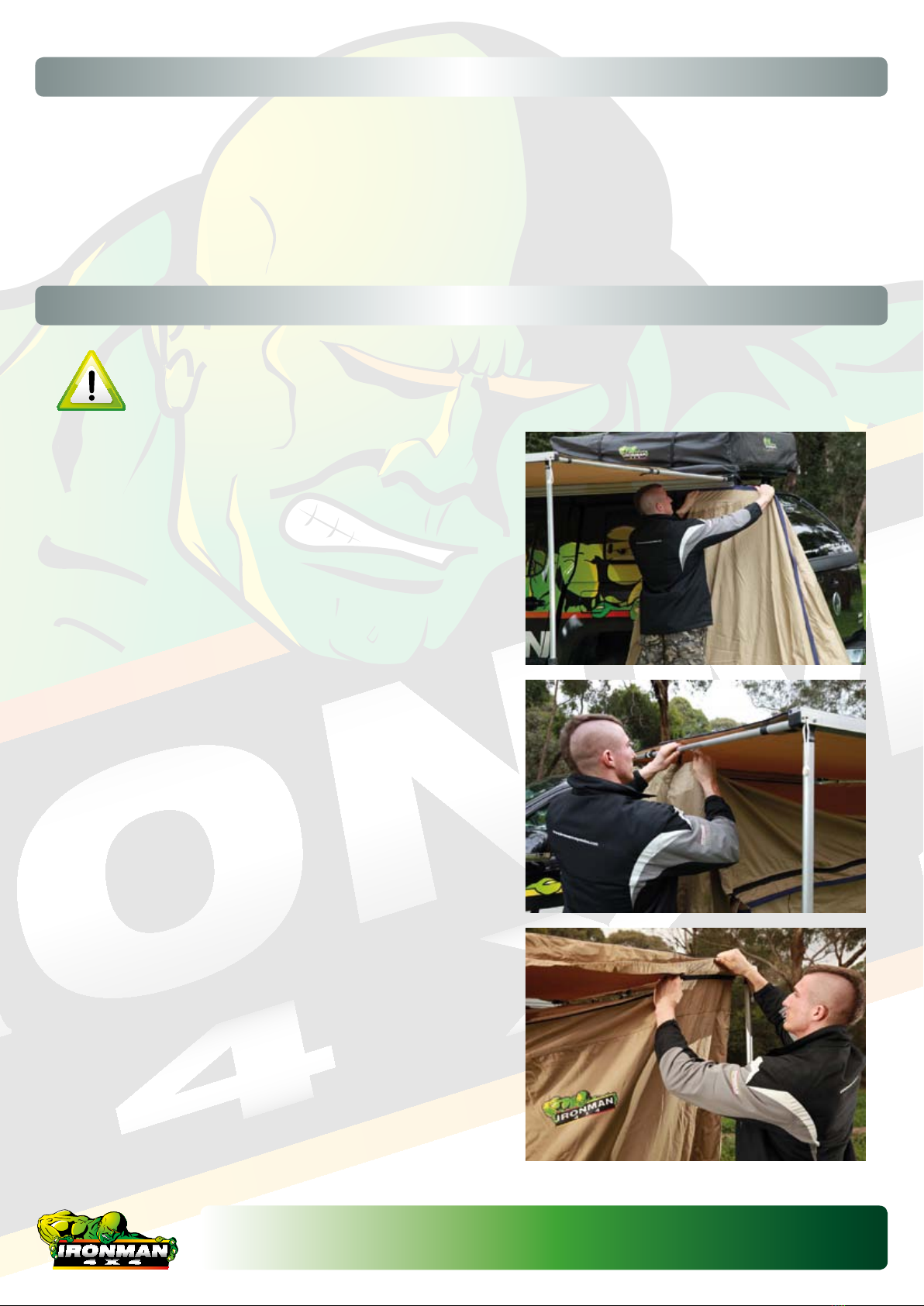

1. Slide attached sail track into aluminium extrusion
as shown.
2. Attach all plastic clips to horizontal poles on awning.
3. Slide detachable sail track into the outer aluminium
extrusion and engage zip to room enclosure.
NOTE: The Room Enclosure has a sail track attachment at both ends. One is detachable
by zip, the other is permenantly attached to the walls. We recommend to remove
the detatchable sail track before you begin.
ROOM ENCLOSURE SETUP (OPTIONAL)
7 - 9
4. Attach plastic clips to vertical poles.
5. Zip floor into the room.
6. Pegwallsifrequired.
MOSQUITO NET SETUP (OPTIONAL)
8 - 9
1. Slide attached sail track into aluminium extrusion as shown.
2. Attach all plastic clips to horizontal poles on awning.
3. Slide detachable sail track into the outer aluminium
extrusionandengageziptomosquitonet.
4. Attach plastic clips to vertical poles and peg corners to
groundifrequired.
NOTE: TheMosquitoNethasasailtrackattachmentatbothends.Oneisdetachableby
zip, the other is permenantly attached to the netting. We recommend to remove
the detatchable sail track before you begin.
WARRANTY TERMS & CONDITIONS
9 - 9
Ironman 4x4 will provide warranty to the original purchaser and only the original
purchaser of the Ironman product under the following conditions;
Ironman 4x4 will warrant against manufacturing faults and defects in material and
workmanship for a period of 12 months from original purchase date.
To obtain warranty, Ironman 4x4 or an authorised agent there of must be provided with
proof of purchase. This warranty does not cover the removal or re-installation of the
product.
Ironman 4x4 reserves the right, at its option, to repair, replace or refund the purchase
price of a faulty or defective product or its components if returned to the place of
purchase during the warranty period.
When returning a product for warranty assessment it must be accompanied with the
customers name, address, contact phone number, a clear description of the fault and a
copy of the original sales receipt detailing the date of purchase.
This warranty does not apply to damage due to accident, misuse, abuse, misapplication,
collision, modification, improper installation or lack of improper maintenance.
THEWARRANTYSETFORTHABOVEISTHEONLYWARRANTY.THEREARENOOTHER
WARRANTIES,INCLUDINGBUTNOTLIMITEDTOIMPLIEDWARRANTIESORMERCHANT
ABILITYORFITNESSFORAPARTICULARPURPOSE.
ANY IMPLIED WARRANTY WHICH BY LAW MAY NOT BE EXCLUDED IS LIMITED IN
DURATION TO TWELVE (12) MONTHS FROM THE DATE OF THE ORIGINAL RETAIL
PURCHASEOFTHEPRODUCT.
NO IRONMAN 4X4 DEALER, AGENT OR EMPLOYEE IS AUTHORISED TO MAKE ANY
MODIFICATION,EXTENSIONORADDITIONTOTHISWARRANTY.
IRONMAN 4X4 SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIALDAMAGES(INCLUDING,BUTNOTLIMITEDTO,LOSTPROFITS,DOWN
TIME OR LOSS OF USE) UNDER ANY LEGAL THEORY, EVEN IF IRONMAN 4X4 WAS
ADVISEDOFTHEPOSSIBILITYOFSUCHDAMAGES.
IRONMAN4X4RESERVESTHERIGHTTOCHANGEPRODUCTDESIGNWITHOUTNOTICE.
INSITUATIONSINWHICHIRONMAN4X4HASCHANGEDAPRODUCTDESIGN,IRONMAN
4X4 SHALL HAVE NO OBLIGATION TO UPGRADE OR OTHERWISE MODIFY PREVIOUS
MANUFACTUREDPRODUCTS.
