Isotra Cetta 50 User manual

TECHNICAL MANUAL
EXTERIOR BLINDS
EN

A mark symbolising long tradition, inestimable investment into development, the use of quality
materials, state-of the-art technologies, reliable work from hundreds of employees and numerous other
parameters, constituting one entity – the final product of ISOTRA.
Tableau de matières - Stores d´extérieur
Désignation des produits CE 3
Spécification technique principale 4
Hauteurs de paquet 4
Stores d´extérieur Cetta 50 5
Fiche technique du produit 6
Stores d´extérieur Cetta 65 7
Fiche technique du produit 8
Stores d´extérieur Cetta 80 9
Fiche technique du produit 10
Stores d´extérieur Cetta 80-Slim 11
Fiche technique du produit 12
Stores d´extérieur Cetta 80 – Flexi 13
Fiche technique du produit 14
Stores d´extérieur Setta 65 15
Fiche technique du produit 16
Stores d´exterieur Setta 90
Fiche technique du produit
Stores d´extérieur Zetta 70 17
Fiche technique du produit 18
Stores d´extérieur Zetta 90 19
Fiche technique du produit 20
Variantes de réalisation 21 - 32
Système DUO 21 - 22
Stores de façade 23 - 27
Stores autoportants 28
Stores sur le linteau 29 - 31
Stores couplés 32
Accessoires 33 - 43
Types des lambrequins 33 - 34
Supports pour les types de
lambrequins principaux 35 - 39
Supports pour lambrequins atypiques 40 - 43
Guidage par coulisses 44 - 50
Guidage par cable 51
Manœuvre par maniveille 52 - 54
Manœuvre par moteur 55 - 56
Prise des mesures 57
Montage 58 - 61
Coupes schématiques 62 - 71
Bon de commande 72 - 77

EXTERIOR BLINDS
3
All exterior blinds of ISOTRA a.s.
comply with the standard ČSN EN 13659+A1:2009
ISOTRA a.s.
Bílovecká 2411/1, 746 01 Opava
Czech Republic
Company Registration No.: 47679191
12
EN 13659+A1:2009
Exterior shutters (outside Venetian blinds)
with manual or motor-driven operation,
Typee: CETTA 50, CETTA 65,
SETTA 65, CETTA 80, ZETTA 70, ZETTA 90,
SETTA 90, FLEXI 80
- designed as fore-window aperture panes of
external structures of building envelopes
Wind resistance: technical class 6
(5,4,2,1)
Note: CE marking applies only to equipment release and condition.
European Marking of CE Compliance – marking on products
CE Product Marking
The wind resistance tests were conducted by Centrum stavebního inženýrství, a.s., Zlín, according to standard ČSN EN 13659+A1:2009.
Wind Resistance of Exterior Blinds
CETTA 50 Width (m)
up to 2,20 2,21 - 3,15
Technical class / max wind speed (km/h) 4/ (58) 2/ (38)
CETTA 65 Width (m)
up to 2,20 2,21 - 4,00
Technical class / max wind speed (km/h) 6/ (90) 4/ (58)
CETTA 80 Width (m)
up to 2,40 2,41 - 4,00
Technical class / max wind speed (km/h) 6/ (90) 4/ (58)
CETTA 80-FLEXI Width (m)
up to 2,20 2,21 - 3,15 3,16 – 4,00
Technical class / max wind speed (km/h) 4/ (58) 2/ (38) 1/ (32)
SETTA 65 Width (m)
up to 2,20 2,21 - 4,00
Technical class / max wind speed (km/h) 4/ (58) 4/ (58)
SETTA 90 Width (m)
up to 2,40 2,41 - 4,00
Technical class / max wind speed (km/h) 6/ (90) 4/ (58)
ZETTA 70 Width (m)
up to 2,20 2,21 - 4,00
Technical class / max wind speed (km/h) 6/ (90) 4/ (58)
ZETTA 90 Width (m)
up to 2,40 2,41 - 4,00
Technical class / max wind speed (km/h) 6/ (90) 5/ (74)
EXTERIOR BLINDS

4
Basic Technical Specification
Engineering Limit Values
Type
Width (mm) Height (mm) Area (m2)
Guidance Slat Weight
(kg per m2)
Blind Weight
(kg per m2)
Holder
Weight
(kg per m2)
6 Nm Motor
Weight (kg)
max. min. max. Cord Handle Motor
Cetta 50 3150 400 3000 6 8 10 without / wire 0,76 2,1 0,087
1,84
Cetta 65 4000 600 4000 - 8 16 wire / channel 1,44 3,42
0,35
Setta 65 4000 600 4000 - 8 16 channel 1,59 3,57
Cetta 80
(Cetta 80 -Slim)
4000 600 4000
- 8 16 wire / channel 1,54 3,47
Cetta 80 Flexi - 8 16 wire / channel 1,12 3,55
Zetta 70 - 8 16 channel 1,60 3,55
Zetta 90 - 8 16 channel 1,56 3,53
Setta 90 - 8 16 channel 1,66 3,63
Note:
Two guidance types (wire / guiding channel) can be combined, or Venetian blind
with no guidance can be chosen, for some Venetian blind types.
Warning:
Inclined slat operation cannot be avoided with small width.
Wound Up Venetian Blind Height Including
Head Rail and Bottom Rail
Cetta 80-Slim
Visible packet saving
in comparison with Cetta 80.
Note: For Cetta 50 (motor), the coiling height will change by +40 mm. For Cetta 65, 80, 80-Flexi and Zetta 70 a 90 (motor), the coiling height will change by +20 mm.
The coiling heights are approximate values which can deviate positively or negatively for technical reasons.

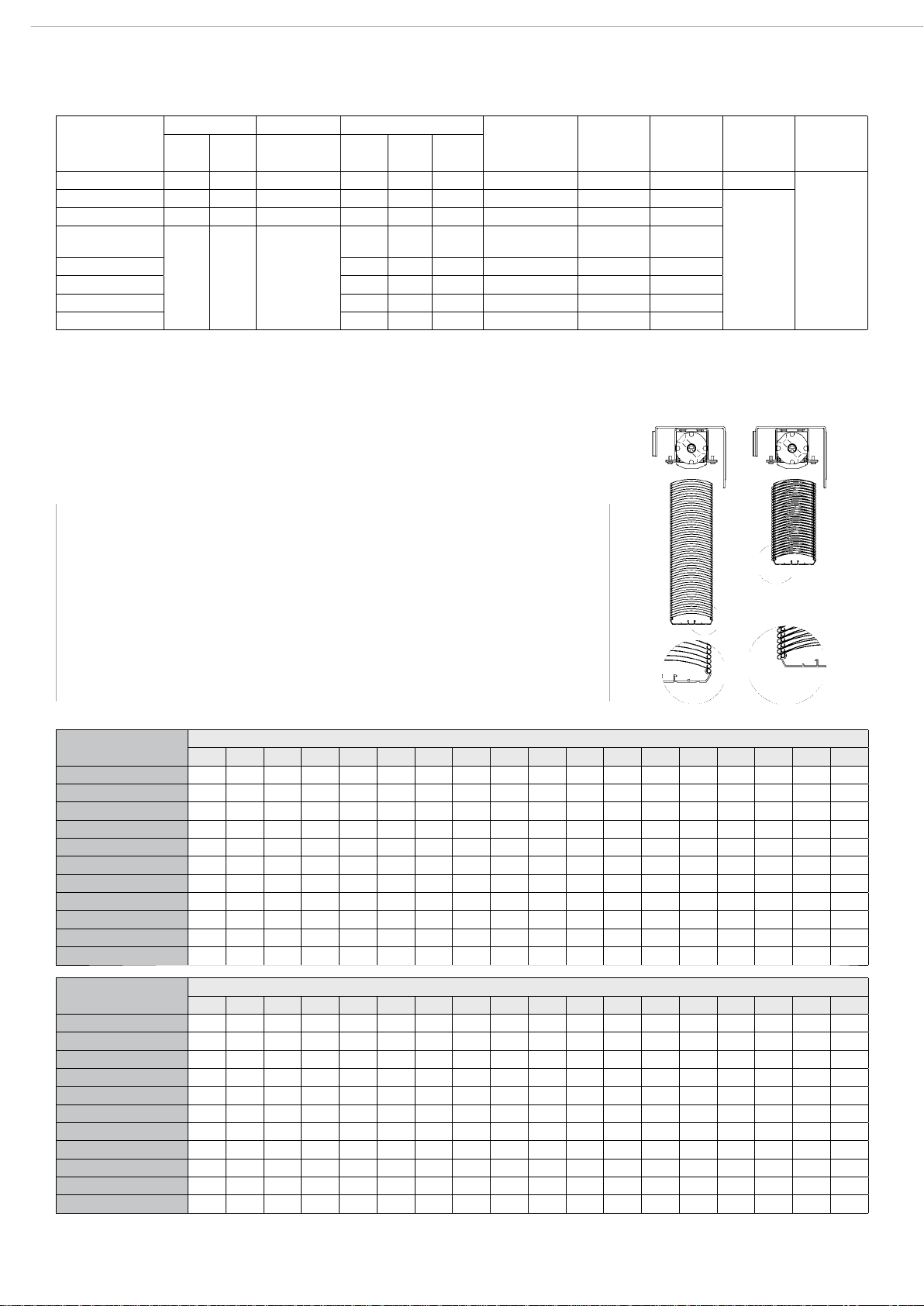

Blind Type Coiling Height Based on Blind Height (mm)
500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200
Cetta 50 - channel 130 135 145 160 170 180 190 200 210 220 230 240 250 265 275 280 295 305
Cetta 50 - wire 85 90 95 100 100 105 110 110 115 120 120 125 125 130 135 140 145 145
Cetta 65 135 145 155 160 165 175 185 190 195 205 215 220 230 235 245 250 260 265
Cetta 80 - Flexi - channel 120 125 125 130 135 140 145 150 150 155 160 165 170 170 175 180 185 185
Cetta 80 - Flexi - wire 110 115 115 120 120 125 130 130 135 135 140 140 145 145 150 150 155 155
Cetta 80 130 140 145 155 155 165 170 180 185 190 195 205 210 215 225 230 235 240
Cetta 80-Slim 125 135 135 145 150 155 160 165 170 180 180 190 195 195 205 205 215 220
Setta 65 135 145 150 160 170 175 185 190 195 205 215 220 230 240 245 250 260 265
Setta 90 125 135 140 145 150 155 165 170 170 175 185 190 195 200 205 215 215 220
Zetta 70 135 140 145 155 165 165 175 185 190 195 205 210 220 225 230 240 245 250
Zetta 90 125 135 140 145 150 160 165 170 170 180 185 190 195 205 210 215 215 225
Blind Type Coiling Height Based on Blind Height (mm)
2300 2400 2500 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600 3700 3800 3900 4000
Cetta 50 - channel 315 325 335 350 355 365 380 385 400 410 420 430 440 450 460 470 485 495
Cetta 50 - wire 150 155 160 170 175 180 185 195 200 205 210 215 215 220 225 230 235 235
Cetta 65 270 280 290 300 300 310 320 325 335 340 350 355 365 375 380 385 395 405
Cetta 80 - Flexi - channel 190 195 200 205 210 210 215 220 225 225 230 235 240 245 245 250 255 260
Cetta 80 - Flexi - wire 160 160 165 165 170 170 175 175 180 180 185 185 190 190 195 195 200 200
Cetta 80 250 255 265 265 275 280 290 295 300 305 315 320 325 335 340 345 350 360
Cetta 80-Slim 225 230 235 240 250 250 260 265 270 275 280 285 290 295 300 305 310 320
Setta 65 275 285 290 300 305 310 320 330 335 345 355 360 365 375 380 390 400 405
Setta 90 225 235 240 245 250 255 260 265 270 275 285 290 295 300 305 310 315 320
Zetta 70 260 270 270 280 290 295 300 310 315 325 330 335 345 350 355 365 375 375
Zetta 90 230 235 240 250 255 260 260 270 275 280 285 295 300 305 305 315 320 325

EXTERIOR BLINDS
5
Suitable for shading small areas
Optional assembly in interior
Electrical control option
Cetta 50
SLAT SHAPE

6
Specification
Head Rail Bottom Rail Slat Side Guidance Ladder Textile
tape
Installation
Cord/Handle Motor Motor Steel Wire Guiding
Channel
Commercial Name
Dimension (mm)
Material
P 528
40 x 40
Fe
P 001
56 x 58
Fe
P 001/2
58 x 60
Al
P 508
49 x 12
Fe
P 529
0,23 x 50
Al
P 501
ø 2,2
Fe/PVC
See Chapter
“Guidance” for
guiding channel
alternatives
P 509
42 x 54
PES
P 531
6 x 0,28
PES
See chapter
„Installation“ on page
63-66 for installation
alternatives.
Color Standard:
RAL 9003 White
RAL 9006 Silver
galvanized (Fe profil); natural (Al profil)
Other RAL colors sprayed
Galvanized steel plate or anodized aluminum for motor alternative.
According to
current ISOTRA
a.s. scheme
grey Basic design –
anodized
Varnished in RAL
colors
grey
white
grey
We do not make atypical designs.
Standard Dimensions Minimum Width (mm) Maximum Width (mm) Maximum Height (mm) Maximum Guaranteed Area
400
400
600
3150
3150
3150
3000
3000
3000
6 m2 (Cord control)
8 m2 (Handle control)
10 m2 (Motor control)
Control
Used for pulling the blind up and down and setting the slat
Cord - a plastic cord bushing is installed on the window frame from the interior, which protects the cord against abrasion. The
head rail is shortened by 20 mm against the required length from the control side in order to facilitate the cord gearing instal-
lation (color: black-white).
Handle - The control wand mechanism is protracted to the interior at the angle of 45° and 90° using a bushing and a hexagonal wand
(color design: white / grey / anodized).
Motor - Optional control using the sun / wind sensor or by a remote control or switch. One motor can control even more Venetian
blinds simultaneously based on blind dimensions. The motor is then installed on one Venetian blind of the group.
Cetta 50
Basic Product Specification
2-00152-0000-C
Side cover for head rail
Clamping screw – wire
Slat insert for guiding wire
*Slat
*Ladder
* Wire
Wire guide
*Bottom rail
* Bottom rail cover
Bottom rail plug
*Bottom rail
Ring for hexagonal
metal wire
End stop
40 x 40
Slat bracket
35 mm Metal ladder
connector
Cord bushing white
Guiding channel holder
*Head rail Head rail carrying bracket
Bearing 40x40
Cord gearing
Slat bracket
50 mm
Hexagonal wire
Textile tape
Cord

EXTERIOR BLINDS
7
Bottom rail made of extruded aluminum
Higher slat rigidity
Electrical control option
Cetta 65
SLAT SHAPE

8
Cetta 65
Basic Product Specification
Specification
Head Rail Bottom Rail Slat Side Guidance Ladder Textile
tape
Installation
Steel Wire Guiding Chan-
nel
Commercial Name
Dimension (mm)
Material
P 001
56 x 58
Fe
P 001/2
58 x 60
Al
P 012/2
67 x 13
Al
P 039
0,42 x 83
Al
P 036
ø 3,2
Fe/PVC
See Chapter
“Guidance” for
guiding channel
alternatives
P 030/2
58 x 70
PES
P 028
8 x 0,34
PES
See chapter
„Installation“
on page 63-66
for installation
alternatives.
Color Standard:
galvanized steel plate
natural (Al profil)
Other RAL colors sprayed
Standard:
anodized aluminum
Other RAL colors sprayed
According to current
ISOTRA a.s. scheme
grey Basic design –
anodized
Varnished in RAL
colors
grey grey
We do not make atypical designs.
Standard Dimensions Minimum Width (mm) Maximum Width (mm) Maximum Height (mm) Maximum Guaranteed Area
600 4000 4000 8 m2 (Handle control)
16 m2 (Motor control)
Control
Used for pulling the blind up and down and setting the slat
Handle - The control wand mechanism is protracted to the interior at the angle of 45° and 90° using a bushing and a hexagonal wand
(color design: white / grey / anodized).
Motor - Optional control using the sun / wind sensor or by a remote control or switch. One motor can control even more Venetian
blinds simultaneously based on blind dimensions. The motor is then installed on one Venetian blind of the group.
2-00171-XXXX-H
Gearing box holder C65 and C80 bearing
Plastic gearing box
Wire
Textile tape
*Ladder
*Slat
Wire guide
Textile tape holder
* Bottom rail
*End lock L+R
Guiding channel cover
End guide L+R (plastic)
Guiding channel cover
Head rail hanger Fe
Guiding channel
holder
Distance pad (only Al
profile)
Clamping screw
Holder extension
Blind holder
Rod
End stop
56 x 58
*Head rail
Head rail hanger Al
profile
End guide Click
(metal)
Complete handle removable
Complete handle
Complete handle with cardan

EXTERIOR BLINDS
9
Bottom rail made of extruded aluminum
DUO system – double slat tilting
Higher slat rigidity
Electrical control option
Cetta 80
SLAT SHAPE

10
Cetta 80
Basic Product Specification
Specification
Head Rail Bottom Rail Slat Side Guidance Ladder Textile tape Installation
Steel Wire Guiding Channel
Commercial Name
Dimension (mm)
Material
P 001
56 x 58
Fe
P 001/2
58 x 60
Al
P 012/3
80 x 13
Al
P 040
0,42 x 98
Al
P 036
ø 3,2
Fe/PVC
See Chapter“Guid-
ance”for guiding
channel alternatives
P 030/1
68 x 85
PES
P 028
8 x 0,34
PES
See chapter„Installation“ on
page 63-66 for installation
alternatives.
Color Standard:
galvanized steel plate
natural (Al profil)
Other RAL colors sprayed
Standard:
anodized aluminum
Other RAL colors
sprayed
According to
current ISOTRA a.s.
scheme
grey Standard:
anodized
Other RAL colors
sprayed
grey grey
We do not make atypical designs.
Standard Dimensions Minimum Width (mm) Maximum Width (mm) Maximum Height (mm) Maximum Guaranteed Area
600 4000 4000 8 m2 (Handle control)
16 m2 (Motor control)
Control
Used for pulling the blind up and down and setting the slat
Handle - The control wand mechanism is protracted to the interior at the angle of 45° and 90° using a bushing and a hexagonal wand
(color design: white / grey / anodized).
Motor - Optional control using the sun / wind sensor or by a remote control or switch. One motor can control even more Venetian
blinds simultaneously based on blind dimensions. The motor is then installed on one Venetian blind of the group.
2-00171-XXXX-H
Gearing box holder C65 and C80 bearing
Plastic gearing box
Wire
Textile tape
*Ladder
*Slat
Wire guide
Textile tape holder
* Bottom rail
*End lock L+R
Guiding channel cover
End guide L+R (plastic)
Guiding channel cover
Head rail hanger Fe
Guiding channel
holder
Distance pad (only Al
profile)
Clamping screw
Holder extension
Blind holder
Rod
End stop
56 x 58
*Head rail
Head rail hanger Al
profile
End guide Click
(metal)
Complete handle removable
Complete handle
Complete handle with cardan

EXTERIOR BLINDS
11
Low packet height
Specific assembling of slats
(side alternating overlap of adjacent slats)
Cetta 80 - Slim
TVAR LAMEL

12
Cetta 80 – Slim
Basic Product Specification
Specification
Head Rail Bottom Rail Slat Side Guidance Ladder Textile tape Installation
Steel Wire Guiding Channel
Commercial Name
Dimension (mm)
Material
P 001
56 x 58
Fe
P 001/2
58 x 60
Al
P 012/3
80 x 13
Al
P 040
0,42 x 98
Al
P 036
ø 3,2
Fe/PVC
See chapter
„Guidance“ for
guiding channel
alternatives
P 030/1
68 x 85
PES
P 028
8 x 0,34
PES
See chapter„Installation“ on
page 63-66 for installation
alternatives.
Color Standard:
galvanized steel plate
natural (Al profil)
Other RAL colors sprayed
Standard:
anodized aluminum
Other RAL colors
sprayed
According to
current ISOTRA a.s.
scheme
grey Standard:
anodized
Other RAL colors
sprayed
grey grey
We do not make atypical designs.
Standard Dimensions Minimum Width (mm) Maximum Width (mm) Maximum Height (mm) Maximum Guaranteed Area
600 4000 4000 8 m2 (Handle control)
16 m2 (Motor control)
Control
Used for pulling the blind up and down and setting the slat
Handle - The control wand mechanism is protracted to the interior at the angle of 45° and 90° using a bushing and a hexagonal wand
(color design: white / grey / anodized).
Motor - Optional control using the sun / wind sensor or by a remote control or switch. One motor can control even more Venetian
blinds simultaneously based on blind dimensions. The motor is then installed on one Venetian blind of the group.
Packet comparison Cetta 80 and Cetta 80-Slim
Gearing box holder Bearing C65 and C80
* Head rail
End stop
Shaft
Blind holder
Clamping screw
Head rail hanger Fe
Hanger extension
Head rail
hanger Al
Pad
(only al rail)
** Plastic lining
* End lock
Plastic gearing boc
Wire
Textile tape
* Ladder
Complete handle removable
Complete handle 4HR
Complete handle with cardan 4HR
* Slat
Wire guidance * Bottom rail Textile tape
holder 2-00171-XXXX-H
blind type blind height (mm)
500 600 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200
Cetta 80 130 140 145 155 155 165 170 180 185 190 195 205 210 215 225 230 235 240
Cetta 80-Slim 125 135 135 145 150 155 160 165 170 180 180 190 195 195 205 205 215 220
blind type blind height (mm)
2300 2400 2500 2600 2700 2800 2900 3000 3100 3200 3300 3400 3500 3600 3700 3800 3900 4000
Cetta 80 250 255 265 265 275 280 290 295 300 305 315 320 325 335 340 345 350 360
Cetta 80-Slim 225 230 235 240 250 250 260 265 270 275 280 285 290 295 300 305 310 320
Packet comparison
Cetta 80 and Cetta 80-Slim

EXTERIOR BLINDS
13
Bottom rail made of extruded aluminum
DUO system – double slat tilting
Lower blind coiling height
Electrical control option
Cetta 80 - Flexi
SLAT SHAPE

14
Cetta 80 - Flexi
Basic Product Specification
Specification
Head Rail Bottom Rail Slat Side Guidance Ladder Textile tape Installation
Steel Wire Guiding Channel
Commercial Name
Dimension (mm)
Material
P 001
56 x 58
Fe
P 001/2
58 x 60
Al
P 012/3
80 x 13
Al
P 309
0,42 x 80
Al
P 501
ø 2,2
Fe/PVC
See Chapter“Guid-
ance”for guiding
channel alternatives
P 310
72 x 85
PES
P 028
8 x 0,34
PES
See chapter„Installation“ on
page 63-66 for installation
alternatives.
Color Standard:
galvanized steel plate
natural (Al profil)
Other RAL colors sprayed
Standard:
anodized aluminum
Other RAL colors
sprayed
According to
current ISOTRA a.s.
scheme
grey Standard:
anodized
Other RAL colors
sprayed
grey grey
We do not make atypical designs.
Standard Dimensions Minimum Width (mm) Maximum Width (mm) Maximum Height (mm) Maximum Guaranteed Area
600 4000 4000 8 m2 (Handle control)
16 m2 (Motor control)
Control
Used for pulling the blind up and down and setting the slat
Handle - The control wand mechanism is protracted to the interior at the angle of 45° and 90°
using a bushing and a hexagonal wand (color design: white / grey / anodized).
Motor - Optional control using the sun / wind sensor or by a remote control or switch. One motor can control even more Venetian
blinds simultaneously based on blind dimensions. The motor is then installed on one Venetian blind of the group.
2-00135-XXXX-B
Head rail hanger – Al profile
Head rail hanger C65 and C80 bearing
Plastic gearing box
*Ladder
Wire guide
Textile tape holder
Bottom rail
End lock C80 L+R
Guiding channel cover
Textile tape
End guide L+R (plastic)
Slat Flexi 80
Holder extension
Clamping screw
Distance pad (only Al
profile)
Guiding channel holder
Slat insert for guiding
wire
Guiding channel cover
Guiding channel
double
Blind holder
Rod
End stop
56 x 58
*Head rail
End guide Click
(metal)
Complete handle
Complete handle with
cardan

EXTERIOR BLINDS
15
Setta 65
SLAT SHAPE SETTA 65
Elegant slat shape„S“
Bottom rail made of extruded aluminium
Electrical control option
Rubber pressed in along the entire slat width ensure lower

16
We do not make atypical designs.
Standard Dimensions Minimum Width (mm) Maximum Width (mm) Maximum Height (mm) Maximum Guaranteed Area
600 4000 4000 8 m2 (Handle control)
16 m2 (Motor control)
Control
Used for pulling the blind up and down and setting the slat
Handle - The control wand mechanism is protracted to the interior at the angle of 45° and 90° using a bushing and a hexagonal wand
(color design: white / grey / anodized).
Motor - Optional control using the sun / wind sensor or by a remote control or switch. One motor can control even more Venetian
blinds simultaneously based on blind dimensions. The motor is then installed on one Venetian blind of the group.
65
Setta 65
Basic Product Specification
2-00812-XXXX-0
Gearing box
Plastic gearing boc
Gearing box holder
Complete handle removable
Complete handle 4HR
Complete handle with cardan 4HR
Guiding channel
* Slat
Textile tape
holder * Bottom rail
* Guiding channel
cover * End lock
Guiding channel holder
End guide l+p (plastic)
End guide click (metal)
Textile tape
* Ladder
Holder extension
Jointed shaft
Shaft connector
Shaft
Blind holder
* Bearing
* Head rail
End stop
Specification
Setta 65 Head Rail Bottom Rail Slat Side Guidance Ladder Textile tape Installation
Guiding Channel
Commercial Name
Dimension (mm)
Material
P 001
56 x 58
Fe
P 001/2
58 x 60
Al
P 012/4
67 x 13
Al
S 39/2
0,42 x 83
Al
See Chapter“Guid-
ance”for guiding
channel alternatives
P 029/2
60 x 9,5
PES
S029/22
PES
P 028
8 x 0,34
PES
See Chapter“Installation”on
page 63-66 for installation
alternatives
Color Standard:
galvanized steel plate
natural (Al profil)
Other RAL colors sprayed
Standard:
anodized aluminum
Other RAL colors
sprayed
According to current
ISOTRA a.s. scheme
Standard:
anodized
Other RAL colors
sprayed
grey grey

EXTERIOR BLINDS
17
Setta 90
TVAR LAMEL
Elegant slat shape„S“
Bottom rail made of extruded aluminium
Electrical control option
Rubber pressed in along the entire slat width ensure lower

18
Control
Used for pulling the blind up and down and setting the slat
Handle - The control wand mechanism is protracted to the interior at the angle of 45° and 90° using a bushing and a hexagonal wand
(color design: white / grey / anodized).
Motor - Optional control using the sun / wind sensor or by a remote control or switch. One motor can control even more Venetian
blinds simultaneously based on blind dimensions. The motor is then installed on one Venetian blind of the group.
65
Setta 90
Basic Product Specification
2-00812-XXXX-0
Gearing box
Plastic gearing boc
Gearing box holder
Complete handle removable
Complete handle 4HR
Complete handle with cardan 4HR
Guiding channel
* Slat
Textile tape
holder * Bottom rail
* Guiding channel
cover * End lock
Guiding channel holder
End guide l+p (plastic)
End guide click (metal)
Textile tape
* Ladder
Holder extension
Jointed shaft
Shaft connector
Shaft
Blind holder
* Bearing
* Head rail
End stop
Specification
Setta 90 Head Rail Bottom Rail Slat Side Guidance Ladder Textile tape Installation
Guiding Channel
Commercial Name
Dimension (mm)
Material
P 001
56 x 58
Fe
P 001/2
58 x 60
Al
P 012/1
93 x 14
Al
S 37/2
0,42 x 113
Al
See Chapter“Guid-
ance”for guiding
channel alternatives
S029/1
86 x 9,5
PES
S029/21
PES
P 028
8 x 0,34
PES
See Chapter“Installation”on
page 63-66 for installation
alternatives
Color Standard:
galvanized steel plate
natural (Al profil)
Other RAL colors sprayed
Standard:
anodized aluminum
Other RAL colors
sprayed
According to current
ISOTRA a.s. scheme
Standard:
anodized
Other RAL colors
sprayed
grey grey
We do not make atypical designs.
Standard Dimensions Minimum Width (mm) Maximum Width (mm) Maximum Height (mm) Maximum Guaranteed Area
600 4000 4000 8 m2 (Handle control)
16 m2 (Motor control)

EXTERIOR BLINDS
19
High degree of shading
Thermo-regulating and protecting effect
Outside noise level reduction
Bottom rail made of extruded aluminum
Electrical control option
Rubber pressed in along the entire slat width
Zetta 70
SLAT SHAPE

20
Zetta 70
Basic Product Specification
Specification
Head Rail Bottom Rail Slat Side Guidance Ladder Textile tape Installation
Guiding Channel
Commercial Name
Dimension (mm)
Material
P 001
56 x 58
Fe
P 001/2
58 x 60
Al
P 012/2
67 x 13
Al
P 038
0,42 x 83
Al
See Chapter“Guid-
ance”for guiding
channel alternatives
P 029/2
60 x 9,5
PES
P 028
8 x 0,34
PES
See Chapter“Installation”on
page 63-66 for installation
alternatives
Color Standard:
galvanized steel plate
natural (Al profil)
Other RAL colors sprayed
Standard:
anodized aluminum
Other RAL colors
sprayed
According to current
ISOTRA a.s. scheme
Standard:
anodized
Other RAL colors
sprayed
grey grey
We do not make atypical designs.
Standard Dimensions Minimum Width (mm) Maximum Width (mm) Maximum Height (mm) Maximum Guaranteed Area
600 4000 4000 8 m2 (Handle control)
16 m2 (Motor control)
Control
Used for pulling the blind up and down and setting the slat
Handle - The control wand mechanism is protracted to the interior at the angle of 45° and 90° using a bushing and a hexagonal wand
(color design: white / grey / anodized).
Motor - Optional control using the sun / wind sensor or by a remote control or switch. One motor can control even more Venetian
blinds simultaneously based on blind dimensions. The motor is then installed on one Venetian blind of the group.
2-00157-XXXX-E
Gearing box holder
Plastic gearing box
*Bearing Rod – sectional
Head rail
Blind holder
Holder extension
Guiding channel holder
Guiding channel
Guiding channel double
End guide L+R (plastic)
End guide Click (metal)
EndGuidance metallisch genietet
End lock
Guiding channel cover
Textile tape holder
*Bottom rail
End stop
56 x 58
*Slat
Complete handle with
cardan
Complete handle
Complete handle removable
Ladder
Textile tape
