Quick Start / TB3HDMIDOCKPD / English
SPECIFICATIONS
• 1x Thunderbolt™ 3 port for connection to Thunderbolt 3/4, USB4 or USB-C*
devices
• Docking station technology: Thunderbolt™ 3
• Power Delivery: 60W
• 1x Thunderbolt™3 port
- Data transfer*
- Video Port*
• Video ports:
- 1x HDMI
• Resolution
- Thunderbolt™ 3/4:
- 1 monitor - 1x HDMI → up to 4K/60Hz
- 1 monitor - 1x TB3 → up to 8K/30Hz**
- 1 monitor - 1x TB3 → up to 5K/60Hz
- 2 monitors - 1x HDMI + 1x TB3 → up to 2x 4K/60Hz
- 2 monitors - 1x HDMI + 1x TB3 →up to 2x QHD/144Hz
- USB-C* (DP Alt mode):
- 1 monitor - 1x HDMI → up to 4K/30Hz
• Compatible with G-Sync/Freesync, HDR 400 - 1000 via Thunderbolt™3 output only
• 2x USB-A 3.2 Gen 1 with fast charging support (B.C 1.2)
• 3x USB-A 3.2 Gen 2 with fast charging support (B.C 1.2)
• 1x Ethernet GLAN RJ-45 port (Realtek RTL8153)
• 1x SD slot
• 1x microSD slot
• 1x 3.5mm Audio combo connector
• Support for Kensington lock
• Thunderbolt 3 cable (70 cm)
• Product dimensions: 198 x 98 x 22 mm
• Product weight: 340 g
• Package dimensions: 260 x 130 x 80 mm
• Package weight: 1242 g
* When connected to a laptop with a USB-C/USB4 port, the data transfer rate on the
Thunderbolt™ 3 port will drop to USB 2.0 speed and video will not be active through
this port
** 8K resolution must be supported by a connected laptop or tablet.

6EN |
Quick Start / TB3HDMIDOCKPD/ English
Important notice regarding 8K resolution: The dock supports up to 8K resolution
(7680x4320/30Hz), but this resolution can only be set if your laptop supports it -
USB4/ Thunderbolt™ 3 / Thunderbolt™ 4 must support DisplayPort 1.4.
Contents of the package
• Product
• Power adapter (DC cable 160 cm, power cord 170 cm)
• ThunderboltTM 3 Connection Cable (70 cm)
• USB-C to DP cable
• Manual
DESCRIPTION

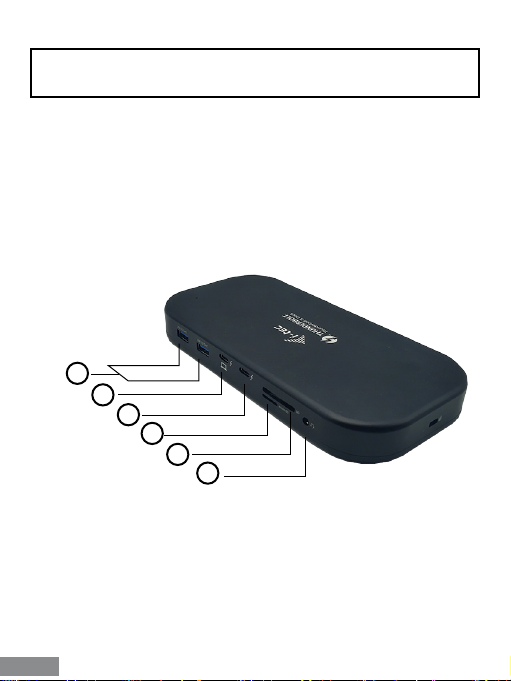

Front panel:
1. 2x USB 3.2 Gen. 2 port with fast charging support (BC 1.2)
2. 1x Thunderbolt™ 3 port for connection to Thunderbolt 3/4,
USB4 or USB-C* devices
3. 1x Thunderbolt™3 port
4. SD
5. microSD slot
6. 3.5mm Audio combo connector
1
2
3
4
6
5

7EN |
Quick Start / TB3HDMIDOCKPD / English
Back panel:
7. 1x power input (24V/5.6A)
8. 1x Ethernet GLAN RJ-45 port (Realtek RTL8153)
- supports 10/100/1000 Mbps
9. HDMI 2.1 port
10. 3x USB-A 3.2 Gen 2 with fast charging support (B.C 1.2)
SYSTEM REQUIREMENTS
Hardware requirements:
• Devices with a free Thunderbolt™3/4, USB4 or USB-C* port.
Requirements for the Power Delivery function:
• Devices with a free Thunderbolt™3/4, USB4 or USB-C* port with “Power Deliv-
ery” support
Video output requirements:
• Devices with a free Thunderbolt™3/4, USB4 or USB-C* port.
• To use refresh rates higher than 60 Hz, you need a monitor that supports these
refresh rates.
• To use HDR, G-Sync/Freesync, the monitor and graphics card need to support
these technologies.
Operating system:
OS: Windows 10/11, macOS, iPadOS, and Linux with the latest updates.
7
8
9
10

8EN |
Quick Start / TB3HDMIDOCKPD/ English
INSTALLING DRIVERS
The docking station can be connected directly, the drivers are included in the oper-
ating system.
For Windows 10, please make sure you have the latest Thunderbolt™ 3 drivers in-
stalled on your computer, as provided by your laptop manufacturer.
In Windows, the LAN port appears in Start →Control Panel (View Small Icons) →
Device Manager→Network Adapters as “Realtek RTL8153”. Audio ports can be
found in Start →Control Panel (View Small Icons) →Device Manager →Audio, Vid-
eo and Game Controllers as “USB Advanced Audio Device” and/or according to the
connected monitor (e.g. in Fig. “LG Ultra HD (Intel® Display Audio)”).

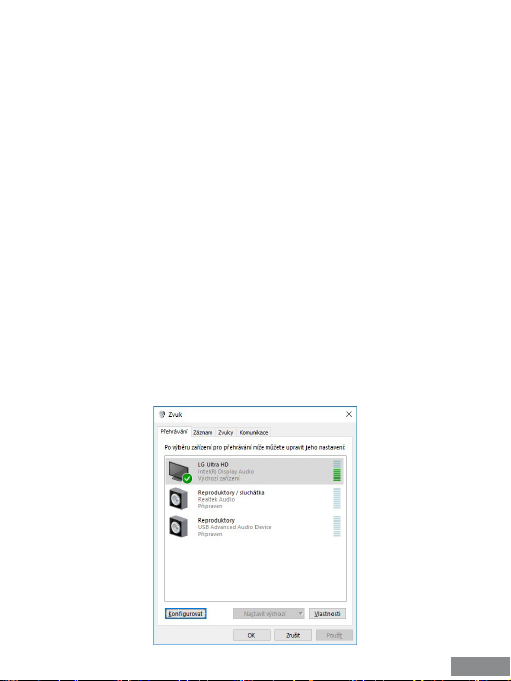

View LAN and audio ports in Device Manager

9EN |
Quick Start / TB3HDMIDOCKPD / English
HARDWARE INSTALLATION (CONNECTING THE DOCKING STATION TO THE
LAPTOP/TABLET)
Turn on your laptop/tablet and connect the power adapter to the docking station.
Plug the power adapter of the docking station into a 110 V / 230 V AC mains supply.
Plug the Thunderbolt™ 3 cable into the Thunderbolt™ 3 port on the front panel of
the dock.
Plug the other end into a free Thunderbolt™ 3/4 or USB-C* port on your laptop/tablet.

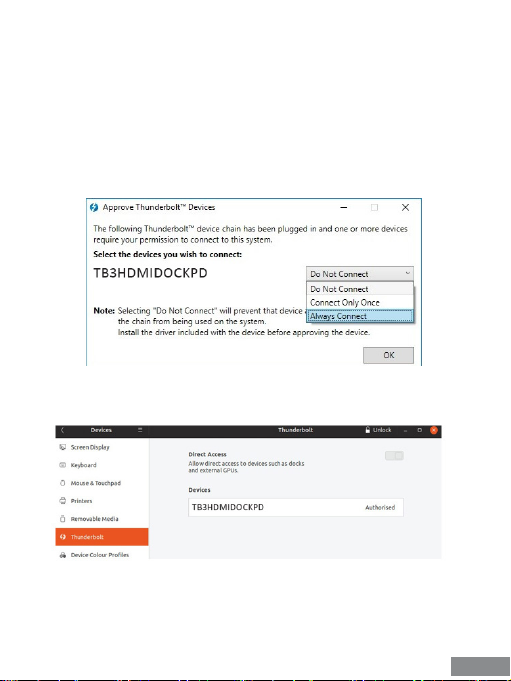

Enable a new Thunderbolt™ 3 device in Windows OS - see image
On Linux, enable new Thunderbolt™ 3 devices. It must be displayed with the descrip-
tion Enabled
The automatic installation of ports on each system is then started.
After the installation is complete, we recommend restarting your laptop/tablet.

10EN |
Quick Start / TB3HDMIDOCKPD/ English
HDMI / DP MONITOR CONNECTION
Use HDMI / Thunderbolt™ 3 to connect the monitor to the dock (for HDMI, we recom-
mend a version 2.0 or higher cable). The monitor on your laptop/tablet may icker
during installation of the additional monitor, which is a standard condition.
The dock supports connection of up to two monitors. Graphics interface: 1x HDMI
and Thunderbolt™ 3. Resolution:
1 monitor connected via Thunderbolt™3 port
- up to 8K 7680x4320/30Hz resolution
8K resolution is only supported if your laptop’s Thunderbolt™
connector supports DisplayPort 1.4.
1 monitor connected via HDMI port - resolution up to 4K 3840x2160/60Hz
2 monitors connected simultaneously 1x Thunderbolt™
3 port and 1x HDMI,
resolution max. 4K 4096x2160@60Hz
Video resolution and repetition rate depends
on the capabilities of the host PC/NB

11EN |
Quick Start / TB3HDMIDOCKPD / English
USING THE DOCKING STATION IN OS WINDOWS

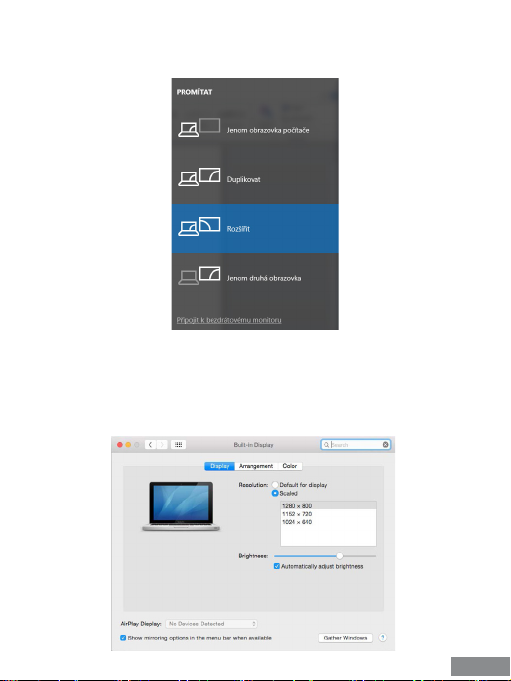

1. Right-click anywhere on the free screen and select View Settings
2. The settings for Display Resolution from Windows are then displayed.
Display resolution in Windows 10
Now you can make the Extend and Mirror/Duplicate settings:
• Extend mode: on the screen, select Multiple monitors →Extend this view → OK.
• Mirror / Duplicate mode: on the screen, select Multiple monitors →Duplicate
this view → OK.

12EN |
Quick Start / TB3HDMIDOCKPD/ English
Check the “Set this monitor as main” box to select the additional monitor as the
main monitor.
Click and drag the second monitor to position it relative to the original monitor on
your laptop/tablet as needed.
Placement of one additional monitor in relation t
o the original laptop/tablet monitor
Standby / Hibernate mode and Video port - after activating the laptop/tablet from
Standby / Hibernate mode, the primary (original) monitor is displayed, so we recom-
mend using the one integrated with the laptop/tablet as the primary monitor to log
back into the system.
Mirror mode - the additional monitor is governed by the parameters of the original
monitor in the system, i.e. if you set the Mirror mode and the original monitor has a
resolution of 1920x1080, then the screen is transferred to the additional monitor at a
maximum resolution of 1920x1080, even if you set it to a higher resolution.

13EN |
Quick Start / TB3HDMIDOCKPD / English
You can also easily control the monitors using the “Windows” + P keyboard option.
Control the monitor in Windows 10
USING THE DOCKING STATION IN MAC OS
When you connect the monitor, the screen on your Mac will icker, which is a stan-
dard condition. Once it has stabilized, you can make adjustments here: System Pref-
erences-Monitors:

14EN |
Quick Start / TB3HDMIDOCKPD/ English

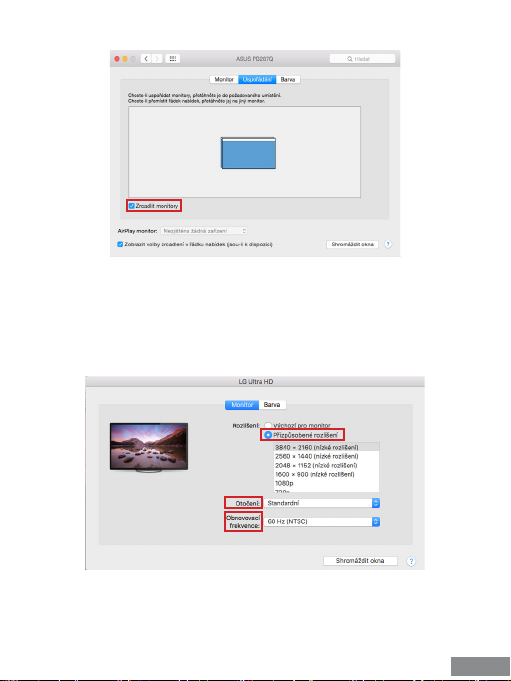

In the Layout tab and in the default mode (Expand), click and drag the new monitor
as needed relative to the Mac’s monitor. Selecting Mirror Monitors will change the
mode to Mirror (the resolution of the monitors will automatically adjust to their pa-
rameters, setting the highest resolution possible on both monitors). Deselect Mirror
Monitors to restore the Expand mode.
Extend mode: The arrow indicates the possibility
of positioning the connected monitor relative to the Mac monitor.
Extend mode: In this mode, you can select
the Main Monitor by dragging the Menu Bar.

15EN |
Quick Start / TB3HDMIDOCKPD / English
Mirror mode: can only be used if it is offered by Mac.
By selecting Gather Windows, you can choose the settings for the corresponding
monitor - Customized Resolution (offers usable resolutions), Rotation (Standard,
90°, 180° and 270°) and Refresh Rate (if offered). Depending on the monitor you are
using, these settings are:
Display variant 1

16EN |
Quick Start / TB3HDMIDOCKPD/ English
Display variant 2
In Customized mode, click on the icon of your choice,
the resolution will be described below the screen
(here visually 3008x1692 = 4K@30Hz)
Closed display mode - Working on a connected external monitor when the Mac
monitor is tilted is only possible when the Mac is powered on and the mouse and
keyboard are connected. More information here:
https://support.apple.com/cs-cz/HT201834
Most of the problems with screen refresh on a connected monitor after putting the
Mac to sleep, after using a screensaver, after restarting the Mac, after turning the
Mac off/on can be solved by disconnecting the Thunderbolt™ 3 dock cable from
the Thunderbolt™ 3 port of the Mac and reconnecting it after about 10s. After that,
please wait for all peripherals to nish connecting.

17EN |
Quick Start / TB3HDMIDOCKPD / English
ADDITIONAL DOCKING STATION FEATURES on Windows and macOS
LAN Connection - GLAN RJ-45 port connects to router/switch/hub and to the Inter-
net, supports speeds of 10 / 100 / 1000 Mbps
Connecting USB devices - After connecting USB devices to the USB 3.0 port of
the docking station (USB external HDD, USB keyboard, USB mouse, USB Hub, USB
graphics adapter), these devices are used in the standard way. USB-C devices e.g.
external HDD, ash drive, graphics adapter can be connected via Thunderbolt™ 3
port.
Charging - The docking station supports charging of connected USB mobile devices
such as smartphones, e-book readers, media players, navigation devices and tab-
lets. Simply connect the device to be charged with the original cable to the USB port
of the docking station.
Power Delivery charging - the dock supports Power Delivery on the designated
Thunderbolt™ 3 port. Power Delivery is supported on Prole 5, i.e. max 60W.
Audio in Windows
By default, the audio output automatically switches to the connected docking
station. You can check or set the default audio output in Control Panel-Sound

18EN |
Quick Start / TB3HDMIDOCKPD/ English
Audio on macOS
The audio output device for listening via the graphic output needs to be set/veried
here: System Preferences-Sound-Output - Set USB Advanced Audio Device.
The audio output devices for both headphones and monitor can be selected in
Open-Applications-Utilities-Audio MIDI.app - click on “+” at the bottom left - Create
Multi Output Device and select the desired outputs from the options on Multi Output
Device.
Note: Most issues with the dock and connected peripherals can be resolved by dis-
connecting the Thunderbolt™ 3 cable of the dock from the Thunderbolt™ 3 port of the
laptop/tablet/Mac and reconnecting it after about 10s.
SAFETY INSTRUCTIONS FOR USING THE DOCKING STATION
• Do not expose to extreme temperatures and humidity.
• Use the device on at pads to avoid slipping and falling on the ground.
• Keep the drivers and manual for later use.
In cooperation with the service department:
• Check functionality after falling into water or on the ground.
• Verify functionality when the cover is cracked.
• Complain about the device not working according to the manual.
FREQUENTLY ASKED QUESTIONS
Available on our website www-i-tec.cz under “FAQ” for this product

19DE |
Quick Start / TB3HDMIDOCKPD / Deutsch
SPEZIFIKATIONEN
• 1x Thunderbolt™ 3 Anschluss für den Anschluss von Thunderbolt 3/4, USB4
oder USB-C* Geräten
• Technologie der Andockstation: Thunderbolt™ 3
• Leistungsabgabe: 60W
• 1x Thunderbolt™3-Anschluss
- Datenübertragung*
- Video-Anschluss*
• Video-Anschlüsse:
- 1x HDMI
• Auösung
- Thunderbolt™ 3/4:
- 1 Monitor - 1x HDMI → bis zu 4K/60Hz
- 1 Monitor - 1x TB3 → bis zu 8K/30Hz**
- 1 Monitor - 1x TB3 → bis zu 5K/60Hz
- 2 Monitore - 1x HDMI + 1x TB3 → bis zu 2x 4K/60Hz
- 2 Monitore - 1x HDMI + 1x TB3 →bis zu 2x QHD/144Hz
- USB-C* (DP Alt-Modus):
- 1 Monitor - 1x HDMI → bis zu 4K/30Hz
• Kompatibel mit G-Sync/Freesync, HDR 400 - 1000 nur über Thunderbolt™3-
Ausgang
• 2x USB-A 3.2 Gen 1 mit Schnellladeunterstützung (B.C 1.2)
• 3x USB-A 3.2 Gen 2 mit Schnellladeunterstützung (B.C 1.2)
• 1x Ethernet GLAN RJ-45 Anschluss (Realtek RTL8153)
• 1x SD-Steckplatz
• 1x microSD-Steckplatz
• 1x 3,5-mm-Audio-Kombianschluss
• Unterstützung für das Kensington-Schloss
• Thunderbolt 3-Kabel (70 cm)
• Abmessungen des Produkts: 198 x 98 x 22 mm
• Produktgewicht: 340 g
• Abmessungen der Verpackung: 260 x 130 x 80 mm
• Gewicht der Verpackung: 1242 g
* Bei Anschluss an einen Laptop mit einem USB-C/USB4-Anschluss sinkt die Daten-
übertragungsrate am Thunderbolt™ 3-Anschluss auf USB 2.0-Geschwindigkeit und
Video ist über diesen Anschluss nicht aktiv.
** 8K-Auösung muss von einem angeschlossenen Laptop oder Tablet unterstützt
werden.

20DE |
Quick Start / TB3HDMIDOCKPD/ Deutsch
Wichtiger Hinweis zur 8K-Auflösung: Das Dock unterstützt eine Auösung von bis
zu 8K (7680x4320/30Hz), aber diese Auösung kann nur eingestellt werden, wenn
Ihr Laptop sie unterstützt - USB4/Thunderbolt™ 3/Thunderbolt™ 4 muss Display-
Port 1.4 unterstützen.
Inhalt des Pakets
• Produkt
• Netzadapter (Gleichstromkabel 160 cm, Netzkabel 170 cm)
• ThunderboltTM 3-Anschlusskabel (70 cm)
• USB-C zu DP Kabel
• Handbuch
BESCHREIBUNG
Frontplatte:
1. 2x USB 3.2 Gen. 2 Anschluss mit Schnellladeunterstützung (BC 1.2)
2. 1x Thunderbolt™ 3 Anschluss für den Anschluss von Thunderbolt 3/4, USB4
oder USB-C* Geräten
3. 1x Thunderbolt™3-Anschluss
4. SD
5. microSD-Steckplatz
6. 3,5-mm-Audio-Kombianschluss
1
2
3
4
6
5
