Itm TM540-3200 User manual

SAVE THIS MANUAL FOR FUTURE REFERENCE
This manual contains important information regarding safety, operation, and maintenance.
Introduction..............................................................................................................................................................................3
Safety Rules .............................................................................................................................................................................4
Safety Symbols .............................................................................................................................................................4
Safety Instructions .......................................................................................................................................................4
Pressure Washer Features .....................................................................................................................................................7
Assembly ...............................................................................................................................................................................10
Packing List ................................................................................................................................................................10
Unpacking...................................................................................................................................................................10
Attaching Foot Assembly............................................................................................................................................11
Install Handle..............................................................................................................................................................11
Attaching Upper and Lower Gun Hooks .....................................................................................................................11
Attaching Accessory Hook ..........................................................................................................................................11
Attaching Spray Gun...................................................................................................................................................12
Adding Engine Oil and Fuel .........................................................................................................................................13
Operation................................................................................................................................................................................15
How to Start Pressure Washer ...................................................................................................................................15
How to Turn Off Pressure Washer ..........................................................................................................................16
How to Use Spray Gun ...............................................................................................................................................16
Using Spray Nozzle....................................................................................................................................................17
How to Apply Detergent ...........................................................................................................................................17
Maintenance ..........................................................................................................................................................................18
Pre Operation Steps ...................................................................................................................................................18
After Each Use ...........................................................................................................................................................18
Maintenance Schedule ...............................................................................................................................................18
Changing Oil ..............................................................................................................................................................19
Engine Maintenance ..................................................................................................................................................19
How to Store .............................................................................................................................................................20
Troubleshooting ....................................................................................................................................................................21
TABLE OF CONTENTS

3
•
cement walkways.
•This unit can be used to clean cars, motorcycles, boats, RV’s outdoor furniture, lawn equipment, and grills.
This pressure washer is designed to remove dirt and mold from house siding, decks, garage floors, brick patios, and
INTRODUCTION
Thank you for purchasing this superior quality pressure washer. When operating and maintaining this product as
instructed in this manual, your pressure washer will give you many years of reliable service.
Product Applications:

4
Indicates a potentially hazardous
situation which could result in
serious injury or death if not avoided.
Slippery surface Risk of explosion
Risk of electric shock Hot surface Eye protection
WARNING!
CAUTION!
Indicates a potentially hazardous
situation which could result in
damage to equipment or property.

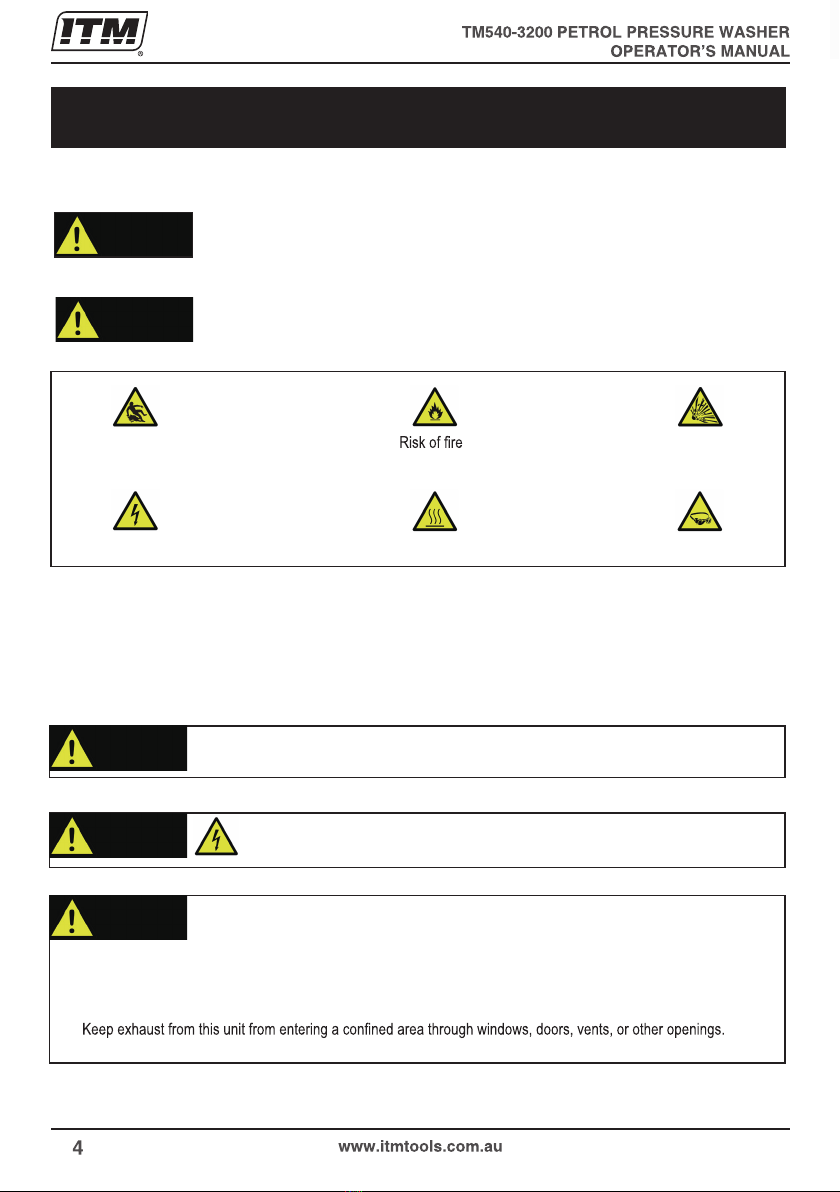

Safety Symbols
Read and understand this manual in its entirety before operating this pressure washer.
Improper use of this pressure washer could result in serious injury or death.
Never spray near a power source such as an electrical outlet. Making contact with
a power source could cause an electric shock or burn.
WARNING!
WARNING!
Safety Instructions
•Carbon monoxide gas is a poisonous, odorless gas that can cause headache, confusion, fatigue, nausea, fainting,
The manufacturer cannot anticipate every possible hazardous circumstance that the user may encounter. Therefore, the
Warning!s in this manual, on tags, and on affixed decals are not all-inclusive. To avoid accidents, the user must understand
and follow all manual instructions and use common sense.
sickness, seizures, or death. If you start to experience any of these symptoms, IMMEDIATELY get fresh air and seek
medical attention.
•
•
•When working in areas where vapors could be inhaled, use a respirator mask according to all of its instructions.
WARNING! from dissipating.
Do not operate indoors or in a confined space preventing dangerous carbon monoxide gas

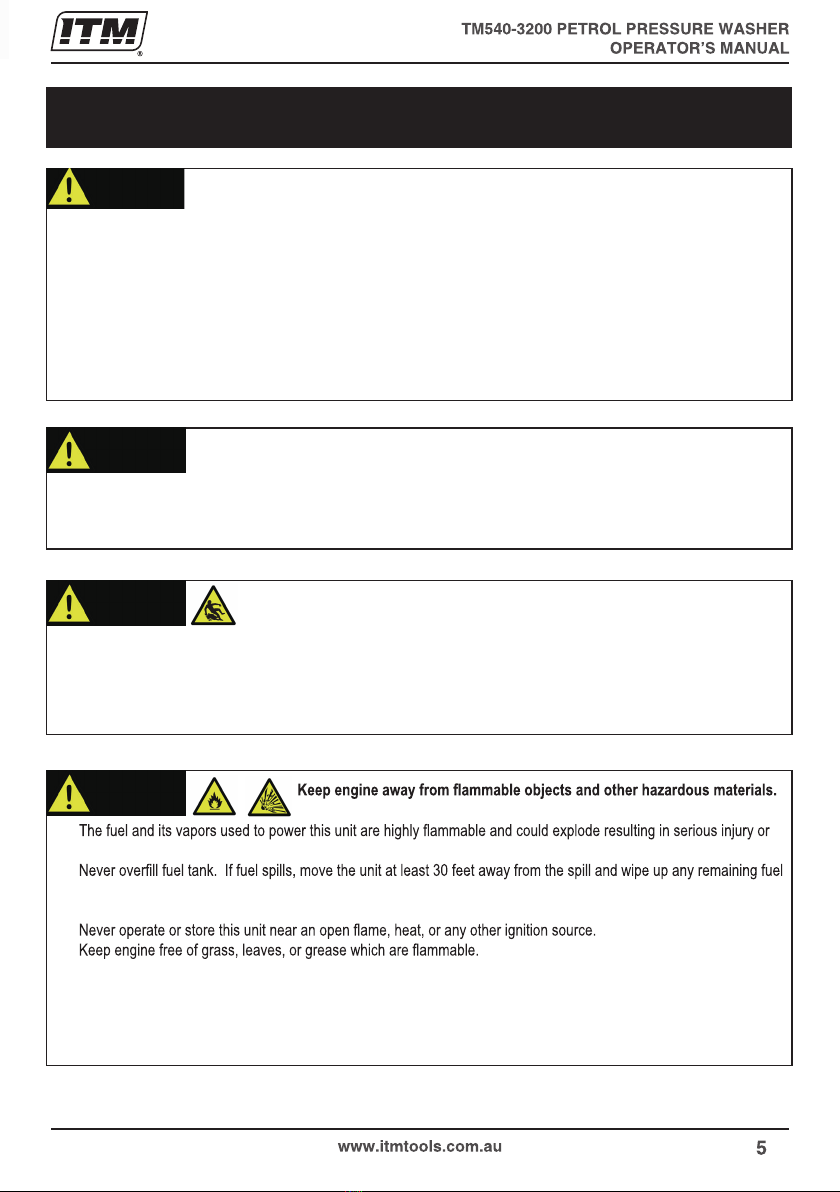

SAFETY RULES
Never use indoors, in a covered area, or in a confined space, even if doors and windows are open.

5
•The high pressure stream of water produced can cut through skin and underlying tissue. Never squeeze the trigger or
point the spray gun at other people, animals, plants, or fragile objects such as glass, even if the engine is stopped.
•This unit is not a toy. Keep unit away from children and pets.
•Do not leave spray gun unattended while unit is running.
•Make sure the spray gun, nozzle, and accessories are attached correctly.
•Never attempt to repair high pressure hose, always replace.
•Never attempt to repair leaks with sealant, always replace O-ring or seal.
•Never attempt to connect or disconnect hose from pump or spray gun while system is pressurized.
•Always release water pressure from unit every time you stop the engine.
WARNING!
SAFETY RULES
•Do not wear loose clothing or gloves.
•Remove jewelry or anything else that could be caught in moving parts.
•Tie back or wear protective head covering to contain long hair.
•Never wear sandals, always wear protective footwear.
•Operate pressure washer from a level and stable surface.
•Do not operate from a ladder, scaffolding, or uneven surface as recoil from spray gun could cause you to fall.
•Use both hands to control spray gun to control recoil.
•Do not over-extend yourself in attempt to reach a little further.
WARNING!
WARNING!
To reduce the risk of injection, injury or possible amputation, never direct water pressure
towards people or pets.
Moving parts can catch on clothing, jewelry, and hair.
Pressure washer can create puddles and slippery surfaces.
•
death.
•
on the unit before starting the engine.
•Never smoke while operating or fueling this unit.
•
•
•When adding or draining fuel, unit should be turned off for at least 2 minutes to cool before removing fuel cap. If unit
has been running the fuel cap is under pressure, remove slowly.
•To keep fuel from spilling, secure unit so it cannot tip while operating or transporting.
•When transporting unit, disconnect the spark plug wire and make sure the fuel tank is empty with the fuel shutoff valve
turned to the off position.
WARNING!

6
alcohol, drugs, medication or you feel tired.
Stay alert and use common sense. Do not operate this unit if you are under the influence of
WARNING!
•Always relieve pressure from spray gun before pulling starter cord, including every failed attempt to start engine.
•To avoid recoil, pull starter cord slowly until resistance is felt, then pull rapidly.
•Improper treatment of pressure washer can damage the unit and shorten it’s life.
•
service center.
•Never modify this unit in any way or modify governed speed.
WARNING!
WARNING!
•
•Allow hot components to cool before touching.
WARNING!
SAFETY RULES
•Do not bypass any safety device. Moving parts are covered with guards. Make sure all protective covers are in place.
•Inspect hoses and connections making sure they are secure before starting engine.
•Use only recommended accessories to avoid damage to this unit.
•Never transport or make adjustments to this unit while it is running.
•Spray from this unit has extreme pressure and can ricochet back splashing water or propelling objects towards eyes.
•Never substitute eye protection with dry condition goggles.
WARNING!
WARNING!
Only use detergents or soaps that are safe to be used with pressure washers. Chemicals
which are caustic, such as acids or bleach, can result in serious injury, property damage,
damage to pressure washer, or death.
WARNING!
Pull cord recoils rapidly and pulls arm towards engine faster than you can let go which
could result in injury.
Never operate this unit if there are any broken or missing parts and only use our
replacement parts specifically designed for this unit.
Avoid contacting hot areas of this unit.
Only use this unit as it is intended or serious injury or death could result.
Use indirect vented safety goggles designed for wet conditions to protect eyes from
injury.

7

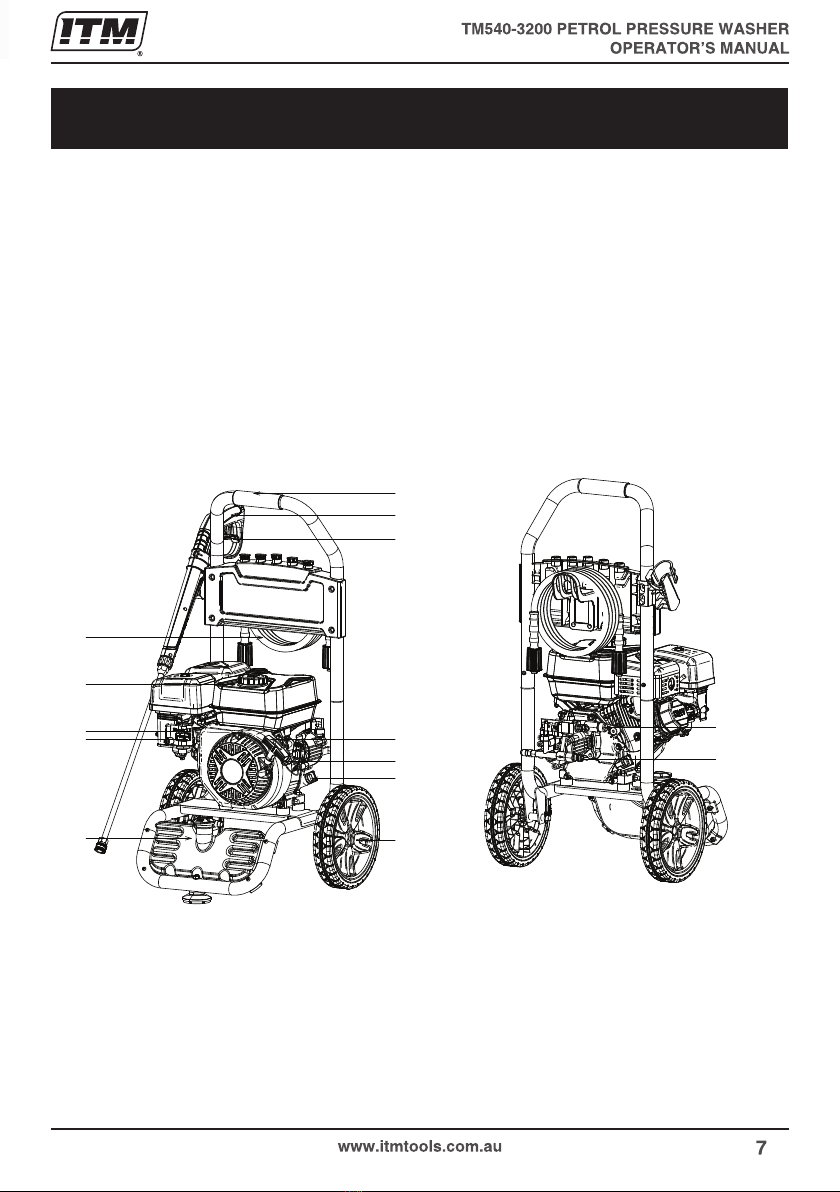

PRESSURE WASHER FEATURES
A - High Pressure Hose
B - Fuel Tank and cap
C - Choke
D - Fuel Valve Lever
E - Soap Tank
F - Handle
G - Spray Gun
H - Locking Trigger
I - Pull Cord
J - Engine On/Off Switch
K - Oil Fill and Dipstick
L - No Flat Foam Filled Tires
M - High Pressure Hose Outlet
N - Water Inlet
L
E
D
C
J
K
IN
M
G
B
A
H
F

10
ASSEMBLY
Packing List
•
•
•Pressure washer
•Operator’s manual
•Spray gun
Extension wand with quick-connect fitting
High pressure hose
•Spray nozzles (5) - 0°, 15°, 25°, 40° and soap nozzle
•Spray gun hook
•Foot (1)
•Nozzle cleaner
Do not attempt to assemble or operate this pressure washer until you have read and
understood this entire manual. If you have any problems assembling or operating this unit
WARNING!
Unpacking
1. Remove the high pressure hose from box.
2. After the high pressure hose has been removed, carefully open product by cutting down the sides of the box.
3. Remove the product, parts, and all accessories. Make sure all items listed on the packing list are included and not
damaged.
Do not operate this pressure washer if any of the parts are damaged or missing until the
part is replaced. Using this product with damaged or missing parts can cause damage to
the machine or result in serious injury or death.
WARNING!

11
ASSEMBLY
•Parts needed - 1 foot, 1 M8 lock nuts.
•Raise or tilt pressure washer so you can line up foot with the hole located at the centre of the frame.
•Align the rubber foot with the hole in the frame where the foot is to be located. Attach foot by inserting the bolt from the
bottom up and install the acorn nut. Wrench tighten until there is a slight crush on the frame tube. (Do not over tighten)
Attaching Foot Assembly (See fig 1)
Install Handle (See fig 2)
•Install upper frame (handle) onto the lower frame by sliding the handle over the two upright tubes on the lower frame
and pressing down firmly until the handle is seated and the two detent pins snap in place.
FIG 2
FIG 1
•Attach the upper gun hook, install two bolts to fix it.
•Attach the high pressure hose hook, install four bolts to fix it.
Attaching Upper Gun Hook a
a
n
n
d
d
h
h
i
i
g
g
h
h
p
p
r
r
e
e
s
s
s
s
u
u
r
r
e
e
h
h
o
o
s
s
e
e
h
h
o
o
o
o
k
k
(See fig 3)
FIG 3

12
ASSEMBLY
•Screw the spray wand and the trigger handle together until they are secure.
•
nut on by turning clockwise until it is hand tight.
FIG 5 FIG 6
Attaching the Spray Gun (See fig 5 & 6)
