1.Introduction
Congratulations on purchasing your new Voice Mail System!
This Voice Mail System User Guide describes the different features of your new
Voice Mail System (VMS) and explains how to set up your personal VMS mailbox.
You should read this manual before installation and operation to take full advantage
of available options.
There are two methods you will use to set up your new VMS:
§Personal Mailbox Management (PMM) Utility Program –a specially designed
graphic user interface (GUI) that lets you define your mailbox settings
(Chapter 2).
§Directly from your telephone extension –which you must use to record your
outgoing messages and can be used to hear incoming messages (Chapter 3).
This manual assumes that the global VMS settings that you will choose from have
already been defined by your VMS Administrator.

VMS User’s Guide: PMM Utility Program (v. 2) 2
2.Personal Mailbox
Management (PMM)
Utility Program
The Personal Mailbox Management (PMM) is a utility program that lets you setup
and maintain your personal mailbox. Via the Local Area Network (LAN)
connection, each mailbox owner can easily change the main voice mail parameters,
such as Password, Language and Mailbox type. The PMM also provides mailbox
owners with statistics on their own personal mailbox.
Setting Up the PMM Utility Program
This section describes how to install and start your PMM software on the PC that
you will use to set up and manage your personal VMS account.
If you are installing the software from the accompanying CD, begin at Step 1.
If you are installing the software from the network, skip to Step 3.
,
NOTES
The PMM software can be downloaded, installed and used for your Personal
Mailbox configuration.
The Mailbox owner’s PC must be connected to a TCP/IP protocol based
Local Area Network (LAN).
The system administrator provides the mailbox owners with access to the
external notification variable parameters.
During installation, the VMS’s IP address and Voice Mailbox number are
needed. Check this data with your local network administrator. The PMM
software will not run If this required data is not entered during installation,
The VMS’s IP address and Voice Mailbox number cannot be changed once
defined

VMS User’s Guide: PMM Utility Program (v. 2) 3
Installing the PMM Software
1.Insert the PMM CD in the CD-ROM drive of your PC. The CD should run
automatically.
2.If the CD does not run automatically, select Start ðRun, then click the Browse
button to view the contents of the CD. Open the Software directory, then open
the PMM Installation directory and find the Setup.exe file (icon displayed on the
left) and open it.
3.The following PMM Setup window appears to enter the IP Address.

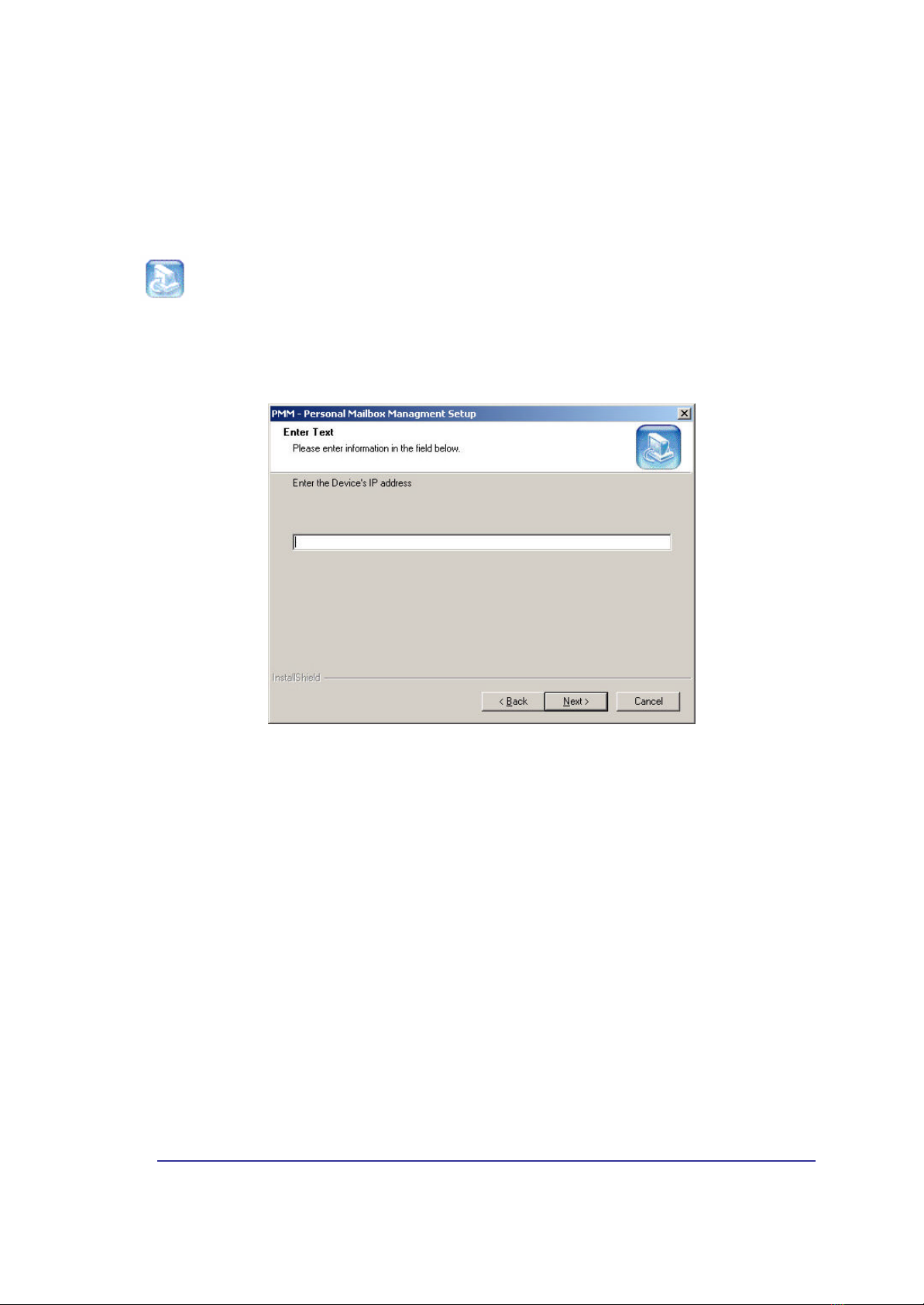

Figure 1: PMM Installation Window: IP Address
Enter the Network IP Address of the VMS in this window. Contact your
Network Administrator if you do not know this address. When you are done,
click Next.

VMS User’s Guide: PMM Utility Program (v. 2) 4
4.The following PMM Setup window appears to enter the Mailbox Number.

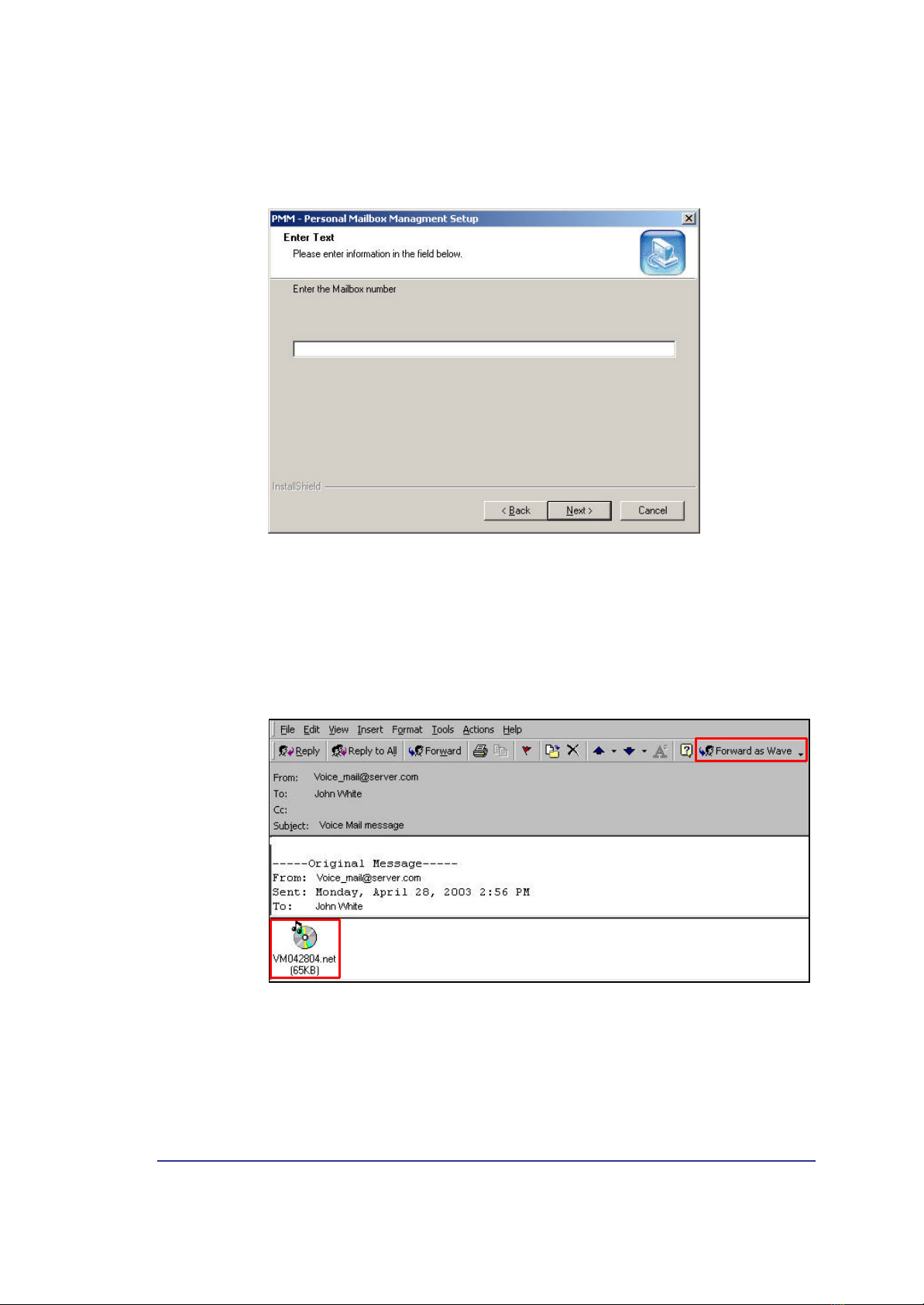

Figure 2: PMM Installation Window: Mailbox Number
Enter your Personal Mailbox number in this window.
5.Open your E-mail client application (e.g., MS Outlook/Express) and check if the
new Forward as Wave button has been added to your toolbar (see Figure 3).
You will click the Forward as Wave button to convert recorded messages that
the VMS send to your E-mail account in .NET format to .WAV format.
Figure 3: MS Outlook window with Forward as Wave button

VMS User’s Guide: PMM Utility Program (v. 2) 5
,
NOTES
During your VMS installation, a new driver is added to your PC that lets
the PMM software automatically convert an attached .NET file in an E-
mail to a .WAV when you open it. Your Audio Player program (e.g.,
Windows Media Player) then plays this new .WAV file.
If you are not using MS Outlook/Express for E-mail, the Forward as
Wave button will not appear.
To forward an attached VMS message file, you must first open the
attached .NET file (it is converted to a .WAV) and then save it as the
new .WAV file. You can now attach this saved .WAV to your E-mail
message and forward it.
Starting the PMM Utility Program
1.Do one of the following:
§Select Start ðRun ðPMM –Personal Mailbox Management <version>
ðPMM.
§Double-click on the PMM shortcut on your desktop (displayed to the left).
2.Click OK to view your mailbox settings.
3.Enter your password (default = 1234) and click on OK. The main PMM screen
appears. If it does not, see Notes below. The mailbox owner can now change
the parameters.
,
NOTES
Every time the PMM program starts, the Read Parameters action is
automatically performed for the mailbox number that was defined
during the installation. You are not able to read parameters from a
different mailbox.
The telephone’s extension number is not relevant for a Virtual Mailbox.
Pmm.lnk

VMS User’s Guide: PMM Utility Program (v. 2) 6
,
NOTES
A message box may prompt you to “Work Off-Line” due to any of the
following 3 situations:
1. The defined mailbox does not exist.
What to Do: Contact the system administrator for help.
2. The incorrect password has been entered 3 times.
What to Do: Use the off-line state to check if your mailbox number is
correct. The system administrator can reset your mailbox password.
3. There is a communication failure and the PMM failed reading the data.
What to Do: Check with your system administrator if there is a
communication failure.

VMS User’s Guide: PMM Utility Program (v. 2) 7
Personal Mailbox Management Screen
The main Personal Mailbox Management screen is divided into three pages: Mailbox
Settings, Mailbox Notifications, Mailbox Statistics.
Mailbox Settings
The Mailbox Settings page provides numerous settings for your personal mailbox.
Figure 4: PMM Mailbox Settings Page

VMS User’s Guide: PMM Utility Program (v. 2) 8
The Mailbox Settings page displays the following user-defined parameters:
Parameter Usage
General
Mailbox Number Current Mailbox number (field is read-only).
Mailbox Password Access code to change Mailbox’s features. Press the
Reset button to change this password.
Mailbox Language Select the language the mailbox should use to play system
messages.
Local Notification
Local Notification Type None
No notification is made.
MSG Light 1
Turns the telephone’s light on and changes the dial tone of
the extension, depending on the PBX. (This will work only if
the VMS Administrator has defined this code.)
MSG Light 2
Identical to Message Light 1, but for PBX units that support
more than one type of message notification code.
Sign Ring
System rings the extension number once, to inform the
mailbox owner of new messages.
Rings
System rings an internal or external number for a period of
time to inform the mailbox owner of new messages. When
the owner of the mailbox calls the mailbox, the unit plays a
menu for retrieving the messages.
The period of time that the system rings the number is
defined by the VMS Administrator.
Extension to Notify After a new message has been recorded, a local message
notification will be sent to this extension number.
Transfer Options Provides the possibility to transfer a call to another
destination while the Personal Opening Greeting is playing.
Note: These features are relevant only to incoming external
calls, not from extensions within the internal phone system

VMS User’s Guide: PMM Utility Program (v. 2) 9
Parameter Usage
Backup Extension Transfers a call to this extension while the Personal
Greeting message is playing if the caller dials the specified
digit (i.e., Backup Extension ID code).
Note: The VMS Administrator must have specified the
Backup Extension ID code.
Operator Extension Transfers a call to one of eight local Operators while the
Personal Greeting message is playing if the caller dials the
specified digit (i.e., Backup Extension ID code).
Note: The VMS Administrator must have specified the
Operator ID code to transfer a call.
FAX Extension If fax data signal is detected during the Personal Greeting
message, automatically transfers the call to the specified
fax extension.
Personal Greeting Choice of Busy/No Answer or Temporary greetings.
Busy/No Answer
Greeting Activates the Busy/No Answer greeting for the mailbox.
Temporary Greeting Activates the Temporary greeting for the mailbox
Mailbox Operation Special features that help you limit incoming calls.
Note: These features are relevant only to incoming external
calls, not from extensions within the internal phone system
Announcer Plays a pre-recorded personal greeting without allowing the
caller to leave a message.
Do Not Disturb (DND) Automatically plays the pre-recorded Do Not Disturb
message and prevents the phone from ringing. All calls are
automatically diverted to voicemail.
Note: No calls can be transferred from an Automated
Attendant to an extension in DND mode.
Time Stamp Plays the time and date that a message was recorded.
CLIP Activates the Calling Line Identification Presentation for
announcing Source ID (i.e., Caller’s ID) number.
Note: PBX must support for this feature to function properly.

VMS User’s Guide: PMM Utility Program (v. 2) 10
Parameter Usage
Call Screening Activates the Call Screening function for the mailbox.
Note: Works only on condition that the call was routed via
an attached Automated Attendant system.
When activated, callers are first asked to record their
names, after which the extension rings. When the call is
answered, the recording with the person's name is played
and a choice is offered: Accept Call (the call is put through)
or Reject Call (the caller is directed to leave a message).
This feature must be enabled by the VMS Administrator.
Note: During screening, an incoming calls holds the
communication port until the cal is completed.
Menu Activator Note: These features are relevant only to incoming external
calls, not from extensions within the internal phone system
No Answer Menu Activates the pre-defined System No Answer menu.
Busy Menu Activates the pre-defined System Busy menu.
DND Menu Activates the pre-defined System Do Not Disturb menu.

VMS User’s Guide: PMM Utility Program (v. 2) 11
Mailbox Notifications
The Mailbox Notifications page provides several options for notifying different
external numbers that a message has been left.
Mailbox Notifications work on condition that the Local Notifications Type is not
None and an Extension to Notify has been entered.
Figure 5: PMM Mailbox Notification Page
,
NOTE
The mailbox owner can only define the external notification options if the
VMS Administrator has provided the permission for this mailbox. The
“External notification is Allowed” checkbox always appears disabled.

VMS User’s Guide: PMM Utility Program (v. 2) 12
The Mailbox Notification page displays the following user-defined parameters:
Parameter Usage
Cascade Notification Lists 9 numbers to notify that a message was received.
Notifications are made in cascading order, based on the
From and To hour specified.
Checkbox Check to enable a notification to an external device by the
VMS that the mailbox owner has received a new message.
Notification Kind Select the type of device you want to notify:
Phone (External)
Enter the external telephone number for the VMS to call
when the mailbox receives a new message.
When this number is answered, the VMS announces that a
new call has been received.
To play the recorded message, enter the correct password.
Pager
Enter the following <numbers> in this order:
<pager number for the VMS to call><$><subscriber’s
ID><message code>.
The code combination/message helps the person identify
the reason for being paged. It can be up to 20 of the
following entries: 1234567890*#.
Note: A, B, C, D are also acceptable DTMF code options
that you can enter. But they will appear only if the pager
supports their display.
SMS
Enter a mobile phone number.
The VMS sends SMS text, defined by the VMS
administrator, alerting that a new message has been
recorded.
Note 1: This feature will work only when the SMS
Notification feature has been enabled by the VMS
Administrator.
Note 2: This feature will also send an SMS to other
communication devices, such as a Palm Pilot, if supported
by the device.
Number Enter the required number, as explained in Notification Kind
above.
From Hour Enter beginning range of time that a notification may be
sent to this number.

VMS User’s Guide: PMM Utility Program (v. 2) 13
Parameter Usage
To Hour Enter ending range of time that a notification may be sent to
this number.
Note: If a call is received after this time, a notification will
only be sent the following day after the From hour and if the
message has not yet been heard and no message
notification has yet been sent to another number.
Start Notification Delay Amount of time after which the notification cascade will
start. Default is 30 minute.
Notifications Time
Interval Amount of time after which the next notification kind is started. Default is 30 minutes.
Loop Time Interval Check box to enable, then set the amount of minutes
between cascade loops.
E-mail Target Address Sets up E-mail notification and defines what to do with the
recorded incoming message.
Enable Checkbox Enables E-mail notification.
Email Target Address Relevant E-mail address to which the VMS will forward
messages.
Message Type Without attachment
The E-mail will be sent to the target E-mail address, with
information about a new recorded message, but without an
attachment.
With voice message attached
The E-mail with the attached media file, containing the
recorded message, will be sent to the target E-mail
address.
Voice message attached and saved
The E-mail with the attached media file, containing the
recorded message, will be sent to the target E-mail address
and the message will be marked as saved in the VMS.
Voice message attached and deleted
The E-mail with the attached media file, containing the
recorded message, will be sent to the target E-mail address
and the message will be marked as deleted in the VMS.

VMS User’s Guide: PMM Utility Program (v. 2) 14
Mailbox Statistics
The Mailbox Statistics page displays figures on how your mailbox is being used.
Figure 6: Mailbox Statistics Page
The Mailbox Statistics page displays the following usage figures:
Parameter Usage
Number of new
messages Shows the number of the new messages that have not been heard.
Number of saved
messages Shows the number of the saved messages.
Total number of
messages Shows the total number of recorded messages.
Max. stored messages Shows the maximum number of messages that can be
recorded in the mailbox.

VMS User’s Guide: PMM Utility Program (v. 2) 15
Communication
You are able to refresh your mailbox data and to send changes you make in your
personal mailbox settings to the VMS.
To refresh your mailbox data:
1.When inside the PMM program, click on Refresh.
2.Click on OK
To upload changes for your mailbox to the VMS:
1.Click on the Apply button in the PMM program
2.Click on OK

VMS User’s Guide: PMM Utility Program (v. 2) 16
3.Mailbox Owner Operations
Each mailbox owner can execute the following operations:
§Retrieve messages
§Send messages
§Set mailbox greetings
Use the outline in Figure 7for a quick reference guide to mailbox menus, or continue
to the procedures below.
Figure 7: Mailbox Quick Reference Guide: User’s Main Menu
