ITT CAS25128E-CU User manual

Connection Cable ACI3-J2
Operating Instruction – ACI3-J2 – Connection Cable – Rev. -Page 1of 21
OPERATING INSTRUCTIONS
CAS25128E-CU
Connection Cable ACI3-J2
AC - Electric Vehicle Charging Solution
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Page 2of 21 Operating Instruction – ACI3-J2 – Connection Cable – Rev. -
IMPRINT
ITT Cannon VEAM Italia S.r.l.
Corso Europa 41/43
20045 Lainate (MI), Italy
Phone: [phone]
ittcannon.com
2023 © ITT Cannon
All rights reserved
INFORMATION!
This publication is an integral part of the Technical
Documentation for the “AC e-mobility Interconnect Solution”
and is protected by copyright.
Any use beyond the limits of copyright law without written
permission is forbidden and subject to penalty.
This also applies to reproductions, translations, microfilms, as
well as storage and processing in electronic media. Violations
will give rise to a right to compensation.
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Operating Instruction – ACI3-J2 – Connection Cable – Rev. -Page 3of 21
REVISION OVERVIEW
Revision
Date
Description
Author
-
13.04.2023
First Release
A. Zimmermann
Table 1: Document Revision Table
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Page 4of 21 Operating Instruction – ACI3-J2 – Connection Cable – Rev. -
TABLE OF CONTENTS
Imprint...........................................................................................................2
Revision Overview .........................................................................................3
Table of Contents...........................................................................................4
Declaration of Conformity..............................................................................5
Information about the Document ..................................................................6
Intended Use..................................................................................................7
Overview and Description ..............................................................................8
Connector Dimensions ACI3-E2 & ACI3-T2 ......................................................... 9
General Data of Equipment Plug & Vehicle Connector ....................................10
Connector Marking ...........................................................................................11
Transportation and Storage .........................................................................12
Delivery.............................................................................................................12
Transportation..................................................................................................13
Storage..............................................................................................................13
Connector Operation ...................................................................................14
Transportation and Storage.............................................................................. 17
Cleaning the Components ................................................................................19
Disposal.............................................................................................................19
Register Of Illustrations and Tables..............................................................20
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Operating Instruction – ACI3-J2 – Connection Cable – Rev. -Page 5of 21
DECLARATION OF CONFORMITY
The Tethered lead Charging Cable is in conformity with the relevant harmonization
legislation.
EU-DECLARATION OF CONFORMITY and UK-DECLARATION OF CONFORMITY are
available on request and could be downloaded from ITT Cannon homepage:
ittcannon.com/evc
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Page 6of 21 Operating Instruction – ACI3-J2 – Connection Cable – Rev. -
INFORMATION ABOUT THE DOCUMENT
This document contains important information about transportation, assembly
(function), operation, and maintenance of the Connection Cable.
CAUTION!
Non-adherence to the information contained in this document may re-
sult in injury or property damage!
Always observe and comply with the warning and safety no-
tices in this document. They are the basic prerequisites for
safe execution of the tasks described in this document. If han-
dled improperly contrary to the specifications in this docu-
ment, the manufacturer will not accept any liability or offer
any refund or compensation. In this case, the operator alone
shall be responsible.
Modifications (of any kind) to components of the Connection
Cable are strictly forbidden!
This document is intended for the operator or persons authorized by the operator
to perform tasks, such as transportation, assembly (function), operation, and
maintenance, at the Connection Cable ACI3-J2 and other tasks related to the Con-
nection Cable.
It additionally contains information and instructions regarding the disposal of pack-
aging and transportation material.
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Operating Instruction – ACI3-J2 – Connection Cable – Rev. -Page 7of 21
INTENDED USE
The Connection Cable described herein is a cord set, with connectors on both ends,
to connect an electric vehicle to an EV charging infrastructure consisting of:
Featuring a charging cable, an Equipment Plug and a Vehicle Connector. When op-
erated at a charging station, or wall box, in charging mode 3 case B, a charging cur-
rent of up to 63A (depending on the corresponding Connection Cable) can be sup-
plied for charging electric and hybrid vehicles.
The Connection Cable has been designed and manufactured using state-of-the-art
techniques and in accordance with approved safety regulations. Nevertheless,
when not used as intended, risks for the user or third parties may still arise, or the
Connection Cable and other material assets may be damaged.
Intended use includes:
•Application within the stated performance limits.
•Application when in efficient working order without any damage.
•Application only in conjunction with designated vehicle inlets according to
IEC 62196.
•Application only in conjunction with charging stations according to
IEC 61851.

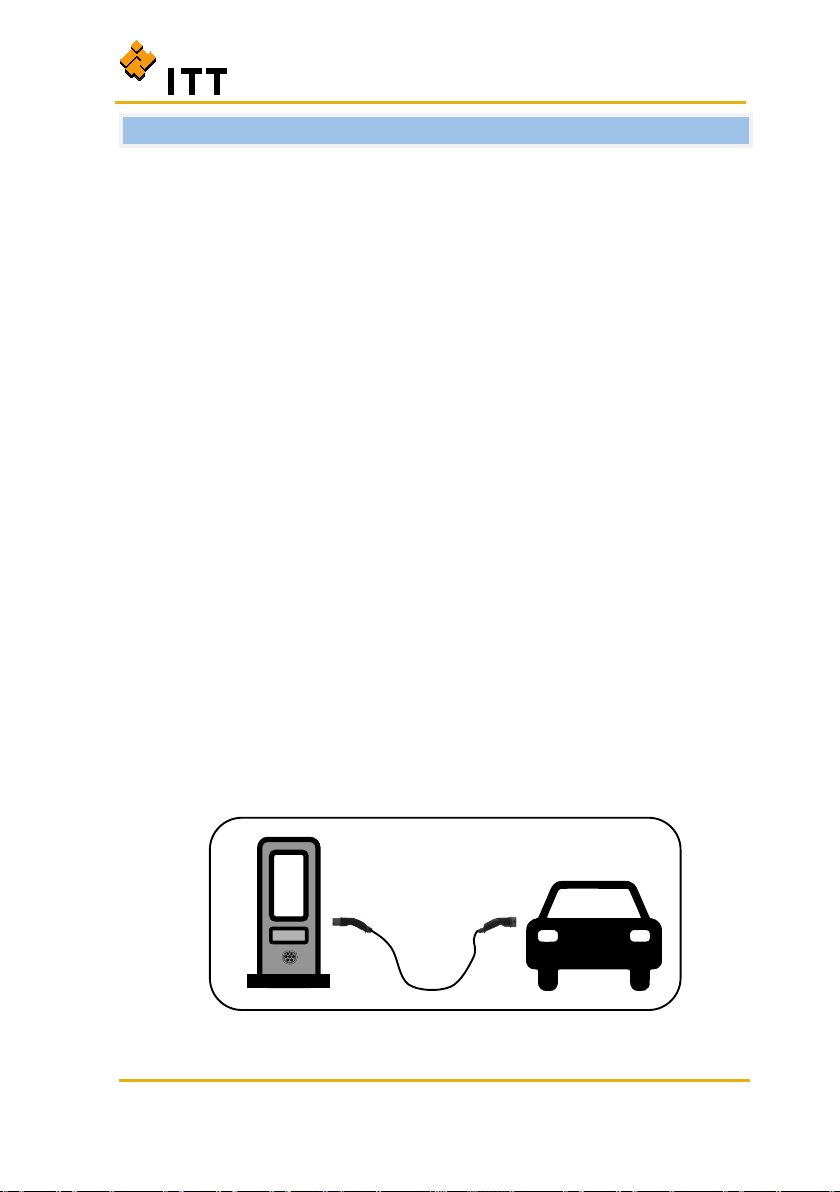

Figure 1: Description and application of charging mode 3B
Equipment Plug
and
Vehicle Connector
ACI3-E2 (Type 2 acc. to IEC 62196-2)
-ACI3-T2 (Type 2 acc. to IEC 62196-2)
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Page 8of 21 Operating Instruction – ACI3-J2 – Connection Cable – Rev. -
OVERVIEW AND DESCRIPTION
The Connection Cable consists of the following individual components which -
within the overall scope of functioning - represent the interface between the charg-
ing infrastructure and the vehicle being charged:
•Equipment Plug - ACI3-E2 Type 2
•Vehicle Connector - ACI3-T2 Type 2
•Charging cable
Figure 2: Overview of the individual components
Table 2: Individual Components Designation
Item
Designation
Item
Designation
1
Charging inlet (vehicle)
5
Vehicle Connector (vehicle)
2
Connection Cable
6
Equipment Plug (station)
3
Charging outlet (station)
7
Electric vehicle
4
Charging station
8
Charging cable
7
1
8
3
4
5
6
2
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Operating Instruction – ACI3-J2 – Connection Cable – Rev. -Page 9of 21
CONNECTOR DIMENSIONS ACI3-E2 & ACI3-T2
Figure 3: ACI3-E2 Equipment Plug dimensions (Illustration similar)
Figure 4: ACI3-T2 Vehicle Connector dimensions (Illustration similar)
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Page 10 of 21 Operating Instruction – ACI3-J2 – Connection Cable – Rev. -
GENERAL DATA OF EQUIPMENT PLUG & VEHICLE CONNECTOR
Description
Value
Applied standard
DIN EN 62196-1:2015
DIN EN 62196-2:2017
Charging mode
Mode 2 & 3B (IEC 61851:2017)
Max. operating temperature
+40 °C
Min. operating temperature
-30 °C
Max. operating voltage, depending on Type
250 V-AC, 480 V-AC
Rated current, depending on Type
20 A, 32 A, 63 A
Max. application height above sea level
4000 m
Degree of protection
IP24
IP44 (mated with inlet / outlet)
Table 3: Specifications for Connection Cable ACI3-J2
Figure 5: Mating face and pin allocation Equipment Plug & Vehicle Connector
Item
Designation
Item
Designation
4, 9
N (Neutral)
6, 14
PE (Protective Earth)
1, 12
L1 (Line 1)
3, 10
CP (Control Pilot)
5, 15
L2 (Line 2) for 3Phase only
2, 11
PP/CS/CC (Proximity)
7, 13
L3 (Line 3) for 3Phase only
8
Connecting Cable
Table 4: Pin allocation Equipment Plug & Vehicle Connector
2
1
3
4
5
7
13
10
9
12
15
11
6
14
8
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Operating Instruction – ACI3-J2 – Connection Cable – Rev. -Page 11 of 21

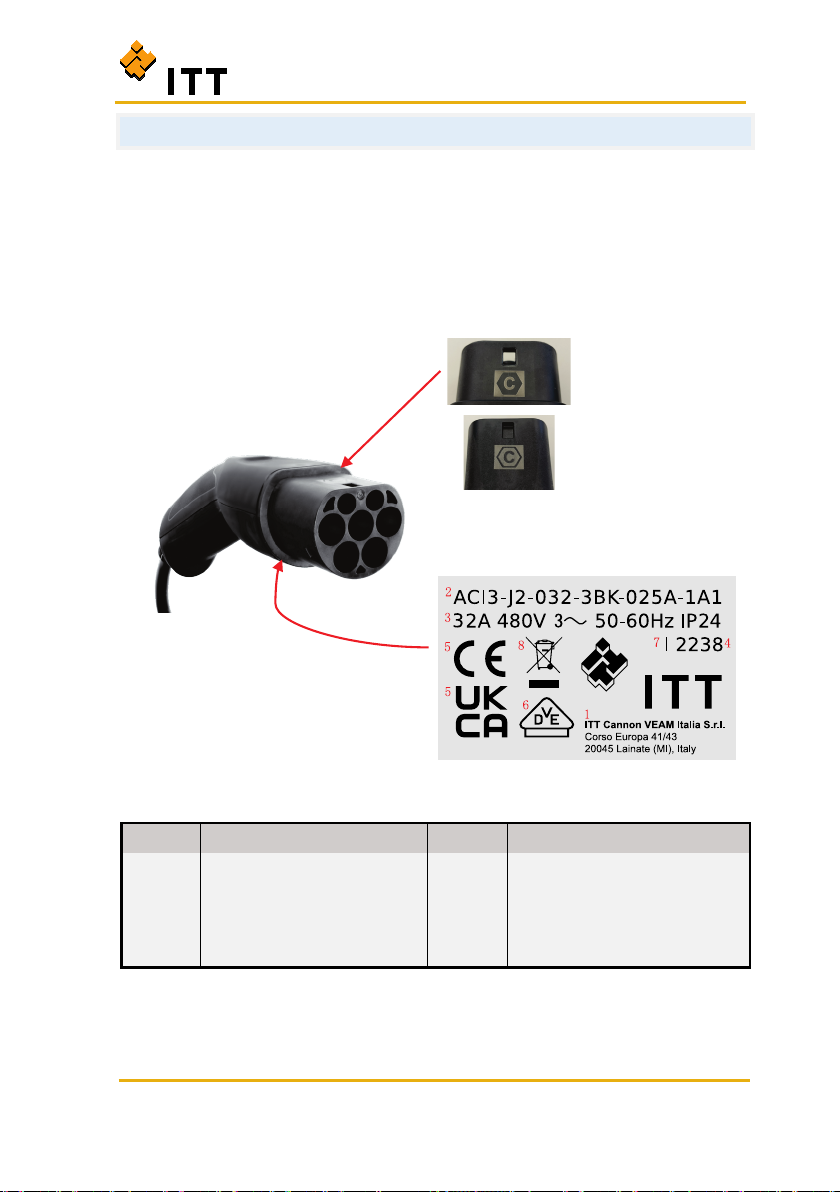

CONNECTOR MARKING
The type marking is located on the bottom side of the housing.
Graphical expression for identification of vehicles and infrastructures compatibility
for consumer information on EV power supply is located on top of Equipment Plug
and Vehicle Connectors
Figure 6: Connector marking
Item
Designation
Item
Designation
1
Manufacturer
5
Conformity marking (EU, UK)
2
Order code
6
VDE marking
3
Characteristics
7
Production site
4
Date of manufacture
8
WEEE marking
Table 5: Connector marking explanation
For Equipment Plug
For Vehicle Connector
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Page 12 of 21 Operating Instruction – ACI3-J2 – Connection Cable – Rev. -
TRANSPORTATION AND STORAGE
DELIVERY
INFORMATION!
Always observe the pictograms on the transport packaging
displaying cargo handling information!
The type of packaging may vary depending on the component,
weight, and selected shipping method.
Only store the components in dry, enclosed rooms while ob-
serving the pictograms on the packaging.
Observe the type of delivery!
The components (charging cable) are usually delivered packed in a cardboard box.
Always observe applicable local safety and accident prevention regulations.
Check the delivery!
Check the scope of delivery for completeness using the supplied delivery notes and
order documents (if possible).
Immediately report any missing parts and/or damage to the delivery as a result of
poor packaging or due to transportation to the manufacturer or distributor.
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Operating Instruction – ACI3-J2 – Connection Cable – Rev. -Page 13 of 21
TRANSPORTATION
General information:
•Always observe applicable local safety and accident prevention regula-
tions.
•Specify transportation routes in advance and remove possible obstruc-
tions.
•Keep unauthorized persons away from the transportation route and as-
sembly or installation location. Secure affected areas against access by un-
authorized persons.
STORAGE
INFORMATION!
Ensure that packaging and products are not damaged, when
stacked. A packaging unit (pallet) must not be stacked or oth-
erwise loaded with weight during transportation and storage!
Only store the components (pallets) in dry, enclosed rooms
while observing the pictograms on the packaging.
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Page 14 of 21 Operating Instruction – ACI3-J2 – Connection Cable – Rev. -
CONNECTOR OPERATION
The 2-end Connection Cable is used to connect the electric vehicle and the charging
station.
1. The Vehicle Connector must be plugged into the charging inlet (vehicle)
and the Equipment Plug into the charging outlet (station).
2. Ensure that connector and plug are completely engaged. The charging
cable must not be stretched.
INFORMATION!
The operating concept of the AC charging system can only be
described in conjunction with the operating concept of the
charging station and vehicle (vehicle). Further information can
be found in the operating instructions of the charging station
and of the vehicle.
NOTICE!
Observe the minimum bending radii of the cables when the
Connection Cable is in use.
Static application--------------------------------- 5 x D
Dynamic application--------------------------- 15 x D
Incorrect use caused by torsional stress together with simul-
taneous expansion of cable should be avoided.
Important: Cable sheath and connector must not be
damaged by sharp metal edges!
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Operating Instruction – ACI3-J2 – Connection Cable – Rev. -Page 15 of 21
DANGER!
Danger of death due to electric shock!
Injuries due to an electric shock and/or burns are possible
and may cause immediate death.
•Always check the Connection Cable and contacts for
damage and contamination before use.
•Never use a damaged Vehicle Connector, Equipment
Plug, cable, vehicle inlet or charging station for charg-
ing.
•Charging while thunder and lightning is prohibited.
•Unplug the Equipment Plug and Vehicle Connector only
when the charging has been terminated and the Vehicle
Connector is unlocked.
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Page 16 of 21 Operating Instruction – ACI3-J2 – Connection Cable – Rev. -
CAUTION!
Misuse of the Connection Cable can lead to interruption of
charging, disruption of service or even injuries:
•Never use high force to plug and unplug the Vehicle
Connector or Equipment Plug.
•Don’t stress the charging connector with mechanical
load like, pushing or pulling, lean against cable / con-
nector during charging process. Do not pull on Vehicle
Connector or Equipment Plug while locked.
•Never run over the cable with any type of vehicle
•Prevent twisting of cable during coil up and reel off
Do not use 3rd party adapters and extension cords.
A falling connector could injure the user or any people and
pets around.
•People and pets, (especially babies and children) must
stay in distance while charging process.
•Don’t let the connector drop down.
Protect the Tethered Lead Charging Cable against environ-
mental influences.
•Use dust cap or appropriate parking position to ensure
minimum protection IP24 according to IEC 61851-1.
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Operating Instruction – ACI3-J2 – Connection Cable – Rev. -Page 17 of 21
DANGER!
Danger of death due to electric shock!
Modifications (of any kind) to components of the Connec-
tion Cable are strictly forbidden!
In this case, injuries due to an electric shock and/or burns
are possible and may cause immediate death.
Repair of the product is not possible.
NOTICE!
Only adult persons with a valid driver’s license for vehicles are
allowed to use the charging cable.
Make sure that charging cable is out of reach of children and
pets.
TRANSPORTATION AND STORAGE
NOTICE!
Transport and store product in dry and clean environment,
without exposure to direct sunlight.
Make sure that charging cable is out of reach of children and
pets or rodents.
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Page 18 of 21 Operating Instruction – ACI3-J2 – Connection Cable – Rev. -
CAUTION!
Insecure storage and transportation of the connection cable
can lead to damages, or even injuries:
•Store and Transport cable in a secure position, espe-
cially during transport in a vehicle.
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Operating Instruction – ACI3-J2 – Connection Cable – Rev. -Page 19 of 21
CLEANING THE COMPONENTS
INFORMATION!
Only clean the charging cable when it is not connected to the
vehicle or the charging station.
Use a dry cloth to clean outside of cable, Vehicle Connector,
Equipment Plug and pin contacts.
Never use abrasive cleaning agents, water jet or steam jet
cleaners.
Never submerge the article into liquids.
DISPOSAL
NOTICE!
In order to protect the environment, dispose of packaging ma-
terials, such as film or cardboard, according to the applicable
local environmental protection regulations.
Transfer possibly arising residual materials to a certified waste
disposal company.
Dispose of the charging cable separately from other
waste, i.e., via an appropriate collection site.
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.

Connection Cable ACI3-J2
Page 20 of 21 Operating Instruction – ACI3-J2 – Connection Cable – Rev. -
REGISTER OF ILLUSTRATIONS AND TABLES
Table 1: Document Revision Table ...........................................................................3
Figure 1: Description and application of charging mode 3B.....................................7
Figure 2: Overview of the individual components....................................................8
Table 2: Individual Components Designation ...........................................................8
Figure 3: ACI3-E2 Equipment Plug (Illustration similar)............................................9
Figure 4: ACI3-T2 Vehicle Connector (Illustration similar)........................................9
Table 3: Specifications for Connection Cable ACI3-J2.............................................10
Figure 5: Mating face and pin allocation Equipment Plug & Vehicle Connector ....10
Table 4: Pin allocation Equipment Plug & Vehicle Connector ................................10
Figure 6: Connector marking ..................................................................................11
Table 5: Connector marking reference ...................................................................11
EXPORT CODE C
COMMERCIAL. RESTRICTED TO EMBARGOED COUNTRIES AND DENIED PARTIES.
PRINTED COPIES ARE NOT MAINTAINED TO LATEST REVISION.
