IVIGO EHR5012P275 User manual
EN USER MANUAL
PROFESSIONAL
TOWEL WARMER
since
UPDATED
Vigo brand changed to Ivigo from March 2019.
Models:
EHR5012P275
EHR5015P350
EHR5019P450
EHR5023P600
EHR5033P800
LANGUAGES
EN USER MANUAL 1
DE MONTAGE UND BETRIEBSANLEITUNG 15
TR MONTAJVE KULLANMA KILAVUZU 31
www.ivigo.com
1
EN
ENVIRONMENTAL POLICY
We hereby commit that we are going to:
2
Our Esteemed Customer,
3
EN
SAFETY INSTRUCTIONS
4
5
EN
TABLE OF CONTENTS
1. GENERAL OVERVIEW AND TECHNICAL FEATURES 6
2. INSTALLATION INSTRUCTIONS 8
3. OPERATING INSTRUCTIONS 12
4. CLEANUP and MAINTENANCE 13
5. TRANSPORTATION INFO 13
6. PRACTICAL AND USEFUL INFORMATIONS 13
7. GUARANTEE CONDITIONS 14
6

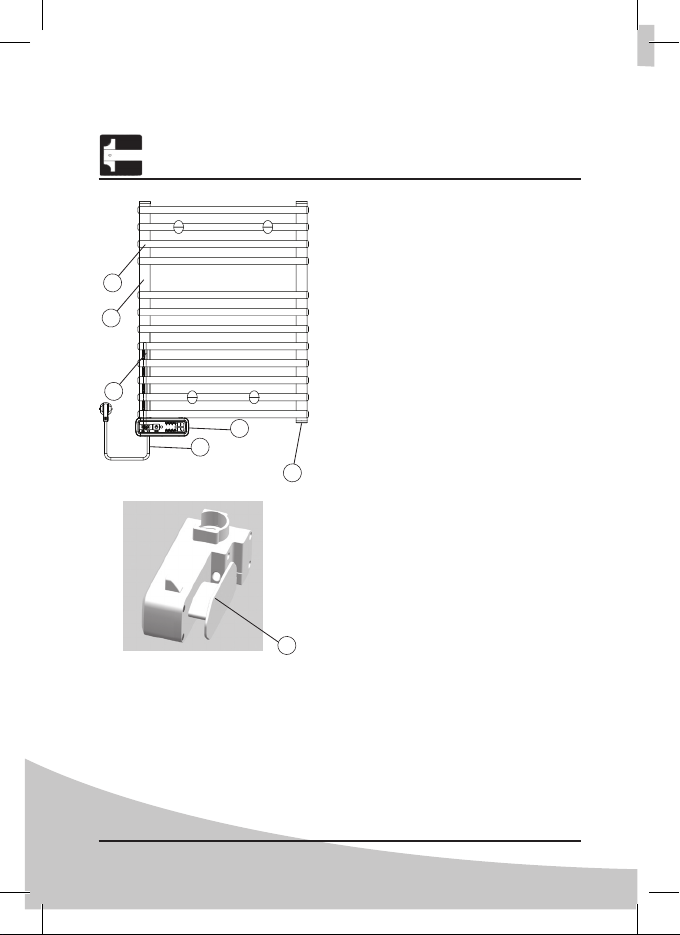

1. GENERAL OVERVIEW AND TECHNICAL FEATURES
1
7
7
EN
TECHNICAL SPECIFICATIONS
Electronic
Control
Unit
Type Width
(mm)
Length
(mm)
Voltage
(Volt)
Current
(Am-
per)
Frequncy
(Hz)
Power
(Watt)
Weight
(kg)
Color Choices:
White (B),
Inox (I)
EHR 5012P275* 500 650 220-240 1.25 50-60 275-330 8 (B), (I)
EHR 5015P350* 500 800 220-240 1.59 50-60 350-420 9.8 (B), (I)
EHR 5019P450* 500 1000 220-240 2.04 50-60 450-535 12 (B), (I)
EHR 5023P600* 500 1250 220-240 2.72 50-60 600-715 15 (B), (I)
EHR 5033P800* 500 1274 220-240 3.63 50-60 800-950 19 (B), (I)
8

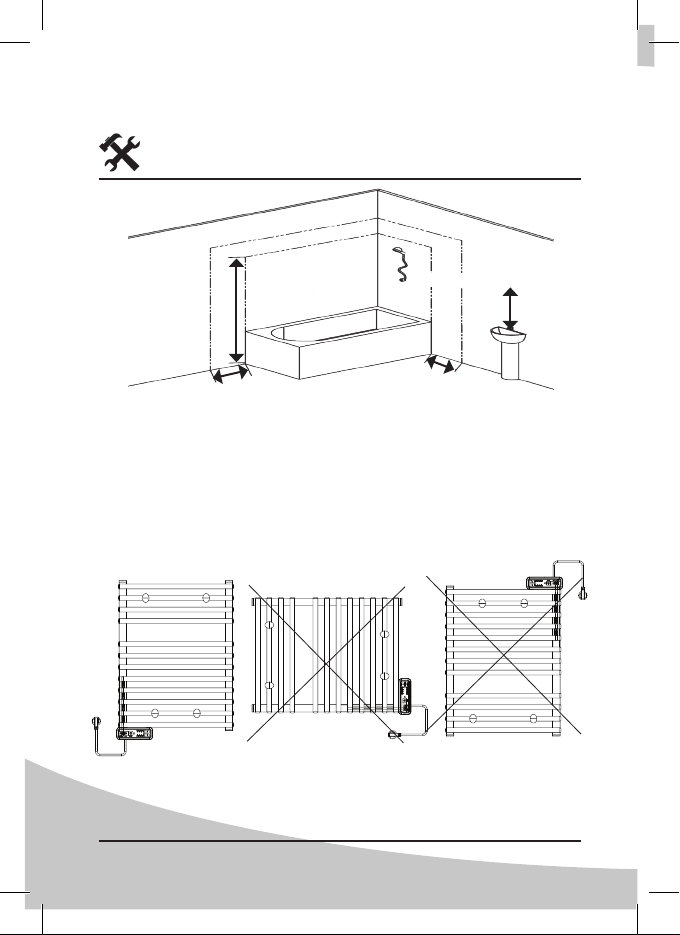

2. INSTALLATION INSTRUCTIONS
Ø
1
9
EN

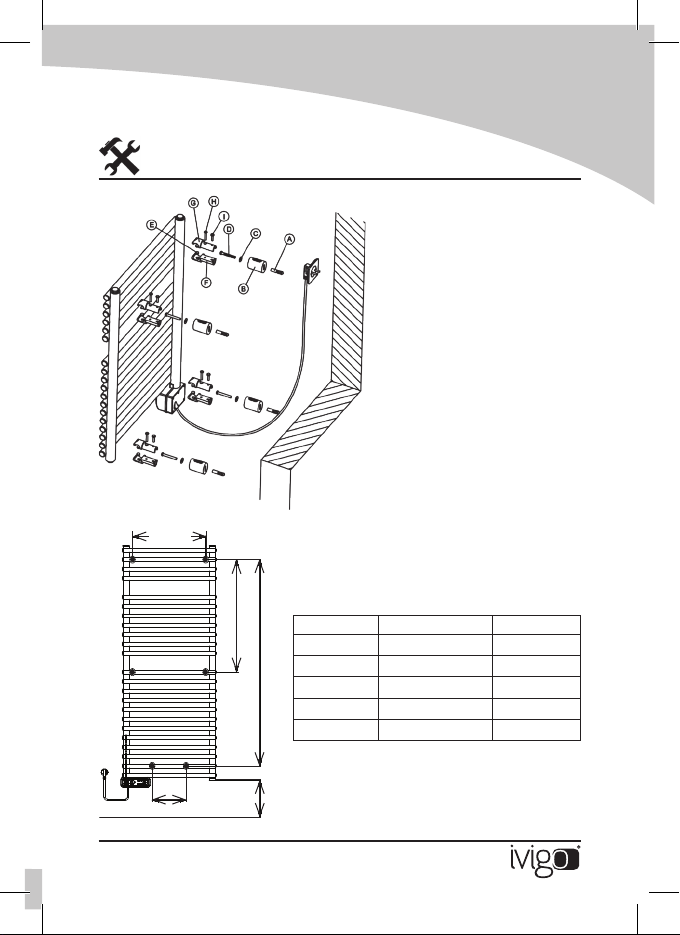

A
h= min. 600 mm
e
c
a
f
d
b
B
390 mm
180 mm
Model A B
EHR 5012P275* 500 mm (50 cm) -
EHR 5015P350* 650 mm (65 cm) -
EHR 5019P450* 850 mm (85 cm) -
EHR 5023P600* 1100 mm (110 cm) -
EHR 5033P800* 1156 mm (115.6 cm) -
10
IMPORTANT NOTICE
Zone 3 Zone 1 Zone 2
Zone 1
0.6 m
0.6 m
0.6 m
2.25 m
Zone 2
p
11
EN
3. OPERATING INSTRUCTIONS
Switching on the Unit
Push the On/O button on the heater to turn it on. If the On/O button is blue, the appliance is
activated.To turn the heater on, you may also press the“Power Indicator” or“Turn O Timer”
buttons. At rst activation, all the LEDs turn on and o one by one.
By default at rst activation, the turn o timer is o, and the power indicator is at 1.
The turn o timer and power indicator settings are saved in the permanent memory. Next time the
appliance is powered via“On/O”button , it starts at the previous power indicator level, and
the turn o timer is reset. If powered via the“Power Indicator”button , the appliance starts at
the previously set power indicator level. If powered via the“Turn OTimer”button , the appli-
ance starts with the latest turn o timer and power indicator settings. Once switched on, you may
change these settings via respective buttons.
The appliance has a speed heating mode. In this mode, full heating is on for the rst 10 minutes
into activation, fast heating the appliance. After 10 minutes, it goes back to its regular functioning
at previous turn o timer and power indicator settings.
1. On/O Button and Leds 2.Timer Button and Leds 3. Power Indicator Button and Led
1
12
Programming the Unit / Turn o timer
Press the“Turn O Timer”button to program the heater for resuming work for another hour.You
can set it to a maximum of four hours.The appliance is automatically turned o when the timer hits
zero. If pressed and held (take 1 second before pressing again), the turn o timer goes up by one
hour, and returns to 0 -is deactivated- after 4. The turn o timer is indicated with four LEDs, with
each corresponding to one hour. The number of lit LEDs indicate the remaining time before turn o.
Example: If two LED lights are lit and one LED light blinks, the appliance has 2 hours and 30 to 45
minutes to turn o.
In case of power outage and return, the appliance resumes work with saved settings.
Power Indicator Levels Setting
The heater has four power indicator levels shown by four LED lights. Press the “Power Indicator”
button to set it to a level from 1 to 4. Levels switch as you press on the “Power Indicator” but-
ton. Release the button when the LED light(s) is/are on for the preferred power level.The lit LED(s)
indicate(s) that the appliance is set to the corresponding power level.
Turning o the Appliance
Press the“On/O”button for more than 1.5 seconds to turn o the appliance. The orange LED
light is on when the appliance is o.
13
EN
4. CLEANUP and MAINTENANCE
5. TRANSPORTATION INFO
carrying
6. PRACTICAL AND USEFUL INFORMATIONS
14
7. GUARANTEE CONDITIONS
1. The Guarantee Period commences upon the delivery of the unit and is 3 years.
2. The unit is completely within the guarantee coverage of our company including all the parts thereof.
3. Breakdowns due to usage other than the ways specied in usage manual of the unit is out of guarantee coverage.
This guarantee given by MASTAŞ MAKİNA KALIP SANAYİ VE TİCARET A.Ş. does not cover breakdowns other than the normal
usage of the product and the following cases are also out of guarantee:
1. Alterations and distortions on the Registry Tag and Guarantee Certicate.
2. Damages and breakdowns due to usage for any other purpose than its intended use indicated in the User Manuel of the
product.
3. Damages and breakdowns due to maintenance and repair made by unauthorized persons.
4. Damages and breakdowns due to factors occurring following the delivery of the product such as transportation, loading,
unloading, storage, external physicalmpact, collision, scratches) or chemical reasons.
5. Damages and breakdowns due to voltage increases or decreases, decient or illegal electrical installations or usage in
dierent voltages other than the ones written on the label of the appliance.
6. Damages and breakdowns due to re and stroke of lightening.
7. The damage caused to the defective product without the interventions of the authorized service personnel.
The seller, dealer or the agency from where the appliance is purchased is responsible for stamping the certicate of warranty
and issuing it to the customer. The guarantee is valid only for the time stated on the back side of this certicate and the
breakdowns of the product. The Guarantee certicate will be null and invalid in case of any alterations thereon and if the
original serial number on the product is removed or altered.
1. Please rst check if the appliance is plugged into the power outlet.
2. Please check if the cord is broken or damaged while not plugged into the power outlet.
3. Please check if there is power in the outlet by another equipment.
4. Please check if the power switch is on or o. (See Figure 1)
5. If the appliance does not operate when you push the button ( ) for nearly 2-3 seconds although all the
above conditions are provided please call to the Customer Services before making any application on the unit.
