IWAKI PUMPS SMX-F Series User manual

Read this manual before use of product
IWAKI
Self-priming Magnetic Drive Pump
SMX-F Series (English)
Instruction Manual
T665 '08/06
�
IWAKI CO.,LTD. 6-6 Kanda-Sudacho 2-chome Chiyoda-ku Tokyo 101-8558 Japan
TEL:[phone] FAX:[phone](http://www.iwakipumps.jp)
U.S.A. : IWAKI America Inc.
Australia : IWAKI Pumps Australia Pty. Ltd.
Singapore : IWAKI Singapore Pte. Ltd.
Indonesia : IWAKI Singapore (Indonesia Branch)
Malaysia : IWAKIm Sdn. Bhd.
Taiwan : IWAKI Pumps Taiwan Co., Ltd.
Thailand : IWAKI (Thailand) Co.,Ltd.
Hong Kong : IWAKI Pumps Co., Ltd.
China : GFTZ IWAKI Engineering & Trading Co., Ltd.
China : IWAKI Pumps Co., Ltd. (Beijing office)
China : IWAKI Pumps (Shanghai) Co., Ltd.
Philippines : IWAKI Chemical Pumps Philippines, Inc.
Korea : IWAKI Korea Co.,Ltd.
Vietnam : IWAKI Pumps Vietnam Joint Venture Co.,Ltd.
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
Germany : IWAKI EUROPE GmbH
Italy : IWAKI Italia S.R.L.
Denmark : IWAKI Pumper A/S
Sweden : IWAKI Sverige AB
Finland : IWAKI Suomi Oy
Norway : IWAKI Norge AS
France : IWAKI France S.A.
U.K. : IWAKI PUMPS (UK) LTD.
Switzerland : IWAKI (Schweiz) AG
Austria : IWAKI (Austria) GmbH
Holland : IWAKI Holland B.V.
Spain : IWAKI Iberica Pumps, S.A.
Belgium : IWAKI Belgium n.v.
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]
TEL : [phone] FAX : [phone]

Contents
Important instructions ···································································· 1
Safety instructions ·········································································· 2
Outline 1. Unpacking & Inspection ..................................................6
2. Product outline .................................................................6
3. Model code .......................................................................7
4. Part names ........................................................................8
5. Overview ........................................................................10
Installation 1. Before installation ..........................................................12
2. Installation location ........................................................12
3. Installation ......................................................................13
4. Pipework ........................................................................14
5. Wiring ............................................................................17
Operation 1. Operational precautions .................................................19
2. Before operation .............................................................20
3. Preparation .....................................................................22
4. Operation ........................................................................23
Maintenance 1. Troubleshooting ..............................................................26
2. Maintenance & Inspection .............................................27
3. Spare & Wear parts ........................................................31
4. Disassembly & Assembly ..............................................33
This instruction manual should be kept on hand by the end user for
quick reference.
Contact us or your nearest dealer if you have any questions.
Thank you for selecting an Iwaki SMX-F Series Self-priming Magnetic Drive Pump. This
instruction manual deals with "Safety instructions", "Outline", "Installation", "Operation"
and "Maintenance" sections. Please read through this manual carefully to ensure the optimum
performance, safety and service of your pump.

- 1 -
Important Instructions
Nonobservance or misapplication of “Caution” sec-
tions could lead to a personal injury or damage to
the product.
For the Safe and
Correct Handling of the Pump
● "Safety Instruction" section deals with important details about handling of the product. Before
the use of the pump, read this section carefully for the prevention of personnel injury or loss.
● Observe the instructions accompanied with "WARNING" or "CAUTION" in this manual. These
instructions are very important for protecting users from dangerous situations.
● The symbols on this instruction manual have the following meanings:
WARNING
Nonobservance or misapplication of “Warning” sec-
tions could lead to a serious accident which may
result in death.
CAUTION
Types of Symbols
Indicates that “Warning” or “Caution” must be exercised. Inside this triangle, a con-
crete and practical image provided as a warning or caution message is depicted.
Indicates a prohibited action or procedure. Inside or near this circle, a concrete and
practical image of the activity to be avoided is depicted.
Indicates an important action or procedure which must be performed or carried out
without fail. Failure to follow the instructions herein can lead to malfunction or
damage to the pump.

- 2 -
● Access limitation
The magnet drive pump has a pair of strong magnets. A strong magnet
field could adversely affect the persons who are assisted by electronic
devices such as the pacemaker.
● Turn off power before work
Be sure to turn off the power before starting a maintenance/repair work.
Make sure no one turns on the power while working on the pump, other-
wise it may result in a serious accident. Let other people know about the
situation by displaying a notice such as "POWER OFF (Maintenance)" near
the power switch.
● Wear protective clothing
Always wear protective clothing such as eye protection and protective
gloves during pipework or dismantlement of the pump.
● Do not remodel the pump
A remodelled pump will not be warranted. Also, we are not responsible for
a personal injury or property damage due to modification.
● When handling harmful liquid
For handling harmful liquids as mentioned below, be sure to conduct daily
inspection & maintenance for the prevention of liquid/gas leakage.
1. Explosive or flammable liquid
2. Corrosive liquid
3. Health hazardous liquid
Pay extra attention. Generated gas can stay in the top of front casing.
WARNING
Turning off power
Prohibited
Wear protective
gear
No Remodeling
Safety instructions

- 3 -
● Magnetic force affects magnetic disks/cards and wrist watches
A pair of strong magnets is mounted in the pump and its magnet force may affect
magnetic disks/cards or wrist watches. Do not bring them close to the pump.
● Restriction on pump operator
The pump must be handled or operated by a qualified person with a full
understanding of the pump.
● For a specified application only
Use of the pump in any application other than those clearly specified may
result in a personal injury or property damage.
● For a specifi ed power only
Do not apply any voltage other than the specified voltage on the motor
nameplate. Otherwise, damage or fire may result.
● Ventilation
Poisoning may result when handling a harmful liquid. Keep good ventilation
in your operating site.
● Countermeasure against efflux
Take a protective measurement against accidental chemical efflux and
splash at pump or piping breakage. Also, take an appropriate measurement
to prevent accidental outflow from directly soaking into the ground.
● Do not run pump dry
Do not run pump dry (Operation without liquid). Friction heart in the dry
running damages internal parts. If the pump is operated with a suction side
valve close or without priming, the pump runs dry.
● Do not bring the pump close to a flammable substance
Keep the pump away from a flammable substance for the prevention of fire.
● Unpacking
Before unpacking, check package is not put upside down. Take care not to
be scratched by a nail or a piece of wood at unpacking.
CAUTION
Prohibited
Prohibited
Prohibited
Prohibited
Prohibited
Caution
Safety instructions
Fire ban

- 4 -
●
Do not lift the pump by gripping any plastic parts (pump unit, flange or base)
The pump can drop unintentionally as a plastic part breaks, resulting in seri-
ous injury. Use rope or chain to the motor to lift the motor horizontally.
● Do not stand on the pump
Do not use the pump as a platform. Injury or damage may result when the
pump turns over.
● Do not touch the pump or pipe
Hot surface temperature. Do not touch the pump or pipe with the bare hand dur-
ing or right after hot liquid transfer. Take a preventative measure against burn.
● Earthing
Risk of electrical shock. Do not run the pump without earthing. Secure
earth protection to reduce the risk.
● Install an earth leakage breaker
Risk of electrical shock. Do not run the pump without a leakage breaker.
Secure a leakage breaker to reduce the risk.
● Limitations on operating site and storage
Do not install or store the pump in the following places where...
1. Ambient temperature is beyond 0-40 ºC.
2. Relative humidity is beyond 35-85%RH.
3. Under a flammable/explosive atmosphere or in a dusty place (Except explosion-proof type).
4. The pump is exposed to wind and rain (Except outdoor-use type).
5. The pump is subject to vibration.
6. Under a corrosive atmosphere such as chlorine gas.
● Foreign matter
When foreign matters enter the pump, turn off power at once and remove
them. Using the pump with foreign matters may result in failure.
● Pump disposal
Any used or damaged pump must be disposed of in accordance with local
laws and regulations as an incombustible (Consult a licensed industrial
waste products disposing company.).
CAUTION
Grounding
Prohibited
Prohibited
Prohibited
Caution
Prohibited
Safety instructions

- 5 -
Outline
1. Unpacking & Inspection ........................ 6
2. Product outline ...................................... 6
3. Model code ........................................... 7
4. Part names ........................................... 8
5. Overview ............................................. 10

- 6 -
Model
Head
Discharge
capacity
Frequency
Manufacturing
number
1. Unpacking & Inspection
Outline
On unpacking the product, check the following
points. If you find any problems, contact your
nearest dealer.
1. Check the information on nameplate (model
code, flow rate, head and voltage) to see if the
product is delivered as per order.
2. Check transit damage, deformation, and loose
bolts.
IWAKI
Magnetic Drive Pump
SMX-F series
Instruction Manual
Motor
Instruction manual
Instruction manual
■ Principle of operation
a. Running the pump after priming, liquid and gas
start to move into the pump chamber, where gas-
liquid separation occurs.
b. Once all gas is expelled, normal centrifugal
pump operation is resumed.
c. Sufficient liquid remains in the pump chamber
for subsequent self-priming once the pump is
stopped.
2. Product outline
The SMX-F series pump is a self-priming centrifugal pump of a gas-liquid separation system.
Fluoroplastic and fine ceramic wet ends are capable of handling a wide range of chemicals in vari-
ous applications.
Discharge
Suction
Impeller
Pump chamber
Priming cap
: Impeller rotation
: Liquid flow

- 7 -
Series code
SMX-F: CFRETFE type (Wet end material)
Pump bore code (Inlet × Outlet bore)
22: 25A × 25A
44: 40A × 40A
Motor output code
0: 0.4kW
1: 0.75kW
2: 1.5kW
3: 2.2kW
Sliding parts code (Bearing/ Spindle/ Liner ring)
CF: High density carbon/ High purity alumina ceramics/ Alumina ceramics
RF: Filled PTFE/ High purity alumina ceramics/ Alumina ceramics
KK: SiC/ SiC/ SiC
O ring material
V: FKM
E: EPDM
Impeller code
T, V: 50Hz
X, Y: 60Hz
Motor type
No code: Totally-enclosed-fan-cooled motor for indoor use
C: Totally-enclosed-fan-cooled motor for outdoor use
A: Increased safety motor for outdoor use
There are limitations on some combinations. Contact us for details.
SMX - F 22 0 CF V V C
Outline
3. Model code

- 8 -
SMX-F22□
SMX-F220
4. Part names
NO PART NAMES MATERIAL Q'TY REMARKS
CF RF KK
1 FRONT CASE CFRETFE 1
2 REAR CASE CFRETFE 1
3 REAR CASING CFRETFE 1
4 VOLUTE SPACER CFRETFE 1
6 PLATE CFRETFE 1
7 CAP CFRETFE 1
8 DRAIN CAP CFRETFE 1
9 IMPELLER CFRETFE 1
10 DRIVE MAGNET UNIT
SMX-F220: FERRITE MAGNET + ALUMINIUM ALLOY
SMX-F221: FERRITE MAGNET + DUCTILE IRON
SMX-F222: REAR EARTH MAGNET + DUCTILE IRON
1
11 MAGNET CAPSULE SMX-F220, 221: FERRITE MAGNET + CFRETFE
SMX-F222: REAR EARTH MAGNET + CFRETFE 1
12 HEX SOCKET SET SCREW STEEL 2
13.1 HEX SOCH HEAD BOLT STNLS STL 8 M8×40 PW,SW
13.2 HEX SOCH HEAD BOLT STNLS STL 3 M8×15
13.3 HEX SOCH HEAD BOLT STEEL 4 M8×20 PW,SW
14.1 HEX HEAD BOLT STNLS STL 4
220 type: M8×20
221, 220 type: M10×25
14.2 HEX HEAD BOLT STNLS STL 4 M10×25
15 STUD BOLT STNLS STL 5
16.1 NUT STNLS STL 13 M8
16.2 COVER CAP PE 13
17 PLAIN WASHER STNLS STL 13 M8
18.1 SPRING WASHER STNLS STL 5 M8
18.2 SPRING WASHER STNLS STL 4
220 type:M8 221, 222type:M10
18.3 SPRING WASHER STNLS STL 4 M10
18.4 SPRING WASHER STNLS STL 3 M8
19 FLANGE CFRETFE 2
20.1 REAR CASING SUPPORT DUCTILE IRON 1
20.2 BRACKET DUCTILE IRON 1
22 MOTOR - 1
23 BASE GFRPP 1
24 LINER RING ALUMINA CERAMICS 99.5% SiC 1
26.1 REAR THRUST RING -
ALUMINA CERAMICS 99.5%
- 1 ONLY RF TYPE
26.2 REAR THRUST CFRETFE 1
27 SPINDLE ALUMINA CERAMICS 99.5% SiC 1
28 BEARING High density carbon Filled PTFE SiC 1
29 MOUTH RING Filled PTFE SiC 1
30 GASKET
V:FKM E:EPDM
1
31.1 O RING (REAR CASING) 1 G-160
31.2 O RING (DRAIN CAP/FLANGE) 3 G-25
31.3 O RING (REAR CASE) 1 P-40
31.4 O RING (CAP) 1 G-30
Outline

- 9 -
SMX-F44□
SMX-F441
NO PART NAMES MATERIAL Q'TY REMARKS
CF RF KK
1 FRONT CASE CFRETFE 1
2 REAR CASE CFRETFE 1
3 REAR CASING CFRETFE 1
4 VOLUTE SPACER CFRETFE 1
6 PLATE CFRETFE 1
7 CAP CFRETFE 1
8 DRAIN CAP CFRETFE 1
9 IMPELLER CFRETFE 1
10 DRIVE MAGNET UNIT SMX-F441: FERRITE MAGNET + DUCTILE IRON
SMX-F442, 443: REAR EARTH MAGNET + DUCTILE IRON 1
11 MAGNET CAPSULE SMX-F441: FERRITE MAGNET + CFRETFE
SMX-F442, 443: REAR EARTH MAGNET + CFRETFE 1
12 HEX SOCKET SET SCREW STEEL 2
13.1 HEX SOCH HEAD BOLT STNLS STL 6 M8×45
13.2 HEX SOCH HEAD BOLT STNLS STL 3 M8×15
13.3 HEX SOCH HEAD BOLT STEEL 4 M8×20 PW,SW
13.4 HEX SOCH HEAD BOLT STNLS STL 2 M8×85
14.1 HEX HEAD BOLT STNLS STL 4 M10×25
14.2 HEX HEAD BOLT STNLS STL 4 M10×25
15 STUD BOLT STNLS STL 5
16.1 NUT STNLS STL 13 M8
16.2 COVER CAP PE 13
17 PLAIN WASHER STNLS STL 21 M8
18.1 SPRING WASHER STNLS STL 13 M8
18.2 SPRING WASHER STNLS STL 4 M10
18.3 SPRING WASHER STNLS STL 4 M10
18.4 SPRING WASHER STNLS STL 3 M8
19 FLANGE CFRETFE 2
20.1 REAR CASING SUPPORT DUCTILE IRON 1
20.2 BRACKET DUCTILE IRON 1
22 MOTOR - 1
23 BASE GFRPP 1
24 LINER RING ALUMINA CERAMICS 99.5% SiC 1
26.1 REAR THRUST RING -
ALUMINA CERAMICS 99.5%
- 1 ONLY RF TYPE
26.2 REAR THRUST CFRETFE 1
27 SPINDLE ALUMINA CERAMICS 99.5% SiC 1
28 BEARING High density carbon Filled PTFE SiC 1
29 MOUTH RING Filled PTFE SiC 1
30 GASKET
V:FKM E:EPDM
1
31.1 O RING (REAR CASING) 1 G-160
31.2 O RING (DRAIN CAP) 1 G-25
31.3 O RING (REAR CASE) 1 P-50
31.4 O RING (CAP) 1 G-30
31.5 O RING (FLANGE) 2 AS568-129
Outline

- 10 -

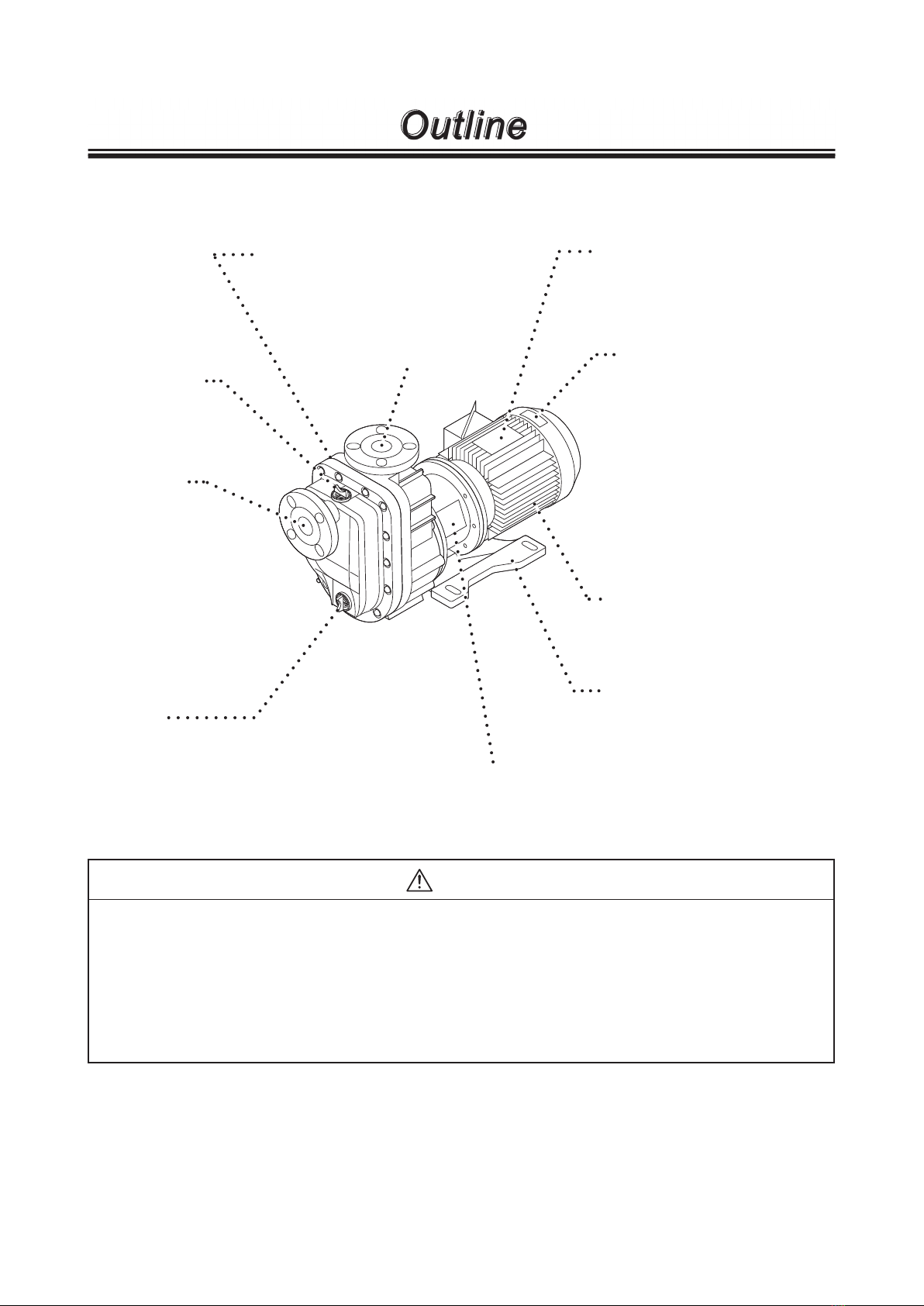

Outline
CAUTION
● Wet a cloth with tap water and wring it out for cleaning the pump. Use a neutral deter-
gent for greasy dirt and then rub with a dry cloth. Do not wipe nameplates, labels or
pump body with any solvent.
● Turn off main power before cleaning. Be careful not to wet the motor (terminal box
and fan cover) and wiring. Otherwise electrical shock or short circuit may result.
Motor nameplate
Use the power voltage specified
on the nameplate.
(Follow an applicable local power
regulation.)
Pump unit
Prime the pump through the prim-
ing port before operation.
"Arrow" label
The arrow indicates a rotational
direction of the motor. Make
sure the motor runs in a correct
direction. Refer to page 22, "3.
Preparation".
"Do not run pump dry" label
Operating the pump without liq-
uid damages internal parts.
Pump nameplate
Operate the pump in accordance
with specifications.
Discharge port
Suction port
Base
Be sure to fix the base.
Motor (Drive unit)
The motor power is transmitted to
the pump.
Priming port
Drain cap
Loosen the drain cap to drain liquid.
(Liquid in the pump chamber can not
be removed completely. Be careful
with residual liquid.)
5. Overview

- 11 -
Installation
1. Before installation ............................... 12
2. Installation location ............................. 12
3. Installation ........................................... 13
4. Pipework ............................................. 14
5. Wiring ................................................. 17

- 12 -
CAUTION
• Install the pump according to a drawing and specification.
• Keep a wide working space for convenience in maintenance.
2. Installation location
Select an installation location under the following conditions for the prevention of damage and
deformation.
1. Ambient temperature between 0 - 40 ºC
2. A location free from water influx at any time of an accident or casualty
3. A location provided with plumbing equipment
4. Humidity between 35 - 85%RH (Keep good ventilation.)
5. A location free from wind & rain (Except outdoor use)
6. A clean atmosphere
7. Non freezing in winter time
Installation
● Do not drop the pump
Do not drop, hit or drag the pump during carrying in or installation.
● Ventilation
Poisoning may result when handling an odorous/harmful liquid. Keep good
ventilation in your operating site.
● Do not hit plastic pump parts
The front case, rear case and base are plastics. Always keep the plastic parts
free from an impact.
● Keep the pump free from pipe weight
Plastic pump parts may deform or break. Always support pipework so as not
to weigh the pump.
Caution
Caution
Caution
1. Before installation
Precautions for electrical wiring and pipework

- 13 -
3. Installation
Check if installation doesn't adversely affect facility, surrounding equipment and the pump.
Install the pump according to the following instructions to ensure the optimum performance, safety
and service.
■ Installation location
• Keep a wide working space for convenience in installation and maintenance.
• Select a flat & rigid floor/foundation where is free from vibration and contortion.
• Select a location free from flood.
• Optimize layout for convenience in carrying in and out.
• Install a chemical protective barrier for unexpected chemical outflow.
■ Pump position
Install the pump according to the following instructions.
• Install the pump as close to a supply tank and liquid level as possible.
• The maximum suction lift is 4m, however, try to keep the lowest suction lift.
NOTE: The maximum suction lift varies with liquid characteristics, specific gravity, liquid
temperature and suction line length. Contact us for detail.
See "4. Pipework" for more information on pipework. Pipework section describes a
basic layout and precautions.
■ Foundation work
• Use a level to check if a foundation is flat. Securely fix the pump by foundation bolts.
• Insert a shim if there is a gap between the base bottom and foundation surface.
• The foundation should be larger than a pump base footprint.
• See the following drawing for mounting the pump base on a foundation.
<Foundation work procedure>
a. Place the pump onto a foundation. Insert liners
between the base bottom and foundation surface
to keep a mortar injection space.
b. Screw nuts in foundation bolts until three threads
appear after the nuts. And then insert the bolts in
threaded holes.
c. Place a level on the pump base to see flatness.
Inject cement mortar into the threaded holes and
wait for three days until it has hardened.
d. Remove the liners after cement mortar has hard-
ened and check flatness again. Then tighten the
nuts on the foundation bolts. If there is a gap
insert a shim.
Installation
Shim
Foundation bolt
Liner
Concrete
Base

- 14 -
Discharge pipe
(Support pipework to keep the pump free of piping weigh.)
Gate valve
Check valve
Pressure gauge
Motor
Pump
Drain ditch
Vacuum gauge
Suction pipe (Pipe diameter: D)
( Horizontal sections should be shortest and laid on a
rising gradient of 1/100 toward the pump)
Pipe support
Drain cap
Suction pipe (Pipe diameter: D)
Pipe support
Suction lift (max 4m)
1.5 times larger than D
500 mm or more
1.5 times larger than D
( The distance must be more than 500 mm if sand or
mud accumulates.)
Supply tank
Filtering screen
Air vent pipe
Priming port (cap)
Straight section (500mm or more)
■ Suction line
1. Suction pipe bore should be equal to the pump inlet bore (25A or 40A)
If a suction pipe bore is larger than a pump inlet bore, air volume in suction line becomes so large that the
pump can not make self-priming.
2. Suction line length should be within 4.7m in total (Horizontal and vertical pipe line)
Suction line length is the entire length from the pump inlet to the lowest pipe end, including horizontal
line. If suction line is longer than 4.7m, air volume becomes large in the line. This prevents the pump from
sucking liquid even if the suction lift is 4m or less (the maximum suction lift is 4m). Also, If a supply tank is
too small, a liquid level can fluctuate significantly.
3. End of suction line
• The end of suction line should be at least 500mm below a liquid level for the prevention of air ingress.
• The distance from the lowest pipe end to a tank bottom should be 1.5 times larger than a suction pipe bore.
• Provide a screen in a supply tank for the prevention of foreign matter interfusion (Clean the screen periodically.).
4. A suction gate valve should be installed
In flooded suction, install a gate valve on suction line for easier overhaul & inspection.
5. Make sure joints on suction line are secure and air doesn't come in. Try to reduce the number of joints. If air
enters suction line, liquid may not be pumped or the pump may break at its worst.
Installation
4. Pipework
Foreign matters such as sand and scale may enter pipework while you are working. They may cause
fatal damage to the pump. Be sure to blow them out before operation. Also, do not apply adhesive
too much or leave a screw or nut.
If pipework directory weigh on the pump, plastic parts may be deformed. Be sure to install pipe sup-
ports.
Piping layout
15
17
16
19 D
12
13
14 11 7
6 5
1
2
3
4
20
21
810 9
19
18
22

- 15 -
6. Do not make an arched line in order to prevent air from being trapped. A suction line right before the pump
inlet should be laid on a rising gradient of 1/100 toward the pump.
■ Discharge line
1. Discharge pipe bore is related to pipe resistance
Pipe resistance increases if a discharge pipe bore is too narrow, so that an intended flow can not be
obtained. The increment of pipe resistance also affects self-priming performance when degassing is inter-
rupted. Install a 500mm straight pipe right after the pump outlet.
2. A discharge gate valve should be installed
Install a gate valve on discharge line not only for adjusting a discharge flow but also smooth operation,
inspection and maintenance. Make sure that discharge or air vent line is open during self-priming opera-
tion.
3. A check valve should be installed
When selecting a check valve, check the pressure limit in relation to the influence of water hammer or
back flow onto the pump.
• Discharge line is too long.
• Actual discharge head (Static discharge head plus Discharge pipe resistance) is more than 15m.
• The end of discharge line is 9m higher than a liquid level.
• Several pumps are running in parallel.
4. Air vent line should be arranged in the following cases
• Horizontal discharge line is 10m or more.
• Air vent line is required when a check valve is installed. Otherwise self-priming can not be performed.
• Air vent line is required when discharge line is not at atmospheric pressure. Otherwise self-priming can
not be performed.
5. A pressure gauge should be installed
Install a pressure gauge on discharge line for monitoring operation condition.
Installation
Good conditions Unacceptable conditions
Trapped air
Trapped air
Arched piping
Declination
Inverted arch piping
Ascension

- 16 -

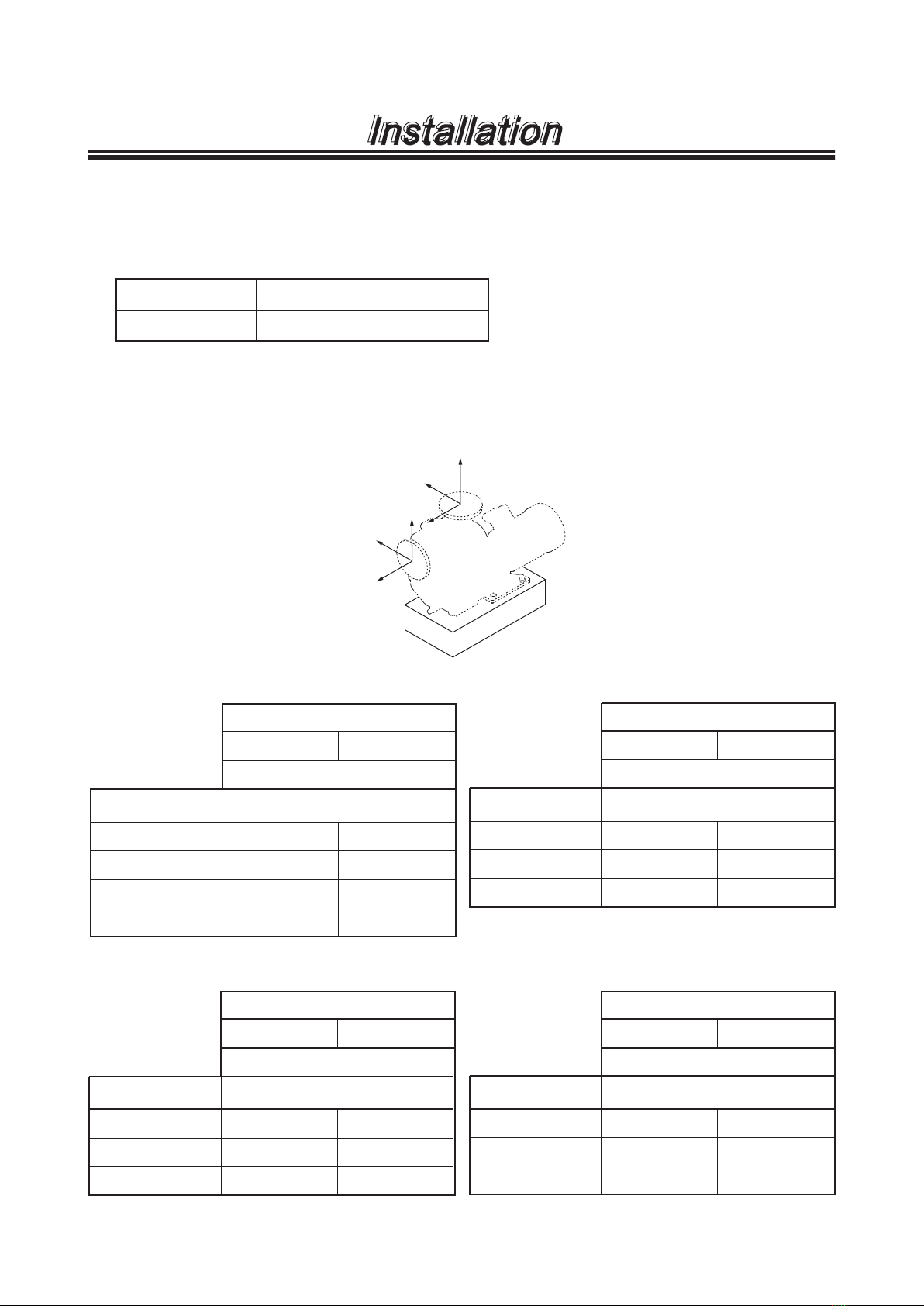

■ Tightening torque between the pump and pipework
• Flush the inside of pipes before connection.
• Connect the pump to pipework via inlet and outlet flanges according to the table below.
(This table is based on use of metal pipe flanges with rubber gaskets.)
• Tighten bolts diagonally at even tension.
■ Piping load and momentum
Try not to apply heavy load to the pump inlet and outlet flanges. Permissible piping weight and moment to
the pump are as below.
Z
Y
X
Z
Y
X
Permissible stress to outlet flange Permissible stress to inlet flange
Load direction
Pipe dia. (mm)
25
Load
Permissible moment to outlet flange Permissible moment to inlet flange
40
0.10 0.15
0.15 0.20
0.10 0.10
0.10 0.15
kN
Fx
Fy: compression
Fy: tension
Fz
Load direction
Pipe dia. (mm)
25
Load
40
0.10 0.10
0.10 0.15
0.10 0.15
kN
Fx
Fy
Fz
Load direction
Pipe dia. (mm)
25
Moment
40
0.05 0.10
0.02 0.05
0.05 0.10
kN·m
Mx
My
Mz
Load direction
Pipe dia. (mm)
25
Moment
40
0.02 0.05
0.05 0.10
0.05 0.10
kN·m
Mx
My
Mz
Bolt size Tightening torque (N•m)
M16 20
Installation

- 17 -
5. Wiring
1. Electrical wiring and any work on power source must be performed by qualified persons only. We are not
responsible for any injury and damage due to noncompliance with this notice. Contact us as necessary.
2. Install an electromagnetic switch according to motor specifications (voltage, capacity, etc.).
3. The pump and motor do not have protection equipment. Install an overcurrent protection or earth leakage
breaker according to motor specification.
4. Electromagnetic switches and push buttons should be installed away from the pump.
5. If the pump is used out of doors, protect switches from rainwater.
6. Outdoor use motors (Indoor use motors can not be installed out of doors).
Outdoor use motors can also be used in doors. Protect the motor and electrical power distribution equip-
ment from possible damage, taking account of act of providence.
■ Electrical motor
1. Check/adjust the motor as well as pump before operation.
2. Read through a motor instruction manual before operation.
3. Check the rotational direction of the motor after wiring.
4. Be sure to earth the motor.
Installation

- 18 -
Operation
1. Operational precautions ...................... 19
2. Before operation ................................. 20
3. Preparation ......................................... 22
4. Operation ............................................ 23
