IWAKI Magnetic Drive Pump
MX-F100 (Asia Edition)
Instruction Manual

Thank you for selecting an Iwaki MX-F type Magnetic Drive Pump.
This instruction manual deals with "Safety Instructions", "Outline",
"Installation", "Operation" and "Maintenance" sections.
Please read through this instruction manual to ensure the opti-
mum performance, safety and service of your pump.
WARNING
Nonobservance or misapplication of the
contents of “Warning” section could lead to
a serious accident which may result in death.
CAUTION
Nonobservance or misapplication of the
contents of “Caution” section could lead to
a personal injury or damage to the product.
Types of Symbols
Indicates a prohibited action or procedure. Inside or near this cir-
cle, a concrete and practical image of the activity to be avoided is
depicted.
Indicates an important action or procedure which must be per-
formed or carried out without fail. Failure to follow the instruc-
tions herein can lead to malfunction or damage to the pump.
For the Safe and
Correct Handling of the Pump
●"Safety Instruction" section deals with important details about
handling of the product. Before use, read this section carefully for
the prevention of personal injury or property damage.
●Observe the instructions accompanied with "WARNING" or
"CAUTION" in this manual. These instructions are very impor-
tant for protecting pump users from dangerous situations.
●The symbols on this instruction manual have the following meanings:
Important Instruction
This instruction manual should be kept on hand by the end user
for quick reference.
Contact us or your nearest dealer if you have any questions.
For exportation
Technology related to the use of goods in this instruction manual falls
in the category of technology contained in the Foreign Exchange
Order Attachment, which includes complementary export control of
technology. Please be reminded that export license, which is issued
by the Ministry of Economy, Trade, and Industry could be required,
when this is exported or provided to someone even in Japan.
Contents
Safety Instructions ·········································································· 1
Outline 1. Unpacking & Inspection ·······································3
2. Operating principle··············································· 3
3. Identification code ················································4
4. Specification ························································· 4
5. Outer dimensions ·················································· 5
6. Performance curves ·············································6
7. Overview & Label·················································6
8. Part names & Structure ········································7
Installation 1. Before installation················································· 9
2. Installation/Piping/Electrical wiring ················· 11
Operation 1. Before operation·················································· 14
2. Operation ···························································· 14
Maintenance 1. Troubleshooting ·················································· 17
2. Maintenance & Inspection ································· 17
3. Drainage······························································ 18

- 1 -
Power off
Safety Instructions
Prohibited
Prohibited
Prohibited
No modification
No dismantlement
Caution
Caution
Wear protectors
WARNING
● Turn off the power.
Risk of electrical shock. Dismantling/
assembling the pump unit without turn-
ing off the power may cause an electrical
shock. Before engaging in any maintenance
or inspection work, be sure to turn off the
pump and related devices.
● Terminate operation.
On sensing any abnormal sign, stop opera-
tion immediately and inspect/solve prob-
lems.
● For specified application only
The use of the pump in any application
other than those clearly specified may result
in injury or damage. Use the pump in a
specified condition.
● No dismantlement/modification
Do not dismantle/modify the pump. We are
not responsible for any accidents or damage
due to modification.
● Wear protective clothing.
Always wear protective clothing such as
safety goggles and protective gloves during
pipework or dismantlement.
● Restriction on operator
The pump should be handled by a qualified
person with a full understanding.
● Specified power only
Do not apply any power other than the spec-
ified one on the nameplate. Otherwise dam-
age, a fire or an electrical shock may result.
● Do not place the pump close to water.
The pump is not dust-/water-proof construc-
tion. The use of the pump in a humid place
or a place where the pump can get wet may
result in electrical shock or short-circuit.
● Ventilation
Poisoning may result when handling a toxic
or odorous liquid. Keep good ventilation in
your operating site.
● Countermeasure against efflux
Take a protective measure against the acci-
dental efflux caused by pump or pipe break-
age.
● Do not use a damaged pump.
Using a damaged pump may lead to an
electric leak or shock.
CAUTION
Prohibited
Prohibited

- 2 -
Prohibited
CAUTION CAUTION
Safety Instructions
● Do not run pump dry.
If the pump runs without a liquid, the pump
is damaged by friction heat.
● Do not damage the power cable.
Risk of fire or electrical shock. Do not
scratch, modify, or pull the power cable.
The cable can also be damaged when it is
heated or loaded with a heavy thing.
● Earthing
Risk of electrical shock. Always earth the
pump.
●Do not pressurize the pump over the
maximum discharge pressure.
A leak may result from the sealing surface
of O ring or the pump fails at worst.
●Install an earth leakage breaker.
An electrical failure of the pump may ad-
versely affect related devices. Purchase and
install an earth leakage breaker separately.
● Power cable is not replaceable.
Do not use any damaged power cable
for the prevention of a fire or an electrical
shock. The cable is not replaceable, so that
the whole pump unit needs to be replaced
when the cable is damaged.
● Limited operating site and storage
Do not install or store the pump in the fol-
lowing places where...
1. Ambient is beyond the range of 0 - 40°C.
2. Under a flammable/corrosive atmos-
phere.
●Disposal of the used pump
Dispose of any used or damaged pump
in accordance with relevant regulations.
Consult a licensed industrial waste products
disposing company.
● Static electricity
When low electric conductivity liquids such
as ultra-pure water and fluor inactive liquid
(e.g. FluorinertTM) are handled, static elec-
tricity may generate in the pump and may
cause static discharge. Take countermeas-
ures to remove static electricity.
Caution
Prohibited
Electrical shock
Prohibited
Earthing
Electrical shock

- 3 -
2. Operating principle
The MX-F is a magnetic drive centrifugal pump with fluoroplastic
and fine ceramic wet ends and is capable of handling a strong acid
and alkali.
The magnetic force between drive and driven magnets rotates the
impeller in the pump chamber, where a liquid is transferred from
the inlet to outlet.
Before use, check the specification, limitation and hazardous nature
of the pump.
1. Unpacking & Inspection
On unpacking the product, check the following points. If you find
any problems, contact your nearest dealer.
1. Check the information on the nameplate
such as model code, discharge capacity,
discharge head and voltage to see that
the product is delivered as per order.
2. Check for transit damage, deformation, and loose bolts.
Outline
Inlet
Outlet
Driven magnet
Impeller
Drive magnet
Spindle

- 4 -
3. Identification code
MX-F - 100 V M Y - 32
a b c d e f
a. Series
CFRETFE casing material
b. Pump size
100
c. Wet end material
RV : PTFE (bearing)/ FKM (O ring)
KV : SiC (bearing)/ FKM (O ring)
d. Inlet/Outlet
M : Thread connection (G1)
FL : Flange connection (25A)
e. Impeller
Y : 50/60Hz
X : 60Hz
f. Motor power voltage
No code : 1 phase 100V
32 : 3 phases 200/220V
Outline
4. Specification 50/60Hz
Model Max ow
(L/min)
Max
head
(m)
Norm ow
(m-L/min) Max SG
Motor
Mass
(kg)
Power
(V)
Rated
output
(W)
MX-F100Y 110/125 8. 2/11.5 5.8-70/9-70 1.9/1.2 100 260/260 8.5
200 or 220
MX-F100Z - /110 - /8.2 - /5.8-7.0 - /1.8 100 260/260 8.5
200 or 220
Model Thread connection Flange connection
Inlet Outlet Inlet Outlet
MX-F100 (M/FL) G1 25A
NOTE:
a. Performance data is based on pumping of clear water at ambient
temperature.
b. Allowable liquid temperature is 0-80°C (non-freezing). Note that
the temperature range may change with liquid property. Avoid a
precipitous fluctuation of temperature even in the liquid tempera-
ture range above.
c. The maximum head is a shutoff head. Note that shutoff operation
is not allowed (do not keep a discharge line closed for more than 1
minute in operation), or it may adversely affect a life period.
d. The maximum specific gravity is obtained at the normal flow and
changes with a duty point, room-/liquid-temperatures and liquid
viscosity.
e. A single-phase capacitor-start induction motor and a 3-phase
motor and selectable.
f. See the specification label on the pump for detail info.
g. Performance and dimension are subject to change without prior
notice.

- 5 -
5. Outer dimensions
MX-F100M
MX-F100FL
Outline
4-9
4-27
162
70
90 150
110
175
75 100
5165
319.5
65
107
327
90
169
70
25A
25A
182
75
150
110
51
4-9
4-27

- 6 -

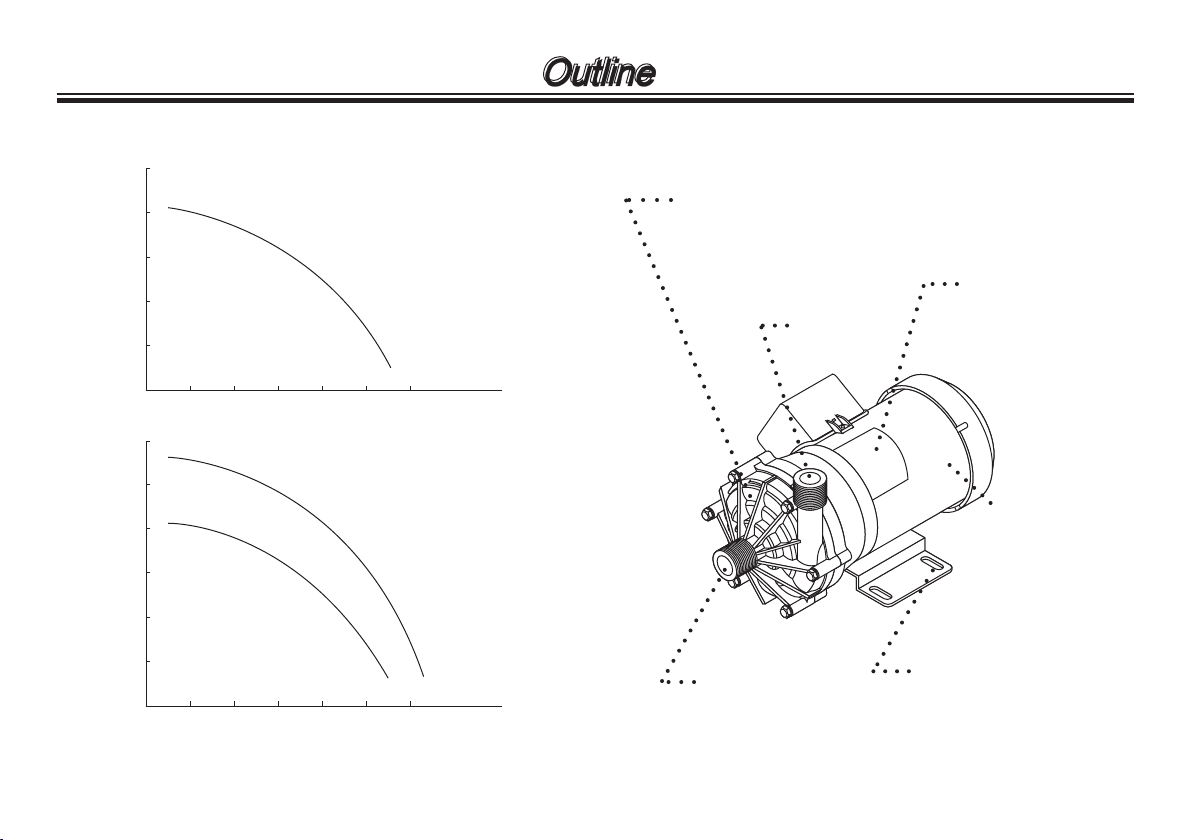

6. Performance curves
*Performance data is based on pumping of clear water at ambient tempera-
ture.
Outline
Motor (drive unit)
Do not wet the
pump and motor
units.
7. Overview & Label
Inlet Base
Fix the pump securely.
Specification label
Use the pump accord-
ing to the specifica-
tions on the label.
Outlet
Pump unit (Liquid feeding unit)
Not capable of self-priming. Always prime
the pump before operation.
020
2
4
6
8
10
m
50Hz
MX-F100Y
40 60 80 100 120 ℓ/min
020
2
4
6
8
12
10
m
60Hz
40 60 80 100 120 ℓ/min
MX-F100Y
MX-F100Z

- 7 -

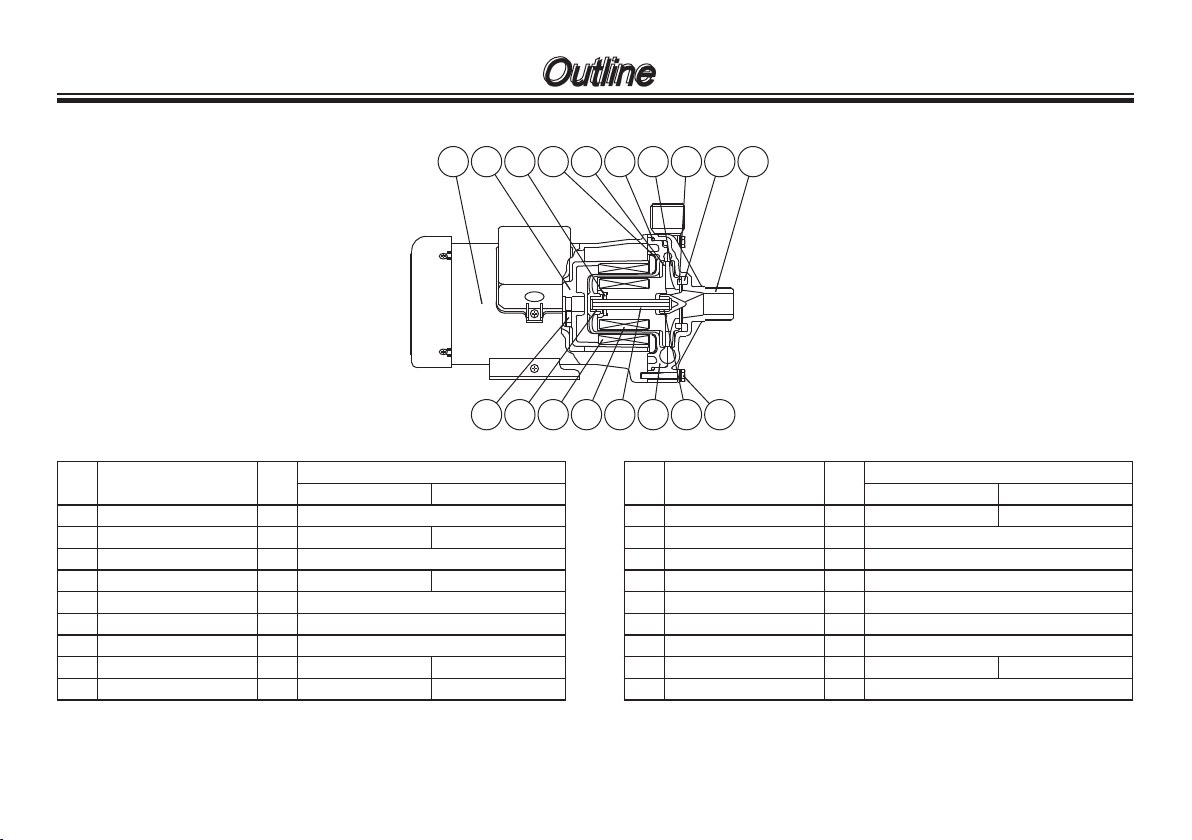

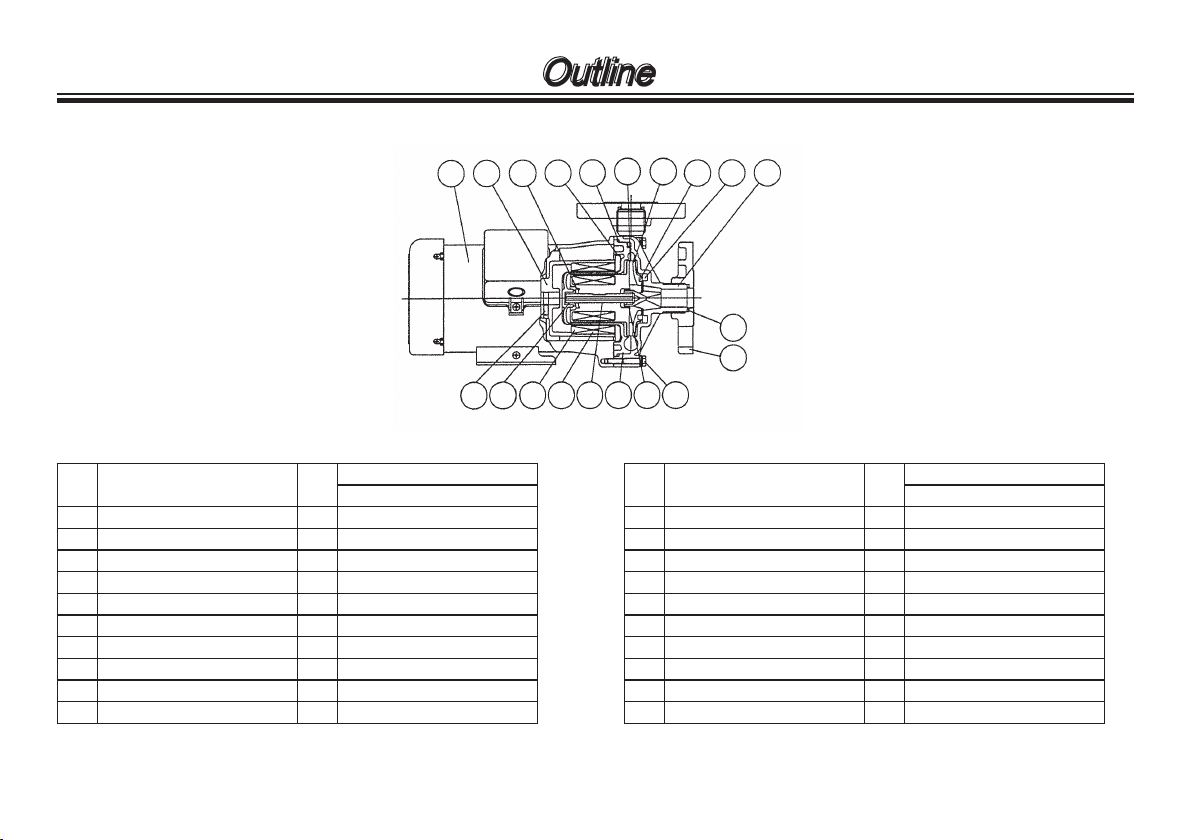

8. Part names & Structure
MX-F100M
No. Part names Q'ty Materials
MX-F100RV MX-F100KV
1 Front casing 1 CFRETFE
2 Bearing A 1 PTFE SiC
3 Rear casing 1 CFRETFE
4 Bearing B 1 PTFE SiC
5 O ring 1 V:FKM E: EPDM
6Impeller 1CFRETFE
7Shroud 1CFRETFE
8Spindle 1
Alumina ceramics SiC
9 Front thrust ring 1
Alumina ceramics -
*The MX-F100KV has two impeller thrust rings.
No. Part names Q'ty Materials
MX-F100RV MX-F100KV
10 Rear thrust ring 1*
Alumina ceramics SiC
11 Driven magnet 1
12 Drive magnet unit 1
13 Drive magnet 1
14 Hex. sock set screw 2 Steel
15 Hex. head bolt 6 Stainless steel
17 Retainer ring 1 SUS304
18 Mouth ring 1 PTFE -
101 Motor 1
CFRETFE : Carbon Fiber Reinforced Ethylene Tetra Fluoro Ethylene
SiC : Silicon Carbide
FKM : Fluoroelastomer
101
14
12
4
10
13
17
11
6
8
5
3
7
2
18
15
9 1
Outline

- 8 -
Outline
MX-F100FL
No. Part names Q'ty Materials
MX-F100RVFL
1 Front casing 1 CFRETFE
2 Bearing A 1 PTFE
3 Rear casing 1 CFRETFE
4 Bearing B 1 PTFE
5 O ring 1 V:FKM E: EPDM
6Impeller 1CFRETFE
7Shroud 1CFRETFE
8Spindle 1 Alumina ceramics
9 Front thrust ring 1 Alumina ceramics
10 Rear thrust ring 1* Alumina ceramics
*The MX-F100KV has two impeller thrust rings.
No. Part names Q'ty Materials
MX-F100RVFL
11 Drive magnet 1
12 Drive magnet unit 1
Ferrite magnet + Aluminium alloy
13 Driven magnet 1
14 Hex. sock set screw 2 Steel
15 Hex. head bolt 6 Stainless steel
17 Retainer ring 1 SUS304
18 Mouth ring 1 PTFE
36 Flange 2PTFE
37 O ring 2 FKM
101 Motor 1
CFRETFE : Carbon Fiber Reinforced Ethylene Tetra Fluoro Ethylene
FKM : Fluoroelastomer
12 11 13 5321
101 14 299815 6
37
36
37
36
14 413 11 83215
10 17 56718 91
101
12

- 9 -
● Dropping or subjecting the pump to
strong impact, failure may result.
Handle the pump with care.
● The pump is not capable of self-prim-
ing. Always prime the pump before
operation.
● Do not get the motor wet. The pump is
not dust-/water-proof.
● Risk of fire or electrical shock. Do
not scratch, modify, or pull the power
cable. The cable can also be damaged
when it is heated or loaded with a
heavy thing.
1. Before Installation
Read through this section before use. Carry out installation work
with a full understanding.
WARNING
● Risk of electrical shock. Turn off power immediately
if the pump or any electric parts have got wet.
● Risk of fire. Keep the pump away from a flammable
substance.
CAUTION
● A strong magnet is inside the pump. Do not bring
a watch or a floppy disk which may be adversely
affected by a magnetic force.
● Do not run pump dry. If the pump runs without a liq-
uid, friction heat damages the pump.
Installation

- 10 -
Installation
● Banned solutions
• Liquids that significantly swell poly-
propylene
• Paraffinic hydrocarbons such as
gasoline and kerosene
• Halogenated hydrocarbons such as
trichloroethylene and carbon tetra-
chloride
• Ether and low-grade ester
• Slurry (Never use slurry, which
wears out the pump bearings.)
● A strong magnet is inside the pump.
Do not use the pump with any liquid
which contains metals such as iron
and nickel.
● Do not clean the pump and nameplate
with solvent such as benzine and thin-
ner. This may discolour the pump or
erase printing. Use a dry cloth or a wet
cloth with water or neutral detergent.
● Do not use any damaged pump. Using
a damaged pump may lead to an elec-
tric leak or shock.
ベンジン
ケロシン
Iron or nickel
CAUTION
Do not install or store the pump in the
following places where...
• Ambient temperature is beyond the
range of 0 - 40°C.
• In a dusty or humid place.
• Under direct sunlight or wind &
rain.
Benzine or thinner

- 11 -
Installation
2. Installation/ Piping/ Electrical wiring
Stop working upon sensing a danger in work.

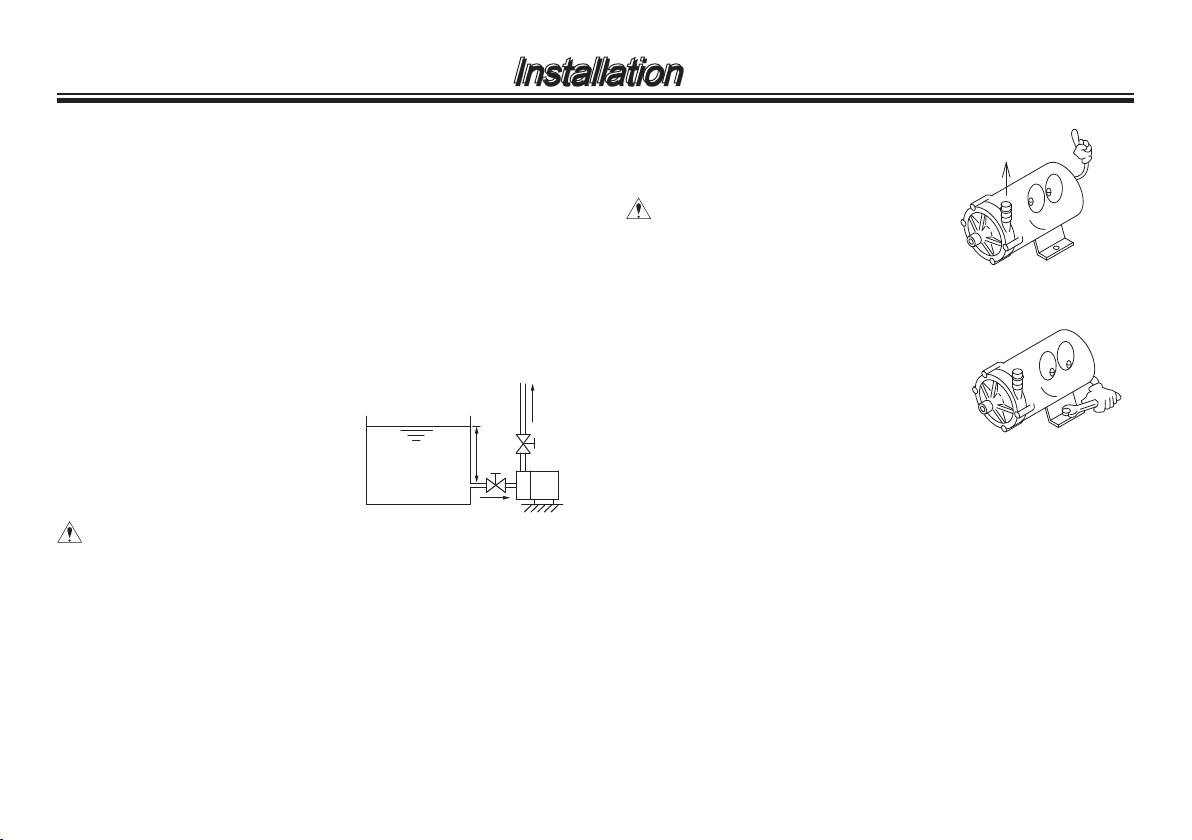

2.1 Installation
1. Installation location
Select a convenient place for main-
tenance and inspection. Observe the
allowable room temperature range
of 0 - 40°C and the maximum ambi-
ent humidity of 90%RH.
2. Mounting position
This pump is not capable of self-
priming. Flooded suction applica-
tion is ideal. Try to install the pump
30cm lower than a suction liquid
level.
CAUTION
Air may be introduced into the
pump, wearing out bearings exces-
sively if a liquid level in a supply
tank is too low.
3. Outlet direction
Always direct the outlet upward, or
entrained air can not be expelled.
CAUTION
Do not mount the pump vertically,
directing the pump head upward.
Always use corrosion resistant screws
for anchoring the pump.
4. Pump fixation
Secure the pump by fixing the base.
Do not install the pump vertically.
2.2 Piping
1. In order to minimize the piping
resistance, have piping shortest with
the minimum bends. For the preven-
tion of cavitation, have the suction
piping bore wide as much as possible.
2. The pump can be plumbed via thread
or flange connection. See a specifica-
tion table on page 4 for suitable con-
nection.
Direct the outlet upward
30cm
or
more

- 12 -

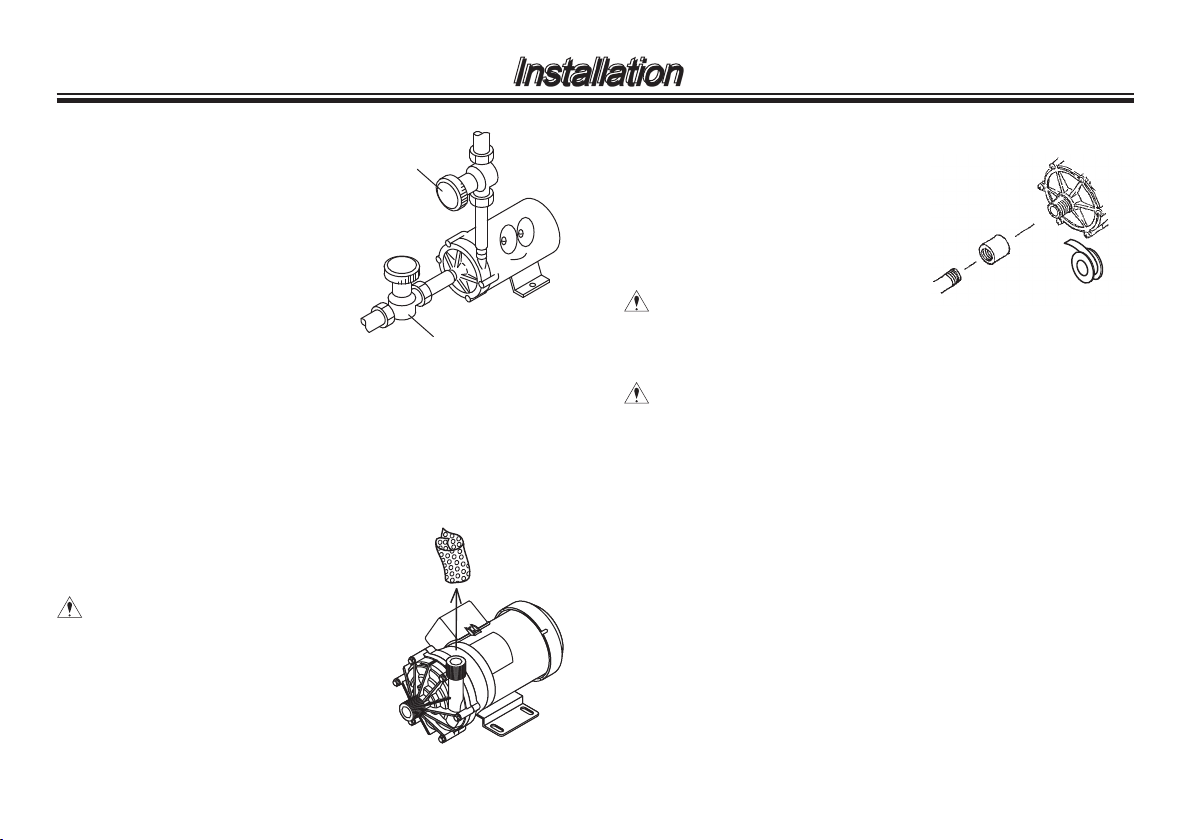

3. Install valves on both discharge and
suction lines.
• Suction-side valve:
For easy pump removal and main-
tenance.
• Discharge-side valve:
For adjustment of a flow rate and a
discharge head.
4. Do not allow piping system to weigh
heavily on the plastic inlet or out-
let, otherwise the plastic parts may
deform and result in failure.
5. The MX-F100KV is provided with a
cushioning material in outlet. Remove
it before pipework.
CAUTION
Be careful not to drop the pump onto
the floor. A strong impact may reduce
pump performance.
Discharge-
side valve
Suction-side valve
Installation
<Thread connection>
Wrap a thread seal tape around the
exposed threads of a pipe before it is
screwed in to create an air- and water-
tight seal.
Use of a Teflon pipe or Teflon-lined pipe
is recommended.
CAUTION
Do not tighten the pipe too much, or
plastic inlet or outlet may break.
CAUTION
Imperfect connection on the suction
line introduces air into the inside. Air
ingress may cause a poor flow, dry
running and consequently impeller
seizing.
Seal tape
Take out
cushioning
material

- 13 -
Installation
2.3 Electrical wiring
Electrical wiring must be done by a qualified person who has a full
knowledge of safety. We are not responsible for the injury or damage
accident due to nonobservance of this warning. Contact us or your
nearest dealer for wiring as necessary.
■Before wiring
1. Confirm that the power is disconnected before work.
2. Wiring work should be done in accordance with the relevant regu-
lations, using the recommended wiring accessories.
3. Apply the specified power voltage. See the spec label.
4. The pump doesn't have the ON-OFF switch. The pump starts as
the power cable is plugged in.
5. Earth the pump by an earthing wire. Keep good ventilation in your
operating site. Do not wet the pump.
6. When a leakage breaker is used.
Always solve the root cause when a leakage breaker operates. Be
sure to unplug the pump before investigation.
■Rated current & Starting current
Model
Rated current (50/60Hz) Starting current (50/60Hz)
100V (1-phase) 200 or 220V
(3 -phase) 100V (1-phase) 200 or 220V (3 -phase)
MX-F100 4 .1A / 4.1A 1.2A/1.2A 8.4A/8.2A 3.7A/3.4A

- 14 -
2. Operation
The pump doesn't have the ON-OFF switch. The pump starts as
the power cable is plugged in. After installation, piping and wiring
work are completed, operate the pump in accordance with the fol-
lowing procedures.
■Operating procedure
No. Procedure Points to be checked
1 Check piping, wir-
ing and voltage.
• See "2.2 Piping" and "2.3
Electrical wiring" sections.
• Check the spec label to see if the
power supply voltage is correct.
2 Open or close a
valve.
• Fully open a suction-side valve.
• Fully close a discharge-side valve.
3* Prime the pump
chamber.
• Fill the pump chamber with liquid.
• In suction lift application, a foot
valve is needed to keep liquid in
the pump chamber.
4 Supply power to the
pump.
• Check the item 1, 2 and 3. Then
turn on power and start the pump.
*If the pump chamber is not filled enough, conduct degassing. See page 15
for detail.
Operation
1. Before operation
Read through this section before use.
CAUTION
● Do not keep a discharge or a suction line little open
or closed in operation.
● Do not open/narrow a discharge or a suction line
sharply, otherwise the magnetic coupling*1may be
disconnected*2(In this case turn off the power.).
● If foreign matters enter the pump, turn off the power
and remove them, otherwise failure or malfunction
may result.
● Do not run pump dry. If the pump runs without a liq-
uid, the pump is damaged by friction heat.
Word & Terms:
*1 A pair of drive and driven magnets
*2 A state that a driven magnet (combination of impeller and magnet capsule units) does not
rotate in sync with the drive magnet.
1. Before operation, check the connection between the pump and pip-
ing.
2. Check the pump is securely anchored.

- 15 -
Operation
No. Procedure Points to be checked
5 Adjust a discharge
capacity & a dis-
charge head to the
specified level.
Open a discharge-side valve gradu-
ally till a flow and a head reach
the specified level. Do not open or
close the valve sharply.
Note: Do not keep the discharge-
side valve closed more than 1
minute.
Note: Check that the pump trans-
fers a liquid without trouble.
If there is a problem, turn
off the power immediately
and solve the cause. See
"Troubleshooting" section of
page 17.
6 Points to be
checked during
operation
• Do not allow foreign matters to
enter the pump. Foreign matters
may cause impeller to be locked,
hindering liquid circulation. In this
case turn off power immediately
(Contact us).
• Turn off power when the leakage
breaker operates. Investigate the
root cause on "Troubleshooting"
section of page 17.
■Degassing
Open a discharge line. The end of the line immersed in liquid is not
ideal for degassing. Take it out from liquid as necessary. Then run the
pump for one second. Repeat the one-second operation from three to
five times to expel air completely.
If an air vent line is laid on, open it instead of a discharge line before
degassing.
P
Discharge line
P
Air vent valve
Air vent line
Discharge line

- 16 -
Operation
■Shutdown
No. Procedure Description
1 Close a discharge-
side valve.
Close the discharge-side valve
gradually. Set closing speed to a
slow level when using a solenoid
valve.
2 Turn off power. Check if the motor stops rotating
smoothly as turning off power. If
it is not smooth, check the motor.
Contact us for detail.
■Before a long period of stoppage
Empty the pump before it is stopped for a long time. In this period of
time run the pump with clean water for 5 minutes every 3 months to
prevent the motor bearing from being stuck.
Follow the operating procedure on page 14 to resume operation.

- 17 -
Phenomenon
Causes
The pump does not run. Poor discharge head Overcurrent Noise and vibration problem Leakage Measure
Wrong wiring Inspect wiring. Rewire as
necessary.
Motor failure Contact us.
Air is trapped. Eliminate air.
Air suction from the inlet Check suction piping.
Dry running Prime the pump before
operation.
Too high SG or viscosity Replace with suitable pump.
Impeller magnet hits the
rear casing
Contact us.
Impeller is damaged. Contact us.
Foreign matters on the
impeller.
Contact us.
O ring is damaged Contact us
Pump head mounting
screws are loose.
Tighten the mounting
screws.
1. Troubleshooting
Handling of the pump, maintenance and inspection should be car-
ried out within this instruction manual. Do not handle the pump
beyond the descriptions in this manual.
We are not responsible for any personal injury or property damage
due to nonobservance of this warning. Contact us or your nearest
dealer as necessary.
2. Maintenance & Inspection
■Retightening
After a long period of operation or storage, the pump head mount-
ing screws may loosen. Tighten uniformly the mounting screws by
3.4N•m as necessary. Be careful not to deform the plastic pump head.
■Daily inspection
Always check for abnormality in vibration, noise, current value, and
discharge capacity. Stop operation on sensing abnormality. And solve
problems on the trouble shooting section.
■Cleaning
Periodically flush the inside of a supply tank and piping with water
to keep clean conditions.
Turn off power before cleaning the pump exterior. Wait until the
pump cools down if it is right after operation. Wet a cloth with tap
water and wring it out for cleaning the pump. Use a neutral detergent
for greasy dirt and then rub with a dry cloth.
Check the pump exterior is dried before a restart.
CAUTION
Do not clean the pump with solvent such as benzene, alcohol and
thinner. This may discolour the pump.
CAUTION
Risk of electrical shock or short circuit. Do not wet motor or elec-
trical wiring.
Maintenance

- 18 -
Maintenance
■Wear parts
To run the pump for a long period, wear parts such as impeller and O
ring need to be replaced periodically.
Contact your distributor for detail.
■Before a long period of storage
Turn off power and empty the pump completely. Protect the pump
from dust with cover as necessary.
Do not store the pump any of the following conditions.
• Under a flammable atmosphere
• Under a corrosive atmosphere
• Ambient temperature exceeds 40°C.
• Ambient temperature falls below 0°C.
• Under a dusty or humid space.
• Under direct sunlight
• Under wind and rain
• Under vibration
3. Drainage
The pump does not have a drain port. See next procedure for
detail.
WARNING
● Turn off power before work.
● Wear protective clothing such as safety goggles and
protective gloves when handling harmful liquid.
CAUTION
● The motor or electric parts are not dust- or water-
proof. Do not wet them when removing piping.
● Do not drain a harmful chemical liquid directly on
the ground or the floor. Always use a container.
1. Turn off power. Make sure no one turns on the power by mistake
while you are working on the pump.
2. Close a discharge- and a suction-side valves fully.
3. Place a container under the pump and then remove a suction line
from the pump inlet.
CAUTION
Be careful not to get wet with chemical liquid.
4. Unfix and take out the pump.
5. Drain residual chemical liquid to a container through the inlet.
