IWAKI APN-30GD3-W User manual

Read this manual before use of product
IWAKI
Gas-Liquid Transfer Pump
APN-30/-60 GD3-W
Instruction Manual

Important Instruction
Thank you for selecting an IWAKI APN-30/-60 GD3-W gas-
liquid transfer pump (BLDC motor). This instruction manual
deals with "Safety Instructions", "Outline", "Installation",
"Operation" and "Maintenance" sections.
Please read through this instruction manual to ensure the opti-
mum performance, safety and service of your pump.
This instruction manual should be kept on hand by the end user
for quick reference.
Contact us or your nearest dealer if you have any questions.
Contents
Safety Instructions ·········································································· 1
Outline 1. Unpacking & Inspection·······································3
2. Operating principle···············································3
3. Identification code ················································3
4. Specifications························································4
5. Outer dimension····················································5
6. Performance curve················································6
7. Overview & Label·················································6
8. Part names & Structure ········································ 7
Installation 1. Before installation················································· 8
2. Installation/Tubing/Electrical wiring················· 10
Operation 1. Before operation·················································· 12
2. Pump operation··················································· 13
Maintenance 1. Troubleshooting ·················································· 15
2. Maintenance & Inspection ································· 15
WARNING
Nonobservance or misapplication of the
contents of “Warning” section could lead to
a serious accident which may result in death.
CAUTION
Nonobservance or misapplication of the
contents of “Caution” section could lead to
personal injury or property damage.
Types of Symbols
Indicates a prohibited action or procedure. Inside or near this cir-
cle, a concrete and practical image of the activity to be avoided is
depicted.
Indicates an important action or procedure which must be per-
formed or carried out without fail. Failure to follow the instruc-
tions herein can lead to malfunction or damage to the pump.
For the Safe and
Correct Handling of the Pump
●"Safety Instruction" section deals with important details about
handling of the product. Before use, read this section carefully for
the prevention of personnel injury or property damage.
●Observe the instructions accompanied with "WARNING" or
"CAUTION" in this manual. These instructions are very impor-
tant for protecting pump users from dangerous situations.
●The symbols on this instruction manual have the following meanings:
For exportation
Technology related to the use of goods in this instruction manual falls
in the category of technology contained in the Foreign Exchange
Order Attachment, which includes complementary export control of
technology. Please be reminded that export license, which is issued
by the Ministry of Economy, Trade, and Industry could be required,
when this is exported or provided to someone even in Japan.

- 1 -
Prohibited
Electric al s h o c k
Prohibited
Prohibited
Prohibited
No remodeling
Caution
Caution
Wear protectors
WARNING
●Turn off power
Risk of electrical shock. Dismantling/assem-
bling the pump unit without turning off power
may cause an electrical shock. Before
engaging in any maintenance or inspec-
tion work, be sure to turn off the pump and
related devices.
●For specified application only
The use of the pump in any application other
than those clearly specified may result in
injury or damage. Use the pump in a speci-
fied condition.
●No modification
Do not modify the pump. We are not respon-
sible for any accidents or damage due to
modification.
●Wear protective clothing
Always wear protective clothing such as
safety goggles and protective gloves during
pipework or dismantlement.
●Specified power only
Do not apply any power other than the speci-
fied one on the nameplate. Otherwise dam-
age or fire may result.
●Restriction on operators
The pump should be handled by a quali-
fied person with a full understanding.
●Ventilation
Poisoning may result when handling a
toxic or odorous liquid. Keep good ventila-
tion in a working area.
●Operating and Storage conditions
Do not install or store the pump in the fol-
lowing places where...
1. Ambient temperature exceeds 40°C or
falls below 0°C.
2. Under a flammable/corrosive atmos-
phere.
●Countermeasure against efflux
Take protective measures against the acci-
dental efflux caused by diaphragm break-
age.
●Do not wet the pump
If a liquid spills over electric parts or wires,
a fire or electrical shock may result. Install
the pump in a place free from liquid spill-
age.
CAUTION
Prohibited
Safety Instructions

●Damaged pumps
Do not use any damaged pump. Using a
damaged pump may lead to an electric leak
or shock.
●Stop operation
Finding any abnormality, stop operation
immediately and inspect/solve problems.
●Do not damage a power cable
Risk of fire or electrical shock. Do not
scratch, modify, or pull a power cable. The
cable can also be damaged when it is heat-
ed or loaded with a heavy thing.
●Do not place the pump close to water
The pump is not dust-/water-proof construc-
tion. The use of the pump in a humid place
or a place where the pump can get wet may
result in electrical shock or short-circuit.
- 2 -
Prohibited
Electric al s h o c k
Electric al s h o c k
Prohibited
CAUTION CAUTION
Safety Instructions
●Damaged power cable
Do not use any damaged power cable for
the prevention of a fire or electrical shock.
The cable is not replaceable, so that the
whole pump unit needs to be replaced
when the cable is damaged.
●Pump disposal
Dispose of any used or damaged pump in
accordance with local laws and regulations
(Consult a licensed industrial waste prod-
ucts disposing company.).

2. Operating principle
The APN-30/-60 GD3-W is a gas-liquid transfer pump with
a small size diaphragm.
The rotary motion of the motor is converted via a con-
necting rod to the reciprocation of the diaphragm in the
pump chamber, where the mixture of gas and liquid is
transferred from the inlet to outlet.
3. Identification code
APN-30 G D3 - W 02
a b c d e
a. Series name 30 : APN-30 type
60 : APN-60 type
b. Bracket type With a base plate
c. Rated voltage D3 : 24V BLDC
d. Gas-liquid transfer type
e. Special specification
- 3 -
Before use, check the specification, limitation and hazardous
nature of the pump.
1. Unpacking & Inspection
On unpacking the product, check the following points. If
you find any problems, contact your nearest distributor.
1. Check the information on the nameplate to see that the
product is delivered as per order.
2. Check for transit damage, deformation, and loose bolts.
Valve
Diaphragm
Connecting rod
Gasket
Outline

- 4 -- 4 -
4. Specifications
Pump
Outline
Connection bore
Maximum
vacuum
(kPa)
Motor
Amperage
(A)
Voltage
(V)
Liquid
flow rate
(ml/min)
Lowest
starting
temperature
(°C)
Mass
(g)
Hose
Type
NOTE 1. Discharge pressure should not exceed the limit shown above.
2. Gas temperature should be between 5-40deg.C.
Liquid temperature should be between 10-40deg.C.
3. Ambient temperature should be between 5-40deg.C.
Air
flow rate
(ml/min)
Maximum
discharge
pressure
(MPa)
0.6 24DC 240ø5.5 5
300
1000 0.08 47.99
APN-30
600
APN-60

- 5 -- 5 -

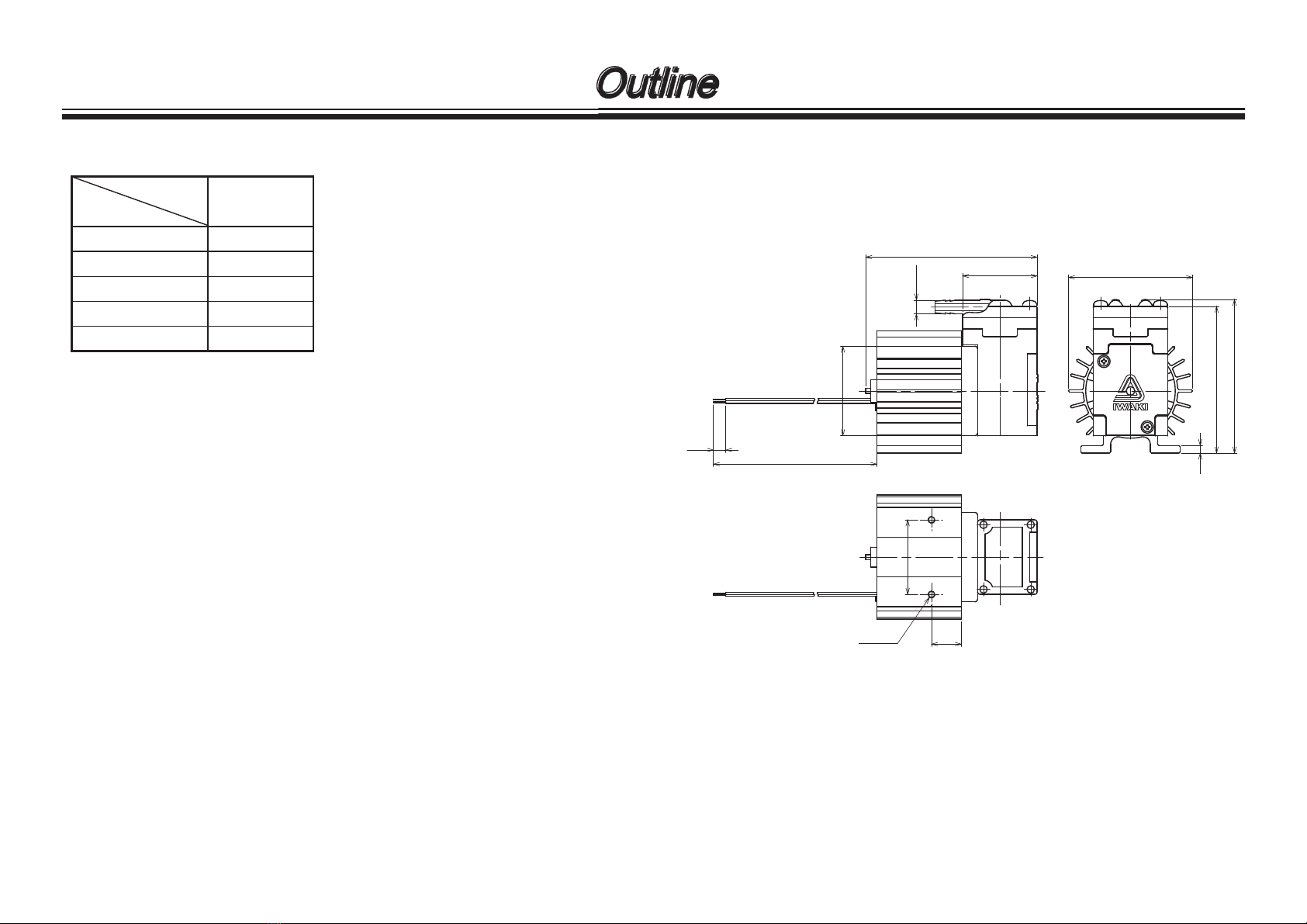

5. Outer dimension
Material
Parts
Pump head
FKM type
Diaphragm
Valve
Valve seat
Gasket
GFRPP
GFRPP
FKM
FKM
FKM
Wet end material
Outline
30
Ø5.5
(69)
(59)
(62)
Ø36
(240)
(10)
(51)
12
30
2×M3
3

- 6 -- 6 -
6. Performance curve (gas transfer)
Outline
1000600200
0.06
0.04
0.02
800 1200
0.08
400
0
74.66
21.33
47.99
101.32
Pressure
(MPa)
Air Flow
(ml/min)
Vacuum
(kPa[abs.])
7. Overview & Label
Pump head
Name plate
Model and MFG. No.
(Production number) are
described.
Pump body
(Driven unit)
An installation location
should be free from liq-
uid spillage.
Base part
Be sure to fix.
Outlet
Inlet

- 7 -

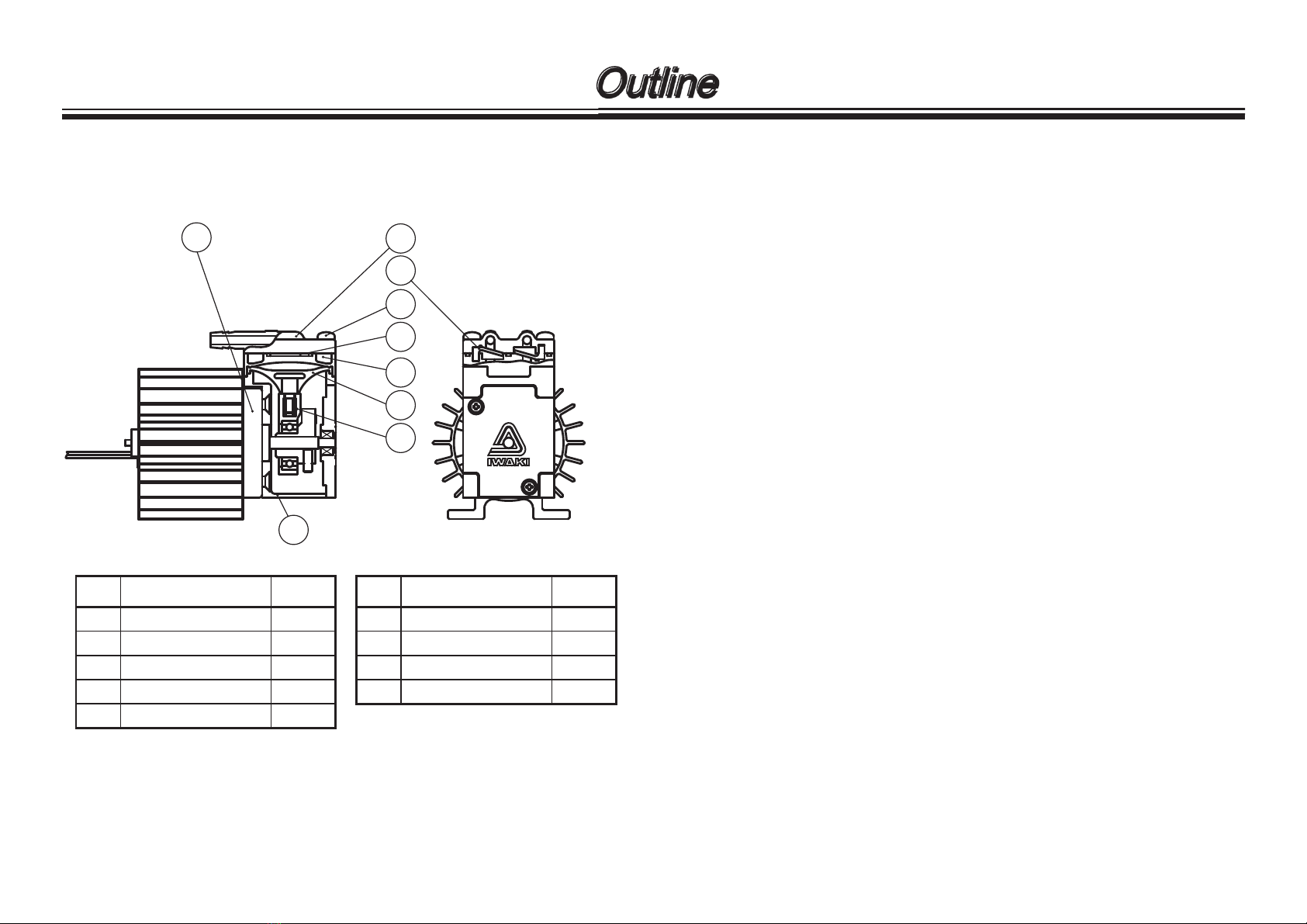

8. Part names & Structure
Outline
1
40
20
2
61
19
4
3
103
Code Name Q‘ty
1
2
3
4
19
Pump head
Valve
Valve seat
Diaphragm
Connecting rod unit
1
2
1
1
1 set
Code Name Q‘ty
20
40
61
103
Bracket
Motor
Screw
Gasket
1
1
4
1

- 8 -
Instruction for use
● Do not install the pump in a
place where the pump can
get wet.
● For gas transfer, do not use
the pump in a dusty place.
Be sure to provide the inlet
with a filter to prevent foreign
matters from getting into the
pump. Otherwise, the pump
performance may reduce
or the lives of the valve and
diaphragm may remarkably
shorten.
● Do not install the pump in a
corrosive or flammable gas
atmosphere. Keep good
ventilation in a working area.
The allowable ambient and
air temperature is between
5 and 40°C. Liquid tempera-
ture should be between 10
and 40°C.
1. Before Installation
Read through this instruction manual before use. Carry
out installation work with a full understanding.
Installation
● No fire
Keep the pump away from flammable object.
● Damaged pump
Risk of electrical leakage and electrical shock.
Do not use a damaged pump.
CAUTION

- 9 -
● Observe the rated voltage
specified on the name plate.
Applying any voltage than
the rated one may result in
failure.
● Surface temperature may
rise high in operation but it
dose not mean failure.
Do not touch the pump body
directly or place the objects
which may be deformed by
heat close to the pump.
● Do not tube two or more
pumps in series. It may pre-
vent the motor from starting
and lead to a burn out.
Installation
?V

- 10 -
2. Installation/ Tubing/ Electrical wiring

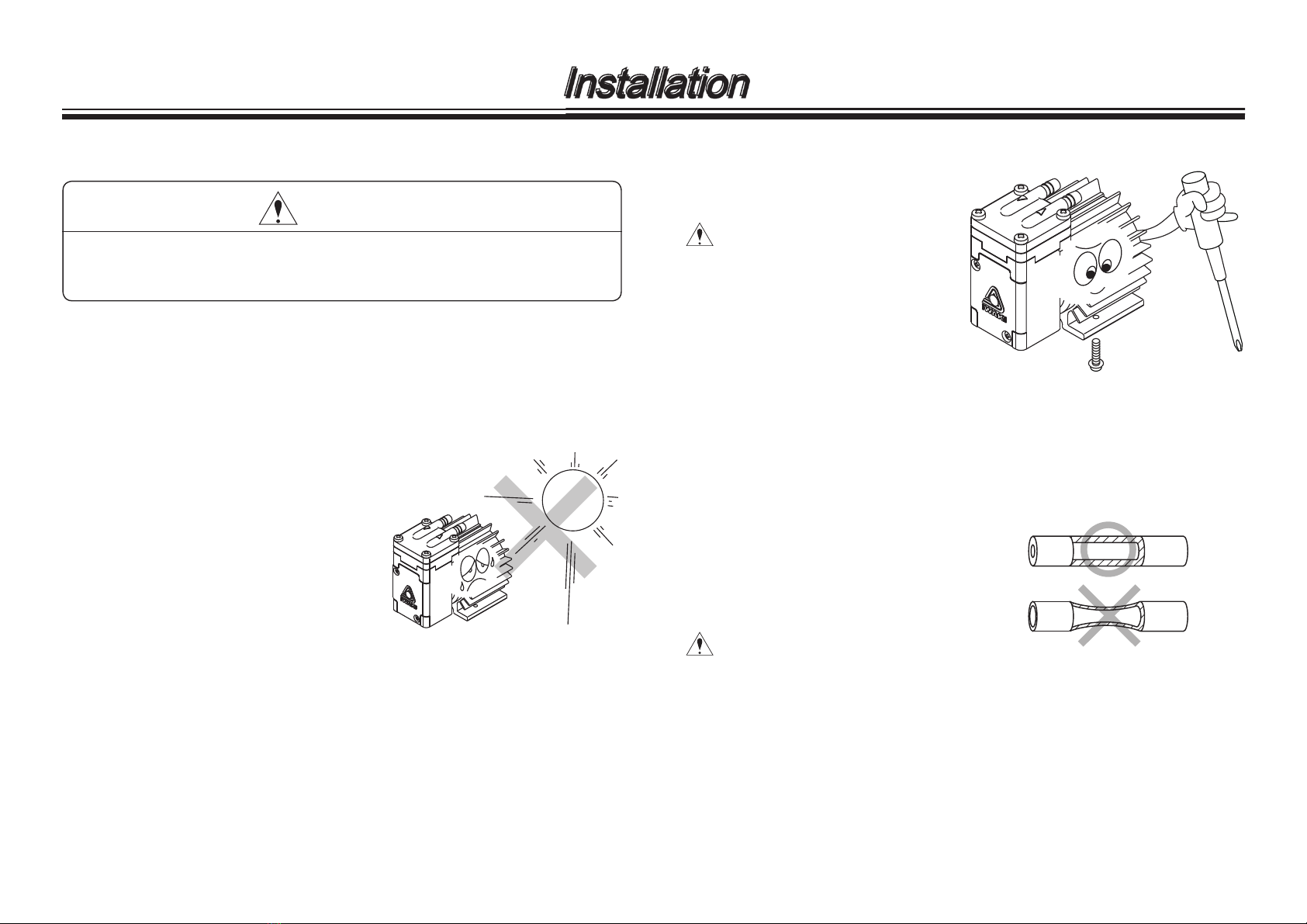

2.1 Installation
1. Installation location
• The ambient temperature
in an installation location
should be between 5 and
40°C. Relative humidity
should be 90% or below.
Select a convenient place
for maintenance and inspec-
tion.
• Install the pump in a clear
and level place.
• Keep good ventilation. The
pump should always be free
from liquid spillage.
2. Pump fixation
Secure the pump by fixing
the base.
CAUTION
Do not install the pump on a
wobbly pedestal.
3. Tube preparation
Cut the tube ends and have
them flat before insertion.
2.2 Tubing
1. The short tubing with the
minimum bends is optimal to
reduce resistance.
2. Vinyl tubes should be resist-
ant to the pumping pressure.
CAUTION
Do not have tubing bent or
pressed. Otherwise, the tube
end may break.
Installation
Stop working upon sensing danger or abnormality.
WARNING

- 11 -
3. For liquid transfer, a suction line bore should be ø4mm or
less. Otherwise, the motor is locked by overfeeding.
A discharge line bore should also be ø4mm or less.
4. Tube size
Select proper tube size with pressure resistance, otherwise
air/liquid leaks and failure may result. Use of the braided
tube is recommended.
5. Valve mounting
Install a valve in the suction line between the pump and a
supply tank for adjusting an air/liquid flow and the degree of
vacuum.
6. Tube connection
Push the tubes into the inlet and outlet as far as it will go.
7. Tube should be thick enough. The use of a thin and light
tube may reduce suction force and an air flow.
8. Use tube bands to ensure firm connections.
NOTE: If suction line connection is imperfect, the pump sucks
air and it prevents the pump from bringing out full per-
formance.
2.3 Electrical wiring
Electrical wiring must be done by a qualified person who has
a full knowledge of safety. We are not responsible for personal
injury or property damage due to nonobservance of this warn-
ing. Contact us or your nearest distributor for wiring as neces-
sary.
■Before wiring
1. Confirm that power is disconnected before work.
2. Wiring work should be done in accordance with relevant
electric work requirements. Use the recommended wiring
accessories.
3. Observe the rated voltage specified on the name plate.
4. Install the leakage breaker as necessary. When it has func-
tioned, turn off power and check/solve problems to restore a
normal state.
●Wiring
1. DC type pumps are specifically for DC power voltage.
2. For wire colour, red is and black is . Ensure correct DC
power connections.
3. Provide a fuse for safety.
NOTE: The motor could be damaged in case the motor is over-
heated by any possibility. Be sure to equip a fuse.
Installation

- 12 -
● Dropping or subjecting the
pump to strong impact, fail-
ure may result.
Handle the pump with care.
● The pump can not start with
full discharge/suction pres-
sure or full liquid. Remove
pressure or liquid before
operation.
After a long period of stop-
page, pump performance at
the beginning of operation
becomes occasionally unsta-
ble. In this case, warm the
pump up by running pump
dry for about ten minutes.
● Always use a suction valve
to adjust an air/liquid flow.
● If the compressed air or
liquid (higher pressure
than atmospheric pres-
sure) is transferred to the
pump, sharp deterioration
to the lives of the valves,
diaphragm and bearing
may result. The suction line
pressure should be equal
to atmospheric pressure or
vacuum pressure.
● Do not use solvents such as
benzine, alcohol, thinner for
maintenance or cleaning,
otherwise a coat discolours
or comes off.
1. Before operation
Operation
Pressure
Suction line
Suction line

- 13 -
2. Pump operation
■Start-up
1. Before pump operation, check
that each tube and the outlet &
inlet are firmly connected.
2. Check that a suction line is
connected to the inlet and a dis-
charge line is connected to the
outlet.
CAUTION
If a suction line and a discharge
line are connected the other way
around, pumping process is
inverted.
3. Check that the pump is firmly
fixed on a mounting position.
4. When applying the larger volt-
age than rated one, or when the
motor is locked, the motor heats
up and the coil may break.
Do not apply an unspecified volt-
age or lock the motor.
Operation
■Operation
Operate the pump according to the following steps.
No. Procedure Contents
1Check tubing, wir-
ing and voltage.
● Check installation, tubing and wiring
are properly done and wiring system
is fused.
● Check the spec label to see if power
supply voltage is correct.
2 Open valves. ●
Fully open both discharge and suction lines.
3Supply power to the
pump.
● After checking the items 1 and 2. Turn
on power and start the pump.
● Smooth starting may not be obtained
when ambient temperature is 10ºC or
below. In this case, run the pump with
no discharge line pressure for a few
minutes to warm it up.
● Smooth starting may not be obtained
when the pump chamber is filled with
liquid. Get rid off liquid before operation.
4Adjust air flow.
● After the pump has reached a speci-
fied stroke rate, initiate full scale
operation.
● Always adjust an air flow by a suction
valve.
5
Points to be
checked during
operation
● After starting, check a pressure gauge
to see if suction and discharge line pres-
sure are correct and an air flow meter to
see if the specified air flow is obtained.
● Keep a suction line pressure at or
below atmospheric pressure.
● In case electric power has failed while
the pump is running, switch off main
power. Otherwise, the motor may not re-
start or may burn out depending on a line
pressure at the time of power recovery.

- 14 -
■Stop and storage
●Before a long period of stop (1 week or more)...
Release pressure and remove liquid from the pump and then
stop air/gas supply.
Some liquids may harden or crystallize when they are left
for a long time. In this case clean wet ends before resuming
operation.
●Do not store the pump in the following places where...
1. Ambient temperature exceeds 40°C or falls below 0°C.
2. Under a flammable/corrosive atmosphere or in a dusty/
humid place.
3. Under vibration or wind & rain.
Operation

- 15 -
2. Maintenance & Inspection
■Daily inspection
Pay attention to the following items during operation. Stop
operation on sensing any danger and solve problems on the
trouble shooting section. If pump performance has remarkably
reduced, replace wear parts.
No. Check that... Measure
● Apply the correct voltage
and amperage.
● Adjust the discharge/suction
pressure.
● Unusual noise/vibration
may occur when pump
operation is not normal.
● Retighten connections.
1
No noise or vibration problems.
There is no air leak/suction from
pump parts and tubing connections.
2
3
Pump operation is normal.
* Life span is shown to get a rough idea. It is not guaranteed value.
(The life span fluctuates on working condition.)
Pump durability varies according to the pressure, temperature
and character of gas/liquid.
Values on the above table are from a test result of continuous
operation at ambient temperature in the range of 10 and 40°C.
■Pump replacement
Replace the pump at the end of life span or when performance
has remarkably reduced.
Model Load *Life span
APN-30
APN-60 4000 hr
All load
range
Maintenance
1. Trouble shooting
Turn off power on sensing danger and check the follow-
ing. In case trouble can not be solved, contact us or your
nearest distributor.
Phenomenon
Causes
Pump does not run. Pump stops running. Poor air flow or discharge pressure Pump makes noise.
Measures
No power distribution Check wiring.
Motor trouble (disconnection or capacitor failure) Replace the pump.
Wrong tubing or poor connection Check and fix tubing.
Pump head mounting screws are loose. Tighten the screws.
Diaphragm insertion is loose. Tighten diaphragm.
Diaphragm is damaged. Replace diaphragm.*
Filter is clogged. Remove foreign matters.
Valves are worn. Replace valves.*
Higher suction pressure than atmospheric Reduce suction pressure.
Eccentric shaft has worn. Replace the pump.
Connecting rod bearing has worn. Replace the pump.
Motor bearing has worn. Replace the pump.
Voltage reduction Increase voltage to the rated level.
Front cover fixing screws are loose. Secure them.
The pump head is filled with liquid. Drain liquid.
Contact us for the measures marked with *.

- 16 -
Handling of the pump, maintenance and inspection should
be carried out within this instruction manual. Do not handle
the pump beyond the descriptions in this manual.
We are not responsible for personal injury or property dam-
age due to nonobservance of this warning. Contact us or
your nearest distributor as necessary.
Maintenance

- 17 -

T708-1 '10/12
( )Country codes
IWAKI CO.,LTD. 6-6 Kanda-Sudacho 2-chome Chiyoda-ku Tokyo 101-8558 Japan
TEL:[phone] FAX:[phone](http://www.iwakipumps.jp)
Australia IWAKI Pumps Australia Pty. Ltd. TEL:[phone] FAX:[phone] Italy IWAKI Italia S.R.L. TEL:[phone] FAX:[phone]
Austria IWAKI (Austria) GmbH TEL:[phone] FAX:[phone] Korea IWAKI Korea Co.,Ltd. TEL:[phone] FAX:[phone]
Belgium IWAKI Belgium n.v. TEL:[phone] FAX:13672030 Malaysia IWAKIm Sdn. Bhd. TEL:[phone] FAX:[phone]
China IWAKI Pumps (Shanghai) Co., Ltd. TEL:[phone] FAX:[phone] Norway IWAKI Norge AS TEL:[phone] FAX:[phone]
China IWAKI Pumps (Guandong) Co., Ltd. TEL:[phone] FAX:[phone] Singapore IWAKI Singapore Pte. Ltd. TEL:[phone] FAX:[phone]
China GFTZIWAKIEngineering&Trading(Guangzhou) TEL:[phone] FAX:[phone] Spain IWAKI Iberica Pumps, S.A. TEL:[phone] FAX:[phone]
China GFTZIWAKIEngineering&Trading(Beijing) TEL:[phone] FAX:[phone] Sweden IWAKI Sverige AB TEL:[phone] FAX:[phone]
Denmark IWAKI Nordic A/S TEL:[phone] FAX:[phone] Switzerland IWAKI (Schweiz) AG TEL:[phone] FAX:[phone]
Finland IWAKI Suomi Oy TEL:[phone] FAX:[phone] Taiwan IWAKI Pumps Taiwan Co., Ltd. TEL:[phone] FAX:[phone]
France IWAKI France S.A. TEL:[phone] FAX:[phone] Taiwan IWAKIPumpsTaiwan(Hsin-chu)Co.,Ltd. TEL:[phone] FAX:[phone]
Germany IWAKI EUROPE GmbH TEL:[phone] FAX:[phone] Thailand IWAKI (Thailand) Co.,Ltd. TEL:[phone] FAX:[phone]
Holland IWAKI EUROPE NL Branch TEL:[phone] FAX:[phone] U.K. IWAKI Pumps (UK) LTD. TEL:[phone] FAX:[phone]
Hong Kong IWAKI Pumps Co., Ltd. TEL:[phone] FAX:[phone] U.S.A. IWAKI AMERICA Inc. TEL:[phone] FAX:[phone]
Indonesia IWAKISingapore(Indonesia Branch) TEL:[phone] FAX:[phone] Vietnam IWAKI pumps Vietnam Co.,Ltd. TEL:[phone] FAX:[phone]
