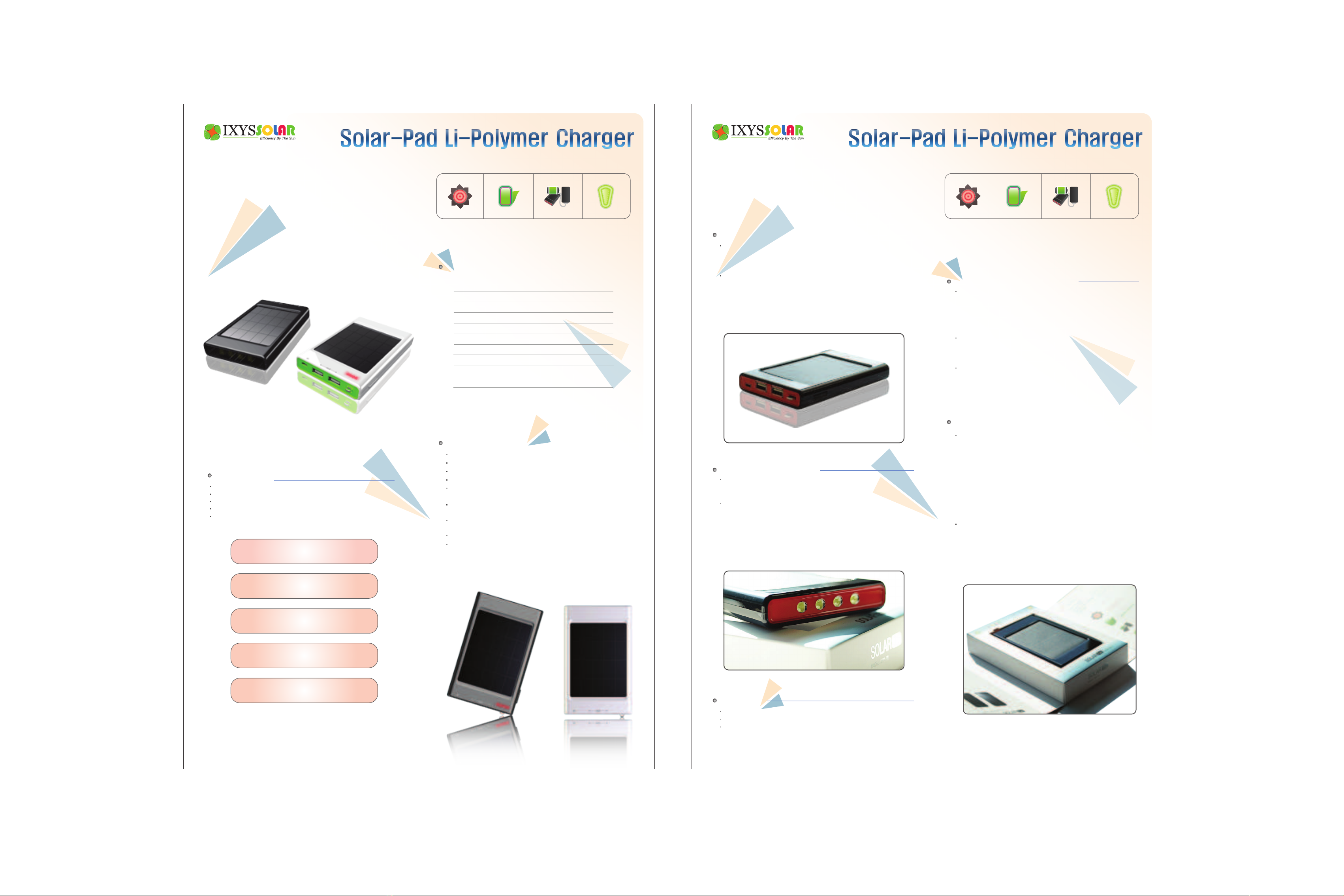

To charge Apple iPhones and iPads, and Galaxy phones and Tabs.
To charge MP3, PSP, PMP and PDA, etc.
IXYS KOREA LTD.
906-5 lui-dong, Yeongtong-Gu,
Suwon, Gyeonggi-Do (KOREA)
Phone [phone]
E-mail. [email protected]
Model SLPD-01
USB input DC 5V, 1.2A by micro USB
Solar input DC 6.3V 200mA at 1 sun condition
USB output DC 5.2V, 1.5A by stdUSB
Battery 3.7V 6000mAh Li-Polymer
Battery Charging time 6hrs by USB;30hrs by 1 sun
Flashlight 100 lumen LED
Weight 300g
Size W76 x D120 x H18(mm)
Country of origin
Korea
Product specification
Applications
Features of SLPD-01
※Battery charging time may vary by the season, weather,
and other charging conditions.
Components in Package : SLPD-01 + USB cable + Product Manual
Solar powered by 1W solar cell with 22% high efficiency.
Li-polymer battery pack of 6000mAh. (1000 charging cycles)
Quick USB charging of portable electronics by 1.5A rate.
Quick USB charging into SLPD-01 by 1.2A rate.
Smart charging to protect overcharge and overdischarge
by microcontroller.
Safe, reliable, and longer lifetime charging by Li battery
charger IC.
Charges both Apple’s iPhones and iPads and Galaxy phones
and Tabs by smart sensing.
High brightness 1W LED flashlight for outdoor camping etc.
Two flashlight modes: continuous mode an blinking mode.
Direct irradiation of flashlight to bare eyes may cause the eye vision problem..
※When charge phones or other electronics, please use the cable
connector provided with SLPD-01.
To charge Apple iPhones and iPads,and Galaxy phones and Tabs
MP3, PSP, PMP and PDA, etc
Solar Charge
Battery Pack
Quick Smart Charge
Flashlight
Use as portable LED flashlight.
Use as portable camping light and outdoors.
Use as portable battery pack.
IXYS KOREA LTD.
906-5 lui-dong, Yeongtong-Gu,
Suwon, Gyeonggi-Do (KOREA)
Phone [phone]
E-mail. [email protected]
To charge Apple iPhones and iPads,and Galaxy phones and Tabs
MP3, PSP, PMP and PDA, etc
Warnings
Only certified USB cable is to be used for safety.
USB cable is to be unplugged, when the product is not in use.
Avoid from water or humidity for safety.
Charging portable electronics
To charge portable electronics like smart phones, pads, tabs,
connect SLPD-01 to the portable electronics by provided USB
cable and must press the power ON button briefly for less than
1sec. Without power ON, no charging will happen.
Power ON/OFF button is designed to save battery energy.
When power is OFF, it will cut off the vampire electricity.
So leave the power OFF after completing charging your portable
electronics. When connecting, plug the stdUSB male of the cable
into OUT of SLPD-01, and plug the microUSB male of the cable
into your portable electronics that you want to charge.
Tab terminal of SLPD-01 should be used for charging Galaxy
Tab. Pad terminal of SLPD-01 should be used for charging iPad.
SLPD-01 is also designed to charge portable electronics while
charging SLPD-01 battery at the same time.
To do that, connect cables, then press the power ON button briefly
for less than 1sec to start charging portable electronics.
Charging SLPD-01 battery
Connecting SLPD-01 to your computer or other 5V USB power
source by provided USB cable will immediately start charging
the battery of SLPD-01.
When connecting, plug the microUSB male of the cable into IN
of SLPD-01, and plug the stdUSB male of the cable into your
computer or other 5V USB power source.
Exposing SLPD-01 under sunlight will start charging the battery
of SLPD-01.
Incident sunlight at right angle will be the most effective in
charging.
Red LED light will blink when the battery is under charging by
sunlight or USB power source. All four red lights will be turned
on when the battery is fully charged.
SALES PROMOTION GIFT
GROUP OR VIP GIFT
OUTDOOR ARTICLES
HIKING OR FISHING
NIGHT FLASHLIGHT
Power ON/OFF : briefly pressing the side button for less than 1sec
will turn on the power and show the battery level by the red LEDs.
briefly pressing the side button again for less than 1sec will turn off
the power.
Flashlight ON/OFF : pressing the side button over 1sec will turn on the
LED flashlight.
pressing the side button again immediately after the LED flashlight
ON will makethe blinking mode.
Pressing the side button after flashlight ON will turn off the flashlight.
Operation methods
LED lamp indications
Red LED indicators will blink at power OFF when the product is in
charge with sunlight or USB cable.
When the product is fully charged, all four red LEDs will stay lit on.
Battery charging level will be indicated by the number of red LEDs.
At below 25% battery level, one red light will blink, which means
the product will run out of battery and need charging soon.
One red light lit indicates about 25% battery level.
Two red lights indicate about 50%. Three red lights indicate 75%.
When the battery is fully charged, all four red lights will stay lit.
