SLUC-01 Product Manual
Thank you for choosing the solar powered USB charger SLUC-01.
Please read and follow the instructions for your benefit and safety.
1. Product specification
- Model : SLUC-01
- Input : DC 5V 600mA (micro USB)
- Input : DC 5V 50mA at 1 sun sunlight
- Output : DC 5V 600mA (std USB)
- Built-in battery : 3.7V 1000mAh Li-polymer
- Charging time : 1.5hrs by USB 5V 600mA ; 20hrs by 1sun sunlight
- Flashlight : 38 lumen LED
- Laser Pointer :
- Weight : 50g
- Size : W29 x D99 x H19 (mm)
- Country of origin : Republic of Korea
2. Components in Package
SLUC-01 + USB cable + Product Manual
3. Applications
- Use to charge portable devices such as MP3, Mobile Phones, PSP, PMP and PDA etc.
- Use as portable LED flashlight
- Use as portable laser pointer
- Charge and discharge as portable handy Li-polymer battery bank
4. Features of SLUC-01
- Charging portable electronic devices
- Highly reliable LED flashlight and laser pointer
- Two LED flashlight modes: continuous mode and blinking mode
- Solar powered with 22% efficiency solar cells
- Overcharge/overdischarge protection circuit design
- Rechargeable Li-polymer battery (1000 charging cycles)
- Maximized battery stability and lifetime by Li battery charging IC
5. Operation methods
- Keep the power off when not in use to save battery energy.
6. LED lamp indications
- Battery charging status (at power off)
- Power ON/OFF : for power on, briefly press the touch button at flashlight side for 0.5sec. For power off, press
touch button at either side.
- Laser pointer ON/OFF : for laser pointer on, press the touch button at laser pointer side. Laser pointer is on only
while the touch button is pressed. Recommended to use less than 20secs not to damage laser inside.
- Flashlight ON/OFF : for flashlight on, press the touch button at flashlight side over 1sec. If the touch button is
pressed successively, then flashlight goes to the blinking mode.
Status
by sunlight
by USB
Charging
red blinking
red
Charged
green
green
2 / 4
2 / 4
Distributor of IXYS Corporation: Excellent Integrated System Limited
Datasheet of SLUC-MINIB-BLK - SOLAR USB CHARGER BLACK

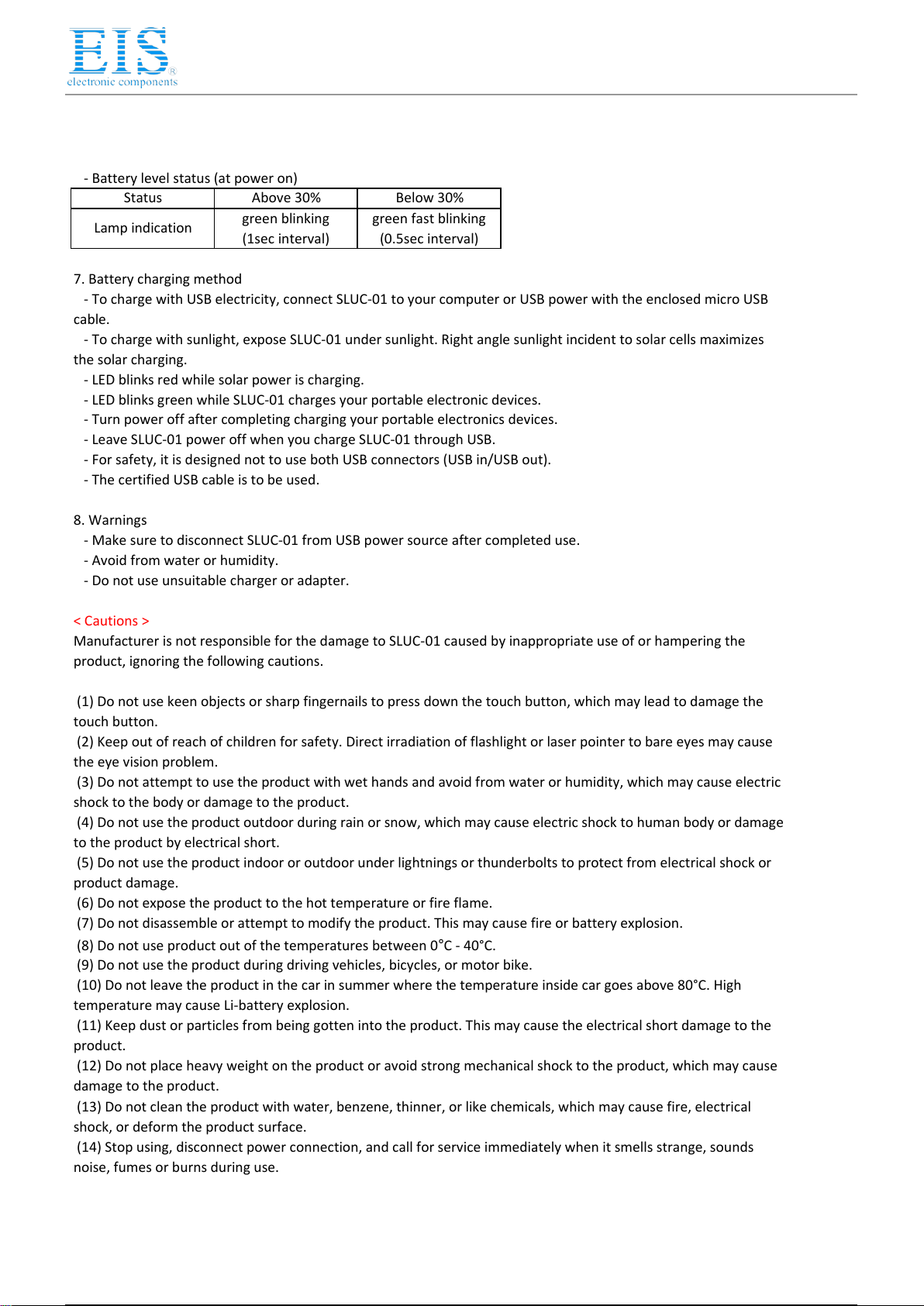

- Battery level status (at power on)
7. Battery charging method
- LED blinks red while solar power is charging.
- LED blinks green while SLUC-01 charges your portable electronic devices.
- Turn power off after completing charging your portable electronics devices.
- Leave SLUC-01 power off when you charge SLUC-01 through USB.
- For safety, it is designed not to use both USB connectors (USB in/USB out).
- The certified USB cable is to be used.
8. Warnings
- Make sure to disconnect SLUC-01 from USB power source after completed use.
- Avoid from water or humidity.
- Do not use unsuitable charger or adapter.
< Cautions >
(6) Do not expose the product to the hot temperature or fire flame.
(7) Do not disassemble or attempt to modify the product. This may cause fire or battery explosion.
(8) Do not use product out of the temperatures between 0°C - 40°C.
(9) Do not use the product during driving vehicles, bicycles, or motor bike.
(11) Keep dust or particles from being gotten into the product. This may cause the electrical short damage to the
product.
(12) Do not place heavy weight on the product or avoid strong mechanical shock to the product, which may cause
damage to the product.
(13) Do not clean the product with water, benzene, thinner, or like chemicals, which may cause fire, electrical
shock, or deform the product surface.
(14) Stop using, disconnect power connection, and call for service immediately when it smells strange, sounds
noise, fumes or burns during use.
(1) Do not use keen objects or sharp fingernails to press down the touch button, which may lead to damage the
touch button.
(2) Keep out of reach of children for safety. Direct irradiation of flashlight or laser pointer to bare eyes may cause
the eye vision problem.
(3) Do not attempt to use the product with wet hands and avoid from water or humidity, which may cause electric
shock to the body or damage to the product.
(4) Do not use the product outdoor during rain or snow, which may cause electric shock to human body or damage
to the product by electrical short.
(5) Do not use the product indoor or outdoor under lightnings or thunderbolts to protect from electrical shock or
product damage.
(10) Do not leave the product in the car in summer where the temperature inside car goes above 80°C. High
temperature may cause Li-battery explosion.
- To charge with USB electricity, connect SLUC-01 to your computer or USB power with the enclosed micro USB
cable.
- To charge with sunlight, expose SLUC-01 under sunlight. Right angle sunlight incident to solar cells maximizes
the solar charging.
Manufacturer is not responsible for the damage to SLUC-01 caused by inappropriate use of or hampering the
product, ignoring the following cautions.
green fast blinking
(0.5sec interval)
Status
Above 30%
Below 30%
Lamp indication
green blinking
(1sec interval)
3 / 4
3 / 4
Distributor of IXYS Corporation: Excellent Integrated System Limited
Datasheet of SLUC-MINIB-BLK - SOLAR USB CHARGER BLACK

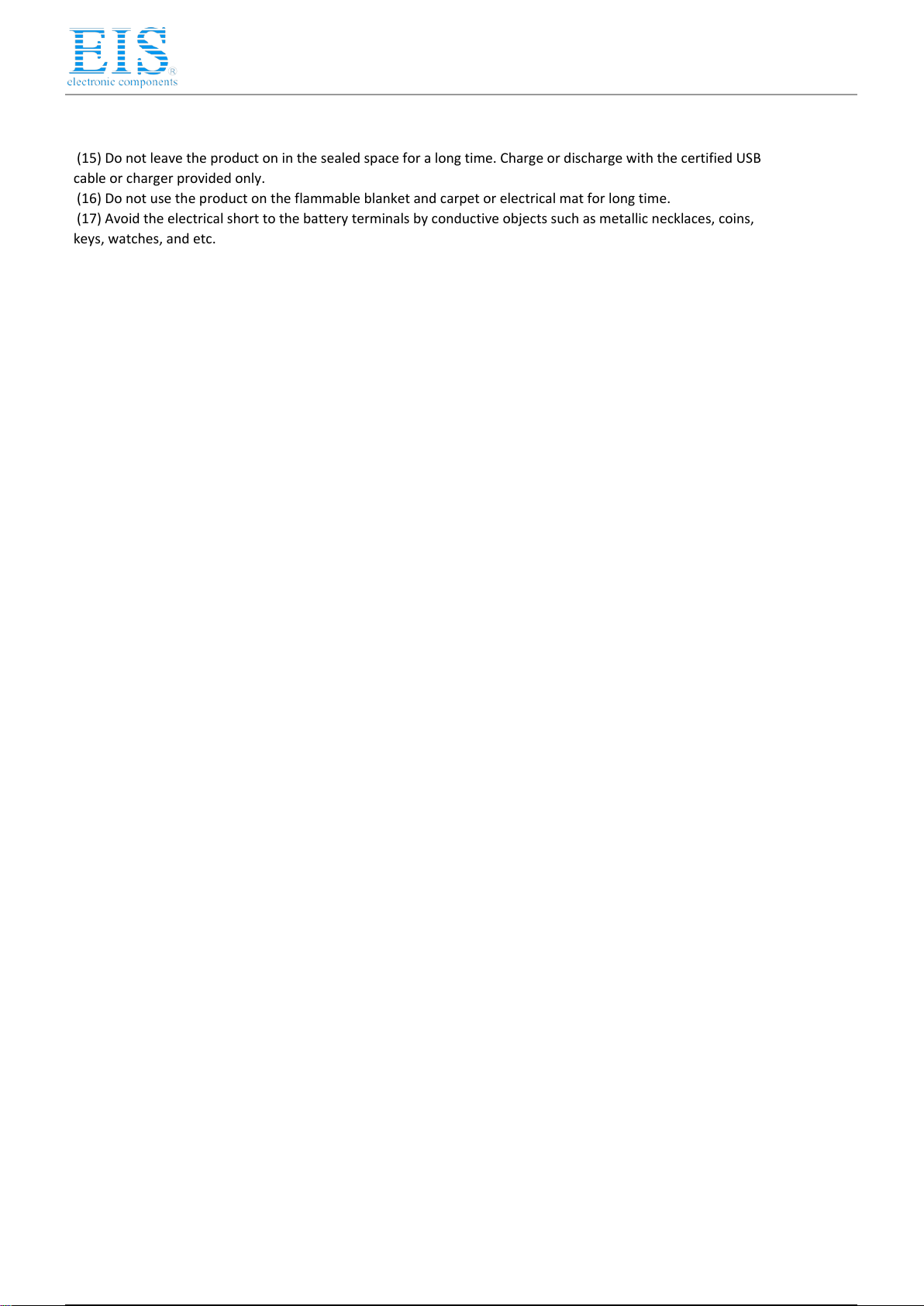

(16) Do not use the product on the flammable blanket and carpet or electrical mat for long time.
(15) Do not leave the product on in the sealed space for a long time. Charge or discharge with the certified USB
cable or charger provided only.
(17) Avoid the electrical short to the battery terminals by conductive objects such as metallic necklaces, coins,
keys, watches, and etc.
