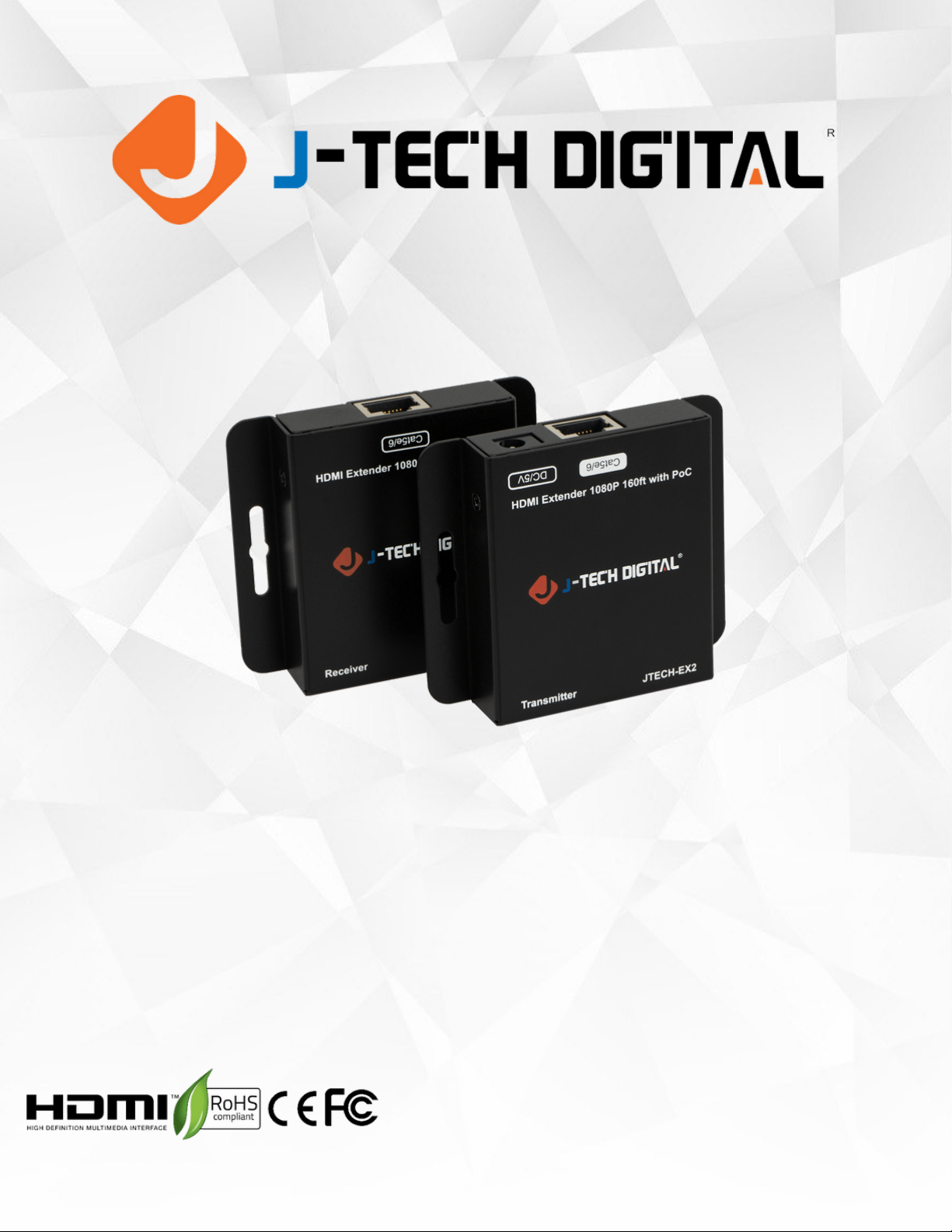

J-Tech Digital JTD-229 User manual

160ft. 1080P HDMI Extender Over Single Cat5e/6
JTD-229 | JTECH-EX2
USER MANUAL
J-TECH DIGITAL INC.
9807 EMILY LANE
STAFFORD, TX 77477
TEL: [phone]
E-MAIL: [email protected]
V1.0

2
Scan the QR code below or visit
https://resource.jtechdigital.com/products/229
to view and access detailed digital
resources regarding this unit.

Before using this product, please carefully read the following safety instructions to
ensure its proper use and keep this manual for future reference:
To prevent electric shock, do not attempt to open the product.
Only qualified personnel should perform any repairs or maintenance.
Always place the product on a stable, flat surface to prevent it from falling.
Do not expose the product to water, moisture, or high-humidity environments to avoid
the risk of damage.
To prevent damage from direct sunlight or high temperatures, do not expose the product
to such environments.
Do no place the product near heat sources like radiators, heat registers, stove, or other
heat-producing apparatus.
Do not place any objects on top of the product to avoid damage.
Use only the attachments and accessories specified by the manufacturer.
During lightning storms or prolonged periods of disuse, unplug the power supply to
prevent damage.
Safety Instructions:
3

4
Features
Specifications
Package Contents
Panel Description
Connecting and Operating
Maintenance
Warranty
Mail-In Services
Limited Warranty Limits and Exclusions
1.
2.
3.
4.
5.
6.
7.
8.
9.
Table of Contents
5
5
5
6
7
7
7
7
7

High-definition resolution up to Full HD 1080P 60Hz YUV 4:4:4
Transmit over 160ft. CAT5E/6 without signal loss
Supports 3D
Supports LPCM up to 7.1 / 24bit / 192KHz
1. Features
2. Specifications
5
(1) x Transmitter
(1) x Receiver
(1) x DC 5V/1A Power Adapter
(1) x User Manual
3. Package Contents

4. Panel Description
6

7
Connect an HDMI signal source to the transmitter via HDMI cable
Connect a CAT5e/6 cable to both the ethernet port on the transmitter and the receiver
Connect a display via HDMI to the HDMI port on the receiver
5. Connecting and Operating
6. Maintenance
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner, or benzine to clean.
7. Warranty
If your product does not work properly because of a defect in materials of workmanship, our
company (referred to as “the warrantor”) will, for the length of the period indicated as below,
“Parts and Labor (1) Year”, which starts with the date of original purchase (“Limited Warranty
period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace
it with a new or a refurbished product. The decision to repair or replace will be made by the
warrantor.
During the “Labor” limited warranty period, there will be no charge for labor. During the “Parts”
warranty period, there will be no charge for parts. You must mail-in your product during the
warranty period. This Limited Warranty is extended only to the original purchaser and only covers
products purchased as new. A purchase receipt or other proof of original purchase date is
required for Limited Warranty service.
8. Mail-In Service
When shipping the unit, carefully pack and send it prepaid, adequately insured, and preferably in
the original carton. Include a letter detailing the complaint and provide a day time phone and/or
email address where you can be reached.
9. Limited Warranty Limits and Exclusions
This Limited Warranty ONLY COVERS failures due to defects in material or workmanship, and
DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO
DOES NOT COVER damages which occurred in shipment, or failures which are caused by
products not supplied by warrantor, or failures which result from accidents, misuse, abuse,
neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, mis-
adjustment of consumer controls, improper maintenance, power line surge, lightning damage,

modification, or service by anyone other than a Factory Service center or other Authorized Servicer,
or damage that is attributed to acts of God.
There are no express warranties except as listed under “Limited Warranty Coverage”. The
warrantor is not liable for incidental or consequential damages resulting from the use of this
product or arising out of any breach of this warranty. (As examples, this excludes damages for
lost time, cost of having someone remove or re-install an installed unit if applicable, travel to and
from the service, loss of or damage to media or images, data or other recorded content. The
items listed are not exclusive but are for illustration only). Parts and service, which are not
covered by this limited warranty, are your responsibility.
8
