1.0 Relationship to the
authorities
• Installation of a fi replace must be carried out in compliance
with national laws and regulations. All local ordinances,
including those that refer to national and European
standards, must be complied with when products are
installed.
• The installation can only be put into use after it has been
checked by a qualifi ed inspector.
• Contact your local building authorities before installing a
new fi replace.
2.0 Technical data
Material: Cast iron
Finish: Paint
Smoke outlet: Top
Flue pipe dimension: Ø 150 mm
Outside air connection: Ø80 / Ø100 mm
Weight:
Jøtul F 520: 170 kg
Jøtul F 520 + Jøtul f 520 High Top: 201 kg
Optional extras Cover for outside air
through base
Product dimensions, distances: See Fig. 1
Technical data in acc. with EN 13240
Nominal heat output: 7,0 kW
Flue gas volume: 7,1 g/s
Chimney draught, EN 13240: 12 Pa
Recommended negative pressure
in smoke outlet: 16-18 Pa
Effi ciency: 77%
CO emissions (13% O2): 0,07%
CO emissions (13% O2): 884 mg / Nm3
NOx at 13% O2: 54 mg / Nm3
OGC @ 13 % O2: 60 mg/Nm3
Particle emission NS 3059: 1,88 g / kg
Air consumption: 6,0 litre/sec or 21,6 m3/h
Chimney temperature, EN 13240: 305 oC
Dust: 14 mg/Nm3@13%O2
Type of fuel: Wood
Max. log length: 30 - 50 cm
Fuel consumption: 2,3 kg/h
Max. kindling amount: 3,4 kg
Nominal kindling amount: 1,7 kg in 2 - 3 pieces
Operation: Intermittent
Intermittent combustion here means normal use of a fi replace,
i.e. add more fuel as soon as the fi re has burned down to
embers.
ENGLISH
Table of contents
1.0 Technical data ......................................... 5
2.0 Relationship to the authorities .................. 5
3.0 Safety ....................................................... 6
4.0 Installation .............................................10
5.0 Daily Use ................................................ 13
6.0 Maintenance ........................................... 15
7.0 Servicing ................................................16
8.0 Operational problems - troubleshooting . 18
9.0 Optional Extras ....................................... 18
10.0 Recycling ................................................ 19
11.0 Warranty ................................................19
On all our products there is a label
indicating the serial number and
year. Write this number in the
place indicated in the installation
instructions.
Always quote this serial number
when contacting your retailer or
Jøtul.
les combustibles recommandés.
Respectez les consignes d'utilisation. Utilisez uniquement
Verwenden Sie nur empfohlenen Brennstoffen.
Montage- und Bedienungsanleitung beachten.
Follow user`s instructions. Use only recommended fuels.
standard
Certificate/
The appliance can be used in a shared flue.
Minimum distance to adjacent combustible materials:
Emission of CO in combustion products
Serial no: Y-xxxx, Year: 200x
Manufacturer:
N-1602 Fredrikstad
Norway
Jøtul AS
POB 1441
Sweden
EUR Intermittent
Nominal heat output
Norway
Country
Operational type
Fuel type
Operation range
Efficiency
Klasse II
Classification
Standard
Flue gas temperature
Room heater fired by solid fuel
Product:
Jøtul
SP Sveriges Provnings- och
221546
Forskningsinstitut AB
SP Swedish National
Testing and Research
Institute
:
Approved by
:
:
:
:
:
:
:
Minimum distance to adjacent combustible materials:
OGC SP
EN
Serial no.
Register your fi replace at jotul.com for a
25-year warranty.

6
3.0 Safety
NB! To guarantee optimal performance and safety, Jøtul
recommends that its stoves are fi tted by a qualifi ed
installer (see www.jotul.com for a complete list of dealers).
Any modifi cations to the product by the distributor, installer or
consumer may result in the product and safety features not
functioning as intended. The same applies to the installation of
accessories or optional extras not supplied by Jøtul. This may
also be the case if parts that are essential to the functioning and
safety of the fi replace have been disassembled or removed.
In all these cases, the manufacturer is not responsible or liable
for the product and the right to make a complaint becomes null
and void.
NB: Parts of the stove, in particular, the external surfaces, get
hot during combustion! Exercise caution!
3.1 Fire Prevention Measures
There is a certain element of danger every time you use
your fi replace. The following instructions must therefore be
followed:

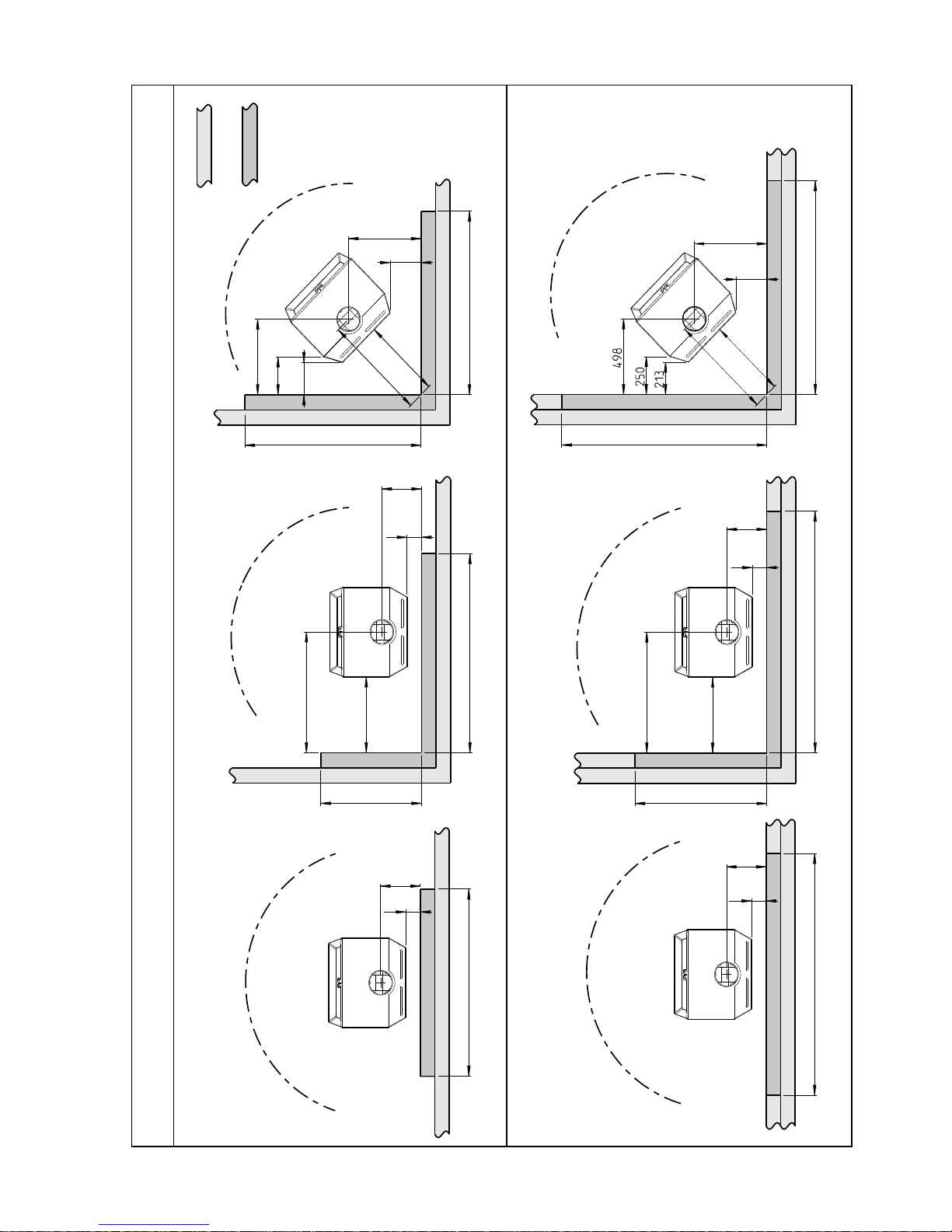

• The minimum safety distances when installing and using
the fi replace are given in fi g. 1.
• Ensure that furniture and other fl ammable materials are
not too close to the fi replace. Flammable materials should
not be placed within 900 mm of the fi replace.
• Allow the fi re to burn out. Never extinguish the fl ames with
water.
• The fi replace becomes hot when lit and may cause burns
if touched.
• Only remove ash when the fi replace is cold. Ash can
contain hot embers and should therefore be placed in a
non-fl ammable container.
• Ash should be placed outdoors or be emptied in a place
where it will not present a potential fi re hazard.
In case of chimney fi re:
• Close all hatches and vents.
• Keep the fi rebox door closed.
• Check the loft and cellar for smoke.
• Call the fi re service.
• Before use after a fi re an expert must check the fi replace
and the chimney in order to ensure that it is fully functional.
Steel chimney
If a top-mounted steel chimney is used, fi t an uninsulated
pipe from the burn chamber to approx. 10 mm over the top
grate. Make sure that the gasket is properly seated between
the fl ue pipe and the smoke outlet. Then fi t the steel chimney
in accordance with the chimney supplier’s installation
instructions.
3.2 Floor
Foundation
You need to make sure the foundation is suitable for a fi replace.
See “2.0 Technical Data” for specifi ed weight.
We recommend the removal of any fl ooring that is not attached
to the foundation (“fl oating fl oors”) beneath the installation.
Jøtul recommends that any fl ooring made of combustible
material, such as linoleum, carpets, etc. should be removed
from under the fl oor plate.
Requirements for protection of
infl ammable fl oors in front of the
fi replace
The front plate must comply with national laws and regulations.
Contact your local building authorities regarding restrictions
and installation requirements.
3.3 Walls
Distance to walls made of combustible material - see fi g. b
Distance to combustible wall protected by fi rewall: See
fi g. 1c.
The fi replace may be used with an uninsulated fl ue pipe
provided the distances between the fi replace and walls made
of combustible materials are as shown in fi g. 1b. Alternative
distances with shielded or insulated fl ue pipe are also
displayed in fi g. 1b.
NB: Place the product in such a way that it is possible to clean
the stove, the fl ue pipe and the chimney passage.
Note! Ensure that furniture and other fl ammable materials
are not too close to the fi replace. Flammable materials
should not be placed within 900 mm of the fi replace.
NB: Make sure that furniture and other household items are
not so close as to get dried up by the stove.
3.4 Ceiling
The fi replace can be fi tted with the top edge of the hot
air opening of the surround at least 750 mm below a
ceiling of infl ammable material.
ENGLISH

7
ENGLISH
Jøtul F 520 / Jøtul F 520 High Top
Fig. 1a
Jøtul F 520
Jøtul F 520 High Top
Rear outlet For High Top only
Distance to ceiling
700
1024
1319
Min. distance to furniture / combustible material
Min. distance to combustible wall
Combustible wall
Min. measurements floor plate. X,Y = according to national standards and regulations
Hole in wall for external air Ø 80 / Ø 100
Hole in floor for external air Ø 80 / Ø 100
1000
584
130-150
532
269
354
442
594
Y
X
997
900
700
300
742
473
848
600
563
848
563
1199
1027
900187-P01

8
ENGLISH
1234
100
273
692
500
797
1314
100
273
1210
1210
498
250
213
705
530
213
498
1594
100
273
905
797
500
1594
100
273
1410
900187-P01
705
530
213
498
1410
Fig. 1 b Jøtul F 520 / Jøtul F 520 High Top
External
Min. distance to combustible wall protected by firewall
Combustible wall
Firewall
Integrated

9
ENGLISH
Fresh air supply
The air used for combustion in any well-insulated house needs
to be replaced. This is particularly important in houses with
mechanical ventilation. Such replacement air can be procured
in several ways. The most important thing is to supply the air
to the room where the stove is placed. Place the outside wall
valve as close to the stove as possible and make sure that it
can be closed when the stove is not in use.
For the fresh air supply connection, follow the national and
local building regulations.
Closed combustion system
Use the stove’s closed combustion system if you live in recently
built, airtight dwellings. Connect the external combustion air
through a ventilation pipe through the wall or the fl oor.
Air supply
The amount of combustion air for Jøtul’s products is approximately
20-40 m3/h. The outside air connection may be fi tted directly to
the Jøtul F 520 through:
• the bottom/rear
• through a fl exible supply hose from the outside/chimney
(only if the chimney has its own duct for external air) and to
the product’s outside air connector.
•

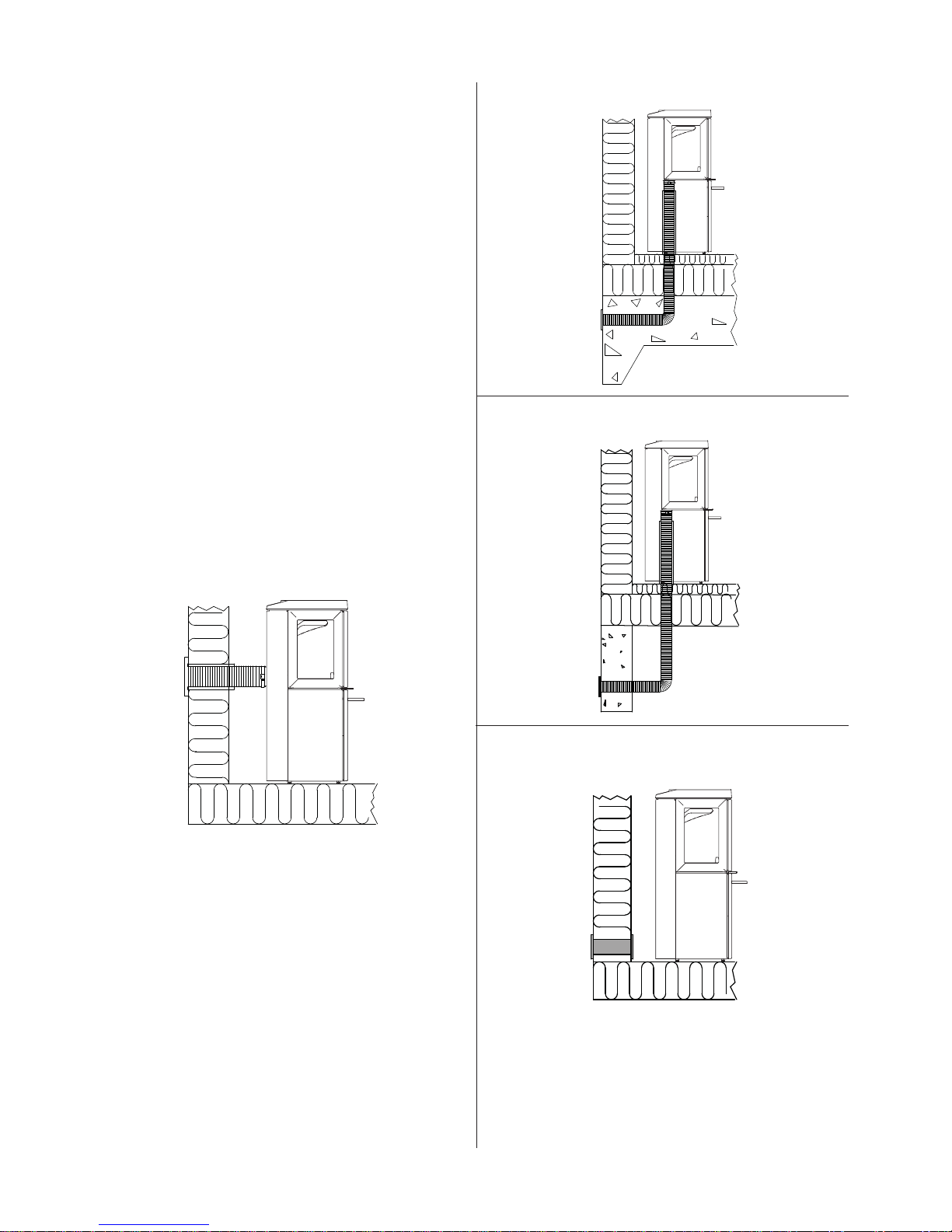

Fig. 2A, through an outside wall
Fig. 2B, through the fl oor and ground plate
Fig. 2C, through the fl oor and basement
Fig. 2D, indirectly through an outside wall

10
4.0 Installation
NB: Check that the fi replace is undamaged before installation
begins.
NB: The product is heavy! Ensure you have help when
positioning and installing it. Make sure the product does
not topple over.
NB: Do not place anything on the top plate of the stove as this
could cause permanent damage to the paint.
NB: Read the Installation and Operating instructions carefully
before installing the fi replace!
4.1 Prior to installation - Jøtul F 520
Fig. 3
B
A
1. Remove the four transport screws (A) that fasten the stove
to the wooden pallet.
2. Leave the stove standing on the transport pallet.
3. Check that the control lever (B) moves easily.
Fig. 4
4. Lift the stove from the pallet.
5. Set up the stove and adjust using a cap wrench to a
horizontal position with the 4 height adjustment screws
ENGLISH

11
ENGLISH
Approval label
Fig. 5
4.2 Outside air connection through
the base

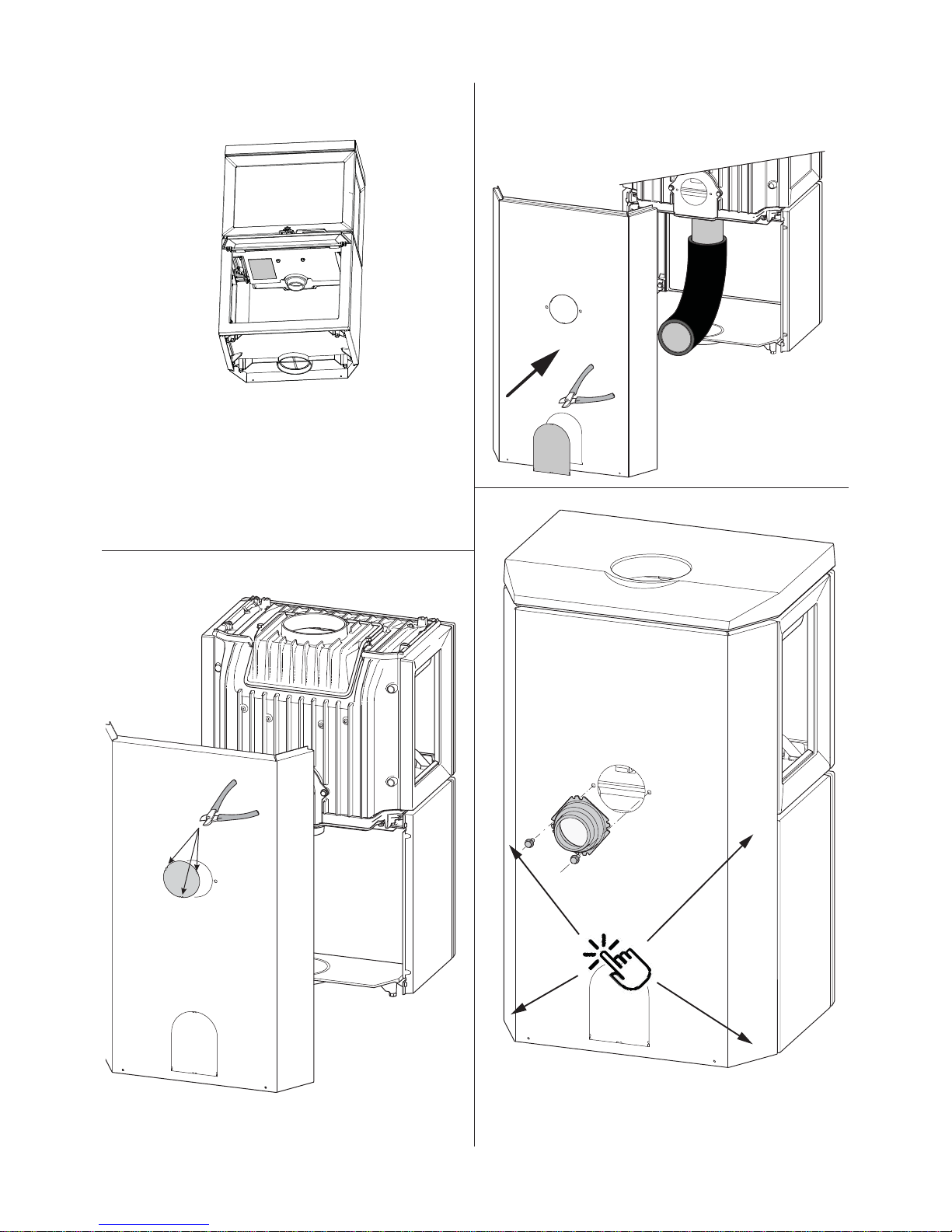

Through a rear outlet
Jøtul F 520 is delivered with air inlet mounted underneath the
product. If needed, the air inlet may be mounted in the rear of
the product.
Fig. 6
Use a cutting pliar and cut along the knock-out holes.
Alternative through a rear outlet
Fig. 6b
Fig. 7
Click
Move the air intake connector from underneath the oven to the
back of the oven

12
For fastening Ø 80 / Ø100 fresh air intake tube (optional
equipment – item no. 51047509 / 51012164), see the manual
(item no. 10047508) accompanying the external air set. See
the installation instructions that follow with the external air set.
Attach the hose to the external air connector with a hose clip
to avoid using joints. The external air hose insulation ends
approx. 100 mm below the burn chamber.
Fig. 8
Then install the cover for outdoor air inlet underneath of the
oven.
Through the fl oor
Fig. 9
100
• Use a heavy mallet and strike hard in the middle of the
knockout
• Pull a fl exible hose through the fl oor and up to the air
intake connector.
• Then attach the fl exible hose to the air intake connector
with a hose clamp
• For fastening Ø80 / Ø100 fresh air intake tube (optional
equipment – item no. 51047509 / 51012164), see the
manual (item no. 10047508) accompanying the external
air set. See the installation instructions that follow with
the external air set. Attach the hose to the external air
connector with a hose clip to avoid using joints. The
external air hose insulation ends approx. 100 mm below
the burn chamber.
4.4 Chimney and fl ue pipe
• The fi replace must only be connected to a chimney and
fl ue pipe approved for solid fuel fi replaces with fl ue gas
temperatures as specifi ed in «2.0 Technical Data».
• Several solid fuel stoves can be connected to the same
chimney system if the chimney cross section is adequate.
NB: Look into the applicable rules and regulations to
fi nd out what is permitted. Even a good chimney can
function poorly if it is used incorrectly.
• The cross-section of the chimney must be designed to fi t the
fi replace. Use «2.0 Technical Data» to calculate the correct
chimney cross-section.
• The chimney must be connected in accordance with the
installation instructions of the chimney supplier.
• Before a hole is made in the chimney, the product should
be test-mounted in order to correctly mark the position of
the fi replace and the hole in the chimney. See fi g. 1 for
minimum dimensions.
• Make sure that the fl ue pipe rises all the way up to the
chimney.
• With a rear outlet, use a fl ue pipe bend with a sweep hatch
to allow sweeping.
• Please note that it is extremely important for connections to
have a degree of fl exibility. This is to prevent any movement
in the installation leading to the formation of cracks.
• For recommended chimney draught, see «2.0 Technical
Data». For fl ue pipe dimension see “2.0 Technical Data”.
NB: The chimney’s diameter must be at least just as big
as the fl ue pipe.
NB! The minimum recommended chimney length is 3.5 m
from the fl ue pipe insert. If the draught is too strong, a fl ue
pipe damper can be installed and used to reduce the draught.
Operation under diff erent weather
conditions
The eff ect of the wind on the chimney may have a signifi cant
impact on how the stove reacts under diff erent gust loads. It
may be necessary to adjust the air supply to achieve good
combustion.
ENGLISH

13
ENGLISH

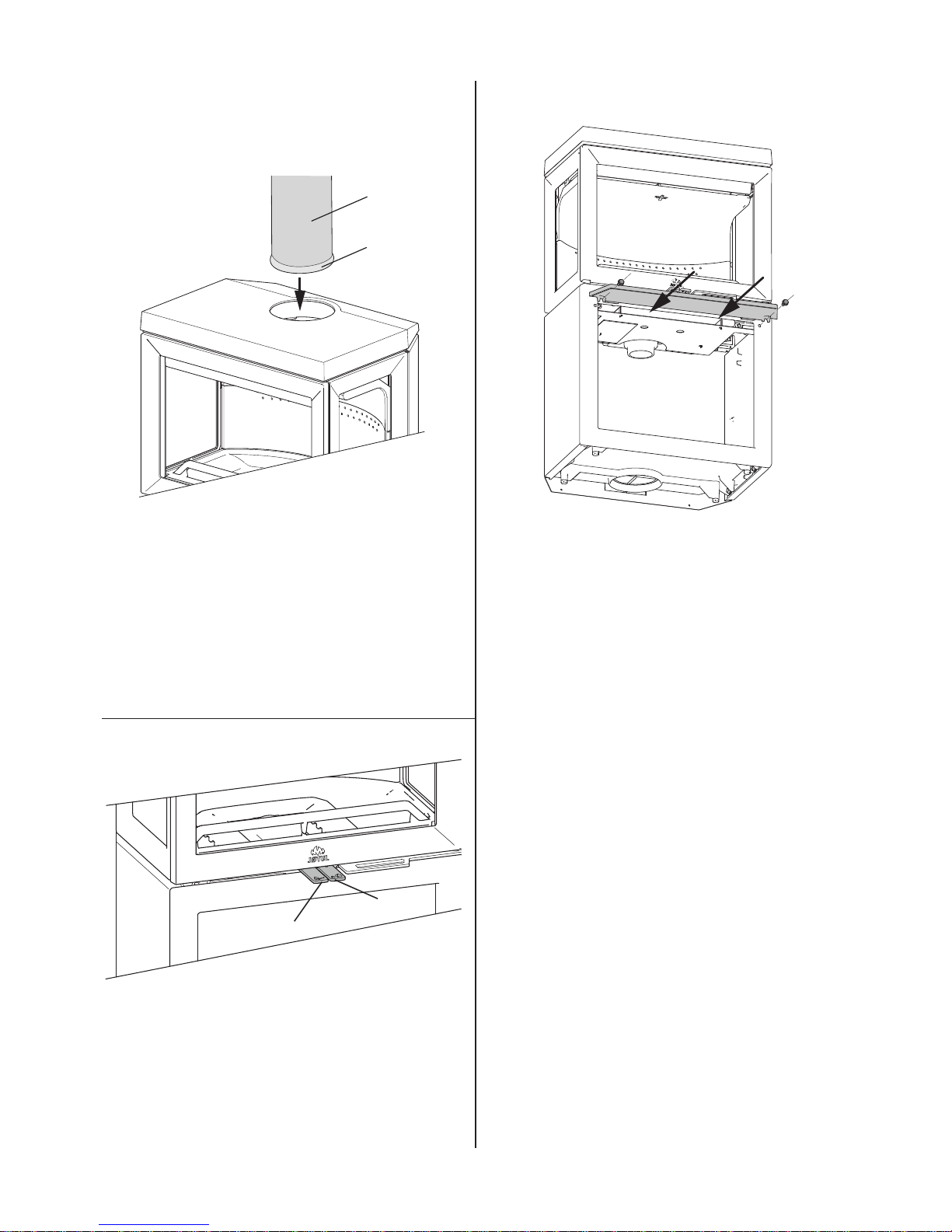

4.5 Fitting a fl ue pipe with a top outlet
The product is supplied from the factory with the smoke outlet
fi tted for the top outlet.
Fig. 10
A
B
1. Thread the fl ue pipe (A) through the top plate and place it
in the top smoke outlet.
2. Seal well with a gasket (B).
4.5 Performance chec
Always check the control handles once the product has
been assembled. These should move easily and work in a
satisfactory manner.
Fig. 11
A
B
The Jøtul F 520 is equipped with the following
operating options:
Pull out the ignition vent (A) the air vent (B) automatically
follows.
4.6 Mounting of ash lip
5.0 Daily use
Odours when using the fi replace for the
fi rst time
When the fi replace is used for the fi rst time, it may emit an
irritating gas which may smell slightly. This happens because
the paint dries.The gas is not toxic but the room should be
thoroughly ventilated. Let the fi re burn with a high draught
until all traces of the gas have disappeared and no smoke or
odours can be detected.
Heating advice
NB: Logs that have been stored outdoors or in a cold room
should be brought indoors 24 hours before use to bring them
up to room temperature.
There are various ways of heating the stove but it is always
important to be careful about what you put in the stove. See
the section on “Wood quality”.
Important! An inadequate air supply can lead to poor
combustion, high emissions and a lower level of effi ciency.
Wood quality
By quality wood we mean most well-known types of wood
such as birch, spruce and pine.
The logs should be dried so that the moisture content is
no more than 20%.
To achieve this, the logs should be cut during the late winter.
They should be split and stacked in a way that ensures good

14
ventilation. The wood stacks should be covered to protect the
logs from rain. The logs should be brought indoors during early
autumn and stacked/stored for use in the coming winter.
Be especially careful never to use the following materials
as fuel in your fi replace:
• Household rubbish, plastic bags, etc.
• Painted or impregnated timber (which is extremely toxic).
• Laminated wooden planks.
• Driftwood
These may harm the product and are also pollutants.
NB: Never use petrol, paraffi n, methylated spirit or similar
liquids to light the fi re. You may cause serious injury to
yourself and damage to the product.
Kindling (fi nely split wood):
Length: Max. 30 - 50 cm
Diameter: 6-10 cm
Quantity required each time: 3 pieces (0,6 - 0,8 kg) and
10 - 12 pieces with a total
weight about 1 kg
Wood (split wood):
Recommended length: 30 - 50 cm
Quantity required each time: 2 or 3 logs weighing 0.7 kg
each, i.e. 1.5-2.0 kg each time
Interval for adding wood: Approx. every 50 minutes
Quantity required each time: 2 - 3
Max. each time: 2,3 kg
Nominal heat output is achieved when the air vent is open
approx. 40% - 70%, and the ignition vent is open approx.
0% - 50%.
Initial lighting
• Open the air vent and ignition vent by pulling the handles
all the way out. (Use a glove or something similar to protect
your hand in case the handles are hot.).

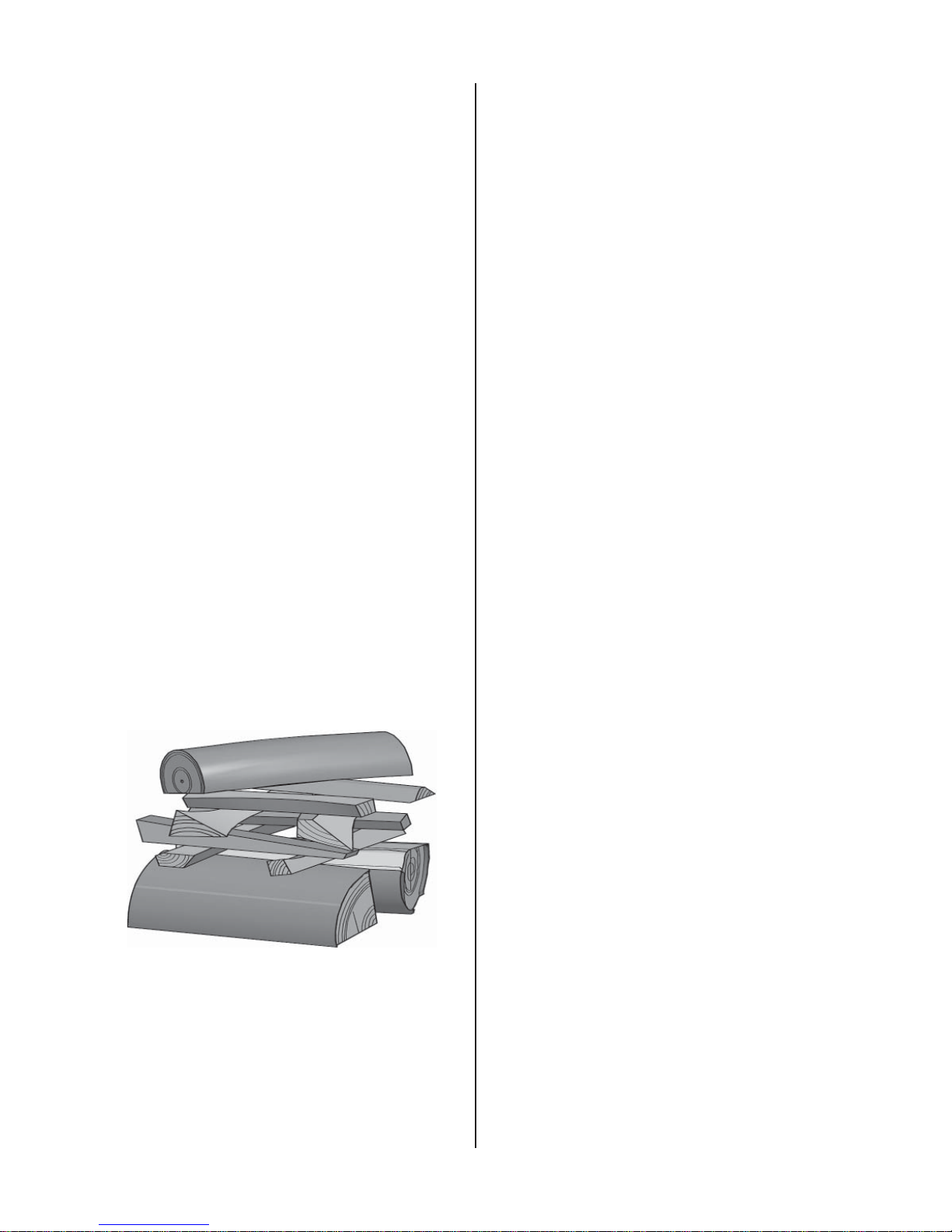

Fig. 34
• Place two logs at the bottom of the burn chamber and pile
the kindling in layers.
• Finally, place a medium-sized log on the top of the pile.
• Place 2 or 3 briquettes or kindling sticks under the top layer
of kindling and light the fi re. NB: The maximum height of
the pile of the wood should be just below the horizontal
holes. The holes must not be covered.
• You can then regulate the rate of combustion to give the
heat you want by adjusting the air vent (fi g. 11).
• Check that the afterburning (secondary combustion) starts.
This is best indicated by yellow, fl ickering fl ames in front of
the holes under the baffl e.
• If the air fl ow is normal you will be able to shut the door and
the fi re will take care of itself.
Adding fi rewood
Stoke the stove frequently but only add small amounts of fuel
at a time. If the stove is fi lled too full, the heat created may
cause extreme stress in the chimney. Add fuel to the fi re in
moderation. Avoid smouldering fi res as this produces the most
pollution. The fi re is best when it is burning well and the smoke
from the chimney is almost invisible.
5.1 Danger of overheating
The fi replace must never be used in a
manner that causes overheating
Overheating occurs when there is too much fuel and/or too
much air so that too much heat develops. A sure sign of
overheating is when parts of the fi replace glow red. If this
happens, reduce the air vent opening immediately.
Seek professional advice if you suspect that the chimney is
not drawing properly (too much/too little draught). For further
information, see «4.0 Installation» (Chimney and flue pipe).
5.2 Ash removal
• Only remove ash when the fi replace is cold.
• Use a scoop or similar to remove the ash through the door.
Always leave some ash as a protective layer on the bottom of
the fi replace.
ENGLISH

15
ENGLISH
5.2 Stacking wood

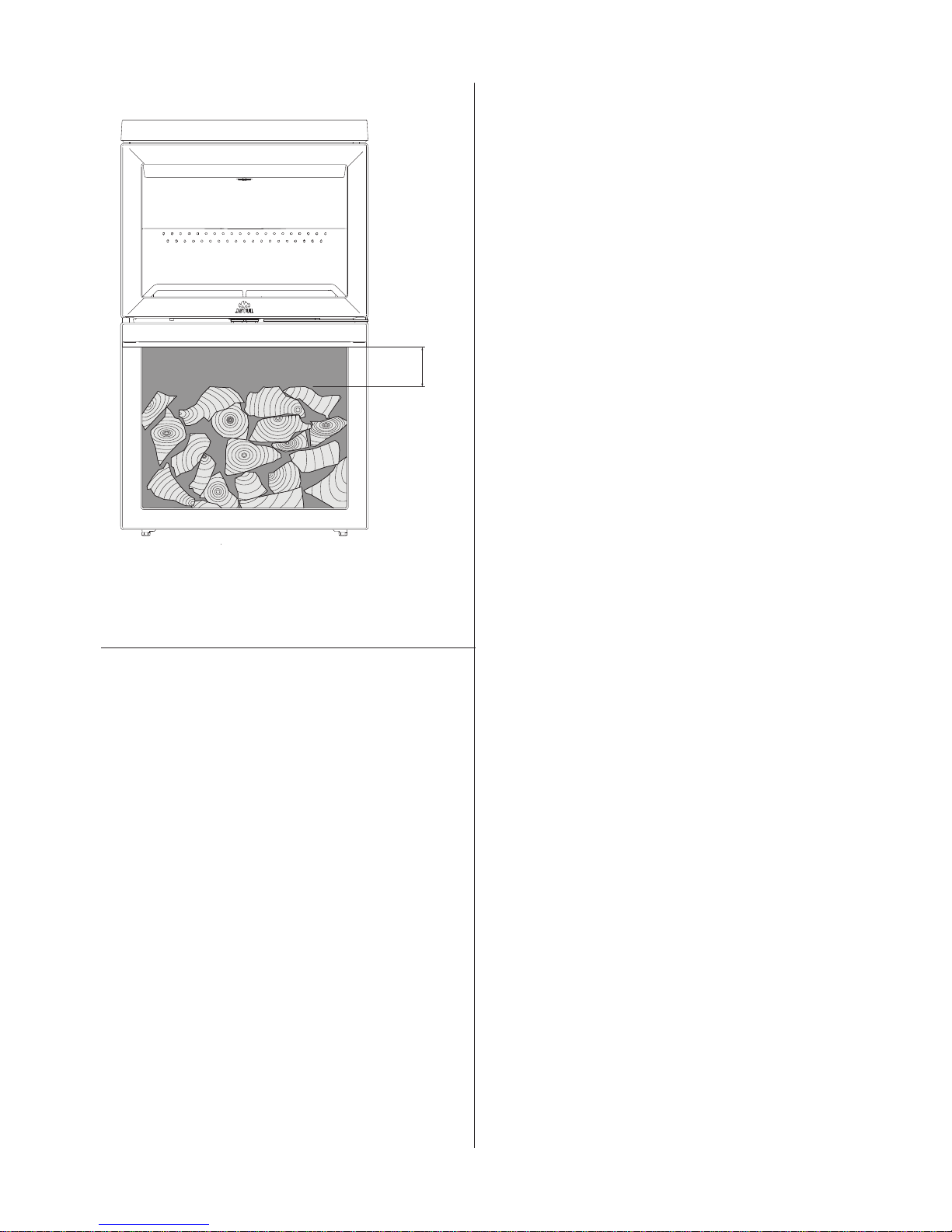

Min 100 mm
• The wood must not be stacked higher than 100 mm from
the bottom of the stove.
6.0 Maintenance
6.1 Cleaning the glass
The product is equipped with an air wash for the glass. Air is
sucked in through the air vent on the top of the product and
down along the inside of the glass.
However, some soot will always stick to the glass, but the
quantity will depend on the local draught conditions and
adjustment of the air vent. Most of the soot layer will normally
be burned off when the air vent is opened all the way and a fi re
is burning briskly in the fi replace.
Good advice! For normal cleaning, moisten a paper towel
with warm water and add some ash from the burn chamber.
Rub it over the glass and then clean the glass with clean water.
Dry well. If it is necessary to clean the glass more thoroughly
we recommend using a glass cleaner (follow the instructions
on the bottle).
6.2 Cleaning and soot removal
Soot deposits may build up on the internal surfaces of the
fi replace during use. Soot is a good insulator and will therefore
reduce the fi replace’s heat output. If soot deposits accumulate
when using the product, they can easily be removed by using
a soot remover.
In order to prevent a water and tar layer from forming in the
fi replace, you should regularly allow the fi re to burn hot in order
to remove the layer. An annual internal cleaning is necessary
to get the best heating eff ect from your product. It is a good
idea to do this when cleaning the chimney and fl ue pipes.
6.3 Sweeping fl ue pipes to the
chimney
Flue pipes must be swept through the fl ue pipe sweeping
hatch or through the door opening. The baffl e and exhaust
defl ector must be removed fi rst.
6.4 Inspection of the fi replace
Jøtul recommends that you carefully inspect your fi replace
yourself after it has been swept/cleaned. Check all visible
surfaces for cracks. Also check that all joints are sealed
and that the gaskets are in the correct position. Any gaskets
showing signs of wear or deformation must be replaced.
Thoroughly clean the gasket grooves, apply ceramic glue
(available from your local Jøtul dealer) and press the gasket
well into place. The joint will dry quickly.
6.5 Exterior maintenance
Painted products may change colour after several years’
usage. The surface should be cleaned and brushed free of
any loose particles before new paint is applied.
Enamelled products must only be cleaned with a clean, dry
cloth. Do not use water and soap. Any stains can be removed
with a cleaning fl uid (oven cleaner etc.).

16
7.0 Servicing
Warning! Any unauthorised changes to the product are
illegal! Only original spare parts may be used!
7.1 Service/replacing parts in the burn
chamber
NB: Use tools with great care! The vermiculite plates may be
damaged if treated roughly.

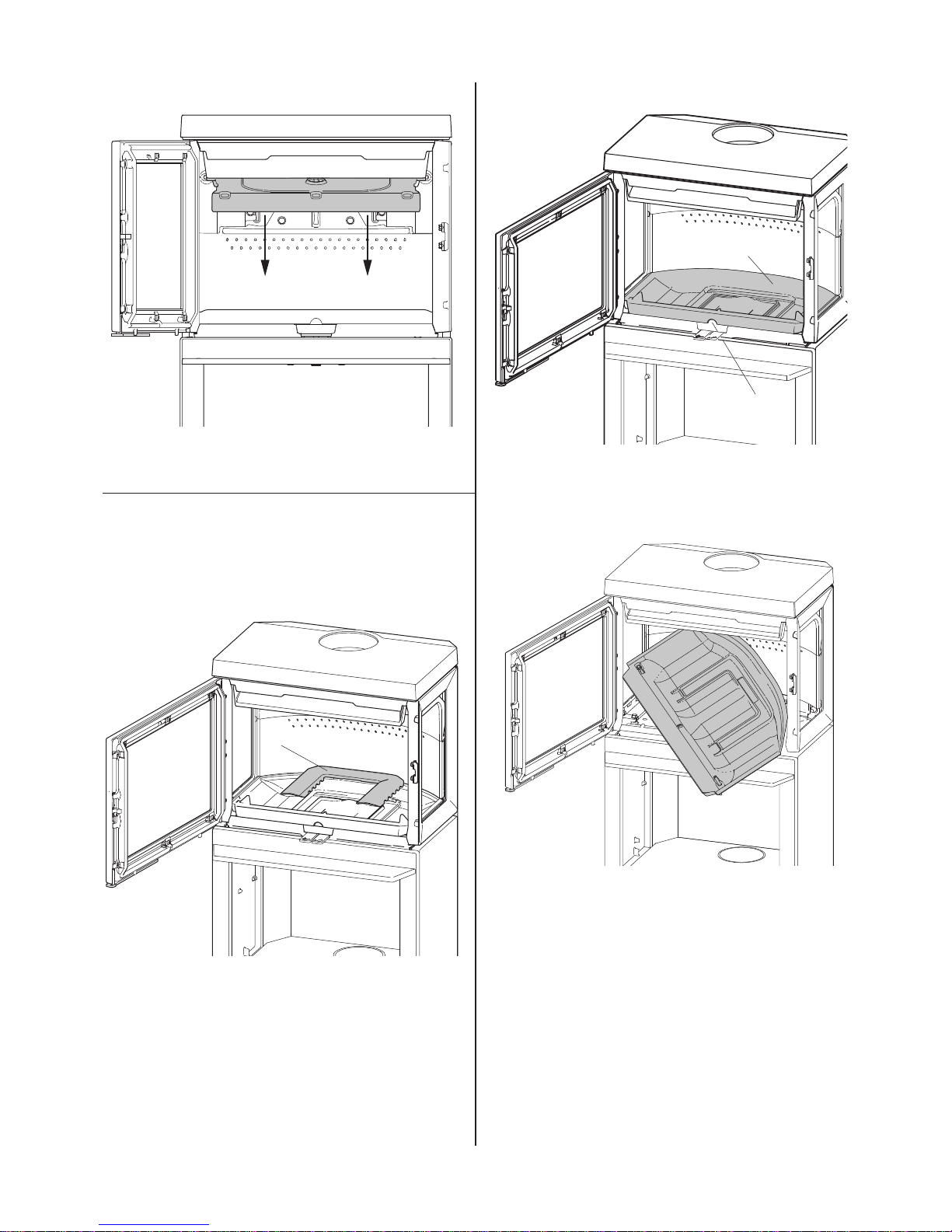

Fig. 14
1. First remove the log retainer
Fig. 15
AB
2. First lift the baffl e (A) up. Turn the key (B) 90° and then
remove the key. Pull the back edge of the baffl e down.
Fig. 16
3. Turn one corner towards you and pull it out sideways.
Fig. 17
A
4. Then remove the exhaust defl ector (A) by raising it slightly
to begin with. Then push the exhaust defl ector backwards.
ENGLISH

17
ENGLISH
Fig. 18
5. Lower the exhaust defl ector and lift it out.
6. When refi tting, follow the same procedure in reverse order.
7.2 Replacing the air duct and
inner bottom
Fig. 19
A
1. Lift the air duct (A) up and remove it.
Fig. 20
A
B
2. Take hold of the hole (B) at the front edge of the inner
bottom (A) and lift it up.
Fig. 21
3. Turn one corner towards you and pull the inner bottom out.
4. When refi tting, follow the same procedure in reverse order.

18
8.0 Operational problems
- troubleshooting
Poor draught
Check the length of the chimney and that it complies with
national laws and regulations. (See also «2.0 Technical data»
). Make sure that the minimum cross section on the chimney is
according to «2.0 Technical data» in the installation manual.
Make sure that there is not anything preventing the smoke
gasses from escaping: branches, trees, etc.
Upon suspicion of excessive/poor draught in the chimney,
seek professional help for measurement and adjustment.
The fi re extinguishes after a while
• Make sure that the fi rewood is suffi ciently dry.
• Find out whether there is negative pressure in the house,
close mechanical fans and open a window close to the
fi replace.
• Check that the air vent is open.
• Check that the fl ue outlet is not clogged by soot.
Unusual amount of soot accumulates
on the glass
Some soot will always stick to the glass, but the quantity
depends on:
• Moisture in the fuel.
• The local draught conditions.
• Air vent opening.
Most of the soot will normally burn off when the air vent is
opened all the way and a fi re is burning briskly in the fi replace.
(See «6.1 Cleaning the glass».)
9.0 Optional extras
9.1 Cover for outside air through
the base
Item no. 10049225
9.2 Fresh air intake tube Ø80
Item no. 51047509
9.3 Fresh air intake tube Ø100
Item no. 51012164
9.4 Jøtul F 520 High Top
Item no. 51053360
9.5 Heat storage system
Item no. 10026701
ENGLISH

19
10.0 Recycling
10.1 Recycling packaging
Your fi replace is delivered with the following packaging:
• A wooden pallet that can be cut up and burned in the
fi replace.
• Cardboard packaging that should be taken to a local
recycling facility.
• Plastic bags that should be taken to a local recycling facility.
10.2 Recycling the fi replace
The fi replace is made of:
• Metal that should be taken to a local recycling facility.
• Glass that should be disposed of as hazardous waste.
The glass in the fi replace must not be placed in a regular
source segregation container.
• Vermiculite burn plates that can be disposed of in regular
waste containers.
11.0 Guarantee terms
1. Our guarantee covers:
Jøtul AS guarantees that the external cast-iron parts are
free from defects in materials or manufacturing at the time of
purchase. You may extend the guarantee on the external cast-
iron parts to 25 years from the date of delivery by registering
the product on jotul.com, and print out the extended guarantee
card within three months of purchase. We recommend that
the guarantee card be kept together with the receipt. Jøtul AS
also guarantees that steel plate parts are free from defects in
materials or manufacturing at the time of purchase for a period
of 5 years from the date of delivery.
The guarantee applies on the condition that the stove has been
installed by a qualifi ed installer in accordance with applicable
laws and regulations and Jøtul’s installation and operating
instructions. Repaired products and replacement items are
guaranteed within the original guarantee period.
2. The guarantee does not cover:
2.1. Damage to consumables such as burn plates, fi re grates,
fl ue baffl es, gaskets and similar as these deteriorate over
time due to normal wear and tear.
2.2. Damage caused as a result of improper maintenance,
overheating, use of unsuitable fuel (e.g of unsuitable fuel
are, but not limited to driftwood, impregnated wood, plank
off cuts, chipboard ) or too moist / wet wood.
2.3. Installation of optional extras for the purpose of rectifying
local draught conditions, air supply or other circumstances
beyond Jøtul’s control.
2.4. Cases involving alterations / modifi cations to the fi replace
without Jøtul’s consent or the use of non-original parts.
2.5. Damage caused during storage at a distributor, transport
from a distributor or during installation.
2.6. Products sold by unauthorized sellers in areas where
Jøtul operates a selective distribution system.
2.7. Associated cost (e.g.but not limited to, transport,
manpower, travel) or indirect damages.
Pellets stoves, glass, stone, concrete, enamel and paint
fi nish (e.g. but not limited to chipping, cracking, bubbling or
discolouration and crazing) are applicable to the national
legislation governing the sale of consumer goods. This
guarantee is valid for purchases made within the territory of
the European Economic Area. All guarantee inquiries must
be addressed to your local authorized Jøtul dealer within a
reasonable amount of time, which shall not be later than 14
days from the date on which the fault or defect fi rst became
apparent. See list of importers and dealers on our web site
www.jotul.com.
If Jøtul is unable to meet the obligations outlined in the above
guarantee terms, Jøtul will off er a replacement product with a
similar heating capacity free of charge.
Jøtul reserve the right to decline of any replacement of parts
or service in the event that the guarantee is not registrated
online. This guarantee does not aff ect any rights under
applicable national legislation governing the sale of consumer
goods. The national complaint right applies from the purchase
date and only in exchange for a receipt / serial number.
ENGLISH

20
1.0 Behördliche Aufl agen
Die Kamininstallation muss gemäß den geltenden nationalen
Gesetzen und Regelungen erfolgen.
Bei der Produktinstallation müssen alle lokalen und
nationalen Bestimmungen sowie europäische Richtlinien
eingehalten werden.
Das Produkt wird mit einer Montageanleitung mit technischen
Daten sowie einer allgemeinen Verwendungs- und
Pfl egeanleitung ausgeliefert. Die Installation darf erst nach
Abnahme und Freigabe durch eine autorisierte Instanz in
Betrieb genommen werden.
Eine Plakette mit Produktinformationen aus hitzebeständigem
Material befi ndet sich auf dem Hitzeschild an der Rückseite
des Produkts. Sie enthält Informationen über Kennzeichnung
und Dokumentation des Produkts.
2.0 Technische Daten
Material: Gusseisen
Oberfl äche: Lackiert
Brennstoff typ: Holz
Max. Scheitlänge: 30 - 50 cm
Rauchabzug: Oben
Rauchgasrohrmaße: Ø 150 mm
Gewicht:
Jøtul F 520: Ca. 170 kg
Jøtul F 520 + Jøtul F 520 High Top: Ca. 201 kg
Produktabmessungen, Abstände: Siehe Abb. 1
Technische Daten gemäß EN 13229
Nennheizleistung: 7 kW
Wirkungsgrad: 77%
CO-Emissionen (13% O2): 0,07%
CO-Emissionen (13% O2): 884 mg/Nm3
OGC-Emissionen (13% O2): 60 mg/Nm3
Staubemissionen (13% O2): 14 mg/Nm3
Rauchgastemperatur: 305°C
Rauchgasdurchfl uss: 7,1 g/s
Schornsteinzug, EN 13229: 12 Pa
Empfohlener Zug mit Rauchabzug: 16-18 Pa
Brennstoff verbrauch: 2,3 kg/h
Anmachholzmenge: 1,7 kg
Max. Anmachholzmenge: jeweils 3,4 kg und
3,8 kg/h
Betrieb: Periodisch
Als periodische Verbrennung wird hier der normale
Gebrauch eines Ofens bezeichnet. Um weiterhin Wärme
zu erzeugen, legen Sie mehr Brennstoff nach, wenn von
der vorherigen Holzladung nur noch Glut übrig ist.
DEUTSCH
Inhalt
1.0 Technische Daten ....................................... 20
2.0 Behördliche Aufl agen.................................. 20
3.0 01 Sicherheit ............................................... 21
4.0 Installation .............................................25
5.0 Tägliche Nutzung........................................ 28
6.0 Pfl ege.......................................................... 30
7.0 Instandhaltung ........................................... 30
8.0 Betriebsstörungen - Fehlersuche ............... 33
9.0 Zusatzausstattung ...................................... 33
10.0 Recycling .................................................. 34
11.0 Garantiebedingungen ............................... 34
les combustibles recommandés.
Respectez les consignes d'utilisation. Utilisez uniquement
Verwenden Sie nur empfohlenen Brennstoffen.
Montage- und Bedienungsanleitung beachten.
Follow user`s instructions. Use only recommended fuels.
standard
Certificate/
The appliance can be used in a shared flue.
Minimum distance to adjacent combustible materials:
Emission of CO in combustion products
Serial no: Y-xxxx, Year: 200x
Manufacturer:
N-1602 Fredrikstad
Norway
Jøtul AS
POB 1441
Sweden
EUR Intermittent
Nominal heat output
Norway
Country
Operational type
Fuel type
Operation range
Efficiency
Klasse II
Classification
Standard
Flue gas temperature
Room heater fired by solid fuel
Product:
Jøtul
SP Sveriges Provnings- och
221546
Forskningsinstitut AB
SP Swedish National
Testing and Research
Institute
:
Approved by
:
:
:
:
:
:
:
Minimum distance to adjacent combustible materials:
OGC SP
EN
Serial no.
Auf allen Produkten ist ein Schild
mit der Seriennummer und dem
Baujahr angebracht. Schreiben
Sie diese Nummer an die in
den Aufstellungsanweisungen
angegebene Stelle.
Nennen Sie immer diese
Seriennummer, wenn Sie sich
an den Händler oder an Jøtul
wenden.
Registrieren Sie Ihren Kamin bei jotul.com für
eine 25-jährige Garantie.
