j5 create JUPW1101W User manual

JUPW1101W Datasheet
mightywave Wood
10W Wireless Charger
User manual JUPW1101W

2
10W Wireless Charger User manual
Introduction
The 10W Wireless Charger equipped with Qi Inductive wireless charging technology to
charge your device at the Apple or Android’s “Fast Charge” possible, up to 5V / 1A or
1.5A , 9V / 1.1A of power, which is enough to charge a tablet, such as the phones,
tablets, laptop, perfect for Apple, Iphone X/8/8 PLUS, Samsung Galaxy Note8, S8, S8
Plus, S7,S7 Edge and more. Use a QC3.0 adapter with your wireless charger for speedy
charging at 7.5W or 10W according to your phone’s model.. The charger also comes
with surge protection, overcharging protection, over current and overheating
protection, keeping your devices safe.
Features
 Qi inductive wireless charging technology
 Provides 10W fast charge (compatible with Samsung), 7.5W fast charge
(compatible with Apple), and Qi standard 5W charge(compatible with
various Qi devices).
 LEDs indicate device and charger status
 Surge protection to ensure safe charging
 Distinctive look and feel of natural solid wood complements any environment
perfectly
System Requirement
 Compatible with all Qi device
 The Fast Charge only supports iPhone and Samsung devices .For a full list of
supported devices please vist www.j5create.com
 For 10W and 7.5w Fast Charge, the Quick Charge 3.0/2.0 Charger (Included)
must be used
Note:
 Use only j5create -approved chargers ((5V/3A, 9V/2A, 2V/1.5A). Unauthorized
chargers may cause damage or the wireless charger may malfunction.
 To ensure the best charging performance, Please put the mobile device in
the center of the 10W wireless charger. If the mobile device is not properly
placed on the 10W wireless charger surface (Depending on the location of
the mobile device’s wireless charging coil), your mobile device may not
charge properly.
 Do not place foreign materials, such as metal objects, magnets, and
magnetic stripe cards, between the mobile device and the wireless charger.
The mobile device may not charge properly or may be damaged due to
overheating.
 Wireless charging may not work properly if you have attached a thick case to
your mobile device. If your case is thick, remove it before placing your mobile
device on the wireless charger.

3
Package Contents
 10W Wireless Charger (JUPW1101W)
 Quick Charge 3.0 Charger
 QIG

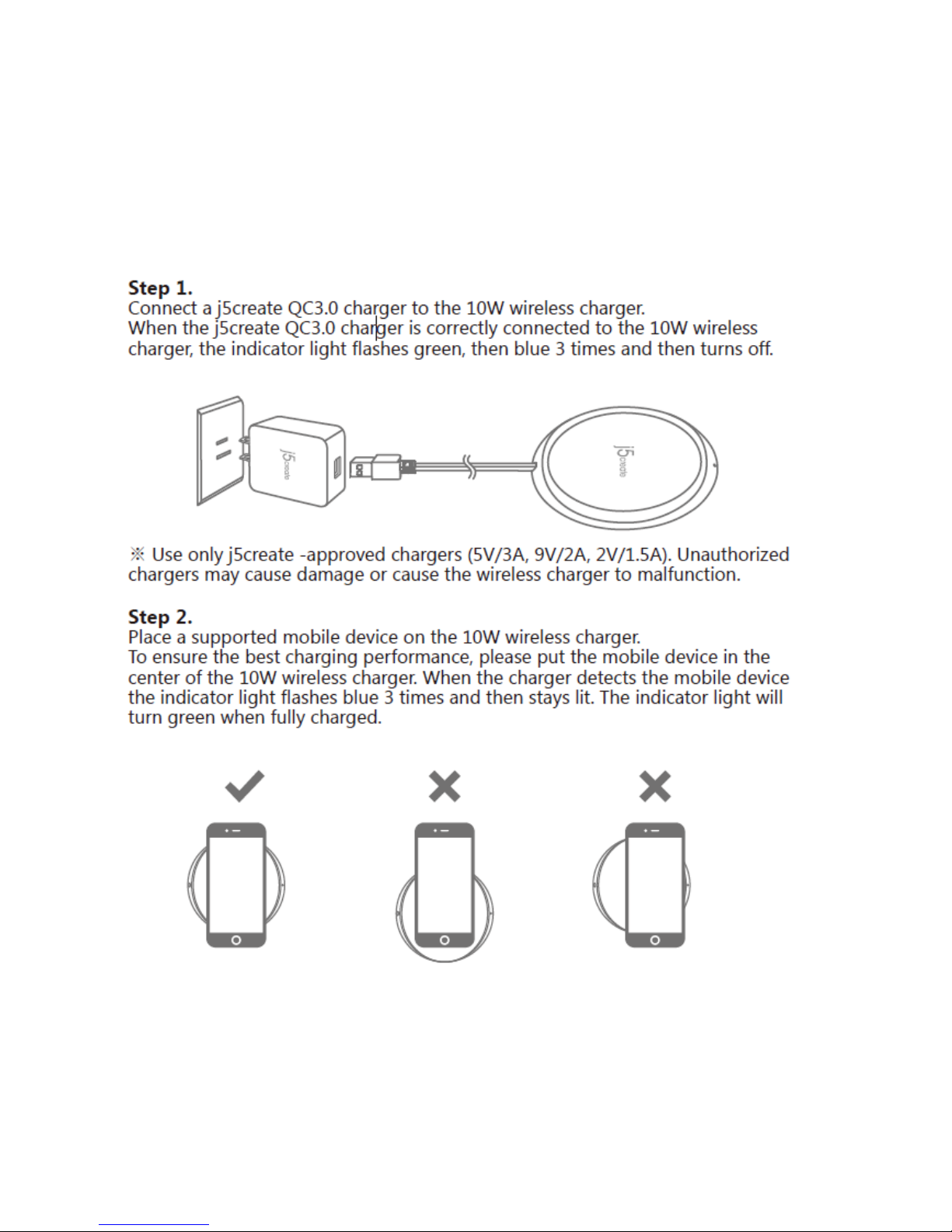

Installation

4

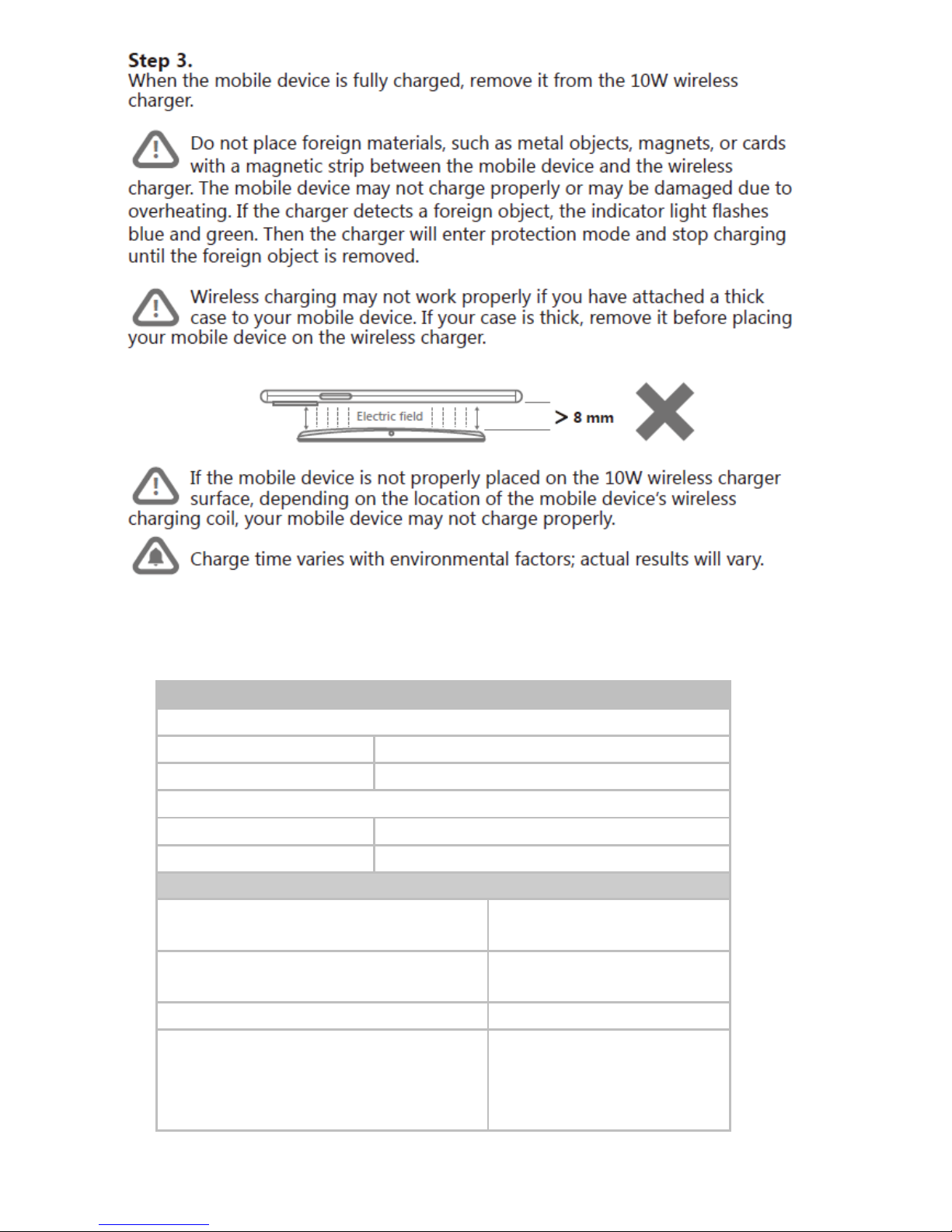

Specifications
Hardware
10W Wireless Charger
Input 5V / 2A , 9V / 2A, 12V / 1.5A
Output 5V / 1 or 1.5A , 9V / 1.1A
Quick Charge 3.0 Charger
Input 100-240V ~50/60Hz 0.5A
Output 5V/3A,9V/2A,12V/1.5A
Indicator light identification
When connected to power outlet Flashes blue, white 3 times
and then turns off
When charging Fading blue 5 times and
then turns off
When fully charged Turns off
When not charging properly due to
a general error( Foreign Object
Detection/ Over Current Protection
/ Over Voltage Protection / Over
flashes blue enter the
protection mode and
stops charge until the
abnormality is released

5
Temperature Protection)
Environmental
Storage Temperature -20~70°C
Storage Humidity 5 ~ 95% RH. Non-condensing
Operation Temperature 0~25°C
Operation Humidity < 35~95% RH. Non-condensing

6
REGULATORY COMPLIANCE
QI
FCC
FCC Part 15 Subpart B Class B: ANSI C63.4 2014 & ANSI C63.10 2013
Operation is subject to the following two conditions:
• This device may not cause harmful interference
• This device must accept any interference, including interference that may cause undesired operation
of the device.
CE
This equipment is in compliance with the requirements of the following regulations:
European Standard EN 55022:2010/AC:2011 Class B,
EN 61000-3-2:2006/A1:2009 and /A2:2009, EN 61000-3-3:2008 and
EN 55024:2010(IEC 61000-4-2:2008 ED. 2.0, IEC 61000-4-3:2010 ED. 3.2,
IEC 61000-4-4:2012 ED. 2.1, IEC 61000-4-5:2005 ED. 2.0, IEC 61000-4-6:2008 ED. 3.0,
IEC 61000-4-8:2009 ED. 2.0, IEC 61000-4-11:2004 ED. 2.0).
Disclaimer
Information in this document is subject to change without notice. The manufacturer does not make any
representations or warranties (implied or otherwise) regarding the accuracy and completeness of this
document and shall in no event be liable for any loss of profit or any commercial damage, including
but not limited to special, incidental, consequential or other damage. No part of this document may
be reproduced or transmitted in any form by any means, electronic or mechanical, including
photocopying, recording or information recording and retrieval systems without the expressed written
permission of the manufacturer.

7
Limited Warranty
j5create offers a limited 1-year warranty. User’s wear & tear damage is not included.
The user shall call or e-mail j5create's customer service with information regarding the
defect(s) of the product and obtain a return authorization number. Users are
responsible for one way return freight cost and we will take care of one way freight
back. In order to obtain a return authorization number, users should have the following
information handy when calling or emailing the service team:
(i) A copy of the original purchase invoice to verify your warranty

8
(ii) A product serial number
(iii) A description of the problem
(iv) Customer’s name, address and telephone number
j5create does not warrant that the operation of the product will be uninterrupted or
error-free. j5create is not responsible for damage arising from failure to follow
instructions relating to the product’s use. This warranty does not apply to: (a)
consumable parts, unless damage has occurred due to a defect in materials or
workmanship; (b) cosmetic damage, including but not limited to scratches, dents and
broken plastic on ports; (c) damage caused by use with non-j5create products; (d)
damage cause by natural disasters (flood, fire, earthquake, lighting strike, typhoon
etc.,); (e) damage caused by human misuse (lost, accident, abuse, misuse or other
external causes); (f) damage caused by operating the product outside the permitted
or intended uses described by j5create; (g) damage caused by service (including
upgrades and expansions) performed by anyone who is not a representative of
j5create or a j5create Authorized Service Provider; (h) a product or part that has been
modified to alter functionality or capability without the written permission of j5create;
or (i) if any j5create serial number on the product has been removed or defaced. If
such a situation occurs, j5create will calculate the cost of materials and repair for your
reference.
This warranty is given by j5create in lieu of any other warranties expressed or implied.
For more information, please visit our website http://www.j5create.com
Copyright© 2016 j5create. All rights reserved. All trade names are registered trademarks of their
respective owners. Features and specifications are subject to change without notice. Product may not
be exactly as shown in the diagram.
