10W 2-Coil Wireless Charger
Datasheet JUPW1102W

mightywave10W Wireless ChargerDatasheet
2
Introduction
The 10W 2-Coil Wireless Charger is equipped with Qi inductive wireless charging
technology to charge your device at Apple or Android’s “Fast Charge”, up to 5V/1A
or 1.5A or 9V / 1.1Aof power. For use withiPhone X/8/8 Plus/XS/XS Max/XR, Samsung
Galaxy Note8, S8, S8 Plus, S7,S7 Edge and more. Use a QC3.0 adapter with your 10W
wireless charger for speedy charging at 7.5W or 10W depending on your phone’s
model.The charger also comes with surge protection,overcharging protection,
overcurrentand overheating protection, keeping your devices safe.
2 built-in coils charge either vertically or horizontally, so you can keep track of your
messages or enjoy videos while charging.
Distinctive look and feel of natural solid wood complements any environment
perfectly. It looks great anywhere, on a desk, at the office, on countertops, etc.
Features
 Qi inductive wireless charging technology
 Provides 10W fast charge (compatible with Samsung), 7.5W fast charge
(compatible with Apple), and Qi standard 5W charge(compatible with
various Qi devices)
 2 built-in coils offer a wide charging area, which allows you to charge your
phone vertically or horizontally
 LEDs indicate device and charger status
 Surge protection to ensure safe charging
 Distinctive look and feel of natural solid wood
System Requirements
 Compatible with all Qi devices
 Fast charge only supports iPhone and Samsung devices.For a full list of
supported devices please visit www.j5create.com
 For 10W and 7.5Wfast charge, the Quick Charge 3.0/2.0charger (included)
must be used
Note:
 Use only j5create -approved chargers. Unauthorized chargers may cause
damage or the wireless charger may malfunction.
 To ensure the best charging performance, Please put the mobile device in
the center of the 10W wireless charger. If the mobile device is not properly
placed on the 10W wireless charger surface,depending on the location of the
mobile device’s wireless charging coil, yourmobile device may not charge
properly.
 Do not place foreign materials, such as metal objects, magnets, and
magnetic stripcards between the mobile device and the wireless charger.
The mobile device maynot charge properly or may become damaged due
to overheating.
 Wireless charging may not work properly if you have attached a thick case to
yourmobile device. If your case is thick, remove it before placing your mobile
device onthe wireless charger.
 Charge time varies with environmental factors.

mightywave10W Wireless ChargerDatasheet
3
Package Contents
 10W Wireless Charger(JUPW1102W)
 Quick Charge 3.0 Charger
 USB2.0 Type-Ccable 3.3 ft/100cm
 Quick Installation Guide

mightywave10W Wireless ChargerDatasheet
4
Installation

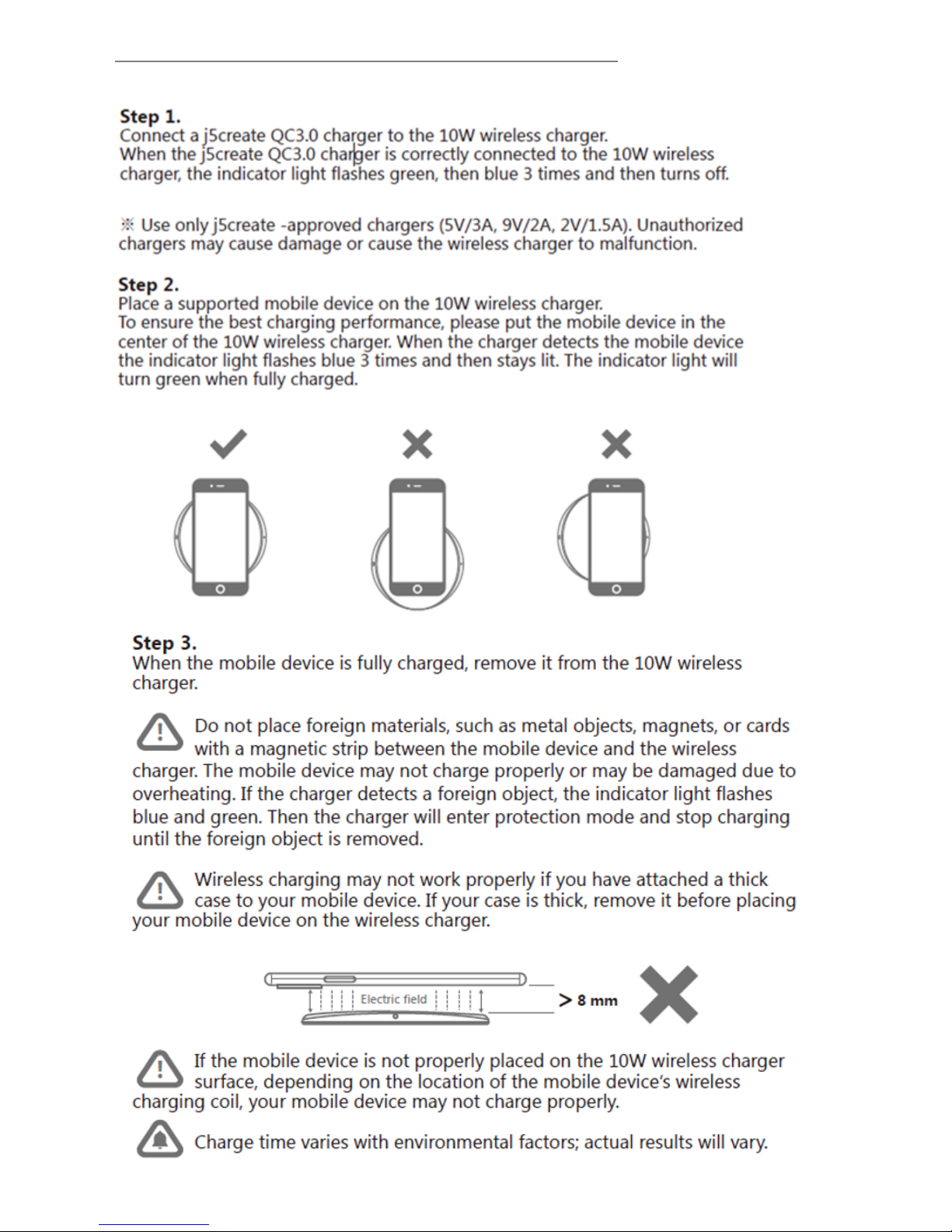

mightywave10W Wireless ChargerDatasheet
5
Specifications
Hardware
10W Wireless Charger
Coil 2
Input 5V/2A, 9V/2A, 12V/1.5A
Output 5V/1A or 1.5A, 9V/1.1A
Quick Charge 3.0 Charger
Input 100-240V to 50/60Hz, 0.5A
Output 5V/3A,9V/2A, 12V/1.5A
Indicator Light
When connected to a power outlet Flashes blue, white 3 times and
then white stays lit
When charging Fading warm white,blue 3 times
and then turns off
When not charging properly due to
foreign object detection Flashes blue, then enters protection mode and stops
charginguntil the foreign object is
removed
When not charging properly due to
overheating Flashes blue and white, then enters protection mode and stops
charging until the temperature
reaches a safe level
Physical Specifications
Dimensions 10W Wireless Charger: 3.43 (W)x 2.69 (H)x4(D) in. / 87(W)x
68.4(H)x 117.8(D)mm
Quick Charge 3.0 Charger:1.77(W)x 2.18(H)x0.92(D)in. /
45(W)x 55.4(H)x 23.4(D)mm
USB2.0 type-C cable 3.3ft/100cm
Weight 10W Wireless Charger: Approximately0.23lb / 105.5 g
Quick Charge 3.0 Charger:Approximately 0.13lb / 58.5 g
Environmental
Storage Temperature -20 – 70°C
Storage Humidity 5 – 95% RH. Non-condensing
Operation Temperature 0 – 25°C
Operation Humidity < 35 – 95% RH. Non-condensing

mightywave10W Wireless ChargerDatasheet
6
Wireless Safety

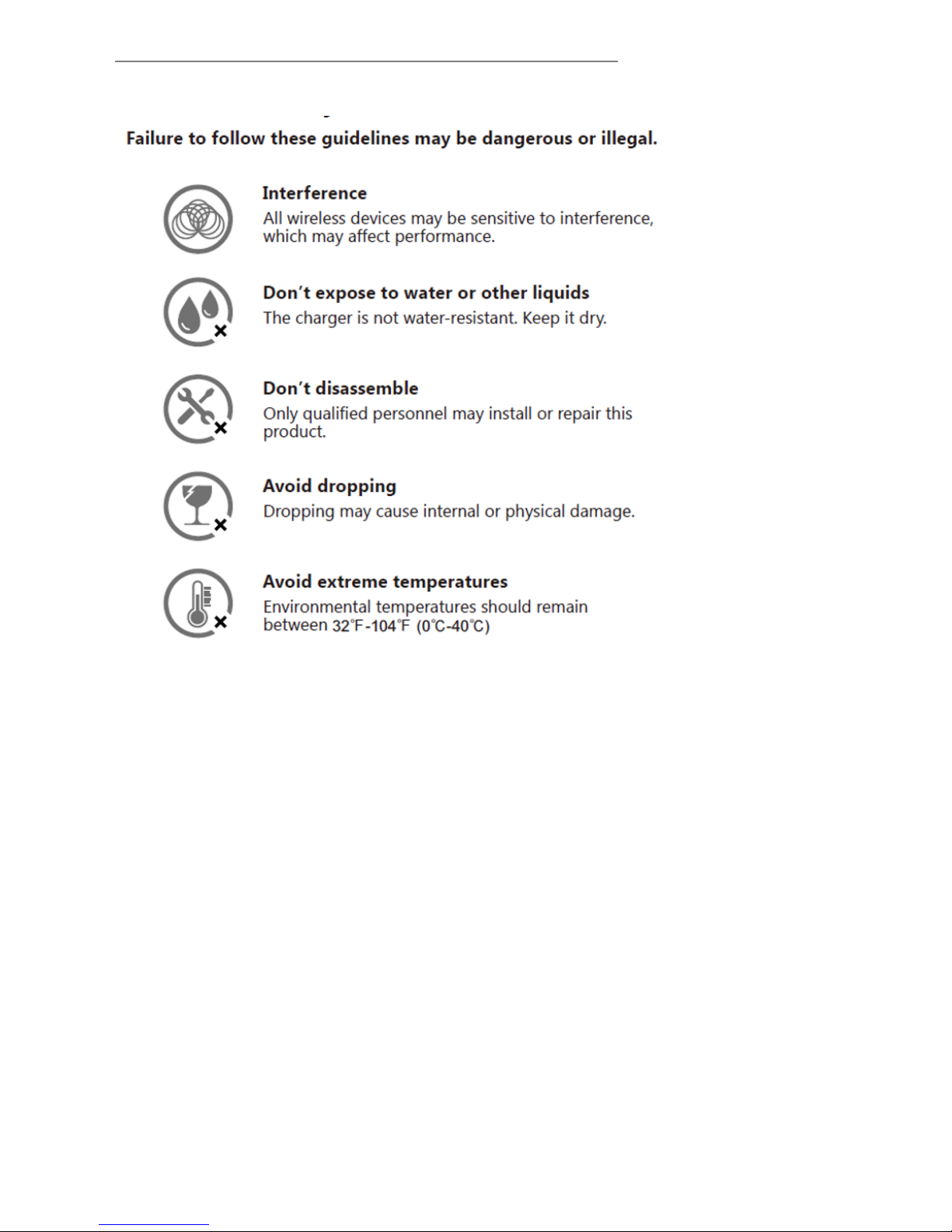

mightywave10W Wireless ChargerDatasheet
7

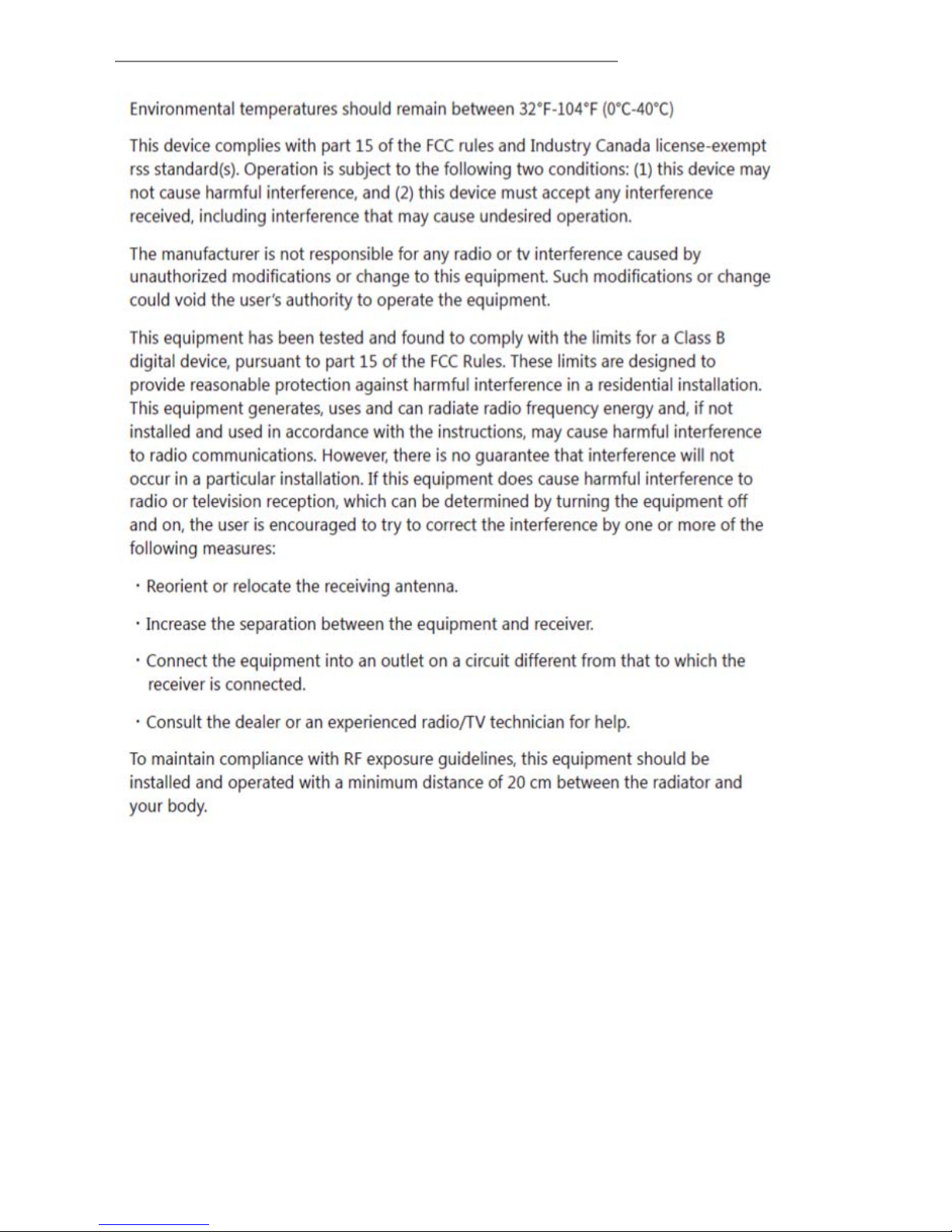

REGULATORY COMPLIANCE
FCC
FCC ID: 2AD37JUPW2W
FCC Part 15 Subpart B Class B: ANSI C63.4 2014 & ANSI C63.10 2013
Operation is subject to the following two conditions:
• This device may not cause harmful interference
• This device must accept any interference, including interference that may cause undesired operation
of the device.
CE
This equipment is in compliance with the requirements of the following regulations:
European Standard EN 55022:2010/AC:2011 Class B,
EN 61000-3-2:2006/A1:2009 and /A2:2009, EN 61000-3-3:2008 and
EN 55024:2010(IEC 61000-4-2:2008 ED. 2.0, IEC 61000-4-3:2010 ED. 3.2,
IEC 61000-4-4:2012 ED. 2.1, IEC 61000-4-5:2005 ED. 2.0, IEC 61000-4-6:2008 ED. 3.0,
IEC 61000-4-8:2009 ED. 2.0, IEC 61000-4-11:2004 ED. 2.0).
