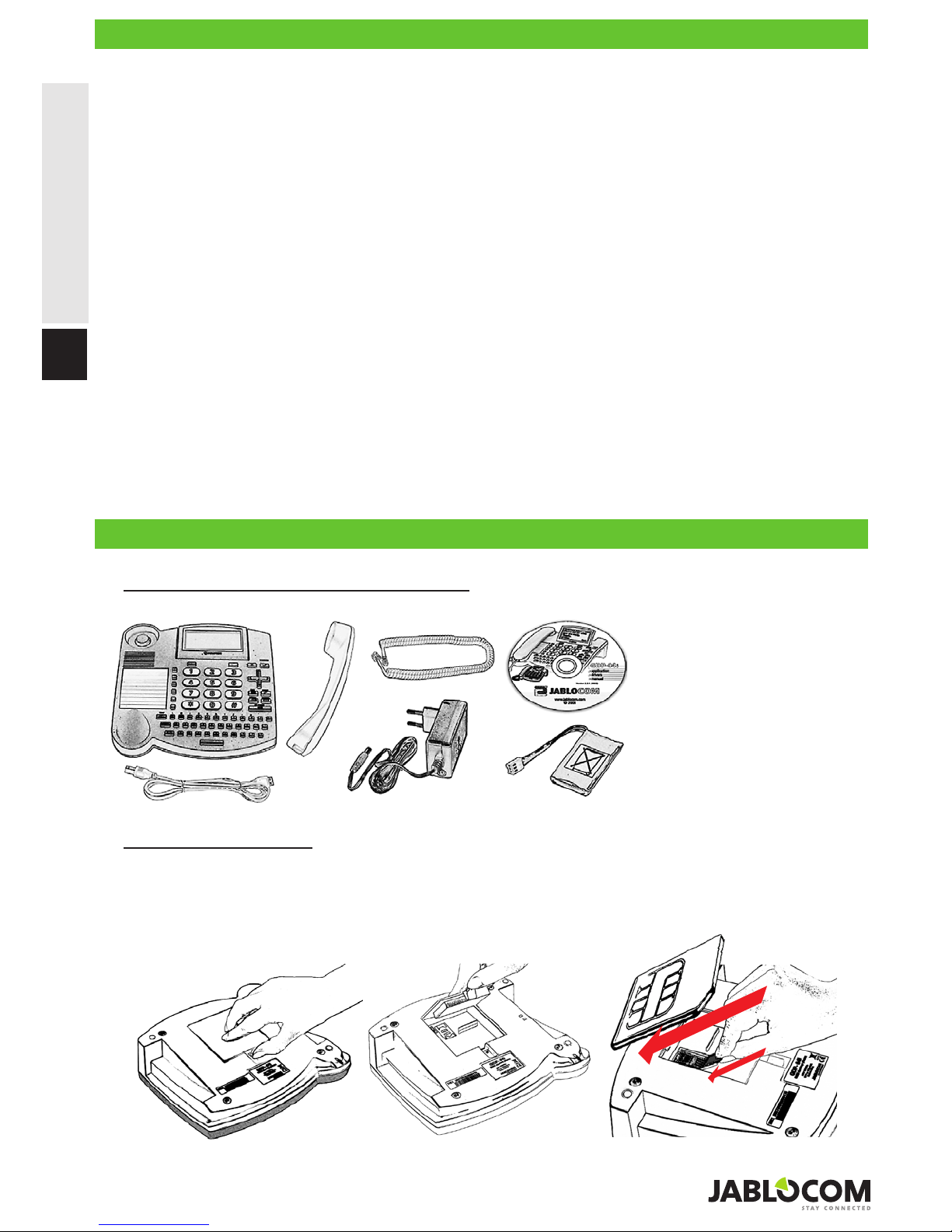

Getting Started – first using
SIM card detail
User‘s Guide
EN
Phone is starting…
oK
Use the battery and power adaptor only for its intended purpose. Never use any adaptor or
battery that is damaged. Your phone may become warm during charging and during normal
use. The phone is designed to be powered from the power adaptor. The limited capacity of the
backup battery should only cover emergency calls in case of electricity failure. The standard
talking time for a fully charged battery is about 3 hours. The standard standby time is about
24 hours. The battery gradually decreases its capacity during its lifetime. To reach the optimal
parameters the battery should be kept in an environment between 5°C and 35°C. Never expo-
se the battery to temperature out of the operati ng temperature range -10°C to +55°C. A device
with a hot or cold battery may temporarily not work, even when the battery is fully charged. A
battery’s performance is particularly limited in temperatures well below freezing. Using the
device with 3G network can signicantly decrease battery life!
User‘s Guide
EN

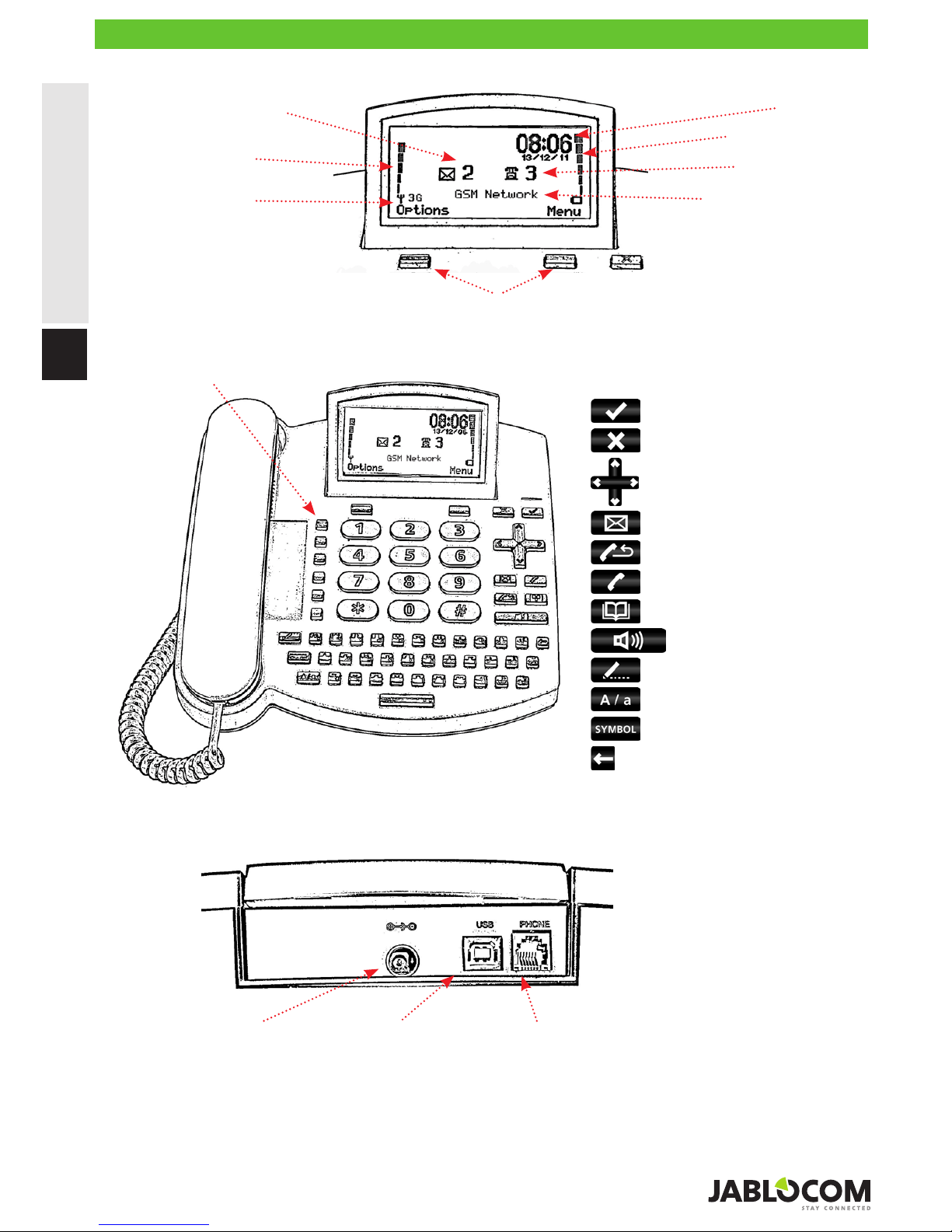

Your Phone
User‘s Guide
EN

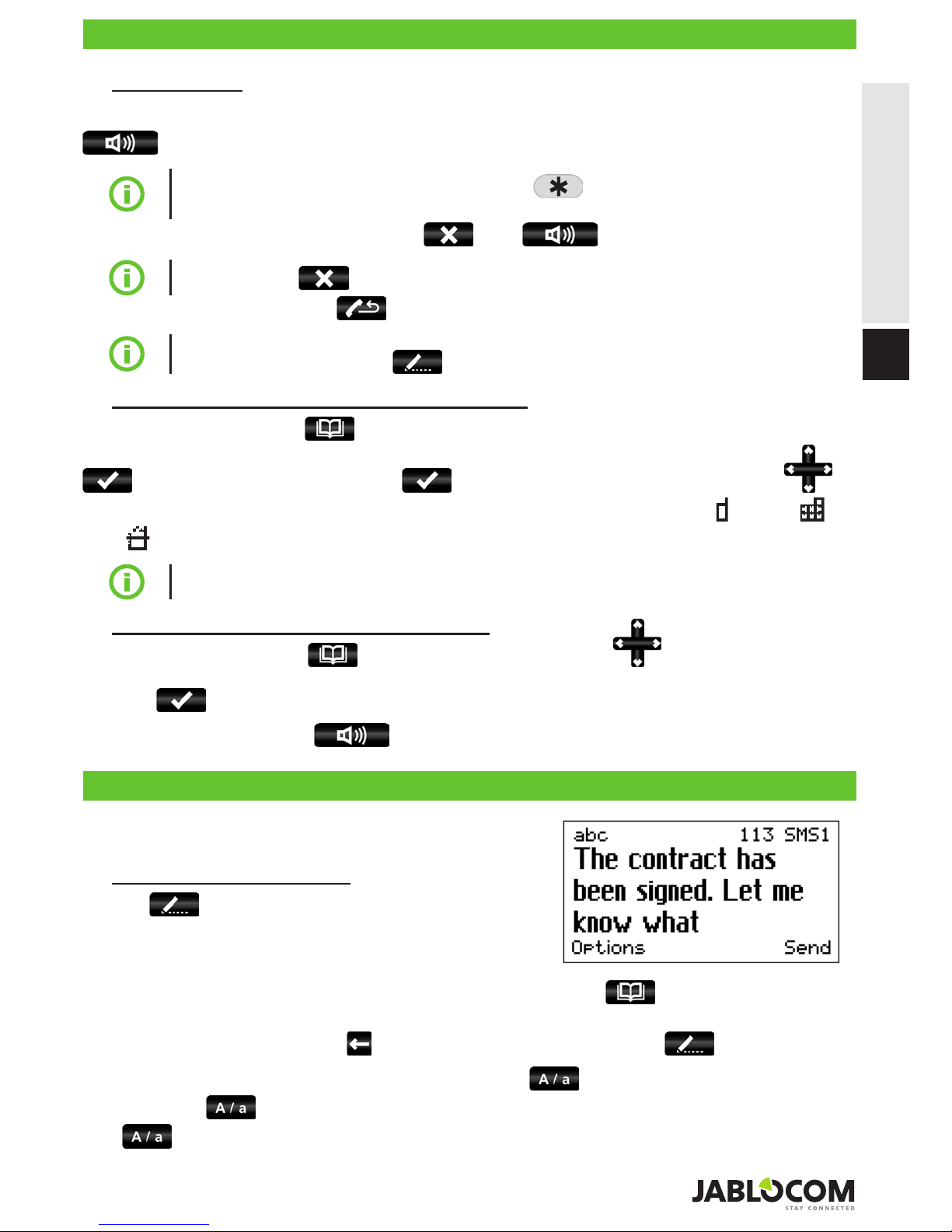

Basic call functions and phone book
Dial
.
To input the “+” character for international calls, press twice in rapid succession. We recom-
mend using the international format of the phone number to avoid problems with local area codes.
The CANCEL key automatically interrupts calls or other activities.
You can enter the main menu during a call by pressing the Options context button and choosing Menu
from the list. You can also press button to start writing an SMS during a call.
<new contact...>
select
save
Find more details about the phonebook in the Phonebook chapter.
Text Messages (SMS)
senD
oK
User‘s Guide
EN
If your phone rmware supports specic languages like Russian or Arabic, its keyboard is switched
into the respective alphabet layout after choosing the language. You can switch between it and the
Latin alphabet by pressing button + button together.
oPtions
Delete
rePly
ForwarD
call
Details
new...
store number
Delete all
messages
inbox
sent.
Other functions
Phone number:
oK
User‘s Guide
EN
oPtions
The battery charging function is active whenever the power adaptor is connected, even when the phone is switched
off. The battery charger progress indicator on the display will be active when the phone is off, if the battery is charg-
ing.
The phone can also be switched off by pressing for more than 3 seconds.
“
the Phone is starting...
The phone will start automatically when the power cable from the adaptor is re-connected into the
phone.
Advanced call functions
Some of the advanced call functions will not work properly unless they are supported by your GSM
operator.
To use the call waiting function, please check that you have activated it in the GSM network setting –
see chapter Settings.
oPtions
switch
select
oPtions
holD
oPtions
Join calls
conFerence
oPtions
Private
#
select
oPtions
Join calls
oPtions
release
User‘s Guide
EN
#
select
oPtions
holD
select
oPtions
transFer
oPtions
Details
call
senD sms
Delete
store number
Delete all
oPtions
mute
oPtions
unmute
settings -> service -> coDe entry…
heaD1
oKheaD0
Phonebook
Up to 32 ASCII characters can be used for a First Name or Last Name. The total length of a
Name should not exceed 44 charters. Since UTF-8 coding is used for name storage, usage of
NON-ASCII specic characters will shorten the maxim length of the name. Up to 32 characters
(+,0,1,2,3,4,5,6,7,8,9,A,B,C,D,X,P,*,#) can be stored in each phone number memory position.
We recommend using the international format of the phone number to avoid problems with local area
codes
.
User‘s Guide
EN
oPtions
eDit
call
senD sms
aDD new...
Delete
Delete all
imPort From sim
coPy
The contact records list on the SIM card contains one phone number for each contact only. The num-
bers which already are in the phonebook will not be imported again to prevent possible duplicates.
The advanced SIM phonebook management is available via JabloTool software running on connected
PC.
Settings
menu
setting
oK
bacK
menu
settings
Phone settings
Date & time
acti
-
vate
cancel
checK status
all calls
iF busy
iF no answer
iF unreachable
cancel all Diverts
Active unconditional divert may be indicated in standby screen, network permitting.
activate
cancel.
checK status
User‘s Guide
EN
Outgoing calls
International calls
Internat. when abroad
Incoming calls
Incoming when abroad
Cancel all barring
on
oFF.
The restriction does not apply to SMS. Some GSM networks do not allow canceling the caller identica-
tion.
SMS centre number
Message validity
Status reports
Call ring
SMS alert
Keyboard sounds
Handset volume,
Handsfree volume
and Line volume
PIN protection
Change PIN1
Auto PIN1
Change PIN2
Fixed dialling
service
www.jablocom.com.
oK
User‘s Guide
EN
bacK

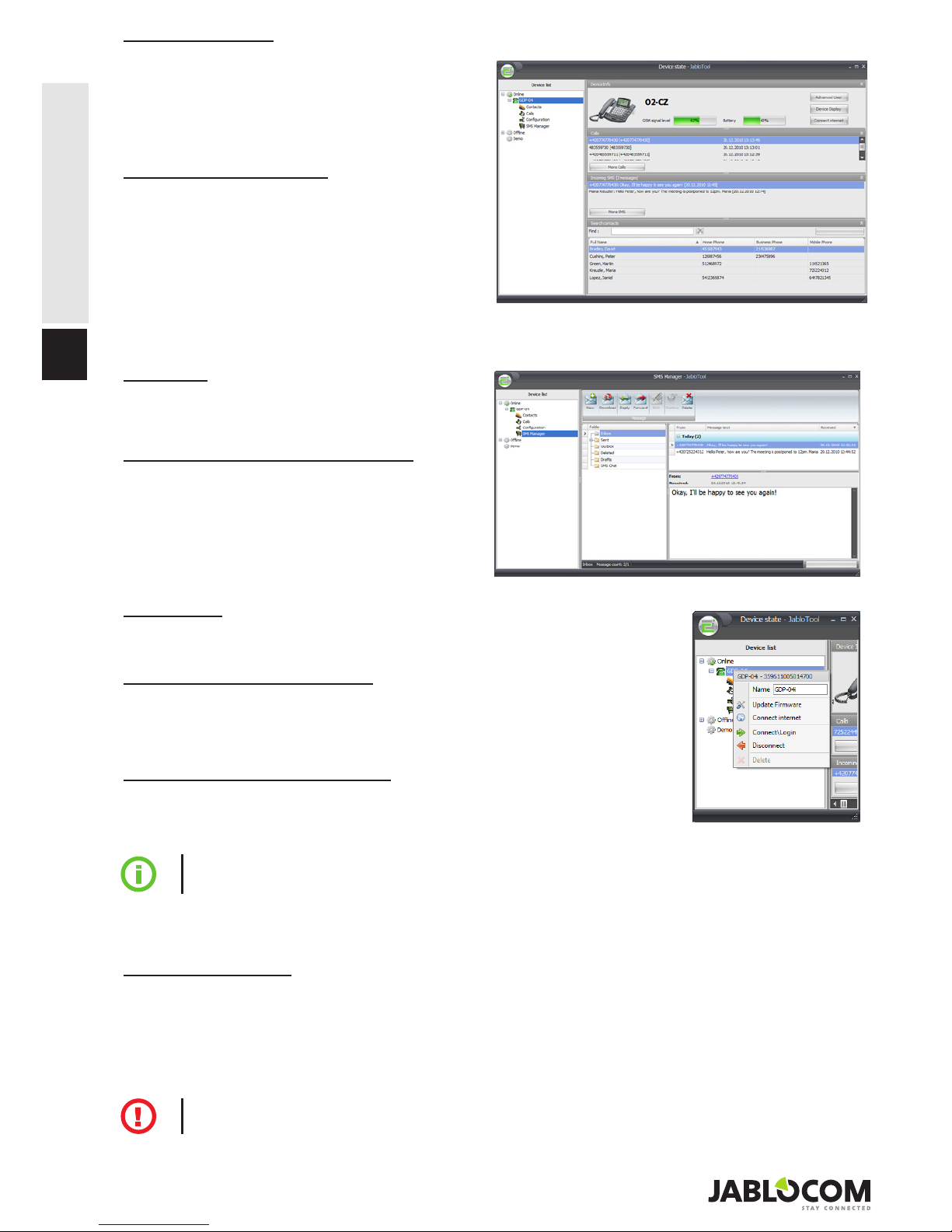

PC interface
Warning: Do not connect the GDP-04i to the USB on your computer until you have nished in-
stalling the software from the CD. Failure to do so may permanently prevent your phone from
properly communicating with a PC.
Latest version of JabloTool can be downloaded from
http://www.jablocom.com.
Microsoft .NET 2.0
Warning: Be sure you have the administration rights to your computer before the start of the
installation.
install
User‘s Guide
EN
senD sms
conFigure internet connection
gDP-04 conFiguration
These parameters may vary according to your service provider’s settings. Default settings of con-
nection parameters are APN = “Internet”, Name = “”, Password = “”.
aPPly
internet connection
uPDate Firmware
Warning: Synchronize your GDP-04i’s phonebook data with PC before starting of rmware
update to prevent possible data loss!
User‘s Guide
EN
aPPly
Warning: Digital fax function may not work properly unless it is fully supported by your GSM
service provider.
Only one phone or master PBX line (home exchange unit) can be attached.
Warning: Never connect the GDP-04Ai into a wall socket of a xed line network (PSTN).
Troubleshooting
Tools, Update Firmware
www.jablocom.com
Problem / Error message
No SIM card
Registration to network
failed!
Function execution failed
USSD code refused by
network
Unable to process
Sending failed
Analogue line error - deac-
tivated
Error
Incorrect entry
System error
User‘s Guide
EN
GDP-04i RF – wireless control guide
menu > settings > remote controls
If you enter the
menu > settings > remote controls
menu for the rst time, the phone guides you
thru all necessary settings.
menu > settings > remote controls > my remote controls
<aDD new…>
oK
oPtions > eDit
Delete
www.jablocom.com
menu > settings > remote controls >
Phone numbers
<aDD new…>
menu > settings > remote controls > text message
oK.
menu > settings > remote controls >
voice message
stoP
save
voice message
Play
User‘s Guide
EN
After pressing the panic button or activating the sensor, the emergency messages are sent rst. Then
phone calls to the rst phone number. When the call is connected, phone plays the voice message
twice and than connects audio to the hands free. When the call is nished, the phone calls to all other
numbers in the same way. The length of the call is limited to 5 minutes.
Try the emergency function after completing settings.
Pressing the panic button during incoming call accepts the call on the handsfree. Phone can be ope-
rated by one wireless button both way (making calls, receiving calls).

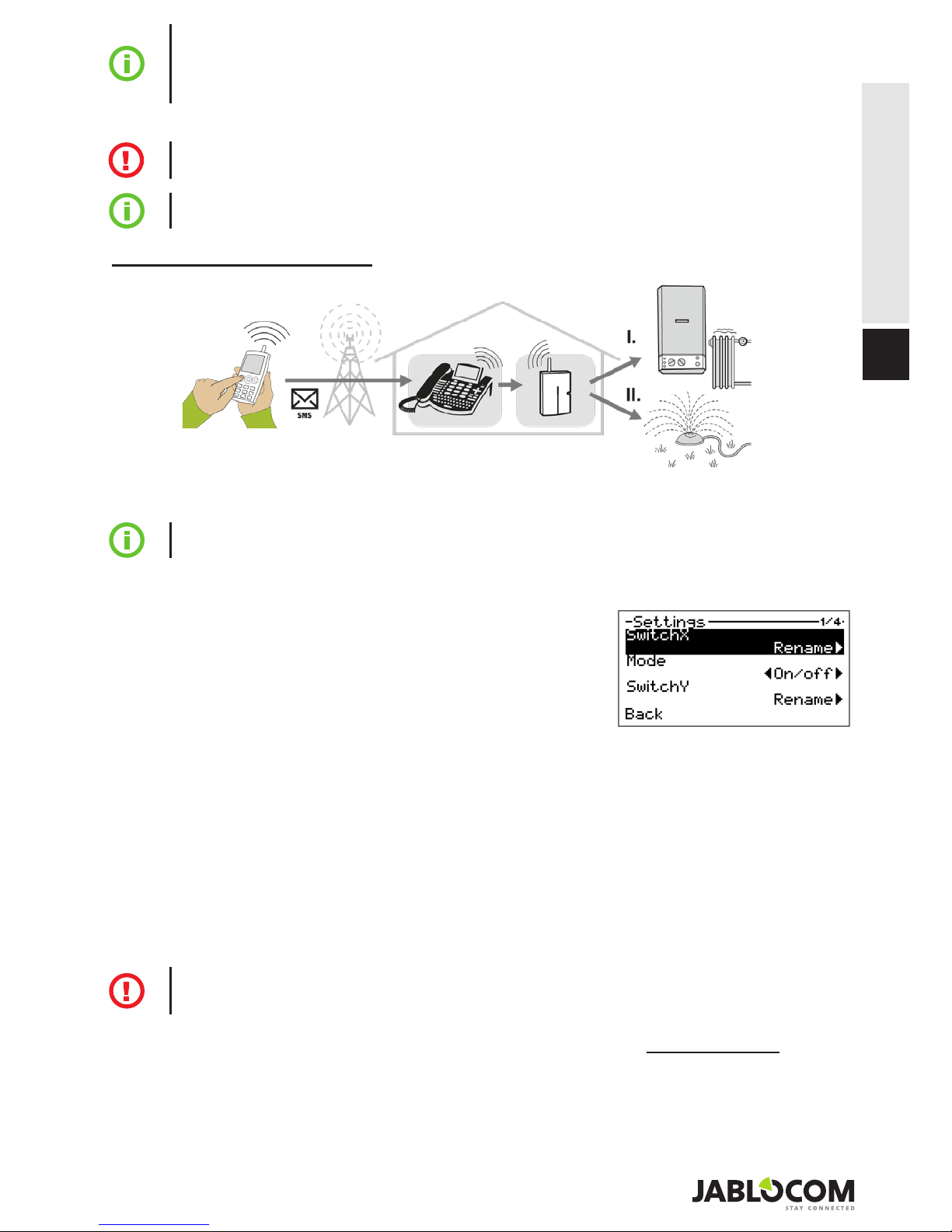

menu > settings > wireless relay
If you enter the
menu > settings > wireless relay
menu for the rst time, the phone guides you
thru all necessary settings.
enroll new relay
menu > settings >
wireless relay > settings .
moDe
on/oFF
Pulse
on/oFF
Pulse
<Action> <Output name>
<Action> onoFF
<Output name> DevicexDevicey
<action> <outPut name> hh:mm:ss
ON deviceX
OFF deviceY
ON deviceX 3:00:00
If the command SMS beeps as a new on GDP-04i RF, the command wasn’t recognized. Check
the message syntax in
menu > settings > wireless relay > helP
www.jablocom.com.
User‘s Guide
EN
Technical Specifications
Certification and Warranty
www.jablocom.com
Safety instructions
User‘s Guide
EN
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
-
-
-
-
User‘s Guide
EN
