Jacob Jensen HT60 User manual

Telephone HT60
User Manual

2
CONTENTS
1. 2.
4. 5.
3.

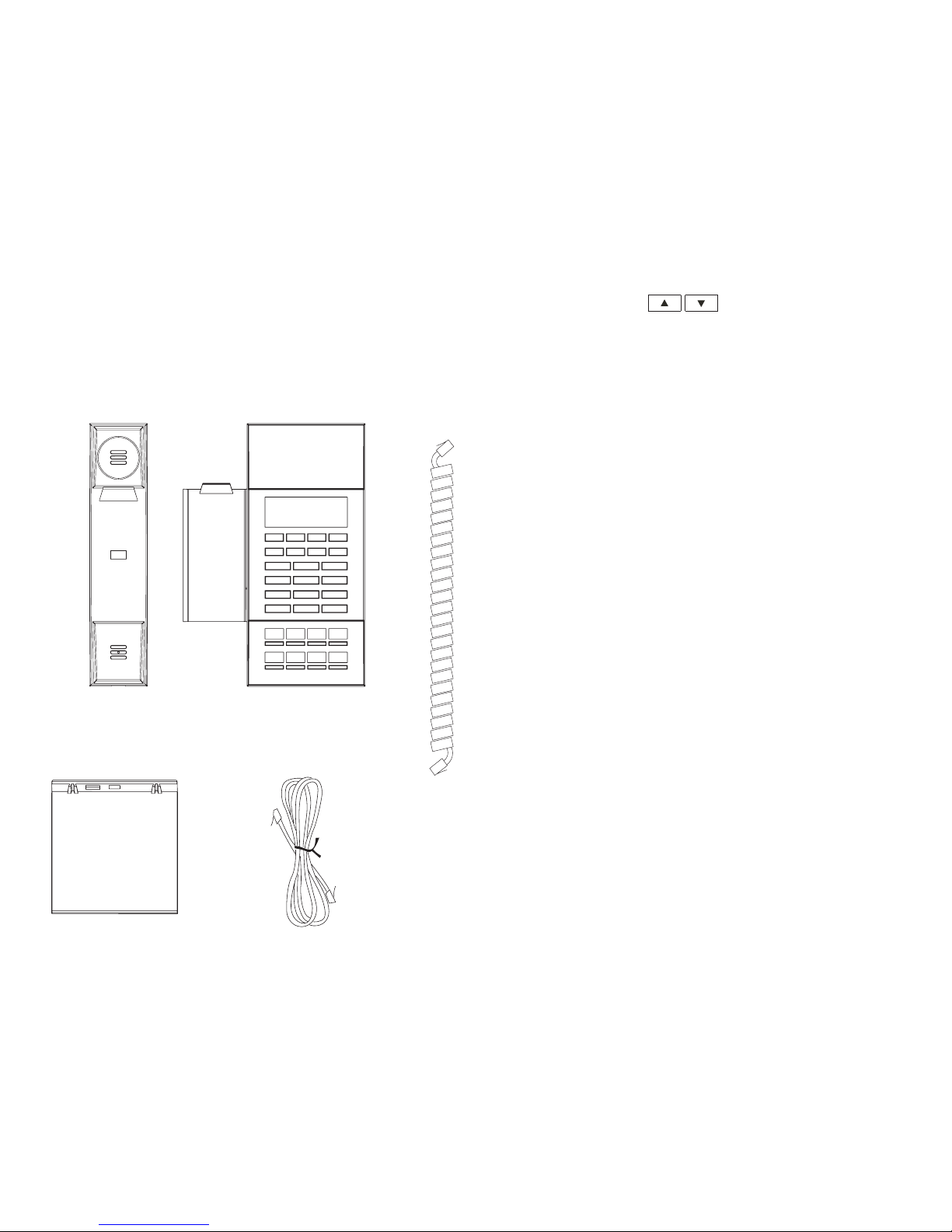

The following items are included in the package of
JACOB JENSENTM Telephone HT60:
1. Telephone handset
2. Base station
3. Handset coiled cord
4. Table stand
5. Line cord
MAIN FEATURE LIST
• Caller ID display, supports FSK and DTMF
• Caller ID number disappears after 30 seconds
• Hearing aid compatible handset
• Data port - for connecting MODEM, fax, etc.
• Service buttons - can be programmed and kept forever
• Volume buttons to adjust the speaker and
handset volume.
• FLASH - The default is 100ms. Can be set from 100ms
to 600ms according to the network specifications.
• REDIAL button redials the last number dialled
• PROG button – programmmes the service buttons
• MUTE button
• LED indicator for “Line in use (blue)” and “Mute (red)”
• Rbutton – Signalling the PBX to activate the flash
function. The default is 100ms.
• Speaker button with indicator
• Message waiting and ringing indicator
• Busy tone disconnects automatically
• Programme service button with R.P master cloner and
handheld cloner.
• Pre-dial function (32 at most), which can be
automatically dialled when you pick up the handset.
• Room number shown in display
• Desktop and wall mounting

3
CONTROLS AND FUNCTIONAL KEYS
Base unit - front
1. LCD screen display
2. 8 functional keys
3. 12 numerical keys
4. Service buttons
5. Indicator (LED) - for “Line in use (blue)” and “Mute (red)”
6. Message waiting indicator
7. Hands-free microphone
Features Description of the functional keys
MUTE - Microphone switch (handset)
R- Signalling the PBX to activate the flash function
The default is 100ms
- To lower or increase the speaker and handset volume
PROG - For programming
FLASH - Flash button
REDIAL - Redial button
- For on hook dialling (speaker phone mode)
- Key for special services
- Key for special services
1.
11.
2.
3.
4.
8.9.
6.
7.
5.
Base unit - rear
8. Telephone line jack
9. Data port
10. Handset cord jack
11. Holes for wall mounting
10.

4
Congratulations on your new JACOB JENSENTM Telephone
HT60.
The telephone is designed in Denmark by Jacob Jensen,
whose products have gained international recognition for
their original, simple and classic design. Jacob Jensen has
received about 100 prizes from around the world and has
19 products included in The Design Study Collection and
The Design Collection of The Museum of Modern Art in
New York.
Telephone HT60 is a FSK/DTMF caller ID telephone. In order
to activate this feature, please contact your telecoms service
provider. Please read this guide before use and keep it handy
for future reference.

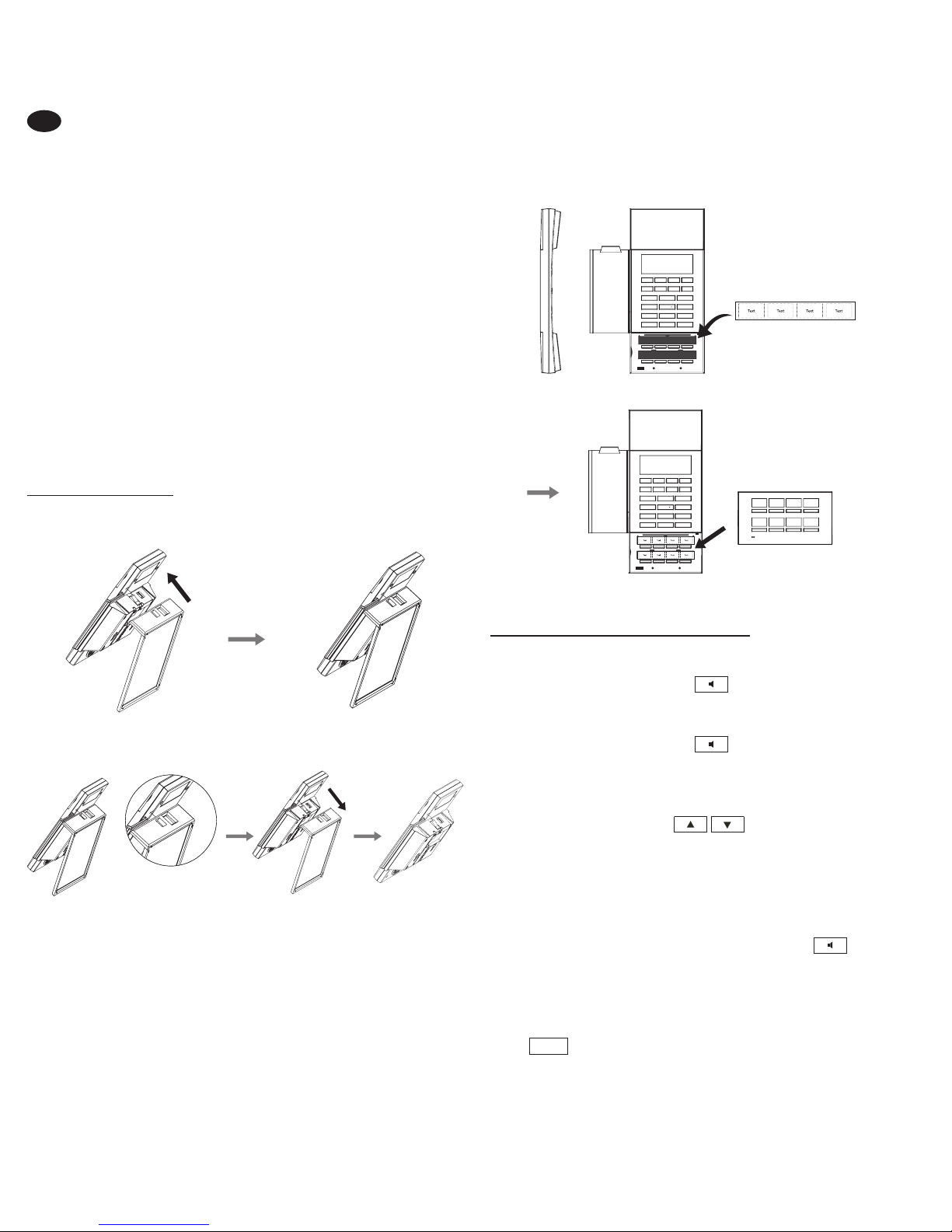

A. INSTALLATION
A.1. Base installation – table stand
Disassembly:
A.2. Faceplate installation
123 123 123 123
123 123 123 123
123 123 123 123
123 123 123 123
B. HOW TO USE THE TELEPHONE
Receiving a call
Pick up the handset or press .
Making a call
Pick up the handset or press – then dial the telephone
number.
Adjust speaker and handset volume
Press the volume buttons to lower or increase
the volume of speaker and handset. When you hang up,
the volume of the handset will return to low level and the
speaker volume will keep the current level.
Handset and speaker phone mode exchangeable
1. From handset to speaker phone: Just press and put
the handset back to the cradle.
2. From speaker phone to handset : Just lift the handset.
To redial the last number dialled
Press REDIAL to dial the last number dialled. After five minutes
the number will disappear automatically.
UK

5
Mute Function
During the call, press MUTE once to stop the transmission for
handset and speaker – the mute LED will light up. Press MUTE
again to resume the call – the mute LED will turn off.
Service buttons and MWI
1. To programme the service buttons or MWI: In on-hook
mode, press PROG + programming number + PROG +
Service button. If you need, you can insert FLASH or R
button.
In on-hook mode, press the relevant service button to see
the programmed number.
2. In on-hook mode: Pick up the handset or press , then
press the certain Service button, the programmed number
will be dialled automatically.
3. To delete the programmed number: In on-hook mode,
Press PROG + PROG + Service button or MWI. If you need,
you can insert FLASH or R.
Set room number
In off-hook mode, press PROG + room number + PROG +
or . The room number will appear in the left side
of the display.
In off-hook mode, pressing 13 0987654321
will delete all programmed numbers and the room number.
Caller ID
When receiving caller ID information the telephone can
recognize the format FSK & DTMF. This information will be
stored automatically. If you need to change the format, you
have to disconnect and re-power again.
The caller ID number will disappear within 30 seconds in
order to protect guest’s privacy. There are indicators for New
call, Repeat call, Secret call, Message and so on. It can store
48 incoming calls. The displayed number is up to 16 digits.
If the format is FSK, the date and time will be auto updated.
In DTMF mode, all settings won’t be changed. Furthermore,
the DTMF signal only includes incoming phone calls and
doesn’t include date and time.
Setting Date and Time
In on-hook mode: Press 11 MMDDHHmm .
MM: month (01-12)
DD: date (01-31)
HH: hour (00-23)
mm: minutes (00-59)
Message Waiting Indicator (MWI)
It is compatible with high voltage neon/90V and Lucent
low voltage system. Other MWI signalling systems must be
confirmed by the factory and implemented in production.
The MWI will flash if there is a message. Pick up the handset
or press the speaker , then press the MWI to retrieve the
message.
The MWI is also a ringing indicator, which will flash if there
is a call or a message.
Busy tone disconnect automatically
If the handset is not placed on the cradle after a phone call,
the telephone can automatically switch to on-hook mode
and the line will connect accordingly.
Data port
The data port can be used to connect computer, fax,
extension, etc.
Programming the service buttons by Cloner
1. Enter actively Remote Programming Status : Off hook
status, press for 5s of the base, the phone will send 3
dialing tones and the mute indicator flashes 3 times.
2. Escape actively Remote Programming Status: Off hook
status, press # for 5s of the base, the phone will send 3
dialing tones and the mute indicator flashes 3 times
Note:
- The phone will automatically escape the remote
programming status if the phone is successfully
programmed.
- Pressing the Volume button or back to on-hook status can
stop the programming work.

6
C. INSTALLATION ATTENTION & MAINTENANCE
The phone has been manufactured using the very latest
technology and the highest quality components and
workmanship, under ISO9001 quality control procedures.
It can be relied on to provide many years of trouble-free
service, especially if these simple tips are followed:
• Handle with care, avoiding hard knocks and shocks.
• Do not expose this product to dust, strong sunlight,
humidity, high temperature, or mechanical shock.
• Do not use corrosive or abrasive cleansers on this
product. Keep the unit dust free by wiping it with
a soft, dry cloth.
• Do not tamper with or attempt to modify the phone,
it would make it unsafe to use. Should any service
diculties or faults be encountered, the following
list may help you identify and remedy problems. In
many cases, however, it may be necessary to call the
distributor from whom you purchased it.
D. TROUBLESHOOTING
1. No dialing tone
• Check the telephone network
• Check the connection of handset cord and straight
line cord
2. No ringing or no continuous ring
• Check the telephone line
• Check the quantity of parallel phone set
3. Noise during talk
• Check the telephone line
• Check the handset cord
E. FCC APPROVAL
Complies with Part 68 of the FCC rules. On the bottom of this
telephone is a label that contains, among other information,
the FCC registration number and the ringer equivalence
number (REN) for this telephone. If requested, you must
provide this information to the Telephone Company.
F. EC DECLARATION OF CONFORMITY
Hereby Bell Xpress A/C declares that this equipment
(Telephone HT60, type JJ HT60) is in compliance with
the essential requirements and other relevant
provisions of Directive 2014/53/EU.
G. JACKS
Use RJ11C USOC standard modular jacks.
H. WARRANTY
This product is warranted for a period of 12 months from the
date of purchase against faulty materials or workmanship.
If during this period a defect arises, we may repair or
replace the product, provided that:
1. The product has not been used for any purpose other than
normal use.
2. Unauthorized product repair or modications have not
been attempted.
3. The product has never been used in a harsh or corrosive
environment.
4. No damage in transit.
THIS LIMITED WARRANTY GIVES THE BUYER SPECIFIC LEGAL
RIGHTS. THE BUYER MAY ALSO HAVE OTHER RIGHTS WHICH
VARY FROM JURISDICTION TO JURISDICTION.
This warranty is only valid for merchandise purchased from
the authorized dealers or the licence
owner.
I. FCC WARNING
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.

7
IMHT60_V3.02112016
J. CONTACT INFORMATION
ARIA Telecom Ltd.
100 Pall Mall
London
SW1Y 5HP
Produced in licence from:
Bell Xpress A/S
Telephone: [phone]
Internet: www.bellxpress.dk
Email: [email protected]
Address: Sletvej 50R
DK-8310 Tranbjerg J, Denmark
K. ENVIRONMENTAL CONCERNS AND DISPOSAL
Electric and electronic appliances contain materials,
components and substances that can be damaging to
people’s health and to the environment, if the waste is not
disposed of correctly.
Electric and electronic appliances are marked with a crossed-
out wheelie bin symbol as illustrated below. It indicates that
electric and electronic appliances are banned from being
disposed of as general household waste, and have to be
collected separately.
Please ask you dealer about current means of disposal.
- The contents of this manual are subject to change without
notice.
- The manufacturer and its suppliers accept no liability
whatsoever for any damage, expense, loss of prots or any
other damage incurred as a result of using this product.

8
