Jacuzzi SWIM SPA Series User manual

SWIM SPA
COLLECTION
data di validità: gennaio 2019 (sostituisce le precedenti)
All installations must follow local electrical and building codes. Please consult your local business and
planning division for your codes in your area.
JACUZZI®WILL NOT BE RESPONSIBLE FOR ANY ERRORS IN INSTALLATIONS
OR CODE INFRACTIONS.
J-4000™ PERFORMANCE
(4,72 m / 16 ft. - 5,64 m / 19 ft.)
2019 SWIM SPA
installation guide
technical data

- Type of installation: inground
J-3000™ 4,72m/16ft. - plain view/section
Full inground (cross section)
Partial inground (cross section)
Side view/cross section
J-3000™ 5,64m/19ft. - plain view/section
Full inground (cross section)
Partial inground (cross section)
Side view/cross section
6. Filling and Draining
6.1 General considerations
6.2 Indoor installations
6.3 Outdoor Installations
7. Auxiliary Heating Options
8. Humidity-Ventilation
Other Indoor Considerations
9. Hard Cover Storage
10. By Laws and Disclaimers
10.1 Building Code
10.2 Excavation
10.3 Professionals
10.5 Sunlight
TABLE OF CONTENTS
pag. 4
pag. 5
pag. 6
pag. 7
pag. 8
pag. 9
pag. 10
pag. 11
pag. 12
pag. 13
pag. 14
pag. 15
pag. 16
pag. 17
pag. 18
pag. 19
pag. 19
pag. 20-21
pag. 22
pag. 23
pag. 23
pag. 24-25
pag. 26
pag. 26
pag. 26
pag. 27
pag. 27
1. Types of installations
1.1 “Free Standing”
1.2 Partial-in grade
1.3 Below-grade (outdoor or indoor)
1SHIP7IVMIW7TIGM½GEXMSR 
and Electrical
2.1 J-3000™ 4,72m/16ft.
2.2 J-3000™ 5,64m/19ft.
)PIGXVMGEP7TIGM½GEXMSRW
2.4 Wiring size
2.5 Typical Swim Spa Wiring Diagrams
3. Delivery and Handling
Considerations
4. Base Of Support
¯0SEH7TIGM½GEXMSRW
4.1 Preparation
4.2 Concrete
4.3 Second Level / Balcony Installation
4.4 IMPORTANT: Swim Spa Frame Shim
Installation (Applies to All Installations)
- Type of installation:“free-standing”
J-3000™ 4,72m/16ft. - side view
J-3000™ 5,64m/19ft. - side view
J-3000™ 4,72m/16ft. - plain view
J-3000™ 5,64m/19ft.- plain view
5. Below-grade or partial in-grade
installations
5.1 Characteristics
5.2 Base of support
5.3 Crawl space
5.4 Ground water
5.5 Service access
5.6 Water test
5.7 Overall support
5.8 Insulation
5.9 Set up and assembly
5.10 Serviceability
5.11 Equipment Protection

1. Types
of installations:
1.1 “Free Standing”

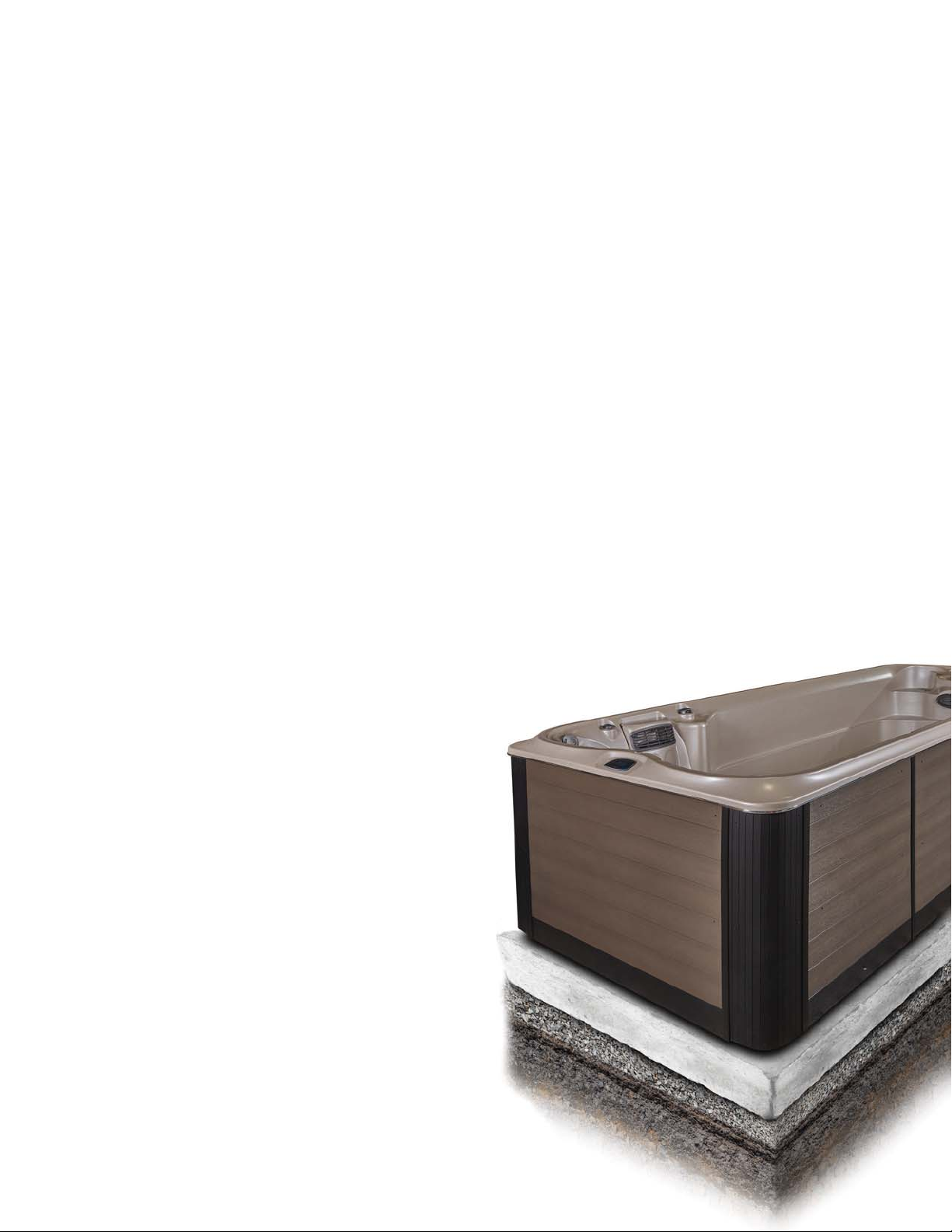

This installation refers to a swim spa that is
placed on a concrete pad, above ground and
with a Jacuzzi Cabinet. Can be adjacent to a
deck or butted up to a deck.
1.2 Partial-in grade
This installation refers to a swim spa that is
partially recessed in the ground.
1.3 Below-grade
(outdoor or indoor)
Also this type of installation let you partially
SVJYPP]VIGIWWXLI7[MQ7TEMRXLI¾SSV
Position the swim spa away from
KPEWWERHSVVI¾IGXMZIWYVJEGIWMR
SVHIVXSEZSMHTSWWMFPIHEQEKIXS
the panelling.
Regardless the type of installation,
XLI7[MQ7TEQYWXFITPEGIHSRE
GSRGVIXITEHGETEFPISJWYTTSVXMRK
its whole max weight (please refer to
XLIJSPPS[MRKGLETXIVWEPWS
4

DIMENSIONS:
472 cm. x 236 cm. x 135 cm.
USABLE SWIM AREA
284 cm.
DRY WEIGHT
1162 k g.
TOTAL FILLED WEIGHT.
8800 kg.
AVERAGE SPA VOLUME
7638 L
PUMPS
No° 4 pumps (2-speed type), 3 Hp
CURRENT DRAW.
1 x 32A: when pumps are ON, heaters are OFF
3 x 16A: when pumps are ON, heaters are OFF
0RGHO6HULHV6SHFL¼FDWLRQDQG(OHFWULFDO
2.1
4.72m (16 ft.)
J-4000™
SWIM SPA
5

6
DIMENSIONS
564 cm. x 236 cm. x 135 cm.
USABLE SWIM AREA
376 cm.
DRY WEIGHT
1374 kg.
TOTAL FILLED WEIGHT
10412 kg.
AVERAGE SPA VOLUME
9038 L
PUMPS
No° 4 pumps (2-speed type), 3 Hp
CURRENT DRAW
1 x 32A: when pumps are ON, heaters are OFF
3 x 16A: when pumps are ON, heaters are OFF
2.2
5.64m (19 ft.)
J-4000™
SWIM SPA

7
(OHFWULFDO6SHFL¼FDWLRQV
SAFETY COMES FIRST. WHEN INSTALLING & USING ELECTRICAL
EQUIPMENT, BASIC SAFETY PRECAUTIONS MUST ALWAYS BE FOLLOWED!
1. READ AND FOLLOW ALL INSTRUCTIONS
2.)PIGXVMGEPMRWXEPPEXMSRQYWXFIGSQTPIXIHF]EUYEPM½IHIPIGXVMGMERMREGGSVHERGI[MXLEPP2EXMSREP6IKMSREPERH0SGEP
Codes and Regulations in effect at the time of installation. It is the installer’s responsibility to select the materials ac-
cording to use, carry out the installation correctly, and verify the condition of the network to which the appliance will
be connected, as well as its suitability in ensuring usage safety during maintenance and inspection operations.
3. 8LIFYMPHMRK´WIPIGXVMGEPW]WXIQQYWXFIIUYMTTIH[MXLE%VIWMHYEPGYVVIRXHIZMGIERHERIJ½GMIRXIEVXLMRK
circuit. Make sure that the residual current device is in good working order by pressing the TEST button, which must
trip.When connecting to the mains, we advise installing a multi-pole circuit breaker, which completely disconnects the
appliance in the event of a category III overvoltage; these devices must be positioned in an area that complies with the
safety regulations.
4. Use copper conductors only!
5. The installation of electrical devices and equipment (sockets, switches, etc.) near the Swim Spa must comply with the
legal standards and regulations in the country where the Swimspa is installed.
6. A green colored terminal or a terminal marked “G”,“GR”,“Ground”, or “Grounding” is located inside the supply ter-
minal box or compartment.To reduce the risk of electric shock, this terminal must be connected to the grounding
7. At least two lugs marked “BONDING LUGS” are provided on the external surface or on the inside of the supply
terminal box or compartment.; in particular, ensure that all the metal masses surrounding the hot tub, such as water
pipes, gas pipes, metal boards around the edge, etc., are equipotential.

8
2.4 Wiring Size
The cable cross-section measurements must be chosen according to the system consumption, as well as the cable routes
ERHHMWXERGIWXLIGLSWIRTVSXIGXMZIW]WXIQWERHXLIWTIGM½GWXERHEVHWJSV½\IHIPIGXVMGEPW]WXIQWMRJSVGIMRXLI
country where the Swim Spa is installed.
IMPORTANT NOTE:
This Guide is for standard installations where the wire run is 15 m (50 ft. ) or less. For longer wire runs, consult a
UYEPM½IHIPIGXVMGMER
Power Requirements
.EGY^^MW[MQWTEWEVIHIWMKRIHXSTVSZMHISTXMQYQTIVJSVQERGIERH¾I\MFMPMX]SJYWI[LIRGSRRIGXIHXSXLIMVQE\M-
QYQIPIGXVMGEPWIVZMGI8LI]EVIGSR½KYVIHEXXLIJEGXSV]8LIQSWXGSQQSRIPIGXVMGEPGSRRIGXMSRWEVIPMWXIHFIPS[
Terminal Block Connections
1. Neutral wire connection (blue)
2. Hot wire connection (brown)
3. Bonding Lug / Grounding Terminal
4. 4S[IV[MVIWIRXVERGI)PIGXVMGEP½XXMRK
and conduit must be installed - IPX5 / Ø
34,42 mm)

9
2.5 Typical Swim Spa Wiring Diagrams
-RWXEPPEXMSRQYWXFIGEVVMIHSYXF]UYEPM½IHTIVWSRRIP[LSEVIEYXLSVMWIHXSMRWXEPPXLITVSHYGXMRGSQTPMERGI[MXLXLI
national regulations in force. It is the installer’s responsibility to select the materials according to use, carry out the instal-
lation correctly, and verify the condition of the network to which the appliance will be connected, as well as its suitability
in ensuring usage safety during maintenance and inspection operations.
230 VOLT 50 HZ SINGLE PHASE WIRING
230 VOLT 50 HZ THREE PHASE WIRING
Main electrical box
Main electrical box
Residual Current Device
Residual Current Device
terminal board
terminal board
Please also refer to the diagrams
printed on the cover of the electrical cbox
Please also refer to the diagrams
printed on the cover of the electrical cbox
remove jumper wires: J51 - J58 and J52-J36;

3 Delivery and Handling
Considerations
All Jacuzzi Swim Spas are shipped with a layer of protective foam
[VETTPEWXMG½PQERHGEVHFSEVHJSVEHHIHTVSXIGXMSR
Each Swim Spa is shipped from the factory strapped onto a wood
skid.
The swim spa can then be lifted by a crane into place.
Most installations require the use of a crane.When a crane is
used for lifting, place the straps under the swim spa, ensuring
XLEXXLITPYQFMRKPMRIWERH½XXMRKWEVIRSXWXVIWWIHERHSV
damaged and a spreader is used. The straps should be secured so
that they will not slip in any direction and strap spreaders utilized
to prevent undue structural side load on the swim spa shell.
If you are removing the swim spa using a forklift, please make
sure to use 2.5-3 m (8 – 10 ft.) extended forks and pick up swim
spa at the equipment end.
Warnings!
• Do not move or place the Swimspa on its side.
• Never lift or handle the Swimspa by its plumbing.
4PIEWIIRWYVIPMJXMRKIUYMTQIRXMWWYJ½GMIRXJSVXLINSF1ERYEPP]
lifting of the swim spa should be done with the proper manpow-
er.
• We strongly recommend the installation to be done by a Jacuzzi
Swim Spa Retailer.
10
