Jafe Prima 100 tolva User manual

Aerográcos GAHE, S.A. Page 1 Ref. Manual: 810603013 (rev. 2)

PRIMA 100 Tolva - USER AND MAINTENANCE GUIDE

Aerográcos GAHE, S.A. Page MT Ref. Manual: 810603013 (rev. 2)

USER AND INSTRUCTION

EMANUAL

Aerográcos GAHE, S.A.

Parque Industrial de Villamuriel

Avda. Comunidad Europea nº 83

34190 Villamuriel de Cerrato

Palencia - Spain

Tel. + 34 979 761020

prima 100

Tolva

USER AND MAINTENANCE GUIDE - PRIMA 100 Tolva

Aerográcos GAHE, S.A. Page 2 Ref. Manual: 810603013 (rev. 2)

Aerográcos GAHE, S.A. Page 3 Ref. Manual: 810603013 (rev. 2)

PRIMA 100 Tolva - USER AND MAINTENANCE GUIDE

Aerográcos GAHE, S.A. Page 2 Ref. Manual: 810603013 (rev. 2)

1. DEAR CLIENT 04

2. SAFETY RULES 05

3. PACKAGING 05

4. WASTE AND ENVIRONMENT 05

5. INSPECTION AT RECEPTION 06

6. IDENTIFICATION DATA 06

7. REQUIRED INSTALLATION 07

8. FEATURES 07

8.1 PRODUCTS THAT CAN BE SPRAYED 08

9. ACCESSORIES 08

9.1 STANDARD ACCESSORIES AND DOCUMENTATION 08

9.2 OPTIONAL ACCESSORIES 08

10. WORKING PROCESS 09

11. MAINTENANCE AND CLEANING 09

12. WORKING INCIDENTS 10

13. EXPLODED VIEWS 11

13.1 PRIMA 100 TOLVA EXPLODED VIEW 11

14. WARRANTY 12

15. WARRANTY CERTIFICATE 13

Index

PRIMA 100 Tolva E

USER AND MAINTENANCE GUIDE - PRIMA 100 Tolva

Aerográcos GAHE, S.A. Page 4 Ref. Manual: 810603013 (rev. 2)

Dear Client,

First of all, we would like to thank you for the trust placed in us by acquiring one of our

products, which we hope will meet your expectations.

Aerográcos GAHE, S.A. is the benchmark for many painting professionals. Our company is

young, familiar and dynamic but has great experience. Founded in 1973, it has developed and

adapted during these years in order to o󰀨er a better service to its clients every day.

All the components of this product have passed strict quality controls to guarantee the highest

performance, so we recommend that you use original spare parts.

Aerográcos GAHE, S.A. has prepared this user and maintenance guide as a document that is

also part of the machine, so it has to be kept throughout its useful life. The user and maintenance

sta󰀨 must always have this manual in mind.

The Management

Aerográcos GAHE, S.A. Page 5 Ref. Manual: 810603013 (rev. 2)

PRIMA 100 Tolva - USER AND MAINTENANCE GUIDE

Aerográcos GAHE, S.A. Page 4 Ref. Manual: 810603013 (rev. 2)

4. WASTE AND ENVIRONMENT

REMEMBER:

To get rid of polluting and dangerous products, packaging, disused equipment and tools and

any type of waste produced by its activity in general, please use the suitable waste sorting

and treatment point for each case.

If you need any information related to this, please go to the Ministry of the Environment in

your regional government or the nearest city hall.

Model

Measures

Weight

PRIMA 100 Tolva

250 x 244 x 262

1.145 gr.

2. SAFETY RULES

A misuse of this equipment may result in accidents, damage or malfunctioning. Read the following

instructions carefully.

Bear in mind the following rules:

o Make sure the person in charge of using the equipment is qualied to do so.

o Shut down the equipment for any operation, including cleaning, and decompress the circuits by pulling the

trigger.

o Always use the equipment with approved protections (gloves, protective mask, earplugs and proper clothing).

o The place where the device is used must be well-ventilated and equipped with an air extraction system (paint

booth) and there should not be direct exposure to ames (cigarettes, lamps...) while working.

o Keep the working area clean and without waste (rugs, solvents...).

o Check the chemical compatibility of the products to be used.

o Do not exceed the indicated maximum pressures.

o Do not use worn, folded, broken or leaking hoses.

o Do not aim at people of animals.

o This gun is not for children.

o Do not use the gun for those operations it has not been designed for.

o The use of halogenated hydrocarbon products can cause explosions from chemical reactions; that is why

products containing those elements are forbidden.

3. PACKAGING

The PRIMA 100 Tolva lisos guns are presented in a cardboard box. All its standard

accessories are inside the packaging.

During delivery and storage the equipment must have a temperature between 0º

and 50°C (32 and 122ºF), and a non-excessive humidity.

USER AND MAINTENANCE GUIDE - PRIMA 100 Tolva

Aerográcos GAHE, S.A. Page 6 Ref. Manual: 810603013 (rev. 2)

5. INSPECTION AT RECEPTION

Before using this equipment the user must make sure that it has not been damaged during delivery or storage.

Moreover, it must be checked that all the components of the equipment are in the packaging.

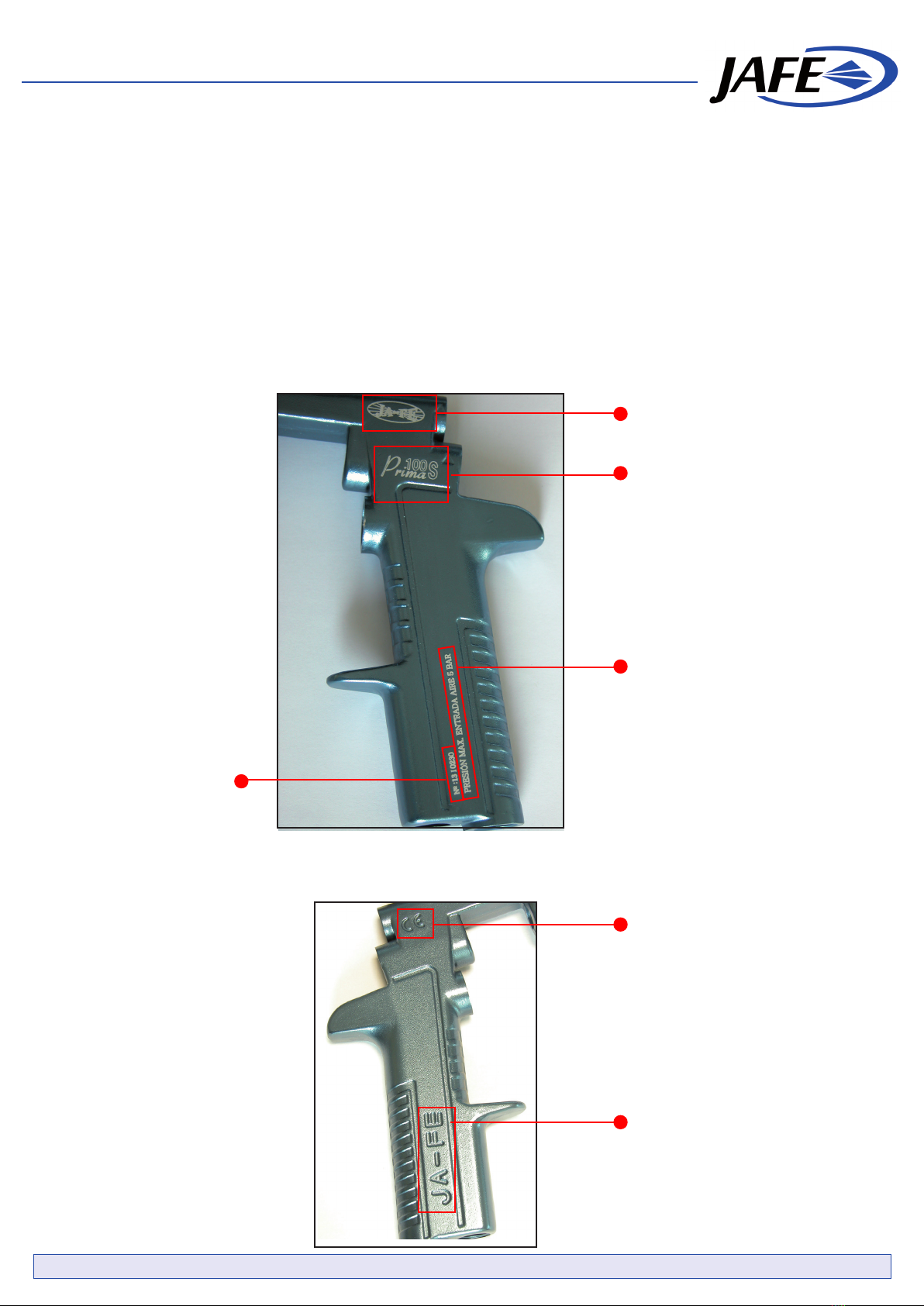

6. IDENTIFICATION DATA

The gun has the brand name of the manufacturer, the model, its maximum working pressure and its serial

number on one of the sides.

On the other side, the brand name of the manufacturer and the CE mark.

Maximum working pressure

Serial number

Gun model

CE mark

Brand name of the manufacturer

Aerográcos GAHE, S.A. Page 7 Ref. Manual: 810603013 (rev. 2)

PRIMA 100 Tolva - USER AND MAINTENANCE GUIDE

Aerográcos GAHE, S.A. Page 6 Ref. Manual: 810603013 (rev. 2)

7. REQUIRED INSTALLATION

It is advisable to always use dry, oil-free compressed air for better paint results.

Before proceeding with the installation, it is necessary to carry out some inspections:

A compressor or a compressed air line connected to the gun, the pump or the pressure tank (depending on the

gun model) is required to carry out the installation.

For the PRIMA 100 Tolva model

Before connecting the gun to the compressor, close all the gun regulators (no.6 & no.10).

The air hose that goes to the adaptor comes out from the compressor (no.21).

8. FEATURES

The PRIMA 100 Tolva model o󰀨ers the best nish at the best price. It is designed to give a medium-high nish

quality. The air consumption is shown below.

Aerográcos GAHE, S.A. tests all its guns before they leave the facilities, assuring this way optimal operation.

The technical data are indicative and can be changed without prior notice, if an improvement of the product is

considered with it.

Pressure

Consumption

PRIMA 100 Tolva

2 BAR

160 l/min.

Technical Data

PRIMA 100 Tolva

Min. compressor

2 CV.

Available nozzles

See combination table

Body

Anodized

Finishing quality

Medium

Pollution level

Low

Max. inlet air pressure

5 Bar

Max. working temperature

50º

Weight

490 gr.

Air inlet

CR ¼ M

Product supply

Gravity

NOTES:

o Check the hoses are in good condition (no cracks or folds).

o Check the air purifying lter of the supply is not full of water. Due to the fact that if it does

not have an automatic purge, its emptying is not automatic either, so it is advisable to carry out

emptying operations regularly.

USER AND MAINTENANCE GUIDE - PRIMA 100 Tolva

Aerográcos GAHE, S.A. Page 8 Ref. Manual: 810603013 (rev. 2)

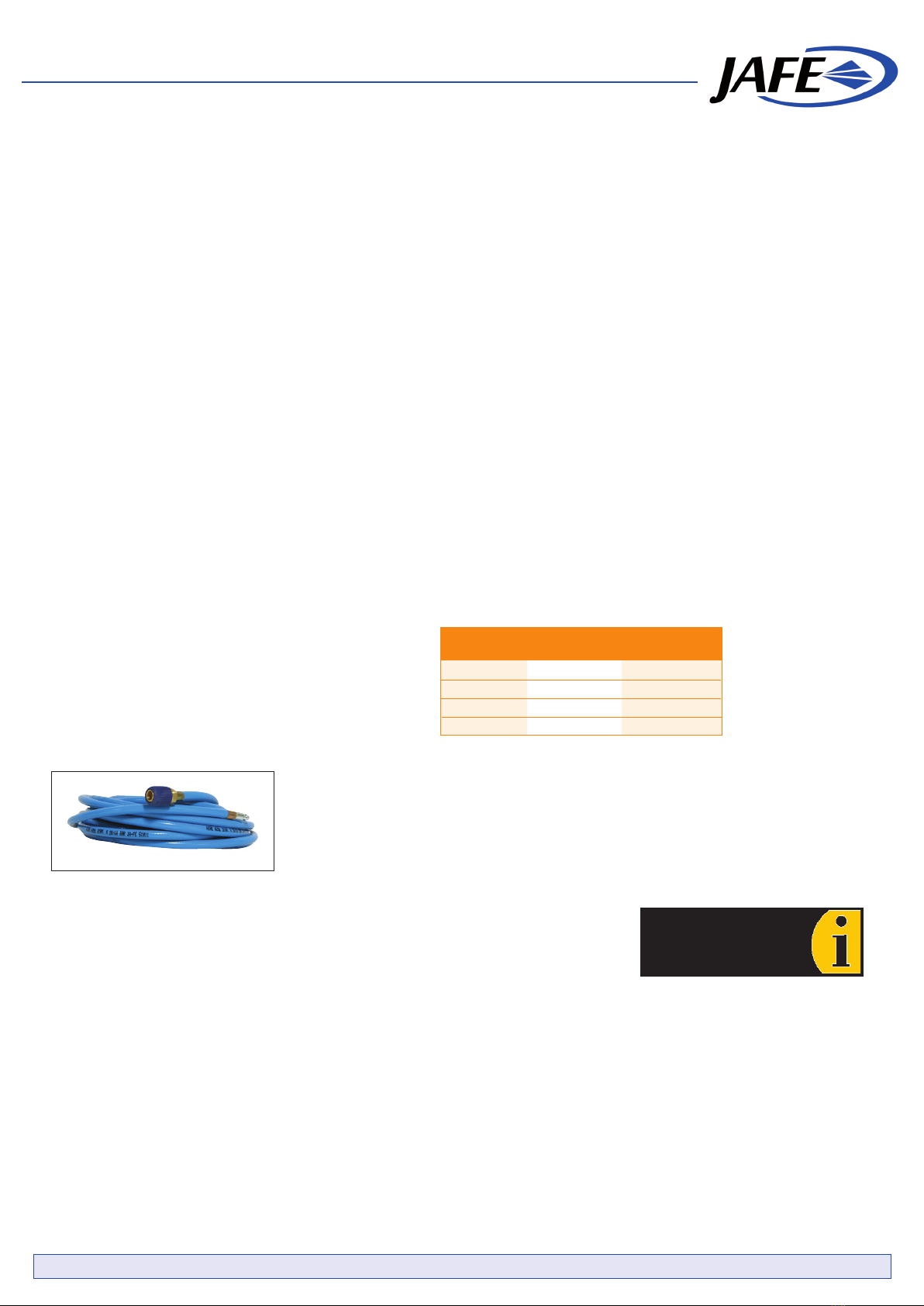

8.1. PRODUCTS THAT CAN BE SPRAYED

This gun is designed and recommended to spray:

o Plastic paints

o Multicolored

o Soft distemper paints

9. ACCESSORIES

9. 1. STANDARD ACCESSORIES

Aerográcos Gahe, S.A. delivers the gun with the following accessories and documentation:

o 5-LITER NYLON DEPOSIT.

o CLAMP.

o ADAPTOR TO FUNNEL.

o USER AND MAINTENANCE GUIDE.

9. 2. OPTIONAL ACCESORIES

Aerográcos GAHE, S.A. o󰀨ers a wide range of optional accesories:

oCOMBINATION TABLE

o HOSES

AIR HOSE Ref. 51011-X in lenghts from 5 to 50 m. with a C-8 adaptor in one

side and a X-8 connection on the other side.

10. WORKING DESCRIPTION

1. Close the gun regulators (no.6 & no.10).

2. Prepare the product to be sprayed (according to the manufacturer’s instructions).

3. Loose the product regulator (no.10), point the gun at a paint pit or a test surface and pull the trigger until

the paint comes out.

4. Adjust the fun width (no.6) and the product regulator (no.10) until you achieve the desired paint pattern.

50554-2.50

50554-1.40

50554-3.00

50587-2.50 B

50587-1.40 B

50587-3.00 B

50114-Nº60 B

COMPLETE KIT

FLUID TIP

NOZZLE

+ NEEDLE

50213-Nº1 B

50213-Nº3 B

50213-Nº4 B

50554-2.00 50587-2.00 B 50213-Nº2 B

PRIMA 100 Tolva

Combination Table

FURTHER INFORMATION

about all these products

can be found on the

General Catalog

Aerográcos GAHE, S.A. Page 9 Ref. Manual: 810603013 (rev. 2)

PRIMA 100 Tolva - USER AND MAINTENANCE GUIDE

Aerográcos GAHE, S.A. Page 8 Ref. Manual: 810603013 (rev. 2)

11. MIANTENANCE

The ordinary maintenance of the gun is very simple as it does not require any special operation. To ensure the

proper functioning, you only have to clean the paint circuit after nishing the activity.

A recommendation for the product to last longer is to use well ltered paints and avoid paints which block the

nozzle easily.

CLEANING:

1. Substitute the paint by solvent.

2. Regulate the minimum working pressure (regulate the air at 1 bar -14 psi).

3. Pull the trigger until the whole circuit is completely clean.

4. Disconnect from the compressed air.

5. Clean the air nozzle with a cloth and a brush.

6. Clean the body of the gun with a cloth.

7. Lubricate all the moving parts.

NOTES:

o Always use the gun in a perpendicular position to the area to be painted.

o Avoid working only with a wrist movement.

o Do not forget that cross coats do not cover regularly.

o Spraying with an immobile gun causes a local overload. Therefore, do not pull the trigger before

starting to move your arm, and do not release it before nishing the movement.

o Try to get a spraying with regular and constant thickness between the di󰀨erent coats.

CLEANING NOTES:

o If the cleaning is done in an industrial washing machine for spray guns, the air and product regulator

have to be closed (so that the solvent does not damage the joints). Dry the gun with a blowing gun

once the cleaning cycle has nished.

o Do not use metallic brushes for cleaning.

o Never sink the gun into solvent.

USER AND MAINTENANCE GUIDE - PRIMA 100 Tolva

Aerográcos GAHE, S.A. Page 10 Ref. Manual: 810603013 (rev. 2)

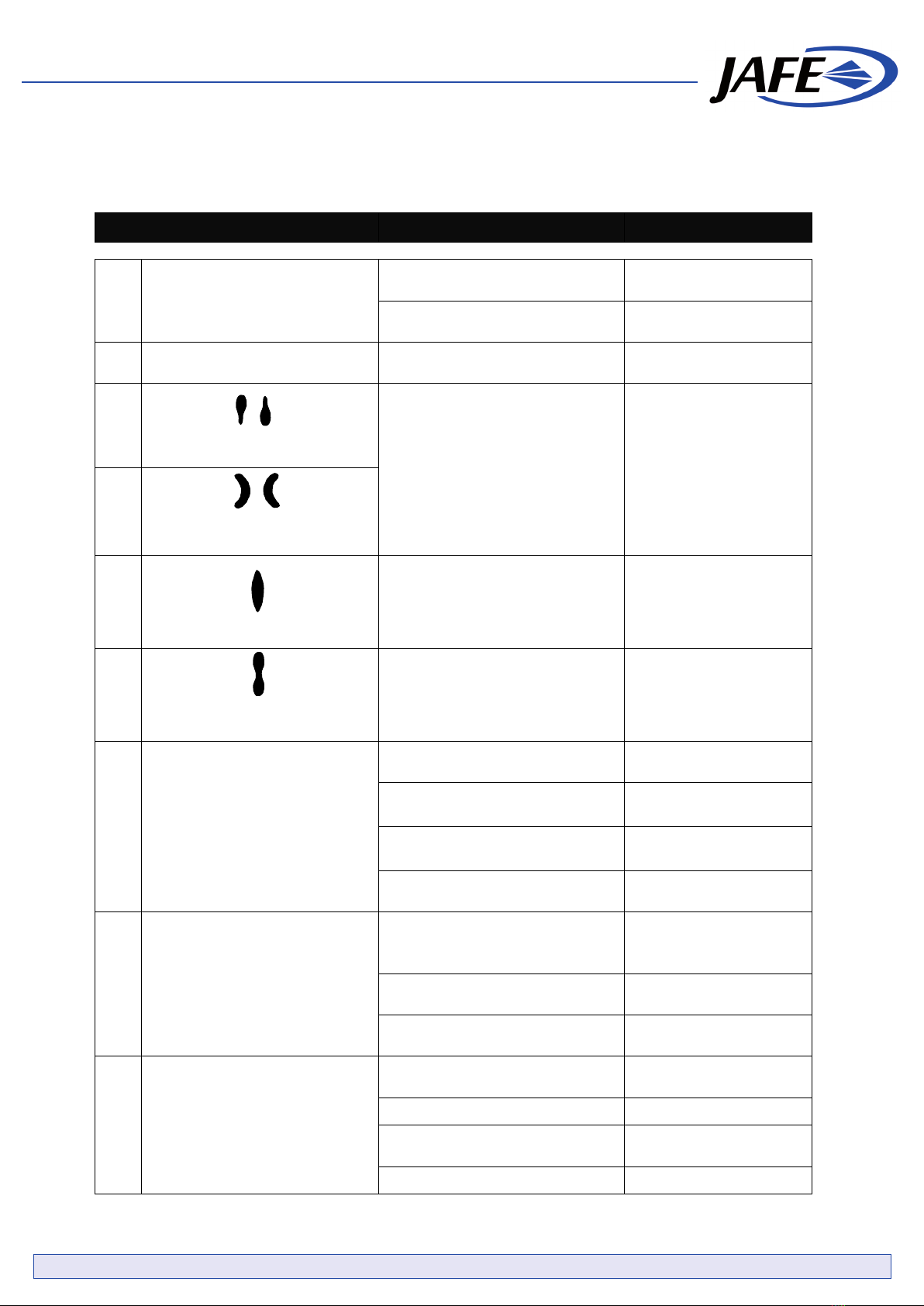

12. TROUBLESHOOTING

A table with incidents that the user can solve himself is shown below.

CONDITION

POSSIBLE CAUSE

SOLUTION

I

No spraying

a. No pressure in the gun

Check the air and

product hoses

b. Bad regulated flow

regulator

Regulate it

II

Incorrect spraying

a. Bad regulated spray gun

Correct it

III

Blocked nozzle

Clean the nozzle

IV

V

Too thick or too much

material

Dilute or reduce the

amount of material

VI

Little material

Reduce the air

pressure or increase

the product flow

VII

Intermittent spraying

a. Not enough material in the

tank or blocked duct

Fill the tank or

check/clean the hose

b. Blocked gun material duct

Clean the gun ducts

c. Worn packing seal or

loose packing screw

Change or tighten the

packing seal

d. Damaged or loose fluid tip

Change or tighten the

fluid tip

VIII

Fluid loss through the

packing screw

a. Loose packing screw

Tigthen, check the

needle to make sure

there is no movement

b. Dry packing seal

Lubricate the packing

seal

c. Worn packing seal

Change the packing

seal

IX

Leaking fluid tip

a. Dry packing seal

Lubricate the packing

seal

b. Blocked needle

Lubricate the needle

c. Packing screw too

tightened

Too tightened

packing screw

d. Worn nozzle

Change the fluid tip

Pattern shape

Aerográcos GAHE, S.A. Page 11 Ref. Manual: 810603013 (rev. 2)

PRIMA 100 Tolva - USER AND MAINTENANCE GUIDE

Aerográcos GAHE, S.A. Page 10 Ref. Manual: 810603013 (rev. 2)

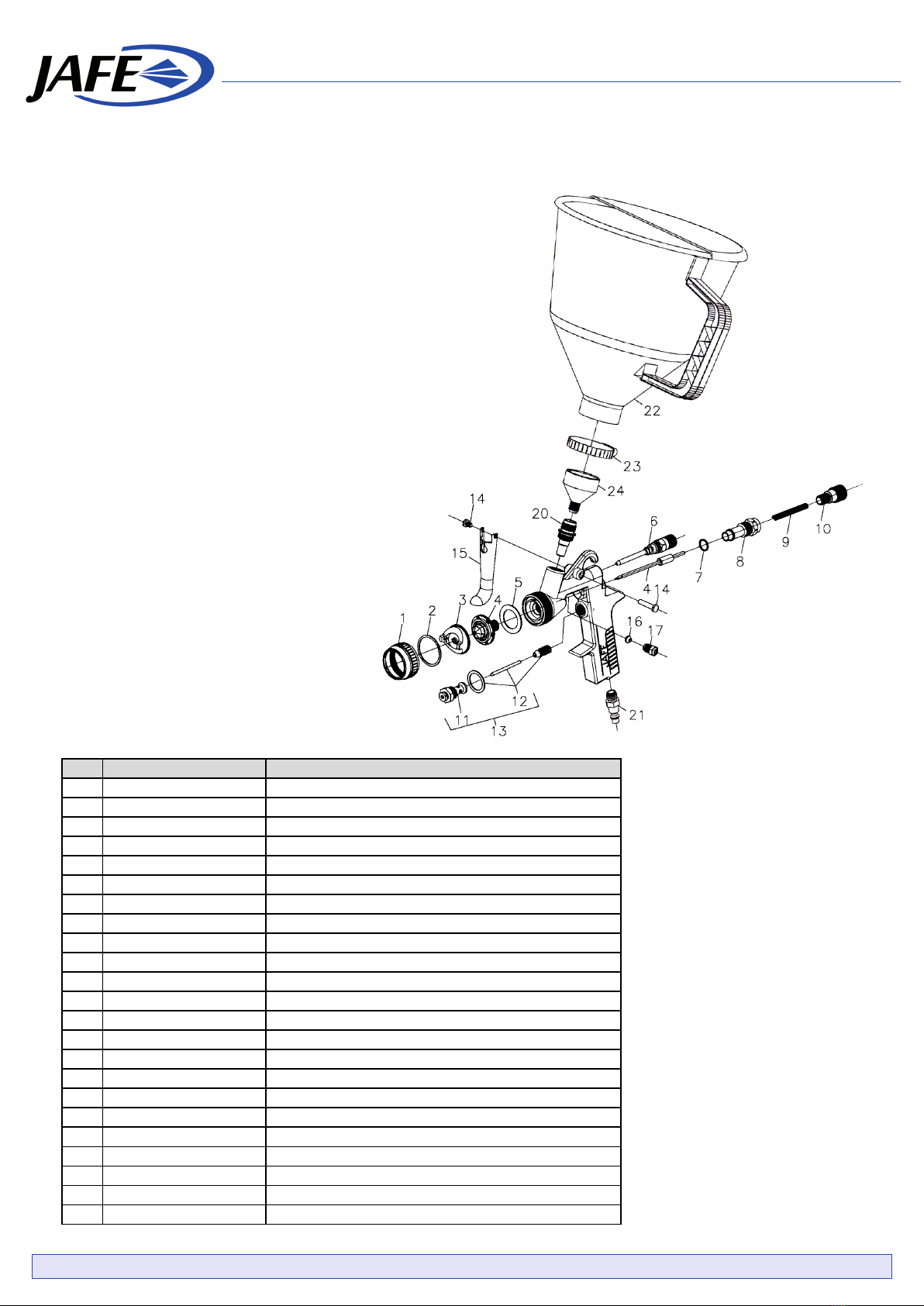

PRIMA 100 Tolva Exploded View (Rev0)

No. Ref. Description

150566B Nozzle nut

250267B1 Joint, 1 unit

350213XB Nozzle (see combination table)

450587XXX Fluid tip + needle (see combination table)

5501691B Joint, 1 unit

650536B Fan regulator kit

7500111B Joint, 1 unit

850012B Bushing

9500131B Spring, 1 unit

10 500141B Product regulator

11 50069B Valve

12 50016 Air closing valve

13 50070 Complete valve

14 50241B Screw and stud

15 50021B Trigger

16 500191B Packing, 1 unit

17 501871B Packing nut, 1 unit

21 10CR1/4MBLISTER Quick coupling

22 50160B Funnel

23 50145B Clamp

24 50196B Deposit - Gun union

*50554XXX Complete kit (see combination table)

*50538 Joints kit

13. EXPLODED VIEW

13.1 PRIMA 100 Tolva Exploded View

USER AND MAINTENANCE GUIDE - PRIMA 100 Tolva

Aerográcos GAHE, S.A. Page 12 Ref. Manual: 810603013 (rev. 2)

14. WARRANTY

This equipment is covered with a 2-year warranty from the date of purchase. The guarantee covers against

manufacturing faults and components defects.

Only repairs and elements substitution carried out by technical sta󰀨 of Aerográcos GAHE, S.A. are covered.

Faulty pieces will be sent carriage paid.

Warranty does not cover:

o Faults or damages caused by improper use of the equipment.

o Faults or damages caused by the use of spare parts di󰀨erent from the original JAFE ones or those

recommended by Aerográcos GAHE, S.A.

o Faults or damages caused by bad maintenance.

o Components subject to wear (nozzles, lters, etc.).

Warranty is void:

o Whenever repairing operations or components substitutions are carried out without prior authorization of

Aerográcos GAHE, S.A.

o Whenever the serial number is removed or manipulated.

o Whenever it is checked that the fault has been caused by improper use or if the equipment falls, is bumped

or by other causes not due to normal working conditions.

All repairing interventions carried out under warranty will not entail a stoppage or extension of the warranty period.

Aerográcos GAHE, S.A. Page 13 Ref. Manual: 810603013 (rev. 2)

PRIMA 100 Tolva - USER AND MAINTENANCE GUIDE

Aerográcos GAHE, S.A. Page 12 Ref. Manual: 810603013 (rev. 2)

Cut along the dotted line

Purchaser:......................................................

Address: ........................................................

City: .............................................................

Model: PRIMA 100 Tolva Date of purchase:

Serial Number:

Distributor Stamp:

USER AND MAINTENANCE GUIDE - PRIMA 100 Tolva

Aerográcos GAHE, S.A. Page 14 Ref. Manual: 810603013 (rev. 2)

Notes

.................................................................................................................................................................

................................................................................................................................................................

.................................................................................................................................................................

................................................................................................................................................................

.................................................................................................................................................................

................................................................................................................................................................

...............................................................................................................................................................

................................................................................................................................................................

...............................................................................................................................................................

................................................................................................................................................................

Aerográcos GAHE, S.A. Page 15 Ref. Manual: 810603013 (rev. 2)
