JAI AD-131GE User manual

1036E-1201
AD-131GE
Digital 2CCD Progressive Scan
HDR / High Frame Rate Camera
Document Version: 1.0
AD-131GE_Ver.1.0_July2012
User's Manual

AD-131GE
2
Notice
The material contained in this manual consists of information that is proprietary to JAI Ltd.,
Japan and may only be used by the purchasers of the product. JAI Ltd., Japan makes no
warranty for the use of its product and assumes no responsibility for any errors which may
appear or for damages resulting from the use of the information contained herein. JAI Ltd.,
Japan reserves the right to make changes without notice.
Company and product names mentioned in this manual are trademarks or registered
trademarks of their respective owners.
Warranty
For information about the warranty, please contact your factory representative.
Certifications
CE compliance
As defined by the Directive 2004/108/EC of the European Parliament and of the Council, EMC
(Electromagnetic compatibility), JAI Ltd., Japan declares that AD-131GE complies with the
following provisions applying to its standards.
EN 61000-6-3 (Generic emission standard part 1)
EN 61000-6-2 (Generic immunity standard part 1)
FCC
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Warning
Changes or modifications to this unit not expressly approved by the party
responsible for FCC compliance could void the user’s authority to operate the
equipment.

AD-131GE
Supplement
The following statement is related to the regulation on “ Measures for the Administration
of the control of Pollution by Electronic Information Products “ , known as “ China RoHS “.
The table shows contained Hazardous Substances in this camera.
mark shows that the environment-friendly use period of contained Hazardous
Substances is 15 years.
嶷勣廣吭並㍻
嗤蕎嗤墾麗嵎賜圷殆兆各式根楚燕
功象嶄鯖繁酎慌才忽佚連恢匍何〆窮徨佚連恢瞳麟半陣崙砿尖一隈〇  云恢瞳ゞ 嗤蕎  嗤
墾麗嵎賜圷殆兆各式根楚燕 〃泌和

桟隠聞喘豚㍉
窮徨佚連恢瞳嶄根嗤議嗤蕎嗤墾麗嵎賜圷殆壓屎械聞喘議訳周和音氏窟伏翌
亶賜融延、窮徨佚連恢瞳喘薩聞喘乎窮徨佚連恢瞳音氏斤桟廠夛撹冢嶷麟半
賜斤児繁附、夏恢夛撹冢嶷鱒墾議豚㍉。
方忖仝15々葎豚㍉15定。

AD-131GE
3
Table of Contents
JAI GigE® Vision Camera operation manuals ............................................................ 7
Introduction ................................................................................................. 7
Before using GigE Vision camera.......................................................................... 7
Software installation ....................................................................................... 7
Camera Operation .......................................................................................... 8
1. General.................................................................................................. 8
2. Camera nomenclature ................................................................................ 8
3. Main Features......................................................................................... 9
4. Locations and functions ............................................................................10
4.1. Locations and functions .......................................................................10
4.2. Rear Panel Indicator ...........................................................................11
5. Pin configuration & DIP switch ....................................................................12
5.1. 12-pin Multi-connector (DC-in/GPIO/Iris Video) ...........................................12
5.2. Digital Output Connector for Gigabit Ethernet ............................................12
5.3. 6-pin Multi-connector (LVDS IN and TTL IN/OUT) .........................................12

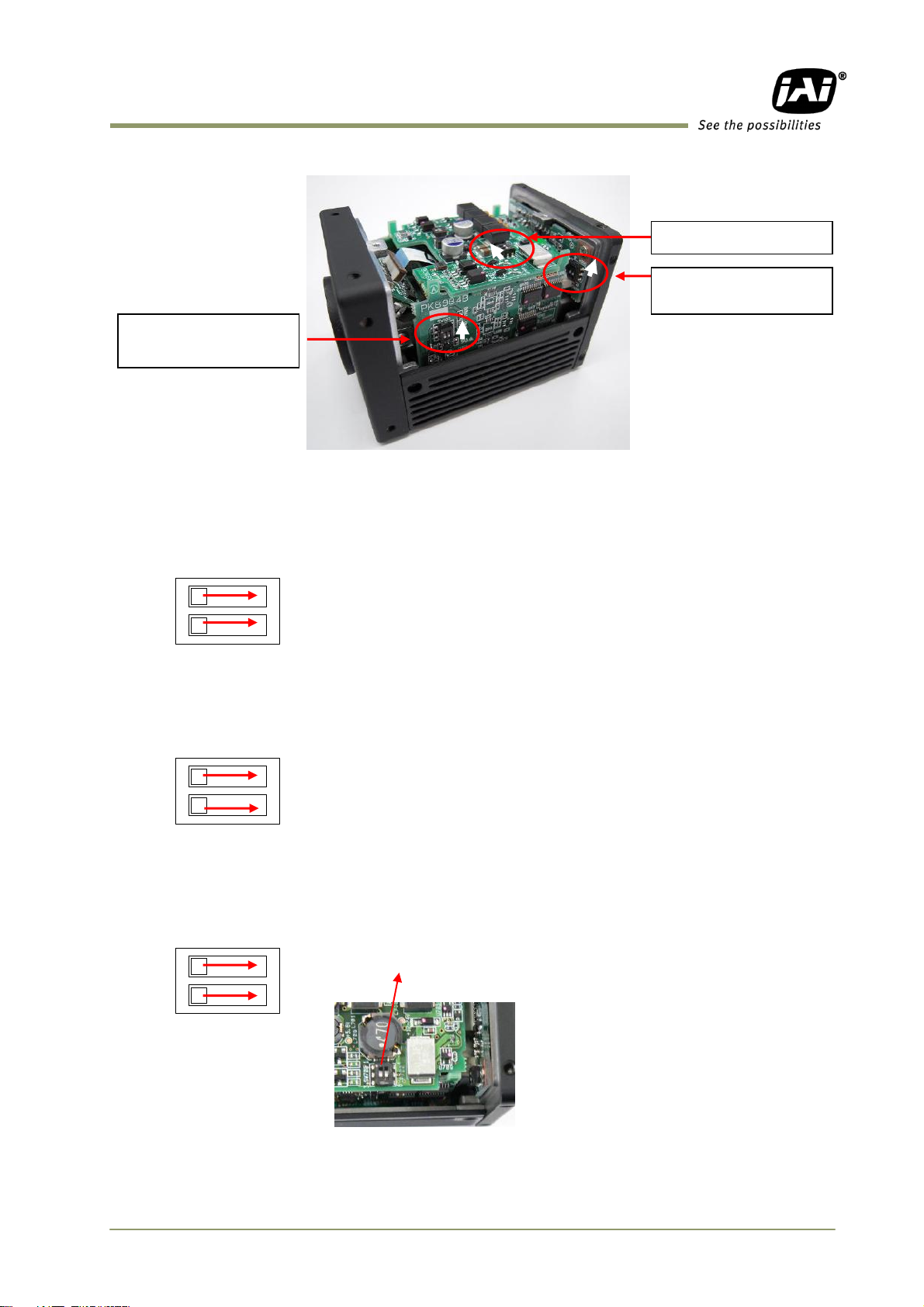

5.4. DIP switches.....................................................................................13
5.4.1 SW800 Trigger input 75 ohms termination ...........................................13
5.4.2 SW100 TTL/Open collector output select ............................................13
5.4.3 SW700 Video output for Auto iris lens.................................................13
6. System Configuration.............................................................................14
6.1. System connection .............................................................................14
6.2. RJ-45 outputs ...................................................................................14
6.3. Sync Mode .......................................................................................15
7. Inputs and outputs interface .....................................................................16
7.1. Overview ........................................................................................16
7.1.1 LUT (Cross Point Switch) ..................................................................16
7.1.2 12-bit Counter ..............................................................................17
7.1.3 Pulse Generators (0 to 3) .................................................................17
7.2. Opto-isolated Inputs/Outputs ................................................................17
7.2.1 Recommended External Input circuit diagram for customer ........................17
7.2.2 Recommended External Output circuit diagram for customer ......................18
7.2.3 Optical Interface Specifications .........................................................18
7.3. Input and output circuits......................................................................19
7.3.1 Iris Video output ...........................................................................19
7.3.1.1 Iris Video input and output .........................................................19
7.3.1.2 Iris video output select..............................................................19
7.3.2 Trigger input................................................................................20
7.3.3 Exposure Enable (EEN) output............................................................20
7.4. GPIO Inputs and outputs table ...............................................................21
7.5. Configuring the GPIO module.................................................................22
7.5.1 Input /Output Signal Selector ............................................................22
7.5.2 Pulse generators (20 bit x 4) .............................................................22
7.5.3 GPIO interface in GenICam standard....................................................23
7.5.4 Change polarity ............................................................................23
7.5.5 Restrictions to the use of TTL In I/F in the AD-131GE ................................24
7.5.6 Caution when the software trigger is used.............................................25
7.6. GPIO programming examples .................................................................27
7.6.1 GPIO Plus PWC shutter ....................................................................27
7.6.2 Internal Trigger Generator ...............................................................28

AD-131GE
4
8. Video Signal Output.................................................................................29
8.1. Sensor layout ...................................................................................29
8.2. Partial scan (JAI Partial Scan ON) ...........................................................30
8.3. Digital Video Output (Bit Allocation) ........................................................31
8.3.1 AD-131GE Pixel Format / Pixel Type ....................................................31
8.3.1.1 GVSP_PIX_MONO8 (8bit).............................................................31
8.3.1.2 GVSP_PIX_MONO10 (10bit) ........................................................31
8.3.1.3 GVSP_PIX_MONO10_PACKED (10 bit) ..............................................31
8.3.1.4 GVSP_PIX_MONO12 (12 bit) .........................................................32
8.3.1.5 GVSP_PIX_MONO12_PACKED (12 bit) ..............................................32
8.4. Video timing ....................................................................................32
8.4.1 Horizontal Timing ..........................................................................32
8.4.2 Vertical Timing ..........................................................................33
8.4.3 Partial Scan Vertical Timing ..............................................................34
8.4.4 V Binning scan Vertical timing ...........................................................35
9. Network configuration..............................................................................36
9.1. GigE Vision Standard Interface...............................................................36
9.2. Equipment to configure the network system...............................................36
9.2.1 PC ............................................................................................36
9.2.2 Cables........................................................................................36
9.2.3 Network card (NIC) ........................................................................36
9.2.4 Hub...........................................................................................37
9.3. Recommended Network Configurations.....................................................37
9.3.1 Guideline for network settings .........................................................37
9.3.2 Video data rate (network bandwidth) ..................................................38
9.3.3 Simplified calculation (Approximate value)............................................39
9.3.4 Note for 100BASE-TX connection ........................................................39
9.4. GigE camera connecting examples ..........................................................40
9.4.1 Using a switching hub for 1 port .........................................................40
9.4.2 Connecting a camera to each port of a multi-port NIC...............................40
9.4.3 The data transfer for multiple cameras ................................................41
9.4.3.1 If delayed readout is not used in continuous mode .............................41
9.4.3.2 If delayed readout is not used in trigger mode ..................................41
9.4.3.3 If delayed readout is used ..........................................................42
10. Functions (Conforming to GenICam SFNC 1.3) ....................................................43
10.1. Acquisition function ..........................................................................43
10.1.1 Basic image acquisition flow ............................................................43
10.1.2 Acquisition mode .........................................................................44
10.1.2.1 Single Frame.........................................................................44
10.1.2.2 Continuous mode ...................................................................45
10.2. Trigger Control ................................................................................46
10.2.1 Trigger Selector (Trigger Mode) ........................................................46
10.2.1.1 Acquisition ...........................................................................46
10.2.1.2 Exposure .............................................................................46
10.2.2 Trigger software ..........................................................................47
10.2.3 Trigger source ..............................................................................47
10.2.4 Trigger Activation..........................................................................47
10.3. Exposure Control..............................................................................47
10.3.1 Exposure Mode ............................................................................47
10.3.2 Exposure Time ............................................................................48
10.3.3 Exposure Auto ..............................................................................48

AD-131GE
5
10.4. Action Control.................................................................................48
10.4.1 ActionDeviceKey ..........................................................................49
10.4.2 ActionSelector ............................................................................49
10.4.3 ActionGroupMask .........................................................................49
10.4.4 ActionGroupKey...........................................................................49
10.5. Operation Mode ...............................................................................49
10.5.1 High frame rate mode (Double speed) ................................................49
10.5.2 High dynamic range mode...............................................................50
10.5.3 High S/N mode ............................................................................51
10.5.4 Setting matrix for Sync mode and Exposure Mode(JAI) .............................52
10.6. Trigger operation mode......................................................................52
10.6.1 The exposure timing when the trigger pulse is input................................53
10.6.1.1 Auto-detect LVAL-sync / async accumulation ..................................53
10.6.1.2 Relation between the external trigger mode and LVAL Sync/Async ........53
10.6.2 Continuous mode .........................................................................54
10.6.3 Trigger operation with pre-select exposure time (EPS) ...........................54
10.6.3.1 Timing chart .........................................................................56
10.6.4 Trigger operation controlled by pulse width (PWC) ...............................58
10.6.4.1 Timing chart .........................................................................59
10.6.5 Smearless mode...........................................................................60
10.6.5.1 Sync=Sync, LVAL Async, Smearless Enable=True, EPS trigger ................60
10.6.5.2 Sync Mode=Sync, LVAL Async, Smearless Enable=True, PWC trigger ......61
10.6.6 Reset Continuous Trigger (RCT) mode.................................................62
10.6.7 PIV ( Particle Image Velocimetry ) mode..............................................63
10.6.7.1 Relation between Exposure and Video readout ................................64
10.6.7.2 Relation between PIV exposure and PIV interval...............................64
10.6.7.3 Preset value table for PIV 1, 2 and 3 ...........................................65
10.6.7.4 Setting values and range for PIV 4 ...............................................65
10.6.7.5 Formula from PIV Exposure and Interval to Exposure time and interval ...65
10.6.7.6 PIV trigger minimum interval .....................................................66
10.6.8 Sequential Trigger Mode (EPS)..........................................................67
10.6.8.1 Setting parameters .................................................................67
10.6.8.2 Initial settings .......................................................................68
10.6.9 Delayed Readout EPS and PWC Modes .................................................69
10.6.10 Multi ROI mode (Multi Region of Interest) ...........................................69
10.6.10.1 Setting parameters................................................................70
10.6.10.2 Initial parameters .................................................................70
10.6.11 Optical Black transfer mode...........................................................70
10.6.12 Operation Mode and Functions matrix ...............................................72
11. Other functions ....................................................................................73
11.1. Basic functions ................................................................................73
11.2. 2CCD optical assembly .......................................................................73
11.3. Electronic shutter ............................................................................73
11.4. Shading correction............................................................................75
11.6. Blemish compensation .......................................................................76
11.7. ALC..............................................................................................76
11.8. Test signal generator.........................................................................78
11.9. Control Tool Screen ..........................................................................78
12. External Appearance and Dimensions...........................................................84
13. Specifications.......................................................................................85
13.1. Total Spectral response including prism and CCD........................................85

AD-131GE
6
13.2. Specification Table ...........................................................................86
Appendix ....................................................................................................88
1. Precautions ........................................................................................88
2. Typical Sensor Characteristics..................................................................88
3. Caution when mounting a lens on the camera ...............................................88
4. Caution when mounting the camera...........................................................89
5. Exportation ........................................................................................89
6. References.........................................................................................89
Change History .............................................................................................90
User's Record ...............................................................................................91

AD-131GE
7
JAI GigE® Vision Camera operation manuals
To understand and operate this JAI GigE® Vision camera properly, JAI provides the following
manuals.
 Describes functions and operation of the hardware
JAI SDK & Control Tool User Guide Describes functions and operation of the Control Tool
JAI SDK Getting Started Guide Describes the network interface
www.jai.com
JAI SDK & Control Tool User Guide and JAI SDK Getting Started Guide are provided with the JAI
SDK which is available at www.jai.com.
Introduction
GigE Vision is the new standard interface using Gigabit Ethernet for machine vision applications
and it was mainly set up by AIA (Automated Imaging Association) members. GigE Vision is
capable of transmitting large amounts of uncompressed image data through an inexpensive
general purpose LAN cable for a long distance.
GigE Vision also supports the GenICamTM standard which is mainly set up by the EMVA (European
Machine Vision Association). The purpose of the GenICam standard is to provide a common
program interface for various machine vision cameras. By using GenICam, cameras from
different manufactures can seamlessly connect in one platform.
For details about the GigE Vision standard, please visit the AIA web site,
www.machinevisiononline.org and for GenICam, the EMVA web site, www.genicam.org.
JAI GigE Vision cameras comply with both the GigE Vision standard and the GenICam standard.
Before using GigE Vision camera
All software products described in this manual pertain to the proper use of JAI GigE Vision
cameras. Product names mentioned in this manual are used only for the explanation of
operation. Registered trademarks or trademarks belong to their manufacturers.

This manual describes necessary equipment and the details of camera functions.
Software installation
The JAI GigE Vision SDK & Control Tool can be downloaded from the JAI web site at
www.jai.com. The JAI SDK is available for Windows XP,Vista, and Windows 7, 32-bit and 64-bit.
For the 
the JAI SDK download page.

AD-131GE
8
Camera Operation
1. General
This manual covers the digital 2-CCD progressive scan camera AD-131GE.
The AD-131GE is a GigE Vision compliant camera, belonging to the JAI C3 Advanced family. The
AD-131GE employs two 1.3 megapixel Monochrome CCDs utilizing prism optics in order to
achieve advanced functions such as High S/N mode which improves the signal-to-noise ratio by
3dB; High Dynamic Range mode which achieves 120dB; and High Frame Rate mode which
doubles the normal frame rate while maintaining the same clock speed and S/N ratio.
The AD-131GE provides a standard frame rate of 31 frames/second at full resolution. Using
partial scan, the camera can achieve faster frame rates up to 145 fps (8 lines height).
The 1/3" CCDs with square pixels offer a superb image quality. The high-speed shutter function
and asynchronous random trigger mode allows the camera to capture high quality images of
fast moving objects.
The camera features a built-in pre-processing function which includes blemish compensation,
shading compensation, LUT/gamma correction and knee control.
The AD-131GE also complies with the GenICam standard and contains an internal XML file that
is used to describe the functions/features of the camera. For further information about the
GigE Vision Standard, please go to www.machinevisiononline.org and about GenICam, please
go to www.genicam.org.
As an application programming interface, JAI provides an SDK (Software Development Kit). This
SDK includes GigE Vision Filter Driver, JAI Control tool, software documentation and code
examples.
The JAI SDK can be downloaded from www.jai.com.
The latest version of this manual can be downloaded from www.jai.com
For camera revision history, please contact your local JAI distributor.
2. Camera nomenclature
The standard camera composition consists of the camera main body and C-mount protection
cap.
The camera is available in the following versions:
AD-131GE
Where Astands for "Advanced" family, Dstands for "Dual CCD", 131represents the resolution
"1.3 million pixels", 131indicates that this is the second dual-CCD model with this resolution,
and GE stands for "GigE Vision" interface.

AD-131GE
9
3. Main Features
C3 Advanced series progressive scan camera
GigE Vision, GenICam compliant
HDR / high frame rate /High SNR 2-channel CCD camera
IT CCDs with 1296 (h) x 966 (v) active pixels
3.75 
Monochrome 12- or 10- or 8-bit output
31 frames/second with full resolution
Variable partial scan is available with user-definable height and starting line
Programmable exposure from 0.4L(11.4) to 982L(31.7ms)
Edge Pre-select, Pulse Width Control, Reset Continuous Trigger and PIV modes
Sequence trigger mode for on-thefly change of gain, exposure and ROI
Delayed readout mode for smooth transmission of multi camera applications
Smear less mode
Blemish compensation built in
Shading compensation circuit built in
LUT (Look Up Table) for gamma correction
AGC (Automatic Gain Control) from 0dB to 21dB
LVAL synchronous/asynchronous operation (auto-detect)
Auto-iris lens video output for lens control
Programmable GPIO with opto-isolated inputs and outputs
Comprehensive software tools and SDK for Windows XP/Vista/7 (32 bit x86and 64
bit x64JAI SDK Ver. 1.2.1 and after )

AD-131GE
10
4. Locations and functions
4.1. Locations and functions

CCD sensor
: 1/3 inch CCD sensor

Lens Mount
: C-mount ( Note*1 )

12P Multi Connector
: DC+12V and Trigger Input

LED
: Power and Trigger indications

6P Multi Connector
: LVDS IN and TTL IN and OUT

RJ-45 Connector(GigE 1)
: GigE Vision I/F w/ thumbscrews for color

RJ-45 Connector(GigE2)
: GigE Vision I/F w/ thumbscrews for NIR

Holes for RJ-45 thumbscrews
: Vertical type (Note*2)

Holes for RJ-45 thumbscrews
: Vertical type (Note *2)

Mounting holes
: M3, max length 5mm (Note*3)
*1) : AD-131GE uses prism optics. For optimal performance, C-mount lenses should be designed for
interfacing to a 3CCD camera. Rear protrusion of the C-mount lens must be less than 4mm
to avoid damage to the prism.
*2) : When an RJ-45 cable with thumbscrews is connected to the camera, please do not excessively
tighten screws by using a screw driver. The RJ-45 receptacle on the camera might be
damaged. For security, the strength to tighten screws is less than 0.147 Newton meter (Nm).
Tightening by hand is sufficient in order to achieve this.
*3) : The tripod adapter plate MP-41 can be used with AD-131GE
Fig.1 Locations

AD-131GE
11
4.2. Rear Panel Indicator
The rear panel mounted LED provides the following information:
Amber : Power connected initiating
Steady green : Camera is operating in Continuous mode
Flashing green : The camera is receiving external trigger
■Steady green : Connecting 1000Base-T：Link
Flashing green : Connecting 100Base-T/10Base-T：Link
■Amber : GigE Network: Act
Fig.2 Rear panel
Note: In 10BASE-T connection, no signal is output.
DCIN/TRIG
GPIO POWER/TRIG
GigE-2GigE-1
1188

AD-131GE
12
5. Pin configuration & DIP switch
5.1. 12-pin Multi-connector (DC-in/GPIO/Iris Video)
Type: HR10A-10R-12PB
(Hirose) male.
(Seen from the rear of
camera)
Fig. 3. 12-pin connector.
5.2. Digital Output Connector for Gigabit Ethernet
Type: RJ-45 : HFJ11-1G02E-L21RL or equivalent
The digital output signals follow
the Gigabit Ethernet interface
using an RJ-45 conforming
connector. To the right is a table
with the pin assignment for
Gigabit Ethernet connector.
Fig. 4. Gigabit Ethernet
connector
5.3. 6-pin Multi-connector (LVDS IN and TTL IN/OUT)
Type : HR-10A-7R-6PB
注
Fig.5 HIROSE 6-pin connector *1:can be changed by DIP switches.
*2: Open collector or TTL level can be selected by an
internal DIP switch. Factory default is TTL.
Pin no.
Signal
Remarks
1
GND
2
+12 V DC input
3
Opt IN 2 (-) / GND (*1)
GPIO IN / OUT
4
Opt IN 2 (+)/Iris Video out (*1)
5
Opt IN 1 ( - )
6
Opt IN 1 ( + )
7
Opt Out 1 ( - )
8
Opt Out 1 ( + )
9
Opt Out 2 ( - )
10
Opt Out 2 ( + )
11
+ 12 V DC input
12
GND
*1: Iris Video output function can be set by the internal DIP switch
(SW700).
Pin No
In/Out
Name
1
In/Out
MX1+ (DA+)
2
In/Out
MX1- (DA-)
3
In/Out
MX2+ (DB+)
4
In/Out
MX3+ (DC+)
5
In/Out
MX3- (DC-)
6
In/Out
MX2- (DB-)
7
In/Out
MX4+ (DD+)
8
In/Out
MX4- (DD-)
No
I/O
Name
Note
1
I
LVDS In 1-
2
I
LVDS In 1+
3
I
TTL IN 1
75ohm Terminator (Note*1)
4
O
TTL Out 1
Note*2)
5
I
TTL IN 2
75ohm Terminator(Note*1)
6
GND
3
456
7
8
9
10
11 12
1
2
123
456
7
8
1
2
34
5
6

AD-131GE
13
5.4. DIP switches
5.4.1 SW800 Trigger input 75 ohms termination
Trigger input can be terminated with 75 ohms if DIP switch SW600 is selected as
described below. Factory default is open.
5.4.2 SW100 TTL/Open collector output select
EEN output through HIROSE 6-pin #4 can be selected TTL level or open collector level.
The selection is activated by DIP switch SW100 described below.
5.4.3 SW700 Video output for Auto iris lens
The output through HIROSE 12-pin #4 can be selected OPT IN 2 or Iris video output by DIP
switch SW700 described below. Factory default is OPT IN 2.
SW700 for lens iris
SW800 for 75 ohms
termination
SW100 for selecting
TTL output
TTL 75 Ω
①TTL IN 1
②TTL IN 2
TTL OPEN
OPT IN IRIS
Note: Toward upper side of camera body
Note: Toward upper side of camera body
Note: Toward inner side of camera body

AD-131GE
14
6. System Configuration
6.1. System connection
When the AD-131GE is connected to a PC, there are two connection methods.
Method one is to use dual or quad input Network Interface Card (NIC) or two separate network
interface cards. The other way is to use a hub as shown below.
Note: Connect both GigE terminals to PC. High S/N and High Dynamic range modes use only one
terminal but the other is also used for communication.
Fig.6 System configuration
It should be noted that the hub being used should comply with Gigabit Ethernet.
When JAI SDK control tool is started, AD-131GE is recognized as two cameras. #0 represents the
Bayer color imager #0 and #1 represents the Bayer color imager #1.
Each imager can be handled as an independent camera.
Two image sensors can be operated either in SYNC mode or ASYNC mode.
For the details, please refer to the following chapters 6.2 and 6.3..
6.2. RJ-45 outputs
The AD-131GE has two RJ-45 connectors for two monochrome sensors, #0 output and #1 output.
The output for the sensor #0 is through GigE-1 and sensor #1 output is through GigE-2. These
two outputs can be set at synchronous (SYNC) or asynchronous (ASYNC) in Sync Mode feature.
Fig.7 RJ-45 output system
BW CCD 1 Image
Process
Frame
Memory MAC PHY RJ45 GigE-1
BW CCD 2 Image
Process
Frame
Memory MAC PHY RJ45 GigE-2
2 x RJ45
Dual input NIC or 2 NICs
2 x RJ45
HUB 1 NIC with HUB

AD-131GE
15
6.3. Sync Mode
AD-131GE has two sensors inside and these two sensors can be synchronized or operated
independently. This mode selection is activated by Sync mode feature.
Factory default setting is Async.
Sync
mode
Video out
（Pixel format）
Trigger in
Read out
(Partial, Smearless)
Functions
(Exposure time)
Sync
Sensor 1 and 2
can be set
independently
(Note)
Trigger to sensor
1 operates sensor
2.
Settings to sensor 1
apply to sensor 2.
Sensor 1 and 2
can be set
independently
Async
Input trigger to
Sensor 1 and 2
independently
Sensor 1 and 2 can be
set independently
High
Frame
Rate
Continuous
operation
Settings to sensor 1
apply to sensor 2.
Settings to
sensor 1 apply
to sensor 2.
High
Dynamic
Range
Trigger to sensor
1 operates sensor
2.
Sensor 1 and 2
can be set
independently
High S/N
Settings to
sensor 1 apply
to sensor 2.
In Sync mode, the trigger to Camera #0 applies to Camera #1.
For the details, please refer to the chapter 10.5.11.
Note: Although the pixel format can be set individually, the same pixel format must be used if
the high frame rate, high dynamic range, high S/N and PIV mode are used.

AD-131GE
16
7. Inputs and outputs interface
7.1. Overview
All input and output signals pass through the GPIO (General Purpose Input and Output) module.
The GPIO module consists of a Look-Up Table (LUT Cross-Point Switch), 2 Pulse Generators
and a 12-bit counter. In the LUT, the relationship between inputs, counters and outputs is
governed by internal register set-up.
Fig. 9 Cross point switch
7.1.1 LUT (Cross Point Switch)
The LUT works as a cross-point switch which allows connecting inputs and outputs freely. The
signals LVAL_IN, DVAL_IN, FVAL_IN and EEN_IN all originate from the camera timing circuit.
On this diagram, Frame Start Triggeris used for exposure and Transfer Start Triggeris used
for Delayed Readout. The Time Stamp Reset signal can reset the time stamp specified in GigE
Vision Format. This signal can be used when time stamps from several cameras connected are
FVAL2
LVAL2
D V A L 2
E xposu re A c tiv e2
C ros s P oin t switc h
O ptic al In 1
O ptic al In 2
S o ftware T rigger 0
S o ftwa re T rigger 3 / A c tion 2
Fra m e S tart T rigger
T im e S ta m p R e se t
S o ftwa re T rigger 2 / A c tion 1
S o ftware T rigger 1
Sequence T able R e set
TTLIn 1
L VD S In
FVAL1
LVAL1
D V A L 1
E xposure A c tiv e1
TTLIn 2
C lear S ource 0
P u ls e G enerator 0 O u t
O ptic al O ut 1
O ptic al O ut 2
(12bit C ounter)
P u ls e
Generato r
C lo ck (M H z )
(P ixe l C lo ck
51.32 4 M H z ）
TTL O u t 1
(20 b it C ounte r)
P u ls e G enerator 0
S o ftware T rigger 0
S o ftware T rigger 3 / A c tion 2
S o ftware T rigger 2 / A ction 1
S o ftwa re T rigger 1
C a m e ra 0
(In terfac e#1)
C a m e ra 1
(Interface#2)
Trans fe r S ta rt T rigger
Fra m e S ta rt T rigger
Trans fe r S ta rt T rigger
C a m e ra 0
C a m e ra 1
Sequence T able R e s et
C a m e ra 0
C a m e ra 1
C lear S ourc e 1
C lear S ource 2
C lear S ourc e 3
P u ls e G enera tor
(20 b it C ounte r)
P u ls e G enerator 1
(20 b it C ounte r)
P u ls e G enerator 2
(20 b it C ounter)
P u ls e G enerator
C lo c k P re -sc ale r
P u ls e G enera to r 1 O u t
P u ls e G enerator 2 O ut
P u ls e G enera to r 3 O u t
3

AD-131GE
17
coincident with each other. The Sequence Table Reset 0and Sequence Table Reset 1reset
the sequential settings at the rising edge of FVAL.
7.1.2 12-bit Counter
A camera 
range 1 through 4096, allowing a wide range of clock frequencies to be programmed. Setting
value 0 is bypass, setting value 1 is 1/2 dividing, and setting value 4095 is 1/4096 dividing. As
the pixel clocks for the AD-131GE are 51.324 MHz, the output frequency is varied from 51.324
MHz to 12.53 KHz.
7.1.3 Pulse Generators (0 to 3)
Each pulse generator consists of a 20-bit counter. The behavior of these signals is defined by
their pulse width, start point and end point.
The pulse generator signals can be set in either triggered or periodic mode (Free Run).
In triggered mode, the pulse is triggered by the rising edge, falling edge, high level or low level
of the input signal. In periodic mode, the trigger continuously generates a signal that is based
on the configured pulse width, starting point and end point.
7.2. Opto-isolated Inputs/Outputs
The control interface of the C3 GigE Vision camera series has opto-isolated inputs and outputs,
providing galvanic separation between the cameras inputs/outputs and peripheral equipment.
In addition to galvanic separation, the opto-isolated inputs and outputs can cope with a wide
range of voltages; the voltage range for inputs is +3.3V to +24V DC whereas outputs will handle
+5V to +24V DC.
Fig.10 Photo coupler
7.2.1 Recommended External Input circuit diagram for customer
Fig.11 External Input Circuit、OPT IN 1 and 2

AD-131GE
18
7.2.2 Recommended External Output circuit diagram for customer
Fig.12 External Output Circuit, OPT OUT 1 and 2
7.2.3 Optical Interface Specifications
The relation of the input signal and the output signal through the optical interface is as follows.
Conditions for Input
Input Line Voltage Range
+3.3V ～+24V
Input Current
6mA ～30mA
Minimum Input Pulse Width to Turn
ON

Output Specifications
Output Load(Maximum Current)
100mA
Minimum Output Pulse Width

Time Delay Rise TDR
0.5s ～0.7s
Rise Time RT
1.2s ～3.0s
Time Delay Fall TDF
1.5s ～3.0s
Fall Time FT
4.0s ～7.0s
Fig.13 Optical Interface Performance
+3.3V

AD-131GE
19
7.3. Input and output circuits
In the following schematic diagrams, the input and output circuits for video and timing signals
are shown.
7.3.1 Iris Video output
This signal can be used for lens iris control in Continuous
mode. The signal is taken from the CCD sensor output
through the process circuit but as the reverse
compensation is applied, the signal is not influenced by
the gain settings. The video output is without sync. The
signal is 0.7 V p-p from 75 without termination.
This signal is taken from sensor 1 but it can be changed
by the register. In order to get this signal, DIP switch
DSW700 should be changed. Refer to 5.4.3.
Fig.14 Iris video output
7.3.1.1 Iris Video input and output
The lens-iris video output level at pin 4 of the 12-pin Hirose
connector is 700 mV for 100% video output level. The iris
video signal is taken after the gain circuit. However,
negative compensation is applied to the iris circuit, thus the
gain setting has no influence for controlling auto iris lenses.
It is without sync.
Fig.15 Iris Video output
7.3.1.2 Iris video output select
As the factory default setting, the signal from AD-131GE #0 is used for iris control. The setting
can be changed in the following screen. This screen is effective if AD-131GE #0 is selected.
CCD out
Analog Out
150mV
700mV
173mV↑
800mV
ＤＡ
１μ１Ｋ
２Ｋ２
０．１μ
＋５Ｖ
IRIS Video Out
0
100% Level
700
200
Anal og Out [ mV]
CCD Out [mV]
800
230
