Janam CK-XP-4 User manual

Four-Slot Cradle Kit
Quick Start Guide
Model CK-XP-4
4-100308CKXP4

Janam Technologies
Copyright 2008 Janam Technologies LLC. All rights reserved.
Products or services mentioned may be trademarks or registered trademarks of their respective
companies.
Janam Technologies LLC assumes no responsibility for any damage or loss resulting from, or in connection with the use
or application of any product. Janam Technologies LLC assumes no responsibility for any loss or claims by third parties
which may arise through the use of this product. Janam Technologies LLC assumes no responsibility for any damage or
loss caused by deletion of data as a result of malfunction, dead battery or repairs. Be sure to make backup copies of all
important data on other media to protect against data loss.
Contents of this guide are subject to change. For the most current version, visit www.janam.com
+1.877.JANAM.99
www.janam.com
Four-Slot Cradle Kit Quick Start Guide
1

Janam Technologies
To help you get started with your Four-Slot Cradle Kit (CK-XP-4), this guide features:
-Hardware Overview
-Getting Started
-Regulatory Information
Content and Additional Resources
2

Janam Technologies
Four-Slot Cradle Kit Hardware Overview

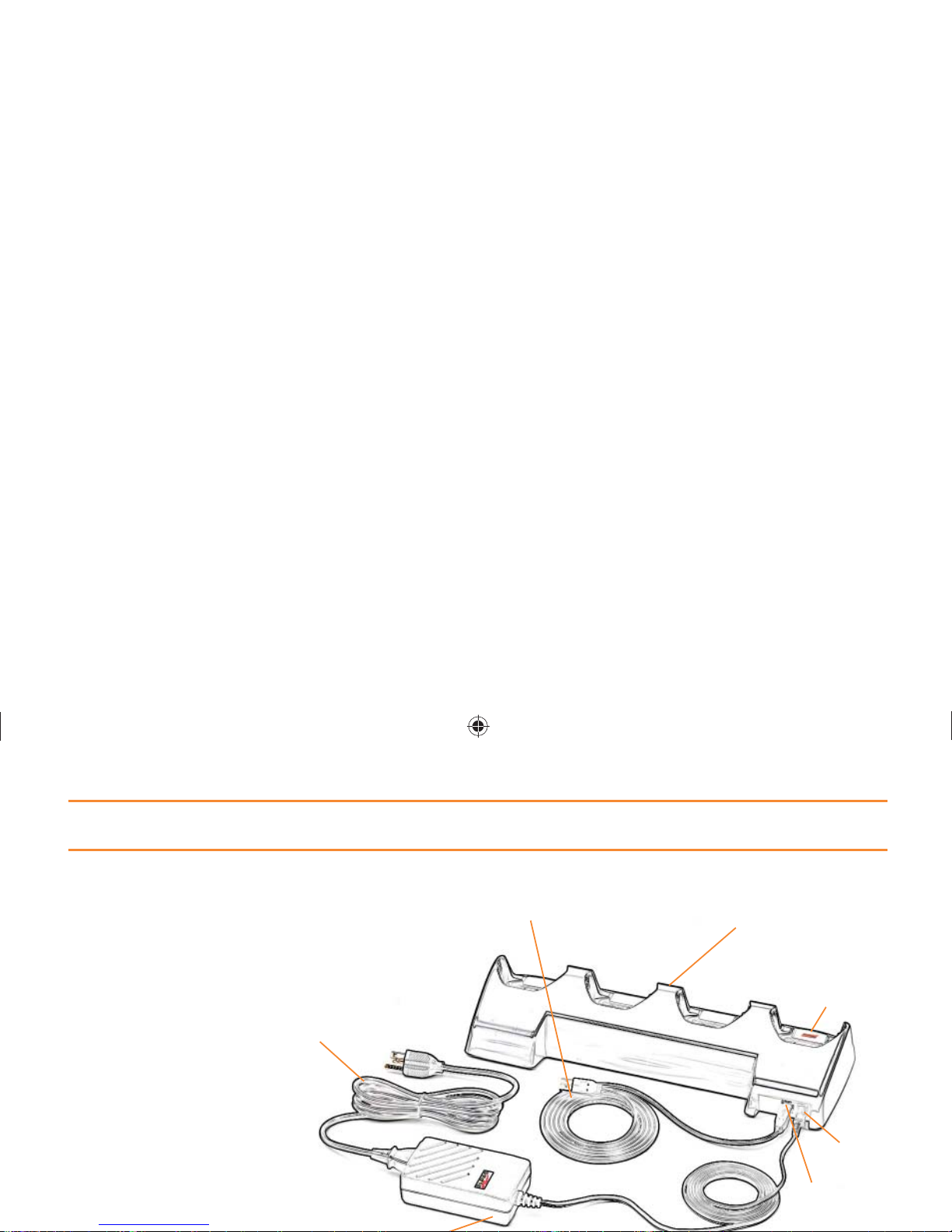

1. Cradle (CR-XP-4)
2. Power Supply (PS-XP-4)
3. Line Cord (LC-XP-1)
4. USB Cable*
5. Power Receptacle
6. USB Type B Port
7. Synch Button
* Not separately orderable.
3
2
1
4
5
6
7
Note: Four-Slot Cradle Kit (CK-XP-4) includes four-slot cradle, power
supply, line cord and USB cable as shown.
3

Janam Technologies
Getting Started
A. SET UP
We recommend you turn your computer off before connecting the cradle. After following the steps below, turn
the computer back on.
1. Connect the power supply and line cord.
2. Plug the power supply into the power supply receptacle on the cradle.
3. Connect the USB cable to the cradle.
4. Plug the USB cable into one of your computer’s USB ports.
5. Plug the cradle’s power supply into a power outlet.
B. INSERTING A DEVICE INTO THE FOUR-SLOT CRADLE
Important: Proper insertion is required to ensure connection. Be sure to insert the device as follows:
1. Place a mobile device in a cradle well (seating the device without trying to join connectors).
2. Tilt-rotate the device forward (bringing top end of unit forward) as you apply downward pressure to fully
insert in cradle well, joining connectors.
C. SYNCHING (XP SERIES ONLY)
Using the synch button, you can successively hotsynch up to four XP Series devices with Palm Desktop software. With
custom software, you can also synchronize your mobile computers with enterprise data through applications designed
by third party vendors.
To automatically synch up to four XP Series mobile computers using the synch button, simply press the synch
button on the cradle after inserting the device(s). Sequentially, each mobile computer will power-up and
conduct the synch process. Each device will remain powered-up for approximately two minutes after synching,
then automatically power-down.
4

Janam Technologies
Regulatory Information
5
For European Community Users
Janam Technologies complies with Directive 2002/69/EC of THE EUROPEAN PARLIAMENT AND OF THE COUNCIL
OF 27 January 2003 on waste electrical and electronic equipment (WEEE).
Waste Electrical and Electronic Equipment Information
This product has required the extraction and use of natural resources for its production. It may contain hazardous
substances that could impact health and the environment, if not properly disposed.
In order to avoid the dissemination of those substances in our environment and to diminish the pressure on
the natural resources, we encourage you to use the appropriate take-back systems for product disposal. Those
systems will reuse or recycle most of the materials of the product you are disposing in a sound way.
The crossed out wheeled bin symbol informs you that the product should not be disposed of along with
municipal waste and invites you to use the appropriate separate take-back systems for product disposal.
If you need more information on the collection, reuse and recycling systems, please contact your local
region waste administration. You may also contact your supplier for more information on the environmental
performances of this product.

Janam Technologies
The four slot cradle, Model CR-XP-4 was evaluated to the following standards and found to be in compliance with
the standard requirements.
UL 60950-1:2003
CSA C22.2 60950-1:2003
EN 60950-1
EN 55022:2006 Class B
EN 55024
EN 61000-3-2:2000 + A2: 2005
EN 61000-3-3:1995 + A1: 2001
EN 61000-4
EN 61000-4-2
This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These rules are designed to provide reasonable protection against harmful interference in a residen-
tial installation. This product generates, uses, and can radiate radio frequency energy, and if not installed and used
in accordance with the instructions, may cause harmful interference with radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If the equipment does cause harmful inter-
ference to radio or television reception, which can be determined by turning the equipment on and off, the user is
encouraged to try to correct the interference by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications that are not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.
EN 61000-4-3
EN 61000-4-4
EN 61000-4-5
EN 61000-4-8
IEC 61000-4
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-11
IEC-003, Issue 4: 2004 Class B
6

Janam Technologies
www.janam.com
