J&W Intel P43 Series User manual

User’s Manual
Socket LGA775 Processor Mainboard
Intel P43 Series
Rev: 1.0, Jul 2008
P/N: 88ENP43A01
IP43-PRO/IP43-S
Motherboard
Website: http://www.jwele.com

Disclaimer
The intellectual property of this manual belongs to our company. The ownership of all of the
products, including accessories and software etc. belong to our company. No one is permitted to
copy, change, or translate without our written permission.
We compiled this manual based on our careful attitude, but we can not guarantee the accuracy
of the contents. This manual is purely technical documentation, without any hint or other
meanings, and we won't commit users' misunderstanding of the typesetting error.
Our products are in continuous improvement and updating, Therefore, we retain the right that
we won't give notice to the users in future.
Copyright
All of the trademark in this manual belong to their own registered company.
All of the products name is only for identication, its title belongs to its manufacturer or brand
owner.

Table of Contents
Chapter 1 Introduction .............................................................................................
3
1.1 Package Checklist .................................................................................................
3
1.2 Specications .......................................................................................................
4
1.3 Mainboard Layout .................................................................................................
5
1.4 Connecting Rear Panel I/O Devices ........................................................................
6
Chapter 2 Hardware Setup .......................................................................................
7
2.1 Choosing a Computer Chassis ................................................................................
7
2.2 Installing Mainboard .............................................................................................
7
2.3 Installation of the CPU and CPU Cooler ..................................................................
8
2.3.1 Installation of the CPU ....................................................................................
8
2.3.2 Installation of the CPU Cooler .........................................................................
9
2.4 Installation of Memory Modules .............................................................................
9
2.5 Connecting Peripheral Devices ..............................................................................
10
2.5.1 Floppy and IDE Disk Drive Connectors ............................................................
10
2.5.2 Serial ATA Connectors ...................................................................................
10
2.5.3 PCI and PCI Express slots ..............................................................................
10
Chapter 3 Jumpers & Headers Setup ......................................................................
11
3.1 Checking Jumper Settings ....................................................................................
11
3.2 CMOS Memory Clearing Header ............................................................................
11
3.3 Keyboard Power Function(JKB) .............................................................................
11
3.4 FAN Power Connectors ........................................................................................
12
3.5 Front Panel Switches & Indicators Headers ............................................................
12
3.6 Additional USB Port Headers ................................................................................
13
3.7 Front Panel Audio ................................................................................................
13
3.8 S/PDIF Output Connection Header (Optional) ........................................................
14
3.9 ATX Power Input Connectors ................................................................................
14
3.10 Dual BIOS Jumper (Optional) .............................................................................
15
3.11 J1 Jumper (Optional) .........................................................................................
15
Chapter 4 BIOS Setup Utility ..................................................................................
16
4.1 About BIOS Setup ...............................................................................................
16
4.2 To Run BIOS Setup .............................................................................................
16
4.3 About CMOS .......................................................................................................
16
4.4 The POST (Power On Self Test) ...........................................................................
16
4.5 BIOS Setup — CMOS Setup Utility .......................................................................
17
4.5.1 CMOS Setup Utility ........................................................................................
17
4.5.2 Control Keys .................................................................................................
18
4.5.3 Main menu ...................................................................................................
18
4.5.4 Advanced setting ..........................................................................................
22
4.5.5 Boot setting ..................................................................................................
26
4.5.6 Security setting .............................................................................................
28
4.5.7 Power setting ................................................................................................
29
4.5.8 JUSTw00t! setting .........................................................................................
32
4.5.9 Exit Options ..................................................................................................
34
Chapter 5 Driver Installation ..................................................................................
37
APPENDIX 1 .............................................................................................................
39

- 3 -
Intel P43 Series User's Manual
Chapter 1 Introduction
1.1 Package Checklist
Thank you for choosing our product.
Please check the following packing and accessories, if there is any broken or part missing,
please contact with your franchiser.
• IDE Cable X 1
• Rear I/O Panel X 1
• User Manual X 1
• Driver/Utility CD X 1
• Serial ATA Power Cable X 1
• Serial ATA Signal Cable X 1
• FDD Cable X 1 (Optional)
The items listed above are for reference only, and are subject to change without notice.

- 4 -
Intel P43 Series User's Manual
CPU
- LGA775 for Intel®Core™ 2 Extreme, Core™ 2 Quad, Core™ 2 Duo,
Pentium®Dual Core, Pentium®D, Pentium®4, Celeron®(Conroe-L)
and new generation 45nm Yorkeld & Wolfdale Processors
- Supports FSB 1600(O.C.)/1333/1066/800 MHz FSB
Chipset - Intel®P43+Intel®ICH10R (IP43-PRO)
- Intel®P43+Intel®ICH10 (IP43-S)
Main Memory
- Supports 4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of
system memory
- Supports Dual channel memory architecture
- Support for DDR2 1200 (O.C.)/1066/800/667 MHz memory modules
BIOS
- AMI BIOS, Supports Plug&Play
- Supports Advanced Power Management ACPI,STR
- Supports 2 x SYS FAN, 1 x CPU FAN
- Supports Dual BIOS (Optional)
Integrated Ports
- 1 x PS/2 Keyboard port
- 1 x COM port
- 1 x eSATA port
- 1 x Debug LED (Optional, please reference appendix 1)
- 1 x S/PDIF IN port, 1 x S/PDIF OUT port
- 1 x RJ45 port
- 12 x USB 2.0 ports (6 on the back panel, 4 via the USB brackets
connected to the internal USB headers)
- 6 x SATA ports , Maximum Speed to 3GB/s
- Support for SATA RAID 0, RAID 1, RAID 5 and RAID 10 (IP43-PRO
feature)
- 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
- 1 x oppy disk drive connector supporting up to 1 oppy disk drive
Sound - Onboard 6-channel/8-channel HD Audio Codec (Optional)
- Front Panel Jumper, provides stereo MIC port on front panel
Onboard LAN - Onboard 10/100/1000Mbps compatible LAN (Optional)
Expansion Slots
- 1 x PCI Express x16 slot, support standard PCI Express 2.0
- 1 x PCI Express x4 slot
- 2 x PCI Express x1 slots
- 3 x PCI slots
Form Factor - ATX form factor:230 mm x 304.8 mm
Remark
- Due to different Linux support condition provided by chipset vendors,
please download Linux driver from chipset vendors' website or 3rd
party website.
- This product does not support Win9X/ME, due to most hardware/
software vendors no longer offer support for Win9X/ME.
1.2 Specications

- 5 -
Intel P43 Series User's Manual
1.3 Mainboard Layout
(This picture is only for reference)

- 6 -
Intel P43 Series User's Manual
1.4 Connecting Rear Panel I/O Devices
The rear I/O part of these mainboard provides the following I/O ports:
(This picture is only for reference)
• PS/2 Keyboard: Connects to PS/2 keyboard.
• Debug LED: Display error code. (Optional and please reference appendix 1)
• COM: Connect to external modem, mouse or other devices that support this communication
protocol.
• eSATA:Connects to peripherial SATA devices.
• SPDIF IN: This connector provides an S/PDIF-IN connection.
• SPDIF OUT: Connects to digital audio device.
• USB: Connects to USB devices such as scanner, digital speakers, monitor, mouse, keyboard,
hub, digital camera, joystick etc.
• LAN: Connects to Local Area Network.
• AUDIO1:
Cen./Sub. (Center / Subwoofer): Connects to the center and subwoofer channel in the 7.1
channel audio system.
R.L./R.R. (Rear Left / Rear Right): Connects to the rear left and rear right channel in the 7.1
channel audio system.
S.L./S.R. (Surround Left / Surround Right): Connects to the surround left and surround right
channel in the 7.1 channel audio system.
Line-In: Connects to the line out from external audio sources.
Line-Out: Connects to the front left and front right channel in the 7.1-channel or regular
2-channel audio system.
Mic-In: Connects to the plug from external microphone.

- 7 -
Intel P43 Series User's Manual
Chapter 2 Hardware Setup
2.1 Choosing a Computer Chassis
• Choose a chassis big enough to install this mainboard.
• As some features for this mainboard are implemented by cabling connectors on the
mainboard to indicators and switches or buttons on the chassis, make sure your chassis
supports all the features required.
• If there is possibility of adopting some more hard drives, make sure your chassis has
sufcient power and space for them.
• Most chassis have alternatives for I/O shield located at the rear panel. Make sure the I/O
shield of the chassis matches the I/O port conguration of this mainboard. You can nd
an I/O shield specically designed for this mainboard in its package.
2.2 Installing Mainboard
Most computer chassis have a base with many mounting holes to allow the mainboard to
be securely attached, and at the same time, prevent the system from short circuits. There
are two ways to attach the mainboard to the
chassis base: (1) with studs, or (2) with spacers.
Basically, the best way to attach the board is with
studs. Only if you are unable to do this should you
attach the board with spacers. Line up the holes on
the board with the mounting holes on the chassis.
If the holes line up and there are screw holes, you
can attach the board with studs. If the holes line
up and there are only slots, you can only attach with
spacers. Take the tip of the spacers and insert them
into the slots. After doing this to all the slots, you can slide the board into position aligned
with slots. After the board has been positioned, check to make sure everything is OK before
putting the chassis back on.
To install this mainboard:
1. Locate all the screw holes on the mainboard and the chassis base.
2. Place all the studs or spacers needed on the chassis base and have them tightened.
3. Face the mainboard’s I/O ports toward the chassis’s rear panel.
4. Line up all the mainboard’s screw holes with those studs or spacers on the chassis.
5. Install the mainboard with screws and have them tightened.
The mainboard and its component layouts illustrated in this chapter were
based mainly on model “IP43-PRO”, unless specically stated.
Always power off the computer and unplug the AC power cord before adding or removing
any peripheral or component. Failing to do so may cause severe damage to your
mainboard and/or peripherals. Plug in the AC power cord only after you have carefully
checked everything.
To prevent shorting the PCB circuit, please REMOVE the metal studs or spacers if they are
already fastened on the chassis base and are without mounting-holes on the mainboard to
align with.

- 8 -
Intel P43 Series User's Manual
2.3 Installation of the CPU and CPU Cooler
Before installing the CPU, please comply with the following conditions:
1. Please make sure that the mainboard supports the CPU.
2. Please take note of the one indented corner of the CPU. If you install the CPU in the wrong
direction, the CPU will not insert properly. If this occurs, please change the insert direction
of the CPU.
3. Please add an even layer of heat sink paste between the CPU and CPU cooler.
4. Please make sure the CPU cooler is installed on the CPU prior to system use, otherwise
overheating and permanent damage of the CPU may occur.
5. Please set the CPU host frequency in accordance with the processor specications. It is not
recommended that the system bus frequency be set beyond hardware specications since
it does not meet the required standards for the peripherals. If you wish to set the frequen-
cy beyond the proper specications, please do so according to your hardware
specications including the CPU, graphics card, memory, hard drive, etc.
2.3.1 Installation of the CPU
1. Open the socket lever by
pushing the lever down and
away from the socket (see
Figure 1, 1 and 2).
2. Lift the load plate. Do not
touch the socket contacts
(see Figure 2, 3 and 4)
3 . R e m o v e t h e p l a s t i c
protective socket cover
from the load plate (see
Figure 3, 5). Do not discard
the protective socket cover.
Always replace the socket
cover if the processor is
removed from the socket.
1
2
5
4. Remove the processor
f r o m t h e p r o t e c t i v e
processor cover. Hold the
processor only at the edges,
being careful not to touch
the bottom of the processor
(see Figure 4). Do not
d i s c a r d t h e p r o t e c t i v e
processor cover. Always
replace the processor
back to the package if the
processor is removed from
the socket.
5. Hold the processor with
y o u r t h u m b a n d i n d e x
ngers oriented as shown in
Figure 5. Make sure ngers
align to the socket cutouts
(see Figure 5, 6). Align
notches (see Figure 5, 7)
with the socket see (Figure
5, 8). Lower the processor
straight down without tilting
or sliding the processor in
the socket.
6. Pressing down on the
load plate (Figure 6, 9)
c l o s e a n d e n g a g e t h e
socket lever (Figure 6, 10).
9
10
6
6
7
7
8
8

- 9 -
Intel P43 Series User's Manual
Ejector Tab
Notch Key
Mounting Notch
Rib
2.3.2 Installation of the CPU Cooler
For proper installation, please kindly refer to the instruction manuals of your CPU Cooler.
2.4 Installation of Memory Modules
This mainboard provides four 240-pin DDRII (Double Data Rate) DIMM slots, and supports
Dual Channel Memory Technology. For dual channel conguration, you always need to install
two identical (the same brand, speed, size and chip-type) memory modules in the DDRII
DIMM slots to activate Dual Channel Memory Technology. Otherwise, it will operate at single
channel mode.
To reach the performance of Dual Channel DDR2, the following rules must be obeyed:
For 2-DIMM dual-channel installation:
Populate DIMM modules of the same type and size on slots [DIMM1]+[DIMM3], or slots
[DIMM2]+[DIMM4].
For 4-DIMM dual-channel installation:
Populate 2 DIMM modules of the same type and size on slots [DIMM1]+[DIMM3], and
another 2 DIMM modules of the same type and size on slots [DIMM2]+[DIMM4] .
[DIMM1] and [DIMM3] slots are made of the same color.
[DIMM2] and [DIMM4] are made of another same color.

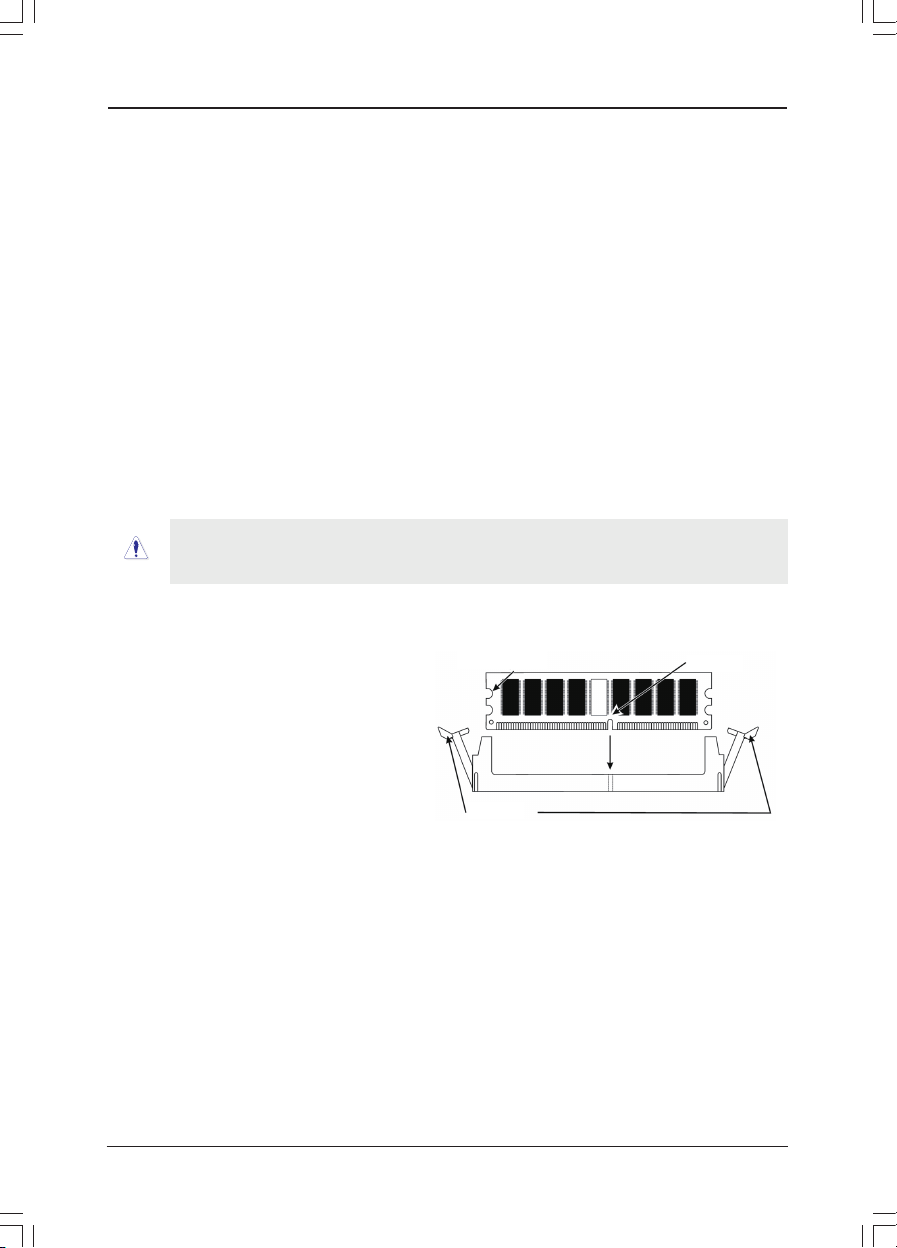

To install system memory:
1. Power off the computer and unplug the
AC power cord before installing or
removing memory modules.
2. Locate the DIMM slot on the board.
3. Hold two edges of the DIMM module
carefully, keep away from touching its
connectors.
4. Align the notch key on the module with
the rib on the slot.
5. Firmly press the module into the slots until the ejector tabs at both sides of the slot
automatically snap into the mounting notch. Do not force the DIMM module in with extra
force as the DIMM module only ts in one direction.
6. To remove the DIMM modules, push the two ejector tabs on the slot outward
simultaneously, and then pull out the DIMM module.
Static electricity can damage the electronic components of the computer or optional
boards. Before starting these procedures, ensure that you are discharged of static
electricity by touching a grounded metal object briey.

- 10 -
Intel P43 Series User's Manual
2.5 Connecting Peripheral Devices
2.5.1 Floppy and IDE Disk Drive Connectors
The FDD connector connects up to two oppy drives with a 34-wire, 2-connector oppy
cable.Connect the single end at the longer length of ribbon cable to the FDD on the board,
the two connectors on the other end to the oppy disk drives connector. Generally you need
only one oppy disk drive in your system.
2.5.2 Serial ATA Connectors
Each SATA connector serves as one single channel to connect one SATA device by SATA
cable.
2.5.3 PCI and PCI Express slots
Install PCI Express X1 card into slot “PCIE1” or "PCIE3".
Install PCI Express X4 card into slot “PCIE4”.
Install PCI Express X16 graphics card into slot “PCIE2”.
Install PCI card into slots “PCI1” or “PCI2” or "PCI3" .
Each of the IDE port connects up to two IDE
drives at Ultra ATA 100/66/33 mode by one
40-pin, 80-conductor,and 3-connector Ultra
ATA/66 ribbon cables.
Connect the single end (blue connector) at the
longer length of ribbon cable to the IDE port of
this board, the other two ends (gray and black
connector) at the shorter length of the ribbon
cable to the connectors of your hard drives.
The red line on the ribbon cable must be aligned with pin-1 on both the FDD port and the oppy connector.
Make sure to congure the “Master” and “Slave” relation
before connecting two drives by one single ribbon cable.
The red line on the ribbon cable must be aligned with
pin-1 on both the IDE port and the hard-drive connector.
• SATA: Connect to peripherial SATA devices.
The peripherial SATA devices must
connect inside SATA connectors.

- 11 -
Intel P43 Series User's Manual
Chapter 3 Jumpers & Headers Setup

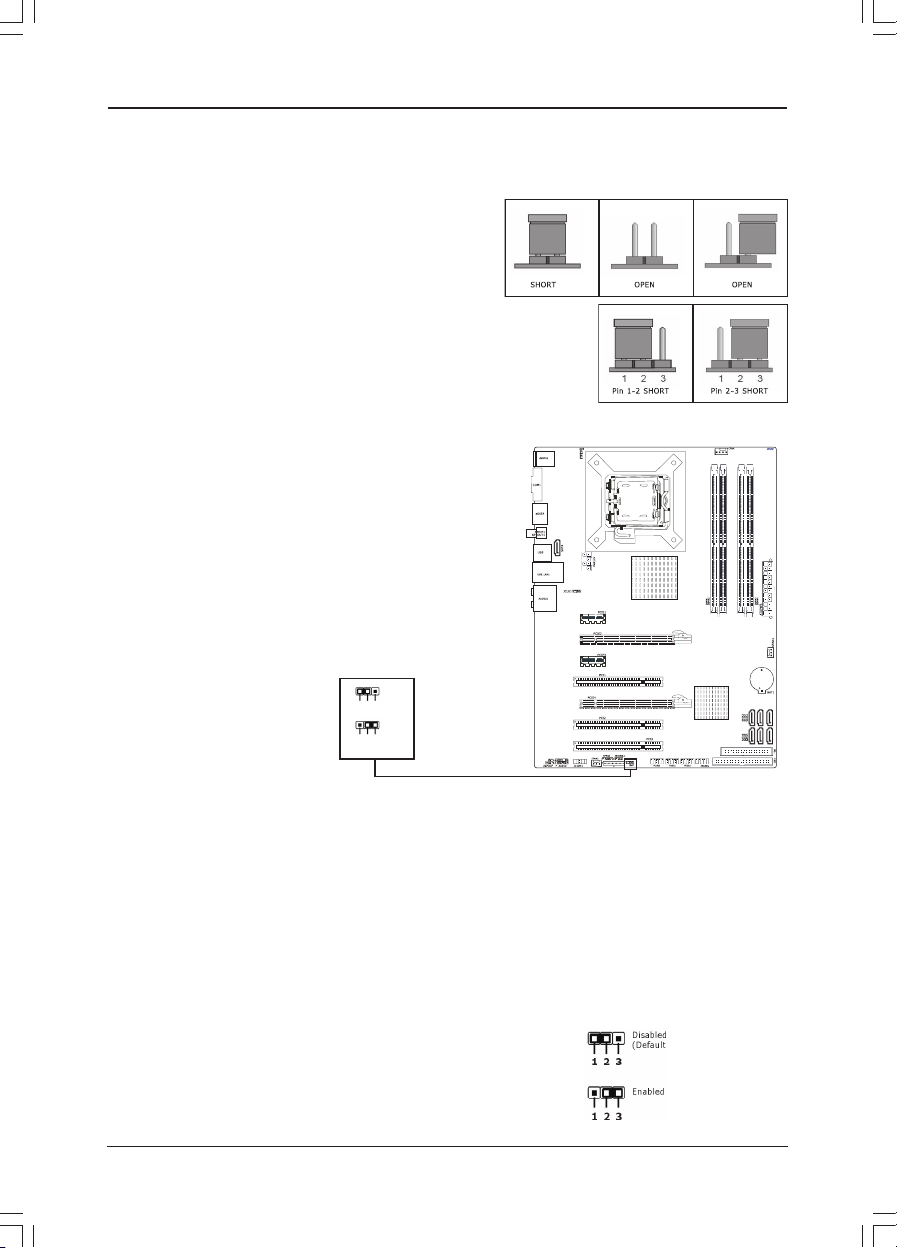

3.1 Checking Jumper Settings
• For a 2-pin jumper, plug the jumper cap on both
pins will make it CLOSE (SHORT). Remove the
jumper cap, or plug it on either pin (reserved for
future use) will leave it at OPEN position.
• For 3-pin jumper, pin 1~2 or pin 2~3 can be
shorted by plugging the jumper cap in.
How to identify the PIN1 jumpers?
Please check the mainboard carefully, the PIN1
is marked by "1" or white thick line.
3.2 CMOS Memory Clearing Header
The time to clear the CMOS memory occurs when (a)
the CMOS data becomes corrupted, (b) you forgot
the supervisor or user password preset in the BIOS
menu, (c) you are unable to boot-up the system
because the CPU ratio/clock was incorrectly set in the
BIOS menu, or (d) whenever there is modication on
the CPU or memory modules.
This header uses a jumper cap to clear the CMOS
memory and have it recongured to the default
values stored in BIOS.
• Pins 1 and 2 shorted
(Default): Normal
operation.
• Pins 2 and 3 shorted:
Clear CMOS memory.
To clear the CMOS memory and load in the default values:
1. Power off the system.
2. Set pin 2 and pin 3 shorted by the jumper cap. Wait for a few seconds. Set the jumper
cap back to its default settings --- pin 1 and pin 2 shorted.
3. Power on the system.
4. For incorrect CPU ratio/clock settings in the BIOS, press <Del> key to enter the BIOS
setup menu right after powering on system.
5. Set the CPU operating speed back to its default or an appropriate value.
6. Save and exit the BIOS setup menu.
3.3 Keyboard Power Function(JKB)
Pin 1-2 short: Disabled power on by keyboard
Pin 2-3 short: Support power on by keyboard JKB:
Normal
(D ef aul t)
Cl ea r CMO S
JB AT o r CLR CM OS1 _
123
123

- 12 -
Intel P43 Series User's Manual

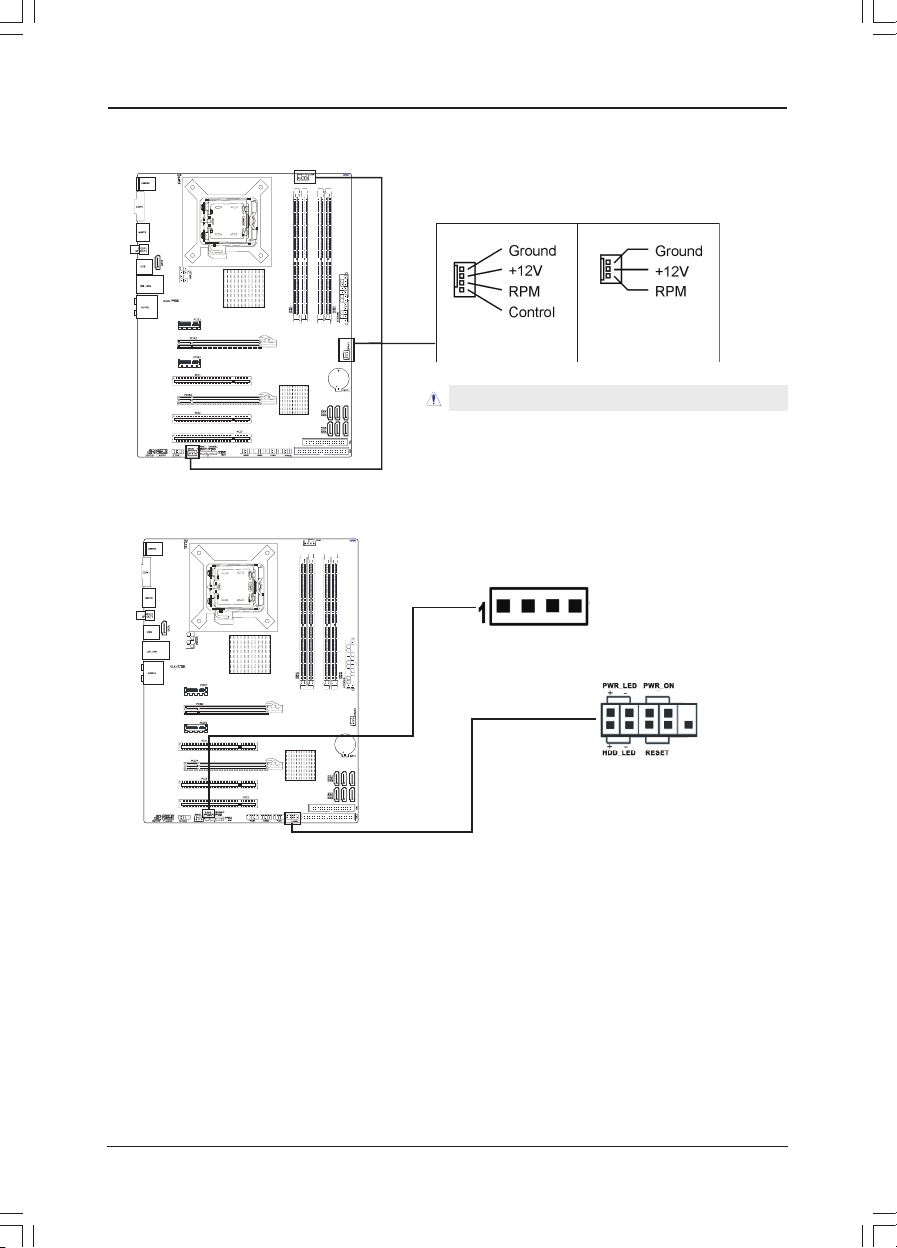

3.4 FAN Power Connectors
These connectors each provide power to the cooling fans installed in your system.
CFAN or CFAN1: CPU Fan Power Connector
SFAN1/2: System Fan Power Connector
3.5 Front Panel Switches & Indicators Headers
SPEAKER
HDD_LED (Hard Driver LED Header)
Connect the HDD LED cable to these PINs, in order to see the HDD status
RESET (On the board right bottom,the RST_BT is reset switch)
This connector connects to the case-mounted reset switch for rebooting your computer
without having to turn off your power switch. This is a preferred method of rebooting in
order to prolong the lift of the system’s power supply.
PWR-ON (On the board right bottom,the PWT _BT is power switch)
This connector connects to the case-mounted power switch to power ON/OFF the system.
SPEAKER (Speaker)
This 4-pin connector connects to the case-mounted speaker. You should follow the
instruction of the speaker cable.
These fan connectors are not jumpers. DO NOT place
jumper caps on these connectors.
CFAN or CFAN1
SFAN1
SFAN2

- 13 -
Intel P43 Series User's Manual
Pin Pin Assignment Pin Pin Assignment
1 VCC 2 VCC
3 Data 0- 4 Data 0-
5 Data 0+ 6 Data 0+
7 Ground 8 Ground
9 No Pin 10 NC
HD Audio:
Pin No. Denition
1 PORT1L
2 AGND
3 PORT1R
4 PRESENCE
5 PORT2R
6 SENSE1_RETURN
7 SENSE_SEND
8 No Pin
9 PORT2L
10 SENSE2_RETURN
3.6 Additional USB Port Headers
3.7 Front Panel Audio
The headers conform to USB 2.0/1.1 specication. Each USB header can provide two USB ports
via an optional USB bracket.

- 14 -
Intel P43 Series User's Manual
3.8 S/PDIF Output Connection Header (Optional)
S/PDIF (Sony/Philips Digital Interface) is a standard audio transfer le format. It is usually
found on digital audio equipment such as a DAT (Digital Audio Tape) machine or audio
processing device. It allows the transfer of audio from one le to another without the
conversion to and from an analog format, which could degrade the signal quality.

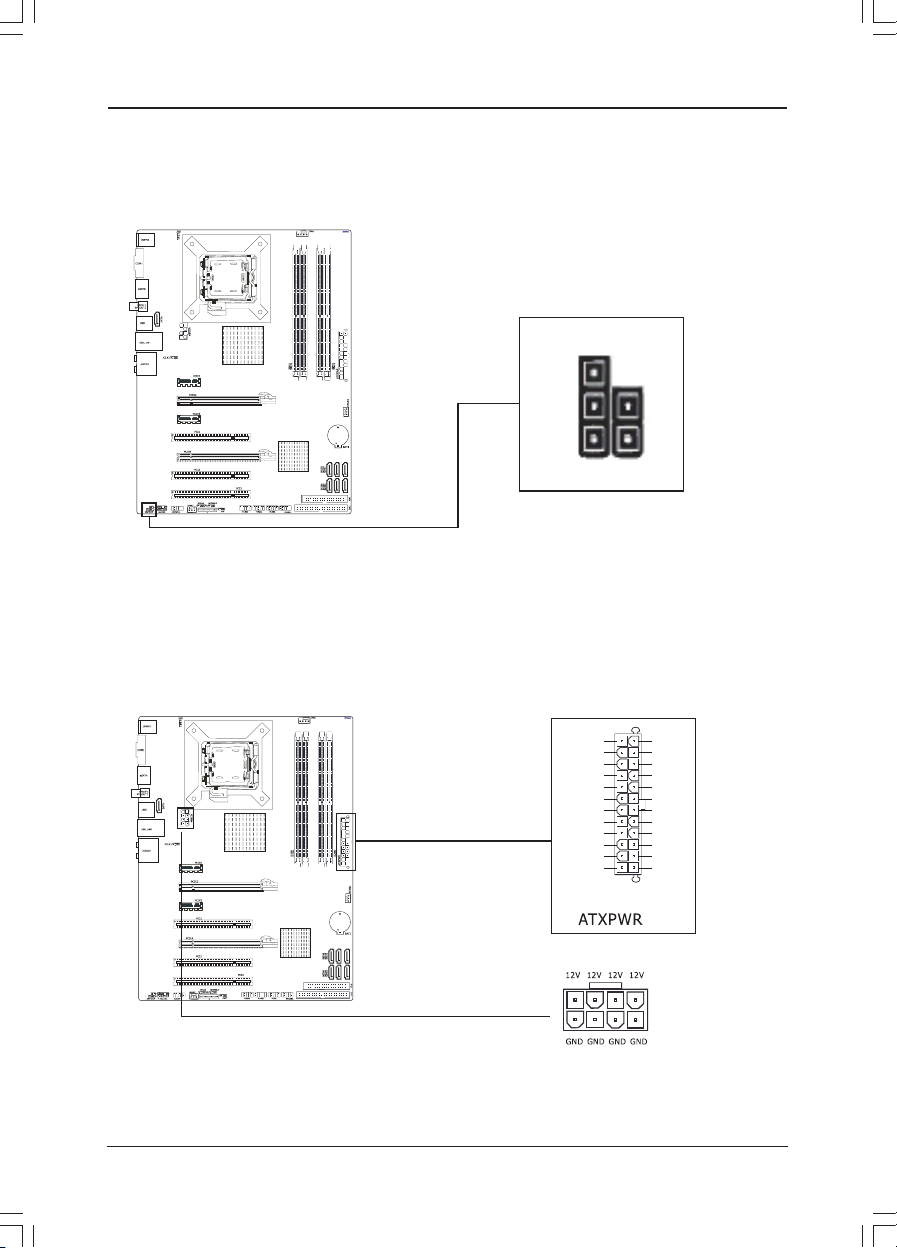

3.9 ATX Power Input Connectors
This mainboard provides two power connectors to connect power supplier.
This connector allows you to connect an ATX 24-pin power supply.To connect the ATX 24-pin
power supply,make sure the plug of the power supply is inserted in the proper orientation
and the pins are aligned. Then push down the power supply rmly into the connector.
Your may use the 20-pin ATX power supply as you like.If you'd like to use the 20-pin ATX
power supply, please plug your power supply along with pin 1 & pin 13.
2
5
1
VCC
OUT
GND
IN
NC
GND
GND
+
+
12V
12V
1
2
3
4
+ .
+
+
+
+
+ .
.
3 3V
12V
12V
5VSB
PWR OK
COM
5V
COM
5V
COM
3 3V
+3 3V
COM
5V
5V
5V
5V
COM
COM
COM
PS ON
COM
12V
3 3V
+
+
+
-
_
-
+ .
1
12
13
24

- 15 -
Intel P43 Series User's Manual
3.10 Dual BIOS Jumper (Optional)
The mainboard can support dual BIOS function, please adjust BIOS jumper to 2~3 while
USER_BIOS boot failure, then pc will be boot from SAFE_BIOS, download the correctly BIOS
in our website or save a new BIOS under dos model by BIOS ash tools, then adjust
JBIOSSLC jumper to 1~2pin for repair USER_BIOS by BIOS tools.
PC will be boot from SAFE_BIOS while USER_BIOS can't boot under Dual_BIOS model, but it
will not be repair USER_BIOS. Suggest to use USER_BIOS model.
3.11 J1 Jumper (Optional)
The connecter may connect external multifunctional device, ,about detail connect way and
denition,please refer to external connect device's manual.
JBIOSSLC
NC DUAL_BIOS
1-2 USER_BIOS (Default)
2-3 SAFE_BIOS

- 16 -
Intel P43 Series User's Manual
Chapter 4 BIOS Setup Utility
BIOS stands for Basic Input and Output System. It was once called ROM BIOS when it was
stored in a Read-Only Memory (ROM) chip. Now manufacturers would like to store BIOS in
EEPROM which means Electrically Erasable Programmable Memory. BIOS used in this series
of mainboard is stored in EEPROM, and is the first program to run when you turn on your
computer.
BIOS performs the following functions:
1. Initializing and testing hardware in your computer (a process called "POST", for Power On
Self Test).
2. Loading and running your operating system.
3. Helping your operating system and application programs manage your PC hardware by
means of a set of routines called BIOS Run-Time Service.
4.1 About BIOS Setup
BIOS Setup is an interactive BIOS program that you need to run when:
1. Changing the hardware of your system. (For example: installing a new Hard Disk etc.)
2. Modifying the behavior of your computer. (For example: changing the system time or date,
or turning special features on or off etc.)
3. Enhancing your computer's behavior. (For example: speeding up performance by turning
on shadowing or cache)
4.2 To Run BIOS Setup
First access BIOS setup menu by pressing <F1> key after “POST” is complete (before OS is
loaded). After the rst BIOS be setupped(or loaded default values) and save, the <DEL> key
will be pressed if you will enter BIOS setup menu.
4.3 About CMOS
CMOS is the memory maintained by a battery. CMOS is used to store the BIOS settings you
have selected in BIOS Setup. CMOS also maintains the internal clock. Every time you turn
on your computer, the BIOS Looks into CMOS for the settings you have selected and
congures your computer accordingly. If the battery runs out of power, the CMOS data will
be lost and POST will issue a “CMOS invalid” or “CMOS checksum invalid” message. If this
happens, you have to replace the battery and check and congure the BIOS Setup for the
new start.
4.4 The POST (Power On Self Test)
POST is an acronym for Power On Self Test. This program will test all things the BIOS does
before the operating system is started. Each of POST routines is assigned a POST code, a
unique number which is sent to I/O port 080h before the routine is executed.

- 17 -
Intel P43 Series User's Manual
4.5 BIOS Setup — CMOS Setup Utility
4.5.1 CMOS Setup Utility
After powering up the system, the BIOS message appears on the screen,when the rst time
or when CMOS setting wrong, there is following message appears on the screen , but if
the rst BIOS be setuped(or loaded default values) and save, the <DEL> key will be
pressed if you will enter BIOS setup menu.
If this message disappears before you respond, restart the system by pressing <Ctrl> +
<Alt>+ <Del> keys, or by pressing the reset button on computer chassis. Only when these
two methods should be fail that you restart the system by powering it off and then back on.
After pressing <F1> or <Del> key, the main menu appears.
Press F1 to Run SETUP
• In order to increase system stability and performance, our engineering staff is
constantly improving the BIOS menu. The BIOS setup screens and descriptions
illustrated in this manual are for your reference only, and may not completely
match with what you see on your screen.
• Do not change the BIOS parameters unless you fully understand its function.
BIOS SETUP UTILITY
Main Advanced Boot Security Power JUSTw00t! Exit
←
Select Screen
↑↓
Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
►
System Information
System Time
System Date
Floppy A
Language
[00:50:32]
[Thu 06/05/2008]
[1.44 MB 3
1/2
"]
[English]
►
SATA Port 1
►
SATA Port 2
►
SATA Port 3
►
SATA Port 4
►
SATA Port 5
►
SATA Port 6
►
IDE Master
►
IDE Slave
►
AHCI Device
►
USB Device
: [ST380215AS]
: [Not Detected]
: [Not Detected]
: [Not Detected]
: [Not Detected]
: [Not Detected]
: [Not Detected]
: [Not Detected]
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
The menu bar on top of the screen has the following main items:
Main For changing the basic system conguration.
Advanced For changing the advanced system settings.
Boot For changing the system boot conguration.
Security For changing the system security setttings.
Power For changing the advanced power management(APM) conguration.
JUSTw00t! For changing the overclocking settings.
Exit For selecting the exit options and loading default settings.

- 18 -
Intel P43 Series User's Manual
4.5.2 Control Keys
Press F1 to pop up a small help window that describes the appropriate keys to use and the
possible selections for the highlighted item.
Please check the following table for the function description of each control key.
Control Key(s) Function Description
←
/
→
Move cursor left or right to select Screens
↑ / ↓
Move cursor up or down to select items
+/ -/PU/PD To Change option for the selected items
<Enter> To bring up the selected screen
<ESC>
Main Menu - Quit and not save changes into CMOS Status
Page Setup Menu and Option Page Setup Menu - Exit
current page and return to Main Menu
<F1> General help
<F2/F3> Change Colors
<F5> Restore the previous CMOS value from CMOS, only for
Option Page Setup Menu
<F7> Discard Changes
<F8> Load Failsafe Defaults
<F9> Load Optimal Defaults
<F10> Save conguration changes and exit setup
BIOS SETUP UTILITY
Main Advanced Boot Security Power JUSTw00t! Exit
←
Select Screen
↑↓
Select Item
Enter Go to Sub Screen
F1 General Help
F10 Save and Exit
ESC Exit
►
System Information
System Time
System Date
Floppy A
Language
[00:50:32]
[Thu 06/05/2008]
[1.44 MB 3
1/2
"]
[English]
►
SATA Port 1
►
SATA Port 2
►
SATA Port 3
►
SATA Port 4
►
SATA Port 5
►
SATA Port 6
►
IDE Master
►
IDE Slave
►
AHCI Device
►
USB Device
: [ST380215AS]
: [Not Detected]
: [Not Detected]
: [Not Detected]
: [Not Detected]
: [Not Detected]
: [Not Detected]
: [Not Detected]
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
4.5.3 Main menu
►
System Information
This menu gives you an overview of the general system specications.The BIOS automatically
detects the items in this menu.

- 19 -
Intel P43 Series User's Manual
BIOS SETUP UTILITY
Main
System Overview
←
Select Screen
↑↓
Select Item
F1 General Help
F10 Save and Exit
ESC Exit
AMIBIOS
Version :08.00.15
Build Date:05/15/08
BIOS ID :P430A001
Processor
Intel(R) Core(TM)2 Extreme CPU X9770 @ 3.20GHz
Speed :2413MHz
Count :4
System Memory
Size :512MB
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
• AMIBIOS Displays the auto-detected BIOS information.
• Processor Displays the auto-detected CPU specication.
• System Memory
Displays the auto-detected system memory.
・Press <Esc> key to return to "Main" menu.
• System time
This item sets the time you specify(usually the current time)in the format of [Hour],[Minute]and
[Second].
• System date
This item sets the date you specify(usually the current date0in the format of [Month],[Date],
and [Year].
• Floppy A
Allows you to selects the type of oppy disk drive installed in your system. If you do not
install a oppy disk drive, set this item to None. Options are: None, 360K/5.25", 1.2M/5.25",
720K/3.5",1.44M/3.5", 2.88M/3.5".
• Language
Allows you to selects the current default language used by the BIOS.
►
SATA Port 1 /2/3/4/5/6; IDE Master /Slave (SATA / IDE device)
This item sets the status of auto detection of SATA/IDE devices while enterting setup, and
BIOS will auto detects the presence of SATA/IDE devices. Press "Enter" Key to enter the
submenu.
BIOS SETUP UTILITY
Main
Primary IDE Master Select the type
of device connected
to the system.
←
Select Screen
↑↓
Select Item
+- Change Option
F1 General Help
F10 Save and Exit
ESC Exit
Device :Hard Disk
Vendor :ST380215AS
Size :80.0GB
LBA Mode :Supported
Block Mode:16Sectors
PIO Mode :4
Async DMA :MultiWord DMA-2
Ultra DMA :Ultra DMA-6
S.M.A.R.T.:Supported
LBA/Large Mode
Block (Multi-Sector Transfer)
PIO Mode
DMA Mode
S.M.A.R.T
32Bit Data Transfer
[Auto]
[Auto]
[Auto]
[Auto]
[Auto]
[Enabled]
v02.61 (C)Copyright 1985-2006, American Megatrends, Inc.
