J&W JW-N7AS-HD User manual

User’s Manual
Socket LGA775 Processor Mainboard
JW-N7AS-HD
Rev: 2.0, July 2009
P/N: 80ECG41A20
Motherboard
Website: http://www.jwele.com

Disclaimer
The intellectual property of this manual belongs to our company. The ownership of all of the
products, including accessories and software etc. belong to our company. No one is permitted to
copy, change, or translate without our written permission.
We compiled this manual based on our careful attitude, but we can not guarantee the accuracy
of the contents. This manual is purely technical documentation, without any hint or other
meanings, and we won't commit users' misunderstanding of the typesetting error.
Our products are in continuous improvement and updating, Therefore, we retain the right that
we won't give notice to the users in future.
Copyright
All trademarks in this manual belong to their own registered company.
All product names are only for identication purpose, and they are belong to the manufacturer
or brand owner(s).

Table of Contents
Chapter 1 Introduction .............................................................................................
3
1.1 Package Checklist .................................................................................................
3
1.2 Specications .......................................................................................................
4
1.3 Mainboard Layout .................................................................................................
5
1.4 Connecting Rear Panel I/O Devices ........................................................................
6
Chapter 2 Hardware Setup .......................................................................................
7
2.1 Choosing a Computer Chassis ................................................................................
7
2.2 Installing the Mainboard .......................................................................................
7
2.3 Installation of the CPU and CPU Cooler ..................................................................
8
2.3.1 Installation of the CPU ....................................................................................
8
2.3.2 Installation of the CPU Cooler .........................................................................
9
2.4 Installation of Memory Modules .............................................................................
9
2.5 Connecting Peripheral Devices .............................................................................
10
2.5.1 Floppy and IDE Disk Drive Connectors ............................................................
10
2.5.2 Serial ATA Connectors ...................................................................................
10
2.5.3 PCI and PCI Express slots ..............................................................................
10
Chapter 3 Jumpers & Headers Setup ......................................................................
11
3.1 Checking Jumper Settings ....................................................................................
11
3.2 CMOS Memory Clearing Header ............................................................................
11
3.3 Keyboard Power Function ....................................................................................
11
3.4 USB_PWR1 jumper .............................................................................................
12
3.5 Dual BIOSS Fuction (Optional)
.
............................................................................
12
3.6 FAN Power Connectors ........................................................................................
13
3.7 Front Panel Switches & Indicators Headers ...........................................................
13
3.8 Additional USB Port Headers ................................................................................
14
3.9 Front Panel Audio ...............................................................................................
14
3.10 S/PDIF Output Connection Header (Optional) ......................................................
15
3.11 ATX Power Input Connectors ..............................................................................
15
Chapter 4 BIOS Setup Utility ...................................................................................
16
4.1 About BIOS Setup ...............................................................................................
16
4.2 To Run BIOS Setup .............................................................................................
16
4.3 About CMOS .......................................................................................................
16
4.4 The POST (Power On Self Test) ............................................................................
16
4.5 BIOS Setup — CMOS Setup Utility .......................................................................
17
4.5.1 CMOS Setup Utility ........................................................................................
17
4.5.2 Control Keys .................................................................................................
18
4.5.3 Main menu ...................................................................................................
18
4.5.4 Advanced setting ..........................................................................................
21
4.5.5 Boot setting ..................................................................................................
24
4.5.6 Security setting .............................................................................................
26
4.5.7 Power setting ...............................................................................................
27
4.5.8 Overdrive setting ..........................................................................................30
4.5.9 Exit Options ..................................................................................................
31
Chapter 5 Driver Installation ..................................................................................
34

- 3 -
JW-N7AS-HD User's Manual
Chapter 1 Introduction
1.1 Package Checklist
Thank you for choosing our product.
Please check with the following list of accessories, if there is any broken or missing part,
please contact your dealer or the local distributor.
• IDE Cable X 1
• Rear I/O Panel X 1
• User Manual X 1
• Driver/Utility CD X 1
• Serial ATA Power Cable X 1
• Serial ATA Signal Cable X 1
• FDD Cable X 1 (Optional)
The items listed above are for reference only, and are subject to change without notice.

- 4 -
JW-N7AS-HD User's Manual
CPU
- LGA775 for Intel®Core™ 2 Quad, Core™ 2 Duo, Pentium®Dual-Core,
Celeron®(Conroe-L) Series (45nm Ready)
- Supports 1333MHz/1066MHz/800MHz FSB
Chipset - nVIDIA MCP7A-S
Main Memory
- Supports 4 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of
system memory
- Supports Dual channel memory architecture
- Support for DDR2 800MHz/667MHz memory modules
BIOS - AMI BIOS, Supports Plug&Play
- Supports Advanced Power Management ACPI,STR
Rear Panel I/O
- 1 x PS/2 Mouse port
- 1 x PS/2 Keyboard port
- 1 x VGA port
- 1 x DVI port
- 1 x eSATA port
- 1 x HDMI port
- 1 x SPDIF_IN port
- 1 x SPDIF_OUT port
- 4 x USB 2.0 ports
- 1 x RJ45 LAN port
- 3/6 x Audio ports (Line In / Line Out / MIC In)(Optional)
Internal I/O
Connectors
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x Floppy disk drive connector
- 1 x IDE connector (for 2 PATA devices)
- 6 x SATA 3Gb/s connectors(Support RAID 0,1,0+1,5,The SATA 5,6 is
only support RAID )
- 1 x CPU fan header
- 2 x System fan header
- 1 x Front panel header
- 1 x Front panel audio header
- 1 x Speaker header
- 1 x S/PDIF Out header
- 1 x Serial port header
- 3 x USB 2.0 headers for additional 6 USB 2.0 ports (by cables)
Sound - Onboard 6/8-channel HD Audio Codec
- Front Panel Jumper, provides stereo MIC port on front panel(Optional)
Onboard LAN - Onboard 10/100/1000Mbps compatible LAN (Optional)
Expansion Slots
- 1 x PCI Express x16
- 1 x PCI Express x1
- 2 x PCI slots
Form Factor - Micro ATX form factor:244 mm x 244 mm
1.2 Specications

- 5 -
JW-N7AS-HD User's Manual

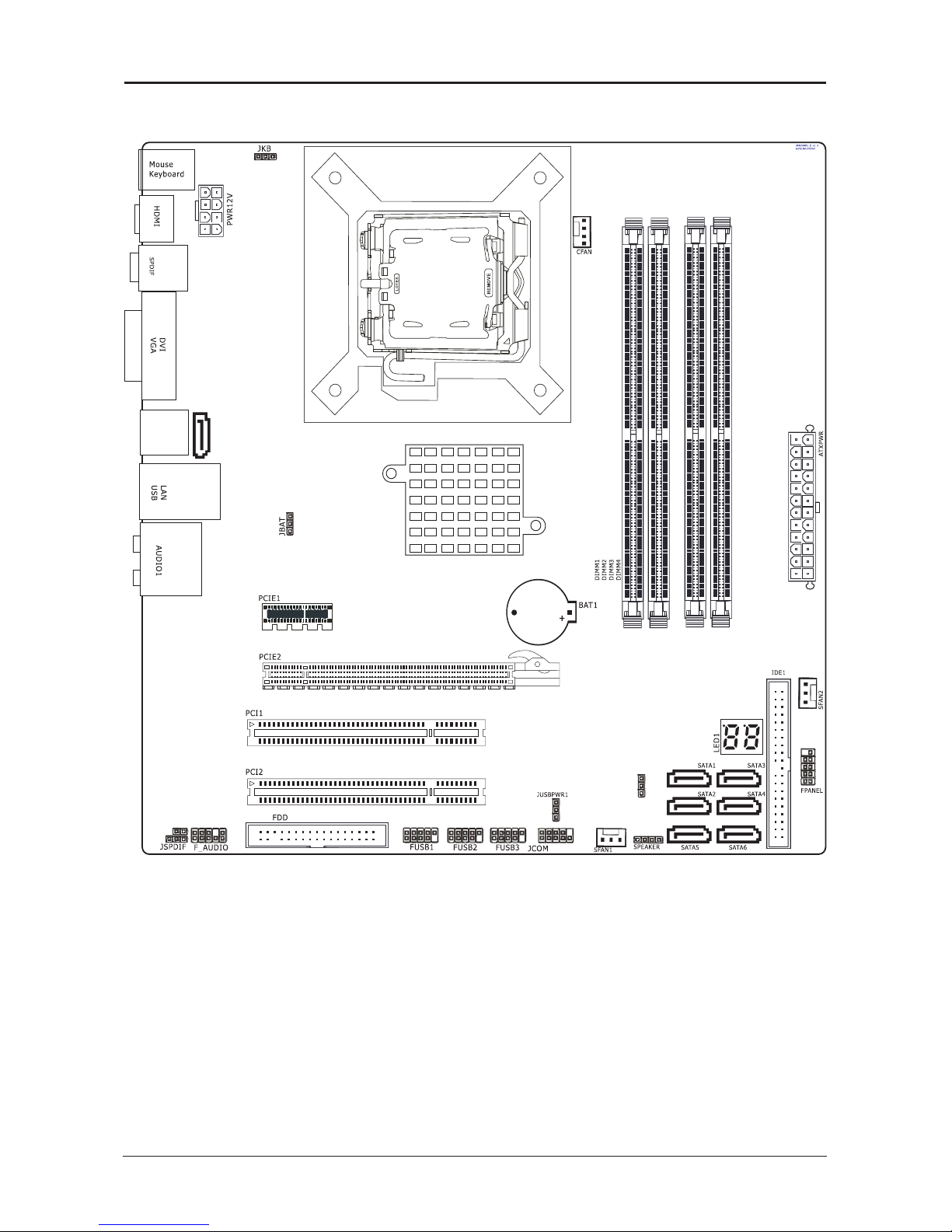

1.3 Mainboard Layout

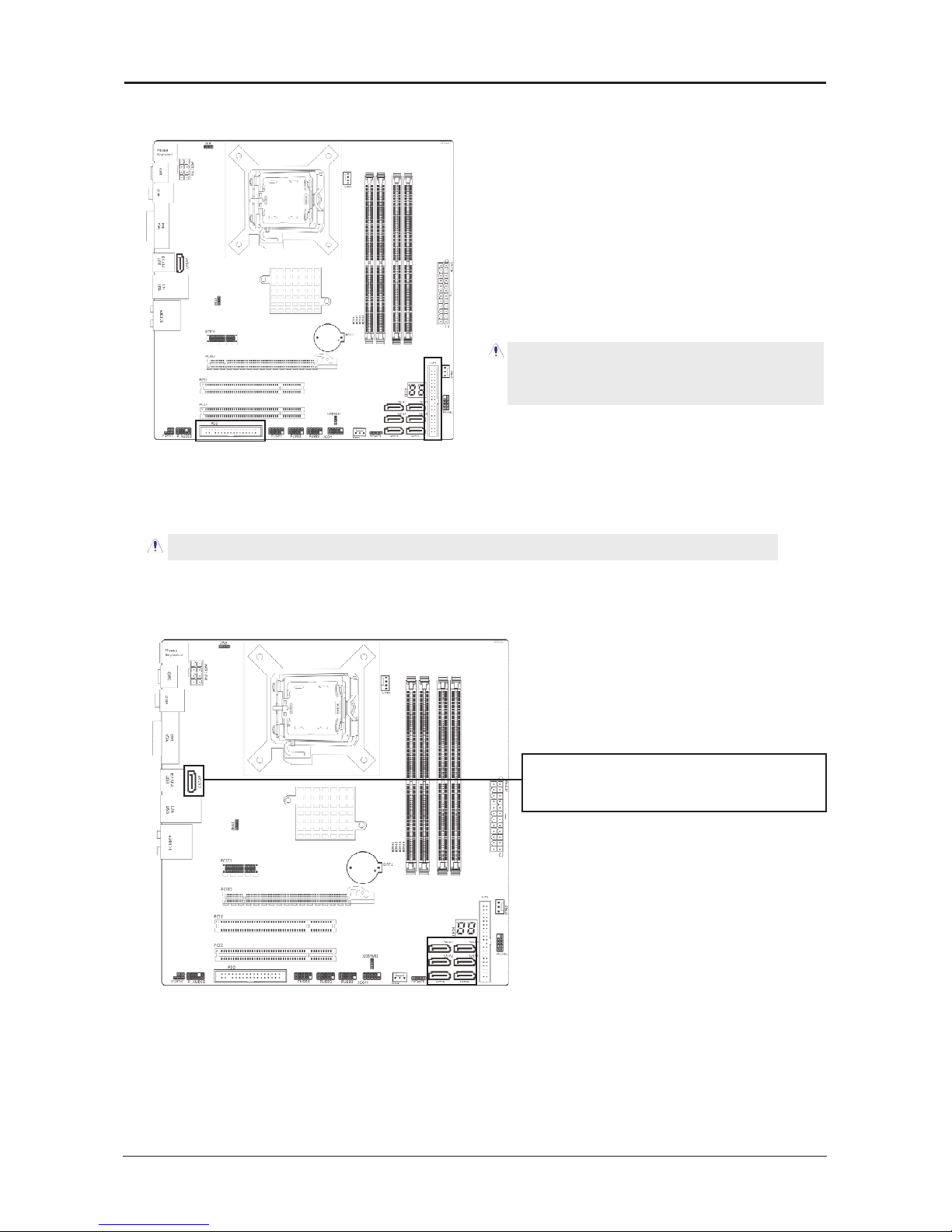

(This picture is only for reference)
ESATA
USB
SATA7
JBIOSSLC

- 6 -
JW-N7AS-HD User's Manual
1.4 Connecting Rear Panel I/O Devices
The rear I/O of the mainboard provides the following I/O ports:

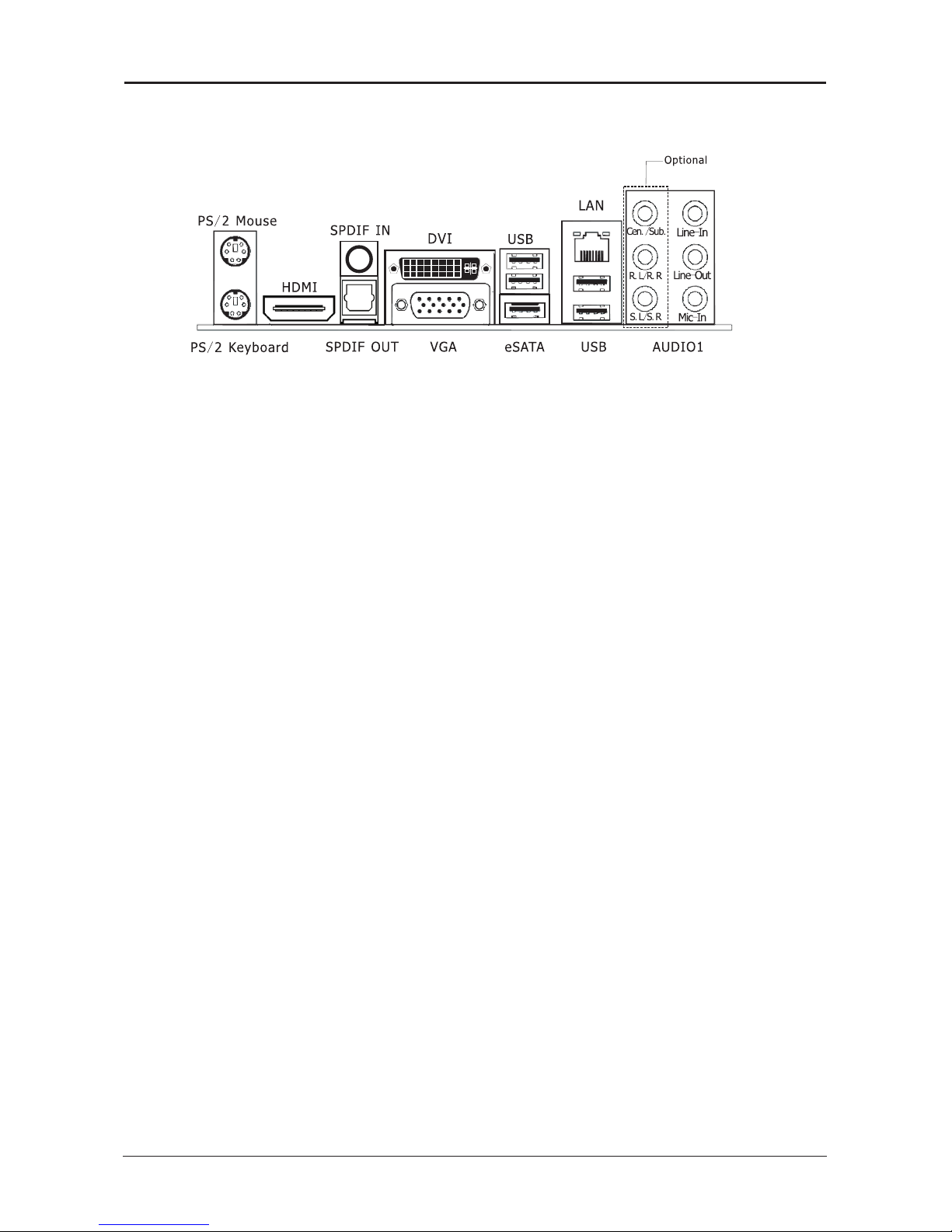

(This picture is only for reference)
• PS/2 Mouse: Connects to PS/2 mouse.
• PS/2 Keyboard: Connects to PS/2 keyboard.
• VGA: Connect to analog monitor input.
• DVI: Connect to digital monitor input. (Optional)
• HDMI:Connects to multimedia devices of HDMI protocol.
• SPDIF IN: This connector provides an S/PDIF-IN connection through optical ber to digital
multimedia devices
• SPDIF OUT: Connect to digital audio device.
• eSATA:Connects to peripherial SATA devices.
• USB: Connects to USB devices such as scanner, digital speakers, monitor, mouse, keyboard,
hub, digital camera, joystick etc.
• LAN: Connects to Local Area Network.
• AUDIO1:
Cen./Sub. (Center / Subwoofer): Connects to the center and subwoofer channel in the 7.1
channel audio system.
R.L./R.R. (Rear Left / Rear Right): Connects to the rear left and rear right channel in the 7.1
channel audio system.
S.L./S.R. (Surround Left / Surround Right): Connects to the surround left and surround right
channel in the 7.1 channel audio system.
Line-In: Connects to the line out from external audio sources.
Line-Out: Connects to the front left and front right channel in the 7.1-channel or regular
2-channel audio system.
Mic-In: Connects to the plug from external microphone.

- 7 -
JW-N7AS-HD User's Manual
Chapter 2 Hardware Setup
2.1 Choosing a Computer Chassis
• Choose a chassis big enough to install this mainboard.
• As some features for this mainboard are implemented by cabling connectors on the
mainboard to indicators and switches or buttons on the chassis, make sure your chassis
supports all the features required.
• If there is possibility of adopting some more hard drives, make sure your chassis has
sufcient power and space for them.
• Most chassis have alternatives for I/O shield located at the rear panel. Make sure the I/O
shield of the chassis matches the I/O port conguration of this mainboard. You can nd
an I/O shield specically designed for this mainboard in its package.
2.2 Installing the Mainboard

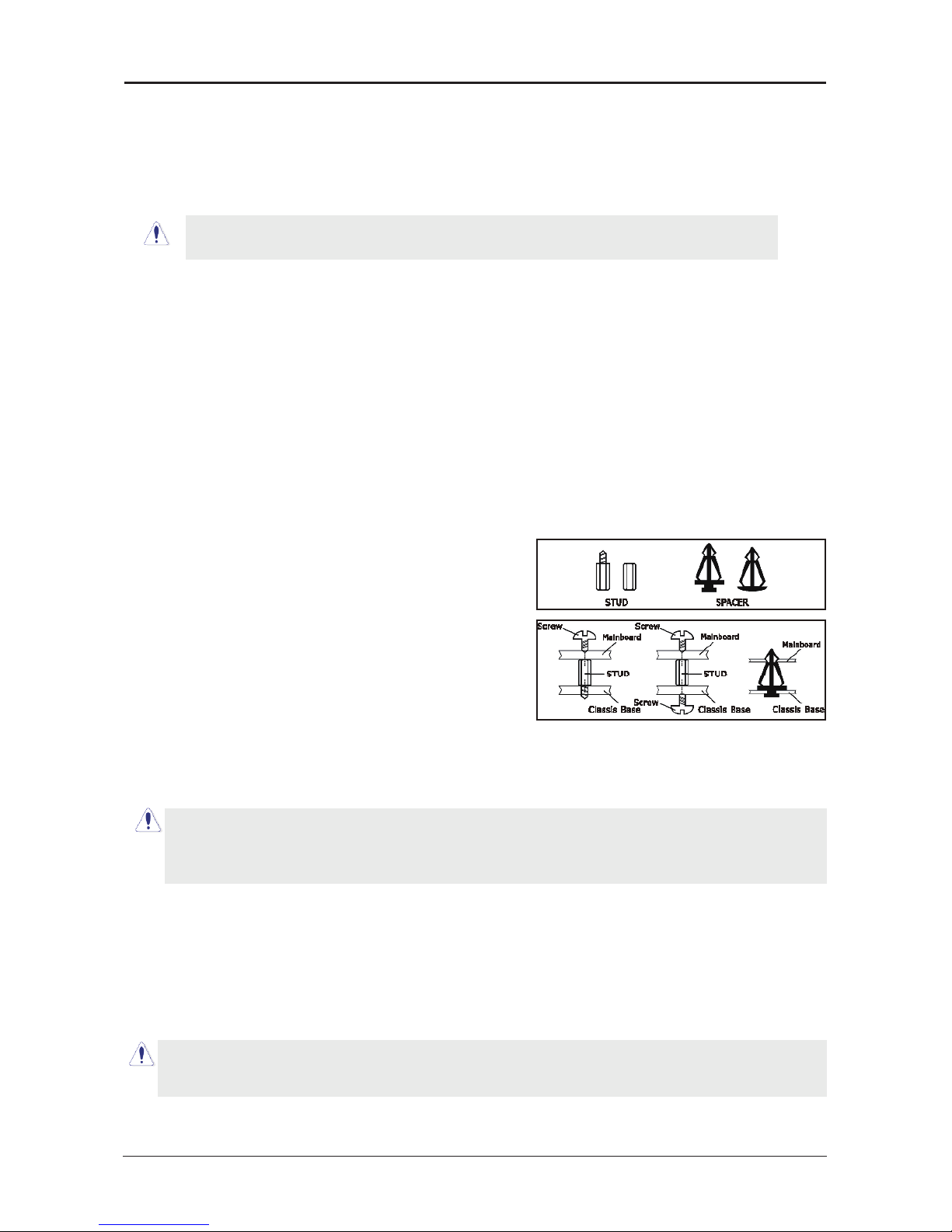

Most computer chassis have a base with many mounting holes to allow the mainboard to
be securely attached, and at the same time, prevent the system from short circuits. There
are two ways to attach the mainboard to the
chassis base: (1) with studs, or (2) with spacers.
Basically, the best way to attach the board is with
studs. Only if you are unable to do this should you
attach the board with spacers. Line up the holes on
the board with the mounting holes on the chassis.
If the holes line up and there are screw holes, you
can attach the board with studs. If the holes line
up and there are only slots, you can only attach with
spacers. Take the tip of the spacers and insert them
into the slots. After doing this to all the slots, you can slide the board into position aligned
with slots. After the board has been positioned, check to make sure everything is OK before
putting the chassis back on.
To install this mainboard:
1. Locate all the screw holes on the mainboard and the chassis base.
2. Place all the studs or spacers needed on the chassis base and have them tightened.
3. Face the mainboard’s I/O ports toward the chassis’s rear panel.
4. Line up all the mainboard’s screw holes with those studs or spacers on the chassis.
5. Install the mainboard with screws and have them tightened.
The mainboard and its component layouts illustrated in this chapter were
based mainly on model “JW-N7AS-HD”, unless specically stated.
Always power off the computer and unplug the AC power cord before adding or removing
any peripheral or component. Failing to do so may cause severe damage to your
mainboard and/or peripherals. Plug in the AC power cord only after you have carefully
checked everything.
To prevent shorting the PCB circuit, please REMOVE the metal studs or spacers if they are
already fastened on the chassis base and are without mounting-holes on the mainboard to
align with.

- 8 -
JW-N7AS-HD User's Manual
2.3 Installation of the CPU and CPU Cooler
Before installing the CPU, please comply with the following conditions:
1. Please make sure that the mainboard supports the CPU.
2. Please take note of the one indented corner of the CPU. If you install the CPU in the wrong
direction, the CPU will not insert properly. If this occurs, please change the insert direction
of the CPU.
3. Please add an even layer of heat sink paste between the CPU and CPU cooler.
4. Please make sure the CPU cooler is installed on the CPU prior to system use, otherwise
overheating and permanent damage of the CPU may occur.
5. Please set the CPU host frequency in accordance with the processor specications. It is not
recommended that the system bus frequency be set beyond hardware specications since
it does not meet the required standards for the peripherals. If you wish to set the frequen-
cy beyond the proper specications, please do so according to your hardware
specications including the CPU, graphics card, memory, hard drive, etc.
2.3.1 Installation of the CPU
1. Open the socket lever by
pushing the lever down and
away from the socket (see
Figure 1, 1 and 2).
2. Lift the load plate. Do not
touch the socket contacts
(see Figure 2, 3 and 4)
3 . R e m o ve t h e p l a s t i c
protective socket cover
from the load plate (see
Figure 3, 5). Do not discard
the protective socket cover.
Always replace the socket
cover if the processor is
removed from the socket.
4. Remove the processor
f r o m t h e p r o t e c t i v e
processor cover. Hold the
processor only at the edges,
being careful not to touch
the bottom of the processor
(see Figure 4). Do not
d i s c a r d t h e p r o t e c t i v e
processor cover. Always
replace the processor
back to the package if the
processor is removed from
the socket.
5. Hold the processor with
y o u r t h u m b a n d i n d e x
ngers oriented as shown in
Figure 5. Make sure ngers
align to the socket cutouts
(see Figure 5, 6). Align
notches (see Figure 5, 7)
with the socket see (Figure
5, 8). Lower the processor
straight down without tilting
or sliding the processor in
the socket.
6. Pressing down on the
load plate (Figure 6, 9)
c l o s e a n d e n g a g e t h e
socket lever (Figure 6, 10).

- 9 -
JW-N7AS-HD User's Manual
2.3.2 Installation of the CPU Cooler
For proper installation, please kindly refer to the instruction manuals of your CPU Cooler.
2.4 Installation of Memory Modules
This mainboard provides four 240-pin DDRII (Double Data Rate) DIMM slots, and supports
Dual Channel Memory Technology. For dual channel conguration, you always need to install
two identical (the same brand, speed, size and chip-type) memory modules in the DDRII
DIMM slots to activate Dual Channel Memory Technology. Otherwise, it will operate at single
channel mode.
To reach the performance of Dual Channel DDR2, the following rules must be obeyed:
For 2-DIMM dual-channel installation:
Populate DIMM modules of the same type and size on slots [DIMM1]+[DIMM3]
Populate DIMM modules of the same type and size on slots [DIMM2]+[DIMM4]
To install system memory:
1. Power off the computer and unplug the
AC power cord before installing or
removing memory modules.
2. Locate the DIMM slot on the board.

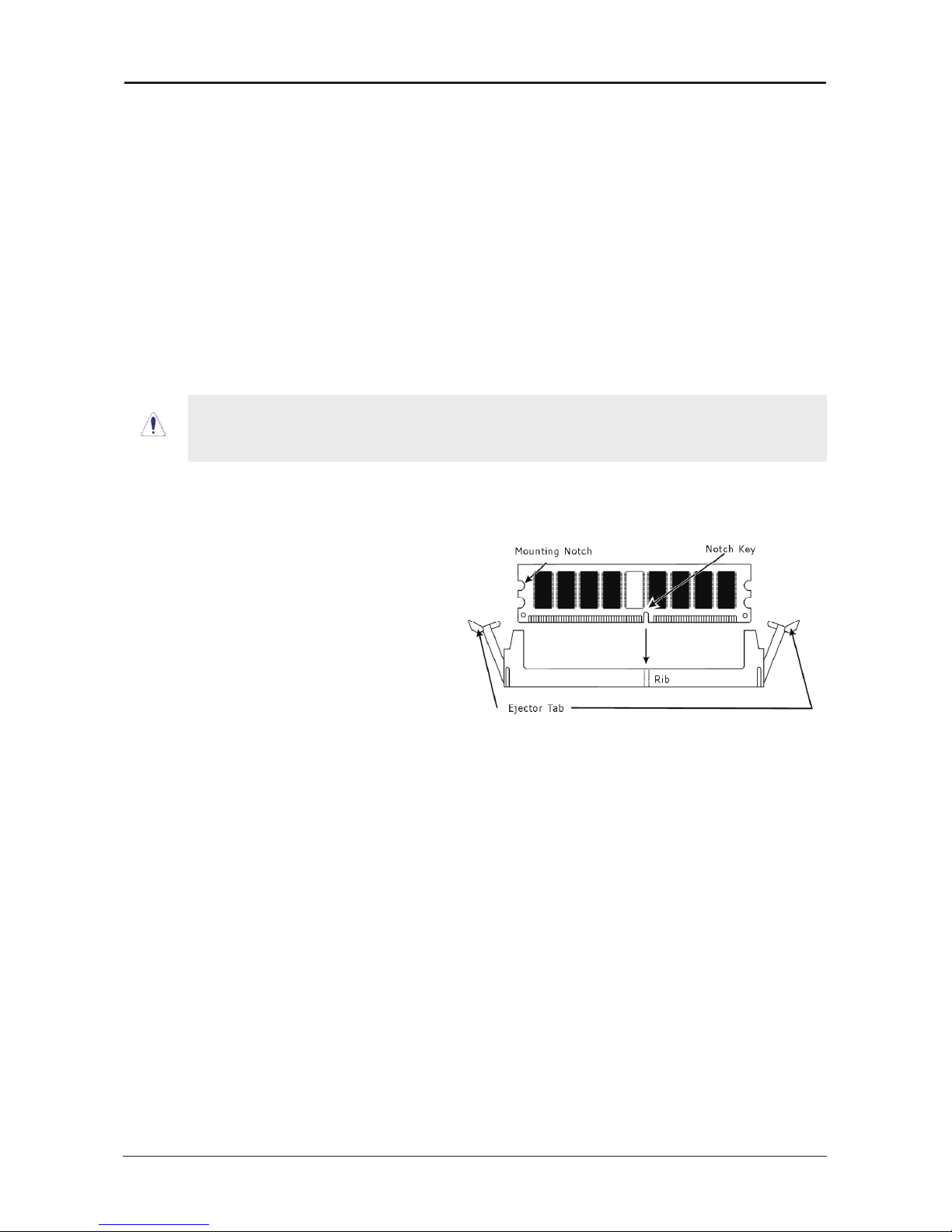

3. Hold two edges of the DIMM module
carefully, keep away from touching its
connectors.
4. Align the notch key on the module with
the rib on the slot.
5. Firmly press the module into the slots until the ejector tabs at both sides of the slot
automatically snap into the mounting notch. Do not force the DIMM module in with extra
force as the DIMM module only ts in one direction.
6. To remove the DIMM modules, push the two ejector tabs on the slot outward
simultaneously, and then pull out the DIMM module.
Static electricity can damage the electronic components of the computer or optional
boards. Before starting these procedures, ensure that you are discharged of static
electricity by touching a grounded metal object briey.
