jbc FAE1H User manual

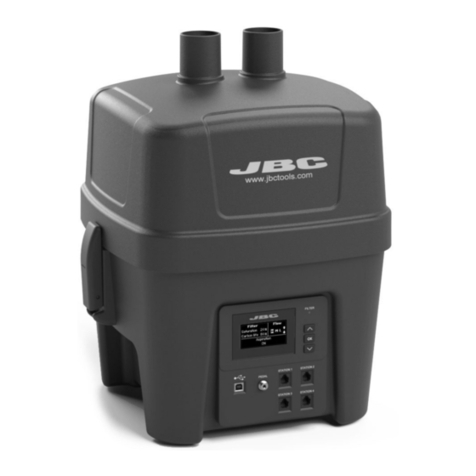

FAE1H
Fume Extractor for 1 Workbench
(HEPA 14)
INSTRUCTION MANUAL

The following items are included:
FAE1200 Filter for FAE1 ............................ 1 unit
Ref. FAE1-200 (already assembled inside the
Fume Extractor)
Fume Extractor for 1 Workbench .... 1 unit
Unseal the filter
before its first use
Manual ........................................................... 1 unit
Ref. 0024420
Power Cable ........................................... 1 unit
Ref. 0023715 (100V / 120V)
0023714 (230V)
Premium Station Cable
(RJ12 male) ............................................... 2 units
Ref. 0019751
Compact Station Adapter
(RJ12 to USB-A) ........................................ 1 unit
Ref. 0023504
Compact Station Cable
(USB-A to USB-B) .................................... 1 unit
Ref. 0021042
Packing List
This manual corresponds to the following references:
FAE1-1PB (100V / 120V)
FAE1-2PB (230V)
FAE1110
Pre-Filter
FAE1200
Filter includes:
carbon and
HEPA 14 filter
2

Features and Connections
Aspiration Intakes
Quick Release
Lever for Filter
Replacement
Power Socket
Main Switch
Dispaly
USB-B
Compact Stations
Connection
Pedal Connection
RJ12
Premium Station
Connections
Filter Saturation Indicator
-Green: Filter OK
-Yellow: ≤ 20% carbon lifetime or about to saturate
-Red: End of carbon lifetime or filter saturated
3
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

FAE1
Fume Extractor for 1 Workbench
FAE040
Accessory for Stand
Aspiration with Clamp
- For flexible hose Ø50 mm.
- To be fixed in place with
the included clamp.
- For up to 4 stands.
FAE030
Accessory for Stand
Aspiration
- For flexible hose Ø50 mm.
- To be inserted and
screewed directly onto
the workbench (hole
drilling required).
FAE050
Fume Inlet Duct
for Modular
Stand (stands from
versions Ref. xx-SD
onwards)
FAE060
Fume Inlet Duct
for Compact
Stations (stations
from versions
Ref.xx-xBonwards)
FAE070
Flexible Arm with
Clamp Ø50
- Lenght: 1 m / 39.37 in
- To be assembled onto
the workbench with the
included clamp.
FAE020
Flexible Arm Ø50
- Lenght: 1 m / 39.37 in
- To be inserted and
screewed directly onto
the workbench (hole
drilling required).
FAE010
Flexible Hose Ø50
- Lenght: 1,5 m / 59.05 in
- For connecting either
to a flexible arm or to a
accessory for the stand
aspiration.
- Attention: Avoid
awkward positions
in order to minimize
pressure losses.
Standard Assembly
Main Screen
Custom program screen
Aspiration Programs:
high, medium and low. Aspiration Status
Flow Rate
Preset program screen
Configuration for 1 Workbench
Access by and to change the aspiration program.
FlowFlow
HML
Saturation 20%
FilterFilter
Carbon life 90%
Aspiration
ON
FlowFlow
Saturation 20% 100%
FilterFilter
Carbon life 90%
Aspiration
ON
4

Main Screen
Note: For this configuration stand aspiration is not available.
Configuration for 2 Workbenches
This configuration is activated by setting Workbench option to “2” in the FAE1 main menu.
Alternative Assembly Option
FAE070
Flexible Arm with
Clamp Ø50
- Lenght: 1 m / 39.37 in
- To be assembled onto
the workbench with the
included clamp.
FAE020
Flexible Arm Ø50
- Lenght: 1 m / 39.37 in
- To be inserted and
screewed directly onto
the workbench (hole
drilling required).
FAE010
Flexible Hose Ø50
- Lenght: 1,5 m / 59.05 in
- For connecting either
to a flexible arm or to a
accessory for the stand
aspiration.
- Attention: Avoid
awkward positions
in order to minimize
pressure losses.
FAE1
Fume Extractor
for 1 Workbench
FlowFlow
HML
Saturation 20%
FilterFilter
Carbon life 90%
Aspiration
ON
FlowFlow
Saturation 20% 100%
FilterFilter
Carbon life 90%
Aspiration
ON
Custom program screen
Aspiration Programs:
high, medium and low. Aspiration Status
Flow Rate
Preset program screen
Access by and to change the aspiration program.
5
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm

Connection with Modular Stations
JBC Soldering Stations feature a robot port to the fume extractor in order to automatically
activate the extraction when the tools are in use. Use the Premium Station Cable (included) for the
connection.
Premium Station
Cable
Connect up to 4 stations directly to a fume extractor through the soldering station robot port. Every
tool connected to a station can control the aspiration system.
Each Station detects the fume extractor as “FAE_a”. The tool that should activate the fume
extraction need to be configured through the peripheral menu option on the station menu.
Note: For a correct operation always update soldering stations with the latest available software
version. The minimum required version is 8886160 for DDE, HDE and NAE stations and 8886162 for
DME stations.
