Jbl Bpx1100.1 User manual

BPX1100.1

2 CHANNEL

POWER AMPLIFIER

SERVICE MANUAL

JBL Consumer Products

250 Crossways Park Dr.

Woodbury, New York 11797 Rev1 2/2004

CONTENTS

Specifications………………………….…………………..……1

Features…………………………………………………………2

Test Conditions And Notes……………………………………2

Controls/connections…………………………………..………3

Mounting…………………………………………….…..………3

Applications………………………………………..……………4

Typical System Configuration…………………………………5

Troubleshooting……………………………………….……..…6

PCB drawings……………………………………..……………7

Electrical Parts List……………………………………………10

Mechanical Parts List……………….………………..………13

Block Diagrams……………………………………….………14

Semiconductor Pinouts………………………………………15

Exploded view…………………………………………………20

Schematics……………………………………………….……21

Packing………………………………….………………………30

SPECIFICATIONS

Power Output, 4 Ohms: n/a

Power Output, 2 Ohms: 575W x 2

Power Output, Bridged, 4 Ohms: 1100W x 1

Power Output, Parallel, 1 Ohm: 1100W x 1

MIN. Speaker Impedance: 1 ohm

Frequency Response: 20Hz~320Hz, -3dB

Input Sensitivity (RCA type): 250mV~6V

THD + Noise (4 Ohms): 0.5%

Signal-to-Noise: 93 dB

Maximum Current Draw: 110A

Fuse Replacement: 30Ax3

External Dimensions:

Length 12 ¼” (312mm)

Width 17” (432mm)

Depth 2 9/16” (66mm)

JBL continually strives to improve its products. New materials, production methods and design refinements are introduced into existing

models without notice as a routine expression of our design philosophy. For this reason, Power Series Multichannel Automotive

Amplifiers may differ in some respects from their published specifications and descriptions, but will always equal or exceed the original

specifications unless otherwise stated.

Power Amplifier

BPX1100.1

Test Conditions and Notes

2-Channel Operation

Advanced MOSFET Oversized Floating Rail Power Supply

Floating Ground Factory - Head - Unit Speaker - Level input

Variable Input Sensitivity (250mV - 6V)

Fully Complementary Output Stage with Class-D Voltage Amplification

Gold-plated Power, Input and Output Connectors

1-Ohm Stable ( 2 ohm parallel )

All tests to be done, unless otherwise specified, from 20Hz to 320Hz at 14.4V DC into 2 ohm loads and adjust

the units gain so that with a .775 volt input signal the unit is at its maximum rated output. All measurements

will be done using an Audio precision system one and the supply voltage.

An A+ line voltage of 14.4V DC shall be applied to the unit under test for all measurements unless otherwise

specified. The voltage applied to the unit shall be measured at the power connection on the Amplifier.

Signal Source

Unless otherwise specified, all tests shall be conducted with the Audio Signal Generator output configured to

be balanced, less than or equal to 50 ohm source impedance, and floating. The signal source "GND" shall be

connected to the Amplifier PWR GND at the Amplifier.

Output Load

Unless otherwise specified, all tests shall be conducted with 2 ohm resistive loads having less than 10%

reactive components at any frequency below 350Hz. Each resistor shall have a value that remains within 1%

while dissipating the rated output of the unit under test.

Power Indicator LED steadily illuminates for normal operation. LED blinks when

protection circuitry is engaged, and during power up.

Features

BPX1100.1

Power Amplifier

2

Controls and Connections

Mounting the Amplifier

The JBL BP Series amplifiers can be mounted in virtually any location inside the vehicle.

However, make sure to keep the amplifier away from heater vents or ducts.

1. At the chosen site, use the amplifier as a mounting template and mark the locations of the

four mounting holes.

2. Drill a small pilot hole at each marked location.

3. Mount the amplifier and securely tighten the mounting screws.

BPX1100.1

Power Amplifier

Controls and Connections

4. Preamp-Level Input Connector - Connects to

5. Pre amp-Level AUX output Connector

line-level output from the source unit.

3. Speaker Output Connector - Connect speaker

wiring to these connectors. See wiring instruc-

tions on page 4 for more information.

2. Fuse - Three 30 Amp ATC type Fuses.

1. Power Connection for 12V+, GND and REM

connections for power wires. See wiring instruc-

tions on page 4 for more information.

6. Input-Level Control - Adjusts input sensitivity

7. This switch is select X-over slope

for pre-amp level and speaker level inputs.

10. The crossover frequency can be set at any frequency

11. (1) The HP frequency can be set at any frequency

(2) Bass Boost control will provide at frequency

Between 32Hz and 320Hz.

Between 20Hz and 100Hz.

Being set between 20Hz ~ 100Hz

9.

8. This switch is set to 2-channel mode(2CH/BR) to drive

a pair of subwoofers or bridge(mono) mode to drive a

single subwoofer(PARALLEL).

It's allowed to use parallel mode when the nominal

impedance of the speaker system is 2 ohm or greater

1 2 3

4 56

8

97

1011

Remotr Volume Control Jack.

3

APPLICATIONS – BPx MODELS

To the right are several application

diagrams to help plan your subwoofer

system installation. Figures 1 through 3

show how to configure the JBL Power

Series subwoofer amplifiers (models

BPx500.1, BPx1100.1 and BPx2200.1)

for 2-channel, bridged-mono and

parallel-mono operation

“Setting the Output Mode” on page 6).

NOTE: For simplicity, Figures 1 through

3 do not show power, remote and input

connections.

NOTE: If the nominal impedance

of your speaker system is close to

2 ohms, be prepared to try both

bridged and parallel configurations to

determine which performs better.

3

BPx Amplifier

(partial rear panel)

*

SEE MANUAL FOR PARALLEL CONNECTION

2 CHANNEL

BRIDGED

PARALLEL

*

CH 1

CH 2

SPEAKER OUTPUTS

NEON

Subwoofer Subwoofer

Set OUTPUT MODE

to 2CH/BR

(on input panel)

PARALLEL 2CH/BR

OUTPUT MODE

12dB 24dB

32Hz 320Hz

FREQ

SLOPE

X-OVER

BPx Amplifier

(partial rear panel)

*

SEE MANUAL FOR PARALLEL CONNECTION

2 CHANNEL

BRIDGED

PARALLEL

*

CH 1

CH 2

SPEAKER OUTPUTS

NEON

Subwoofer (less than 2 ohms)

Set OUTPUT MODE

to PARALLEL

(on input panel)

PARALLEL 2CH/BR

OUTPUT MODE

12dB 24dB

32Hz 320Hz

FREQ

SLOPE

X-OVER

jumper

Figure 1. The JBL Power Series

subwoofer amplifier is set to

2-channel mode to drive a pair

of subwoofers.

Figure 2. The JBL Power Series

subwoofer amplifier is set to

bridged (mono) mode to drive

a single subwoofer. Use this

mode only when the nominal

impedance of the speaker

system is 2 ohms or greater.

Figure 3. The JBL Power Series

subwoofer amplifier is set to

parallel mode to drive a single

subwoofer. Use this mode only

when the nominal impedance

of the speaker system is less

than 2 ohms.

NOTE: A jumper is added

between the + terminals.

BPx Amplifier

(partial rear panel)

*

SEE MANUAL FOR PARALLEL CONNECTION

2 CHANNEL

BRIDGED

PARALLEL

*

CH 1

CH 2

SPEAKER OUTPUTS

NEON

Subwoofer (2 ohms or greater)

Set OUTPUT MODE

to 2CH/BR

(on input panel)

PARALLEL 2CH/BR

OUTPUT MODE

12dB 24dB

32Hz 320Hz

FREQ

SLOPE

X-OVER

Power Series Amp OM 5/20/03 10:51 AM Page 3

Power Amplifier

BPX1100.1

Typical System Configuration

Vehicle Battery

Chassis Ground

Ignition

Switch

CD Player or Changer

Cassette/CD Tuner

(Head Unit)

Power Ground

Speakers

60 Amp (Not Included) Main +12V

Amplifier

Power

Connection

Line

Level

Input

Remote On/Off

Remote Antenna

Power Supply

Antenna Motor Ground

Remote On/Off

Black - Power Ground

Red - Main +12V

Black Power

Antenna Input

Power

Antenna

Cassette/Receiver

Power Supply

Wires

Fuse

Power

Antenna

Relay

BPX1100.1

Power Amplifier

4

TROUBLESHOOTING

SYMPTOM LIKELY CAUSE SOLUTION

No audio No voltage at BATT+ Check voltages at

(POWER LED or REM terminals, amplifier terminals

is off) or bad or no ground with VOM

connection

No audio DC voltage on Amplifier may need

(PROTECT LED amplifier output service; see enclosed

flashes every warranty card for

4 sec.) service information

No audio Amplifier is Make sure amplifier

(PROTECT overheated cooling is not blocked

LED is on) at mounting location;

verify speaker-system

impedance is within

specified limits (see

“Specifications” on the

next page)

No audio Voltage less than 9V on Check vehicle

(PROTECT BATT+ connection charging system for

and POWER defective voltage

LEDs flash) regulator

I-E/OPT LED Amplifier is being Check INPUT

is on all times overdriven LEVEL setting;

(not flashing) see previous page

No audio Voltage more than 16V Check vehicle

(PROTECT or less than 8.5V on charging system for

LED is on) BATT+ connection defective voltage

regulator

Distorted audio Input sensitivity is Check INPUT

not set properly, or LEVEL setting; or

amplifier or source check speaker wires

unit is defective for shorts or grounds

Distorted audio Short circuit in Remove speaker leads

and PROTECT speaker or wire one at a time to locate

LED flashes shorted speaker or

wire, then repair

Music lacks Speakers are not Check speaker

“punch” connected properly connections for

proper polarity

Power Amplifier

BPX1100.1

Printed Circuit Board (Top View)

BPX1100.1

Power Amplifier

5

Printed Circuit Board (BOTTOM View)

BPX1100.1

Power Amplifier

6

Printed Circuit Board (SUB TOP View)

BPX1100.1

Power Amplifier

PAS132-01

REV.0

A20K

2K

623PCB4-B

A20K

2K

623PCB4-B

A20K

2K

623PCB4-B

A20K

2K

623PCB4-B 623PCB4-B

2K

A20K

2K

623PCB4-B

A20K

2K

623PCB4-B 623PCB4-B

2K

A20K A20K

2K

623PCB4-B 623PCB4-B

2K

A20K

VR701

R701

MOD02

VR701

R701

MOD02

VR701

R701

MOD02

VR701

R701

MOD02 MOD02

R701

VR701

R701

MOD02

VR701

R701

MOD02 MOD02

R701

VR701

R701

MOD02 MOD02

R701

VR701

7

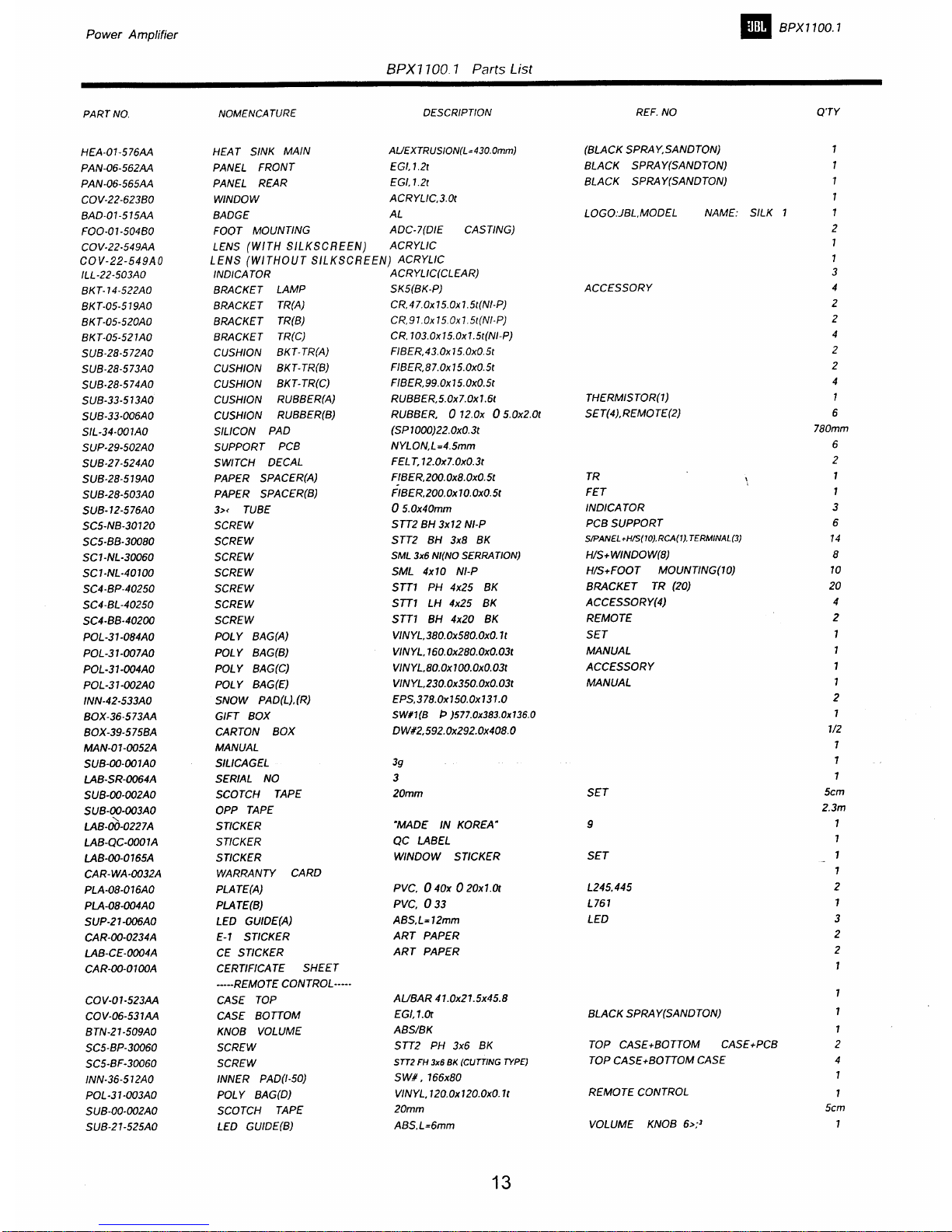

BPX1100.1 Parts List

6

PCB-00-00952

TRS-00-00088

TRS-00-00087

TRS-00-00110

TRS-00-00090

DIO-00-00108

DIO-00-00003

DIO-00-00006

DIO-00-00041

RES-00-00401

RES-00-00463

RES-00-00499

RES-00-00586

RES-00-00590

RES-00-00393

RES-00-00443

RES-00-00450

RES-00-00489

RES-00-00523

RES-00-00541

RES-00-00561

RES-00-00581

RES-00-00588

RES-00-00402

RES-00-00415

RES-00-00436

RES-00-00456

RES-00-00480

RES-00-00508

RES-00-00537

RES-00-00550

RES-00-00565

RES-00-00591

RES-00-00405

RES-00-00498

RES-00-00636

RES-00-00705

RES-00-00660

RES-00-00606

RES-00-00622

RES-00-00656

RES-00-00662

RES-00-00712

RES-00-00723

RES-00-00728

RES-00-00633

RES-00-00598

RES-00-00602

RES-00-00637

RES-00-00644

RES-00-00699

RES-00-00672

RES-00-00700

RES-00-00702

RES-00-00720

RES-00-00608

RES-00-00616

RES-00-00623

RES-00-00630

RES-00-00658

RES-00-00663

RES-00-00666

RES-00-00680

RES-00-00697

RES-00-00714

RES-00-00748

RES-00-00604

RES-00-00620

RES-00-00647

RES-00-00654

RES-00-00635

RES-00-00600

RES-00-00053

RES-00-00018

RES-00-00040

RES-00-00038

RES-00-00808

RES-00-00800

IND-00-00020

CEC-00-00007

IC

TRANSISTOR

DIODE

RESISTOR

INDUCTOR

CAPACITOR

SHUNT REGULATOR

SMALL SIGNAL NPN

SMALL SIGNAL PNP

SMALL SIGNAL NPN

SMALL SIGNAL PNP

FEST RECOVERY

RECTIFIER

SWITCHING SIGNAL

ZENER O.5W 12V

METAL FILM 1/5WF

CARBON FILM 1/5WJ

METAL FILM 0.5WJ

METAL FILM 1WJ

COIL AXIAL 5%

CERAMIC TUBULAR 50V

KIA431/KIA431A

KTC1027Y

KTA1023Y

KTC3198GR

KTA1266GR

FR154

1N4004

1SS133

1N5242

100 OHM

220 OHM

300 OHM

820 OHM

910 OHM

1.5K OHM

2.2K OHM

2.7K OHM

3.3K OHM

4.7K OHM

5.1K OHM

6.8K OHM

8.2K OHM

9.1K OHM

10K OHM

12K OHM

18K OHM

20K OHM

27K OHM

33K OHM

47K OHM

51K OHM

62K OHM

91K OHM

110K OHM

300K OHM

1 OHM

4.7 OHM

22 OHM

100 OHM

150 OHM

220 OHM

240 OHM

470 OHM

510 OHM

560 OHM

1K OHM

1.5K OHM

1.8K OHM

2.2K OHM

2.7K OHM

3K OHM

3.3K OHM

4.3K OHM

4.7K OHM

5.6K OHM

10K OHM

12K OHM

15K OHM

18K OHM

22K OHM

24K OHM

27K OHM

30K OHM

39K OHM

47K OHM

75K OHM

100K OHM

150K OHM

200K OHM

220K OHM

1M OHM

1.5M OHM

4.7 OHM

10 OHM

22 OHM

220 OHM

22 OHM

2.2K OHM

100uH

10pF

U282,482

Q203,205,207,209,281,403,405,407,409,481

Q914

Q1,204,206,208,210,282,404,406,408,410

Q482,916,920

Q2,6,128,362,363,365,611,631,632,705

Q3,4,8,9,364

D771,772,774,871,872,874

D363,701

D01,02,181,281,282,283,284,481,482,483

D484,581,725,801,802,909,913,914,915,922

D923,924,925

D201,202,401,402,901

R204,404

R203,403

R906,952

R116

R202,206,402,406

R288,488

R113,557

R117

R554

R111,112,114,177,179,555,556,577,579

R2

R807

R905,951

R805

R150,353,354,453,454,591

R806

R118

R26

R27

R01

R103,104,105,106,107,108,109,110,904,950

R23

R808

R101,102

R22

R30

R207,208,211,212,407,408,411,412

R8

R619,743,744,745,747,753,754,755,757

R115,282,482,915,922,924,925

R130

R21,603

R151

R174,233,433,574

R123,125

R809

R33,183,185,290,351,451,490,583,585,613

R622,742,752

R723,725

R3,153

R6,155,173,201,205,281,401,405,481,573

R4,157,363

R181,581

R10,600,614

R141,142,156

R17,34,145,154,180,188,189,287,487,571

R588,589,590,601,726,916

R9,11,143,144

R25,121,124,126,127,132,283,286,289,362

R364,483,486,489,569,570,617,618,724,907

R908,910,911,913,918,920,921,923,953

R602

R7,122,129

R917

R14,16,19,31,32,187,365,587,615

R184,584

R28,172,572,919

R128

R152

R18,182,186,582,586

R160,176,178,560,576,578,801,802

R13,224,225,226,227,229,230,231,352,425

R426,427,428,429,430,431,452

R131

R149,271,471

R914

R12,15,20,24,361,612,616,621,912

R909

R5

R214,215,216,217,220,221,222,415,416,417

R418,420,421,422

R284,285,484,485

R41,42

R771,772,871,872

R901

L611

C105,106

2

11

13

10

5

6

2

23

5

2

1

4

2

1

9

1

2

1

6

1

10

1

2

1

8

1

9

7

1

2

1

4

2

1

13

2

10

3

2

3

16

4

29

1

3

1

9

2

4

1

5

8

17

1

3

1

9

1

14

4

2

4

1

2

REF. NO

PART NO. DESCRIPTION

NOMENCATURE MFR PARTS Q'TY

BPX1100.1

Power Amplifier

8

V12L5(9x5)G(4R)(PH2D)N15KC-A2Kx2+A200Kx2

CEC-00-00038

CEC-00-00017

CEC-00-00028

CEC-00-00035

CEC-00-00004

CEC-00-00005

CEC-00-00037

CEC-00-00006

MYC-00-00046

MYC-00-00199

MYC-00-00084

MYC-00-00083

MYC-00-00156

MYC-00-00085

MYC-00-00088

MYC-00-00061

MYC-00-00066

MYC-00-00184

MYC-00-00177

MYC-00-00034

MYC-00-00045

ELC-00-00571

ELC-00-00333

ELC-00-00114

ELC-00-00334

ELC-00-00117

ELC-00-00293

ELC-00-00111

ELC-00-00113

ELC-00-00153

ELC-00-00160

ELC-00-00137

ELC-00-00127

ELC-00-00130

ELC-00-00162

ELC-00-00132

ELC-00-00254

REL-00-00009

ICO-00-00017

ICO-00-00055

ICO-00-00003

ICO-00-00022

ICO-00-00170

ICO-00-00095

ICO-00-00157

ICO-00-00162

FET-00-00001

FET-00-00021

FET-00-00037

TRS-00-00112

TRS-00-00096

DIO-00-00102

DIO-00-00048

DIO-00-00198

DIO-00-00277

REN-00-00001

VOL-00-00282

VOL-00-00114

VOL-00-00283

VOL-00-00055

VOL-00-00134

RES-00-01112

RES-00-01018

RES-00-01046

RES-00-01079

RES-00-01099

RES-00-00919

RES-00-00916

RES-00-00947

THS-00-00013

MYC-00-00152

MYC-00-00076

MYC-00-00109

ELC-00-00357

SEMI VOLUME

CAPACITOR

RELAY

I.C

FET

TRANSISTOR

DIODE

LED

RESONATOR

VOLUME

RESISTOR

THERMISTOR

CAPACITOR

CERAMIC TUBULAR 50V

MYLAR 5% 63V "BOX"

MYLAR 5% 400V "BOX"

MYLAR 5% 63V "TL"

MYLAR 5% 100V

MYLAR 5% 50V

ELECTROLYTIC "NE"

ELECTROLYTIC "NP"

ELECTROLYTIC "SRE,SE"

ELECTROLYTIC "SMS/SHL/SG"

ELECTROLYTIC "SXE"

DC12V,10A

PRECISION COMPARATOR(DIP-14)

14-STAGE COUNTER(DIP-16)

DUAL OP AMP

PWM

VOLUME IC

VOLTAGE REGULATOR

N-CH MOSFET

P-CH MOSFET

N-CH MOSFET

VIDEO NPN

VIDEO PNP

FAST RECOVERY

RECTIFIER

3PHI BLUE

3PHI RED

2.56MHz

V12L5(9x5)G)PH2D)N17KC-3B20Kx2

V12L5(9x5)G)PH2D)N17KC-B500x2

V12L5(9X5)G(PH2D)N15KC-15C50Kx4

6PHI , 5KB

MOR 2WJ SMALL TYPE"FORMING 15m/m"

MOR 2WJ SMALL TYPE

MOR 2WJ SMALL TYPE"FORMING 15m/m"

MOR 3WJ

SHUNT 5WJ (3P, 10m/m)

NTC RESISTOR 50K

MYLAR 10% 100V "BOX"

MYLAR 10% 250V "BOX"

ELECTROLYTIC "BP"(12.5x20)

47pF

220pF

330pF

470pF

102pF

103pF

473pF

104pF

102J

103J

104J

184J

105J

224J

334J

474J

102J

103J

333J

823J

22/16V

1/50V

2.2/16V

4.7/16V

4.7/50V

22/16V

100/16V

1/50V

4.7/50V

10/25V

22/16V

47/16V

100/50V

220/16V

100/25V

KB11-E12S

B52

F16

TL072CP

TL494CN

NJM13600

KIA393P

KIA7812PI

KIA7912PI

IRF3205

IRF9640

IRFB31N20D

C3503

A1381

MUR3040PT

1N5404

HL304H1BC2

HNRD-3401L

CSA2.56MG

RG06P-5KB

2.2 OHM

47 OHM

100 OHM

2.2K OHM

3.9K OHM

220 OHM

2.7K OHM

0.01 OHM

FTD5-350

105K

225K

10/100V

C611,612,617

C726

C616,618

C111

C5,8,17,905,951

C286,486

C3,187,188,189,190,191,192,193,194,195

C196,197,198

C01,12,13,14,15,94,181,182,201,202

C204,205,211,281,282,285,289,290,291,292

C361,363,401,402,404,405,411,481,482,485

C489,490,491,492,613,714,715,721,722,774

C778,874,878,902

C9,280,480,904,950

C761

C172,572

C265,465

C152

C284,364,484,702,703,723

C203,206,403,406

C143

C151

C119,245,445,725

C255,455,602,615

C144

C141,142

C173,573

C113,156

C801,913

C287,293,487,493

C4,6,7,95,283,288,483,488

C1,2,11,771,871,908

C08,10

C16,777,877,903

C123

C124,614

C353,453

C101,102,103,104,121,122,183,184,185,186

C362

C773,873

C631

C701

REL1,2

U281,481

U611

U101,102,103,105,106,108,109,110,112,350

U509,510

U1

U104

U2,3,12,801,901

U761

U861

Q742,743,744,746,752,753,754,756

Q212,213,214,215,413,414,415,416

Q217,218,219,417,418,419

Q201,401

Q202,402

D761,762,763,764

D702

LED2

LED1,801

X611

VR104

VR101

VR105

VR102

VR103,503

R263,463

R245,445

R761

R246,255,262,446,455,462

R764,765

R727

R209,210,409,410

R234,434

TH1

C207,209

C246,247,248,264,446,447,448,464,762,763

C787,788

C768

C249,250,251,449,450,451

3

1

2

1

5

2

13

44

5

1

2

1

6

4

1

4

1

2

4

8

6

2

4

1

2

10

1

2

1

2

1

12

1

5

1

8

6

2

4

1

2

1

2

1

6

2

1

4

2

1

2

12

1

6

BPX1100.1 Parts List

REF. NO

PART NO. DESCRIPTION

NOMENCATURE MFR PARTS Q'TY

BPX1100.1

Power Amplifier

9

ELC-00-00009 CAPACITOR 2

ELC-00-00173 CAPACITOR

ELC-00-00282 CAPACITOR

ELC-00-00474 CAPACITOR

ELC-00-00627 CAPACITOR

COR-TF-00366 RING CORE

COI-00-00083 INDUCTOR

COI-00-00104 INDUCTOR

COI-00-00105 INDUCTOR

COI-00-00106 CURRENT SENSOR

TER-00-00219 TERMINAL

TER-00-00220 TERMINAL

HOD-00-00006 FUSE HOLDER

JAC-00-00050 MODULAR JACK

JAC-00-00043 RCA JACK

SWI-00-00056 SWITCH

JUP-00-00003 JUMPER

JUP-00-00029 JUMPER

JUP-00-00028 JUMPER

JUP-00-00013 JUMPER

WIR-00-00184 WIRE

WIR-00-00173 WIRE

WIR-00-00110 WIRE

TUB-00-00008 TEFLON TUBE

FUS-00-00010 AUTO FUSE

VOL-00-00044 VOLUME

RES-00-00668 RESISTOR

JAC-00-00050 MODULAR JACK

3T(0.7x22):13T(0.7x4)+4T(0.7x1)

33/100V

470/80V

100/100V

1000/80V

2200/25V "WL"

CL-4100

CL-5100

CL-330

CCS-50

KTD-9216A

KTD-9218A

JSF08031P

623PCB4-B

DJB-554A

JSS-2208

35m/m

MA-BA-02-1961-0(5P)

MA-BA-02-1962-0(4P)

MA-BA-02-1529-1(2P)

125m/m

135m/m

150m/m

10m/m

30A

A20Kx2 (9 PHI)

2K OHM

KEK623PCB4-B

JAC-00-00128 MODULAR JACK ASS'Y

ELECTROLYTIC "BP"(16x25)

ELECTROLYTIC "SG"(16x25)

ELECTROLYTIC "SHL/SD"(10x20)

ELECTROLYTIC "SD"(16x31)

ELECTROLYTIC "WL"(16x25)

44PHI,MAGNETICS

120uH

50A

GOLD PLATED

PCB TYPE

4P

GOLD PLATED

SLIDE SWITCH

METAL BAR

62mm 5 LEAD

46mm 4 LEAD

2P

AWG #14 RED

AWG #22 BLACK (3PHI RING LUG)

0.7PHI

ATC

V9M5720009A

CARBON FILM 1/5WJ

4P

4P(5 METER)

C252,452

C783,784

C901

C208,210,408,410,781,782,785,786

C716,717,718,719,720,727

T1

L761

L245,445

L1

CT1

TER2

TER1

F1,2,3

MOD1

RCA101

SW102,103

BAR1,2,3,4,5,6,7,8,9,10

BAR11,12,25,26,27,28,29,30,31,32

BAR33,36

BAR15,19,20,22,23,39

BAR13,14,16,17,21,24

BAR38

W1(W1-A,W1-B)

W2(W2-A,W2-B)

W03

TH1

SET 3 + ACCESSORY 3

VR701

R701

MOD02

ACEESSORY

2

1

8

6

1

2

1

3

1

2

22

6

1

2

6

1

BPX1100.1 Parts List

REF. NO

PART NO. DESCRIPTION

NOMENCATURE MFR PARTS Q'TY

BPX1100.1

Power Amplifier

10

Power Amplifier

BPX1100.1

BPX1100.1 BLOCK DIAGRAM

Integrated Circuit Diagrams

U1 (TL494CN) P.W.M IC

DEAD TIME

CONTROL

U2,3,12,801,901 (KIA393P)

V+

OUT B

-IN

+IN

OUT A

+IN

V-

-IN

U101,102,103,105,106,108

U109,110,112,350,509,510 (TL072CP)

VCC+

OUTB

-IN

+IN

OUT A

+IN

-IN

VCC

BPX1100.1

Power Amplifier

14

Integrated Circuit Diagrams

U611 (F16)

1

2

3

4

5

6

7

89

10

11

12

13

14

13

12

11

10

9

8

76

5

4

3

2

1

15

16

VDD VDD

=VDD

VSS

=VSS

VSS

Q4

Q5

Q6

Q7

Q8

Q9

Q10

Q12

Q13

Q14

RESET

0

1

0

8

16

4

5

1

2

3

12 11 10 9

6

13

15

14

7

R

BPX1100.1

Power Amplifier

INPUT1

INPUT2

U281,481 ( B52 )

V+ VCC

STRDBE1

STRDBE2

V-

NC

OUTPUT1

OUTPUT2

GND

1

2

3

4

5

6

78

9

10

11

12

13

14

V+

V-

INPUT1

INPUT2

STROBE1*

STROBE2*

INPUT1

INPUT2

15

Power Amplifier

BPX1100.1

Transistor Diagrams

C

B

E

C

B

E

GD

S

* KTC3198GR *

Q2,6,128,362,363,365

Q611,631,632,705

* IRFB31N20D *

Q217,218,219,417,418

Q419

* IRF9640 *

Q212,213,214,215

Q413,414,415,416

* 2SC3503 *

Q201,401 * 2SA1381 *

Q202.402

* KTA1266GR *

Q3,4,8,9,364

GG

SS

DD

BPX1100.1

Power Amplifier

* MUR3040PT *

D761,762,763,764

1

2

3

* MUR3040PT *

D761,762,763,764

1

2

3

123

* MUR3040PT *

D761,762,763,764

12 3

* MUR3040PT *

D761,762,763,764

12 3

17

Transistor Diagrams

C

B

E

GS

D

*1RF3205*

Q742,743,744,746,752

Q753,754,756

C

B

E

* KTC1027Y *

Q203,205,207,209,281,403

Q405,407,409,481,914

* KTA1023Y *

Q1,204,206,208,210,282,404,406

Q408,410,482,916,920

* MUR3040PT *

D761,762,763,764

1

2

3

* MUR3040PT *

D761,762,763,764

1

2

3

123

* MUR3040PT *

D761,762,763,764

12 3

* MUR3040PT *

D761,762,763,764

12 3

BPX1100.1

Power Amplifier

18

JBL BPx1100.1 User manual

Popular Amplifier manuals by other brands
