JBL Reflect Contour 2 User manual

Reflect Contour 2
QuickStart Guide
Guide de demarrage rapide
G) What's in the box
Reflect Contour 2
x1
Charging cable
0 ~ ~-I ------~® X 1
Freebit enhancers and ear tips 0 .
FREEBIT
s M L
Silicone pouch, Warranty card, Warning card,
Safety
sheet, QSG
•
_.
w! +
""'-..,.,~
sQ
""'-..,.,-
x1

Reflect Contour 2
QuickStart Guide
Guide de demarrage rapide
® Overview
1. Buttons and LEOs
--- -----
1
2. Charging
;----->>)/~
I
I
I
I
I
+ ___ 1 ,-- ", ....
I
_____ : <.!>
I -_-:: -_- :; --------------- .....
I ./L_\
: __ ~II u
- ---~ 3.0s
I
I
I
I
I
I
d]:~) <9 2hr
\ ' ,
... ___ .,

Reflect Contour 2
QuickStart Guide
Guide de demarrage rapide
@ Wearing the headphone
1. Mixand match for a perfect fit and audio performance.
() s
s L
2. Installation
Step 1 Step 2 Step 3
Align the notch, and gently clip the enhancer and the
ear tip onto the earphone
a) Secure the
outer earhook
behind the ear.
b) Insert the ear tip and turn
to activate Dual Lock
Technologyfor the most
secure, ergonomic fit.
Turn for
perfect fit

Reflect Contour 2
QuickStart Guide
Guide de demarrage rapide
3. Wear behind the neck
4. Use the cinch
*Use the cinch for size adjustment
to improve stability
when moving.
FR
Port du casque
1. Melangez et adaptez pour un contort et des
performances audio parfaits.
2. Installation
Etape 1 Etape 2 Etape 3
Alignez l'encoche, enclenchez doucement
l'adaptateur et l'embout sur l'ecouteur.
a) lnstallez le crochet d'oreille exterieur derriere
l'oreille.
b) lnserez l'embout et tournez pour activer Ia
technologie Dual Locket obtenir un contort plus sOr
et plus ergonomique.
Tournez pour un contort parfait.
3. Porter derriere
le cou
4. Utilisez !'attache
*Utilisez !'attache pour ajuster
Ia taille afin d'ameliorer Ia
stabilite pendant les mouvements.

Reflect Contour 2
QuickStart Guide
Guide de demarrage rapide
@ Bluetooth'"connection
1. Turn on the headphone
<!.>
---. G
3.0s
2. If connecting forthefirst time, the headphone will enter
pairing mode automatically after it is powered on.
3. Connect to bluetooth device
( Settings Bluetooth
Bluetooth
DEVICES ,I
JBL Reflect Contour 2 Connected CD
Now Discoverablo
Choose IIJBL Reflect Contour 2
11
to connect

Reflect Contour 2
QuickStart Guide
Guide de demarrage rapide
® Music control
:------ ~>))
I
I
I
---,
I
I
I
I
~------ ~)
@ Phonecall
:------ ~>))
;-------. ~
! G 3.0s
I
~ -------. 144
G 3.0s
ID --------- 0 I G
4lx1 e(93.0s
I
~------ ~)
0 Voice Assistant
Siri® or Google NowTM

Reflect Contour 2
QuickStart Guide
Guide de demarrage rapide
® LED Behavior
Headphone mode
CD Pa.veron
<D Poweroff
* No BT Connected
• BT Paiing
• BT Connected
6 Low battery
fll Charging Complete
6 Charging in Progress
LED Status
• Long
• Long
:e: Skm
- - Fast
• x2
:•: SIOIN
Off
. 01
----
FR ES
Modecaeque BatdelaDEL
Modo. aurtculaNe
Eatado dal LED
(I) Marche
•
Fixe
<D Encendido
•
Rjo
(I)Arr6t
•
Fixe
(I) Apegado
•
Rjo
• Pas de BT connecte
:e: Lent
•
No hay BT conectado
. Lento
• Couplage au BT
-· Raplde
• EmparejEmlentO BT
-· Rtlpido
• Connect& au BT
• X2
• BT conectado
•
x2
fj Bstterie faible
:e:
Lent
fj Baterfa~
• Lento
fj Qwgement termne Bent fj Beterfa baja
Apagado
fj 01a'gement en OOU'8 •Mll'che fj Carga en curso
•
Enoendido
DE IT
Kaplh6rer-Modus LED-status Modllllli cuflla
StatoLED
(I) EingeschiM!et
•
kont. ein
<D Accensione
Rinane
e acceso
(I) Ausgesc:l'8l8t •
konl ein (I) Spegnlmento
· ~
•
Keine BT-Verblld.ng • l.ang!m1 •
Nessun dispositive
»: Lento
BTcol egato
• BT -l<cppetl -·
Scmell
• Abblnlmento BT
-· Veloce
• BTverbunden
•
x2
• BT col egato
. x2
fj Schwacher AIOO
»: l..a1gsan
fj Battsria quasi scarica .
Lento
fj Au11adevorgang
abgeschlossen
AJS fj Ricarica complatata 011 (Spento)
fj Wid aufgeladen
•
Ein
a Ricarlca In corso • On (Acceso)

Reflect Contour 2
QuickStart Guide
Guide de demarrage rapide
EN
• Premium 5.8mm Dynamic Driver
• Frequency Response: 10Hz-22kHz
• Impedance: 14 Ohm
• Connection: Micro USB cable for rapid charge
• Support: BT 4.2, A2DP v1.3, AVRCP v1.5,
HFP v1.6, SBC codec
• Bluetooth transmitter frequency
range: 2.402-2.480GHz
• Bluetooth transmitter power: < 4dBm
• Bluetooth transmitter modulation:
GFSK, rt/4 DQPSK, 8DPSK
• Battery type: Rechargeable Lithium lon Cylindrical
Cell {3.7V2 x 85mAh)
FR
• Haut-parleur dynamique haut de gamme de 5,8 mm
•
R~ponse en fr~quence : 10 Hz -22 kHz
• Impedance : 14 ohm
• Branchement : Cable micro
USB pour Ia charge rapide
• Compatibilite :
BT 4.2, A2DP v1.3, AVRCP v1.5, HFP v1.6, Codec SBC
• Gamme de
fr~quences de l'~metteur Bluetooth :2,402 -2,480 GHz
• Puissance de l'emetteurBluetooth :< 4 dBm
• Modulation de
l'~metteur Bluetooth : GFSK, rt/4 DQPSK, 8DPSK
• Type de batterie : Batterie U-ion rechargeable
(3, 7 V 2x85 mAh)
ES
• Amplificadores dinamicos de alta calidad de 5,8 mm
• Respuesta de frecuencia: 10 Hz - 22 kHz
• lmpedancia: 14 Ohm
• Conexi6n: Cable micro USB para carga rapida
•
Compatible con: BT 4.2, A2DP v1.3, AVRCP v1.5, HFP v1.6, C6dec SBC
•
Rango de frecuencia del transmisor Bluetooth: 2,402-2,480 GHz
• Potencia del transmisor Bluetooth: <4 dBm
• Modulaci6n del transmisor Bluetooth: GFSK, n/4 DQPSK, 8DPSK
• Tipo de baterfa: Gelula cilfndrica recargable de iones de litio (3, 7V 2x85 mAh)
DE
• Premium-5,8-mm-Dynamic-Treiber
• Frequenzgang: 10 Hz -22 kHz
• lmpedanz: 14
Ohm
• Verbindung: Micro-USB-Kabel fOr Schnellladung
• UnterstOtzung:
BT 4.2, A2DP v1.3, AVRCP v1.5, HFP v1.6, SBC-Codec
• Bluetooth-Sender-Frequenzbereich:
2,402-2,480 GHz
• Bluetooth-Sendeleistung: < 4 dBm
• Bluetooth-Sendeleistung:
GFSK, rt/4 DQPSK, BDPSK
• Batterieart: Zylindrischer, aufladbarer Lithium-lonen-Akku
(3,7 V 2 x 85 mAh)
IT
• Driver dinamico di alta qualita da 5,8 mm
• Risposta
in frequenza: 10Hz -22 kHz
• lmpedenza: 14
Ohm
• Connettore: Cavo Micro USB per Ia ricarica rapida
• Supporto: BT4.2, A2DP v1.3, AVRCP v1.5,
HFP v1.6, Codec SBC
• Gamma di frequenza del trasmettitore Bluetooth:
2,402-2,480 GHz
• Potenza trasmettitore Bluetooth: < 4 dBm
• Modulazione trasmettitore Bluetooth:
GFSK, rt/4 DQPSK, BDPSK
• Tipo di batteria: cella cilindrica agli ioni di litio ricaricabile (3,7 V; 2x 85 mAh)

Reflect Contour 2
QuickStart Guide
Guide de demarrage rapide
AR
r-o5.8JU.....~~~~ •
y_)4 # 22- y_)4 10 =~Jill~~~ •
r-'1 14 :~L..~ta..,Lil.t •
~~~~USBM. •
~~~ ~lbl11J:<o.,:; ~Li-'!, HFP v1.6, AVRCP v1.5, A2DP v1.3' BT 4.2:rc--lll •
.YJA ~ Bluetooth: 2.402-2.480 Jl....;! J\.p. .::..::._; Jl..l.l •
J.I.J JLo ~ Bluetooth: < 4 JI...J! J\.p. •.) •
Bluetooth: GFSK, TT/4 DQPSK, 8DPSK JI...Jl J\.p. ~ •
(~I...~~ Jl.o 2x85 ~__,i 3.7) ~~ o::.t&.'j ~ ~1_,1...1 ~~ r~ ~ :~~~ t.Jl •
ToprosaH MapKa: JBL
Ha3Ha4eHI'1e TOsapa: nonb30BaTeJlbCKI'1e HayUJHIIIKIII
V13rOTOBIIITeJlb: XapMaH V1HrepHeUJHil V1H,qacrp1113 V1HKopnope~re,q, CWA,
06901 KOHHeKTIIIK)'T, r.CT3M¢0PA, AmaHTIIIK Crp111r 400, o¢111c 1500
CrpaHa npo1'1CXO>KAeHI'1fl: K111ralii
V1Mnoprep B Pocc11110: 000 "XAPMAH PYC C1'1Aiii3c", PocCIIIfl, 127018,
r.MOCKBa, yn. ,[\BIIIHWeB, A.l2, K1
lapaHTiilliiHbllii nepiiiO,Q: 1 rDA
V1H¢opMaWIIIH o cepBIIICHbiX weHrpax: www.harman.com/ru ren.
[phone]
CpoK CI1Y>fl\6bl :2 roAa [ R[
Toaap cepr111¢111L1111POBaH [
,[lara npo1113BOACTBa: ,[lara Li13roToBJleHiilfl ycrpotiicrsa onpe,qenHeTCH no ABYM
6yKBeHHbiM 0603Ha4eHIIIRM 1113 BTOpOiii rpynnbl CIIIMBOJlOB ceplllliiHOrO
HOMepa 1'13AeJ11'1fl, cneAYIOll!I'1X nocne pa3AeJ11'1TeilbHoro 3HaKa «-».
KOAIIIPOBKa cooTBeTCreyer nopfiAKY 6yKB JlaTIIIHCKoro an¢as111ra, Ha4111Hafl c
fiHBapH201 0 rDAa: 000000-MYOOOOOOO, r,qe «M»- MeCHW np01113BOACTBa
(A- fiHBapb, B-¢eepallb, C- Mapr 111 T-A.) Li1 «Y»- ro,q npo1113BOACTBa (A- 2010,
B-2011, C- 20121'1 T.,Q.).
0 Bluetooth"
The Bluetooth• word mark and logos are registered trademarks owned by
Bluetooth
SIG, Inc. and any use of such marks by HARMAN International
Industries, Incorporated is under license. Othertrademarks and trade names
are those oftheirrespective owners.

Reflect Contour 2
QuickStart Guide
Guide de demarrage rapide
Ag~ncia Nacional de Te/ecomunicaflies
Este equipamento opera em carater secundano, isto{!, nao tem direito a protec;ao
contra interfer~ncia prejudicial, mesmo de estaQ6es do mesmo tipo, e nao pode
causar
interfe~ncia a sistemas operando em carater primario"
Este produto esta homologado
pela ANA TEL, de acordo com os procedimentos
regulamentados pela
Resolu~ao 242/2000, eatende aos requisites tecnicos
aplicados.
Para maiores informaQ6es, consults o site daANATEL-www.anatel.gov.br
CE
TR04440_E

Features
JBL Signature Sound
10 hour battery life with speed charge
Secure Fit
3-Button Remote with Microphone and
voice assistant
Ergonomic Ear tips
Sweatproof
Reflective Cables
Designed for Movement. Defined by You.
Take on every workout with wireless headphones that go the distance while matching your
personal flair for style. JBL Reflect Contour 2 is designed with sweatproof, lightweight
aluminum construction and an ear hook fit that’s ready to lock in and go. Customize your
comfort with three sizes of Freebit™enhancers, and have easy control over music and
calls with a 3-button remote and mic. A reflective cable keeps you more visible during
nighttime routines. And with 10 hours of battery life powering signature JBL sound, you can
keep moving without ever missing a beat. With the touch of a button you can conveniently
manage your calls and access the voice assistant.
Secure fit Wireless Sport Headphones

HARMAN International Industries, Incorporated
8500 Balboa Boulevard, Northridge, CA 91329 USA
www.jbl.com
© 2018 HARMAN International Industries, Incorporated. All rights reserved. JBL is a trademark of
HARMAN International Industries, Incorporated, registered in the United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
What’s in the box:
Reflect Contour 2
3 x Sizes of ear tips
3 x Enhancer
Charging Cable
Sport Carry Pouch
1 x Warranty / Warning (W / !)
1 x QSG / Safety Sheet (S / i)
Technical specifications:
Driver Size: 5.8mm Dynamic Driver
Frequency Response: 10Hz–22kHz
Impedance: 14 Ohm
Connection: Micro USB cable for rapid charge
Support: BT 4.2, A2DP v1.3, AVRCP v1.5,
HFP v1.6, SBC codec
Bluetooth transmitter frequency range:
2.402 – 2.480GHz
Bluetooth transmitter power: <4dBm
Bluetooth transmitter modulation:
GFSK, π/4 DQPSK, 8DPSK
Battery type: Rechargeable Lithium Ion
Cylindrical Cell (3.7V 2 x 85mAh)
Weight: 18g
Features and Benefits
JBL Signature Sound
The world renowned JBL sound that has been perfected for over 70 years tuned to provide the
most epic sounding soundtrack for your active life.
10 hour battery life with speed charge
Wireless Bluetooth®streams audio for 10 hours to keep you rocking from a morning gym
session all the way through a full day’s work. Quickly recharge the battery in 15 minutes for an
hour of playback time.
Secure Fit
The Dual Lock technology – a combination of patented Freebit™enhancers and the ear hook
design, ensure maximum stability and comfort for your ears during the most intense workouts.
3-Button Remote with Microphone and voice assistant
With the touch of a button, easily manage your music or calls and conveniently access voice
assistants.
Ergonomic Ear tips
Flexible silicone ear tips and patented Freebit™enhancers that both come in 3 different sizes
allow for ultimate customization by mix and matching sizes to find the perfect fit and audio
performance.
Sweatproof
Ramp up the intensity of your workouts without fear. Boasting an IPX5 water-resistant rating,
these headphones are built to last the most intense workouts.
Reflective Cables
Designed for ultimate visibility at night.

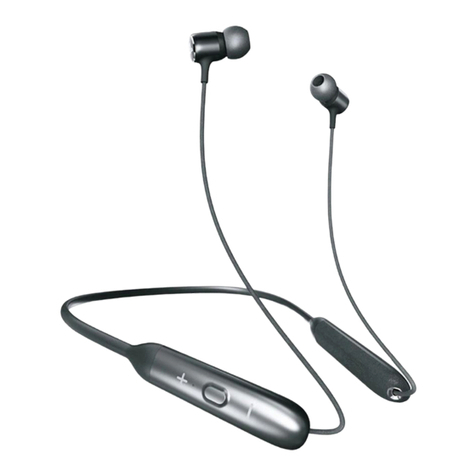

Secure fit Wireless Sport Headphones

llHl.

EN

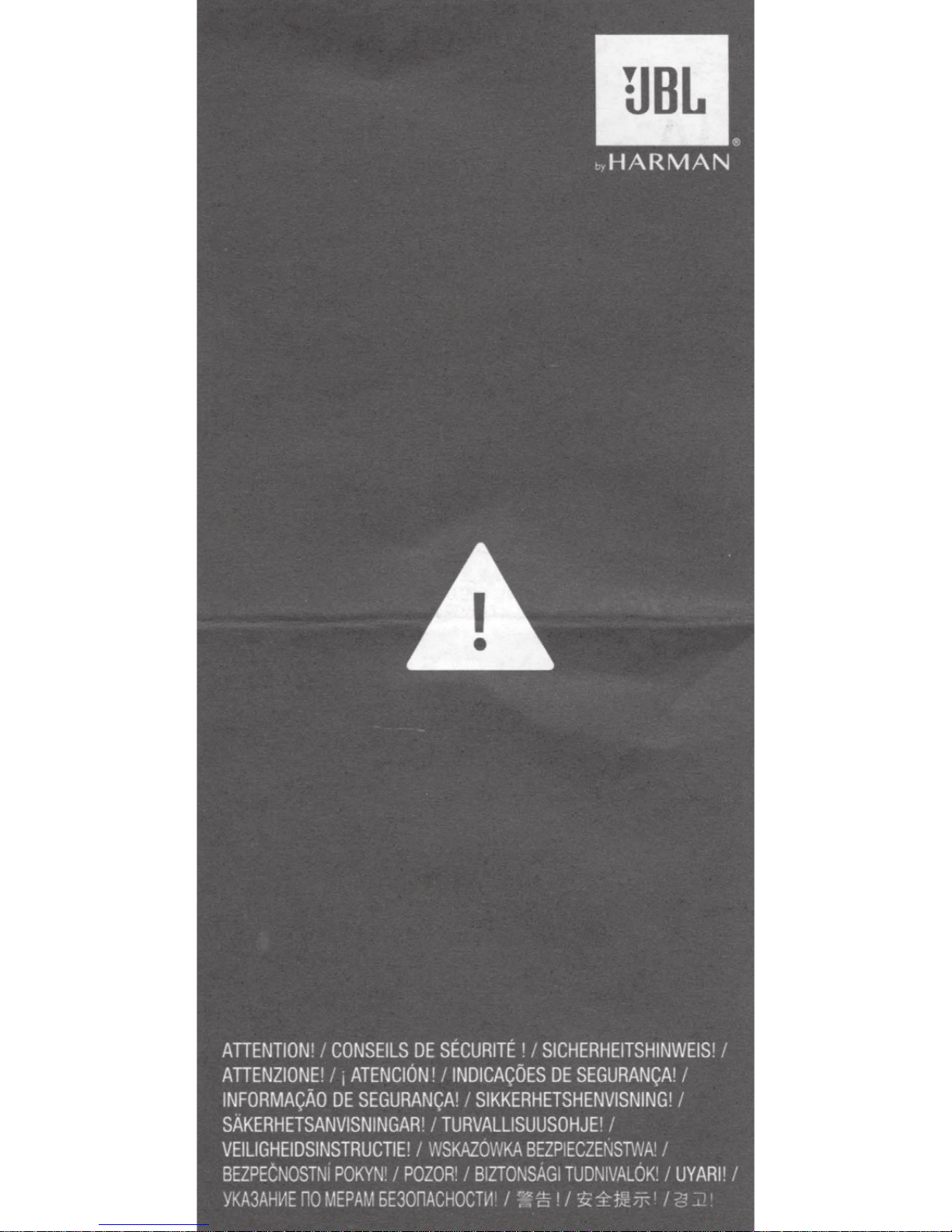

WARNING!
• To guarantee your personal safety, please ensure that these headphones are
not worn or kept in the immediate vicinity (closer than 10 em) of a pacemaker.
• Do not insert jack plug into elecbic sockets.
• Supervise children when using the equipment.
The product is not a toy.
A. Headphone listening at high volume levels
t:!!!!::l - particularly over extended
periods of time - may damage your hearing.
IMPORTANT!
The operation of switches on your hi-fi system or plugg i ng in the head-phones may
cause clicks which at high volume settings may affect your hea-ring. Therefore, always
set the volume contro l to minimum before SWitching between different sources (tuner,
turntable, CD player, etc .) or plugging in the headphones . For traffic safety, do not use
headphones while driving or cycling . The ear pads may deteriorate due to long-tenn
storage or use.
INFORMATION ON DISPOSAL FOR USERS OF WASTE ELECTRI-
CAL & ELECTRONIC EQUIPMENT (PRIVATE HOUSHOLD)
This symbol on the products and/or accompanying documents means that used
electrical and electroni c products should not be mixed with general household waste .
For proper treatment, recovery and recycling, please take these products to designated
collection points , where they wi ll be accepted on a free of charge bas i s. Alternatively , in
some countries you may be able to return your products to your local retailer upon the
purchase of an equivalent new product Disposing of this product correctly will help to
save valuable resources and prevent any potential negative effects on human health
and the environment which coul d otherwise arise from i nappropriate waste handling .
Please contact your local authority for further details of your nearest designated
collection point . Penalties may be applicable for incorrect disposal of this waste , in
accordance with national legislation.
INFORMATION ON DISPOSAL IN OTHER COUNTRIES OUTSIDE
THE EUROPEAN UNION
This symbol is only valid in the European Union .If you whish to discard this product,
please contact your local authorities or dealer and ask for the correct method of
disposal .

UHL

UDL

US AND CANADA
FCC AND IC STATEMENT:
This device complies with Part 15 of the FCC rules and Industry Canada license-
exempt RSS standard(s). Operation is subject to the following two conditions:
(1) This device may not cause harmful interference; and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
CAN ICES-3(8)/NM8-3(8)
FCC/IC RADIATION EXPOSURE STATEMENT
This equipment complies with FCC/IC RSS-1 02 radiation exposure limits set
forth for an uncontrolled environment.
DECLARATION DE LA FCC ET D'IC
Le present appareil est conforme aux CNR d'lndustrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisee aux deux
conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi,
meme si le brouillage est susceptible d'en compromettre le fonctionnement.
DECLARATION DE LA FCC ET D'IC SUR L'EXPOSITION AUX RADIATIONS
Cet appareil est conforme a Ia norme RSS 1 02 de Ia FCC/IC relative aux limites
d'exposition aux radiations dans un environnement non contr61e.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class 8
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio!TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.

~~£*~~·w~~,•~~~~£a•~~~~s~~'*
~~:U~~~!jtq:t 0
FOR JAPAN
*~dlt~<:J*Jil L Tli':Q 1) 7? b7E~tt!Hi 1) -lf-1 7 Jvti'l:~ *
9 o
~dlt't ~-9 :Q ~;: df> tr. ~,
1
)
-lf-{ 7 Jv~Z: L:'thZJJ < tf. c! l.- 'o
c'M!fflr1fO)~dlt*f*'tr~271!1t* --c~!.&t-,~z: -c:a* ~ <tic!
l,- 'o
~t)~:
/\-7 ~ 1 ~ 7 -7-~ a 7- Jvt*A~~± -lt- l::'A ~ ~ 7-
T252-1123
~~JIIW!*iiltm!flJII26961Itftl!12 f*A~~±HIROSEP9
TEL: [phone] (T l::' ~-1 .Y Jv)
FOR EU COUNTRIES
WEEE NOTICE
The Directive on Waste Electrical and Electronic Equipment (WEEE), which
entered into force as European law on 14/02/2014, resulted in a major
change in the treatment of electrical equipment at end-of-life.
The purpose of this Directive is, as a first priority, the prevention of WEEE, and
in addition, to promote the reuse, recycling and other forms of recovery of such
wastes so as to reduce disposal.
The WEEE logo on the product or on its box indicating collection for electrical and
electronic equipment consists of the crossed-out wheeled bin, as shown below.
)t
-
This product must not be disposed of or dumped with your other household
waste. You are liable to dispose of all your electronic or electrical waste
equipment by relocating over to the specified collection point for recycling of
such hazardous waste. Isolated collection and proper recovery of your electronic
and electrical waste equipment at the time of disposal will allow us to help
conserving natural resources. Moreover, proper recycling of the electronic and
electrical waste equipment will ensure safety of human health and environment.
For more information about electronic and electrical waste equipment disposal,
recovery, and collection points, please contact your local city center, household
waste disposal service, shop from where you purchased the equipment, or
manufacturer of the equipment.
ROHS COMPLIANCE
This product is in compliance with Directive 2011 /65/EU of the European
Parliament and of the Council of 8 June 2011 on the restriction of the use of
certain hazardous substances in electrical and electronic equipment.

EU BATTERIES DIRECTIVE 2013/56/EU
A new battery directive 2013/56/EU on Battery and Accumulator replacing
directive entered into force on the 1/07/2015. The directive applies
to all types of batteries and accumulators (AA, AAA, button cells, lead acid,
rechargeable packs) including those incorporated into appliances except for
military, medical and power tool applications.
The directive sets out rules for collection, treatment, recycling and disposal of
batteries, and aims to prohibit certain hazardous substances and to improve
environmental performance of batteries and all operators in the supply chain.
INSTRUCTIONS FOR USERS ON REMOVAL, RECYCLING AND DISPOSAL OF
USED BATTERIES
To remove the batteries from your equipment or remote control, reverse the
procedure described in the owner's manual for inserting batteries.
For products with a built-in battery that lasts for the lifetime of the product,
removal may not be possible for the user. In this case, recycling or recovery
centers handle the dismantling of the product and the removal of the battery. If,
for any reason, it becomes necessary to replace such a battery,,this procedure
must be performed by authorized service centers.
In the European Union and other locations, it is illegal to dispose of any battery
with household trash. All batteries must be disposed of in an environmentally
sound manner. Contact your local waste-management officials for information
regarding the environmentally sound collection, recycling and disposal of used
batteries.
WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk
of fire or burns, don't disassemble, crush, puncture, short external contacts,
expose to temperature above 60°C (140°F), or dispose of in fire or water.
Replace only with specified batteries.
The symbol indicating 'separate collection' for all batteries and accumulators
shall be the crossed-out wheeled bin shown below:
DECLARATION OF CONFORMITY
HARMAN International hereby declares that this equipment is in compliance with
the essential requirements and other relevant provisions of Directive 2014/53/EU
and RoHS 2011 /65/EU Directive The declaration of conformity may be consulted
in the support section of our Web site, accessible from www.jbl.com.
CE
