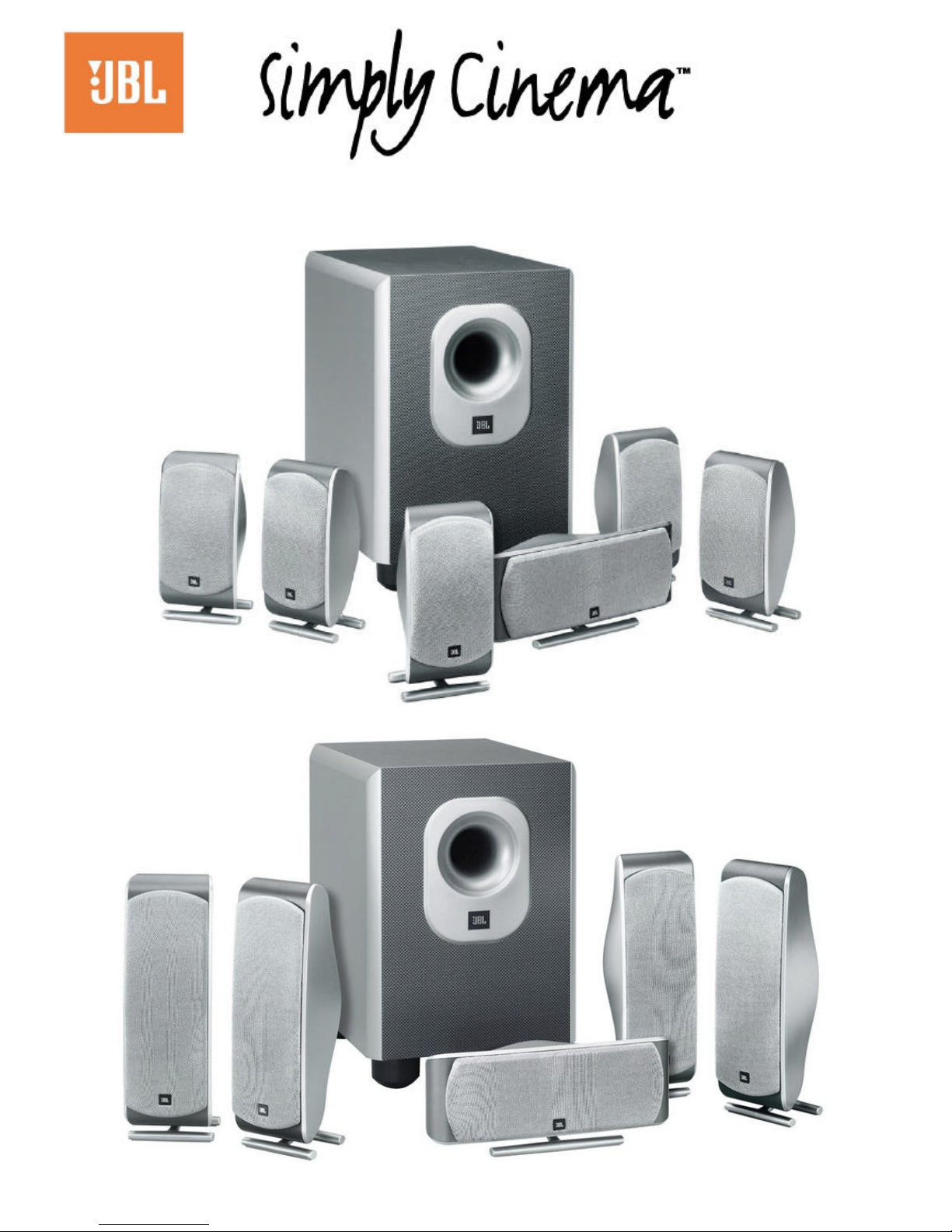

JBL Simply Cinema SCS200.5 User manual

SCS200.5/SCS200.6/SCS260.5/SCS260.6 SERVICE MANUAL
PRO SOUND COMES HOME!™
JBL Consumer Products, Harman Consumer International, 2, Route de Tours, 72500 Château du Loir, France. Tel: + 33 (0)2 43 38 43 00, Fax: + 33 (0)2 43 44 93 83
www.jbl.com

Advanced Product Information
PRO SOUND COMES HOME!™
JBL Consumer Products, Harman Consumer International, 2, Route de Tours, 72500 Château du Loir, France. Tel: + 33 (0)2 43 38 43 00, Fax: + 33 (0)2 43 44 93 83
www.jbl.com
Provisional Specifications
SCS 260 Satellite
Frequency Response:
100Hz–20kHz
Sensitivity( 2.83V@1m):
88dB
Nominal Impedance: 8 Ohm
Maximum Recommended Amplifier Power1:
100 Watt RMS
Power Handling (Continuous/Peak): 50W/200W
High Frequency Driver:
½” (13mm) Titanium laminate dome with JBL
EOS™ waveguide
Low Frequency Driver: Dual 3” (75mm) PolyPlas™
Magnetic Shielding:
Yes
Dimensions*:
11½” x 4” x 3½”
292mm x 101mm x 89mm
Weight per Speaker: 1.36kg (3lb)
*excludes shelf stand
SCS 260 Center
Frequency Response:
100Hz–20kHz
Sensitivity( 2.83V@1m):
88dB
Nominal Impedance: 8 Ohm
Maximum Recommended Amplifier Power1:
100 Watt RMS
Power Handling (Continuous/Peak): 50W/200W
High Frequency Driver:
½” (13mm) Titanium laminate dome with JBL
EOS™ waveguide
Low Frequency Driver: Dual 3” (75mm) PolyPlas™
Magnetic Shielding:
Yes
Dimensions*:
4” x 11½” x 3½”
101mm x 292mm x 89mm
Weight per Speaker: 1.36kg (3lb)
*excludes shelf stand
SCS 260 Subwoofer
Low Frequency Cut-off:
35Hz
High Frequency Cut-off: 160Hz
Built-in Power Amplifier:
100 Watt RMS
Inputs: Line Level: LFE + Left and Right RCA Phono
Inputs: High Level: Left and Right speaker terminals
Outputs High Level: Left and Right speaker terminals
Auto-on Mode: Yes
Driver:
8” (200mm) Long Throw Cellulose Fiber
Port:
FreeFlow™ flared
Magnetic Shielding:
No
Dimensions*:
16¼” x 11” x 13¾”
413mm x 280mm x 349mm
Weight per Speaker: 12.7kg (28 lb)
*including feet

Advanced Product Information
PRO SOUND COMES HOME!™
JBL Consumer Products, Harman Consumer International, 2, Route de Tours, 72500 Château du Loir, France. Tel: + 33 (0)2 43 38 43 00, Fax: + 33 (0)2 43 44 93 83
www.jbl.com
Provisional Specifications
SCS 200 Satellite
Frequency Response:
110Hz–20kHz
Sensitivity( 2.83V@1m):
86dB
Nominal Impedance: 8 Ohm
Maximum Recommended Amplifier Power1:
75 Watt RMS
Power Handling (Continuous/Peak): 40W/160W
High Frequency Driver:
½” (13mm) Titanium laminate dome with JBL
EOS™ waveguide
Low Frequency Driver: 3” (75mm) PolyPlas™
Magnetic Shielding:
Yes
Dimensions*:
7¼” x 4”3½”
184mm x 101mm x 89mm
Weight per Speaker: 0.79kg (1.75lb)
*excludes shelf stand
SCS 200 Center
Frequency Response:
100Hz–20kHz
Sensitivity( 2.83V@1m):
88dB
Nominal Impedance: 8 Ohm
Maximum Recommended Amplifier Power1:
100 Watt RMS
Power Handling (Continuous/Peak): 50W/200W
High Frequency Driver:
½” (13mm) Titanium laminate dome with JBL
EOS™ waveguide
Low Frequency Driver: Dual 3” (75mm) PolyPlas™
Magnetic Shielding:
Yes
Dimensions*:
4” x 11½” x 3½”
101mm x 292mm x 89mm
Weight per Speaker: 1.36kg (3lb)
*excludes shelf stand
SCS 200 Subwoofer
Low Frequency Cut-off:
35Hz
High Frequency Cut-off: 160Hz
Built-in Power Amplifier:
100 Watt RMS
Inputs: Line Level: LFE + Left and Right RCA Phono
Inputs: High Level: Left and Right speaker terminals
Outputs High Level: Left and Right speaker terminals
Auto-on Mode: Yes
Driver:
8” (200mm) Long Throw Cellulose Fiber
Port:
FreeFlow™ flared
Magnetic Shielding:
No
Dimensions*:
16¼ x 11” x 13¾”
413mm x 280mm x 349mm
Weight per Speaker: 12.7kg (28 lb)
*including feet

Model name: SCS 300/260 SAT
No
.
Part number Description Q'ty
01 306-HIPS-00725 Plastic cover 287.89*97.2*86.4H black 1PC
02 28DM13NH-DT01 13mm DOME TWEETER 4 OHM 1PC
03 32PF55JZL-LW01 Woofer 3 1/4" 19mm 12ohm (2.3+2.1)oz 2PCS
04 351-KM04015A321 Screw 8PCS
05 354-HM04703 Screw 8PCS
06 352-FM04014D602 Screw 6PCS
07 013-7600-00827 Crossover of CEN 1PC
08 352-AM03008D035 Screw 2PCS
09 327-010-00118 Grille cup 10*φ11.2 black 6PCS
10 215-000-00827 Terminal 1PC
11 352-CM03509D439 Screw 1PC
12 244-030-00306 Grille 255.99*92.78*19.88H black 1PC
13 336-EVA-00297 EVA 330*5.5*0.5T black 2PCS
14 424-000-05002 PO bag SCS200.7;300.7 1PC
Model name: SCS 200/300 CEN
No
.
Part number Description Q'ty
01 306-HIPS-00724 HIPS plastic cover 287.89*97.2*86.4H blac 1PC
02 28DM13NI-DT01 Tweeter 2PCS
03 32PF55JZL-LW01 Woofer 1PC
04 351-KM04015A321 Screw 8PCS
05 354-HM04703 Screw 8PCS
06 352-FM04014D602 Screw 6PCS
07 013-7600-00827 X-over 1PC
08 352-AM03008D035 Screw 2PCS
09 327-010-00118 Grille cup 6PCS
10 215-000-00827 Terminal 1PC
11 352-CM03509D439 Screw 1PC
12 244-030-00307 HIPS grille 255.99*92.78*19.88H black 1PC
13 336-EVA-00297 EVA 330*5.5*0.5T black 2PCS
14 424-000-05002 PO bag SCS200.7;300.7 1PC

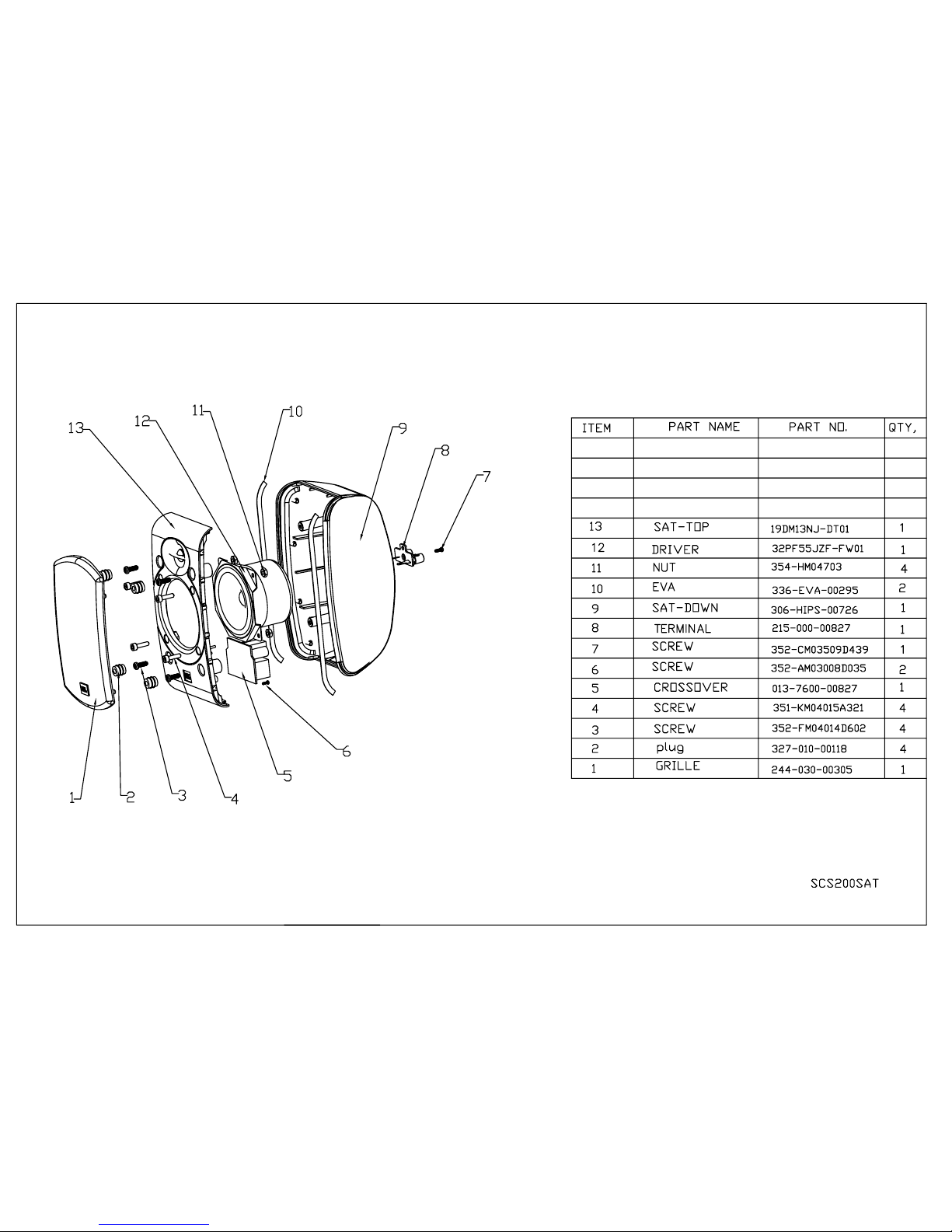

Model name: SCS 200 SAT
No
.
Part number Description Q'ty
01 306-HIPS-00726 HIPS plastic cover 185.93*96.9*84.7H blac 1PC
02 19DM13NJ-DT01 Tweeter 1PC
03 32PF55JZF-FW01 Woofer 3 1/4" 1PC
04 351-KM04015A321 Screw 4PCS
05 354-HM04703 Screw 4PCS
06 352-FM04014D602 Screw 4PCS
07 013-7600-00828 X-over 1PC
08 352-AM03008D035 Screw 2PCS
09 327-010-00118 Grille cup 4PCS
10 215-000-00827 Terminal 1PC
11 352-CM03509D439 Screw 1PC
12 244-030-00305 HIPS grille 156.24*92.46*17.9H black 1PC
13 336-EVA-00295 EVA 220*5.5*0.5T black 1PC
14 424-000-05001 PO bag SCS200.7 SAT 1PC

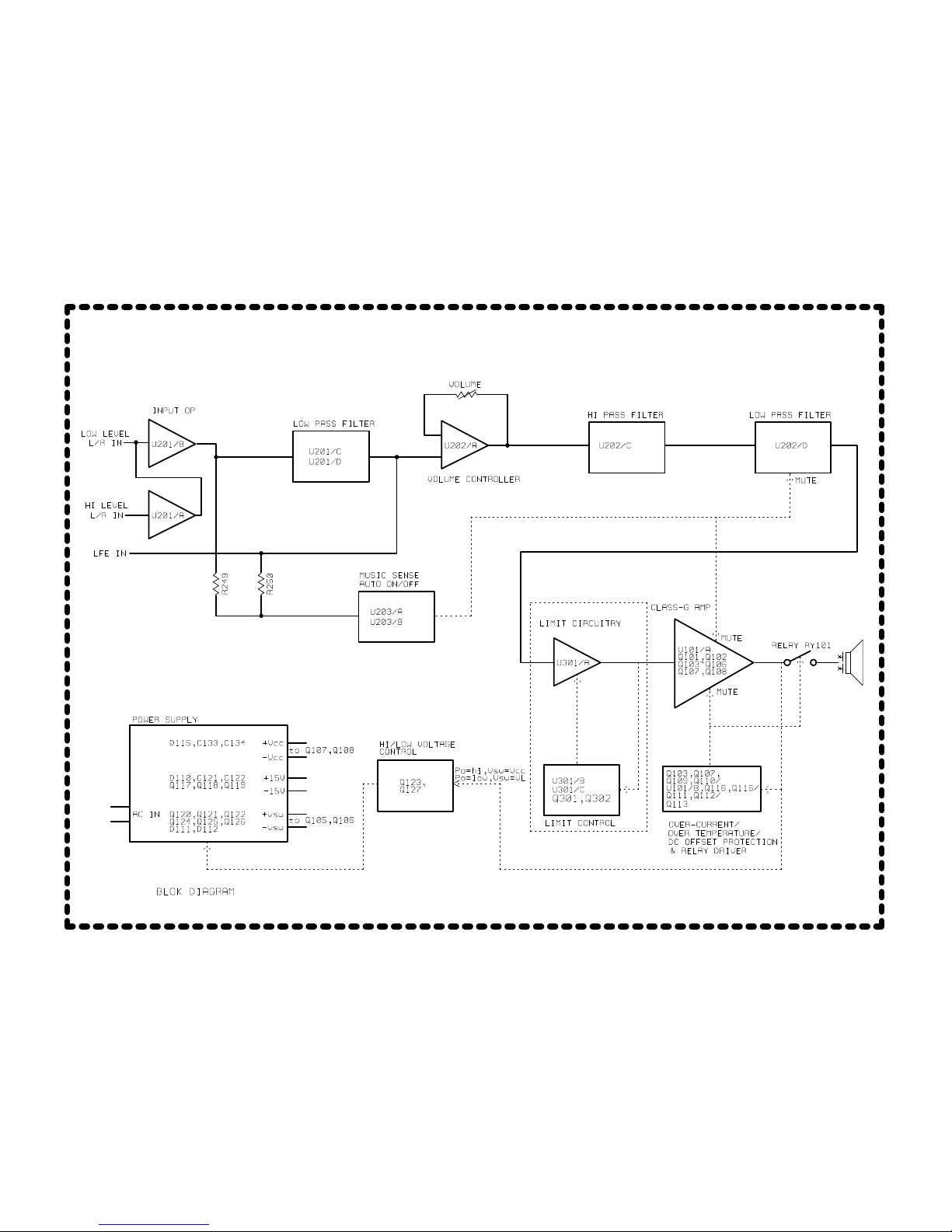

Model name: SCS200/260 6
No. Part number Description Reference Q'ty
01 051-A00374
A
PCB ASS'Y amp 1PC
02 351-AM03008A079 Screw M3*8 6PCS
03 351-BM03012A088 Screw M3*12 1PC
04 351-HM04016A218 Screw M4*16 4PCS
05 354-GM04002 Screw sheet M4 4PCS
06
3
5
2
-
AM03008D040
Screw ￠3*8 Type B
8PCS
07
3
5
2
-
AM03010D06
5Screw ￠3*10 Type P
4PCS
08
3
5
0
-
EM04012D024
Screw 4￠*12
4PCS
09 150-e8604106 Transformer EI-86 230V/50Hz 1PC
10 152-v602026 Power wire SP-021A 6FT VDE 1PC
11 154-v12506t0 Fuse TSD 1.25A 250V VDE 1PC
12 155-520020 Fuse connector R3-11 1PC
13 162-10082007 WIRE RED 18AWG 80mm 1PC
14 162-a040d001 Speaker wire #1015 400mm 1PC
15 163-11009 Mini tighen wire 100mm 2PCS
16 176-wjce1 Terminal CE-1 1PC
17 180-prf1003s Power switch RF-1003-BB2-OH
A
SW101 1PC
18 193-2m1813 PiezoTO-220 18*13mm Q120,Q124 2PCS
19 306-ABS-00714
Plastic cover with metal spray
268*213*102 1PC
20 361-FE-00004 IC HOLDER 26.9*12*1.4T 1PC
21 323-AL-00019 HEAT SINK 117.5*60*25 1PC
22 311-ABS-00028 Plastic knob 46077-W P.V.C. 1PC
23 302-AL-00226-0BF Alu. Panel 215*270*2.5t SCS140 1PC
23 302-AL-00226-0BG Alu. Panel 215*270*2.5t SCS146 1PC
24 335-NYL-00002 Wire lock 4K-4 NO-BB 2PCS
25 333-EVA-00096 EVA gasket wide side 213*15*2.0mm 2PCS
26 333-EVA-00097 EVA gasket wide side 213*15*1.0t 2PCS
27 333-EVA-00132 EVA gasket long side 238*15*2.0mm 2PCS
28 333-EVA-00133 EVA gasket long side 238*15*1.0t 2PCS
29 333-EVA-00220 EVA gasket long side 225*15*1t UL 1PC
30 320-RUB-00033 Rubber gasket 25*21*4t 4PCS
31 413-000-00188 SPEAKER label 4 OHM 45*8mm 1PC
32 413-000-00540 Label, MADE IN CHINA 1PC
33 333-EVA-00188 EVA gasket 170x5x1t 1PC
34 362-FE-00013
PCB Gasket L TYPE t=1.6mm S.P.C.C
89*9*1.6T 2PCS
Print on: 11/08/04 Page: 1/4 File: Part list -SCS140 & 146 (JBL) for service manual .xls

Electric parts
No. Part number Description Reference Q'ty
02 351-AM03014A094 Screw M3*14 1PC
03 352-AM03008D040 Screw ￠3*8 Type B 4PCS
04 110-10821jk2 Resistor 820Ω1W ±5% 10mm R132 1PC
05 110-122r2j15 Resistor 2.2Ω1/2W ±5% 15mm R127 1PC
06 113-500r1j10 Cement resistor 0.1Ω5W ±5% R121,R122 2PCS
07 114-03302m0 Semi-fixed resistor 3K 0.3W ±20% R138 1PC
08 115-h503a101 Variable resistor D16 50K/1
A
VR201 1PC
09 135-4478m35 Electrolytic cap 4700uF 35V ±20% C121,C122 2PCS
10 135-4478m50 Electrolytic cap 4700uF 50V ±20% C133,C134 2PCS
11 156-h010010 Tube 1ψ*10mm Q101,Q115 2PCS
12 162-10202001 Wire 26AWG 1007 200mm RED 1PC
13 171-udhss124d Relay 5A 24V UDH-SS124D RY101 1PC
14 174-0rcb202v Jack RCA JACK RCB-202V JK202 1PC
15 174-0rca108nb RCA JACK RCA108NB 1P JK203 1PC
16 174-2rsp108v Speaker terminal 8 PIN RSP-108
V
JK201 1PC
17 175-1c07v01 Connector 7PIN PITCH=2.5mm P101 1PC
18 175-1d02v01 Connector 2PIN PITCH=3.96mm P102 1PC
19 175-1d05v01 Connector 5PIN 3.96mm P103 1PC
20 180-tms7210v SWITCH SLIDE 6PIN MS7210
V
SW201 1PC

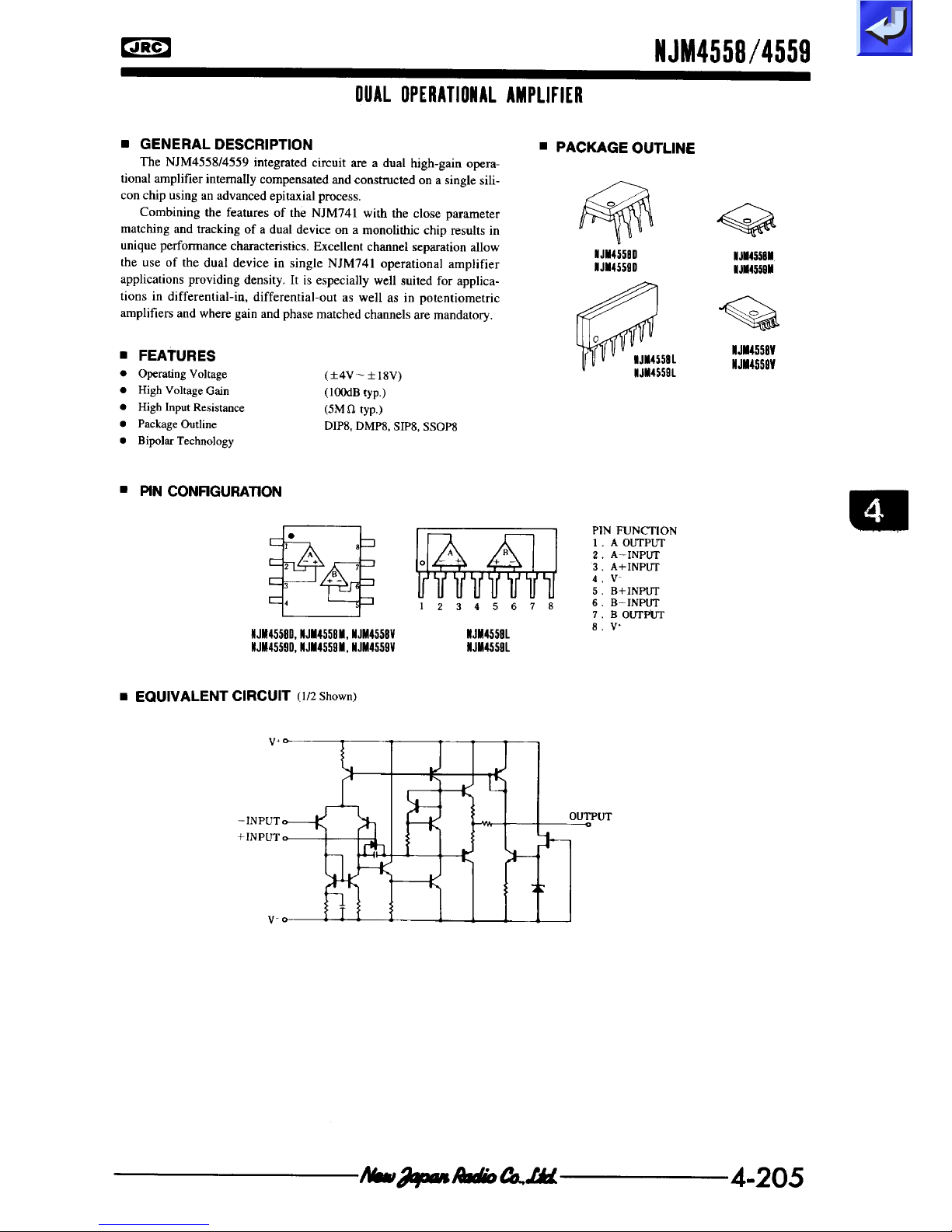

21 190-06m4558d I.C. OPA 4558D U101,U203 2PCS

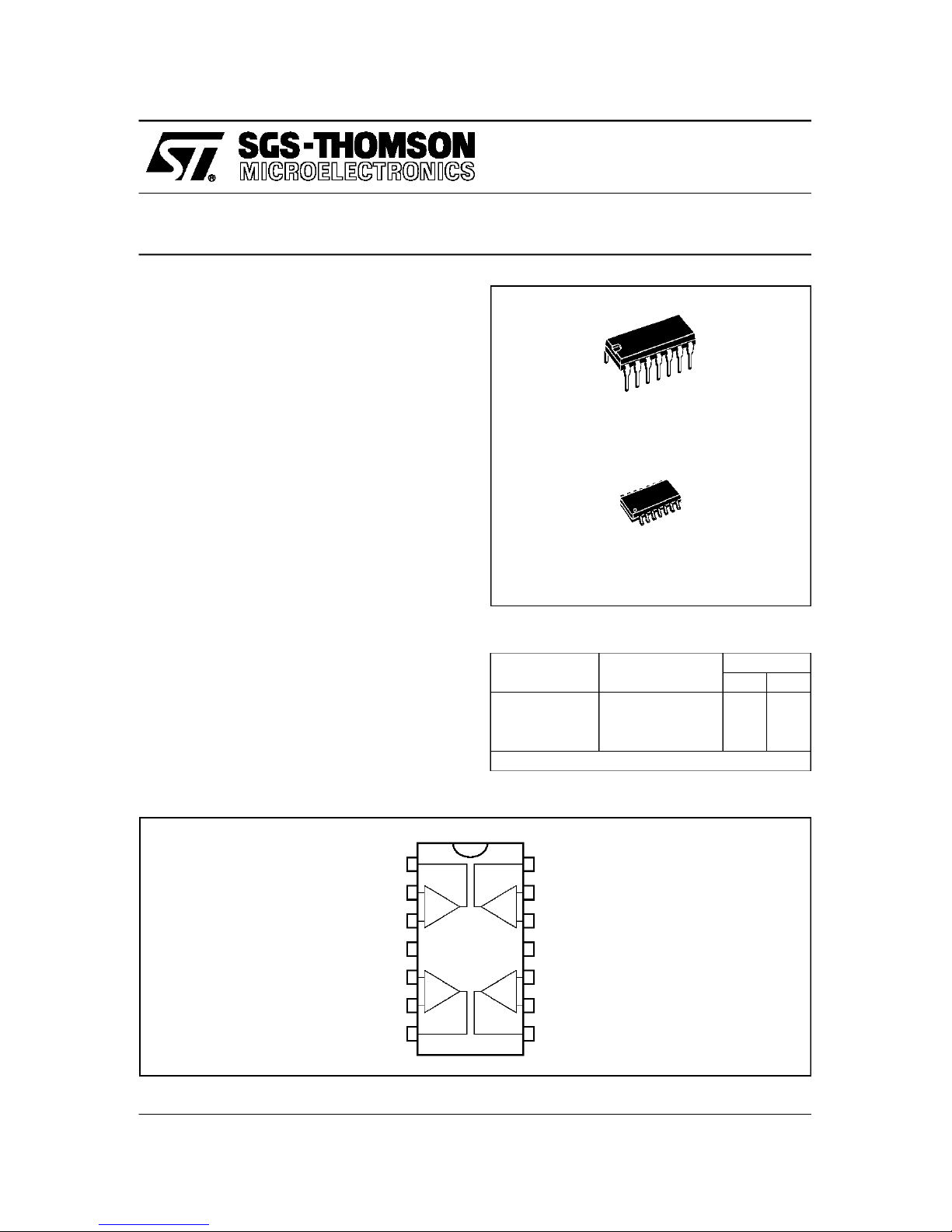

22 190-16tl074cn I.C TL074CN ST U201,U202 2PCS
23 192-021c1815g
r
Transistor 2SC1815GR Q101,Q115 2PCS
24 192-991d669a TransistorHI-SINCERITY HSD669A Q106 1PC

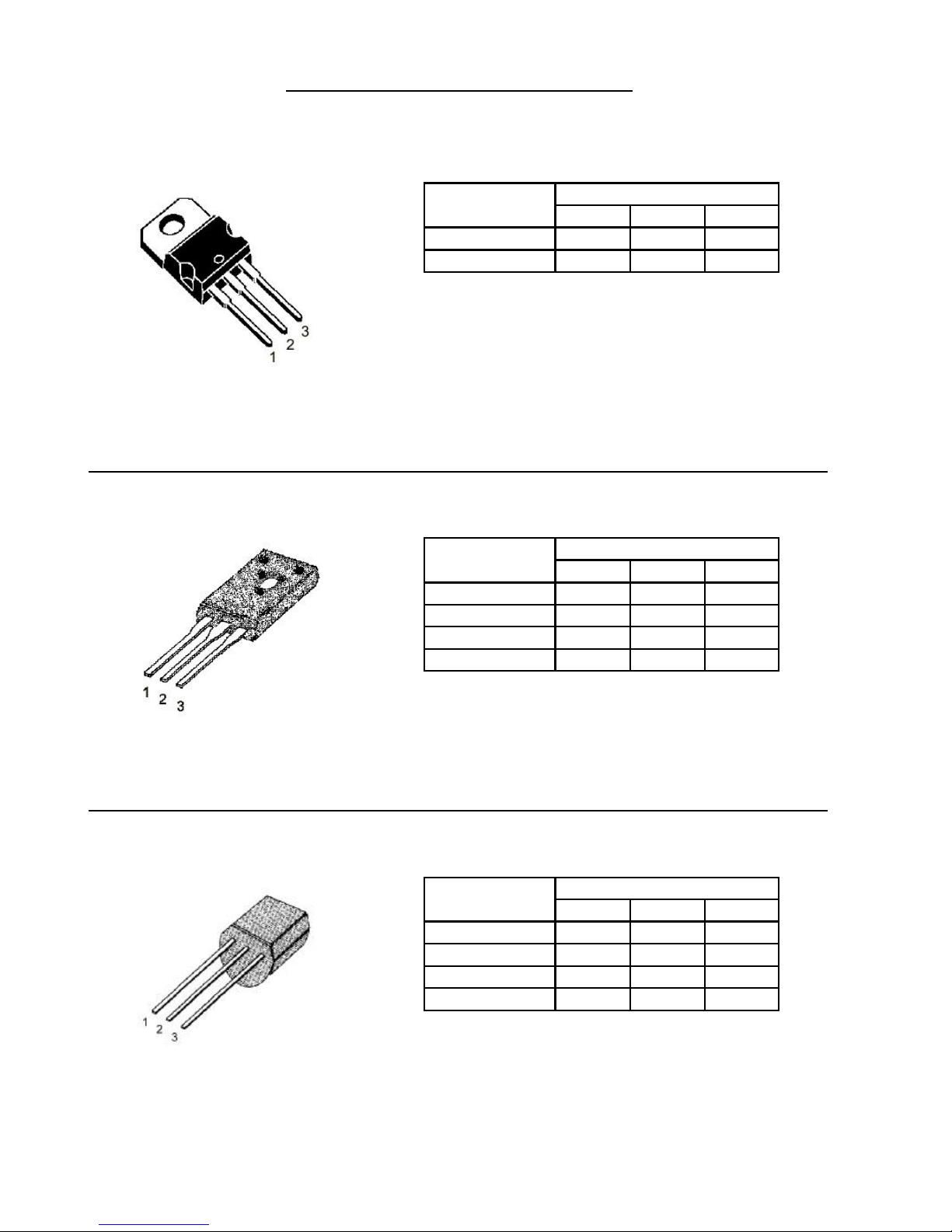

25 192-021tip35
c
Transistor TIP35C Q107 1PC
26 192-992b649t Transistor HSB649T Q105 1PC
27 192-022tip36
c
Transistor TIP36C Q108 1PC
28 192-161tip41
c
Transistor TIP41C NPN SGS Q124 1PC
29 192-162tip42c Transistor TIP42C PNP SGS Q120 1PC
30 192-201d882
y
Transistor KSD882
Y
Q117 1PC
31 192-202b772
y
Transistor KSB772
Y
Q119 1PC
32 193-3m2520 Piezo TO-3P 25x20mm Q107,Q108 2PCS
33
19
5-
10204h
g
w
LED 204HGW 3￠
D209
1PC
34 197-00kbl405 Bridge rectifier 4A 500V KBL40 D110,D115 2PCS
35 197-101n4002 Diode 1N4002 D104 1PC
36 197-101n5402 Diode 1N5402 D111,D112 2PCS
37 361-FE-00051 Transistor holder 14.2*8.0*5.2 t=1.6mm 1PC
38 323-AL-00020 HEAT SINK 65*32*31 1PC
39 361-NYL-00054 Transistor isolated sheet 2PCS
01 104-sub135e00 PCB OF SUB135E 1PC
02 110-14122j26 Resistor 1.2K 1/4W ±5% CF 26mm TAP R265 1PC
03 110-14472j26 Resistor 4.7K 1/4W ±5% CF 26mm TAP R201,R202 2PCS
04 110-14560j26 Resistor 56Ω1/4W ±5% CF 26mm TAP R117 1PC
05 110-16101j26 Resistor 100Ω1/6W ±5% CF 26mm TAP R120,R213,R214,R215 4PCS
06 110-16102j26 Resistor 1K 1/6W ±5% CF 26mm TAP R124,R166,R254,R264 4PCS
07 110-16103j26 Resistor 10K 1/6W ±5% CF 26mm TAP
R133,R134,R209,R212,R216,R21
7,R220,R221,R222,R225,R226,R2
28,R229,R230,R232,R235,R240,R
260 18PCS
08 110-16104j26 Resistor 100K 1/6W ±5% CF 26mm TAP R163,R164,R231 3PCS
09 110-16105j26 Resistor 1M 1/6W ±5% CF 26mm TAP R143,R259 2PCS
10 110-16123j26 Resistor 12K 1/6W ±5% CF 26mm TAP R135,R139,R165 3PCS
11 110-16124j26 Resistor 120K 1/6W ±5% CF 26mm TAP R233 1PC
12 110-16151j26 Resistor 150Ω1/6W ±5% CF 26mm TAP R253 1PC
13 110-16152j26 Resistor 1.5K 1/6W ±5% CF 26mm TAP
R103,R123,R136,R137,R141,R14
2,R153 7PCS
14 110-16153j26 Resistor 15K 1/6W ±5% CF 26mm TAP R118,R145,R152,R154,R234 5PCS
15 110-16154j26 Resistor 150K 1/6W ±5% CF 26mm TAP R131,R252 2PCS
16 110-16181j26 Resistor 180Ω1/6W ±5% CF 26mm TAP R111,R114 2PCS
Print on: 11/08/04 Page: 2/4 File: Part list -SCS140 & 146 (JBL) for service manual .xls

Electric parts
No. Part number Description Reference Q'ty
17 110-16183j26 Resistor 18K 1/6W ±5% CF 26mm TAP R227 1PC
18 110-16223j26 Resistor 22K 1/6W ±5% CF 26mm TAP
0,R237,R238,R255,R256,R262,R2
63 12PCS
19 110-16273j26 Resistor 27K 1/6W ±5% CF 26mm TAP R223 1PC
20 110-16205j26 Resistor 2M 1/6W ±5% CF 26mm TAP R257 1PC
21 110-16332j26 Resistor 3.3K 1/6W ±5% CF 26mm TAP R106,R107,R144,R236,R258 5PCS
22 110-16392j26 Resistor 3.9K 1/6W ±5% CF 26mm TAP R105,R108 2PCS
23 110-16393j26 Resistor 39K 1/6W ±5% CF 26mm TAP R126 1PC
24 110-16470j26 Resistor 47Ω1/6W ±5% CF 26mm TAP R112,R113,R115,R116 4PCS
25 110-16471j26 Resistor 470Ω1/6W ±5% CF 26mm TAP R140,R161,R162 3PCS
26 110-16472j26 Resistor 4.7K 1/6W ±5% CF 26mm TAP
R110,R125,R130,R147,R150,R15
7,R159,R207,R208 9PCS
27 110-16473j26 Resistor 47K 1/6W ±5% CF 26mm TAP R101,R219,R249,R250,R251 5PCS
28 110-16512j26 Resistor 5.1K 1/6W ±5% CF 26mm TAP R210,R211 2PCS
29 110-16513j26 Resistor 51K 1/6W ±5% CF 26mm TAP R224 1PC
30 110-16563j26 Resistor 56K 1/6W ±5% CF 26mm TAP R104 1PC
31 110-16681j26 Resistor 680Ω1/6W ±5% CF 26mm TAP R148,R151 2PCS
32 110-16682j26 Resistor 6.8K 1/6W ±5% CF 26mm TAP R109 1PC
33 110-16913j26 Resistor 91K 1/6W ±5% CF 26mm TAP R203,R204,R205,R206 4PCS
34 130-sl101k503 Disc capacitor 100P 50V SL ±10% TAP 5PCS
35 130-2b102k503 Disc capacitor 1000P 50V ±10% TAP C116,C141,C203 3PCS
36 130-2b221k503 Disc capacitor 220P 50V ±10% TAP
C204,C205,C210,C211,C212,C23
0 6PCS
37 130-2b681k503 Disc capacitor 680P 50V ±10% TAP C208 1PC
38 130-2f104z503 Disc capacitor 0.1U 50V +80/-20% TAP
C108,C113,C115,C119,C137,C13
8,C232,C235,C236,C237,C239,C2
40,C241 13PCS
39 130-3f473m503 Disc capacitor 0.047U 50V ±20% TAP C106,C209 2PCS
40 130-sl470k503 Disc capacitor 47P 50V ±10% TAP C229 1PC
41 132-103j503 Mylar capacitor 0.01U 50V ±5% TAP C223,C224 2PCS
42 132-104j503 Mylar capacitor 0.1U 50V ±5% TAP C107,C218,C221,C222 4PCS
43 132-223ja03 Mylar capacitor 0.022uF 100V ±5% TAP
C123,C124,C125,C126,C127,C12
8,C131,C132, C215 9PCS
44 132-473j503 Mylar capacitor 0.047U 50V ±5% TAP C216,C217 2PCS
45 135-3105m50 Electrolytic cap 1U 50V ±20% TAP C105,C112,C228 3PCS
46 135-3106m50 Electrolytic cap 10uF 50V ±20% TAP
C201,C202,C206,C213,C219,C23
1 6PCS
47 135-3107m16 Electrolytic cap 100uF 16V ±20% TAP
C109,C110,C117,C120,C234,C23
8,C242 7PCS
48 135-3107m50 Electrolytic cap 100U 50V ±20% TAP C135,C136 2PCS
49 135-3226m50 Electrolytic cap 22U 50V ±20% TAP C114,C118,C225 3PCS
50 135-3227m10 Electrolytic cap 220U 10V ±20% TAP C129,C130 2PCS
51 135-3227m16 Electrolytic cap 220U 16V ±20% TAP C111,C233 2PCS
52 135-3476m25 Electrolytic cap 47U 25V ±20% TAP C103 1PC
53 192-027c1815gr Transistor 2SC1815GR TAP
Q102,Q111,Q112,Q113,Q118,Q12
3,Q126,Q206,Q207,Q208 10PCS
54 192-027c2235y Transistor 2SC2235Y TAP Q121 1PC
55 192-028a1015gr Transistor 2SA1015GR TAP Q114,Q116,Q122,Q127 4PCS
56 192-028a965y Transistor 2SA965Y TAP Q125 1PC
57 192-1672n5551 Transistor 2N5551 TAP Q103,Q109 2PCS
58 192-1682n5401 Transistor 2N5401 AI-PNP 350V 500mA Q104,Q110 2PCS
Print on: 11/08/04 Page: 3/4 File: Part list -SCS140 & 146 (JBL) for service manual .xls

Electric parts
No. Part number Description Reference Q'ty
59 197-131n4148 Diode 1N4148 26mm TAP
,,,,,
4,D201,D202,D206,D207,D208,D2 19PCS
60 199-15000335 Zener Diode 3.3V 1/2W 52mm TAP D102,D205 2PCS
61 199-15000625 Zener Diode 6.2V 1/2W 52mm TAP D106,D107 2PCS
62 199-15001605 Zener Diode 16V 1/2W 52mm TAP D109 1PC
63 161-506520 JUMPER WIRE 26mm TAP 68PCS
No. Part number Description Reference Q'ty
40 051-A00014B PCB ASS'Y OF SCS135 LIMITER 1PC
02 162-50129001 CABLE ASS'Y 120mm AWG28 WHT P302 1PC
03 175-9f40hr2 HR2*40 0.15PC
04 190-16tl074cn I.C TL074CN ST U301 1PC
05 162-10059001 Single wire 50mm WHITE UL1007 1PC
02 110-16103j26 Resistor 10K 1/6W ±5% CF 26mm TAP
,,,,,
4 6PCS
03 110-16223j26 Resistor 22K 1/6W ±5% CF 26mm TAP R310,R312 2PCS
04 110-16333j26 Resistor 33K 1/6W ±5% CF 26mm TAP R305 1PC
05 110-16474j26 Resistor 470K 1/6W ±5% CF 26mm TAP R307 1PC
06 110-16751j26 Resistor 750Ω1/6W ±5% CF 26mm TAP R311,R313 2PCS
07 110-16755j26 Resistor 7.5M 1/6W ±5% CF 26mm TAP R306 1PC
08 130-2f104z503 Disc capacitor 0.1U 50V +80/-20% TAP C305,C306 2PCS
09 132-103j503 Mylar capacitor 0.01U 50V ±5% TAP C302,C303 2PCS
10 135-3226m50 Electrolytic cap 22U 50V ±20% TAP C301 1PC
11 135-3476m25 Electrolytic cap 47U 25V ±20% TAP C304 1PC
12 192-027c1815gr Transistor 2SC1815GR TAP Q301,Q302 2PCS
13 197-131n4148 Diode 1N4148 26mm TAP D301,D302 2PCS
14 161-506520 JUMPER WIRE 26mm TAP 6PCS
15 110-16153j26 Resistor 15K 1/6W ±5% CF 26mm TAP R302 1PC
Print on: 11/08/04 Page: 4/4 File: Part list -SCS140 & 146 (JBL) for service manual .xls

SUB200/260 TRANSISTOR PINOUTS
PARTS NAME PINOUTS
1 2 3
TIP35C Emiter Collector base
TIP36C Emiter Collector base
PARTS NAME PINOUTS
1 2 3
2SB649A Emiter Collector base
2SB772 Emiter Collector base
2SD669A Emiter Collector base
2SD882 Emiter Collector base
PARTS NAME PINOUTS
1 2 3
2SA1015 Emiter Collector base
2N5401 Emiter base Collector
2SC1815 Emiter Collector base
2N5551 Emiter base Collector

LOW NOISE J-FET QUAD OPERATIONAL AMPLIFIERS
.WIDE COMMON-MODE (UP TO VCC+)AND
DIFFERENTIAL VOLTAGERANGE
.LOW INPUT BIAS AND OFFSET CURRENT
.LOW NOISE en=15nV/√Hz (typ)
.OUTPUTSHORT-CIRCUIT PROTECTION
.HIGH INPUT IMPEDANCE J–FET INPUT
STAGE
.LOW HARMONIC DISTORTION :0.01%(typ)
.INTERNAL FREQUENCY COMPENSATION
.LATCHUPFREE OPERATION
.HIGH SLEWRATE : 13V/µs (typ)
N
DIP14
(Plastic Package)
Inverting Input 2
Non-inverting Input 2
Non-inverting Input 1
CC
V-
CC
V
1
2
3
4
8
5
6
7
9
10
11
12
13
14
+
Output 3
Output 4
Non-inverting Input 4
Inverting Input 4
Non-inverting Input 3
Inverting Input 3
-
+
-
+
-
+
-
+
Output 1
Inverting Input 1
Output 2
PIN CONNECTIONS (top view)
DESCRIPTION
The TL074, TL074Aand TL074Bare highspeed
J–FETinputquadoperationalamplifiers incorporating
wellmatched,high voltageJ–FETand bipolartransis-
torsin amonolithicintegratedcircuit.
Thedevicesfeaturehighslewrates,lowinputbiasand
offsetcurrents, andlow offsetvoltagetemperature
coefficient.
D
SO14
(PlasticMicropackage)
TL074
TL074A - TL074B
October1997
ORDER CODES
Part Number Temperature
Range Package
ND
TL074M/AM/BM –55oC, +125oC••
TL074I/AI/BI –40oC, +105oC••
TL074C/AC/BC 0oC, +70oC••
Example : TL074IN
1/10
