JBL Performance Specialist SS6 User manual

SS6, SS6C, SS8, SS8C,
SSLCR, SS6DT
PERFORMANCE™
SPECIALIST
OWNER’S GUIDE
®
Performance Specialist OM 3/3/06 4:54 PM Page 1

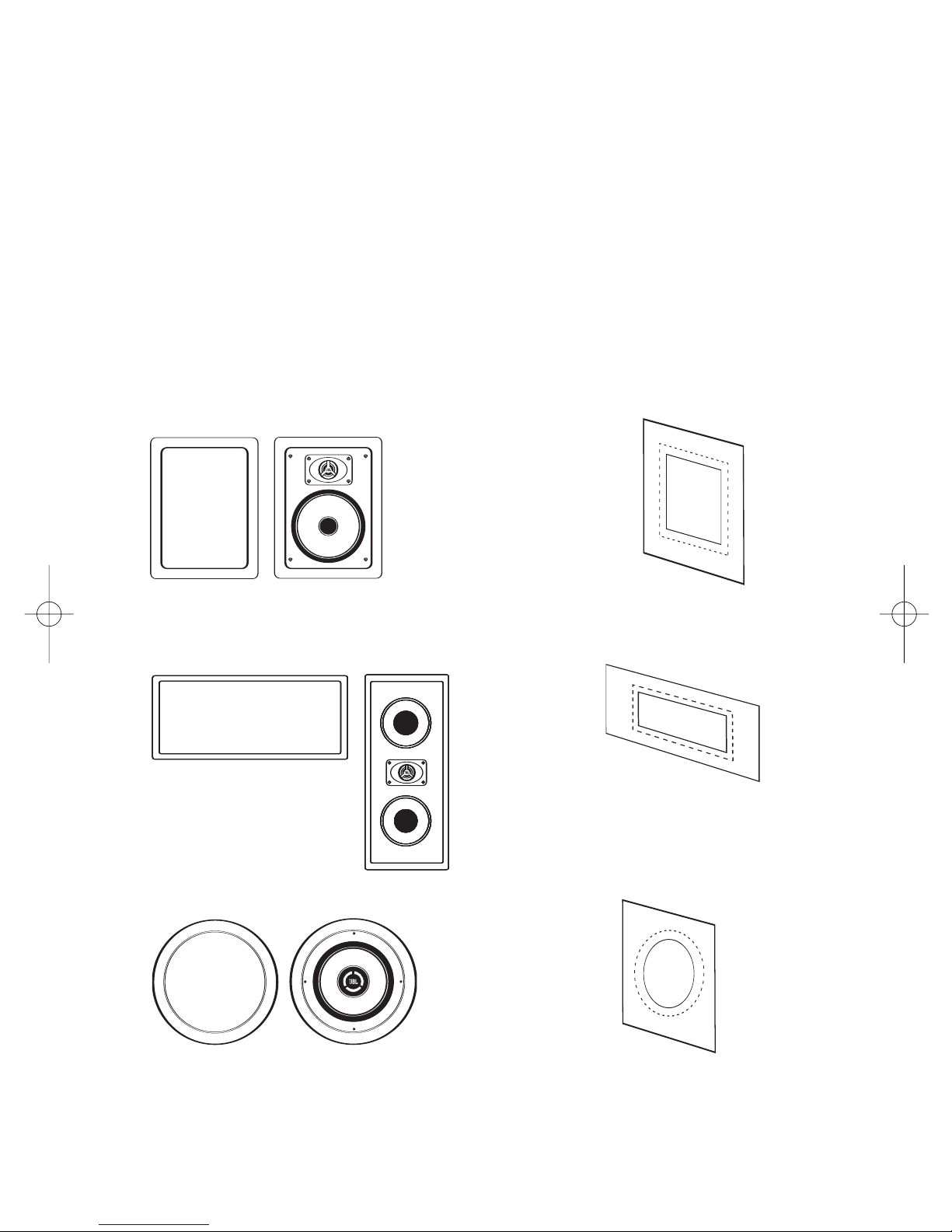

INCLUDED
Template/paint shield
(punch out at perforation).
One pair of speakers with grilles.
Template/paint shield
(punch out at perforation).
One pair of speakers with grilles.
Model SS6DT includes one loudspeaker,
since it is capable of reproducing two channels of audio.
THANK YOU FOR CHOOSING JBL
SS6, SS8
SS6C, SS8C, SS6DT
For more than 60 years, JBL
has been involved in every
aspect of music and film
recording and reproduction,
from live performances to
monitoring the recordings
you play in your home,
car or office.
We’re confident that the
JBL loudspeakers you have
chosen will provide every
note of enjoyment that you
expected – and that when you
think about purchasing addi-
tional audio equipment for
your home, car or office, you
will once again choose JBL.
Please take a moment to
register your product on our
Web site at www.jbl.com. It
enables us to keep you posted
on our latest advancements,
and helps us to better under-
stand our customers and build
products that meet their needs
and expectations.
JBL Consumer Products
SSLCR
One loudspeaker with grille.
Logo to be attached to grille
depending on vertical or
horizontal installation.
Template/paint shield
(punch out at perforation).
2
Performance Specialist OM 3/3/06 4:54 PM Page 2

3
40
0
– 60
0
WALL WALL
5 – 6 ft.
WALL WALL

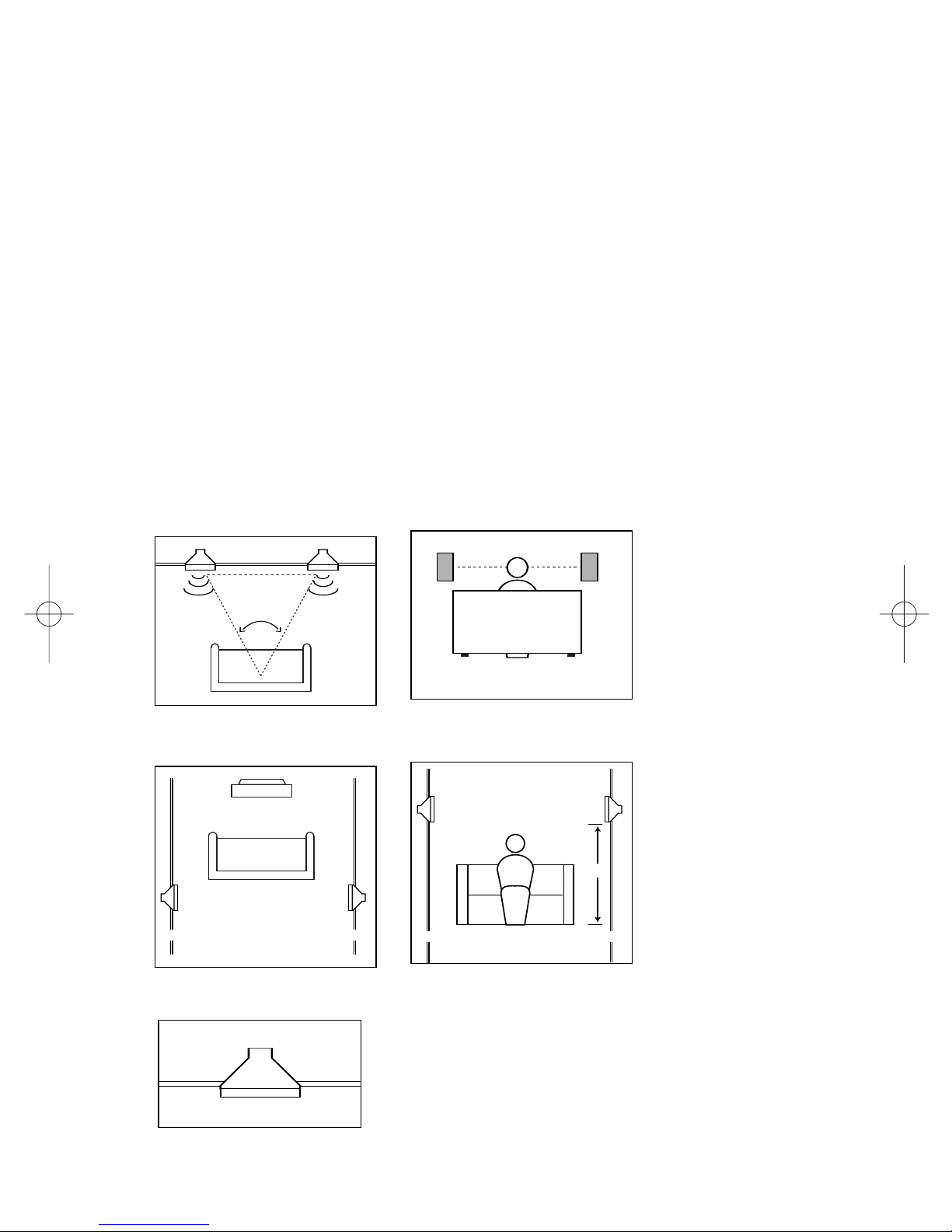

FRONT SPEAKERS (SS6, SS8, SSLCR)
MODELS SS6, SS8 AND SSLCR AS REAR SPEAKERS
MODEL SS6DT IN-CEILING
SPEAKER PLACEMENT
Model SS6DT has the capability
of playing two channels through
one loudspeaker,thanks to its
dual-tweeter/dual-voice-coil
construction. Since the tweeters
are close together,in general
they should be aimed away from
each other for best coverage.
For two-channel (stereo) appli
ca-
tions (e.g., as a single speaker in
aremote room of a distributed
audio system), install the SS6DT
Proper placement of the
speakers is an important step
in obtaining the most realistic
soundstage possible. You can
use these recommendations as
aguide for optimal placement.
Slight variations will not dimin-
ish your listening pleasure.
The front speakers should be
placed the same distance from
each other as they are from the
listening position, at about the
same height from the floor as
the listeners’ ears will be, with
the tweeters aimed toward the
listening position at ear-level
height.
Model SSLCR is suitable for the
front left, center and right posi-
tions, and may also be used as a
side surround or surround back
speaker. It may be mounted
horizontally or vertically, but
make sure to position it so that
the tweeters for all of the front
speakers are at the same
height (or differ by no more
than 2 feet). You may rotate the
tweeter to correctly orient the
JBL logo.
In a home theater configura-
tion, the two surround speakers
should be placed slightly
behind the listening position
and, ideally, should face each
other and be at a level higher
than the listeners’ ears. If that
is not possible, they may be
placed in a wall behind the lis-
tening position, facing forward.
The rear wall is the required
mounting position for the sur-
round back speakers in 6.1-
and 7.1-channel systems.
The surround speakers should
not call attention to themselves.
They should provide a diffuse,
ambient sound accompanying
the main program material
heard in the front speakers. In
Dolby®Digital and DTS®sys-
tems, aim the tweeters toward
the listening position at ear-
level height.
Performance Specialist OM 3/3/06 4:54 PM Page 3

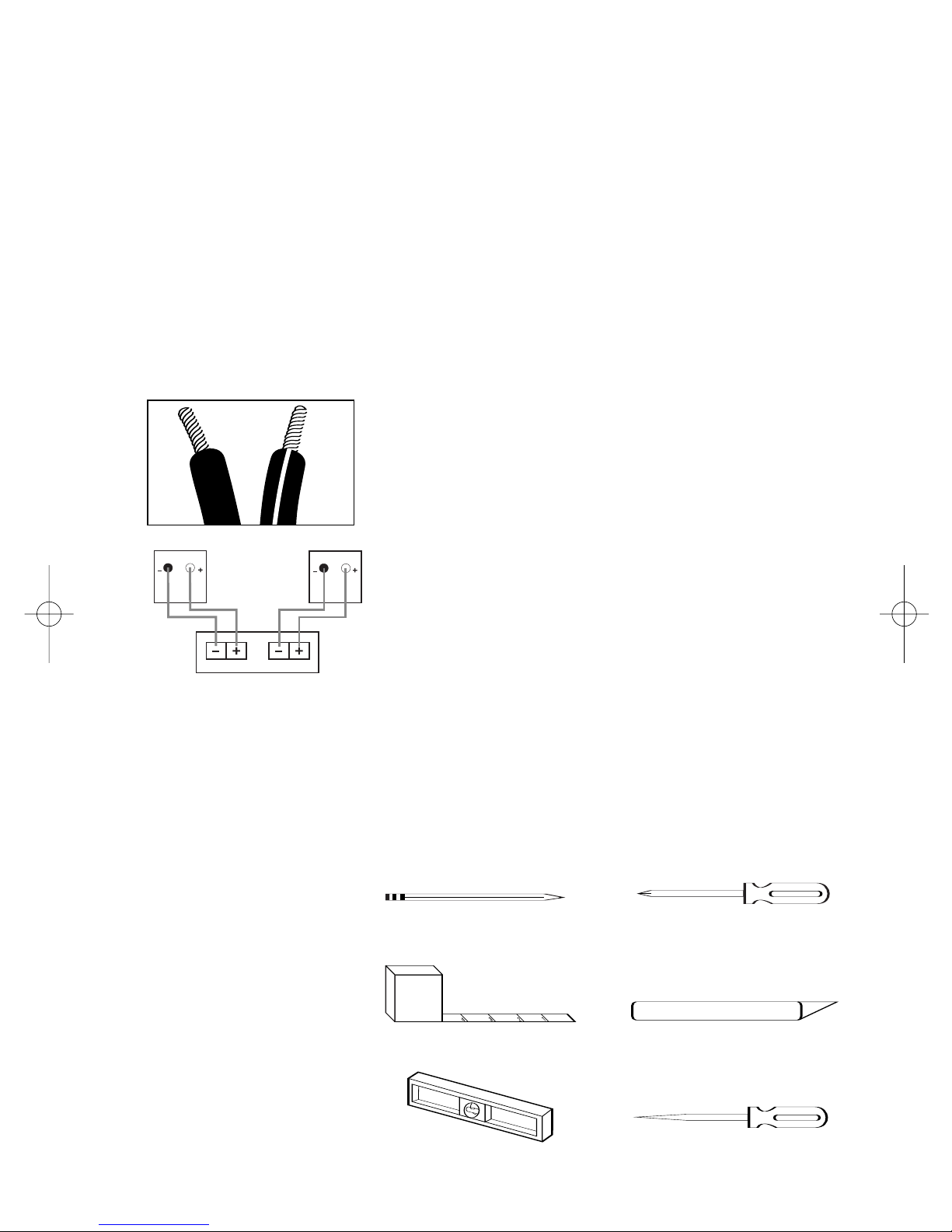

Phillips #2 screwdriver
Measuring tape Utility knife
Pencil
Carpenter’slevel Awl
TOOLS NEEDED
Performance Specialist in-wall
speakers are
designed to be
easily installed. However,if
you are unsure of your ability
to properly install these loud-
speakers, please contact your
dealer or a qualified installer.
INSTALLATION
speaker to (+) on the amplifier
and (–) on the speaker to (–)
on the amplifier. Wiring “out
of phase” results in thin sound,
weak bass and a poor stereo
image.
With the advent of multichannel
surround sound systems, con-
necting all of the speakers in
your system with the correct
polarity remains equally impor-
tant in order to preserve the
proper ambience and direction-
ality of the program material.
CONNECTION TIPS
WIRE LENGTH RECOMMENDED SIZE
Up to 20 ft. 16-Gauge
Up to 30 ft. 12-Gauge
Greater than 30 ft. 10-Gauge
Front or Rear Speaker Outputs
LEFT RIGHT
LEFT RIGHT
The wires for both speakers
should be the same length. If
one speaker is placed closer
to the amplifier than the other,
hide the excess wire behind
the wall.
Speakers and electronics
terminals have corresponding
(+) and (–) terminals. Most
manufacturers of speakers and
electronics, including JBL, use
red to denote the (+) terminal
and black for the (–) terminal.
It is important to connect both
speakers identically: (+) on the
SPEAKER CONNECTIONS
4
speaker centrally in the ceiling
for best stereo imaging, swiveling
the tweeters so that one points
toward the left and the other
toward the right of the listening
position, aimed at ear-level
height.
The SS6DT may also be used to
play the left and right surround
channels in a 5.1-channel home
theater system, in which case it
should be mounted in the ceiling
slightly behind the listening posi-
tion, centered from left to right
and with the tweeters pointing
toward the left and right of the
listening position, aimed at ear-
level height.
For 7.1-channel systems where
it is desired to use two SS6DT
speakers, one to play both the
left surround and surround back
channels and the other to play
both the right surround and sur-
round back channels, mount
each SS6DT speaker in the ceil-
ing, slightly behind the listening
position. Place one closer to the
left side of the room and the
other closer to the right side.
Aim the tweeters away from
each other, toward the front
and rear of the room.
Performance Specialist OM 3/3/06 4:54 PM Page 4

5
SS6, SS8, SSLCR
EXISTING CONSTRUCTION
Remove the grille from the
speaker frame by pulling on the
paper tab. If the tab is missing,
to avoid scratching the grille or
baffle you may unfold a paper
clip, insert the straight end
through one of the holes in the
grille, and gently pull up.
Determine the correct speaker
location.
Note: Remove the inner tem-
plate, which is the paint shield,
at the perforation. Use the outer
template when cutting the dry-
wall. Although the SSLCR may
be oriented either horizontally
or vertically, the installation
procedure is the same.
Template
Level
Note: Always allow at least
one-half inch between a wall
stud and the speaker cutout, or
the locking tabs will not be able
to swivel into place.
≥1/2"
≥1/2"
≥1/2"
Cut the drywall. Connect the speaker wires
to the speaker.
Replace the metal grille. For the
SSLCR only, attach the JBL logo
to the grille to correspond to
vertical or horizontal installation.
Place the frame assembly
in the wall.
Screw down each of the four
(six for SSLCR) Phillips-head
screws. The locking tabs will
swivel into place and secure
the unit to the rear surface of
the drywall.
JBL Performance Specialist
speakers feature unique swivel
mounts for the tweeters that
enable you to aim the very
directional high frequencies
toward the listening position,
at ear-level height. Before
installing the speaker grille,
gently press on the outer edge
of the tweeter mount to adjust
the position of the tweeter.The
tweeter will not swivel more
than 15 degrees in any direc-
tion; do not attempt to force it
to move further. You may also
rotate the tweeter to orient the
JBL logo as desired.
Performance Specialist OM 3/3/06 4:54 PM Page 5

SS6C, SS6DT, SS8C
EXISTING CONSTRUCTION
Remove the grille from the
speaker frame by pulling on the
paper tab. If the tab is missing,
to avoid scratching the grille or
baffle you may unfold a paper
clip, insert the straight end
through one of the holes in the
grille, and gently pull up.
1/2"
1/2"
1/2"
Cut the drywall. Note: Always
allow at least one-half inch
between a wall stud and the
speaker cutout or the locking
tabs will not be able to swivel
into place.
Connect the speaker wires
to the speaker. Place the frame assembly
in the wall. Screw down each of the three
Phillips-head screws. The locking
tabs will swivel into place and
secure the unit to the rear surface
of the drywall.
Replace the metal grille.
Determine the correct speaker
location. Note: Remove the
inner template, which is the
paint shield, at the perforation.
Use the outer template when
cutting the drywall.
The SS6C and SS8C speakers
feature unique swivel mounts
for the tweeters that enable
you to aim the very directional
high frequencies toward the
listening position, at ear-level
height. Before installing the
speaker grille, gently press on
the outer edge of the tweeter
mount to adjust the position
of the tweeter. The tweeter
will not swivel more than 15
degrees in any direction; do
not attempt to force it to move
further. You may also rotate
the tweeter to correctly orient
the JBL logo as desired.
6
Performance Specialist OM 3/3/06 4:54 PM Page 6

7
NEW CONSTRUCTION
PAINTING THE SPEAKER
FRAME AND GRILLE
Performance Specialist loud-
speakers can be painted to
match any décor. If you wish
to change their color, the satin
finish on the grille and frame will
function as a primer coat. Before
painting, install the paint shield
(in the assembly kit) securely
into the recess in the baffle. This
will protect the speaker compo-
nents and baffle from paint
residue. Use a high-quality
spray paint, and apply a thin
coat of color.
Be certain the grille
perforations remain
free of paint. Filling
them with paint will
diminish the sound
quality.
Note: Gently remove the
acoustical foam blanket from the
grille before painting. Reattach
the blanket after the paint has
dried.
You will need to purchase the correct rough-in frame kit for your model:
SPEAKER MODEL ROUGH-IN FRAME KIT
SS6 RIF6
SS8 RIF8
SSLCR RIF55
SS6C, SS6DT RIF6C (pair pack)/RIF6CS (single pack)
SS8C RIF8C
Detailed installation instructions are supplied with the rough-in kit.
TROUBLESHOOTING
If thereis no sound
from any of the
speakers:
•Check that receiver/amplifier
is on and a source is playing.
•Check all wires and connections
between receiver/amplifier and
speakers. Make sure all wires
are connected. Make sure none
of the speaker wires are frayed,
cut, punctured or touching each
other.
•Review proper operation of
your receiver/amplifier.
If there is no sound
coming from one
speaker:
•Check the “Balance” control
on your receiver/amplifier.
•Check all wires and connec-
tions between receiver/amplifier
and speakers. Make sure all
wires are connected. Make sure
none of the speaker wires
are frayed, cut, punctured or
touching each other. In multi-
channel applications, make sure
that your receiver or processor
has been configured to enable all
channels that you are using.
If thereis low (or no)
bass output:
•Make sure the connections
to the left and right “Speaker
Inputs” have the correct polarity
(+ and –).
•Consider adding a powered
subwoofer to your system.
•In Dolby Digital or DTSmodes,
make sure your receiver/proces-
sor is correctly configured. When
using a subwoofer, make sure
the subwoofer output of the
receiver/processor has been
enabled. If no subwoofer is
being used, make sure the
left and right front and rear
speakers have been config-
ured as “LARGE.” See your
receiver/processor’s owner’s
manual for futher information on
correct speaker configuration
in Dolby Digital, DTS and other
surround sound modes.
If the system plays at
low volumes but shuts
off as volume is
increased:
•Check all wires and connec-
tions between receiver/amplifier
and speakers. Make sure all
wires are connected. Make sure
none of the speaker wires are
frayed, cut, punctured or touch-
ing each other.
•If more than one pair of main
speakers is being used, check the
minimum-impedance require-
ments of your receiver/amplifier.
Performance Specialist OM 3/3/06 4:54 PM Page 7

SS6
Frequency Response
38Hz – 20kHz (–10dB)
Recommended Maximum
Amplifier Power †
100 watts
Impedance
8ohms nominal
Sensitivity
88dB (2.83V/1m)
Crossover Frequency
2,800Hz
Woofer
6-1/2" Polymer-coated
aluminum cone w/rubber
surround
Tweeter
1" Pure-titanium dome,
w/Elliptical Oblate
Spheroidal™(EOS) wave-
guide, and swivel mount
Plate Size (W x H)
8-1/2" x 11"
(216mm x 279mm)
Mounting Cutout Size
(W x H)
7-1/8" x 9-11/16"
(181mm x 246mm)
Mounting Depth
3-7/8" (98mm)
Weight per Speaker
4.7 lb (2.1kg)
SS8
Frequency Response
30Hz – 20kHz (–10dB)
Recommended Maximum
Amplifier Power †
120 watts
Impedance
8ohms nominal
Sensitivity
90dB (2.83V/1m)
Crossover Frequency
2,000Hz
Woofer
8" Polymer-coated
aluminum cone w/rubber
surround
Tweeter
1" Pure-titanium dome,
w/Elliptical Oblate
Spheroidal™(EOS) wave-
guide, and swivel mount
Plate Size (W x H)
10-1/8" x 13-1/8"
(257mm x 333mm)
Mounting Cutout Size
(W x H)
8-7/8" x 11-13/16"
(225mm x 300mm)
Mounting Depth
4" (102mm)
Weight per Speaker
5.5 lb (2.5kg)
SSLCR
Frequency Response
40Hz – 20kHz (–10dB)
Recommended Maximum
Amplifier Power †
120 watts
Impedance
8ohms nominal
Sensitivity
88dB (2.83V/1m)
Crossover Frequency
2,600Hz
Woofer
Dual 5" polymer-coated
aluminum cone w/rubber
surround
Tweeter
1" Pure-titanium dome,
w/Elliptical Oblate
Spheroidal™(EOS) wave-
guide, and swivel mount
Plate Size (W x H)
15-3/8" x 7-1/2"
(391mm x 191mm)
Mounting Cutout Size
(W x H)
13-7/8" x 6-3/16"
(352mm x 157mm)
Mounting Depth
3-7/8" (98mm)
Weight per Speaker
5.7 lb (2.6kg)
SS6C
Frequency Response
40Hz – 20kHz (–10dB)
Recommended Maximum
Amplifier Power †
100 watts
Impedance
8ohms nominal
Sensitivity
88dB (2.83V/1m)
Crossover Frequency
2,400Hz
Woofer
6-1/2" Polymer-coated
aluminum cone w/rubber
surround
Tweeter
1" Pure-titanium dome,
w/swivel mount
Plate Size (Diameter)
9-3/16" (233mm)
Mounting Cutout Size
(Diameter)
7-7/8" (200mm)
Mounting Depth
4-1/4" (108mm)
Weight per Speaker
4.2 lb (1.9kg)
SS6DT
Frequency Response
40Hz – 20kHz (–10dB)
Recommended Maximum
Amplifier Power †
120 watts (60 WPC)
Impedance
8ohms nominal per input
Sensitivity
89dB (2.83V/1m)
Both channels driven
Crossover Frequency
2,900Hz
Woofer
6-1/2" Polymer-coated
aluminum cone w/rubber
surround
Tweeter
Dual 3/4" pure-titanium
dome, w/swivel mount
Plate Size (Diameter)
9-3/16" (233mm)
Mounting Cutout Size
(Diameter)
7-7/8" (200mm)
Mounting Depth
4-1/4" (108mm)
Weight per Speaker
4.2 lb (1.9kg)
SS8C
Frequency Response
32Hz – 20kHz (–10dB)
Recommended Maximum
Amplifier Power †
120 watts
Impedance
8ohms nominal
Sensitivity
90dB (2.83V/1m)
Crossover Frequency
2,200Hz
Woofer
8" Polymer-coated
aluminum cone
w/rubber surround
Tweeter
1" Pure-titanium dome,
w/swivel mount
Plate Size (Diameter)
10-7/8" (276mm)
Mounting Cutout Size
(Diameter)
9-1/2" (241mm)
Mounting Depth
4-1/4" (108mm)
Weight per Speaker
4.6 lb (2.1kg)
Declaration of Conformity
We, Harman Consumer Group International
2, route de Tours
72500 Château du Loir
France
declare in own responsibility that the products
described in this owner’s manual are in compliance
with technical standards:
EN 61000-6-3:2001
EN 61000-6-1:2001 Laurent Rault
Harman Consumer Group International
Château du Loir,France 3/06
DESIGN GOAL: Combine the superior performance of traditional
JBL loudspeakers with the convenience of in-wall installation.
TWEETER TYPE: Pure-titanium dome with Elliptical Oblate Spheroidal
™
(EOS) waveguide, and swivel mount
WOOFER TYPE: Polymer-coated aluminum cone with rubber surround
CROSSOVER NETWORK: Straight-Line Signal Path
™
(SSP)
PROFESSIONAL REFERENCE: Studio Monitor
OWNER’S GUIDE
PRODUCT LINE:
MODELS:
SS6, SS6C, SS8, SS8C, SSLCR, SS6DT
PERFORMANCE™SPECIALIST
SPECIFICATIONS
PRO SOUND
COMES HOME™
JBL, Incorporated
250 Crossways Park Drive, Woodbury,NY 11797
8500 Balboa Boulevard, Northridge, CA 91329
516.255.4JBL (4525) (USA only) www.jbl.com
NOTE: For new-construction applications, be sure
to purchase the correct rough-in frame kit.
©2006 Harman International Industries, Incorporated.
All rights reserved.
Part Nos.
406-000-05361-E 170-1035
JBL and Harman International are registered trademarks,
and Performance Series, Pro Sound Comes Home, Elliptical
Oblate Spheroidal and Straight-Line Signal Path are trademarks,
of Harman International Industries, Incorporated.
Dolby is a registered trademark of Dolby Laboratories.
DTS is a registered trademark of DTS, Inc.
†The maximum recommended amplifier power rating will ensure
proper system headroom to allow for occasional peaks. We
do not recommend sustained operation at these maximum
power levels.
All features and specifications are subject to change
without notice.
Performance Specialist OM 3/3/06 4:54 PM Page 8
