JBL SAT 10 User manual

JBL Consumer Products Inc., 250 Crossways Park Dr., Woodbury, New York 11797
SAT 10/SAT 10S/SAT 550

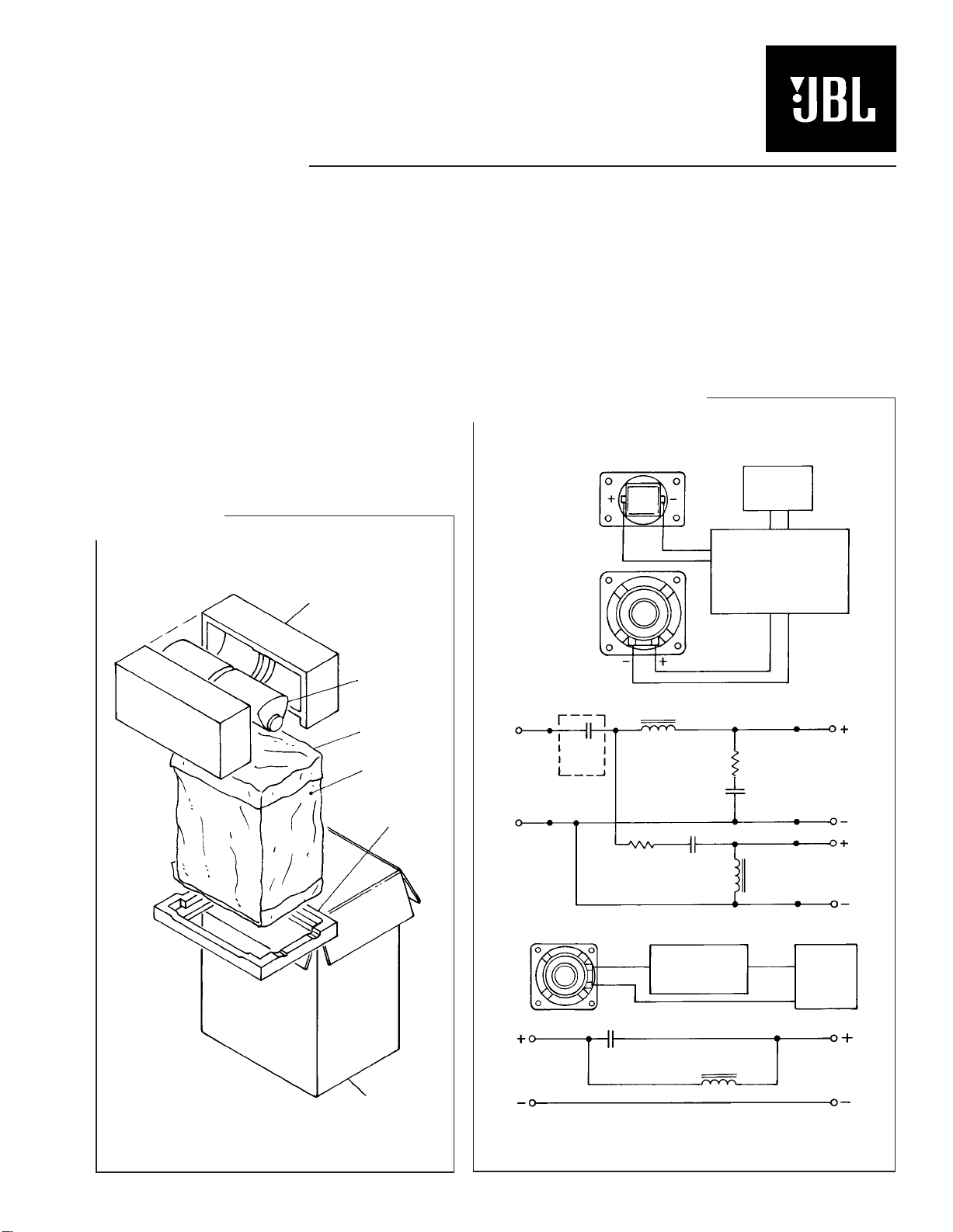

PACKAGE
WIRING DIAGRAM
4-98 REV A
Technical Manual
SAT 10/SAT 10S/SAT 550
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance: 8 ohm
• Max Amp Power: 80W
• Frequency Response: 150 Hz – 20 kHz (±3 dB) (10/550)
100 Hz – 15 kHz (±3 dB) (10S)
• Sensitivity: 88 dB SPL, 1 Watt @ 1 Meter
• Crossover Frequency: 3.5 kHz (10/550)
SYSTEM COMPONENTS:
• Cabinet: SAT 10/10S/550 L,R (Not For Sale)
• Grille: 75131-01 BLK
75131-02 WHT
• Low Frequency 74860-05 3-1/2 in. (90mm)
Transducer: Neodymium Magnet
DC Resistance: 4.7 ohm ±5%
• High Frequency 75133-01 Titanium
Transducer: Composite Dome
DC Resistance: 5.5 ohm ±10%
• Crossover Network: SAT 10 331167-001
SAT 10S 330991-001
SAT 550 332307-001
BLU/BLK
BLU/BLK
BLK
BLK
*
*C1 PRESENT ONLY ON SAT 10
BLU
YEL
YEL
INPUT
INPUT
L.F.
L.F.
C1
4.7µF/
50V
C2
4.7µF/
100V
C3
4.7µF/
100V
C1
200µF/
50V
R2
2.7Ω
5W
R1
4.7Ω
5W
L1
0.39 mH
L2
0.15 mH
L1
0.1 mH
H.F.
NOTE: REPLACE FOAM BAFFLE WHEN SERVICING SPEAKERS. CONE/DIAPHRAGM
KIT NOT AVAILABLE. DEFECTIVE SPEAKER SHOULD BE REPLACED.
NOTE: SAT 10 IS PART OF THE MUSIC 10AND MUSIC 15 SYSTEMS.
SAT 10/10S ARE PART OF THE SCS110 AND MOVIES 10 SYSTEMS.
SAT 10S/550 ARE PART OF THE ESC550 SYSTEM.
SCHEMATIC SAT 10/550
SCHEMATIC SAT 10S
Warranty N76310
Owner’s Manual 330258-003
Survey Card 331384-001
Poly Bag
63655
Bass 10
MUSIC 10
SAT 10/550
WIRING DIAGRAM SAT 10S
SAT 10
Driver,
Low Freq
74860-05
(See Note)
Driver,
High Freq
75133-01
(See Note)
Input
Terminal
Input
Terminal
Carton
Music 10
330295-001
End Pad, Sub
330294-001
End Pad,
SAT 10
330293-001
YEL/BLK
YEL/BLK
BLU
RED
RED
RED
RED/BLK
AURAL SWEEP TEST SPECIFICATIONS:
A. System Aural Sweep Test: 5.0V Input, 10 Hz to 20 kHz
B. L.F. Aural Sweep Test: 5.0V Input, 10 Hz to 10 kHz
C. H.F. Aural Sweep Test: 3.0V Input, 1 kHz to 20 kHz
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions: 6.5 x 3.75 x 4.25 in. D
(Without Stand) (165mm x 95mm x 108mm D)
SHIPPING WEIGHT: See Package Drawing
WARRANTY INFORMATION:
• Refer to the Warranty Statement packed with each product.
Network
SAT 10/SAT 550
SAT 10 331167-001
SAT 550 332307-001
Network
SAT 10S
330991-001
SAT10/10S/550 12/30/98 4:47 PM Page 1

SAT 10/SAT 10S/SAT 550
COMPONENT EXPLODED VIEW
Network
SAT 10S Only
330991-001
Network
SAT 10 331167-001
SAT 550 332307-001
(Left SAT 10 Shown)
Front Baffle
(Not For Sale)
Foam Baffle
SAT 10/550
75129
SAT 10S
330218-001
(See Note)
SAT 10/550
Tweeter
Gasket
75119-02
Tweeter Plate
SAT 10S Only
330229-001
Note:
Opening
Omitted For
SAT 10S Baffle
Screw
No. 8 x 1/2
FLHD PH Tril.
Disc, Rubber (3)
75843
Grille Assy
SAT 10/10S/550
75131-01 BLK
75131-02 WHT
Driver,
Low Freq
74860-05
(See Note)
Screw (4)
No. 8 x 1/2
PNHD Tril.
Screw (8)
No. 8 x 1/2
FLHD PH Tril.
SAT 10/550
Driver,
High Freq
75133-01
(See Note)
Knob (2)
75115-02 BLK
75127 WHT
Bracket
75130
Input
Terminal
75152
Shim,
Gasket (2)
75868
SAT 10/10S/550
Cabinet
(Not For Sale)
Stand
75132
(Does Not
Include
Rubber Disc)
NOTE: REPLACE FOAM BAFFLE WHEN SERVICING SPEAKERS.
SAT 10/SAT 10S/SAT 550
SAT10/10S/550 12/30/98 4:47 PM Page 2
