Congratulations on purchasing this JBL Synthesis®Three Array™home theater speaker. This product represents the
synthesis of everything that JBL has learned about the emotional power of audio and video in sixty years of preemi-
nence in the field. It sets new benchmarks in the use of “high technology” and provides you with the experience of
being in some of the world’s greatest movie houses and concert halls, right at home! JBL’s Synthesis Three Array
speaker systems feature the following:
THX ULTRA2™-LICENSED HOME AUDIO SYSTEM:When used with a THX®controller and amplifiers, your
speaker system will deliver a state-of-the-art THX home theater experience to your living room. You will hear in your
home exactly what the director and sound engineer heard in the recording studio. The system will reproduce the
audio flawlessly and without distortion.
ULTRAHIGH-FREQUENCY COMPRESSION DRIVER:1" (25mm) Pure-titanium compression driver with aluminum
edge-wound voice coil and 2" (51mm) neodymium motor assembly,mounted in a constant-directivity horn for extended
high-frequency response to exceed SACD™and DVD-Audio specifications.
High-Power Compression Horn: Horns are commonplace in movie theaters across the world, because of
their high power handling and well-defined high-frequency output. The horns employed in SAM3 have very low dis-
tortion, and a well-controlled directivity, to put the dialogue at the center of the screen and the effects all around you.
ACCURATE MID-BASS DRIVERS AND SUBWOOFERS:The 6-1/2" (165mm) mid-bass drivers incorporate many
of JBL’s patented technologies – such as Symmetrical Field Geometry™(SFG), Symmetrical Inductance Modulation
(SIM) and Vented Gap Cooling™(VGC) – as well as unique cone and dome materials, to provide tight, smooth
midrange sound without harshness, stridency or listener fatigue. From two to as many as four 12" or 15" (305mm or
380mm) high-power subwoofers complete the experience with earth-shattering, deep bass.
COMMON VOICING:Synthesis Three Array uses common voicing across the front three channels. Since identical
drivers are used, each speaker has the same tonal qualities, thus as a sound is panned from one side to the other,
there will be no change in timbre.
MAGNETIC SHIELDING:All front speakers are magnetically shielded, allowing you to place them near video mon-
itors without generating interference or distorting the picture.
DUAL “INSIDE” NEODYMIUM, SHIELDED MOTOR STRUCTURE:The magnetic material is placed at the
center of the motor structure, INSIDE the voice coil diameter. This inverted dual-magnet configuration improves
magnetic shielding even further, reducing the extraneous magnetic field, and offers increased acoustic output.
DEEP-ANODIZED CONE AND DOME MATERIAL:The special deep-anodized aluminum cone and dome material,
together with the motor features, helps to reduce midband distortions to very low levels (approximately 50dB to 60dB
below the fundamental signal driven at 100dB output).
TWO-STAGE PHASE PLUG:The phase plug is a key element in this compression driver. The accuracy of the phase
plug geometry is most important to achieve a wide and flat frequency response. The pressure distribution in the phase
plug is manipulated by adjustments to the number and width of the slots and even the plug inside streamline is opti-
mized to achieve a coherent pressure front across the operating range at the exit of the phase plug.
SYMMETRICAL INDUCTANCE MODULATION (SIM): The flux-stabilizing ring and copper gap ring are also opti-
mized for size and position, to help minimize or eliminate “asymmetrical inductance modulation.”Minimizing this
asymmetrical inductance modulation leads to even further distortion reduction and improved vocal clarity.
3
INTRODUCTION
SYNP1032-SAM3HA-VA-OM.qxd 10/2/06 9:25 AM Page 3

Positioning your loudspeakers properly is critical in order to achieve the
sonic performance of a home theater. Please read the following section
for guidance in correct and optimal placement.
LEFT AND RIGHT SPEAKERS:If you have purchased a Synthesis Three
Array Digital Home Theater System, then the model SAM3VA will serve as
your front left and right main speakers.
Since the left and right speakers have been designed for maximum localization
of sound, they should be placed with the center of the speakers at about the
same height on screen as the actors would be, to aid in the illusion that the
actors’ voices are coming directly from their on-screen images. Ideally, the
speakers will be placed about 45 degrees apart from each other,
viewed
from the listening position, so that the distance between the speakers
is the
same as each speaker’s distance from the listener (see Figure 1).
CENTER CHANNEL SPEAKERS
SAM3VA: If you have purchased the vertical channel speaker (model
SAM3VA) for the center position, be sure to place it vertically during
installation in order to take advantage of its sound-dispersion characteristics.
If you mount it horizontally, it will not provide the correct dispersion pattern.
If the speaker is being used with a perforated projection screen, it should be
mounted behind the center of the screen (see Figure 2). If a nonperforated
projection screen, plasma display or other fixed video device is being used
in the installation, the preferred center speaker is the model SAM3HA (below).
SAM3HA:If you have purchased the horizontal channel speaker (model SAM3HA) for the center position, be sure
to position it horizontally during installation in order to take advantage of its
sound-dispersion characteristics. If you mount it vertically, it will not provide
the correct dispersion pattern. Although the preferred speaker model to be
used with a perforated projection screen is the vertical model SAM3VA
(above), the SAM3HA horizontal speaker may be used instead and should be
mounted behind the center of the screen. If a nonperforated projection
screen, plasma display or other fixed video device is being used in the
installation, then the recommended location is directly below and as close
as possible to the video display (see Figure 3), although the inverse of this
method will work also.
4
RCL
VIEWING
POSITION
FLOOR PLAN

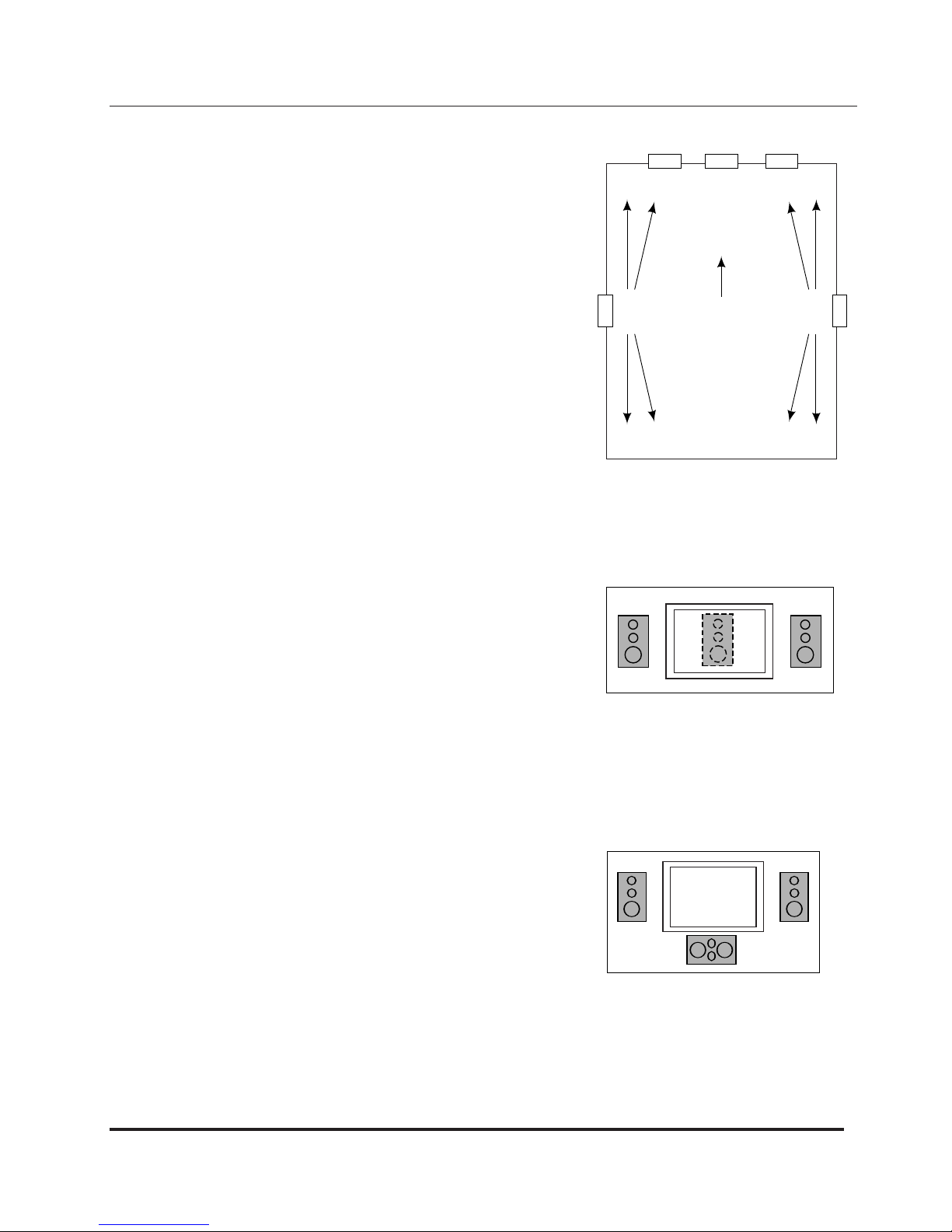

Figure 1. 5.1-Channel system
Figure 2.
Figure 3.
SPEAKER PLACEMENT
SYNP1032-SAM3HA-VA-OM.qxd 10/2/06 9:25 AM Page 4

NOTE:Itis extremely important to place the tweeter/mid-bass arrays for each of the center, left and right speakers
at the same height. The horn array containing the tweeter in the center channel speaker should be no more than two
feet (0.6 meter) higher or lower than those in the left and right speakers. This preserves the “localization integrity” of
“sound pans,”in which the sound appears to move from left to center to right. If the program material also appears to
travel up and down, it can destroy the illusion of panning effects and so should be avoided.
AMBIENT SURROUND SPEAKERS:Although it has been common for many years to use a number of surround
speakers in commercial movie houses, until recently, the traditional home theater configuration called for 5.1
channels, i.e., front left, center, front right, surround left and surround right, plus a low-frequency-effects channel.
The newer surround formats that are appearing in consumer audio equipment are calling for more complicated 6.1-
and 7.1-channel systems. The advantages of using additional speakers are many. Additional channels enable a more
versatile use of directionality for a more accurate surround presentation. Also, a higher overall sound-pressure level
can be achieved with less energy expenditure from any individual speaker. Placement of the surround speakers
remains critical.
5.1-CHANNEL SYSTEMS
The ambient surround speakers work optimally if they are placed as far back
from the screen as the viewing chairs are. If there are two rows of chairs,
these speakers should be placed between them.
The ambient surround speakers should be placed higher than the seating
area, at least two feet (0.6 meter) above (seated) ear level (see Figure 4).
The preferred method to mount the ambient surrounds is to put them directly in
the side walls. This lets each speaker radiate to the front and back of the room
and to reflect off the side walls.
There are a few instances in which the ambient surrounds would perform
better if mounted in the ceiling rather than the walls. If one or both of the walls
are “acoustically dead,”due to the presence of windows, fabric, furniture or
other absorption, it may be necessary to turn the ambient speakers sideways
and, instead of mounting them in a vertical orientation, mount them in the
ceiling in a horizontal orientation.
6.1-CHANNEL SYSTEMS
A6.1-channel system can be thought of as a 5.1-channel system with the
addition of a rear center speaker placed midway between the two surround
speakers, and further to the rear than the surrounds. It should be placed at the
same height as the side surround speakers (see Figure 5).
5
RCL
FLOOR PLAN
Figure 5. 6.1-Channel system
Min. 2'-0"
Figure 4.
SPEAKER PLACEMENT
SYNP1032-SAM3HA-VA-OM.qxd 10/2/06 9:25 AM Page 5

7.1-CHANNEL SYSTEMS
In a 7.1-channel system, two speakers are added for rear fill, in addition to the sur-
round speakers in a 5.1-channel system. The two additional speakers are placed on
the rear wall or near the rear wall in the ceiling (see Figure 6).
6
RCL
SIDE
LEFT SIDE RIGHT
REAR LEFT REAR RIGHT
Figure 6. 7.1-Channel system
SPEAKER PLACEMENT
To connect the Synthesis Three Array loudspeakers to the power amplifiers or receiver, use two-conductor insulated
speaker wire. We recommend #14 AWG wire as a minimum size. Your JBL dealer can recommend suitable cables.
Both the SAM3VA and SAM3HA utilize 5-way binding posts that can accommodate up to #10 AWG stranded wire.
PREPARING THE HOOKUP WIRE
1. First determine the distance between your amplifier and the most distant speaker in each group (fronts, surrounds,
back surrounds, subwoofers).
2.
Now make the hookup wires for all speakers in each group this length, even if one speaker is much closer to your
amplifier than the other. This will help maintain proper signal balance.
3. Strip off 3/8" (10mm) of insulation from both ends of each conductor.
4. Twist each set of standard wires into a tightly bunched spiral.
5. Speakers and electronics terminals have corresponding (+) and (–) terminals. Most manufacturers of speakers and
electronics, including JBL, use red to denote the (+) terminal and black for the (–) terminal, although some elec-
tronics manufacturers have adopted the new color-coding standard promulgated by the Consumer Electronics
Association. In that case, the positive terminal will be colored to correspond to the channel position, while the
negative terminal will be black.
It is important to connect all speakers identically: (+) on the speaker to (+) on the amplifier and (–) on the speaker to
(–) on the amplifier. Wiring “out of phase” results in thin sound, weak bass and poor imaging.
With the advent of multichannel surround sound systems, connecting all of the speakers in your system with the cor-
rect polarity remains equally important to preserve the proper ambience and directionality of the program material.
Now find a visual difference between the two conductors of each molded pair of speaker wires. Differentiating
marks can be a different color wire (copper or silver); a strand of yarn in one conductor; thin, raised ribs on one part
of the outer insulation; or a printed marking on one part of the outer insulation. It doesn’t matter which of the two
strands go to the (+) and (–) on the speakers and amplifiers, as long as all speakers are connected identically. Push
down on the binding post, insert the wire into the hole, and release.
CONNECTING THE SPEAKERS TO THE REST OF YOUR SYSTEM
