PSW-D115
Powered Subwoofer
SERVICE MANUAL

SAFETY INFORMATION
Warning
Any person performing service of this unit will be exposed to
hazardous voltages and the risk of electric shock. It is
assumed that any person who removes the amplifier from
this cabinet has been properly trained in protecting against
avoidable injury and shock. Therefore, any service
procedures are to be performed by qualified service
personnel ONLY!
Caution
Before the amplifier is plugged in, be sure its rated voltage
corresponds to the voltage of the AC power source to be
used. Incorrect voltage could cause damage to the
amplifier when the AC power cord is plugged in. Do not
exceed rated voltage by more than 10%: operation below
90% of rated voltage will cause poor performance or may
shut the unit off.
Leakage/Resistance Check
Before returning the unit to the customer, perform a leakage
or resistance test as follows:
Leakage Current. Connect the unit to its rated power
source. Using an ammeter, measure the current between
the neutral side of the AC supply and chassis ground of the
unit under test. if leakage current exceeds 0.5mA, the unit
is defective. Reverse the polarity of the AC supply and
repeat.
Resistance. Measure the resistance from either side of the
line cord to chassis ground. If it is less than 500k ohms, the
unit is defective.
WARNING! DO NOT return the unit to the customer if it fails
one of these tests until the problem is located and corrected.
Critical Components
All components identified with the IEC symbol
in the parts list and the schematic diagram
designate components in which safety can be
of special significance when replacing a
component identified with . Use only the
replacement parts designated in the parts list or parts with
the same rating of resistance, wattage or voltage.
List of Safety Components Requiring
Exact Replacements
(all parts POWER AMP PCB except TR2)
F1 Fuse SLO BLO 3.0A 250V T type.
UL approved
PWRCORD SPT-2 or better with polarized plug, UL
approved wired with the hot side to fused
side. Use with factory replacement panel
strain relief only.
TRX1 Transformer. Use only factory replacement.
C1, 2 2200uF, 100V electrolytic filter caps. Be sure
replacement part is at least the same
working voltage and capacitance rating.
Also the lead spacing is important.
Incorrect spacing may cause premature
failure due to internal cabinet pressure and
vibration.
C5 100nF 50 20 mono-ceramic axial
C6 4.7uf 100V 80/-20% Electrolytic radial NP
TR2 MPS A13 30V NPN(Darl)
DBR Bridge Rect 200V 4A
R1 10MW0.25W 5% carbon film
R4a/b/c 0.1W0.5W 5% metal film
R9 3.9kW5W 5% ceramic wirewound
R15 100kW0.5W 5% carbon film
R16, 17 2.4kW5W 5% ceramic wirewound
R33, 50 332W0.5W 5% carbon film
R52, 57 2.7kW5W 5% ceramic wirewound
R61 5.1kW2W 5% carbon film
S64AMI Power output module. Use only factory
replacement
Faceplate Faceplate. Use only factory replacement
CMC1 Use only factory replacement
L1 Use only factory replacement
Fuse PCB Use only factory replacement
Main PCB Use only factory replacement
2
Amplifier/Subwoofer PSW-D115

3
Amplifier/Subwoofer PSW-D115
TABLE OF CONTENTS
SAFETY INFORMATION ...............................................2
TABLE OF CONTENTS.................................................3
GENERAL SPECIFICATIONS .......................................3
PSW-D115 DETAILED SPECIFICATIONS ...................4
PSW-D115 CONTROLS AND THEIR FUNCTION .......6
OPERATION...................................................................7
SPEAKER CONNECTIONS...........................................8
TROUBLESHOOTING .................................................10
SERVICE BULLETIN JBL9903 - APRIL 1999...........11
PSW-D115 TEST SET UP AND PROCEDURE .........12
PSW-D115 POWER AMP MODULE
TESTING FLOW CHART.............................................13
CABINET EXPLODED VIEWS ....................................14
AMPLIFIER EXPLODED VIEW ...................................15
PSW-D115 MECHANICAL PARTS LIST ....................16
PACKING EXPLODED VIEWS....................................17

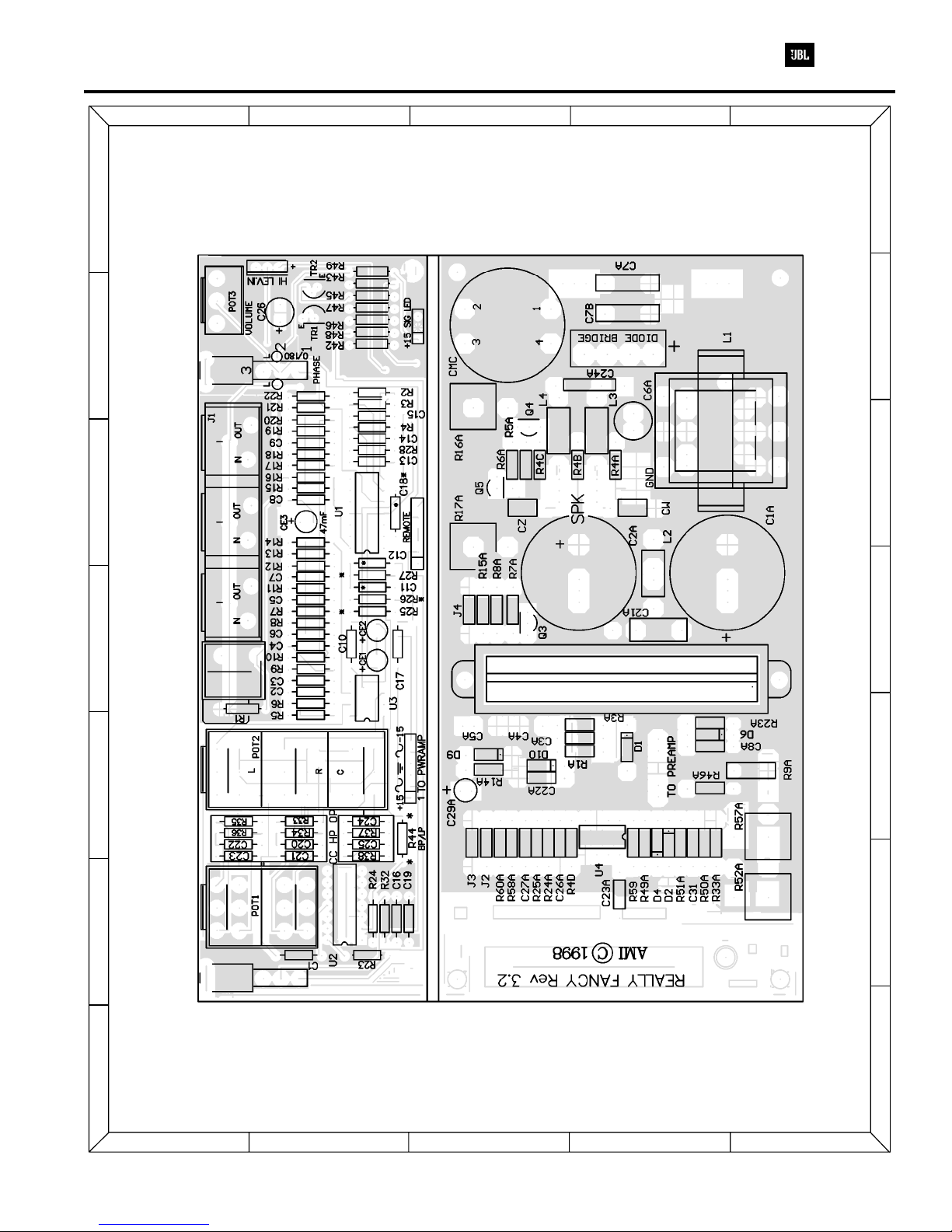

PSW-D115 Version 3.21 PCB (Component Side) ......18
PSW-D115 Version 3.21 PCB (Solder Side) ..............19
PSW-D115 ELECTRICAL PARTS LIST......................20
PSW-D115 INTEGRATED CIRCUITS.........................22
PSW-D115 SCHEMATIC 1 of 3 ..................................23
PSW-D115 SCHEMATIC 2 of 3 ..................................24
PSW-D115 SCHEMATIC 3 of 3 ..................................25
GENERAL SPECIFICATIONS
Amplifier Power (RMS)........350watts
Driver 15" .............High-Polymer Laminate
Inputs ...............Line Level and Speaker Level
Outputs ..............Line Level and Speaker Level
Low-Pass Frequency ........Continuously variable from 60Hz – 180Hz
High-Pass Frequency ........Continuously variable from 60Hz – 180Hz
when using line-level inputs
150Hz when using speaker-level inputs
Frequency Response ........25Hz – low-pass crossover setting
Dimensions (HxWxD).......20x20x21-3/4"
(508 x 508 x 552mm)
Weight ...............53lbs/24.1 kg
NOTE: CERTAIN DRAWINGS AND CONNECTIONS WERE DEPICTED INCORRECTLY IN SOME EARLY COPIES
OF THE PSW-D112/115 OWNER'S MANUALS.
THEY INCLUDE:
1. DRAWING OF RCA LINE LEVEL INPUT/OUTPUT JACKS ON PAGES 3, 4, & 5; ALL CHANNELS - RIGHT SIDE
SHOULD BE “LINE OUT”, LEFT SIDE SHOULD BE “LINE IN”.
2. CONNECTION ON PAGE 4 OF OWNER'S MANUAL - SINGLE CABLE DIRECT INPUT (FOR DOLBY DIGITAL OR
DTS SURROUND); SINGLE CABLE FROM YOUR RECEIVER/PROCESSOR SHOULD CONNECT TO THE “CENTER
CHANNEL LINE IN” JACK ON YOUR SUBWOOFER.
THOSE DRAWINGS ARE CORRECT IN THIS DOCUMENT, SEE PAGES 8 & 9.

LINE VOLTAGE Yes/No Hi/Lo
Line Nom. Test Limits Unit Notes
US 120vac/60Hz Yes 108-132 108-13
2120 Vrms Normal Operation
Parameter Specifi-
cation Unit Nom. Test Limits Conditions Notes
Amp Section
Type (Class AB, D,
other) D D n/a
Class D
Preferred...Sink
required for Class AB
Load Impedance
(speaker) 8 Ohms 8 n/a Nominal Z-curve required
Rated Output Power 350 Watts 202 190 1 input driven RFQ Spec.
THD@ Rated Power 0.3 % 194 1 22k filter
200W (Power
Bandwidth 30-100Hz)
@ 120 VAC
THD @ 1 Watt 0.5 % 0.066 0.8 22k filter
DC Offset <20 mV-DC 0.5 10mV @ Speaker Outputs
Damping factor >80 DF 80 >50 Measured across
amplifier outputs
Input Sensitivity
Input Frequency 35 Hz Nominal Freq. 1 input driven
Line Input 200 mVrms 200 ±2dB To Rated Power/ Vol
@ Max
1 input driven: AP
source Z = 600 ohms
Speaker/Hi Level Input 7 Vrms 6.963 ±2dB To Rated Power/ Vol
@ Max
1 input driven: AP
source Z = 25 ohms
Signal to Noise
SNR-A-Weighted 100 dBA 102 90 Relative to rated
output A-Weighting filter
SNR-unweighted 75 dBr 85 70 Relative to rated
output 22k filter
SNR rel.
1W-unweighted (22k) 65 dBr 67 55 relative to 1W Output 22k filter
Residual Noise Floor 1.5 mVrms <1 1.5 Volume @max, using Audio Precision) , BW
=22KHz
Residual Noise Floor 1.5 mVrms(ma
x) 12
Volume @max, w/ A/P Swept Bandpass
Measurement (Line freq.+ harmonics) ,
BW<20Khz
Input Impedance
Line Input 10K ohms 46.8K n/a Nominal
Speaker/Hi Level Input 5K ohms 24.0K n/a Nominal
Filters 0dBr = 1w @ 50Hz
Low Pass (fixed or
variable) Variable
Low Pass filter (point
or range) 60-180 Hz ±2dB -3dB Point
Slope 24 dB/Octav
en/a
Q 1 Damping n/a
Subsonic filter (HPF) 25 Hz ±2dB -3dB Point
Slope 12 dB/Octav
en/a
Q 1 Damping n/a
AV Boost YES —
4
Amplifier/Subwoofer PSW-D115
PSW-D115 DETAILED SPECIFICATIONS

Amplitude/Frequency TBD Hz ±2dB
Limiter (yes/no) yes YES
THD at Max. Output
Power 10 % function
al ck.
Maximum Output
Power
Maximum THD as a
result of limiting.
Features
Phase Switch (yes/no) YES — YES function
al ck.
Volume pot Taper
(lin/log) LOG — LOG function
al ck.
LOG type rear panel
control.
Input Configuration —
Line In
(L,C,R,AC3,Mono) L,C,R — function
al ck..
Line Outputs (L,C,R) L,C,R — function
al ck..
Buffered Output /
Pre-Volume control
Line-Out Adj. X-over 130-240 Hz 125-25
0
function
al ck..
Var-HPF (Pot CCW
and CW positions)
Rear panel Variable
xover
Spkr/Hi Level In
(L,C,R,mono) L,C,R — function
al ck..
Enabled w/Line/Spkr
Input Select Switch
Spkr Out: Hi Pass
Filter 100 Hz 100 function
al ck..
8 ohm Satellite: 6dB/oct
passive xover
Output configured as
RCL
Signal-Present LED Yes n/a
Bi-Color LED
(green=signal/
red=no signal)
Signal-Present Input
Freq. 100 Hz function
al ck.. Nominal 200uF Series Cap on
PCB
Signal-Present Level 60 mV 60 function
al ck..
100Hz into Line Input
w/ 1 ch. driven 2.2V Speaker in
Signal-Present
Bandwidth 1k Hz function
al ck..
Signal-Present-LPF
for noise immunity
Signal-Present Turn-on
time 1 sec. 0.5 function
al ck..
Amp connected and AC on, then input signal
applied
Auto Mute/ Turn-OFF
Time 15 min. function
al ck..
T before muting, after
signal is removed
Power on Delay time 0.1 sec. 5 AC Power Applied
Transients/Pops
Signal-Present
Transient 5 mV-peak n/a @ Speaker Outputs
Turn-on Transient 500 mV-peak 2v-pp @ Speaker Outputs AC Line cycled from
OFF to ON
Turn-off Transient 500 mV-peak 4v-pp @ Speaker Outputs AC Line cycled from
ON to OFF
Efficiency
Stand-by Input Power 28 Watts 28 25 @ nom. line voltage
Power Cons.@rated
power 282 Watts 290 245 @ nom. line voltage
Efficiency 124.11
%%7065
Relative to rated
output
Protection
Short Circuit Protection yes Non
tested N/A Direct short at output
Line Fuse Rating 3 Amps Type-T or Slo Blo
Consumption @ 10
% THD is 3.6 Amps
RMS
5
Amplifier/Subwoofer PSW-D115

1. Power LED - Will illuminate when the unit is turned on
with the main power switch. This light will be RED when
the unit is plugged in and not receiving a signal; when
the PSW-D115 receives a signal, the light will cycle to
GREEN. If no signal is received after 10 – 15 minutes
the light will cycle back to RED (standby) until a signal is
present again.
2. Power Switch - Main Power Switch to the
PSW-D115; turn ON to energize the subwoofer. Under
normal operation, Power Switch may be left ON to utilize
the Auto ON/OFF feature. For extended periods of
non-use, or vacations, it is recommended that the
PSW-D115's Power Switch be turned OFF.
3. Level Control - The subwoofer Level Control, adjusts
the volume of the subwoofer relative to the rest of the
system.
4. Video Contour - The subwoofer Video Contour
Control, optimizes the subwoofer's performance for movie
listening. When the video-contour switch is “on” the
subwoofer's performance is tailored to deliver the impact
and excitement of today's movies. The green LED will
illuminate when the video-contour switch is on.
5. Speaker In Jacks - Main Input connection to
subwoofer when line level, subwoofer, or pre-amp output
connectors are not available, or when a high pass filter
(set at 150Hz) to main loudspeakers is desired through
the Speaker Output Jacks.
6. Speaker Out Jacks - Connected to main loudspeakers
when the Speaker Input Jacks are used.
7. Phase Switch - Changes the subwoofer's output to be
in phase or 180 degrees out of phase with the program
material.
8. Line Input - Main Input connection to subwoofer
(preferred).
9. Direct In - If you will be connecting the PSW-D115 to
a receiver/processor containing a Dolby Digital or DTS
surround technology, use this single RCA connection.
See the owner's manual for complete instructions.
10. Line Output - When using the Line-Level Input jacks,
these are connected to an external power amplifier or
receiver to power the main loudspeakers with a high pass
filter if desired.
11. Direct Out - This allows you to connect more than
one PSW-D115 together; connect this output jack to the
Direct input jack on the second subwoofer.
12. High Pass Control - Controls the roll-off point of the
lowest frequency produced at the High Pass Output
Jacks.
13. Low Pass Control - Controls the roll-off point of the
highest frequency the subwoofer will produce.
6
Amplifier/Subwoofer PSW-D115
min
max
video contour
level
60
90 150
180
120
60
90 150
180
120
180o0o
Phase
Low
Pass
High
Pass
D
i
r
e
c
t
L
I
N
E
I
N
L
I
N
E
O
U
T
Direct Out
L
C
R
L
C
R
L
C
R
Power
OnOff
SPKR In
SPKR Out
Front Panel
Rear Panel
3
1
4
6
2
7
8
11
10
12
13
9
5
PSW-D115 CONTROLS AND THEIR FUNCTION

OPERATION
Crossover Adjustments
High-Pass Control
If you hooked up your subwoofer as shown in Speaker
Connection 4 on page 9. you also have the capability of
adjusting the high-pass frequency. The High-Pass control
determines the frequency at which the main speaker will
start reproducing sounds. If your main speakers can
comfortably reproduce some low-frequency sounds, also
set this control to a lower frequency setting, between 50Hz –
100Hz. This will concentrate the subwoofer’s efforts to the
ultradeep bass sounds, while your main speakers continue
to reproduce the mid-bass information. If you are using
smaller bookshelf speakers that do not extend to the lower
bass frequencies, set the high-pass crossover control to a
higher setting, between 125Hz –180Hz. With this setting,
your main speakers will not have the burden of reproducing
any low-frequency sounds.
If you hooked up your subwoofer as shown in Speaker
Connection 1 on page 8, the high-pass frequency is fixed at
150Hz.
If you hooked up your subwoofer as shown in Speaker
Connection 2 or 3 on page 8 and 9, no high-pass control
adjustment can be made from the subwoofer. Unless you
receiver/amplifier incorporates a high-pass crossover, your
main speakers will continue to get a full-range signal.
Final adjustment and blending of the low-pass and
high-pass controls may evolve over several listening
sessions. A good starting point would be to set both the low-
and high-pass controls to the same frequency and adjust
from that point.
Low-Pass Control
The Low-Pass control determines the highest frequency at
which the subwoofer reproduces sounds. If your main
speakers can comfortably reproduce some low-frequency
sounds, set this control to a lower frequency setting,
between 50Hz –100Hz. This will concentrate the
subwoofer’s efforts on the ultradeep bass sounds required
by today’s films and music. If you are using smaller
bookshelf speakers that do not extend to the lower bass
frequencies, set the low-pass crossover control to a higher
setting, between 120Hz –180Hz.
Phase
Phase Control
The Phase Control determines whether the subwoofer
speaker’s piston-like action moves in and out with the main
speakers, 0°, or opposite the main speakers, 180°. There is
no correct or incorrect setting. Proper phase adjustment
depends on several variables such as room size, subwoofer
placement and listener position. Adjust the phase switch to
maximize bass output at the listening position.
Remember, every system, room and listener is different.
There are no right or wrong settings; any setting you choose
will result in excellent performance. Should you decide to
fine-tune your system for optimum performance, be patient
and trust your ears. It will be worth the effort involved to fully
“tweak”your system.
7
Amplifier/Subwoofer PSW-D115

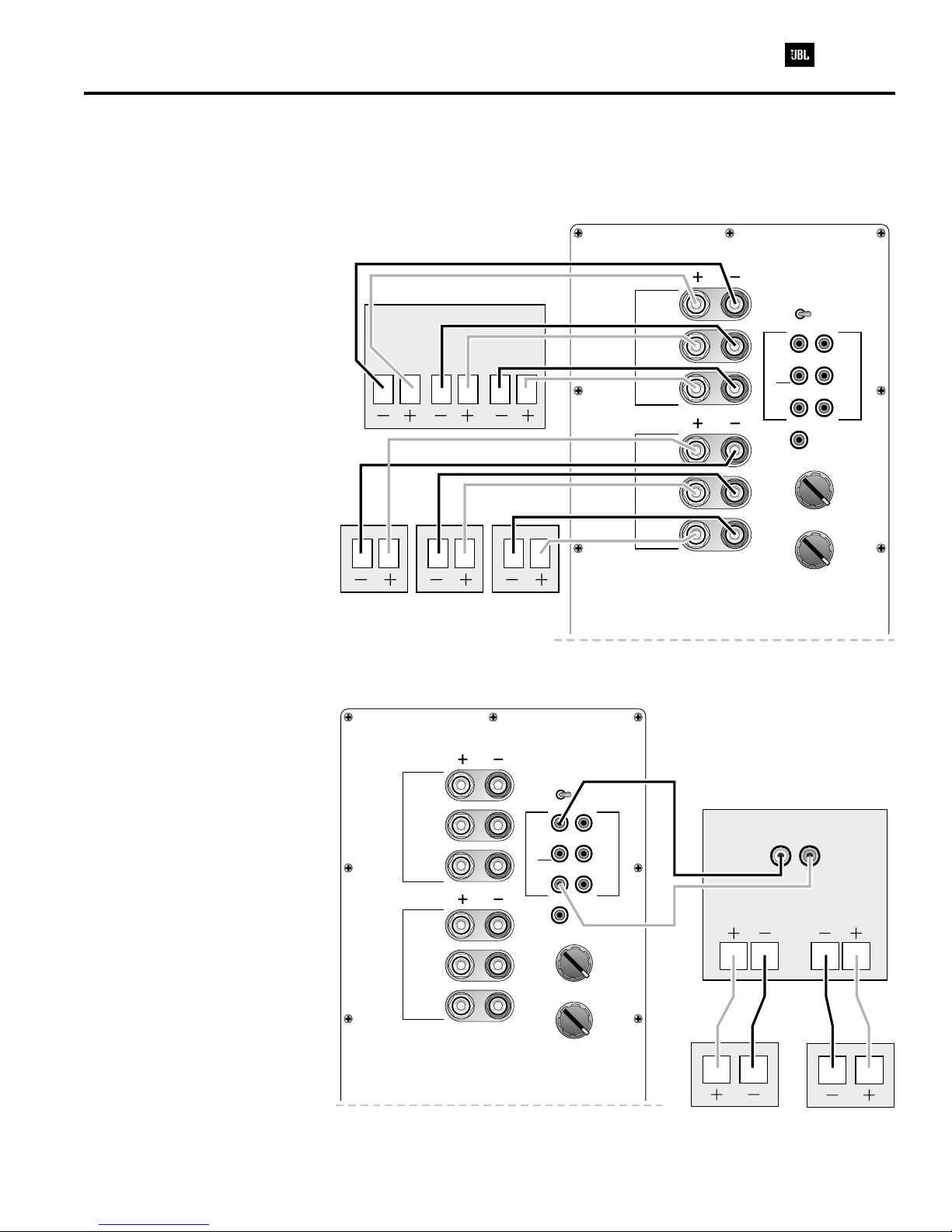

SPEAKER CONNECTIONS
1) If your receiver/amplifier has no
subwoofer outputs or preamp outputs
for the left, center and right channels.
See Figure 1.
2) If your receiver/amplifier has
subwoofer outputs or preamp output
jacks for the left, center and right
channels, or left and right only. See
Figure 2.
If your receiver/amplifier has a single
(mono) subwoofer output or LFE
output, you may connect the output
to either the Left or Right line-level
input on the subwoofer. However, to
maximize the subwoofer's
performance, we recommend that
you use a “Y”-connector (not
included). Plug the single male end
of the “Y”-connector into the
receiver/amplifier, and connect each
of the 2 female connectors to an
RCA-type interconnect cable. Then
connect the 2 interconnect cables to
the Left and Right line-level inputs on
the PSW-D115.
8
Amplifier/Subwoofer PSW-D115
60
90 150
180
120
60
90 150
180
120
180o0o
Phase
Low
Pass
High
Pass
D
i
r
e
c
t
L
I
N
E
I
N
L
I
N
E
O
U
T
Direct Out
L
C
R
L
C
R
L
C
R
SPKR In
SPKR Out
LEFT
SPEAKER
RIGHT
SPEAKER
CENTER
SPEAKER
SPEAKER OUTPUT
LEFT CENTER RIGHT
RECEIVER/AMPLIFIER
Figure 1
60
90 150
180
120
60
90 150
180
120
180o0o
Phase
Low
Pass
High
Pass
D
i
r
e
c
t
L
I
N
E
I
N
L
I
N
E
O
U
T
Direct Out
L
C
R
L
C
R
L
C
R
SPKR In
SPKR Out
Figure 2
RIGHT
LOUDSPEAKER
LEFT
LOUDSPEAKER
MAIN SPEAKER OUTPUT
SUBWOOFER OUT
LEFT
LEFT
RIGHT
RIGHT
RECEIVER/AMPLIFIER

3) If your receiver/processor contains
Dolby* Digital or DTSÒsurround processing
technology, then connect the subwoofer or
LFE output from your receiver/processor to
the Center line-level input as shown. Set the
“Low-Pass”control to the 180Hz position.
When hooked up using this method, all of
the crossover and level adjustments are
controlled through the receiver/processor.
4) If your receiver/amplifier has preamp
output jacks and main input jacks for the left
and right channels or you have a separate
pre-amp/ processor and power amplifier.
See Figure 4.
This method of hookup can offer the highest
level of performance for your complete
loudspeaker system. The PSW-D115
incorporates a variable high-pass crossover
in addition to a variable low-pass crossover.
When hooked up as shown, the subwoofer
will limit the low-frequency information that is
returned to your receiver/amplifier. Your
receiver/ amplifier does not need to waste
valuable power reproducing the low
frequencies. In addition, since no
low-frequency information is being sent to
your main loudspeakers, they are able to
reproduce mid and high frequencies with
greater clarity
9
Amplifier/Subwoofer PSW-D115
60
90 150
180
120
60
90 150
180
120
180o0o
Phase
Low
Pass
High
Pass
D
i
r
e
c
t
L
I
N
E
I
N
L
I
N
E
O
U
T
Direct Out
L
C
R
L
C
R
L
C
R
SPKR In
SPKR Out
Figure 3
SUBWOOFER
OUTPUT
RECEIVER/PREAMPLIFIER
60
90 150
180
120
60
90 150
180
120
180o0o
Phase
Low
Pass
High
Pass
D
i
r
e
c
t
L
I
N
E
I
N
L
I
N
E
O
U
T
Direct Out
L
C
R
L
C
R
L
C
R
SPKR In
SPKR Out
Figure 4
RIGHT
LOUDSPEAKER
LEFT
LOUDSPEAKER
MAIN SPEAKER OUTPUT
LEFT
RIGHT
RIGHT
CENTER
LEFT
RECEIVER/AMPLIFIER
PRE
OUT
MAIN
IN

TROUBLESHOOTING
If you used the high-level (speaker) inputs and
there is no sound from any of the speakers, check
the following:
nReceiver/amplifier is on and a source is playing.
nPowered subwoofer is plugged in.
nCheck all wires and connections between
receiver/amplifier and speakers. Make sure all wires
are connected. Make sure none of the speaker
wires are frayed, cut or punctured.
nReview proper operation of your receiver/amplifier.
If there is low (or no) bass output, check the
following:
nMake sure the connections to the left and right
“Speaker Inputs”have the correct polarity (+ and –).
nMake sure that the subwoofer is plugged into an
active electrical outlet.
nAdjust the crossover point.
nFlip the Phase Control Switch to the opposite
position.
nIf you are using a Dolby* Digital/DTSÒreceiver or
processor, make sure that the subwoofer
adjustments on the receiver/processor are set up
correctly.
nSlowly turn the level Control clockwise until you
begin to hear the desired amount of bass.
If you used the line-level inputs and there is no
sound from the subwoofer, check the following:
nReceiver/amplifier is on and a source is playing.
nPowered subwoofer is plugged in.
nCheck all wires and connections between receiver/
amplifier and subwoofer. Make sure all wires are
connected. Make sure none of the wires are frayed,
cut or punctured.
nReview proper operation of your receiver/amplifier.
nSlowly turn the level Control clockwise until you
begin to hear the desired amount of bass.
nMake sure that you have configured your
receiver/processor so that the subwoofer/LFE output
is on.
10
Amplifier/Subwoofer PSW-D115

SERVICE BULLETIN JBL9903 - APRIL 1999
To:All JBL Service Centers This is considered a Minor repair
Models: PSW-D115
Subject: Check Solder Joints in Event of Failure
Some performance related complaints in the PSW-D115 powered Subwoofers may be caused by cold solder
connections between the 28 pins of the Power Amp Module and the main circuit board. When troubleshooting,
failure to check these joints can result in erroneous conclusions or wasted time.
In the event you receive a PSW-D115 Subwoofer with the complaints “Dead, or No Output, or
Motorboating (Oscillation)”, perform the steps listed below first before any further
troubleshooting takes place:
1) Unplug all cables, lay the subwoofer on a padded surface.
2) Remove all Philips screws around the outer perimeter of the amplifier faceplate.
3) Remove amplifier assembly; you should be able to remove the amplifier far enough out of the cabinet to
service it without removing the woofer wires.

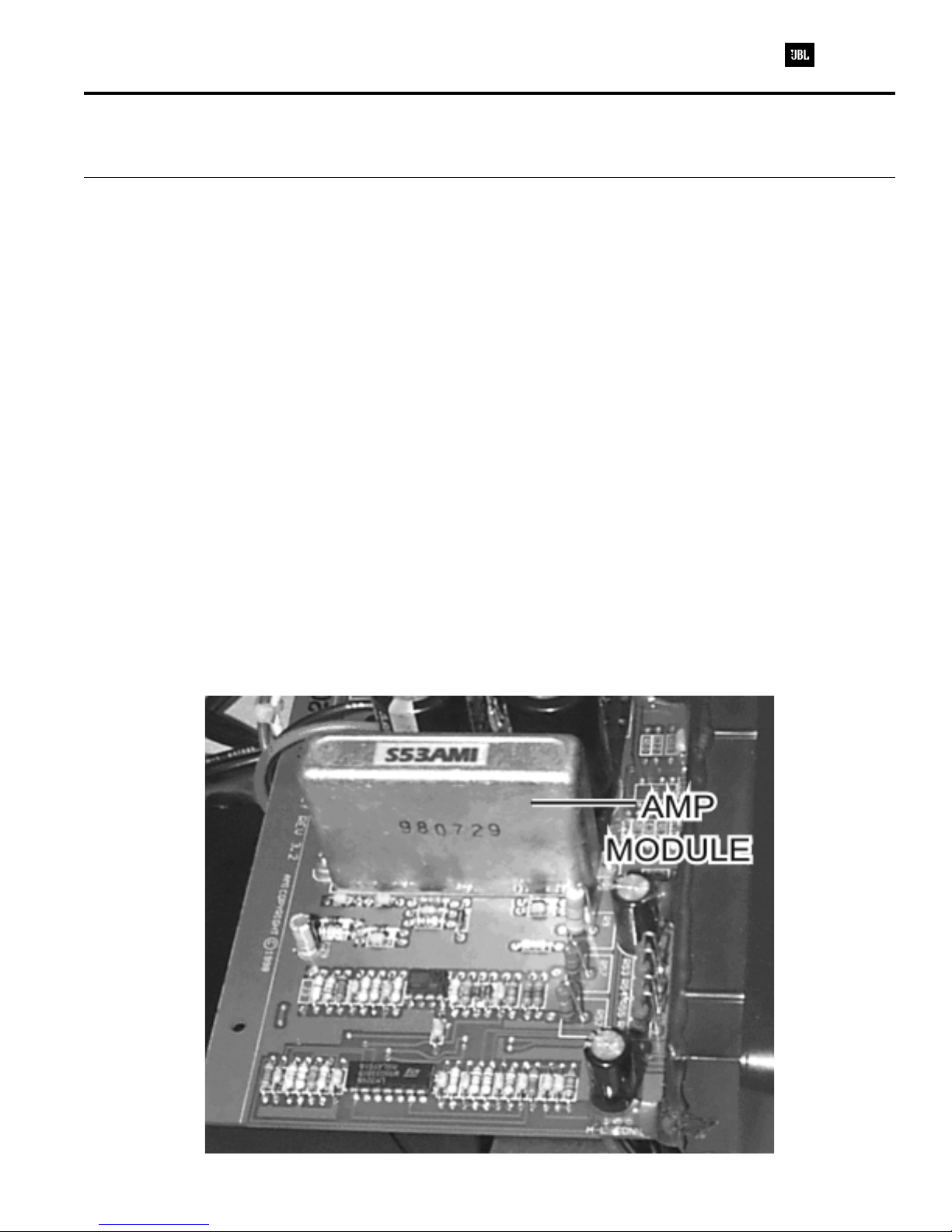

4) Locate the Power Amp Module; it is the large gray component with a metal case. On the solder side of the
circuit board are the 28 soldered connections to the Module.
5) Regardless of whether you can visibly see breaks in any of the connections or not, carefully re-solder all 28
pin connections, adding 60/40 rosin core solder. Take care not “bridge”any connections on the board with
solder.
6) Inspect the solder joints to the main filter capacitors C1 and C2 on the main PCB and re-solder if needed.
7) Replace the amplifier assembly back into the cabinet; replace the screws.
8) Test the unit by applying a signal from a music source, adjust the volume to a moderate level and confirm
the original problem has been corrected.
11
Amplifier/Subwoofer PSW-D115

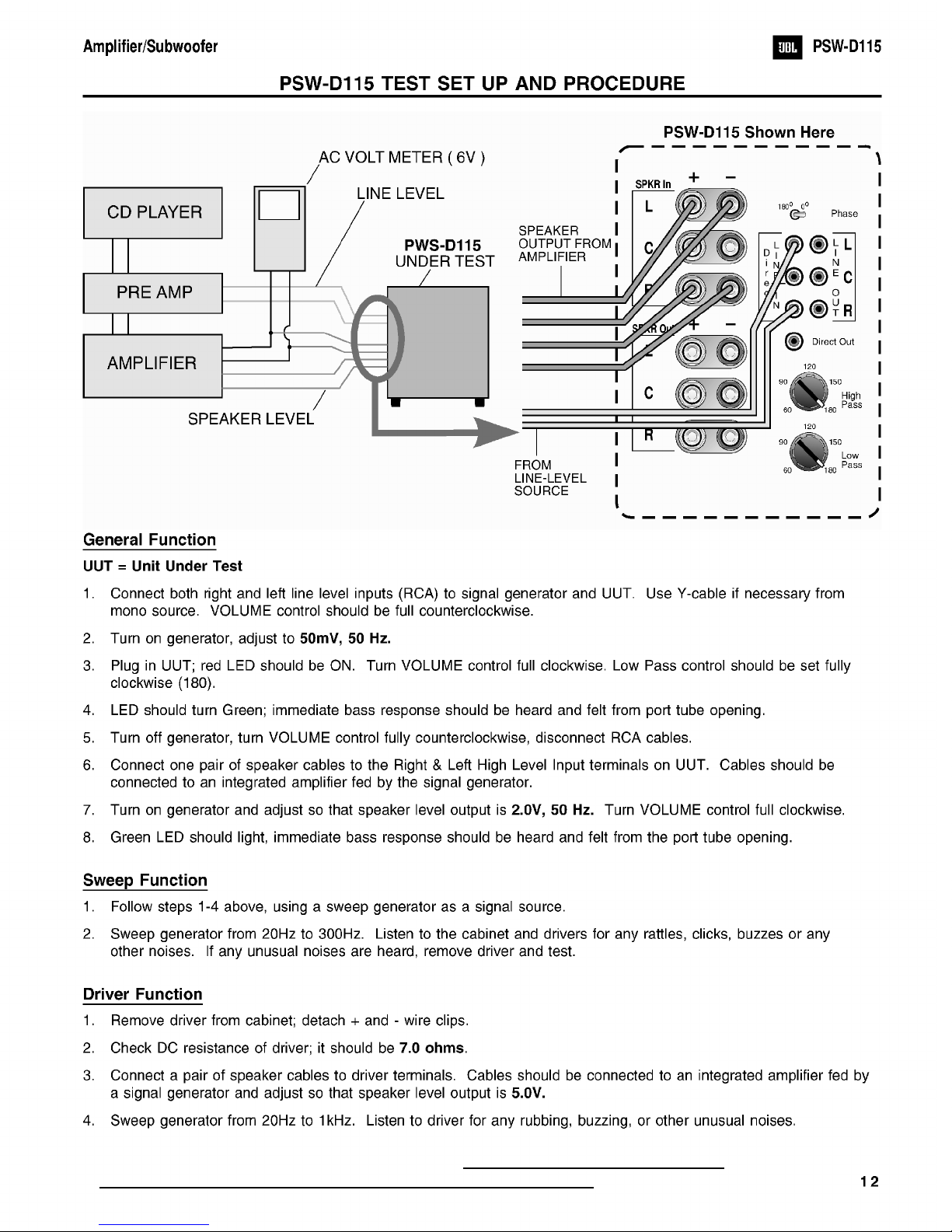

NOTE:When testing the PSW-D115 amplifier, a load must always be connected to the
output terminals, whether the woofer, or a 4 to 8 ohm resistive load.

13
Amplifier/Subwoofer PSW-D115
PSW-D115 POWER AMP MODULE TESTING FLOW CHART
No
Yes
No
Yes
No
Yes
No
Yes
No
No Yes
Yes
H
No
Yes
No
Yes
START
Check V+,
V-, +/-15V
voltage to
module
Check fuse
t ansfo me ,
CMC,
ectifie , C1,
C2
Check
switching
f equency
100KHz
+/-10%
~1Vpp
Check I/P of
module to
GND 0V D.C.
Powe up with
no signal I/P
LED RED
OK
OK
OK
OK
OK
OK
OK
OK
Check C29
and P e-AMP Check O/P to
module fo
80Vpp squa e
wave
measu e to
GND
Check L1,
L2, L3, L4,
C6, C24
Check 6V to
module
measu e to V-
Replace
Module
Powe AMP
OK
END
Check D1,
R1, Q3, Q4,
Q5 and SCP
Check
t ansfo me ,
CMC,
ectifie , C1,
C2, D9, D10,
R16, R17
Check S/D
voltage to
module (5V)
measu e to V-
Check D6,
R9, R46
Resistance
check
between V+
V- and O/P
O/P to GND
should > 5K

14
Amplifier/Subwoofer PSW-D115

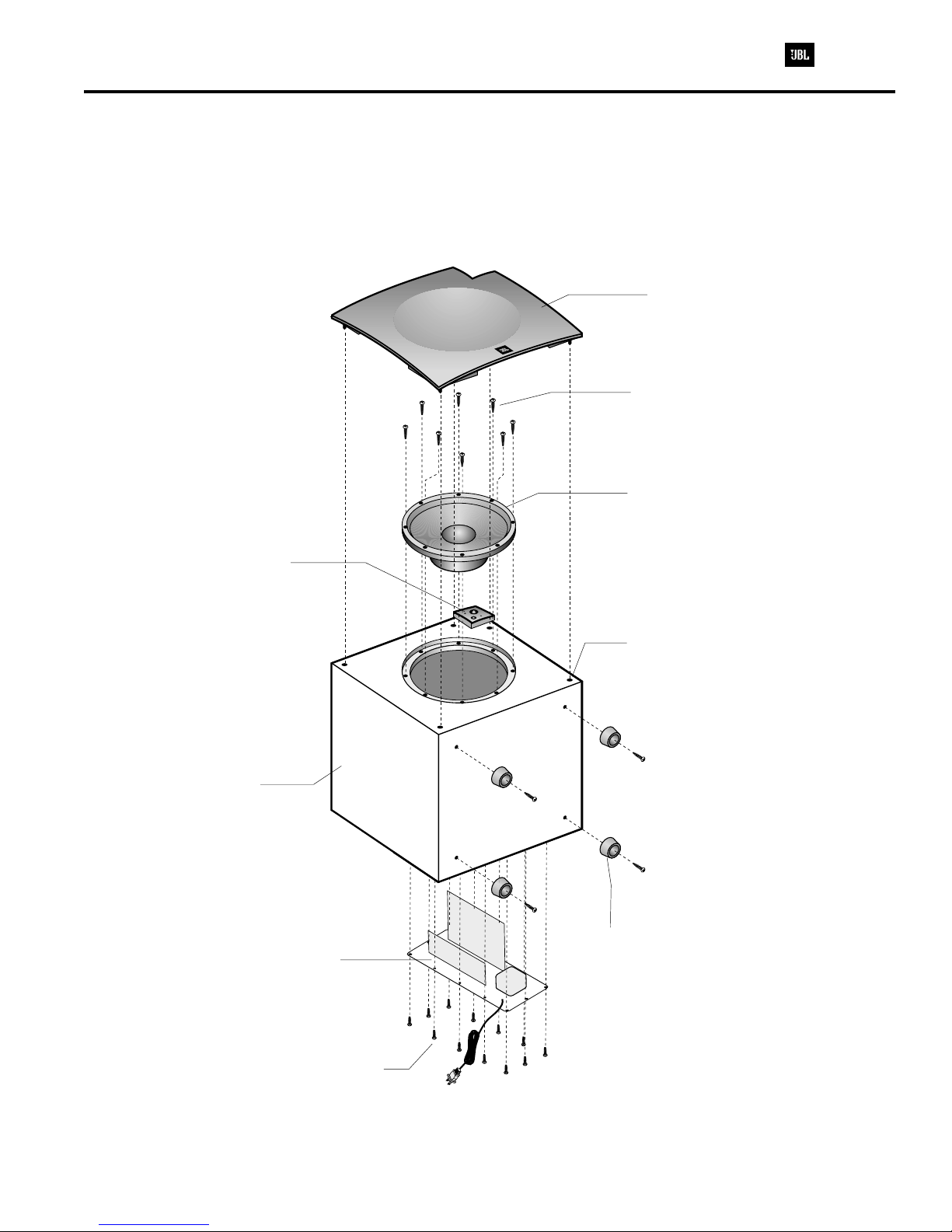

CABINET EXPLODED VIEWS
SCREWS (12)
SCREWS (8)
FEET
#200582
CABINET
NOT FOR
SALE
15" WOOFER
#200900
AMPLIFIER
ASSEMBLY
#200950
PSW-D115
CABINET ASSEMBLY
GRILLE with LOGO
#200910
GRILLE SOCKETS
#200790
VOLUME KNOB
#70313
VIDEO CONT.
BUTTON
#70314
VIDEO CONT.
SWITCH
#70152

15
Amplifier/Subwoofer PSW-D115

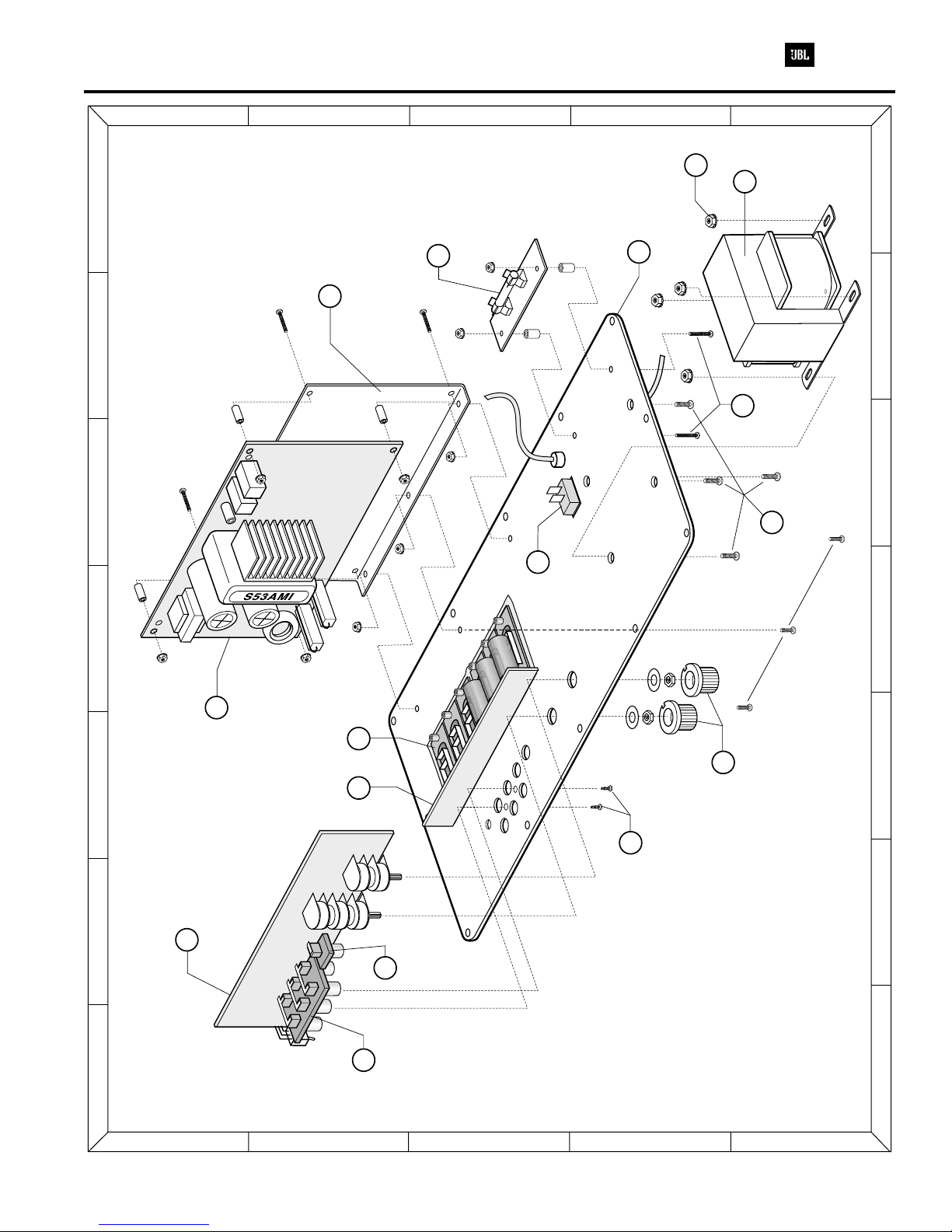

AMPLIFIER EXPLODED VIEW
55
44
33
22
11
A
A
B
B
C
C
D
D
E
E
F
F
G
G
PSW-D115
Amplifier Assembly
Exploded View
12
13
11
16
14
10
3
5
18
6
2
4
15
7
9

16
Amplifier/Subwoofer PSW-D115
PSW-D115 MECHANICAL PARTS LIST
Ref. # Part Number Description Qty
PSW-D115
1 70302 Knob on PSW-D115 2
2 70319 PSW-D115 faceplate
70313 Volume Knob for PSW-D115
70314 Video contour button for PSW-D115
3 70316 Amp PCB support
4 70151 Power switch PSW-D115 Safety part
70152 Video contour switch PSW-D115
5 70170 #4x0.5" Screws to secure input jacks
6 70171 #10 x 1" Machine screw Bolts for trans. 4
7 70172 #10 keps Nuts for transformer 4
8 70173 #6 x 0.5"Screws for fuse PCB 2
9 80125 Transformer #4688 Safety part
10 80126 250V, 3.0A, T type SLO BLO fuse Safety part
11 80118 Preamp board, PSW-D115 Safety part
12 80119 Power amp board PSW-D115 Safety part
13 80120 High level input PCB PSW-D115 Safety part
14 108116 High level 5way binding post(pr)
15 108322 Six line RCA input jack
16 108323 Single RCA input jack

17
Amplifier/Subwoofer PSW-D115
PACKING EXPLODED VIEWS
PSW-D115
WARRANTY CARD
OWNER'S MANUAL
#200930 (120V)
#331993-001
TOP FOAM PAD
#200922
STYROFOAM
STICKS (4)
#200923
PSW-D115
BOTTOM
FOAM PAD
#200921
CARTON
#200920
PLASTIC BAG

18
Amplifier/Subwoofer PSW-D115
PSW-D115 Version 3.21 PCB (Component Side)
Version 3.2 - Component Side Trace Layer
55
44
33
22
11
A
A
B
B
C
C
D
D
E
E
F
F
G
G

19
Amplifier/Subwoofer PSW-D115
PSW-D115 Version 3.21 PCB (Solder Side)
Version 3.2 - Solder Side Trace Layer as viewed through the board
55
44
33
22
11
A
A
B
B
C
C
D
D
E
E
F
F
G
G

PSW-D115 ELECTRICAL PARTS LIST
Preamp Board Rev 8
Safety Crossover 40436 20kW0.25W 10% Quad Lin Pot 1
Level 40402 5kW0.25W 10% Single Linear Pot 1
HP out 40450 20kW0.25W 10% 3-gang Tandem Lin Pot 1
Resistors
R1 40405 4.7kW0.25W 5% carbon film 1
R2 40431 68kW0.25W 1% metal film 1
R3 40451 137kW0.25W 1% metal film 1
R4 40452 2.7kW0.25W 5% carbon film 1
R5, 6 40438 20kW0.25W 1% metal film 2
R7, 11, 12, 14 40108 620W0.25W 5% carbon film 6
19, 20
R8 40453 20kW0.25W 5% carbon film 1
R9, R10, 13 40438 20kW0.25W 1% metal film 3
R15 40434 56.2kW0.25W 1% metal film 1
R16 40405 7.5kW0.25W 5% carbon film 1
R17, 18 40453 20kW0.25W 5% carbon film 2
R21 40412 33.2kW0.25W 1% metal film 1
R22 40454 45.3kW0.25W 1% metal film 1
R23 40405 4.7kW0.25W 1% metal film 1
R24 40408 8.66kW0.25W 1% metal film 1
R25 40455 133kW0.25W 1% metal film 1
R27 40434 20kW0.25W 1% metal film 1
R28 40456 2.7kW0.25W 5% carbon film 1
R32 40403 10kW0.25W 1% metal film 1
R33, 34, 35, 36 40440 6.8kW0.25W 5% carbon film 4
R37, 38 40438 20kW0.25W 1% metal film 2
R42 40457 196kW0.25W 1% metal film 1
R43 Jumper
R45 40449 3.3kW0.25W 5% carbon film 1
R46, R47 40415 470kW0.25W 5% carbon film 2
R48 40405 4.99kW0.25W 1% metal film 1
R49 40440 6.8kW0.25W 5% carbon film 1
Capacitors
C1 30502 100nF 50V 20% Mono-ceramic axial 1
C2 30501 47nF 50V 20% Mono-ceramic axial 1
C3, 4 30501 47nF 50V 20% Mono-ceramic axial 2
CE3 30708 47uF 16V 20% Electrolytic Radial 1
C5, 7, 9 30100 330pF 50V 20% Mono-ceramic axial 3
C6 30709 47nF 50V 20% Mono-ceramic axial 1
C8, 13, 14, 15 30101 220pF 50V 20% Mono-ceramic axial 4
C10, 11, 12, 17 30502 100nF 50V 20% Mono-ceramic axial 4
C16 30504 100nF 50V 10% Mono-ceramic axial 1
C18 Jumper
C19 30508 10nF 50V 10% Mono-ceramic axial 1
C20, 21, 22, 23 30504 100nF 50V 10% Mono-ceramic axial 4
C24, C25 30501 47nF 50V 20% Mono-ceramic axial 1
C26 30719 220uF 35V +80/-20% Electrolytic Radial
Diodes
Signal LED 50109 Bi-colour 1
Video LED 50110 Green 1
Transistors
TR2 60151 MPS A13 30V NPN(Darl) 1
TR1 60154 MPS A56 80V PNP 1
Integrated Circuits
U1, U2 60100 LM324 Quad OpAmp +/-15% 2
U3 60101 TLO 82 Dual OpAmp +/-15% 1
PSW-D115 Poweramp Board
Resistors
R1 40706 10MW0.25W 5% carbon film 1
R3 40458 43.2kW0.25W 1% metal film 1
R4, 8, 25, 51 40417 47kW0.25W 5% carbon film 4
R4a/b/c 40105 0.1W0.5W 5% metal film 1
R5 , R6 40420 1kW0.25W 5% carbon film 2
R7 40449 3.3kW0.25W 5% carbon film 1
R9 40421 3.9kW5W 5% ceramic wirewound 1
R14 40409 10kW0.25W 5% carbon film 1
R15 40459 100kW0.5W 5% carbon film 1
R16, R17 40460 2.4kW5W 5% ceramic wirewound 2
R23 40747 20kW1W 5% carbon film 1
R24 40427 23.7kW0.25W 1% metal film 1
R33 40100 332W0.5W 5% carbon film 1
R46 40104 4.7W0.25W 5% carbon film 1
R49 40746 316kW0.25W 1% metal film 1
R50 40100 332W0.5W 5% carbon film 1
R52, R57 40462 2.7kW5W 5% ceramic wirewound 2
R58 , R59 40405 4.7kW0.25W 5% carbon film 2
R60 40431 68kW0.25W 5% carbon film 1
R61 40463 5.1kW2W 5% carbon film 1
Capacitors
C1, C2 30710 2200uF 100V 80/-20% Electrolytic radial 2
C3 30505 100nF 50V 20% mono-ceramic axial 1
C4, C5 30505 100nF 50V 20% mono-ceramic axial 2
C6 30709 4.7uF 100V 80/-20% Electrolytic radial NP 1
20
Amplifier/Subwoofer PSW-D115
Ref. # Part Number Description Qty Ref. # Part Number Description Qty
