JC HUMMINGBIRD JC-WD-AH User manual

5 FT Round Metal Table & Garden Arch Assembly Instructions
Please read all instructions carefully before use!
Important Safety Cautions to Reduce the Risk of Personal Injury or Product/Property
Damage:
This product is not a toy and is intended only for
decorative purposes with lightweight real or
artificial plants, flowers, and other wedding arch
decorations, or for decorative purposes in
training of climbing plants. Do not use this
product for any other purposes.
Do not set or hang heavy objects on this
lightweight product. If overloaded, it could
collapse, causing product/property damage or
possible personal injury.
Keep this product and all its small parts out of
the reach of children and pets.
Do not stand or climb on this product. Do not
use this product as a ladder.
Securely attach and tighten all parts of this
product before use.
Properly secure the assembled arch to the floor by weight, cable, or other means or ground by
weight, cable, burying the bottom horizontal tubes or other means first before decorating it.
Free-standing installation is not recommended.
Package Contents: Please carefully check the contents against the parts table below.
Part
No.
Descriptions Quantities
1 20
2
12” horizontal support tubes with screw-nuts inside both ends
11
3
Screws (20 for support bar version only）
22/ (14)
4
Floor/Ground Support Bars（for support bar version only）
(4)
5
Ground Stakes
4
6
Extended 25cm Screws for Floor/Ground Support Bars（for
support bar version only）
(8)
7
Complimentar
y
Screwdrive
r
1

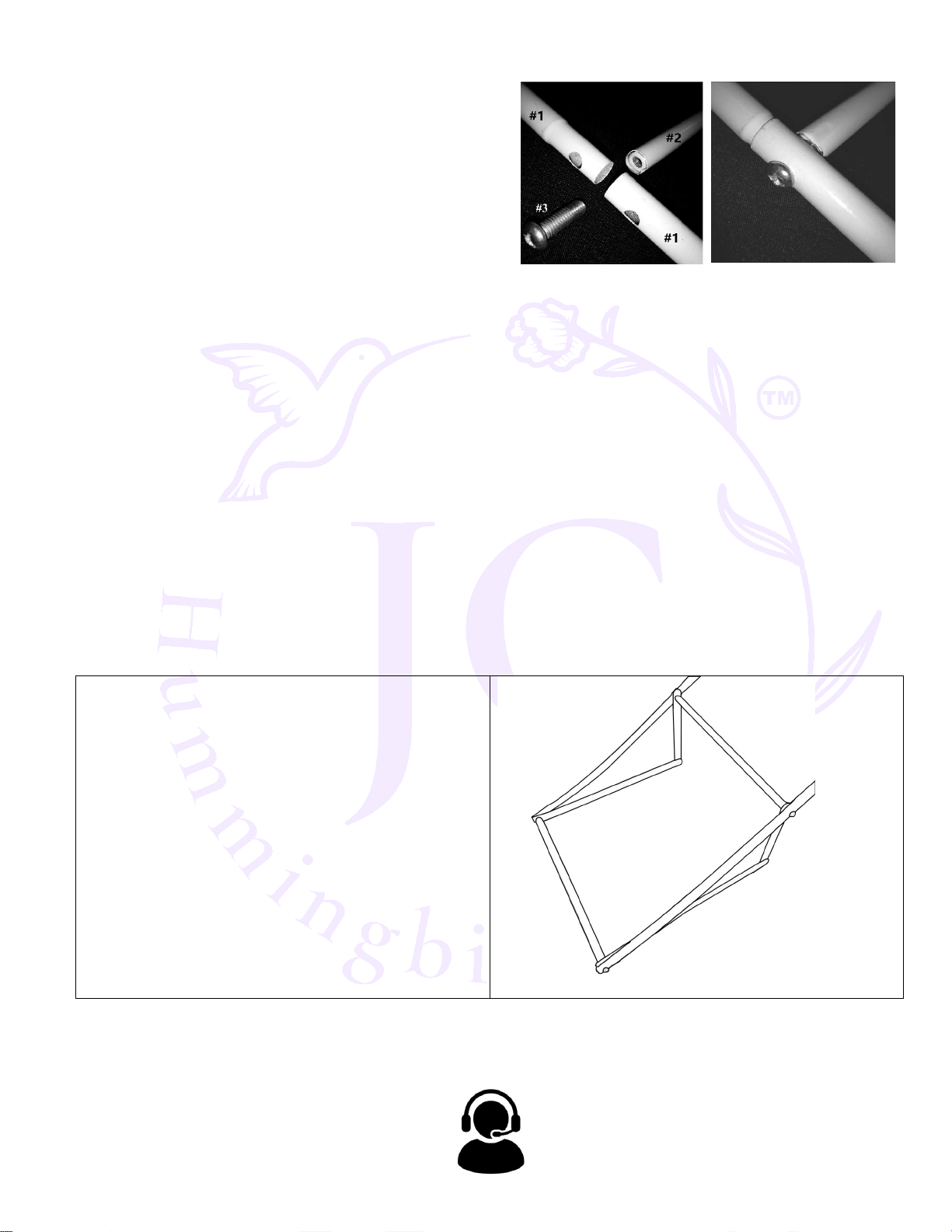

The basic joint structure:
Narrow end of #1 curved tube is inserted into
the normal end of another #1 tube.
Through the aligned holes, #3 screw is securely
attached in #2 support tube.
Assembly Instructions: Refer to the assembly drawing for the following steps. Ensure that the
tubes point in the direction shown.
1. Starting from the bottom right of the arch, begin assembly by inserting a #1 curved tube
into another #1 tube, and aligning the holes.
2. Insert a #3 screw into the aligned holes, attach a #2 tube as a crossbar and securely tighten
the screw with a screwdriver.
3. Repeat Step One & Two and attach the opposite side of #2 tube to another pair of #1 tubes
with the screw, forming the first rung of the ladder-shaped assembly.
4. Screw a #2 support tube at the bottom from both sides to complete the bottom assembly.
5. Add another “ladder step” by inserting 2 more #1 tubes into the top of previous assembly on
either side of the “ladder” and screwing them together with an additional #2 support tube & 2
more #3 screws.
6. Repeat to add the remaining “ladder steps”.
7. Screw a #2 support tube at the bottom from both sides using the included #6 25mm screws to
complete the bottom assembly.
8. Tighten all the screws again to ensure that the completed arch is rigid.
Finally attach the floor/ground support bars to
the round arch as shown.
Congratulations! Now the arch is ready for
decorations. Make sure to first secure the arch
to the tabletop/floor or ground properly – free
standing installation is not recommended –
before adding lightweight decorations.
For additional indoor/outdoor wedding or
garden applications, this product can be
reconfigured by removing 1 or more “links” to
lower the arch.
If you have any questions or concerns with your purchase, we would love to hear from you at
[email protected]
