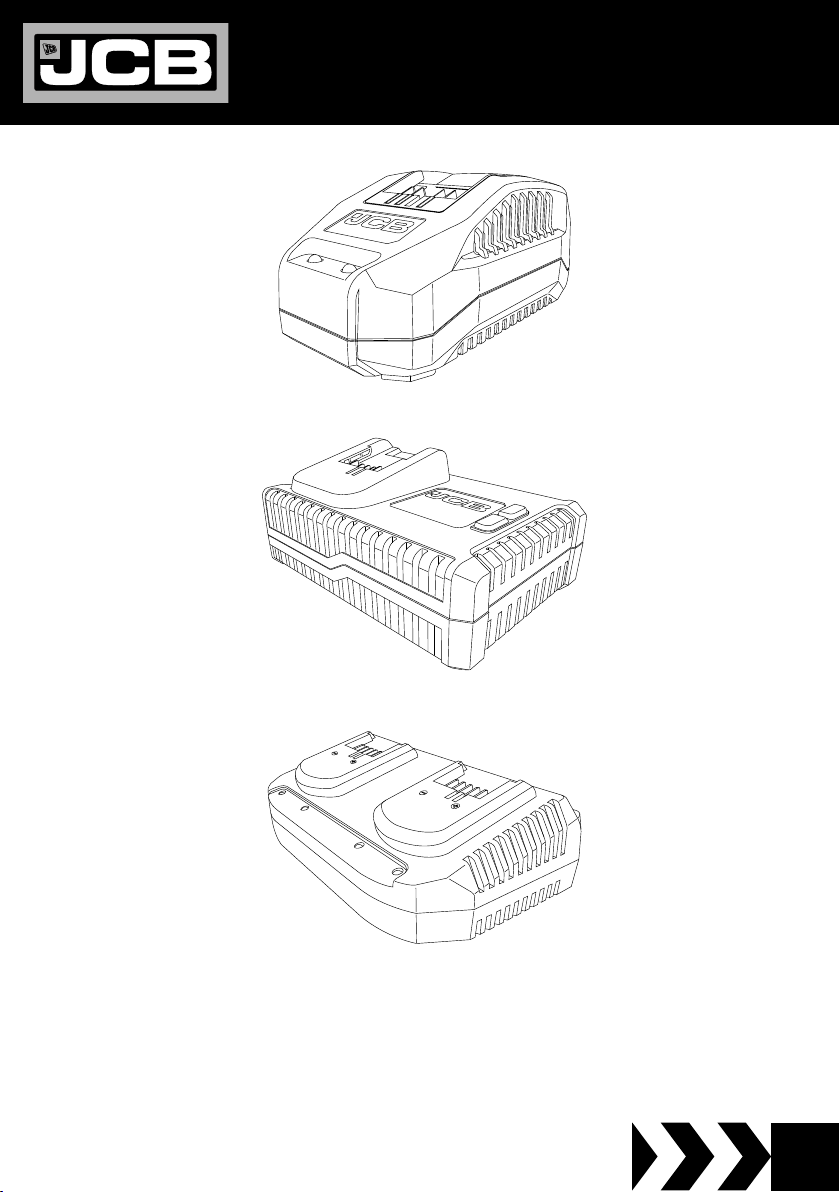

jcb JCB-20VFC User manual

POWER TOOL
INSTRUCTION & USER MANUAL
EN
JCB-20BC
JCB-20VFC
JCB-20VSFC
JCB-20DC
Original Instructions
IM-20BC-EN
Iss: 11/2019

2JCB-20BC
Instruction & User Manual
GENERAL WARNINGS & DISPOSAL
To reduce the risk of injury, the user must read the instruction manual.
Class II - Device is double insulated; Earthing wire is therefore not necessary.
This device is suitable for indoor use only and should be kept away from rain
and moisture.
Fuse must be replaced with rating specified on the product label.
This product has been marked with a symbol relating to removing electric
and electronic waste. The product should not be discarded with household
waste but must be returned to a collection system which conforms to the
European Directive 2012/19/EU. It will then be recycled or dismantled in
order to reduce the impact on the environment. Electric and electronic
equipment can be hazardous for the environment and for human health since
they may contain hazardous substances.
This symbol is used throughout this manual to warn the user about potential
risks. Please read & understand these sections before using the device.
Save all warnings and instructions for future reference.
WARNING: Lithium-ion batteries and products that contain lithium-ion batteries can expose you
to chemicals including cobalt lithium nickel oxide, and nickel, which are known to the State of
California to cause cancer and birth defects or other reproductive harm. For more information, go
to www.P65Warnings.ca.gov.
The month and year of manufacture can be found within the product serial number e.g.
MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included.
Positive terminal
Negative terminal

3
JCB-20BC
Instruction & User Manual
Contents
CHARGER SAFETY 4
COMPONENT LIST 5
CHARGER TECHNICAL DATA 5
LITHIUM ION BATTERY TECHNICAL DATA 6
OPERATING INSTRUCTIONS 6
Intended Use 6
Maintenance 7
Transport and Storage 7
GENERAL CERTIFICATE OF CONFORMITY 8

4JCB-20BC
Instruction & User Manual
m To reduce risk of injury, only charge
JCB rechargable batteries. The
charger and battery packs are specifically
designed to work together. Other types of
batteries may burst causing fire and personal
injury.
m Do not allow any liquid to get inside
the charger. Electric shock may result.
m Do not expose the charger to rain or
snow.
m Under certain conditions with the
charger plugged into the power
supply, the exposed charging contacts
inside the charger can be shorted by
foreign materials. Foreign materials of a
conductive nature such as, but not limited
to, steel, wool, aluminium foil or any buildup
of metallic particles should be kept away
from charger cavities.
m Always unplug the charger from
the power supply when there is no
battery in the cavity.
m Unplug the charger from the power
supply before attempting to clean.
m Do not operate the charger with a
damaged cord or plug. Have them
replaced immediately.
m These chargers are designed to
operate on 120 V AC input voltage
(Note: the dual charger can
additionally operate on 100-240 AC
input voltage). Do not attempt to use
them on any other supply voltage.
m This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or
lack of experience and knowledge
if they have been given supervision
or instruction concerning use of
the appliance in a safe way and
understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be
made by children without supervision.
m If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
CHARGER SAFETY
Read all safety warnings, instructions
and specifications provided with this
charger. Failure to follow all instructions
listed below may result in electric shock, fire
and/or serious injury. Save all warnings
and instructions for future reference.
WARNING!

5
JCB-20BC
Instruction & User Manual
Charger Code Input Data Output Data
JCB-20VFC AC 120 V, 50-60Hz, 70W 14.4 -20V d.c. 2.4A
JCB-20VSFC AC 120 V, 50-60Hz, 105W 14.4 -20V d.c. 4.0A
JCB-20DC AC 100-240 V, 50-60Hz, 200W 20.5V d.c. 2 x 3.5A
CHARGER TECHNICAL DATA
COMPONENT LIST
JCB-20VFC
JCB-20VSFC
JCB-20DC
2
2
2
1
1
11
1. INDICATOR LED
2. CHARGER

6JCB-20BC
Instruction & User Manual
OPERATING INSTRUCTIONS
Intended Use
These chargers are intended for use only with
compatible JCB 20V power tools and lithium-
ion battery packs.
The charger must not be modified or used for
any other purposes than the ones described in
these instructions.
Battery
The charger must be disconnected from the
power supply when inserting or removing
the battery.
NOTE
m Do not use excessive force when
inserting or removing the battery
pack from the charger. An incorrectly
connected battery can damage the battery
terminals or the battery socket on the
power tool or charger.
m Use the button on the battery to check the
charging status; 4 red LEDs indicates fully
charged, where 1 red LED indicates low
battery charge status.
Charging The Battery
After charging for the first time, ensure the
battery is completely discharged before
placing on charge again. Repeat this charging
and discharging cycle 4 to 5 times to ensure
the battery is correctly conditioned.
WARNING!
m Place the battery charger on a level and
stable surface. Connect the battery pack to
the charger so that it clicks in to place.
m Plug the charger into a suitable power
supply. Note: ensure the voltage on the
charger rating label matches the power
supply voltage.
m Refer to the Battery Charge Level table
below for battery charger status as displayed
by the charger indicator LED lights.
m When the battery pack is fully charged,
unplug the battery charger from the power
supply and remove the battery pack from
the charger.
LITHIUM ION BATTERY TECHNICAL DATA
Battery
Code
Battery
Size
Number
of cells Voltage Battery Capacity
Charge Time
(Fast Charger:
JCB-20VFC)
Charge Time
(Super Fast Charger:
JCB-20VSFC)
Charge Time
(Dual Charger:
JCB-20DC)
JCB-20-15LI Small 5 20V 1.5Ah 30 mins 20 mins 25 mins
JCB-20-20LI Small 5 20V 2.0Ah 45 mins 30 mins 35 mins
JCB-20-30LI Large 10 20V 3.0Ah 65 mins 40 mins 45 mins
JCB-20-40LI Large 10 20V 4.0Ah 90 mins 55 mins 60 mins
JCB-20-50LI Large 10 20V 5.0Ah 110 mins 65 mins 75 mins
Charger Fuse Rating: T2.4A T3.15A T5A
Times given as a guide only. Battery charge and discharge times dependant on age, usage and condition.

7
JCB-20BC
Instruction & User Manual

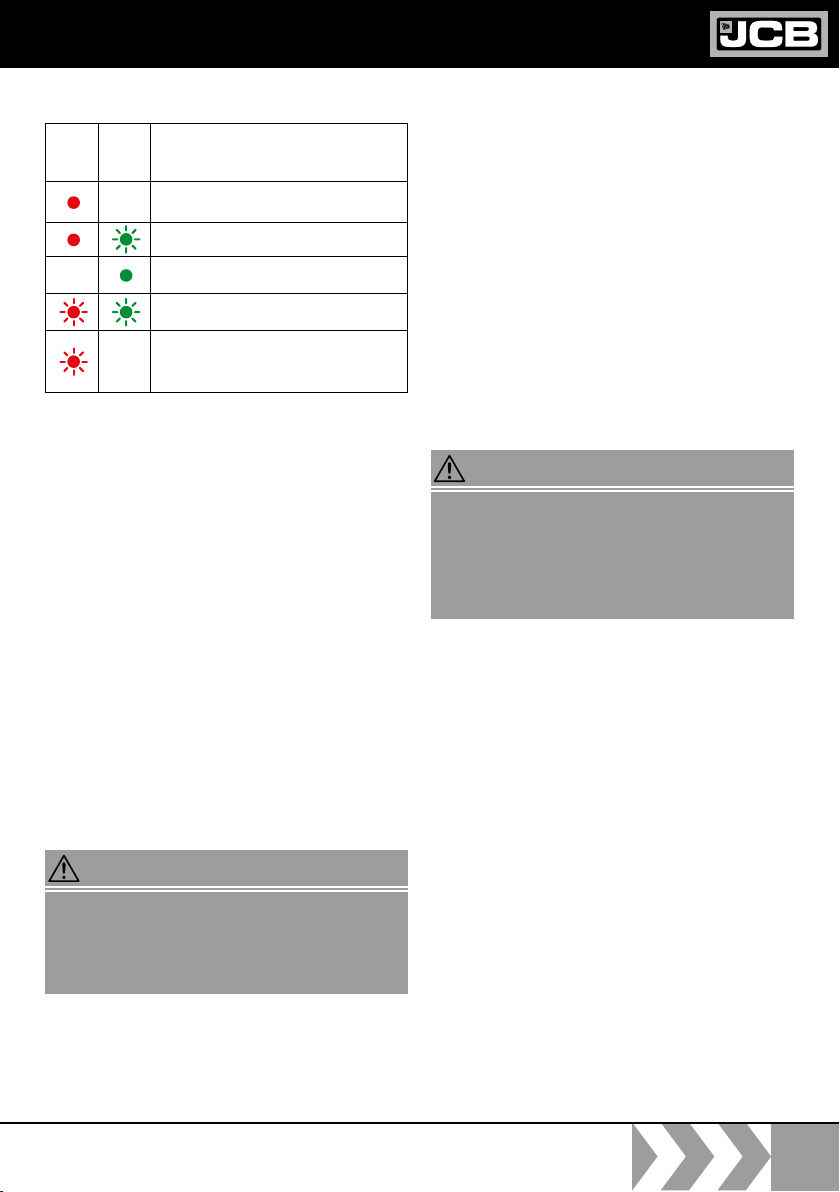

Battery Charge Level
Red
LED
Green
LED Battery Charge Status
Charger is connected to mains power
Connected battery is charging
Connected battery is fully charged
Connected battery has a charging fault
Charger is outside correct operating
temperature range (<0˚C / >40˚C)
If the LEDs on the charger do not illuminate
when charging:
m Check that mains plug is properly connected
to the power supply and the supply is
switched on.
m Check that the battery is correctly inserted
in the charger.
Connecting the battery to the
power tool
m Connect the battery to the battery socket
on the tool so that it clicks into place.
Removing the battery from the
power tool
m Press the battery release button and remove
the battery from the tool.
Maintenance
Remove the battery pack from the battery
charger before cleaning and maintenance.
This helps avoid the risk of electric shocks
and accidental injury.
WARNING!
m Wipe the battery charger with a dry or
damp cloth. Do not use a wet cloth.
Do not use detergent that contains
solvent or corrosive, abrasive
additives. This risks damaging the surfaces
of the charger.
m Clear the battery charger connection
terminals of dust and dirt after each use. Do
not clean terminals by inserting sharp
objects in them, such as screwdrivers
and other similar objects.
m Stubborn contamination in areas hard to
access can be removed with compressed air
(max 3. bar).
m Regularly check all fasteners, screws and
bolts to make sure that they are tight.
Tighten any loose screws immediately or
serious injury could occur.
Never open the battery charger. The battery
charger has no internal parts that the user
can service or repair. Never try to repair the
battery charger yourself. Take to an author-
ised service centre.
WARNING!
Transport and Storage
m If the battery charger will remain unused for
any length of time, it should be stored in the
original packaging, or in a compatible JCB
power tool storage insert.
m Store the battery charger in a dry, frost-free,
well ventilated place with a temperature of
no more than 40°C.
m Keep all battery chargers out of the reach of
children.
m Always remove the battery from the battery
charger before transport.
m Ensure that the battery charger is not at risk
of being exposed to excessive vibration and
shocks during transport, especially if the
battery charger will be transported by car or
other vehicle.

8JCB-20BC
Instruction & User Manual
GENERAL CERTIFICATE OF CONFORMITY
PRODUCT(S) COVERED BY THIS CERTIFICATE:
USA/CA No. JCB-20VFC
UK/EU No. JCB-18VFC
Manufacturer No. PLCP-001A-U
Amazon ASIN No. B07WRMFC9F
CITATION TO EACH CONSUMER PRODUCT SAFETY REGULATION TO WHICH THIS
PRODUCT IS BEING CERTIFIED:
IEC 60335-1:2012+A11+A13
IEC 60335-2-29:2004+A11
IEC 62233:2008
IEC 55014-1:2006+A1+A2
IEC 55014-1:2015
IEC 61000-3-2:2014
IEC 61000-3-3:2013
IDENTIFICATION DETAILS OF IMPORTE DOMESTIC MANUFACTURER CERTIFYING
PRODUCT COMPLIANCE:
Name: JCB Tools (Yellow and Black Tools Limited)
Address: 55 Romsey Industrial Estate
Romsey, SO51 0HR
UK
Tel no: [phone]
CONTACT INFORMATION OF INDIVIDUAL MAINTAINING RECORDS OF TEST
RESULTS:
Name: Tim Burgoyne, QA Technical Manager & Compliance Officer
Address: 55 Romsey Industrial Estate, Romsey, SO51 0HR, UK
Email: [e-mail]
Tel no: [phone]
DATE AND PLACE WHERE THIS PRODUCT WAS MANUFACTURED:
Date: mm/yyyy
Address: Ningbo Hanpu Tools Co. Ltd. Hengxi Industrial Area,
Yinzhou, Ningbo, P. R. China
DATE AND PLACE WHERE THIS PRODUCT WAS TESTED FOR COMPLIANCE:
Date: 12/2019
Name: TÜV Rheinland (Shanghai) Co., Ltd.
Address: Shanghai, 200072, P. R. China
Tel no: [phone]
IDENTIFICATION OF THIRD-PARTY LABORATORY ON WHOSE TESTING THE
CERTIFICATE DEPENDS:
Name: TÜV Rheinland
Address: Am Grauen Stein
51105 Köln, Germany
Tel no: [phone]
