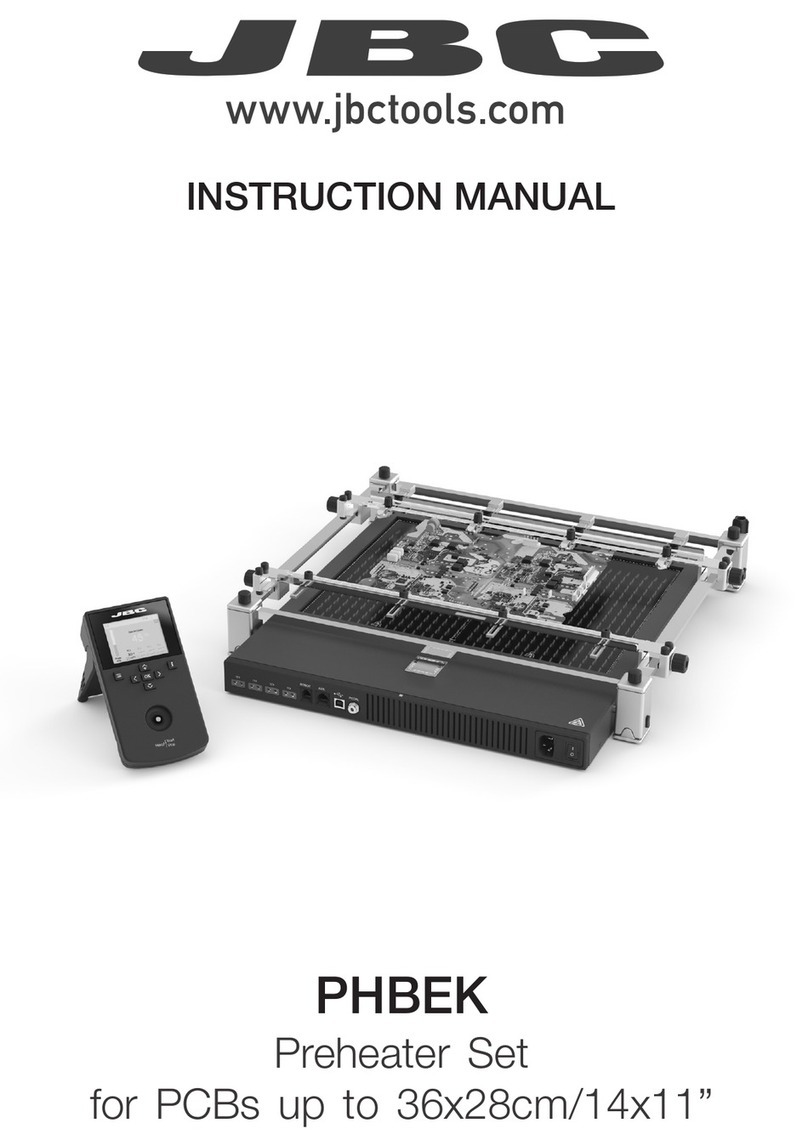

jcb PHBE User manual

INSTRUCTION MANUAL
PHBEK
Preheater Set for PCBs
up to 36x28cm/14x11”

2
Packing List
The following items are included:
Thermocouple .............. 2 unit
Ref. PH218
Kapton Tape .................. 1 unit
Ref. PH217
Manual ............................ 1 unit
Ref. 0029844
PHBS Support ................................ 1 unit
Ref. PHB-SA
PHBE Preheater Unit .............................. 1 unit
Console ........................... 1 unit
Ref. ACE-A
Power Cord .....................1 unit
Ref. 00 30177 (100V)
0030093 (120V)
0030175 (230V)
RJ45 Cable .................. 1 unit
Ref. 0019914
This manual corresponds to the following references:
PHBE-9KB (100V)
PHBE-1KB(120V )
PHBE-2KB (230V)

40 mm
50 mm
60 mm
80 mm
100 mm
130 mm 130 mm
para manuales - color gris
200 mm
300 mm
3
Rubber Caps Clamp Knobs
Console
2,8” Color
TFT Display
Start / StopUSB-A Connector
Button for Foot
Folding and
Unfolding
Features and Connections
Pedal Connector
Heating Areas
Power Socket
Main Switch
Fixing Brackets for
PHBS Support
Preheater Unit
Zone B
Zone A
USB-B Connector
RJ45 Connector
to Console
RJ12 Connector
to Robot
Thermocouple
Connectors x4
(Type K)
Support
Slot Clamps Height Adjusting
System
Guide Knobs
Sliding
Guides
Allen Key
USB-B Connector
RJ45 Connector
(to Preheater Unit) Foot for
vertical Set Up
Fuse
Max. PCB Dimension (between clamps):
36x28 cm / 14x11 in, Thickness 6 mm / 0.236 in

PHXLE
PHXL-SA
PHB-SA
PHS-SA
PHN-SA
PHBE DESPIECE PHB
PHSE
PHNE
OK
