Jeanneau MERRY FISHER 855 OFF SHORE User manual

MERRY FISHER 855 OFF SHORE
OWNER'S MANUAL
993650
Index B

-1/104
WELCOME ABOARD
Madam, Sir,
You have just taken delivery of your new JEANNEAU boat and we thank you for the
confidence you have shown us in ordering a vessel of our brand. The whole JEANNEAU
team welcomes you aboard.
A JEANNEAU is made to last, in order to bring you all the pleasure you expect from a
vessel over a period of many years. Each boat is subject to the utmost attention to detail
from the design stage right through to launching.
This manual is meant to help you to enjoy your boat comfortably and safely. It includes the
boat specifications, the equipment provided or installed, the systems and tips on her
operation and maintenance. Some of the equipment described in this manual may be
optional.
Your JEANNEAU dealer will be able to help and advise you in the use and maintenance
of your boat.
Read this user's guide/owner's manual carefully and get to know your boat before using it.
The better you know your vessel the more pleasure you will get from being at the helm.
The sea is a source for learning. Caution based on a knowledge of one's own limits and
those of the boat is the pre-requisite for an accomplished sailor.
Even when your boat has been adapted for them, the sea and wind conditions
corresponding to the design categories A, B, C and D may vary, ranging from severe
conditions to strong storms subject to the risks of exceptional waves and gusts of wind, this
meaning they are dangerous conditions in which only an experienced, fit and well trained
crew manoeuvring a well maintained boat can sail in a satisfactory manner.
This user's guide/owner's manual is not a course in safety at sea or about sailing sense. If
this is your first boat or if you change to a new type of boat which you are not used to, get
some training in boat control and sailing to ensure your safety and comfort. Your dealer,
your international sailing association or your yacht club will be very happy to recommend
local sailing schools or professional instructors.
Make sure the sea and wind conditions will correspond to the category of your boat and
you and your crew are able to handle the boat in these conditions.
Always listen to the weather forecast before you put out to sea.
Keep this user's guide/owner's manual in a safe place and hand it over to the new owner
if you sell your boat.
You are advised to keep all the instructions and manuals provided by the boat
equipment manufacturers (accessories...) in the same place as this manual.

1/104
INTRODUCTION
THE USERS OF THE BOAT ARE INFORMED OF THE FOLLOWING:
This user guide/owner's manual is not a maintenance or repair guide. In case of
difficulty do not hesitate to call on the services of your concessionaire JEANNEAU.
Any alterations which may affect the safety specifications of the boat must be
assessed, carried out and recorded by persons qualified to do so. Any change in the
distribution of the vessel's mass (adding a radar, altering the mast, changing an engine,
etc) may affect the stability, trim and performance of your boat.
The SPBI shipyards may not be held responsible for any alterations which they have not
approved.
The complete crew must be equipped appropriately.
In numerous countries, a licence, an authorization or a training course is requested.
Make sure you have this legal authorization before you use your boat.
Adapt the use of your boat to her condition that wears out with time and use.
Any boat, however solid she may be, may be severely damaged if badly used. This is
not compatible with safe navigation. Always adapt the speed and direction of your boat to
the conditions of the sea.
The boat shall not be loaded more with than the maximum load recommended by the
builder, in particular the total weight of the food supplies, of the different equipment that are
not supplied by the builder and of the persons on board.
The weight of the boat shall be properly distributed.
The stability is reduced when you add weight in the upper parts.
In case of heavy weather, the hatches, lockers and doors shall be closed in order to
minimize the risk of water coming in.
Breaking waves are a serious threat to stability.
The water in the bilge shall be kept at its minimum.
The stability may be reduced when you tow a boat or when you lift heavy weights with
the davits or the boom.
If your boat is equipped with a liferaft, carefully read the instructions. The boat must
have on board all the proper safety equipment (lifejackets, buoys, harness, flares, liferafts,
etc.) depending on the type of vessel, its certification, the country, the weather conditions
encountered, etc.
The crew must be familiar with the use of all the safety equipment and the emergency
safety procedures (MOB, towing etc.). Sailing schools organise regular training sessions.

2/104
Anyone on the deck shall wear a life jacket or a buoyancy aid.
The safety regulations as defined by the sailing code and enforced by the ’’COLREG’’
should be observed.
NAME PLATE:
Some of the data is shown on the manufacturer's plate fixed to the boat. The explanation
of the data is given in the appropriate chapters of this manual.
IDENTIFICATION OF VESSEL:
The vessel's identification is found on the builder's certificate delivered with the boat and is
engraved on the starboard aft side.
So as to be able to continuously improve their product the SPBI shipyards reserve the right
to make any alterations in design, layout or equipment which they judge necessary.
That is the reason why the specifications and information given are not contractual, they
may be modified without prior notice or up dates.
This owner's manual is designed in accordance with the ISO 10240 standard
requirements, it has a general purpose and it may sometimes list some equipment or
accessories or deal with some points or questions that are not relevant to your own boat.
The different warnings used throughout this guide are broken down as follows.
DANGER
Indicates the existence of a serious inherent danger with a high risk of
death or serious injury if the appropriate precautions are not taken.
WARNING
Indicates the existence of a danger which could lead to injury or death if
the appropriate precautions are not taken.
PRECAUTION
Indicates a reminder of safety practice or draws attention to dangerous practices which
could cause injury to persons or damage to the vessel or to its components.
ADVICE - RECOMMENDATION
Indicates a recommendation or advice for carrying out manoeuvres appropriate for the
planned manoeuvres.

3/104
HISTORY OF UPDATES
•Index A .................................................................................................................. 12/2014
•Index B .................................................................................................................. 01/2015

5/104
CONTENTS
INTRODUCTION
Chapter 1 ...... SPECIFICATIONS AND WARRANTY............................................Page 7
Chapter 2 ...... SAFETY ........................................................................................Page 13
Chapter 3 ...... HULL .............................................................................................Page 29
Chapter 4 ...... DECK ............................................................................................Page 33
Chapter 5 ...... STEERING SYSTEM ....................................................................Page 45
Chapter 6 ...... INTERIOR .....................................................................................Page 49
Chapter 7 ...... WATER AND SEWAGE WATER .................................................Page 55
Chapter 8 ....... ELECTRICAL EQUIPMENT .........................................................Page 65
Chapter 9 ...... ENGINE.........................................................................................Page 81
Chapter 10 .... LAUNCHING .................................................................................Page 91
Chapter 11 .... WINTER STORAGE......................................................................Page 99
Chapter 12 .... APPENDIXES ...............................................................................Page 99
MERRY FISHER 855 Off Shore Anglais
Update 01/2015
Index B
Code: 993650 Total number of pages: 104

7/104
SPECIFICATIONS AND WARRANTY
TECHNICAL SPECIFICATIONS
CERTIFICATION
DESIGN CATEGORY
YOUR BOAT
1

8/104
TECHNICAL SPECIFICATIONS -
MERRY FISHER 855 OFF SHORE
L.O.A (with platform)................................................................................................. 8,72 m
L.O.A (without platform ............................................................................................. 8,40 m
Hull length................................................................................................................. 7,95 m
L.W.L. ....................................................................................................................... 6,88 m
Overall width ............................................................................................................. 2,99 m
Beam ........................................................................................................................ 2,92 m
Waterline beam......................................................................................................... 2,63 m
Air draught - Empty vessel (with samson post) ........................................................ 2,96 m
Draught - Maximum .................................................................................................. 0,64 m
Total mass of liquids (all tanks full)........................................................................... 520 kg
Freshwater capacity..................................................................................................... 100 l
Fuel capacity................................................................................................................ 400 l
Capacity - Holding tank.................................................................................................. 80 l
Recommended maximum power
(Version: Twin engine - only) .......................................................................... 2 x 147,2 Kw
Maximum motorisation mass ...............................................................................2 x 296 kg
Battery capacity .................................................................................................. 2 x 140 Ah
Note: The capacities indicated are maximum (including options).
Architect.................................................. Jeanneau Design / Centkowski & Denert Design
CERTIFICATION
The recommended maximum load includes the weight of all the people onboard, of
provisions, personal belongings, of all equipment not included in the weight of the boat in
ballast, of the cargo (if relevant) and of all liquids contained in fixed tanks when full (fuel,
water, grey water, black water).
The maximum recommended weight shown on the manufacturer's plate does not include
the weight contained in the fixed tanks of liquid when full (fuel, water, grey water, black
water).
The engine is the main propulsion means of the MERRY FISHER 855 Off Shore.
Design category BCD
Maximum number of people to be
allowed onboard 5 10 10
Light displacement 4 395 kg
Recommended maximum load 1 350 kg 1 700 kg 1 700 kg
Displacement with maximum load 5 745 kg 6 095 kg 6 095 kg

9/104
DESIGN CATEGORY
Design category Wind force
(Beaufort scale)
Significant height of waves
to be considered
(in metres H 1/3)
Vessel designed for navigation:
A - "At high sea"
B - "In open sea"
C - "Near to the coast"
D - "In sheltered waters"
Over 8
Up to and including 8
Up to and including 6
Up to and including 4
Over 4 m
Up to and including 4 m
Up to and including 2 m
Up to and including 0,5 m
1
SPECIFICATIONS AND WARRANTY

10/104
Category A: At high sea
The boat is designed to sail in winds that may exceed Beaufort force 8 and in waves of a
significant height of 4 metres and more.
This craft is largely self-sufficient. Abnormal conditions such as hurricanes are excluded.
Such conditions may be encountered on extended voyages, for example across oceans, or
inshore when unsheltered from the wind and waves for several hundred nautical miles.
Category B: In open sea
The boat is designed to sail in winds not exceeding Beaufort force 8 and in corresponding seas
(waves of a significant height of less than or equal to 4 metres).
Such conditions may be encountered on offshore voyages of sufficient length, or on coastal
waters when unsheltered from the wind and waves for several dozens of nautical miles.
These conditions may also be experienced on inland seas of sufficient size for the wave height
to be generated.
Category C: Near to the coast
The boat is designed to sail in winds not exceeding Beaufort force 6 and in corresponding seas
(waves of a significant height of less than or equal to 2 metres). You may meet with such
conditions in exposed inland waters, in estuaries and in coastal waters with moderate weather
conditions.
Category D: In sheltered waters
The boat is designed to sail in winds that may exceed Beaufort force 4 and in waves of a
significant height of 0,5 metres and more.
Such conditions may be encountered in sheltered inland waters, and in coastal waters in fine
weather.
NOTE:
- The significant wave height is the mean height of the highest one-third of the waves, which
approximately corresponds to the wave height estimated by an experienced observer. Some
waves will be double this height.
- The creation of different design categories results from the need to distinguish between
different levels of risk according to the construction of the boats.
"The parameters for the characteristics are established to define the conditions of navigation
which each category may encounter; they serve purely to evaluate the boat designs and are
not to be used to limit the geographical areas in which these boats may operate".
- One boat may be classed in several design categories at the same time, each with their
different maximum capabilities.

11/104
YOUR BOAT
Version
NAME OF THE BOAT .............................................................
NAME OF THE OWNER .............................................................
ADDRESS .............................................................
.............................................................
.............................................................
HULL NUMBER .............................................................
SERIAL NUMBER .............................................................
REGISTRATION NUMBER .............................................................
DELIVERY DATE .............................................................
DOOR KEY NUMBER .............................................................
MAKE OF ENGINE .............................................................
ENGINE SERIAL NUMBER .............................................................
ENGINE KEY NUMBER .............................................................
JEANNEAU (Establishment of the company SPBI)
BP 529 - 85505 LES HERBIERS cedex - FRANCE
Tel. [phone] - Fax [phone]
Internet : http://www.jeanneau.com(fr).
Your agent
1
SPECIFICATIONS AND WARRANTY

13/104
SAFETY
SAFETY EQUIPMENT
GENERAL INFORMATION
GAS SYSTEM
RECOMMENDATIONS FOR GAS
FIGHT AGAINST FIRE
BILGE PUMP SYSTEM
INSTRUCTIONS IN THE EVENT OF STEERING GEAR FAILURE
2

14/104
SAFETY EQUIPMENT

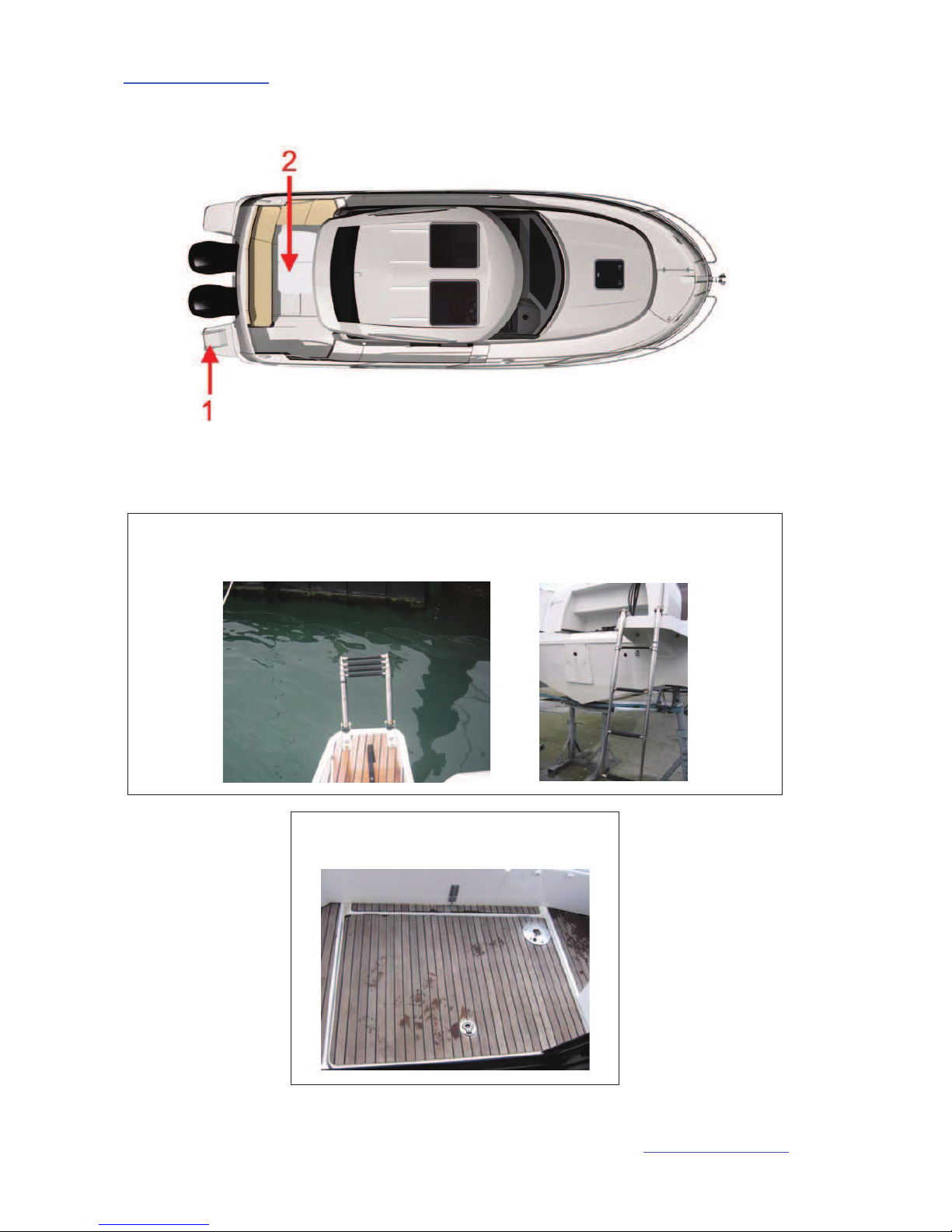

Swimming ladder (means of coming back onboard) Reference 1
Position of the liferaft (not supplied) Reference 2
SWIMMING LADDER
Reference 1
LIFERAFT
Reference 2

15/104
GENERAL INFORMATION
DANGERS
The major hazards concern:
- The gas system.
- The electrical system.
- The handling of the vessel.
- The motorisation.
Please refer to the relevant paragraphs.
DANGER
- Fuel leaks or vapour represent a danger of fire and explosion.
- Ventilate the compartment length fuel tank before starting the engine.
- There may be danger of fire or explosion if direct or alternating current
systems are incorrectly used. Refer to chapter Electricity.
- Some boats are equipped with a retractable ladder or removable. Make
sure the ladder is in place and deployed as soon as you are on board.
- Reduce speed in waves.
WARNING
- Before you sail, list the compulsory safety equipment.
- Don't exceed the number of persons indicated in the chapter
'Specifications'.
- The total weight of the persons and equipment must never exceed the
maximum load recommended by the manufacturer.
- Use the seats provided.
ADVICE - RECOMMENDATION
- When sailing, never padlock or lock the liferaft locker.
- Before putting to sea, carefully read the launching instructions shown on the liferaft.
- Close the deck hatches and portholes before each trip (including the sliding door
window in heavy weather).
- Don't store anything below the floorboards.
- Ensure that movable items are firmly secured when the boat is under way.
2
SAFETY

16/104
GAS SYSTEM
Locker closed
Locker open
(The valve is located in the
trunk gas cylinder)
WARNING
- For all recommendations concerning gas: Refer to chapter 2, «Safety».
- Don't use a solution containing ammonia.
- Don't use a flame to detect leaks.
- Don't smoke, don't use a naked flame when you change the gas
cylinder.
