Jeep Phoenix User manual

English | Italiano | Français | Polski
FOLDABLE E-BIKES
USER MANUAL

English.............................................................................................02
Italiano.............................................................................................28
Français...........................................................................................54
Polski...............................................................................................80

02
User manual
Contents
Instructions translated from the original Italian
Thank you for choosing this product.
For information, technical support, assistance or to consult the general terms of the warranty, please contact your
dealer or visit the website www.jeepurbanemobility.com
For spare parts visit www.urbanemobility.com
This manual is valid for the following electrically power assisted cycles (EPAC)
Phoenix
Sonoran
English
1. Introduction
2. Warnings on use and safety
3. Product overview
4. Technical data sheet
5. Assembly
6. Display
7. Battery
8. First start-up
9. Storage, maintenance and cleaning
10. Liability and general terms of warranty
11. Information on disposal
1. Introduction
2. Warnings on use and safety

03
1. Introduction
Overview
This manual is an integral and essential part of the electrically power assisted cycle (EPAC).
Before using the bike for the first time, it is essential that users read, understand and strictly observe the requirements
outlined below.
M.T. Distribution shall not be liable for any damages caused and is in no way responsible for damages caused to property or
persons when:
-the item is used incorrectly or in a manner that does not comply with the instructions of the user guide;
-following purchase, the item is modified or tampered with in all or some of its components.
In the interest of technological development, the manufacturer reserves the right to modify the product in question without
prior notice and without automatically updating this manual. For further information and to consult any updated versions of
the manual, please visit www.jeepurbanemobility.com
After-sales service
For any problem or request for clarification, please do not hesitate to contact the after-sales service team of your authorised
dealer who has expertise and specialist knowledge and access to specific tools and original spare parts.
Legal note for use
Check and observe the highway code and local road regulations in force for cyclists on any restrictions for riders, who may
use the product, and on the use of this type of product.
Visual representation of the safety warnings
To identify the safety messages in the manual, the following warning symbols will be used which serve to draw the reader’s/
user’s attention in order to ensure that the electrically power assisted cycle is used correctly and safely.
CAUTION
Care required
Highlights the rules to follow to prevent damage to the pedelec and/or prevent hazardous situations from arising.
HAZARD
Residual risks
Highlights the presence of hazards causing residual risks, which the user must be aware of to prevent injury or damage to
property.
2. Warnings on use and safety
General safety rules
Even if you are already familiar with the use of an electrically power assisted cycle, the instructions given below must be
followed and the general guidelines for operating a motorised vehicle must also be observed.
It is important to take the time required to learn the basics of using the bike to avoid serious injury which could occur when
first using it. Contact your dealer for advice on how to use the bike correctly or indications on contacting a suitable training
organisation.
The company assumes no direct or indirect responsibility arising from misuse of the bike, failure to comply with both the
highway code and the instructions in the manual, accidents or disputes caused by failure to comply with regulations or
illegal actions.
This product must be used for recreational purposes. It cannot be used by more than one person at a time and must not be
used to transport passengers.
Do not modify the intended use of the vehicle in any way. The item is not suitable for stunts, competitions, transporting
objects, towing other vehicles or trailers.
The A-weighted emission sound pressure level at the rider’s ear is less than 70 dB(A).

04
CAUTION
Using a pedelec
All users must have read and understood the instructions and information outlined in the manual.
If, during assembly, any factory defects are detected, certain steps are unclear or issues with assembly or adjustments
occur, do not ride the vehicle and contact your dealer or visit www.jeepurbanemobility.com for technical support.
CAUTION
Risks associated with using a pedelec
Although a number of safety devices have been incorporated into the pedelec, all accident prevention regulations in this
manual should be observed for it to be used in safety.
Staying focused while riding, and not underestimating the residual risks involved in using a pedelec, are extremely impor-
tant.
CAUTION
Responsibility
The rider is required to use the electrically power assisted cycle with utmost diligence and in full compliance with the road
regulations and all cycling rules in force in the country of use.
It is important to bear in mind that when out in a public space or on the road, even when the instructions in the manual are
observed to the letter, the rider is not immune to injury caused by infractions or inappropriate actions taken towards other
vehicles, obstacles or persons. Misuse of the item or non-compliance with the instructions provided in this manual may
cause severe injury.
Riders must also ensure that the electrically power assisted cycle is kept clean, in perfect working order and serviced. They
must diligently carry out the safety checks which are their responsibility, as well as preserve all the documentation about
product maintenance.
Riders must carefully assess any weather conditions which could make it potentially dangerous to use the electrically power
assisted cycle.
This product is a vehicle, therefore, the faster is it goes, the longer the braking distance required. We, therefore, recommend
moderating your speed and maintaining an adequate braking distance if you are riding in adverse weather conditions and/
or heavy traffic.
The braking distance increases on wet, slippery, muddy or icy roads and the tyre grip decreases significantly with the risk of
the wheels skidding and loss of balance compared to dry roads.
It is, therefore, essential to ride the bike with greater care, maintain a suitable speed and safety distance from other vehicles
or pedestrians.
Take extra care when riding on unfamiliar roads.
For your safety, we recommend wearing suitable protective equipment (helmet, knee and elbow pads) to protect yourself
from any falls or injuries while riding the bike. When allowing others to use the bike, ensure that the rider wears the safety
equipment and explain how to operate the vehicle. To avoid injury, do not allow other persons to use the item if they do not
know how to use it.
Wear shoes before using the item.
The bike has been designed to allow the load of a maximum overall weight (rider and any load being carried) that does not
exceed the value indicated in the product data sheet.
Avoid using the product, under all circumstances, if the total load transported exceeds the recommended weight to avoid the
risk of damaging the integrity of the structural and electronic components of the bike.
The electrically power assisted cycle (EPAC), as specified in the provisions of the current reference standard EN 15194, is a
means of transport intended to transport one person only.
The transport of a passenger is only permitted within the framework of the regulations in force in the country where it is
ridden regarding: the minimum age of the rider, maximum age of the passenger transported, provision of legally approved
and authorised passenger transport devices.

05
It is the user’s responsibility to ascertain the suitability of the devices used for passenger transport in terms of construction
characteristics, safety systems, anchoring systems and their installation and assembly on the electrically power assisted
cycle based on its structure and within the permitted load limits (maximum load supported by the bike and by the luggage
rack supplied, if present).
The user is also responsible for the provision and installation of devices used for the transport of objects and animals (e.g.
luggage racks, luggage bags, storage baskets, etc.) in compliance with the legally approved and authorised provisions in the
country of use and the limitations of the structure within the permitted load limits (maximum load supported by the bike and
by the luggage rack supplied, if present).
CAUTION
The installation of accessories and equipment on the bike, not only affect the performance of the bike and how it is used, but
can also cause damage if they are unsuitable, thus compromising correct operation and safety conditions during use.
For information on the supply and installation of equipment deemed suitable for the bike, please contact your authorised
dealer or specialised operators.
Warnings for users
• The electrically power assisted cycle can only be used by adults and skilled teenagers.
• Do not take alcohol or drugs before riding the electrically power assisted cycle.
• This electrically power assisted cycle model is designed and built for outdoor use on public roads or cycle tracks.
• Do not attempt to make the electrically power assisted cycle exceed the performance levels for which it was designed;
do not ride on surfaces with a slope greater than 10%, on uneven and rough ground (bumpy road surfaces, with potholes,
depressions, obstacles).
• Never ride the electrically power assisted cycle with any of its parts disassembled.
• Avoid uneven surfaces and obstacles.
• Ride with both hands on the handlebars.
• Before use, replace any worn out and/or damaged parts and check that the safety devices are working properly.
• Keep children away from plastic items (including packaging materials) and small parts that may result in suffocation.
• Supervise children to make sure they do not play with the product.
• Remove any sharp edges caused by misuse, breakage or damage to the item.
• Pay particular attention when riding the bike near pedestrians and make sure you slow down and signal your presence
to avoid frightening them when arriving from behind.
• Assemble the item correctly.
CAUTION
How to use
The electrically power assisted cycle is a bicycle fitted with an auxiliary electric motor that is activated only when the pedals
are turned.
The motor does not, therefore, replace the work performed by your leg muscles, but assists them so they work less hard by
enabling the electrical and electronic components supplied with the product, i.e. the battery, handlebar controls, sensors
and control electronics (control unit).
More specifically, the electric motor is powered by a battery and managed by a control unit that handles the delivery of power
and additional thrust provided to assist the effort made by the rider when pedalling based on the real-time reading of values
detected by a series of pedal-assist sensors. These sensors are positioned on the outside of the frame or inside the compo-
nents themselves and are based on the control parameters entered by the user via the handlebar controls (Display).
In accordance with the provisions of European Directive 2002/24/EC, the electric motor supplied with the electrically power
assisted cycle, is only activated to assist the user when pedalling and will be disabled upon reaching a speed of 25 km/h.
The electrically power assisted cycle has been designed and manufactured to be ridden outdoors on public roads and cycling
paths, on both tarmacked surfaces and/or ground that is suitable for the specific technical and structural features of the
bike.
Any changes to its construction may compromise the behaviour, safety and stability of the electrically power assisted cycle
and may cause an accident.

06
Any other types of use, or any extensions of use beyond the one intended, do not correspond to the intended use attributed
by the manufacturer and the latter, therefore, disclaims all liability for any resulting damage.
The autonomy of the battery supplied with the electrical power assisted cycle, and therefore the relative travel data in
estimated km, can vary significantly depending on the specific methods of use (total load transported, muscle contribution
provided by the rider, level of electrical assistance to the selected pedal, frequency of departures/restarts),
on the mechanical and electrical conditions of the product (tyre pressure and wear, battery efficiency level) and external
influences (gradients and road surface, weather conditions).
Before each use, carefully check that the brakes are working correctly and are not worn; check the tyre pressure, the wear
of the wheels and battery charge status.
Regularly check that the tightness of the various elements secured by bolts. The nuts and all the other self-tightening parts
can become loose so, these components need to be periodically checked and tightened.
Like all mechanical components, the item is subject to wear and tear. Different materials and components may react to wear
or stress fatigue in a variety of ways. If the useful life of a component is exceeded, it could break unexpectedly and injure
the user. Any cracks, scratches or changes in colour in areas subject to high levels of stress indicate that the life of the
component has been reached and must be replaced.
CAUTION
Permitted speeds
The maximum speed permitted by law is 25 km/h.
The control unit has been configured to prevent any change to the maximum speed permitted.
Any changes to the control unit which have not been authorised by the manufacturer will exclude the latter from any liability
related to injury caused to persons and/or damage to property, and will invalidate the bike’s warranty terms and conditions.
DANGER
Risk of injury
Ride at a speed and behave in keeping with your ability; never use the electrically power assisted cycle over 25Km/h as this
could cause serious damage and injury to yourself or other people.
CAUTION
Place of use
The electrically power assisted cycle can be used outdoors providing there are no adverse weather conditions (rain, hail,
snow, strong wind, etc.).
Maximum permissible temperature: +40°C
Minimum permissible temperature: +0°C
Maximum permissible humidity: 80%
The environment of use must present a flat, compact, smooth asphalted surface, without any holes or dips, free of obstacles
and oil stains.
The place of use must also be well lit by either natural or artificial light in order to ensure that the route and controls of the
electrically power assisted cycle can be viewed correctly (recommended lighting 300 to 500 lux).
Improper use and contraindications
The actions described below, which obviously cannot cover the entire range of potential possibilities of “poor use” of the
electrically power assisted cycle, are to be considered strictly prohibited.

07
DANGER
It is strictly prohibited to:
• Use the electrically power assisted cycle for uses other than the ones for which it has been manufactured.
• Ride the electrically power assisted cycle if the rider’s weight exceeds the permitted limit.
• Use the electrically power assisted cycle under the influence of alcohol or drugs.
• Use the electrically power assisted cycle in areas at a risk of fire, explosions or in places with a corrosive and/or chemi-
cally active atmosphere.
• Use the electrically power assisted cycle in adverse weather conditions (heavy rain, hail, snow, strong wind, etc.).
• Use the electrically power assisted cycle in poorly lit areas.
• Ride across or remain on uneven or rough ground (bumpy roads with potholes, depressions, obstacles, etc.) to avoid the
risk of falls and injury to the rider and damage to the bike.
• Charge the battery in an environment that is either too hot or insufficiently ventilated.
• Cover the battery while its charging.
• Smoke or use open flames near the charging area.
• Perform any type of maintenance work with the battery connected.
• Insert limbs or fingers between the moving parts of the bike.
• Touch the brakes immediately after use due to high temperatures.
• Allow the electric and electronic components of the electrically power assisted cycle to come into contact with water or
other liquids.
• Modify or change the bike and its mechanical and electronic parts in any way to avoid the risk of structural damage,
compromising efficiency and causing damage.
• If any manufacturing defects arise, or if any unusual noises or faults are detected, do not use the vehicle and contact your
dealer or visit the site www.jeepurbanemobility.com
Safety devices
It is strictly prohibited to modify or remove the safety devices for the battery, chain and other components installed on the
bike, such as the warning and identification plates.

08
Example image of bike structure and components.
1. Saddle
2. Seat post
3. Seat post clamp
4. Li-Ion battery
5. Rear luggage rack
6. Rear LED light
7. Rear mudguard
8. Rear tyre
9. Front wheel rim
10. Rear disc brake
11. Rear wheel
12. Motor
13. 7-Speed cassette
14. Rear gear change - derailleur
15. Stand (opposite side)
16. Motor port
17. Chain
18. Control unit compartment
19. PAS (opposite side)
20. Chainring
21. Crank arm (right side)
Phoenix
22. Pedal (right side)
23. Front tyre
24. Front wheel rim
25. Front wheel
26. Front wheel bolt hub
27. Front disc brake
28. Suspension fork
29. Front mudguard
30. Front LED light
31. Frame serial number
32. Handlebar stem lock/unlock lever
33. Telescopic and folding handlebar stem
34. Handlebars
35. Rear wheel brake lever (right side)
36. Front wheel brake lever (left side)
37. Handlebar attachment
38. Gear change - indexed control
39. Bell
40. Display
41. Frame opening/closing mechanism
3. Product overview

09
3. Product overview
Example image of bike structure and components.
1. Saddle
2. Seat post
3. Seat post clamp
4. Li-Ion battery
5. Rear luggage rack
6. Rear LED light
7. Rear mudguard
8. Rear tyre
9. Front wheel rim
10. Rear disc brake
11. Rear wheel
12. Motor
13. 7-Speed cassette
14. Rear gear change - derailleur
15. Stand (opposite side)
16. Motor port
17. Chain
18. Control unit compartment
19. PAS (opposite side)
20. Chainring
21. Crank arm (right side)
Sonoran
22. Pedal (right side)
23. Front tyre
24. Front wheel rim
25. Front wheel
26. Front wheel bolt hub
27. Front disc brake
28. Suspension fork
29. Front mudguard
30. Front LED light
31. Front luggage rack
32. Frame serial number
33. Handlebar stem lock/unlock lever
34. Telescopic and folding handlebar stem
35. Handlebars
36. Rear wheel brake lever (right side)
37. Front wheel brake lever (left side)
38. Handlebar attachment
39. Gear change - indexed control
40. Bell
41. Display
42. Frame opening/closing mechanism

10
Descrizione prodotto Codice prodotto Codice EAN
MiniMax Red AR-BI-220008 8052679456031
AR-BI-210004 8052870486639
MiniMax Yellow AR-BI-220009 8052679456048
AR-BI-210005 8052870486646
Informazioni generiche
Display LCD - CDC13-BT
Motore Bafang 36V 250W brushless - posteriore
Batteria Li-Ion 36V 10.4Ah 374Wh - esterna ed estraibile
Freni a disco meccanico anteriore e posteriore - leve freno con sensore cut-off
Cambio Shimano 7 rapporti (1x7) - deragliatore posteriore
Trasmissione a catena - 7 velocità
Ruote 20" anteriore e posteriore
Luci LED anteriore e posteriore
Telaio in alluminio 6061 - ripiegabile
Caricabatteria Input: AC 100V-240V 1.8A (Max) - Output: DC 42V 2.0A (Max)
Carico massimo supportato E-Bike 100 kg
Peso E-Bike 26 kg~
Velocità massima 25 km/h
Descrizione prodotto Codice prodotto Codice EAN
MiniMax GT AR-BI-220010 8052679456055
AR-BI-210038 8052679456352
Informazioni generiche
Display LCD - CDC13-BT
Motore Bafang 48V 250W brushless - posteriore
Batteria Li-Ion 48V 12.8Ah 615Wh - esterna ed estraibile
Freni a disco idraulico anteriore e posteriore - leve freno con sensore cut-off
Cambio Shimano 7 rapporti (1x7) - deragliatore posteriore
Trasmissione a catena - 7 velocità
Ruote 20" anteriore e posteriore
Luci LED anteriore e posteriore
Telaio in alluminio 6061 - ripiegabile
Caricabatteria Input: AC 100V-240V 2.0A (Max) - Output: DC 54.6V 2.0A (Max)
Carico massimo supportato E-Bike 100 kg
Carico massimo supportato
portapacchi 15 kg
Peso E-Bike 27 kg~
Velocità massima 25 km/h
4. Technical Data Sheet

11
4. Technical Data Sheet 5. Assembly
Carefully remove the bike from the packaging* and remove the protective material taking care not to damage the relevant
aesthetic parts or force the cables and pre-assembled components.
*The bike must be removed from the packaging by two adults to ensure that it is not damaged and avoid the risk of injury
and/or crushing.
Positioning the handlebar stem
After having checked the correct orientation of the front wheel (confirmed by the position of the brake disk on the left side of
the front wheel) lift the handlebar stem to the vertical position.
Tighten the handlebar stem using the locking device indicated by letter A.

12
Positioning the handlebars
Position the handlebars on the handlebar attachment taking care to centre and adjust them correctly so they slot onto the
controls, tightening the handlebar attachment lever (tightening device between the handlebars and handlebar attachment).
Handlebar attachment plate assembly/disassembly instructions for handlebar installation/removal (if necessary)
From the upper end of the handlebar stem
Remove the handlebar attachment plate as
follows:
Remove screw number 1 and then
lever number 2.
Then proceed to remove the metallic plate
number 3 and finally remove metallic plate
number 4 making it slide sideways.
Proceed to reassemble the previously
removed
handlebar attachment plate in the
reverse sequence.
Make sure to tighten it correctly to avoid
the occurrence of dangerous situations
during
the ride.

13

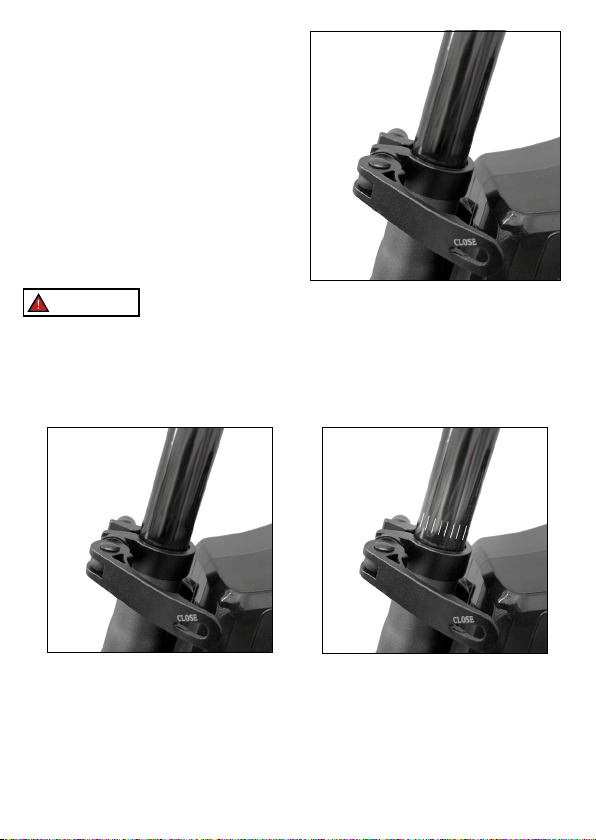

Installing and positioning the seat post
Insert the seat post channel into the stem tube of the
frame
and, after having adequately positioned the saddle, fix
the seat post channel correctly using the specific
tightening device (seat post clamp) present on the frame.
DANGER
Minimum insertion seat post insertion limit
For structural and safety reasons, it is strictly forbidden, when using the bike, to extract the seat post from the seat tube
of the frame beyond the limit indicated on the latter to avoid the risk of causing any structural fractures to the bike and
incurring serious injuries.
The seat post is deemed to be correctly and safely positioned inside the seat tube of the frame by inserting it so that no
markings and/or graphic indication of the minimum insertion limit can be seen; see:
Correct position Incorrect position

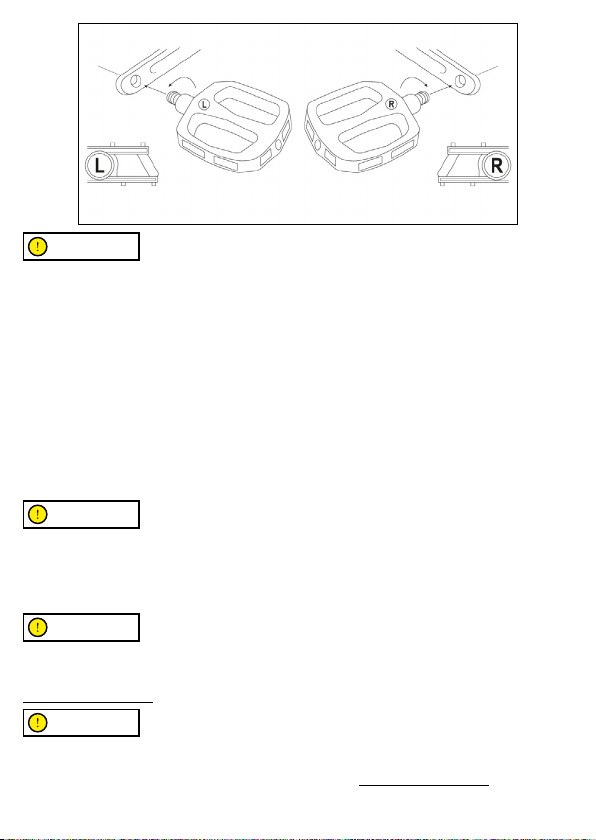

Installing the pedals
Locate the right pedal (marked with the letter R) and left pedal (marked with the letter L).
Fit the right pedal (R) by inserting the threaded pin of the pedal into the corresponding crank arm on the right side of the
bike and screwing it clockwise (turn it towards the front wheel) until it is tightened using a 15mm wrench.
Fit the left pedal (L) by inserting the threaded pin of the pedal into the corresponding crank arm on the left side of the bike
and screwing it anticlockwise (turn it towards the front wheel) until it is tightened using a 15mm wrench.

14
CAUTION
Verify and regularly check that the various bolted elements, fastening screws, quick releases and pass-through pins are
correctly tightened, and perform an overall check to ensure that all the parts are in order.
The nuts and all the other self-tightening parts can become loose so, these components need to be periodically checked and
tightened.
The recommended tightening torques for fastening the specific parts/components on the bike (e.g. handlebars, handlebar
attachment and stem, saddle, saddle clamp, wheels, etc.) can be identified depending on the relevant elements. An average
torque of 20Nm can be used for all other fastenings.
Verification of the correct tightening of the parts/components through lever systems (quick release, handlebar attachment,
seatpost collar, etc.), in the absence of technically precise indications of the relative values, can be done by testing that the
relative part/component being fixed is not mobile and/or unstable if subjected to a vigorous attempt to remove and/or extract
(handlebar, seatpost channel, wheels, etc.) and by verifying that the tightening lever has adequate resistance during the
closing phase (such as to leave a mark on the palm of the hand used for lever tightening, so-called "imprint on palm") and,
after closing, requires a considerable force to be exerted to allow relative opening.
Rear light
The rear LED light is already installed on the end of the rear luggage rack.
The lighting on and off can be made manually using the specific button present on this light.
CAUTION
Battery key set
The electrically power assisted cycle is exclusively equipped with 2 keys uniquely associated with the key lock located on the
battery installed on the product to allow locking and/or unlocking by extraction.
Identify the keys on the bike, located near the handlebar or attached to another component of the electrically power assisted
cycle (frame or battery), taking care that they do not get mislaid.
CAUTION
Negative check
If any manufacturing defects are found during assembly, or in case of unclear steps or difficulties with the assembly, do not
ride the electrically power assisted cycle and contact the after-sales service of your authorised dealer or visit the website
www.jeepurbanemobility.com
CAUTION
In the interest of technological development, the manufacturer reserves the right to modify the item with no prior notice and
this manual will not be automatically updated.
For further information and to consult different versions of the manual, visit www.jeepurbanemobility.com

15
Folding the electrically power assisted cycle
Fold the pedals by operating the release mechanism.
Pedal open Pedal closed
Release the handlebar stem closing mechanism by opening the locking device.
Fold the handlebar stem downwards.
Turn the lever locking device (A) in the frame opening/
closing mechanism in an anticlockwise direction. Pull
the lever (B) outwards until the locking hook (C) can be
extracted from its seat (D).

16
Fold the entire frame of the electrically power assisted cycle
To open the bike frame, carry out the sequence in reverse.
6. Display
The electrically power assisted cycle has a control device on the handlebar, LCD display, powered by the battery supplied
with the bike which controls all the bike’s electrical and electronic functions.
• LCD Display - CDC13-BT
Panoramica dei comandi e dei simboli
1. Indicator light for light ON
2. Assist: indicator of the assisted pedalling level
selected (number)
3. Error: malfunction warning light
4. Indicator light for walk assist mode ON
5. Digital speedometer: indicator light for speed detect-
ed during use (Km/H or MPH)
6. AVG: display of average speed data recorded during
last use (Km/h or MPH)
7. MAX: display of maximum speed data recorded during
the last use (Km/h or MPH)
8. TRIP: display of partial distance travelled (Km or
Miles)
9. ODO: display of total distance travelled (Km or Miles)
10. Travel mode corresponding to the selected assisted pedalling level (ECO-STD-Turbo)
11. Indicator light for residual battery charge
12. M: mode button (MODE)
13. Button to vary and/or decrease value (-)
14. ON/OFF button
15. Button to vary and/or increase value (+)

17
6. Display
Function description
Display on/off
Press the ON/OFF button for at least 3 seconds to switch the display on or off.
Selecting the assisted pedalling level
Press the relevant button to increase or decrease the level of selected assisted pedalling. There are between 1 and 5 assi-
sted pedalling levels that can be selected (Assist).
Assist level 1 sets minimum electrical support by the motor (minimum power - ECO mode).
Service levels 2 and 3 determine the setting of an electrical support provided by the intermediate motor (normal power
- Std usage mode).
Service levels 4 and 5 determine the setting of the maximum electrical support provided by the motor (maximum power -
Turbo operating mode).
If you select level 0, you exclude electrical assistance from the motor.
Enabling walk assist mode
Set the walk assist level to 0 and then, press and hold the - button to enable the walk assist mode which allows you to activa-
te electric motor assistance up to a maximum speed of 6 Km/h.
Disable the function by releasing the button.
CAUTION
The walk assist mode must be used in compliance with the regulations in force in the country of use and is only allowed
when pushing the electrically power assisted cycle and walking alongside it holding the handlebar grips firmly with both
hands.
DANGER
It is strictly prohibited to enable the walk assist mode when you are sitting on the saddle of the electrically power assisted
cycle to avoid the danger of injury and the risk of damaging the electrical components of the bike.
Switching the light on/off
Press the ON/OFF button quickly to turn the front light (and rear light, if applicable) on and off.
Viewing data (AVG - MAX - TRIP - ODO)
The data available on speed (AVG and MAX) and distance (TRIP and ODO) will be displayed alternately and automatically in
sequence: AVG - MAX - TRIP - ODO.
The partial usage data (TRIP - AVG - MAX) will automatically reset after the display is turned off.
Indicator light for residual battery charge
The battery charge level is shown on the display screen as a number of dashes between 0 and 5.
If there are 5 dashes, it means that the battery is charged to the maximum percentage defined and detected instantly.
Less dashes are shown to indicate a decrease in the battery charge level available and subsequent autonomy.
The level of the battery charging indicator may fluctuate depending on how the electrically power assisted cycle is being
used, for example, when going up a slope, the level displayed can drop rapidly as there is a much higher battery consump-
tion.
The individual dashes indicate the specific battery charge range detected at the time and do not necessarily indicated a
percentage of the residual autonomy.
Malfunction indicator light
If a malfunction of the bike’s electrical and/or electronic system is detected, the relevant warning light will appear on the
display screen and the relevant identification Error Code will be displayed at the same time:
Error code Malfunction description
2 Malfunction when using the walk assist mode lever
3Brake sensor malfunction

18
4Control unit malfunction
7Control unit overheating
8High voltage protection (voltage above threshold)
10 Motor malfunction (excessive power consumption)
11 Motor hall sensor malfunction
17 Display-control unit wiring communication malfunction
18 Display-control unit programming communication malfunction
19 Brake sensor malfunction
20 Motor block
Parameter configuration
Press the M button for approximately 3 seconds to enter the set-up menu; press the M button for approximately 3 seconds to
exit the set-up menu and confirm the entered parameters.
Select the desired value of the individual parameter by pressing the + or – buttons and confirm it by pressing the M button
(quickly to access the next configurable parameter, or for approximately 3 seconds to exit the configuration menu by con-
firming the entered parameters.).
The sequence of parameters that can be configured is shown below:
P1 - Unit of measurement:
Press the + or – buttons to select the unit of measurement for the speed and travel data displayed on the display:
International metric system (Km/h and Km) or British imperial system (MPH and Mile)
P2 - User password ON/OFF display:
Available options = on / off
OFF = selecting “off”, confirmed by pressing the M button, excludes the user password request (identification code) to allow
the user to access and activate the display and allow full control of all the functions provided for the electrically power
assisted cycle.
The display controls and functions will be immediately accessible after pressing the ON button.
ON = by selecting the data "on", confirmed by pressing the M button, the configuration parameter is enabled which provides
for the activation of the display and access to all the functions provided for the complete management of the pedal-assisted
bicycle exclusively after entering a user password (identification code).
Display controls and functions, after pressing the ON button, will only be accessible after entering the user password
previously set (P3).
P3 - User password:
Parameter only displayed after the “ON” option has been selected, which allows the user to enable the display access
configuration exclusively by entering the password (numeric identification code consisting of 4 digits) previously set and
confirmed as follows:
-select the 4 digits which make up the password by pressing the + and – buttons and confirm them individually by
pressing the ON/OFF button
-confirm the 4-digit numeric identification code by pressing the M button for approximately 3 seconds to exit the configu-
ration menu, confirming the entered parameters.
0000 - System parameter setting password only accessible to after-sales service
If incorrect data on the speed (Km/h and Km) and distance (MPH and Mile) are shown on the display, contact the after-sales
technical support service for assistance: www.jeepurbanemobility.com/supporto/

19
The electrically power assisted cycle is equipped with a lithium-ion external battery that can be extracted from the
frame. It is used to start and power the product’s electric and electronic functions; such battery must be correctly
recharged and installed.
A. Battery on/off switch (I=On / O=Off)
B. Charging port for battery charger
C. Battery lock/unlock mechanism
D. Indicator of residual charge state
Battery removal and insertion
The battery can be removed from the cycle to prevent theft, for charging, or to be stored under optimal conditions.
Removing the battery:
Disable the battery via the specific switch and insert the key supplied in the lock on the battery. Turn the key in a
counter-clockwise direction until the release position. Remove the battery from its slot on the frame stem tube sliding
it upwards and outwards until it has been completely removed.
Inserting the battery:
Insert the key supplied in the lock on the battery. Turn the key counter-clockwise to the unlocking position. Insert the
battery in its slot on the frame stem tube and complete the installation by turning the key clockwise until it is locked.
Check that the battery is correctly installed and secured by trying to pull it out and/or making sure that it is securely
fastened to the frame and does not move.
Battery charging
Before using the electrically power assisted cycle for the first time, the battery must be fully charged using the battery
charger supplied.
The average time to fully charge the battery, which varies according to the residual charge level of the battery, can be
estimated as shown in the sheet below.
We recommend charging the battery with the specific battery charger after each use of the electrically power assisted
cycle.
CAUTION
Only use the battery charger provided or an approved model with the same technical specifications, taking care to
observe the same methods and precautions of use indicated on the charged or in the manual.
EPAC Battery charger INPUT Battery charger OUTPUT Recharge life
Phoenix AC 100V-240V 1.8A (Max) DC 42V 2.0A (Max) 4-6 h
Sonoran AC 100V-240V 2.0A (Max) DC 54.6V 2.0A (Max) 5-7 h
Make sure that the electrically power assisted cycle is switched off and the battery is switched off/disabled (if required by the
model of battery supplied with the bike).
Make sure that the battery charger, its jack and the charging port of the battery are dry.
Connect the battery charger jack to the battery charging port and then, the mains power socket (230V/50Hz).
There is a red indicator light when the battery is charging. When the indicator light turns green, it signals that the battery
charging cycle has been completed.
7. Battery
