Jegs 90093 User manual

User Guide for 90093
Cargo Carrier
18 Cu.Ft. (510 cm3)

Table of Contents
1
Parts List..............................................................02
Read Before Installation......................................03
Caution..............................................................03
Installation....................................................04-07
Warning.............................................................08
Safety.................................................................08

Parts List
2
1
1(1) Rooftop Carrier [18 cu-ft]
2
(4) Mounting Brackets
(8) Threaded Knobs (2) Keys
73
4
(4) Clip Hooks
5
6
(1) Caution Sticker
(4) Mounting Back Plates
2 3 4 5 6
7

Read Before Installation Caution
Thank you for your purchase of this JEGSPORT
18 cu-ft Cargo Carrier.
Before installation, please be sure to verify that all of
the kit components have been received. Reference
the parts list on the previous page. If any components
are missing or damaged please contact customer
service at: 1.800.345.4545.
Installation of this carrier can be done without the
use of tools. If your are not comfortable performing
the installation yourself contact a trusted repair shop.
This carrier requires a roof rack and cross rails for
installation. These components are not included
with this kit.
If you are having issues, or have questions
regarding the installation of this cargo carrier,
please contact our technical support department
at: 1.800.345.4545.
Return Information: Before modifying any of
the parts in this cargo carrier, please trial fit all
components. Once this cargo carrier has been
used, or modified, it will not be accepted
for return.
• Prior to assembly and installing the cargo
carrier carefully read and follow all instructions.
Assembly and installation is your responsibility.
The manufacturer’s warranty is exclusively limit-
ed to material and workmanship defects and is
exclusively limited to replacement of a defective
cargo carrier. Any damage to your vehicle, its
contents, or to any person or property is excluded
from the warranty.
•
Due to the size and structural differences between
vehicles, we rely upon your discretion in attaching
the cargo carrier to your roof rack cross rails.
• Consult your owner’s manual for recommended
roof rack load capacity, however in no case
should more than 110 lbs. of evenly distributed
cargo be transported in the cargo carrier.
•
All hardware should be properly attached, tightened
and locked prior to all use. Periodically inspect
hardware to ensure they are fastened securely.
•
The cargo carrier is moisture resistant,
not waterproof. Protect the contents accordingly.
• Remove the cargo carrier when not in use and
before entering automatic car washes and low
clearance areas.
• All latches and locks must be engaged (and key
removed) prior to putting vehicle in motion. When
locking the cargo carrier, check to make sure lock
is fully engaged by attempting to lift top.
•
High speed travel with an empty or lightly loaded
cargo carrier should be avoided. In these
conditions make certain the cargo carrier is
properly secured and attached.
• Install CAUTION Low Clearance reminder static
cling decal onto your rear view mirror when using
cargo carrier to prevent accidents.
3

Installation
4
Back of Base
Front of Base
Step 1 Step 2
Place the base on the ground. Remove all 4 clips
(#6) located on cargo carrier. You will reinstall them
on the cargo carrier in later steps.
Place the lid onto the base at approximately a 30°
angle. Move top lid in an up and down motion until
THREE hinge tabs engage with slots.
On the back of the lid, locate key and turn it to be
parallel with the ground to “unlock” and then remove
the key.
When lid is aligned, all 3 hinge tabs will slide down
into the slots as shown above.
Close up of a hinge tab fully engaged.
3 Tabs
Fully Engaged
Fully Engaged
Insert clip (#6) though center hinge tab hole to secure.
Center Hinge Tab Hole
Front of Carrier

Installation Cont.
5

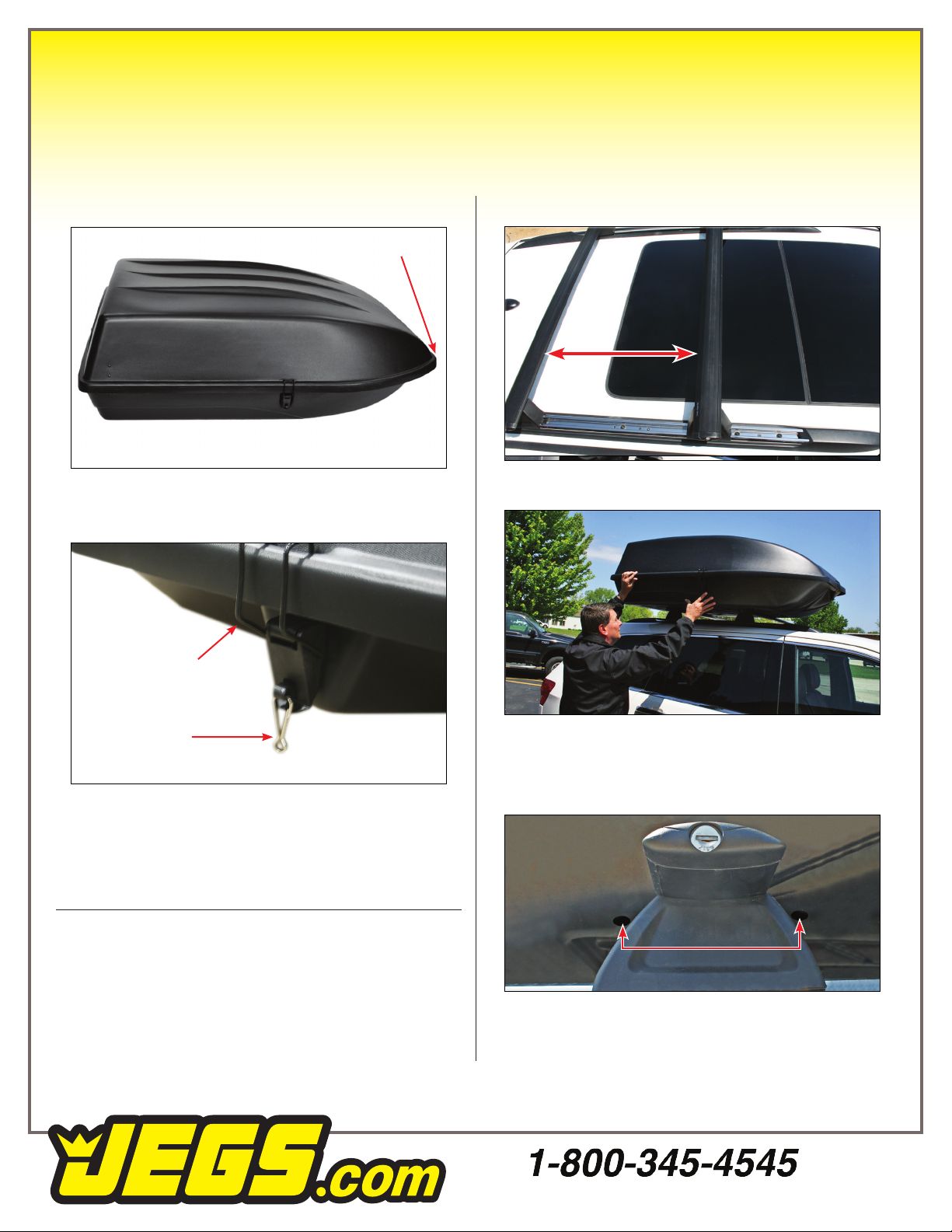

Front of Carrier
Step 3 Step 4
Close the cargo carrier. Pull up on the lid at the front
of the carrier to be sure the hinge tabs are engaged.
Set cross rails at 22” on center. (See Note)
Engage the bale latch at the front of the carrier. This
latch stays in the closed position going forward. Once
latched, secure with a clip hook.
Note: Cross rails on some vehicles are not adjustable
and may require additional holes drilled into the
bottom of the cargo carrier to match the fixed position
width. If this is the case, attach the cargo carrier to the
rear cross rails first, using the pre-drilled holes. Then drill
holes in the front of the cargo carrier using the mounting
back plate (#4) as a template for the hole positions
Carefully place the assembled cargo carrier on the
top of roof rack cross rails and center on vehicle.
Check for clearance of rear hatch and antennas.
Be sure to align the mounting holes in the box bottom
on each side of the cross rails.
Bale Latch
Clip Hook
22 in. Spacing
Mounting Holes

Installation Cont.
6

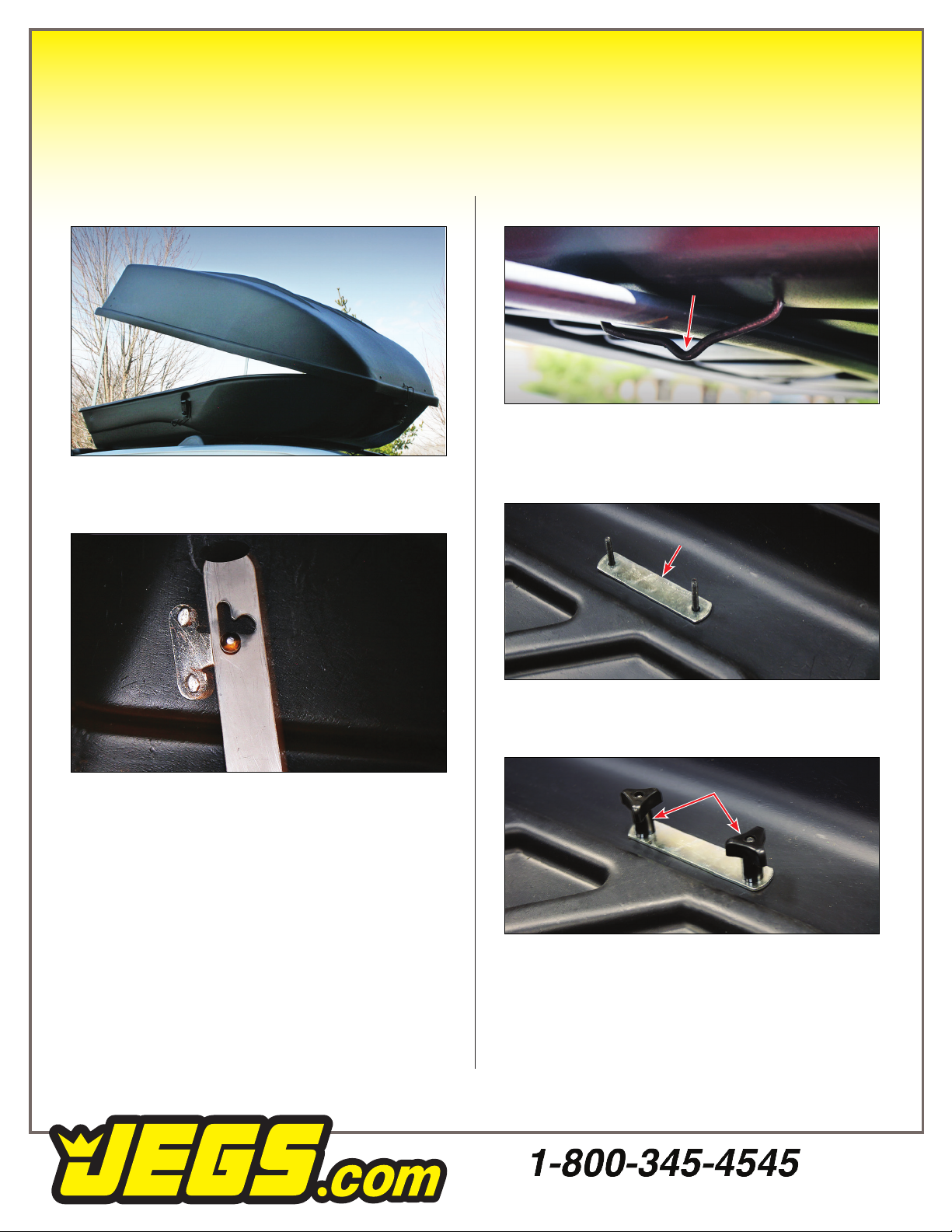

Step 5 Step 6
Lift the back of the cargo carrier lid to approximately
30° as shown above.
Place the mounting bracket (#5) through the pre-
drilled holes from below the vehicle cross rails as
shown above.
Raise the two uprights and place into the locked
position on the bracket as shown.
Then slide the mounting plate (#4) over the threaded
posts inside the cargo carrier.
Thread 2 knobs (#3) evenly and loosely – do not
tighten all the way at this point. Repeat steps until
all 4 mounting brackets (#5), all 4 mounting plates
(#4) are in place and the 8 knobs are loosely in place.
Make sure cargo carrier is centered on vehicle. Then
tighten all 8 knobs evenly and securely.
Mounting Bracket
Mounting Plate
Knobs

Installation Cont.
7
Step 7
Load cargo carrier paying careful attention to
distribute the weight evenly and not exceed
the maximum allowed weight of the box or cross rails.
Close the carrier. Be sure that both side alignment
brackets are not visible. Close the bale latches on
each side, and insert clip hooks to secure.
Both side alignment brackets must not be visible.
Slide Alignment
Bracket
Step 7
Be sure cargo carrier is fully closed. When this
occurs, the yellow warning label will no longer
be visible.
Place key in lock and turn to vertical position. Then
remove key to prevent lock from allowing box to
open. Remove and store key.
Correct
Incorrect
Unlocked Locked

Warning
8
Check that all three bale latches are closed and
secured with three clip hooks. Be sure a fourth clip
hook is placed on center hinge tab on the inside front
of cargo carrier. Lid will not lift up when pulled. Side
alignment brackets must not be visible. All locking
devices must be engaged (and keys removed)
whenever the vehicle is in motion.
Safety
The three external clip hooks can be replaced by
padlocks for greater security.
