Jenn-Air Pro-Style CVG4380 User manual

mmmJENN-AIR
Use and CareManual
Pro-StyldGas.Grill
_Range Cooktop
Model CVG4380
Printedin U.SA Cat.No CA4380UE
©1996 Jenn-Air Part No 8111P197-60 6/96

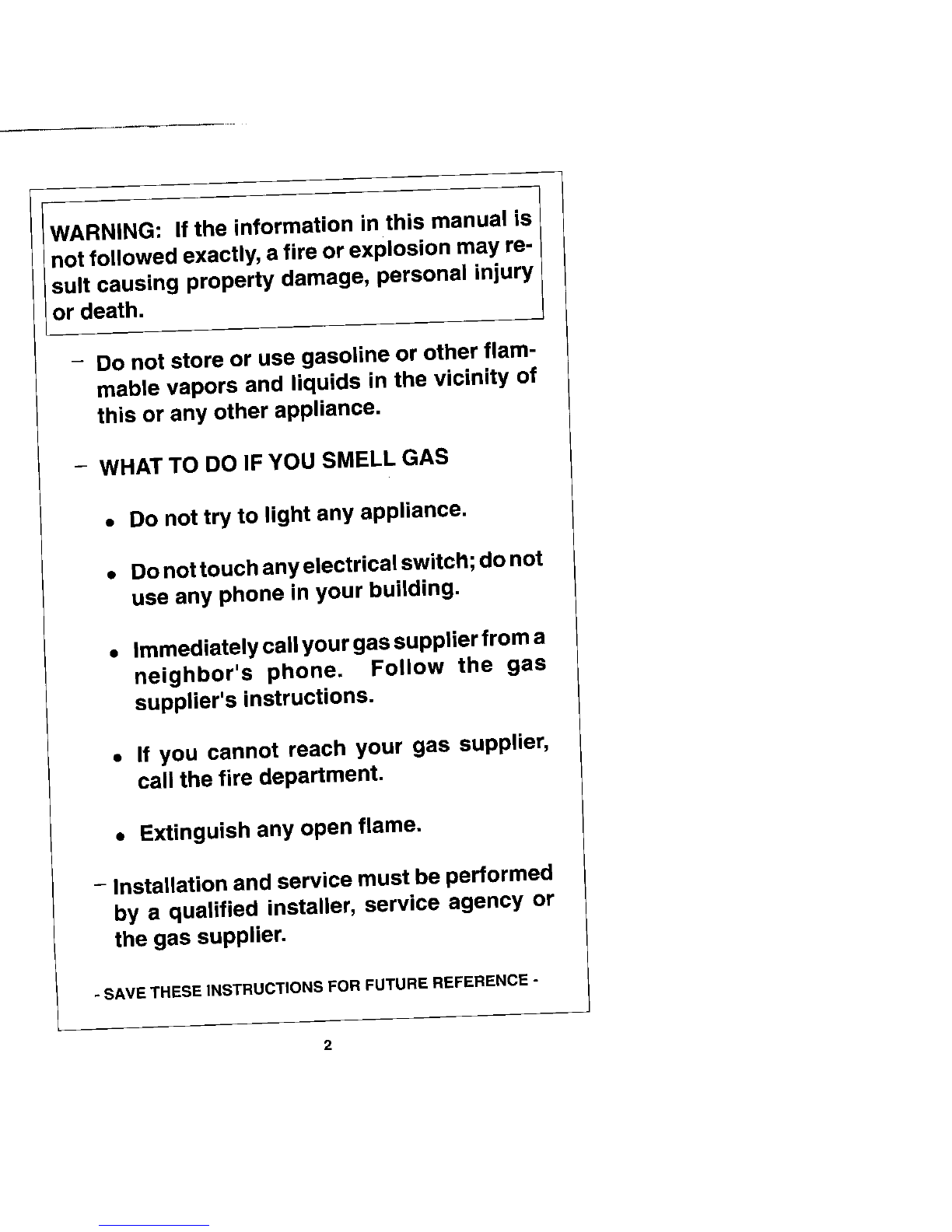

WARNING: If the information in this manual is
not followed exactly, a fire or explosion may re-
sult causing property damage,personal injury
or death.
- Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of
this or any other appliance,
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
•Do not touch any electrical switch; do not
use any phone in your building.
•Immediately call your gas supplier from a
neighbor's phone. Follow the gas
supplier's instructions.
•If you cannot reach your gas supplier,
call the fire department.
•Extinguish any open flame.
- Installation and service must be performed
by a qualified installer, service agency or
the gas supplier.
-SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE -

Read beforeoperating your cooktop
All appliances -regardless of the manufacturer -have the potential
through improperorcarelessuse tocreatesafety problems. Therefore
the following safety precautions should be observed:
1.Be sureyour appliance is properly installed and grounded by a qualified
technician.
2. Never useyour appliance for warming or heating the room. Thiswarning
isbased on safety considerations.
3.Childrenshould notbeleftalone orunattended inareawhereappliance is
in use. They should never be allowed to sit or stand on any part of the
appliance.
4, Wear properapparel. Loose-fitting or hanging garments should never
bewornwhileusingtheappliance.
5. Do not repair or replaceany part of theapplianceunless specifically
recommended in thismanual.Allother servicing should bereferred toan
authorized Jenn-Air Service Contractor.
6. Do notstore combustible materials, gasoline or other flammable vapors
and liquid nearcooktop.
7. Donotusewater ongrease fires.Smotherfireor flameor usedry chemical
or foam-type extinguisher.
8. Use only dry potholders. Moist or damp potholders on hot surfaces may
result in burns from steam. Do not use a towel or other bulky cloth.
9. Select cookwarelargeenoughto properlycontainfoodandavoid boilovers
or spillovers. This will save on cleaning and prevent hazardousaccumu-
lationsof food,sinceheavy splatteringor spillovers left on a cooktop can
ignite. Pan size is especiallyimportant in deep fat frying.
10. Never leave cooktop unattended at Hi heat settings. Boilover causes
smoking and greasyspillovers that may ignite.
11. TYPE OFCOOKWARE -Avoid pans that are unstable and easily tipped.
Inchoosing pans,lookfor easily-grasped handlesthat will staycool. Pans
thataretooheavywhenfilledwithfoodcanalsobeahazard. Ifpanhandles
twist and cannot be tightened, discard the pan.
12. HANDLES - Always turn pan handlesto the side or backof the cooktop -
notout intotheroom wheretheyare easily hit. COOKWAREHANDLES
SHOULD BETURNED INWARD ANDNOT EXTEND OVERADJACENT
SURFACE BURNERS to minimize burns, ignition offlammable materials,
and spillagedueto unintentional contact with thecookware.

13. CAUTION - Do not store itemsof interest to children incabinets above
cooktop-childrenclimbingonthecooktoptoreachitemscouldbeseriously
injured.
14. Do not touch grill and surface burner areas, areasnear burners, or metal
landing space. During and after use, these areas may behotenough to
causeburns. Avoid contactwiththeseareas byclothingorother flammable
materials until they have had sufficient time to cool.
15. Donot heatunopened food containers. Buildup of pressure maycause
containerto burst and result in injury.
16. Keep all controls "OFF" when unit is not in use.
17. Keep ventducts unobstructed.
18. GREASE - Grease isflammable and should behandled carefully.Never
leave anycookingoperation unattended. Let fatcool beforeattempting to
handle it.Do not allow grease tocollect around the cooktop.Wipe up
spillovers immediately.
19. If the cooktop is installed near a window, proper precautions should be
taken to prevent curtains from blowing over burners creating a FIRE
HAZARD,
20. Do not use aluminum foil to line aeration trayor burner basin. Restriction
of normal air flow may result in unsafe operation.
21. Do not usecookware on the grill section of this appliance.
22. Beforeservicingyour appliance, disconnectpower to the cooktop at the
main fuse orcircuit breaker panel and at the electrical receptacle.
23. Always allow hot pans to cool in a safe place out of the reach of small
children.
24. A faint gasodor may indicatea gas leak. if agas odorisdetected, shut off
the gas supplyto the cooktop. Callyour installer orlocal gas company to
havethepossibleleakchecked. Neveruse a match or other flameto
locate a gas leak.
25. Cleanonlypartslistedinthismanualanduseproceduresrecommended,
26. Flamesizeshould beadjuatedsoit does notextend beyond theedgeofthe
cookware. This instruction is based on safety considerations.
27. This appliance has beentested for safe performance usingconventional
cookware. Donot use any devicesor accessories thatare notspecifically
recommendedinthismanual.Donotuseeyelidcoversfor thesurfaceunits
or stovetop grills. Theuseof devices oraccessories that are not expressly
recommendedinthismanualcan create serioussafety hazards,resultin
performance problems, and reduce the life of the components of the
appliance.
4

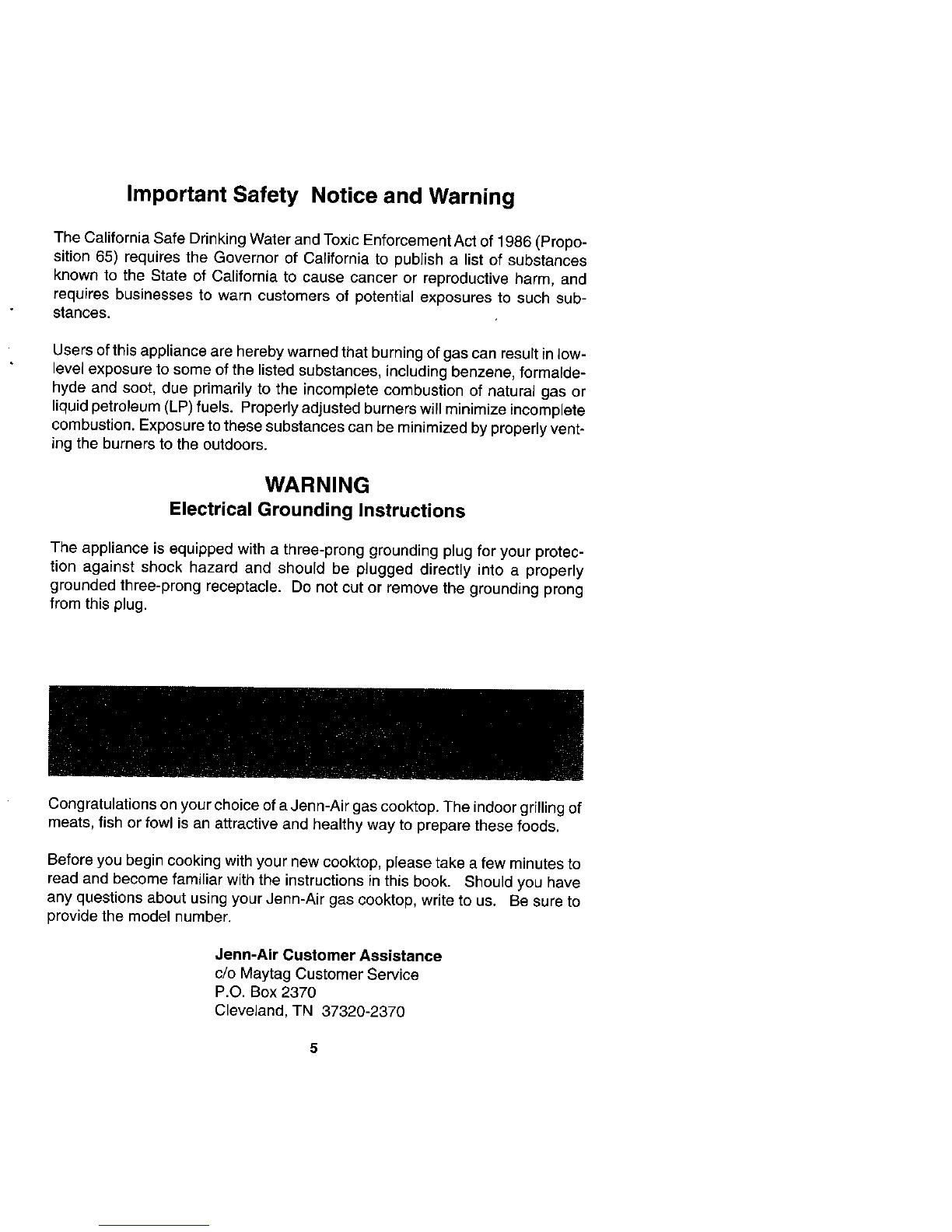

Important Safety Notice and Warning
TheCalifornia Safe Drinking Water andToxic EnforcementAct of 1986(Propo-
sition 65) requires the Governor of California to publish a list of substances
known to the Stateof California to cause cancer or reproductive harm,and
requires businessesto warn customers of potential exposures tosuch sub-
stances.
Usersofthisapplianceare herebywarned that burningof gascan result inlow-
level exposureto some ofthe listed substances, including benzene,formalde-
hyde and soot,due primarily to the incomplete combustion of natural gas or
liquidpetroleum (LP)fuels. Properlyadjusted burners will minimizeincomplete
combustion.Exposuretothese substances can beminimized byproperlyvent-
ing the burnersto the outdoors.
WARNING
ElectricalGroundingInstructions
The appliance is equipped with a three-prong grounding plug for your protec-
tion against shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the grounding prong
fromthis plug.
Congratulationsonyourchoice ofaJenn-Air gascooktop.Theindoor grilling of
meats, fish or fowl is an attractive and healthy way to prepare these foods.
Beforeyou begin cooking withyour new cooktop, please takeafew minutesto
read and become familiar with the instructions in this book. Should you have
any questions about using your Jenn-Air gas cooktop, write to us. Be sure to
provide the model number.
Jenn-Air Customer Assistance
c/o Maytag Customer Service
P.O.Box 2370
Cleveland, TN 37320-2370
5

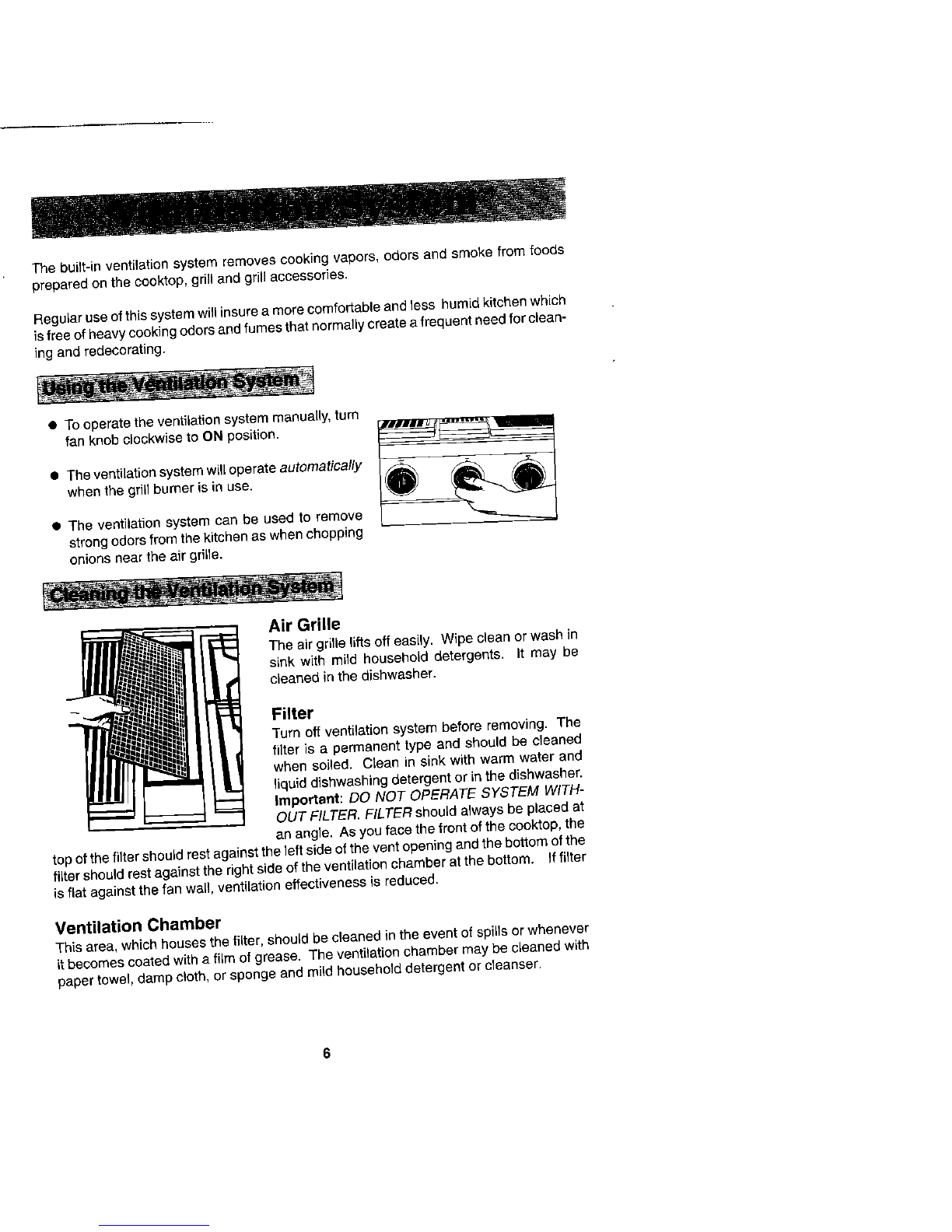

Thebuilt-inventilation system removes cooking vapors, odors and smokefrom foods
prepared on the cooktop,gdll and grill accessories.
Regularuseof this systemwill insurea more comfortable and less humid kitchenwhich
isfree of heavycooking odors and fumesthat normally create a frequent need forclean-
ing and redecorating.
•Tooperate the ventilation system manually,turn
fan knob clockwise to ON position.
• Theventilation systemwill operateautomatically
when the grill burner is in use.
• Theventilation system can be used to remove
strong odors from the kitchenas whenchopping
onions near the air gdlle.
Air Grille
eelrgrl,a,ffso,eas,y.ipecieanorwashio
sink with mild household detergents. It may be
cleaned in the dishwasher.
Filter
Turn off ventilation system before removing. The
filter is a permanent type and should be cleaned
when soiled. Clean in sink with warm water and
liquid dishwashing detergent or Lnthe dishwasher.
Important: DO NOT OPERATE SYSTEM WITH-
OUT FILTER.FILTER should always be placed at
an angle. As youfacethefrontofthe cooktop, the
topofthefiltershould restagainstthe left sideoftheventopeningandthebottomofthe
fiRershould rest against the right side of theventilationchamber atthebottom. If filter
is fiat against the fan wall, ventilation effectiveness is reduced.
Ventilation Chamber
This area,which houses the filter,should be cleaned in the event of spillsor whenever
itbecomes coatedwithafilm of grease. The ventilationchamber may be cleanedwith
paper towel, damp cloth,or spongeand mild household detergent orcleanser.
6

To achieveoptimumcooking performanceusecookpots withflat bottoms and tight fitting
covers. Flame size should be adjusted so it does not extend beyond the edge of the
cookware. This instruction isbased on safety considerations. Adjusting the size ofthe
flame to fit the size of the cookware also helps to savefuel
Important:Leave a minimum of 1_/2" between side of pan and surrounding surfaces,
such as countertop backsplash or side walls, to allow heat to escape to avoid possible
damage to these areas.
•Aluminum cookwareheatsevenly and quickly. Aslightly larger flame size can be
used.The f_amecanbe adjustedsoit comestotheedge of thecookware.However,
the fLameshould NEVER be adjusted so that it extends beyondthe bottom of the
cookware.
• Stainless steel cookware with copper or aluminum cores heat evenly end faidy
quickTy.Theflame size should be adjusted toextend only halfway betweencenter
and edge of the cookware bottom for best results.
•Cast iron cookware heats slowly.
•Check manufacturer'srecommendations before usingporcerainon stee_,porcelain
on cast iron,glass, glass-ceramic,eatlhenware or other gJazedcookpots.
If the cookware is covered, LessfuelwiLlbe needed. Therefore, a lowerflame size can
be used.
Note: Food will not cook any faster when morethan the amountof heat needed to
maintain a gentle boil is used.
7

Yournewcooktop burnershavebeenpreset foran "average"set ofconditions. Regional
variances in gas pressure and atmospheric conditions such as height above sea level
may affect your initialflame performance.
Whenthecontrol knob isturned ON, gas enters themixer tube and mixeswith air. This
airand gas mixtureflows tothe burner head and islighted bya spark from thesolid state
igniter.
A properly adjusted burner with clean ports will light within a few seconds. The cone-
shaped flame will be clear blue in color with a clearly defined inner cone.There should
benotraceofyellowintheflame. AyeJ)owflame indicatesan impropermixtureofair and
gas. If yourflame doesnot resemble the "correct" flame as described above, follow the
air shutter adjustment instructions below.

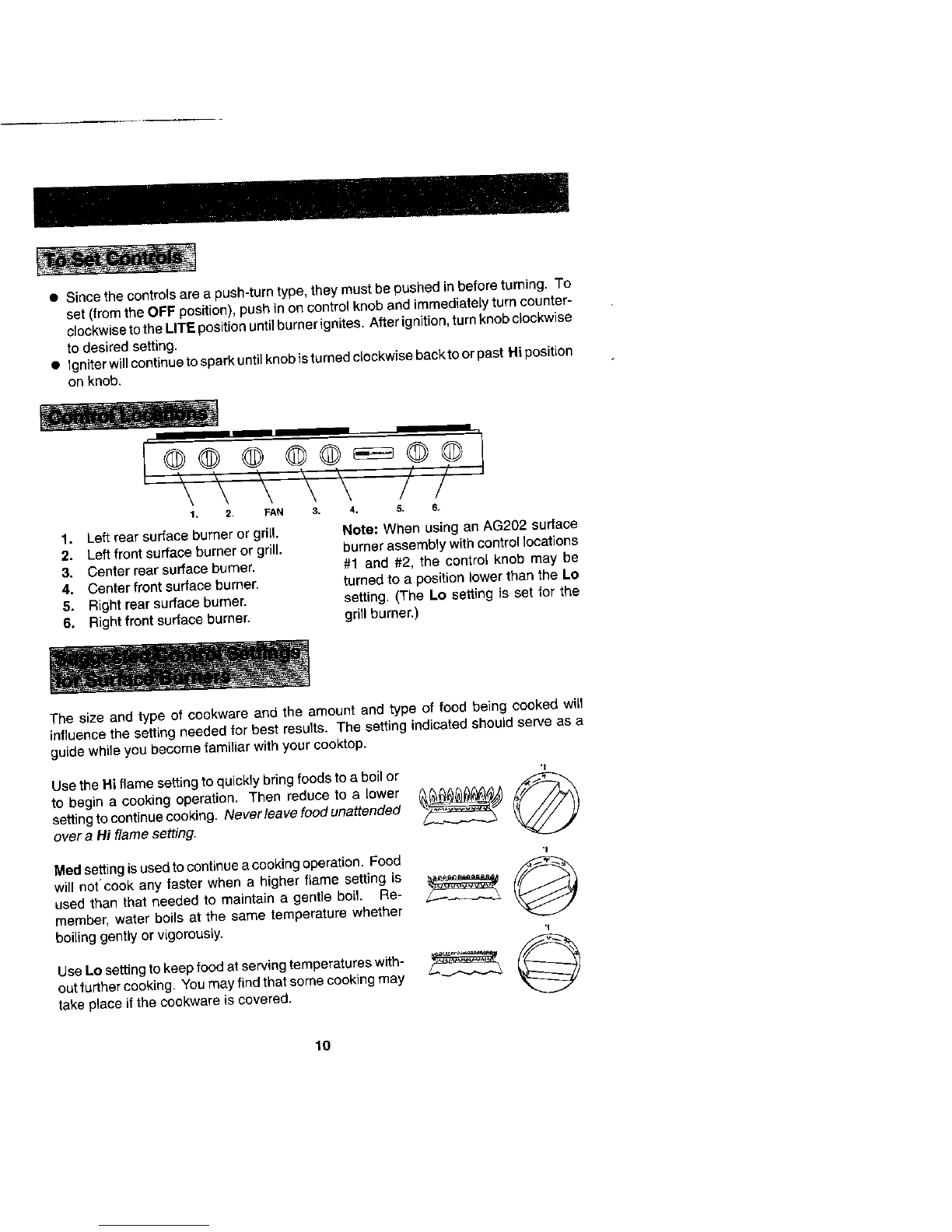

The variablesurfacecontro_sfor thesurface burnersand grill burner provideflexibility in
settingseleCtion.
Note: The grill can be replaced with an optional surface burner module, ModelAG2O2.
SurfaceBurners
Incase efprolonged powerfailure, you can manuallylight thesurface burner byholding
alightedmatchneartheburnerportsandslowlyturningthecontrol knobcounterclockwise
(afterdepressing) untilthegas ignites. There isno fanso smoke and condensationcan
gather.
Grill
IN CASEOF POWER FAILURE OR IF THE DOWNDRAFT FAN IS INOPERABLE,DO
NOT USE GRILL. VENTILATION SYSTEM WILL NOT OPERATE.
Air Shutter Adjustment
To Adjust Surface Burner Air Shutter (Some models):
Loosenfastening screw with a phillipsscrew- SURFACEBURNERROTATEAIR
driver and rotateairshutter to increase or de- AfRSHOrtER SHU_E_ON
MqXERHEAD TC
crease thesize oftheairopening. Astheshut- SCREW MAKEAiR
ter isturned observe change inflame appear- --_ xt_ "_'-A_A_RSHUT-Ea
ance. Adjustmentissatisfactorywhena c,eady A,RO "_____..._,,
defined,evenblueflame resultsatthe Hiflame To
TO _,dCLOS5
setting. After adjustment,tighten screw. OPEN_#"
8

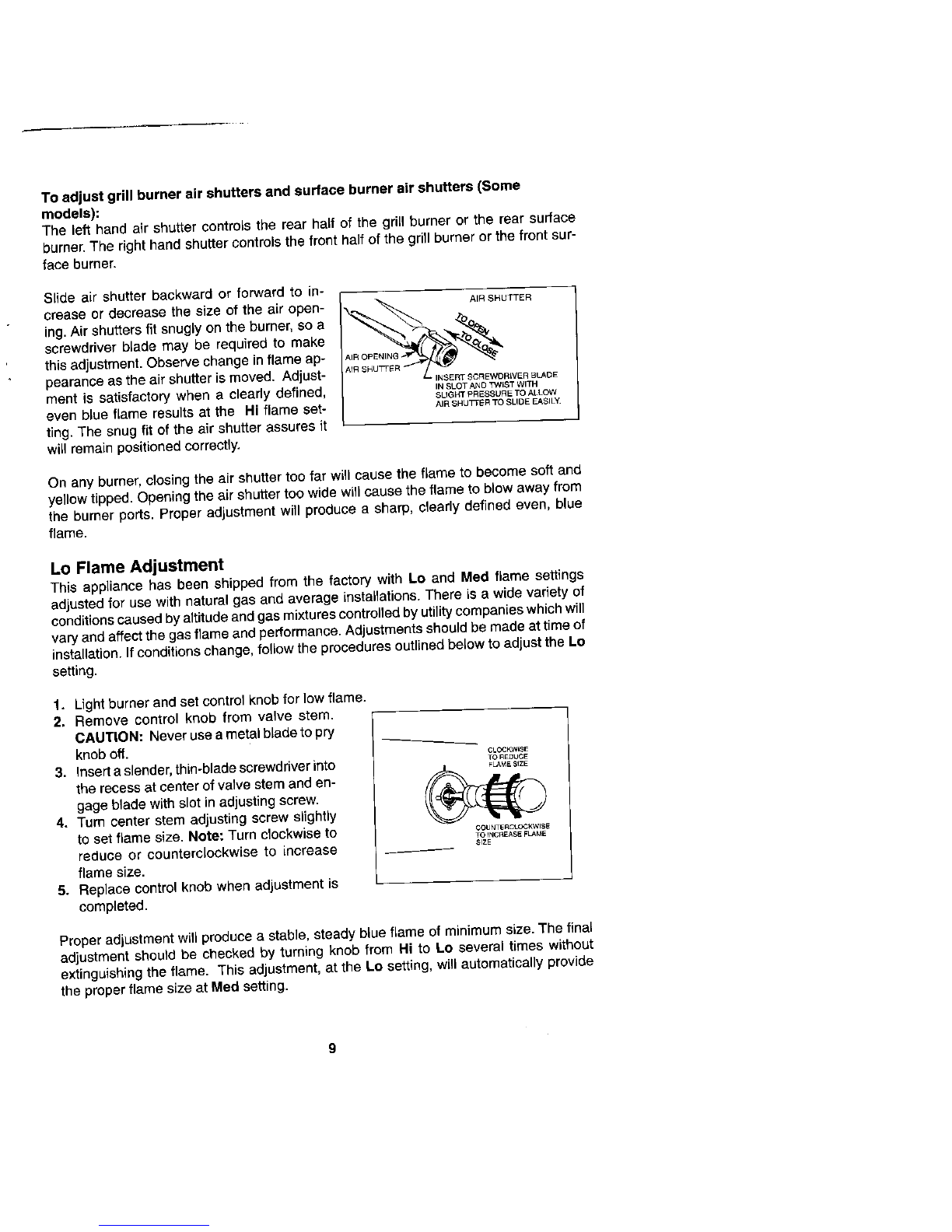

To adjust grill burner air shutters and surfaceburner air shutters (Some
models):
The_efthandair shuttercontro}sthe rear half of thegriJIburneror the rear surface
burner.The right hand shutter controls the front half of the grill burner or the front sur-
face burner.
S_ideairshutter backward or forward to in-
crease or decrease the size of the airopen- _ _>_ __AIR SHUTTER
ing. Air shutters fit snugly on the burner,so a _ _"_ '_
screwdriver blade may berequired to make
thisadjustment.Observe changeinflame ap-
pearance as the air shutter is moved. Adjust- R,VE_BL_OE
ment is satisfactory when a clearly defined, _NSLOTANDTWiSTWITHSLIGHT PRESSU_aETQ ALLOW
even blue flame results at theHi flame set- A_RSHUTrERTOSUOEEAS_LY.
ting. The snug fit of theair shutter assures it
will remain positionedcorrectly.
On any burner, closing the air shutter too far will cause the flame to become soft and
yellow tipped. Openingthe air shutter too wide will cause the flame to blow away from
the burner ports. Properadjustment willproduceasharp, clearly definedeven, blue
flame.
LO Flame Adjustment
This appliance has been shipped from thefactory with Lo and Med flame se_ngs
adjustedfor usewith natural gas and average instaJlafiens.Thereis a widevariety of
conditionscaused byaltitude andgas mixtures controlled byutility companieswhich will
vary and effect thegasflame andperformance.Adjustmentsshould be madeat time of
installation.If conditions change, followthe procedures outlined below to adjustthe Lo
setting.
1. Lightburner and set control knob for low flame.
2.Remove control knob from valve stem.
CAUTION: Neverusea metal bladetopry
knoboff. _LOCk3_JSE
3. Inserta slender,thin-bladescrewdriver into TO._'_vc_
therecess at center of valve stemand en-
gagebladewith slot in adjustingscrew.
4. Turn center stem adjusting screw slightly
to set flame size,Note: Turn clockwisetoCOUNTERCLOCKWISE
TOINCREASEFLAME
reduce orcounterclockwise toincrease _ s_zE
flamesize.
5.Replacecontrol knob when adjustment is
completed.
Proper adjustment will produce a stable, steady blue flame of minimum size. The final
adjustment shou)d bechecked by turning knob from Hi to Lo several times without
extinguishing the flame,This adjustment, at the Lo setting, will automaticallyprovide
the proper flamesize at Mealsetting.
9

•Since the controlsare a push-turn type, they mustbe pushed in before turning. To
set (fromthe OFF"position), push in on control knoband immediately turn counter-
clockwisetothe LITEpositionuntilburner ignites. After ignition,turn knobclockwise
to desired setting.
• Igniterwillcoetinuetosparkuntilknobistumedcleckwisebacktoorpast Hiposition
on knob,
r r
@® ©
\ \ \ '\ ,\ / /
1. 2. FAN 3.4.&6,
1. Leftrearsurfaceburner orgrill. Note:Whenusingan AG202surface
2. Leftfrontsurface burner orgrillburnerassemblywithcontrollocations
3. Centerrearsurfaceburner. #1 and #2,the controlknob may be
4. Center front surface burner, turned to a position lower than the Lo
5,Right rear surface burner, setting. (The Lo setting is set for the
6.Right front surface burner,grill burner.)
The size and type of cookware and the amount and typeof food being cooked will
influence thesetting needed for best results. The setting indicated should serveas a
guidewhileyou become familiarwith your cooktop.
Use the HI flame setting toquickly bring foods to a boll or
to begin a cooking operation.Then reduce to a lower _(_
settingtocontinue cooking. Neverleave foodunattended
over a Hi flame setting.
Medsettingisusedtocontinue acooking operation. Food
will notcook any faster when a higher flame setting is
used than that needed to maintain a gentle boil Re-
member, water boi/s at the sametemperature whether
boiling gently or vigorously.@
UseLo settingto keepfoodatserving temperatures with- _
outfurther cooking. Youmay findthat some cooking may _
take place ifthe cookware is covered.
10

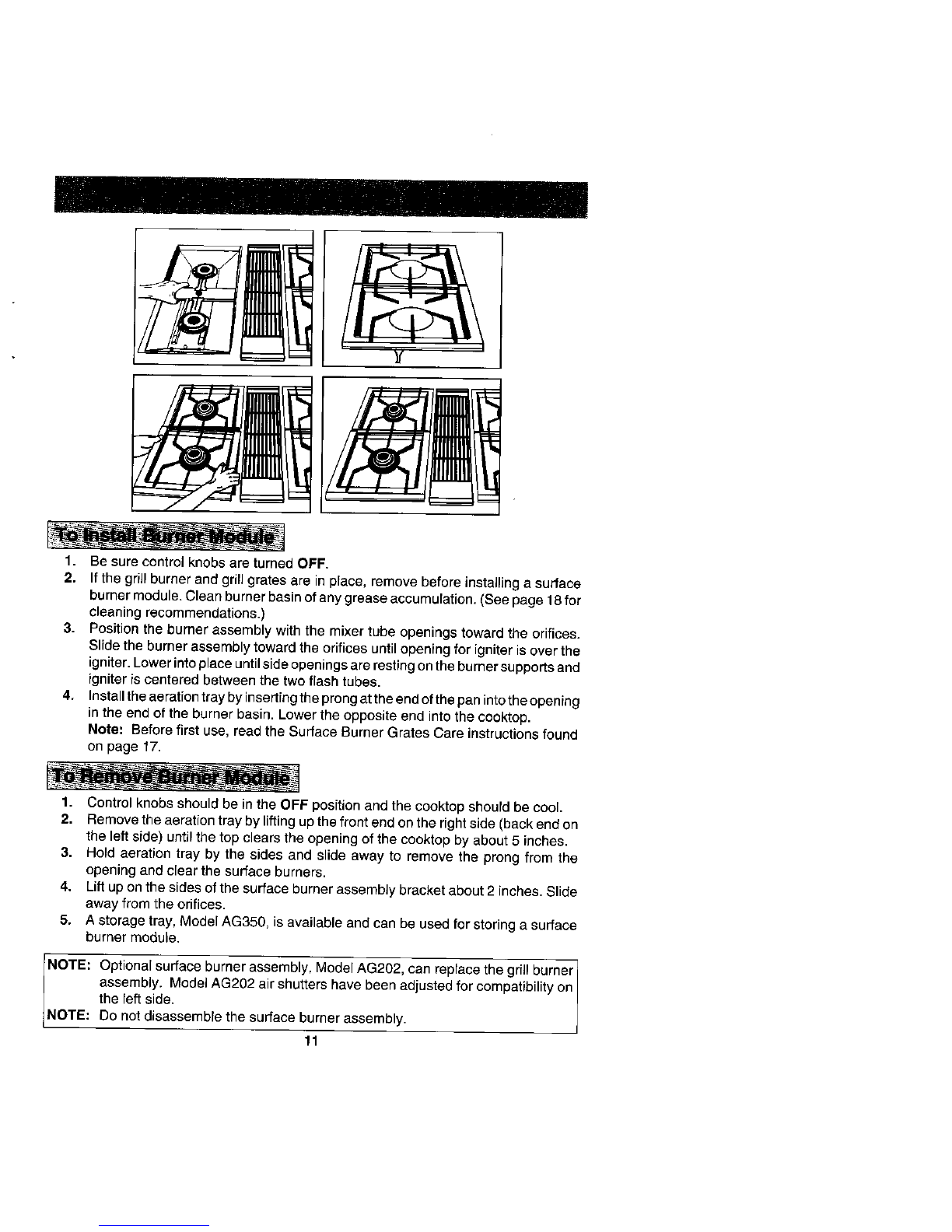

1. Be sure control knobs areturned OFF.
2. If the grill burner and grill grates are in place, remove before installing a surface
burner module.Cleanburner basin ofanygrease accumulation.(Seepage 18for
cleaning recommendations.)
3. Position the burner assembly with the mixer tube openings toward theorifices.
Slide the burner assembly toward the orifices until opening for igniter is over the
igniter. Lowerintoplaceuntilsideopenings areresting onthe burnersupportsand
igniter is centered between the two flash tubes.
4.Installtheaerationtray byinsertingtheprong attheend otthe panintotheopening
in the end of the burner basin. Lowerthe opposite end into the cooktop.
Note: Beforefirst use, read theSurface Burner Grates Care instructionsfound
on page17.
1. Control knobs should be in the OFF position and the cooktop shou)dbecool.
2. Removethe aeration tray bylifting upthe front endon the rightside (back endon
the left side) untilthetop clears the opening of the cooktop byabout 5 inches.
3. Ho)d aeration tray by the sides and slide away to remove the prong from the
opening andclear the surface burners.
4. Lift up on thesides of the surface burnerassembly bracket about 2 inches. Slide
away from the orifices.
5. A storage tray, Model AG350,is available and can be used for storing a surface
burner module.
NOTE; Optionalsurface burner assembly,ModelAG202, can replacethe grill burner
assembly. ModelAG202 air shutters have been adjusted for compatibility on
the left side.
NOTE: Do not disassemble the surface burner assembly.
11

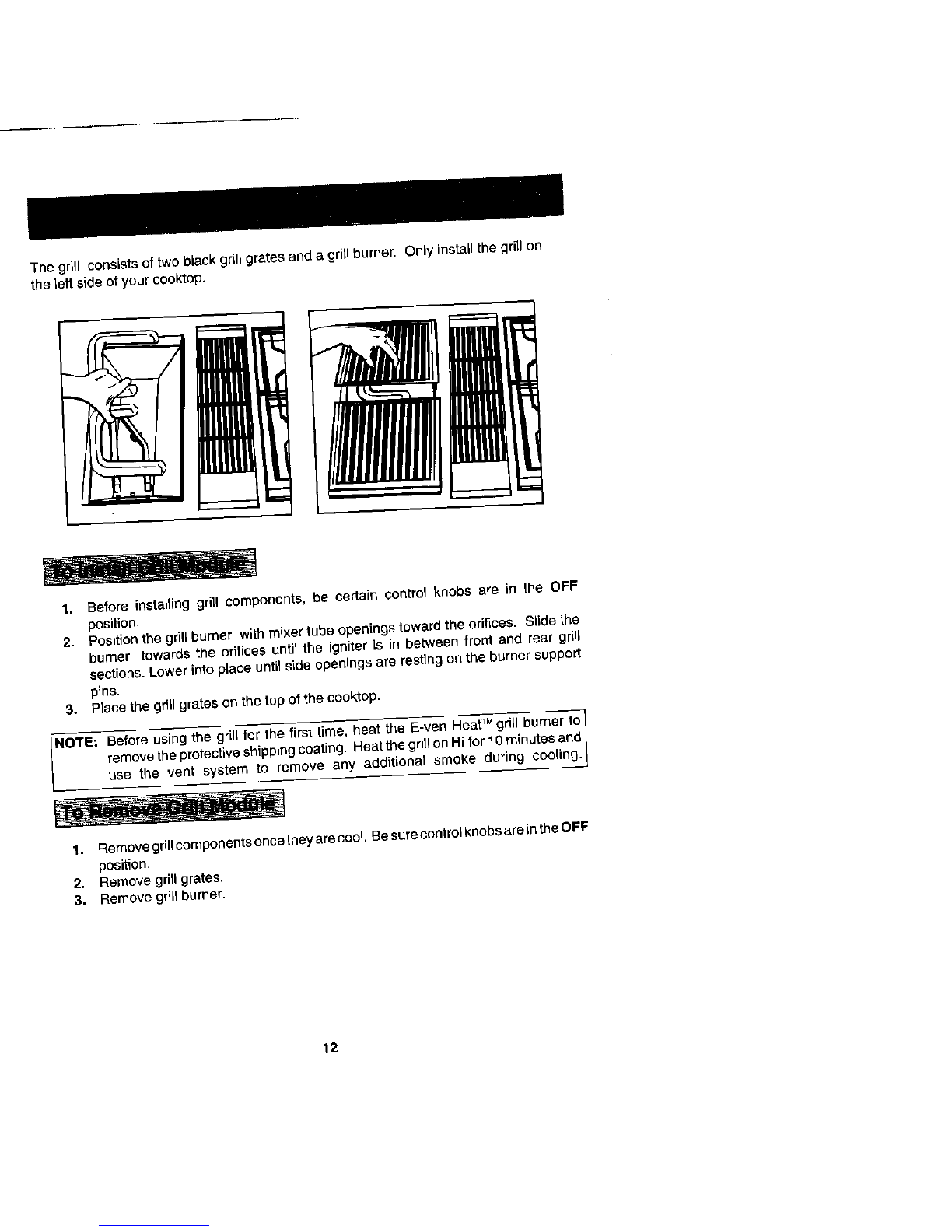

The grill consists of two blackgrill grates and a grillburner, Only install the grillon
the left side of your cooktop,
1. Before installing gdllcomponents,be certaincontror knobs areinthe OFF
position.
2. Positionthegrillburner with mixertubeopeningstoward the orifices.Slidethe
burner towards the odficesuntil the igniter is in between front and rear grill
sections. Lower into place until sideopenings are restingon theburner support
pins,
3. Piecethegrill grateson the top ofthe cooktop.
NOTE; Before using the grill for the first time, heat the E-yen HeatTM rill burner to
remove theprotective shippingcoating, Heatthe gd[(on Hifor 10gminutesand l
use the vent system to remove any additional smoke during cooling._
1. RemovegdllcomponentsoncetheyareeooL BesurecontrolknobsareintheOFF
position,
2, Remove gdl)grates.
3. Remove gdllburner.
12

•Before the first use,wash your newgrillgrates in hot soapy water, rinse and dry.
Thee "season" the surface by wiping on a thin coating of cooking oil. Remove
excess oil by wiping again with another paper towel. This procedure should be
repeated when: a) cleaning in the dishwasher since the detergent may remove
seasoning,or b)anytime asugar-based marinade(forexample, barbecuesauce) is
going to beused.
•Use nonmetallic spatulas or utensils to prevent damaging the Excalibur _nonstick
grill grate finish.
• Preheatthe grillon Hi for5 minutes.Preheatingimprovestheflavor andappearance
of meatsand quickly sears the meat to helpretain the juices.
•Excessiveamounts of fat should be trimmedfrom meats. Only a normal amount is
necessaryto producethesmokeneededforthat smoked,"outdoor"flavor. Excessive
fat cancreate cleaning and flare-up problems.
• Allowing excessiveamounts of grease or drippings to constantly flame voids the
warranty on the grill grates. Excessive flare-ups indicate that eitherthe grill interior
needsto becleanedor that excessiveamounts offatare in themeat or themeat was
not properly trimmed.
• Greasedrippings will occasionally ignite to produce harmless puffs of flame for a
second or two. This is a normal part of the cooking process.
•NEVER LEAVE GRILL UNATI'ENDED DURING GRILL OPERATION.
Should excess grease cause sustained flare-up
1. Turnon FANmanually,
2. ImmediatelyturngrillcontrolknobstoOFF position.
3. Removemeatfromgrill.
IMPORTANT
• Do not usealuminum foil inside the grill area.
• Do notuse charcoal or wood chips in the grillarea.
• Donotallowburner basin tobecomeoverloadedwith grease. Cleanaftereachuse.
• Donotcovergrates completelywithmeat.Leaveair spacebetween eachsteak, etc.
to allow proper ventilation as well as prevent flare-ups.
13

Preheatgrill on Hi,5 minutes, for best flavor.
14

With your Jenn-Air,grill literally anyfood you've considered "at its best" when prepared
outdoors can now be prepared indoors with Lessfuss and great flavor.
The following suggestions are good rulesto follow and will increase your enjoyment of
theequipment.
• Be sure to follow directions on page 13 for using the grill.
• Suggested cooking times and control settings are approximate due to variations
inmeats.Experience willquicklyindicate cooking timesaswell aswhich settings
work best.
• Forbest results, buy top grade meat. Meat that is at least 3/4inch will grill better
than thinner cuts.
• Score fat on edges of steak, but do not cut into meat, to prevent curling while
cooking.
• Fortheattractive "branded" lookon steaks, besure grill ispreheated. Allow one
sideof meattocookto desireddoneness,or untiljuices appear onthetop surface,
beforeturning. Turnsteaks and hamburgersjust once. Manipulating foodcauses
lossofjuices.
• When basting meats or applying saucesto foods, remember that excessive
amountswindup LnsideyourgriLlanddo notimprovethe foodflavor. Applysauces
duringthe last 15to 20 minutesof cookingtime unlessrecipespecifies otherwise.
Plus, anytime a sugar-basedmarinade, (for example,barbecuesauce) isgoing
to be used, the grates should be "seasoned"prior to preheating. (See p. 13.)
• There are many meat marinades which will help tenderize lessexpensive cutsof
meat for cooking onthe grill.
• Certain foods,such aspoultry and non-oilyfish, may need some extra fat. Brush
with oil or melted butter occasionally whilegrilling.
• Use tongs with long handlesor spatulas for turning meats. Do not use forks as
these pierce the meat,allowingjuices to be lost.
• To help retainmeat juices,salt afterturning meat or after cooking is completed,
15

Theknobson thecontrolpanel canbe removedwiththe contro]sintheOFF position. Pull
each knobstraightfrom the shaft.Wash knobs in warm soapy water or dishwasher; do
not useabrasive cJeansersor materials. Toreplaceeach knob, match flat part of knob
opening with the flat of the shaft, returning in OFF position.
Important: Never use a metal blade to pry knob off.
Be surethe grill is cooland controls are OFF.These are madefrom castaluminum and
are coated with the Excalibur_ nonstick finish.
•After the grill grates have cooled, wipe off grates with a paper towel. Wash cool
grates (DO NOT IMMERSEHOT GRILL GRATES IN WATER) with soapor deter-
gent in hotwater in the sink or wash them in the dishwasher. Be sureto remove all
food residue beforecooking on the grill grates again.
• Removestubborn spots with a plastic mesh puff or pad. For best results, useonly
thosecleaning productswhich state theyarerecommendedfor usewhencleaning
noflstick surfaces.
•If gratesarewashedinthedishwasher,seasonwithoilpriortogrilling,
•DonotusemetalbrushesorabrasJvescouringpadsorotherscrubbersJntendedto
clean outdoor charcoal grills. Thesewillremove the finish as well as scratch the
grates. Do not clean in the self.cleaning oven or use ovencleaners on the grates.
ThegrJlfburnershouldbe cleaned after each use. Itcanbe c}eenedwith asoapy S.O.S.
pad or in the dishwasher. Rinse and dry thoroughly before using again. For heavy soil,
burner shouldbe cleanedfirst with a soapy S.O.S. pad,rinsed and dried.Then it can be
cleaned in a self-clean oven for 2 hours.
NOTE: Check to besurealJburner ports are open. To open c_oggedports, insert a)
toothpick directly into each port. J
16

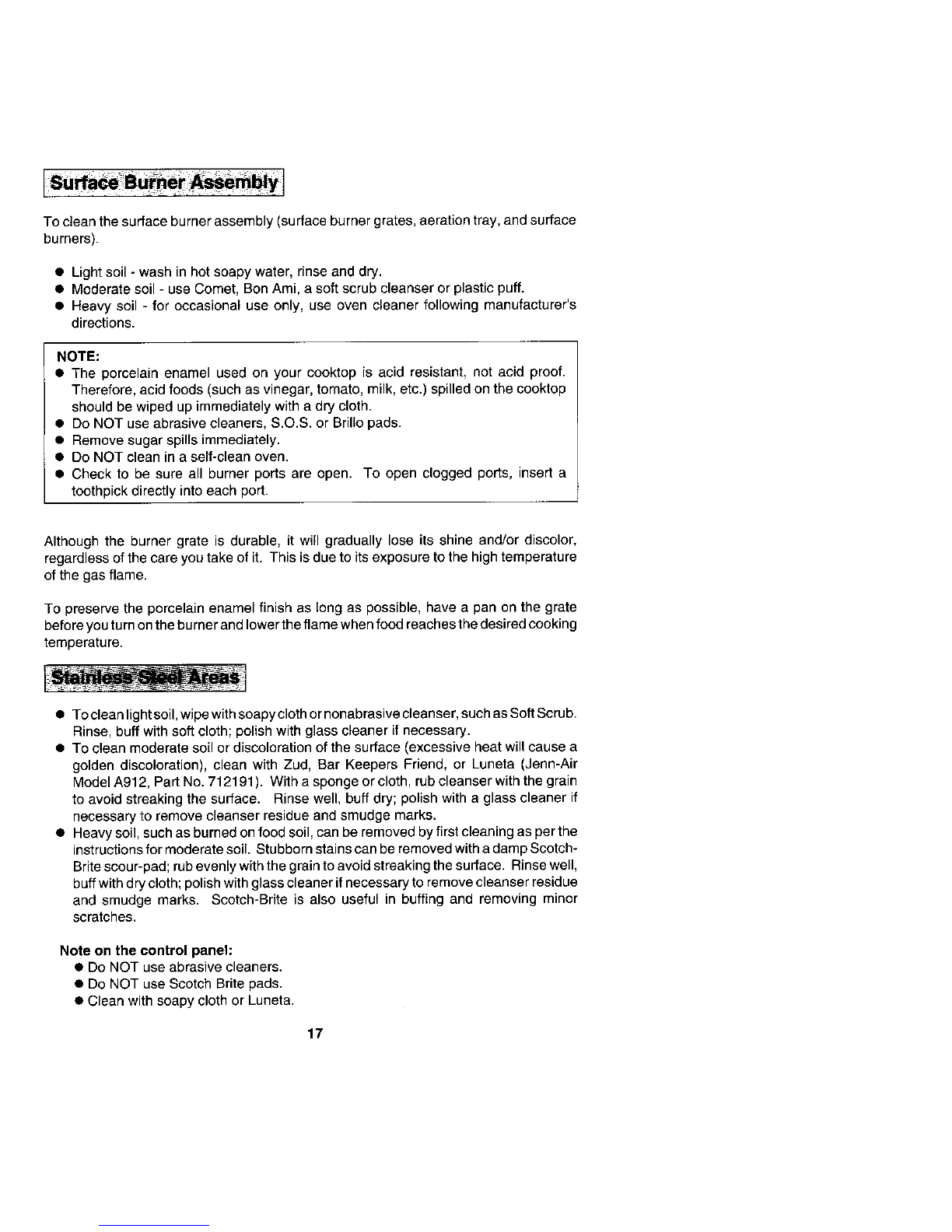

To cleanthe surfaceburner assembly (surfaceburner grates, aerationtray, andsurface
burners).
• Light soil - wash in hot soapy water, rinse and dry.
• Moderate soil - use Comet,Bon Ami, a soft scrub cleanser or plastic puff.
• Heavy soil - for occasional useonly,useoven cleaner following manufacturer's
directions.
NOTE:
• The porcelain enamel used on your cooktop is acid resistant, not acid proof.
Therefore,acidfoods (such as vinegar, tomato, milk, etc.) spilledon the cooktop
should be wiped up immediately with a dry cloth.
• Do NOT useabrasive cleaners, S.O.S. or Brillo pads.
• Remove sugar spills immediately.
• Do NOT clean in a self-clean oven.
• Check to be sure all burner ports are open. To open clogged ports, insert a
toothpick directly into each port.
Although the burner grate is durable, it will gradually lose its shine and/or discolor,
regardless of thecare youtake of it. This is due to itsexposure to the high temperature
of the gas flame.
To preserve the porcelain enamel finish as long as possible, have a pan onthe grate
beforeyouturnonthe burnerand lowertheflamewhenfood reachesthedesiredcooking
temperature.
• Tocleanlightsoil,wipewith soapycloth ornonabrasivecleanser,such asSoft Scrub.
Rinse,buff withsoft cloth; polish with glasscleaner if necessary.
• To clean moderatesoil or discoloration ofthe surface (excessive heatwill cause a
golden discoloration),clean with Zud, Bar Keepers Friend, or Luneta (Jenn-Air
ModelA912, Part No.712191). With a spongeor cloth, rubcleanser with the grain
to avoid streaking the surface. Rinse well, buff dry; polish with a glass cleaner if
necessary to remove cleanser residue and smudge marks.
• Heavysoil, such asburned onfood soil, can beremoved byfirst cleaningas perthe
instructionsfor moderatesoil. Stubborn stainscan be removedwitha dampScotch-
Britescour-pad; rub evenlywith the grainto avoidstreakingthe surface. Rinsewell,
buffwith drycloth;polish withglass cleaner ifnecessaryto remove cleanser residue
and smudge marks. Scotch-Brite is also useful in buffing and removing minor
scratches.
Note on the control panel:
•Do NOT useabrasivecleaners.
•Do NOT useScotchBritepads.
• CleanwithsoapyclothorLuneta.
17

•It isimportantto keepigniterport openingson burnersclear andfree ofobstructions
to avoid ignitionfailure and possible gas buildup. If the port openings are blocked,
use a toothpick to removefood particles.
• Theigniter cap and stem can be cleaned with warm soapy water and a plastic
scrubber. Thewireelectrodeinsidethecapcanbecleanedwith asmall brush. Rinse
and dry.
This area islocated underthe grill andsurface burnersand shouldbe cleanedafter each
useof the grill.
• Toremovelightsoil,cleanwithsoapy waterorwithcleaners suchas Fantasticor409.
For easiercleanup, a) spray with household cleaner; b) cover with paper towels; c)
add small amount of water to keep the paper towel moist; d) cover and wait 15
minutes; e) wipe clean.
• Toremovemoderatesoil,scrubwith Comet,Bon Ami,a softscrub cleanseror plastic
scrubber.
• To removestubbornsoil,spray with anovencleaner; letsoak overnight;wipeclean;
rinse and dry.
Drain Jar
A drainjar islocated below the grill basin pan
under the countertop.Check periodically to
prevent spillovers. Unscrew and remove. If
jar is broken, replacewith any heat tempered
jar, such as a canning jar,which has a stan-
dard screw neck.
Serial Plate
DO NOT CLEAN.
18

Jenn-Air's ventilation system is designed to capture both cooking fumes and smoke
while grilling. If the system does not, these are some ducting installation situations to
check:
• 6" diameter round or 3_/4" x 10" rectangularducting should be usedfor duct lengths
10'-60'. Note: 5"diameter roundducting must beused ifthe duct length is10'
or less.
• Nomore thanthree 90° elbows should be used. Distance between elbows should
be at least 18".
• RecommendedJenn-Air wallcap shouldbe used. Make suredamper movesfreely
when ventilation system is operating.
•There should be a minimum clearance of 6" for cooktop installed near aside wall.
Ifthere is notan obvious improper installation, there may bea concealed problem such
as e pinched joint,obstruction in the pipe, etc. Installation is the resoonsibilitv of the
installerand questionsshouldbeaddressedfirstbytheinstaller. Theinstaller shouldvery
carefully check theducting installation instructions.
19

Check the following list to be sure a service call is really necessary.
If grill or surface burner fails to light:
• check to be sure unit is properly connected to power supply.
• check for a blown circuit fuseor a tripped main circuit breaker.
• check to be sure burner is correctly rated for your typeof gas.
• check to be sure burner ports or ignition ports are not clogged.
• check to be sure igniter is clicking. If igniter doesn't click, turn control knob off.
• check to be sureregulator is set for correct fuel.
• check to be sure inlet pressure is adequate.
If the flame is uneven:
• burner ports may be clogged.
• flame setting may need to be adjusted. (See p.9.)
If grill or surface burner flame lifts off the ports:
• shutter on the mixer tube needs to be closed until flame settles on the burner
ports. (See pp. 8-9.)
If grill or surface burner flame is yellow in color:
• shutter on the mixer tube needs to be opened untilyellow disappears. (See pp. 8-
9.)
2O
