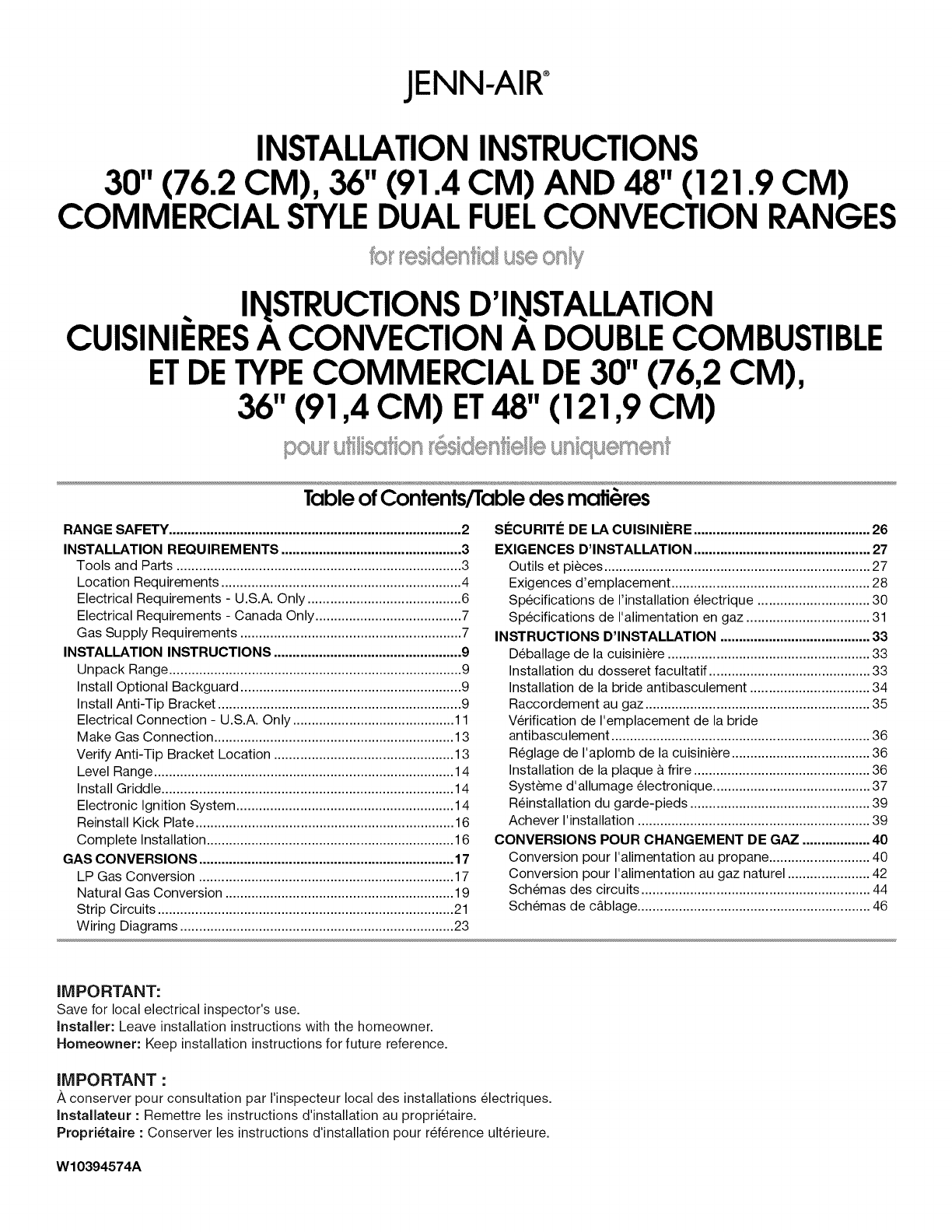

JENN-AIR’
INSTALLATION INSTRUCTIONS
30" (76.2 CM), 36" (91.4 CM) AND 48" (121.9 CM)
COMMERCIAL STYLE oo FUEL CONVECTION RANGES
rn a g,
more ae eri “| Ieee PYRO
INSTRUCTIONS D’ INSTALLATION
CUISINIERES A CONVECTION A DOUBLE COMBUSTIBLE
ET DE TYPE COMMERCIAL DE 30" (76,2 CM),
36" (91,4 CM) ET 48" (121,9 CM)
pour utilisation residentielle uniquement
zs
Table of Contents/Table des matieres
RANGE SAFETY. 2 SECURITE DE LA CUISINIERE............::ssssscsssssssessssssessesseesess 26
INSTALLATION REQUIREMENTS. ...........::csscseeeseeseeeeseeneenes 3 EXIGENCES D’INSTALLATION.............:c::cseeessessenseeeseeneeees 27
TOOIS AN Parts ........cceccceccescceseceeeeseeceeeceeesaesneeeseesaesnsesenesreeneseness 3 Outils Ct PIECES... eeceeccececeeseceeeeeeeeeaeceeeseeseeseeeesesseaeseeesareaes 27
Location Requirement .........ccccccccesececeseeesseeeeeseeesaeeeeeseneeserensesanes 4 Exigences c’emplacement.........cccccceccseceesseeesseseeseeesareeeeees 28
Electrical Requirements - U.S.A. ONY 00... ee eeeeeeeeeeeeeeeteeeneeees 6 Spécifications de l installation électrique ...........c cece eee 30
Electrical Requirements - Canada ONnly........cccscccsssseesessssteeesssees 7 Spécifications de l'alimentation CN GAZ .....ceccecseeee eens 34
Gas Supply Requirement .........c.:ccccccssccsssseeeeessseeesesseeeesssseeesees 7 INSTRUCTIONS D’INSTALLATION cocccccccoccoccoccoccoccocecoccoceeceoee 33
INSTALLATION INSTRUCTIONG. ............::ccssseseseeeseeseeeneeeseeneenes 9 Déballage de la CUISINIGre 0... ec cececeeeeeceeeseecneeseeeeaeeseenes 33
UNPack RANGEC......ccccccsssscccssssseesssseeesssneeessseeesessseeessseeeseesssnneesees 9 Installation du dosseret facultatif ...........cccccccccccccccccccecccceeeceeee 323
Install Optional BackQuard .......c..ccccccssecssecsseeceseessseesseessseeeseeeeees 9 Installation de la bride antibasculement ...........ccccceceseeeeees 34
Install Anti-Tip Bracket .........cc:ccccsscssssseesssseesesssseeesssseeesssneeeessees 9 RACCOPdeMENt AU GaZ....cccccessccssssssseesssseeeeesssseeesssseeeessteeeseses 35
Electrical Connection - U.S.A. OMY ......eececesceeseeeesereeeneeeeeeerees 11 Vérification de l'emplacement de la bride
Make Gas Connection .......ccccccccccccccccccccccccccesecccceccseccececsueeccececee 13 ANTIDASCUIOMENE .. oe... ceeeeceecccceeeeeeceeeeeeeeeeecceeeeeeeeeeeaeattereeeeenans 36
Verify Anti-Tip Bracket Location ....cccccccccsessssesssessssserssseessseeens 13 Réglage de l'aplomb de la CuiSiNIGre ..........eeeeeeceeeeeereeeeeeees 36
Level RANGC......cseesesecesccscssseseescvetsescevensceesevevsvevevstsesvevevseseavens 14 Installation de la plaque a frie 1... este eeeeeeeeeteeeeeeeees 36
Install Griddle... cescecessessessescssessecsessescesesceseeseeseeseeseseeseeseseeseeneenees 14 Systeme diallumage électronique... eee 37
Electronic Ignition SYStern .....ccccccccccsssssssstetetetetetetesesececeeecseeeees 14 Réinstallation du garde-pieds ......... escent 39
Reinstall Kick Plate .......cccccccescssescssescscssescsseseessscsseseessseeceteseesesees 16 Achever l'installation oo... ce sesseeneeeseeeeneeeeesenesennasentaseneneentas 39
Complete Installation.........cccccccccccceccssceecseeeseecssecseecssessecneeeeens 16 CONVERSIONS POUR CHANGEMENT DE GAZ................. 40
GAS CONVERSIONS 17 Conversion pour l'alimentation aU Propane..........ccceeeseeeee 40
LP Gas COnverrSion ........ccccccccsscesecsseecscesecseeesecseecseessecnsaecseeeseenes 17 Conversion pour l'alimentation au gaz naturel... eee 42
Natural Gas Conversion ....ccccssssssssessesscsecsssseversessesseceesrsaneeneeees 19 Schemas des CirCuits cece ee eee eee nents neateee 44
Strip CirCuits ....eceeeccecscseescsescseseseescstsesetsesetsasetssensasensteesanssanes 21 SchéMas de CADIAGE..... reece 46
Wiring DiaQraims .........cccccsscccssssccssssseecesssseeesssseeesssseeesssaeaeeesssneeess 23
IMPORTANT:
Save for local electrical inspector's use.
Installer: Leave installation instructions with the homeowner.
Homeowner: Keep installation instructions for future reference.
IMPORTANT :
A conserver pour consultation par l'inspecteur local des installations électriques.
Installateur : Remettre les instructions d'installation au propriétaire.
Propriétaire : Conserver les instructions d'installation pour référence ultérieure.
W10394574A

RANGE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER?” or “WARNING.”
These words mean:
You can be killed or seriously injured if you don't immediately
A DANG ER follow instructions.
You can be killed or seriously injured if you don't follow
AWARNING instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
WARNING: If the information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
- WHAT TO DO IF YOU SMELL GAS:
e Do not try to light any appliance.
e Do not touch any electrical switch.
e Do not use any phone in your building.
e Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
e If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency or
the gas supplier.
WARNING: Gas leaks cannot always be detected by smell.
Gas suppliers recommend that you use a gas detector approved by UL or CSA.
For more information, contact your gas supplier.
If a gas leak is detected, follow the “What to do if you smell gas” instructions.
In the State of Massachusetts, the following installation instructions apply:
@ Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by
the State of Massachusetts.
@ If using a ball valve, it shall be a T-handle type.
@ A flexible gas connector, when used, must not exceed 3 feet.

AWARNING
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to wall behind range.
Reconnect the anti-tip bracket, if the range is moved.
Failure to follow these instructions can result in death or serious burns to children and adults.
INSTALLATION REQUIREMENTS
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools needed
m Tape measure 6" carbide tip masonry bit
mg #2 Phillips screwdriver m= Marker or pencil
mw '%" x 4%" flat-blade gm = Pipe-joint compound
screwdriver resistant to LP gas
m Level m Noncorrosive leak-detection
. solution
a Drill
m Wrench or pliers m Tubing cutter
m Pipe wrench For LP/Natural Gas
m Adjustable wrench or Conversions
54"
wrench
Adjustable
wrench
34" drive ratchet Ya" deep-well socket
Ye" drill bit
1%6" combination wrench &@
7 mm nut driver
Masking tape
V4", %", 4s" nut drivers
Parts supplied
Check that all parts are included.
a Anti-tip bracket kit
A. Anti-tip bracket
B. #8-18 x 1" Phillips head screws (4)
NOTE: Anti-tip bracket must be securely mounted to
subfloor. Thickness of flooring may require longer screws to
anchor bracket to subfloor. Longer screws are available from
your local hardware store. See “Install Anti-Tip Bracket”
section.
m Gas pressure regulator
m Burner grates
Burner bases and burner caps
Griddle drip tray (on griddle models)
LP orifice package (W10393255)
Conversion label (W10393342)
NOTE: The cooktop is manufactured for use with Natural gas.
To convert to LP gas, see the “Gas Conversions” section.
Parts needed
m Power supply cord kit:
m= 30" (76.2 cm) and 36" (91.4 cm) models - A UL listed
40 amp power supply cord kit
m 48" (121.9 cm) models - A UL listed 50 amp power supply
cord kit marked for use with nominal 1%" (84.93 mm)
diameter connection openings
mg AUL listed strain relief
m UL listed wire connectors
All models must be installed with a backguard if installing at zero
clearance to a combustible backwall. See “Cabinet Dimensions”
in the “Location Requirements” section for installation
requirements.
mw 30" (76.2 cm) Adjustable Backguard
Order Part Number 8285148
gm 36" (91.4 cm) Adjustable Backguard
Order Part Number 8284756
m 48" (121.9 cm) Adjustable Backguard
Order Part Number 8284755
mg 9" (22.9 cm) Backguard for 30" (76.2 cm) Ranges
Order Part Number W10115773
gm 9" (22.9 cm) Backguard for 36" (91.4 cm) Ranges
Order Part Number W10115776
gm 9" (22.9 cm) Backguard for 48" (121.9 cm) Ranges
Order Part Number W10115777
m 22" (65.9 cm) Backsplash with Dual-Position Shelf for
30" (76.2 cm) Ranges
Order Part Number W10285447
m 22" (65.9 cm) Backsplash with Dual-Position Shelf for
36" (91.4 cm) Ranges
Order Part Number W10285448
m= 22" (65.9 cm) Backsplash with Dual-Position Shelf for
48" (121.9 cm) Ranges
Order Part Number W10285449
To order, see the “Assistance or Service” section of the Use
and Care Guide.

Check local codes and consult gas supplier. Check existing gas
supply and electrical supply. See “Electrical Requirements” and
“Gas Supply Requirements” sections.
It is recommended that all electrical connections be made by a
licensed, qualified electrical installer.
High Altitude Conversion
To convert the cooktop for elevations above 6,560 ft (1999.5 m),
order a High Altitude Conversion Kit.
m Part Number W10394296 - LP high altitude
m= Part Number W10394295 - Natural gas high altitude
To order, see the “Assistance or Service” section of the Use and
Care Guide.
Pe,
IMPORTANT: Observe all governing codes and ordinances. Do
not obstruct flow of combustion and ventilation air.
mit is the installer’s responsibility to comply with installation
clearances specified on the model/serial rating plate. The
model/serial rating plate is located under the console on the
right-hand side.
gm It is recommended that a 600 CFM or larger range hood be
installed above the range.
gm It is not recommended that a microwave hood combination
be mounted above the range.
m Recessed installations must provide complete enclosure of
the sides and rear of the range.
mg To eliminate the risk of burns or fire by reaching over heated
surface units, cabinet storage space located above the
surface units should be avoided. If cabinet storage is to be
provided, the risk can be reduced by installing a range hood
that projects horizontally a minimum of 5” (12.7 cm) beyond
the bottom of the cabinets.
g All openings in the wall or floor where range is to be installed
must be sealed.
Do not seal the range to the side cabinets.
Cabinet opening dimensions that are shown must be used.
Given dimensions are minimum clearances.
mg The anti-tip bracket must be installed. To install the anti-tip
bracket shipped with the range, see “Install Anti-Tip Bracket”
section.
m Grounded electrical supply is required. See “Electrical
Requirements” section.
m Proper gas supply connection must be available. See “Gas
Supply Requirements” section.
m Contact a qualified floor covering installer to check that the
floor covering can withstand at least 200°F (93°C). Use an
insulated pad or %4" (0.64 cm) plywood over carpet and under
range if installing range over carpeting.
IMPORTANT: To avoid damage to your cabinets, check with your
builder or cabinet supplier to make sure that the materials used
will not discolor, delaminate or sustain other damage. This oven
has been designed in accordance with the requirements of UL
and CSA International and complies with the maximum allowable
wood cabinet temperatures of 194°F (90°C).
pe ¥ Wel ii, ley Orla
PQUITEMenis
Mobile Home - Additional Installation Requirements
The installation of this range must conform to the Manufactured
Home Construction and Safety Standard, Title 24 CFR, Part 3280
(formerly the Federal Standard for Mobile Home Construction
and Safety, Title 24, HUD Part 280). When such standard is not
applicable, use the Standard for Manufactured Home
Installations, ANSI A225.1/NFPA 501A or with local codes.
In Canada, the installation of this range must conform with the
current standards CAN/CSA-A240-latest edition, or with local
codes.
Mobile home installations require:
m When this range is installed in a mobile home, it must be
secured to the floor during transit. Any method of securing
the range is adequate as long as it conforms to the standards
listed above.
Product Dimensions
30" (76.2 cm) models
A. Optional backguard may be installed.
B. 27%" (70.5 cm) depth with control panel, see NOTE*
C. 35%" (89.6 cm) cooktop height when sitting on the wheels
D. 30" (76.2 cm) width
E. Model/serial rating plate location

36" (91.4 cm) models
A. Optional backguard may be installed.
B. 27%" (68.9 cm) depth with control panel, see NOTE*
C. 35%4" (90.2 cm) cooktop height when sitting on the wheels
D. 36" (91.4 cm) width
E, Model/serial rating plate location
48" (121.9 cm) models
A. Optional backguard may be installed.
B. 27%" (68.9 cm) depth with control panel, see NOTE*
C. 35%4" (90.2 cm) cooktop height when sitting on the wheels
D. 48" (121.9 cm) width
E, Model/serial rating plate location
*NOTE: When installed in a 24” (61.0 cm) base cabinet with
25" (63.5 cm) countertop; front of oven door protrudes
1%" (4.8 cm) beyond 24” (61.0 cm) base cabinet.
Cabinet Dimensions
Cabinet opening dimensions shown are for 25" (64 cm)
countertop depth, 24" (61 cm) base cabinet depth and
36" (91.4 cm) countertop height. Dimensions must be met in
order to ensure a flush fit to backwall.
IMPORTANT: If installing a range hood or hood liner above the
range, follow the range hood or hood liner installation instructions
for dimensional clearances above the cooktop surface.
Gas
installation
area
installation
area*
A. 18" (45.7 cm) upper cabinet to countertop
B. 30" (76.2 cm) model: 30" (76.2 cm) min. upper cabinet width
36" (91.4 cm) model: 36" (91.4 cm) min. upper cabinet width
48" (121.9 cm) model: 48" (1271.9 cm) min. upper cabinet width
C. 13" (33 cm) max. upper cabinet depth
D. For minimum clearance to top of range, see NOTE™.
E. 30%" (76.8 cm) on 30" (76.2 cm) models
36%" (92.1 cm) on 36" (91.4 cm) models
484" (122.6 cm) on 48" (121.9 cm) models
F. 6" (15.2 cm) min. clearance from both sides of range to side
wall or other combustible material
G. 15" (38.1 cm)
H. 22" (55.9 cm) on 30" (76.2 cm) models
28" (71.1 cm) on 36" (91.4 cm) models
40" (101.6 cm) on 48" (1271.9 cm) models
11%" (3.8 cm)
J. 3" (7.6 cm)
K.5" (12.7 cm)
L.6" (15.2 cm) on 30" (76.2 cm) models
14" (35.5 cm) on 36" (91.4 cm) models
24" (61.0 cm) on 48" (121.9 cm) models
M. 10%" (26.7 cm)
N. 6" (15.2 cm)
0. 6" (15.2 cm), see NOTE*™*
*NOTE: Receptacle must be rotated 90° for Canadian
installation.
*““NOTE: Minimum Clearances
30" (76.2 cm) models: 30" (76.2 cm) minimum clearance
between the top of the cooking platform and the bottom of an
uncovered wood or metal cabinet.
36" (91.4 cm) models: 42" (106.7 cm) minimum clearance
between the top of the cooking platform and the bottom of an
uncovered wood or metal cabinet.

48" (121.9 cm) models: 42” (106.7 cm) minimum clearance ““NOTE: If backwaill is constructed of a combustible material
between the top of the cooking platform and the bottom of an and a backguard is not installed, a 6” (15.2 cm) minimum
uncovered wood or metal cabinet. clearance is required for all models.
oy a THe C&A ge
Electrical Requirements - U.S.A. Only
If codes permit and a separate ground wire is used, it is if connecting to a 4-wire system:
recommended that a qualified electrical installer determine that This range is manufactured with the ground connected to the
the ground path and wire gauge are in accordance with local cabinet. The ground must be revised so the green ground wire of
codes. the 4-wire power supply cord is connected to the cabinet. See
If codes permit and a separate ground wire is used, it is “Electrical Connection.”
recommended that a qualified electrician determine that the Grounding through the neutral conductor is prohibited for new
ground path is adequate. branch-circuit installations (1996 NEC); mobile homes; and
Do not use an extension cord. recreational vehicles, or an area where local codes prohibit
Be sure that the electrical connection and wire size are adequate: Y’ouNding through the neutral conductor.
and in conformance with the National Electrical Code, ANSI/ When a 4-wire receptacle of NEMA Type 14-SOR is used, a
NFPA 70-latest edition and all local codes and ordinances. matching UL listed, 4-wire, 250-volt, 40- or 50-amp, range power
A copy of the above code standards can be obtained from: supply cord must be used. This cord contains 4 copper .
National Fire Protection Association conductors with ring terminals or open-end spade terminals with
One Batterymarch Park upturned ends, terminating in a NEMA Type 14-50R plug on the
Quincy, MA 02269. supply end. . a
WARNING: Improper connection of the equipment-grounding The fourth (grounding) conductor must be identified bya green or
conductor can result in a risk of electric shock. Check with a green/yellow cover and the neutral conductor by a white cover.
qualified electrician or service technician if you are in doubt as to core shou be ype sap Th SRDT with a UL listed strain relief
whether the appliance is properly grounded. Do not modify the and be at 'eas (1.22 m) long.
power supply cord plug. If it will not fit the outlet, have a proper
outlet installed by a qualified electrician. ©
Electrical Connection [ [
To properly install your range, you must determine the type of |
electrical connection you will be using and follow the instructions
provided for it here. 4-wire receptacle (14-50R)
m Range must be connected to the proper electrical voltage _ ; .
and frequency as specified on the model/serial number rating The minimum conductor sized for the copper 4-wire power
plate. The model/serial number rating plate is located under cord are:
the console on the right-hand side. Refer to the figures in the 40-amp circuit
“Product Dimensions” section of the “Location 2 No.-8 conductors
Requirements” section. 1 No.-10 white neutral
mg This range may be manufactured with a 4-wire power supply 1 No.-8 green grounding
cord or may not include a power supply cord. If your range
does not include a power supply cord, use a 4-wire power If connecting to a 3-wire system:
supply cord rated at 250 volts, 40 or 50 amps and Local codes may permit the use of a UL listed, 3-wire, 250-volt,
investigated for use with ranges. A0- or 50-amp range power supply cord (pigtail). This cord
contains 3 copper conductors with ring terminals or open-end
Range Rating* Specified Rating of Power spade terminals with upturned ends, terminating in a NEMA Type
Supply Cord Kit and 10-50P plug on the supply end. Connectors on the appliance end
Circuit Protection must be provided at the point the power supply cord enters the
appliance. This uses a 3-wire receptacle of NEMA Type 10-50R.
120/240 Volts 120/208 Volts Amps Range Size
8.8-16.5kW 7.8-12.5kW 40or50* 30” (76.2 cm),
36” (91.4 cm)
16.6-225kW 12.6-18.5kW 50 48” (121.9 cm)
“The NEC calculated load is less than the total connected load ;
listed on the model/serial rating plate. 3-wire receptacle (10-50R)
™If connecting to a 50-amp circuit, use a 50-amp rated cord with
kit. For 50-amp rated cord kits, use kits that specify use with a
nominal 1%6" (34.9 mm) diameter connection opening.
A circuit breaker is recommended.
Wire sizes and connections must conform with the rating of
the range.
m_ The Tech Sheet is located behind the kick plate in a clear
plastic bag.

Electrical Requiremenis - Canaca Only
AWARNING
°
Electrical Shock Hazard
Electrically ground range.
Failure to do so can result in death, fire, or
electrical shock.
If codes permit and a separate ground wire is used, it is
recommended that a qualified electrical installer determine that
the ground path and wire gauge are in accordance with local
codes.
Be sure that the electrical connection and wire size are adequate
and in conformance with the CSA Standard C22.1, Canadian
Electrical Code, Part 1 - latest edition, and all local codes and
ordinances.
A copy of the above code standards can be obtained from:
Canadian Standards Association
178 Rexdale Blvd.
Toronto, ON M9W 1R3 CANADA
m Check with a qualified electrical installer if you are not sure
the range is properly grounded.
m When a 4-wire, single phase 250 volt, 60 Hz., AC only
electrical supply is available, a 40-amp minimum circuit
protection is required on 30” (76.2 cm) and 36" (91.4 cm)
ranges and a 50-amp minimum circuit protections is required
on 48" (121.9 cm) ranges, fused on both sides of the line.
A time-delay fuse or circuit breaker is recommended.
This range is equipped with a CSA International Certified
Power Cord intended to be plugged into a standard 14-50R
wall receptacle. Be sure the wall receptacle is within reach of
range’s final location.
0 o
0
m Do not use an extension cord.
Explosion Hazard
Use a new CSA International approved gas supply line.
Install a shut-off valve.
Securely tighten all gas connections.
If connected to LP, have a qualified person make sure
gas pressure does not exceed 14" (36 cm) water
column.
Examples of a qualified person include:
licensed heating personnel,
authorized gas company personnel, and
authorized service personnel.
Failure to do so can result in death, explosion, or fire.
Observe all governing codes and ordinances.
IMPORTANT: This installation must conform with all local codes
and ordinances. In the absence of local codes, installation must
conform with American National Standard, National Fuel Gas
Code ANSI Z223.1/NFPA 54 - latest edition or CAN/CGA B149 -
latest edition.
IMPORTANT: Range cooktop must be connected to a regulated
gas supply.
IMPORTANT: Leak testing of the range cooktop must be
conducted according to the manufacturer’s instructions.
Type of Gas
Natural Gas:
This range is design-certified by CSA International for use with
Natural gas or, after proper conversion, for use with LP gas.
mg This range is factory set for use with Natural gas. The model/
serial rating plate located under the console on the right-hand
side has information on the types of gas that can be used. If
the types of gas listed do not include the type of gas
available, check with the local gas supplier.
LP Gas conversion:
Conversion must be done by a qualified service technician.
No attempt shall be made to convert the range cooktop from the
gas specified on the model/serial rating plate for use with a
different gas without consulting the serving gas supplier. To
convert to LP gas, use the LP gas conversion kit provided with
your range and see the “Gas Conversions” section. The parts for
this kit are in the literature package supplied with the range.

Gas Supply Line Gas Pressure Regulator
m Provide a gas supply line of 94" (1.9 cm) rigid pipe to the
range location. A smaller size pipe on longer runs may result
in insufficient gas supply. With LP gas, piping or tubing size
can be ¥2" (1.38 cm) minimum. Usually, LP gas suppliers
determine the size and materials used in the system.
NOTE: Pipe-joint compounds that resist the action of LP gas
must be used. Do not use TEFLON™ tape.
Flexible metal appliance connector:
m_ lf local codes permit, a new CSA design-certified,
4 - 5 ft (122 - 152.4 cm) long, %" (1.6 cm) or
34" (1.9 cm) |.D., flexible metal appliance connector may
be used for connecting range to the gas supply line.
gw A¥%" (1.3 cm) male pipe thread is needed for connection
to the female pipe threads of the inlet to the range
pressure regulator.
gm Donot kink or damage the flexible metal tubing when
moving the range.
Rigid pipe connection:
The rigid pipe connection requires a combination of pipe
fittings to obtain an in-line connection to the range. The rigid
pipe must be level with the range connection. All strains must
be removed from the supply and fuel lines so range will be
level and in line.
m Must include a manual shutoff valve:
The supply line must be equipped with a manual shutoff
valve. This valve should be located in the same room but
external to the range opening, such as an adjacent cabinet. It
should be in a location that allows ease of opening and
closing. Do not block access to shutoff valve. The valve is for
turning on or shutting off gas to the range.
A. Gas supply line
B. Shutoff valve “open” position
C. To range
T®TEFLON is a registered trademark of E.]. Du Pont De Nemours and Company.
8
The gas pressure regulator supplied with this range must be
used. The inlet pressure to the regulator should be as follows for
proper operation:
Natural Gas:
Minimum pressure: 6" (15.2 cm) WCP
Maximum pressure: 14” (85.6 cm) WCP
LP Gas:
Minimum pressure: 11" (27.9 cm) WCP
Maximum pressure: 14” (85.6 cm) WCP
Contact local gas supplier if you are not sure about the inlet
pressure.
Burner Input Rating - Altitude
Input ratings shown on the model/serial rating plate are for
elevations up to 2,000 ft (609.6 m).
For elevations above 2,000 ft (609.6 m), ratings need to be
reduced at a rate of 4% for each 1,000 ft (304.8 m).
Gas Supply Pressure Testing
Gas supply pressure for testing regulator must be at least
1" water column pressure above the manifold pressure shown
on the model/serial rating plate.
Line pressure testing above ‘2 psi gauge (14" WCP)
The range and its individual shutoff valve must be disconnected
from the gas supply piping system during any pressure testing of
that system at test pressures in excess of /% psi (3.5 kPa).
Line pressure testing at 2 psi gauge (14" WCP) or lower
The range must be isolated from the gas supply piping system by
closing its individual manual shutoff valve during any pressure
testing of the gas supply piping system at test pressures equal to
or less than ¥ psi (3.5 kPa).

INSTALLATION INSTRUCTIONS
Unpack Range
AWARNING
Excessive Weight Hazard
Use two or more people to move and install range.
Failure to do so can result in back or other injury.
1. Remove shipping materials, tape and film from range. Keep
shipping pallet under range. Remove oven racks, grates and
parts package from inside oven.
2. Remove screws from kick plate.
A. Kick plate
B. Remove these screws.
3. Push up on kick plate to release plate from shoulder screws.
4. Lay kick plate to the side to avoid scratching the stainless
steel.
5. For 48" (121.9 cm) models only, rotate center support
counterclockwise off the pallet until it stops.
NOTE: This support is used only for shipping and is not
needed for installation.
6. Lay a piece of cardboard from side packing on the floor
behind range. Using 2 or more people, firmly grasp each side
of range. Lift range up about 3" (8.0 cm) and move it back
until range is off shipping pallet. Set range on cardboard to
avoid damaging floor.
lLinededl [ob rveed Piel sms reve
install Optional Backguard
All ranges may require a backguard. See “Cabinet Dimensions” in
the “Location Requirements” section. See the “Tools and Parts”
section for information on ordering.
Remove island trim and attach backguard using 6 screws, insert
3 from the front and 3 from the back (9" [22.9 cm] backguard
shown).
S
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
Failure to follow these instructions can result in death
or serious burns to children and adults.
1. Determine which mounting method to use: floor or wall.
If you have a stone or masonry floor, you can use the wall
mounting method.

2. Determine and mark centerline of the cutout space. The
mounting bracket must be installed on the right side of the
cutout. Position mounting bracket in cutout as shown in the
following illustration.
Measurement B:
30" (76.2 cm) ranges: 115%" (29.5 cm)
36" (91.4 cm) ranges: 145%" (87.1 cm)
48" (121.9 cm) ranges: 20%" (52.4 cm)
Measurement C:
Optional distance from backwall. If backwall is constructed of
a combustible material and a backguard is not installed, a
6" (15.2 cm) minimum clearance is required for all models.
Install anti-tip bracket accordingly.
‘
t
I
i
i
i
i
i
i
A. Centerline
B. Centerline of cutout to centerline
of anti-tio bracket
C. Backwall to back of range
10
3. Drilltwo 4%" (8.0 mm) holes that correspond to the bracket
holes of the determined mounting method. See the following.
Floor Mounting
A. #12 x 15%" screws
B. Anti-tip bracket
Wall Mounting
A. #12 x 1%" screws
B. Anti-tio bracket
4. Using a Phillips screwdriver, mount anti-tip bracket to the wall
or floor with the two #12 x 1%" screws provided.
Depending on the thickness of your flooring, longer screws
may be necessary to anchor the bracket to the subfloor.
Longer screws are available from your local hardware store.
5. Move range close enough to opening to allow for electrical
connections to be made. Remove shipping base, cardboard
or hardboard from under range.
6. Continue installing your range using the following installation
instructions.

ws
Hon - U.S.A. Only
30" (76.2 cm) and 36" (91.4 cm) Models 48" (121.9 cm) Models
a a
Electrical Shock Hazard Electrical Shock Hazard
Disconnect power before servicing. Disconnect power before servicing.
Use a new 40 amp power supply cord. Use a new 50 amp power supply cord.
Plug into a grounded outlet. Plug into a grounded outlet.
Failure to follow these instructions can result in death, Failure to follow these instructions can result in death,
fire, or electrical shock. fire, or electrical shock.
1. Disconnect power. mg Tighten strain relief screw against the power supply cord.
2. Remove the terminal block cover screws and disengage
mounting tabs to remove terminal block cover from back of §
range. ——|_ || __
\ u
4. Complete installation following instructions for your type of
electrical connection:
4-wire (recommended)
3-wire (if 4-wire is not available)
Electrical Connection Options
If your home has: And you willbe Go to Section:
connecting to:
A. Phillios head screws
B. Terminal block cover 4-wire receptacle A UL listed, 4-wire connection:
C. Two mounting tabs at bottom (NEMA type 14-SOR) = 250-volt Power supply cord
minimum,
3. Add power supply cord strain relief. Oo 40- or 50-amp,
m Assemble a UL listed strain relief in the opening. | | range power
supply cord
ll
3-wire receptacle A UL listed, 3-wire connection:
(NEMA type 10-50R) =250-volt Power supply cord
minimum,
40- or 50-amp,
range power
supply cord
A. UL listed strain relief
11

5.
4-wire connection: Power supply cord
6.
Use this method for: 7
New branch-circuit installations (1996 NEC) 3.
12
Mobile homes
Connect the other 2 wires (lines 1 and 2) to the outer
aluminum terminal blocks.
Securely tighten screws for proper electrical connection.
Tighten strain relief screws.
Replace terminal block cover.
Recreational vehicles
3-wire connection: Power supply cord
In an area where local codes prohibit grounding through the
neutral
the ground-link screw. Bend the ground link away from the
range so that it does not contact the range. 2
A. Ground-link screw
B. Ground link bent away from range
Connect the green ground wire from the power supply cord to
the range using the ground-link screw. The ground wire must
be attached first and must not contact any other terminal.
Use a %4" nut driver to remove the hex washer head screws
from the terminal blocks.
Connect the neutral (center) wire to the center terminal
connector using one of the hex washer head screws.
Securely tighten screw for proper electrical connection.
3.
D 4
NY 5
A
ee
A. Line 1 F. Ground link
B. Green ground wire
C. Ground-link screw
D. Hex washer head screw
E. Silver-colored terminal
block screw
G. Neutral (center) wire
H. Line 2
|. UL listed strain relief and
40- or 50-amp range
power supply cord
Use this method only if local codes permit connecting cabinet-
ground conductor to neutral wire of power supply cord.
Remove the ground-link screw from the range frame. Save 1.
Use a %" nut driver and remove the hex washer head screws
from the aluminum terminal blocks.
Connect the neutral (center) wire to the center terminal
connector using one of the hex washer head screws.
Securely tighten screw for proper electrical connection.
A. Line 1
B. Ground link
C. Hex washer head screw
D. Silver-colored terminal
block screw
E, Neutral (center) wire
F. Line 2
G. UL listed strain relief
and 40- or 50-amp range
power supply cord
Connect the other 2 wires (lines 1 and 2) to the outer terminal
screws on the terminal block.
Tighten strain relief screws.
Replace terminal block cover.

Explosion Hazard
Use a new CSA International approved gas supply line.
Install a shut-off valve.
Securely tighten all gas connections.
If connected to LP, have a qualified person make sure
gas pressure does not exceed 14" (36 cm) water
column.
Examples of a qualified person include:
licensed heating personnel,
authorized gas company personnel, and
authorized service personnel.
Failure to do so can result in death, explosion, or fire.
Assemble flexible connector from gas supply pipe to pressure
regulator located in the middle rear of the range.
Apply pipe-joint compound made for use with LP gas to the
smaller thread ends of the flexible connector adapters (see B
and G in the following illustration).
Attach one adapter to the gas pressure regulator and the
other adapter to the gas shutoff valve. Tighten both adapters.
Use a 6" combination wrench and channel lock pliers to
attach the flexible connector to the adapters. Check that
connector is not kinked.
/
F
A. Gas pressure regulator E, Manual gas shutoff valve
B. Use pipe-joint compound. F. ¥2" or 44" gas pipe
C. Adapter (must have 2" male G. Use pipe-joint compound.
pipe thread) H. Adapter
D. Flexible connector
Complete Connection
1. Open the manual shutoff valve in the gas supply line. The
valve is open when the handle is parallel to the gas pipe.
NES B
A. Closed valve
B. Open valve
2. Test all connections by brushing on an approved
noncorrosive leak-detection solution. If bubbles appear, a
leak is indicated. Correct any leak found.
3. Remove cooktop burner caps, burner bases and grates from
parts package. Place burner bases on cooktop. Place burner
caps on burner bases. Place grates over burners and caps.
4. Check that the range is plugged into the appropriate outlet
(see the “Electrical Requirements” section).
5. Turn on power supply. For further information, please refer to
the user instructions located in the Use and Care Guide.
Sm, wil phe Chom, Pe gyn pad rand | ga, ga grgh pay
Verify Anti-Tip Bracket Location
1. Turn all 4 leveling rods 1 full turn to raise the range and
provide enough clearance for the rear leveling leg to slide into
the anti-tip bracket.
2. Move range into its final location making sure rear leveling leg
slides into anti-tip bracket.
NOTE: If installing the range in a mobile home, you must secure
the range to the floor. Any method of securing the range is
adequate as long as it conforms to the standards in the “Location
Requirements” section.
13

iy PLP LER PO pens si, pag
nic ignition Sysiem
Doge, pen, FG peonacuping sping gate oe
Level Range electronic ig
NOTE: Range must be level for satisfactory baking performance.
4. Place rack in oven. Install Burner Bases and Burner Caps
2. Place level on rack and check levelness of the range, first
side to side: then front to back. Install the burner base, making sure the igniter electrode is
properly aligned with the base. Place burner caps on top of
burner bases. If burner caps are not properly positioned, surface
burners will not light.
20,000 Btu/h Ultra Power™ Dual-Flame
Burner
A. Incorrect
3. If range is not level, adjust the leveling rods. Turn leveling B. Correct
rods located behind the kick plate to level range and to raise
or lower range to the desired countertop height.
NOTE: All roller feet must be off the floor upon final installation.
A. Incorrect
B. Correct
“A
B
A. Incorrect
A.
Front
leveling
rod
B.
Correct
B. Rear leveling rod
(on griddle
The griddle is factory install
1. Place drip tray in the well at the front of the griddle. Slide tray
toward the back until it stops. Initial Lighting and Gas Flame Adjustments
Cooktop burners use electronic igniters in place of standing
pilots. When the cooktop control knob is turned to any position,
the system creates a spark to light the burner. This sparking
continues until the flame is lit or the Knob is turned to Off.
Check Operation of Cooktop Burners
Push in and turn each control knob to the “LITE” position.
The surface burners and grill flames should light within
4 seconds. The first time a burner is lit, it may take longer than
4 seconds to light because of air in the gas line.
After verifying the proper burner operation, turn the control knobs
A. Griddle drip tray to OFF.
B. Griddle If burners do not light properly:
m= Turn cooktop control knob to the “OFF” position.
2. Clean griddle before using. Refer to the Use and Care Guide.
m Check that the range is plugged in and the circuit breaker has
not tripped or the fuse has not blown.
m Check that the gas shutoff valves are set to the “open”
position.
m Check that burner caps are properly positioned on burner
bases.
Repeat start-up. If a burner does not light at this point, contact
your dealer or authorized service company for assistance.
14

6. Remove the round gasket from the valve stem.
Flame Height 7. Putacontrol knob onto the valve stem of the burner you want
; to adjust.
The cooktop flame should be a steady blue flame approximately
4" (0.64 cm) high.
Dual Flame Burner
A. Upper (simmer) flame
B. Lower flame
8. Turn the control knob to LO and using a butane extension
lighter, light the burner.
Single Flame Burner POR
To Adjust Flame Height: 9. Remove the control knob.
1. Unplug range or disconnect power. 10. Use a 14" x 414" flat-blade screwdriver to adjust the flame
Remove burner grates. height. Tighten screw to reduce flame height. Loosen screw
to increase flame height.
NOTE: When you are converting to LP gas, the screw should
be tightened down completely on the single output valves.
The dual output valve should not be adjusted.
2
3. Remove the control knobs.
4.
Open the oven door and remove the 2 screws on each side of
the range that hold the control console in place.
NOTE: Make sure to leave oven door open or the control
console will not rest in the side brackets properly once it is A. Single flame burner adjustment screw (on right side of valve)
detached. B. Dual flame burner adjustment screw (on left side of valve)
5. Pull up on the control console and let it drop forward into the 11. When finished adjusting the flame height, put a control knob
notched console brackets on each side. back onto the valve stem and turn off the burner.
12. Remove the control knob.
13. Replace the round gasket.
14. Repeat steps 6 through 13 for any other burners that need
adjustment.
A. Control console bracket
15

15. Lift up on the control console and set it back into place. For a
proper fit, the flange of the control console must hook over Corr “ iele ins siciictic va
the lip on the front of the range cookto ein
P g P. 1. Check that all parts are now installed. If there is an extra part,
go back through the steps to see which step was skipped.
2. Check that you have all of your tools.
3. Dispose of/recycle all packaging materials.
4. For oven use and cleaning, read the Use and Care Guide.
Check Operation of Oven(s)
1. Turn power on.
f 2. Start a Bake cycle. See the Use and Care Guide for operating
B instructions.
A. Control console flange If oven(s) does not operate, check the following:
B. Front lip of range cooktop m Household fuse is intact and tight; or circuit breaker has
not tripped.
16. Check that the control console is flush with the top edge of ; ;
the range. mw Electrical supply is connected.
m See “Troubleshooting” section in the Use and Care Guide.
3. When oven has been on for 10-15 minutes, open the oven
door, and feel for heat.
If you do not feel heat or if an error code (“F” followed by a
number plus “E” followed by a number) appears in the
display, turn off the oven and contact a qualified technician.
A 4. Touch OFF.
To set the clock and other oven functions, refer to the Use and
Care Guide.
A. Flush with range top
If you need Assistance or Service:
17. Replace the 2 screws on each side of the control console. Please reference the “Assistance or Service” section of the Use
18. Replace the control knobs. and Care Guide or contact the dealer from whom you purchased
19. Replace burner grates. your range.
20. Test the flame by turning the control from LO to HI, checking
the flame at each setting.
Reinsioll Kick Plate
1. Align shoulder screw mounting holes
range.
2. Push kick plate down against front of range until the top
screw holes are aligned with the mounting holes on the front
of the range.
3. Reattach screws to the top of the kick plate.
ith shoulder screws on = o
A. Kick plate
B. Reattach these screws.
C. Top screw hole
D. Shoulder screw mounting hole
16

GAS CONVERSIONS
IMPORTANT: Gas conversions from Natural gas to LP gas must
be done by a qualified installer.
AWARNING ‘
2.
Explosion Hazard
Install a shut-off valve.
Securely tighten all gas connections.
If connected to LP, have a qualified person make sure
gas pressure does not exceed 14" (36 cm) water
column.
Examples of a qualified person include:
licensed heating personnel,
authorized gas company personnel, and
authorized service personnel.
Failure to do so can result in death, explosion, or fire.
Use a new CSA International approved gas supply line.
©
Tip Over Hazard
A child or adult can tip the range and be killed.
Connect anti-tip bracket to rear range foot.
Reconnect the anti-tip bracket, if the range is moved.
Failure to follow these instructions can result in death
or serious burns to children and adults.
1. Turn the manual shutoff valve to the closed position.
A. To range
B. Shutoff valve (closed position)
C. Gas supply line
2. Unplug range or disconnect power.
To Convert Gas Pressure Regulator
Remove the access cap by using a wrench, turning the
access cap counterclockwise.
Remove spring retainer from the cap by pushing against the
flat side of the spring retainer. Look at the spring retainer to
locate the “NAT” or “LP” position. Turn over the spring
retainer so the “LP” is showing on the bottom. Snap the
spring retainer back into the cap. Reinstall the cap onto the
regulator.
E D C
A. Access cap
B. Gasket
C. Gas pressure regulator
D.LP position
E, NAT position
Test the gas pressure regulator and gas supply line.
The regulator must be checked at a minimum 1” (2.5 cm)
water column above the set pressure. The inlet pressure to
the regulator should be as follows for operation and checking
the regulator setting:
LP Gas:
Minimum pressure 11" (27.9 cm) WCP
Maximum pressure 14” (85.5 cm) WCP.
Gas Supply Pressure Testing
Gas supply pressure for testing regulator must be at least
1" water column pressure above the manifold pressure
shown on the model/serial rating plate.
Line pressure testing above ‘2 psi gauge (14" WCP)
The range and its individual shutoff valve must be
disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of
Ye psi (8.5 kPa).
Line pressure testing at 2 psi gauge (14" WCP) or lower
The range must be isolated from the gas supply piping
system by closing its individual manual shutoff valve during
any pressure testing of the gas supply piping system at test
pressures equal to or less than % psi (3.5 kPa).
17

To Convert Surface Burners
4.
18
If the burner grates are installed, remove them.
Remove burner cap.
Remove the burner base.
Large Dual Burner
A. Burner cap
B. Burner base
Medium Burner
A. Burner cap
B. Burner base
C. Choke (for use with medium
burner, LP gas only)
Small Burner
A. Burner cap
B. Burner base
Apply masking tape to the end of a 7 mm nut driver to help
hold the gas orifice spud in the nut driver while changing it.
Insert nut driver into the gas opening and press down onto
the gas orifice spud and remove by turning the gas orifice
spud counterclockwise and lifting out. Set gas orifice spud
aside.
Replace with correct LP gas orifice spud. See the “LP Gas
Orifice Spud/Hood Chart.”
Use the following chart to find the exact orifice spud
placement.
Fully insert choke into bottom of medium burner base. Choke
should snap into place.
LP Gas Orifice Spud/Hood Chart
Burner Color Size Burner Style
Rating
3,000 BTU Blue 0.55 mm Small burners
11,000 BTU Yellow 0.97mm
14,000 BTU Red/ 1.05 mm Large burner - main
Green 0.35 mm Large burner - simmer
a
14,500 BTU Black 1.18mm Grill burner
Burner orifice spud
A
A. Size stamp or color
6. Place Natural gas orifice in plastic parts bag for future use
9
and keep with package containing literature.
Replace the burner base.
Replace burner cap.
Repeat steps 2 through 8 for the remaining burners.
Complete Installation
1.
2.
Refer to the “Make Gas Connection” section for properly
connecting the range to the gas supply.
Refer to the “Electronic Ignition System” section for proper
burner ignition, operation, and burner flame adjustments.
IMPORTANT: You may have to adjust the “LO” setting for
each cooktop burner.
Checking for proper cooktop burner flame is very important.
The small inner cone should have a very distinct blue flame
4" (0.64 cm) to %" (1.3 cm) long. The outer cone is not as
distinct as the inner cone. LP gas flames have a slightly
yellow tip.
Refer to “Complete Installation” in the “Installation
Instructions” section of this manual to complete this
procedure.

Eg
Neoturol Gas
AWARNING
v
>
Sos
Tip Over Hazard
A child or adult can tip the range and be killed. :
Connect anti-tip bracket to rear range foot. E D Cc
Reconnect the anti-tip bracket, if the range is moved. A. Access cap D. NAT position
B. Gasket E. LP position
Failure to follow these instructions can result in death
. . C. Gas pressure regulator
or serious burns to children and adults.
3. Test the gas pressure regulator and gas supply line.
The regulator must be checked at a minimum 1” (2.5 cm)
water column above the set pressure. The inlet pressure to
B the regulator should be as follows for operation and checking
the regulator setting:
1. Turn manual shutoff valve to the closed position.
Natural Gas:
SL Minimum pressure 6" (15.2 cm) WCP
os C Maximum pressure 14” (35.6 cm) WCP
Gas Supply Pressure Testing
A. To range
B. Shutoff valve (closed position)
C. Gas supply line
Gas supply pressure for testing regulator must be at least
1" water column pressure above the manifold pressure
shown on the model/serial rating plate.
2. Unplug range or disconnect power. Line pressure testing above ‘2 psi gauge (14" WCP)
The range and its individual shutoff valve must be
To Convert Gas Pressure Regulator disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of
1. Remove the access cap by using a wrench, turning the Ve psi (3.5 kPa).
access cap counterclockwise.
. . . . Line pressure testing at 2 psi gauge (14" WCP) or lower
2. Remove spring retainer from the cap by pushing against the
flat side of the spring retainer. Look at the spring retainer to The range must be isolated from the gas supply piping
locate the “LP” or “NAT” position. Turn over the spring system by closing its individual manual shutoff valve during
retainer so the “NAT” is showing on the bottom. Snap the any pressure testing of the gas supply piping system at test
spring retainer back into the cap. Reinstall the cap onto the pressures equal to or less than ¥ psi (8.5 kPa).
regulator.
19

To Convert Surface Burners
4.
20
If the burner grates are installed, remove them.
Remove burner cap.
Remove the burner base.
Large Dual Burner
A. Burner cap
B. Burner base
Medium Burner
A. Burner cap
B. Burner base
C. Choke (for use with medium
burner, LP gas only)
Small Burner
A. Burner cap
B. Burner base
Apply masking tape to the end of a 7 mm nut driver to help
hold the gas orifice spud in the nut driver while changing it.
Insert nut driver into the gas opening and press down onto
the gas orifice spud and remove by turning the gas orifice
spud counterclockwise and lifting out. Set gas orifice spud
aside.
Replace with correct Natural gas orifice soud. See the
“Natural Gas Orifice Spud/Hood Chart.”
Use the following chart to find the exact orifice spud
placement.
Remove choke from medium burner base.
Natural Gas Orifice Spud/Hood Chart
Burner Rating Size Burner Style
5,000 BTU 1.01 mm Small burners
15,000 BTU 1.75 mm
20,000 BTU 2.10 mm Large burner - main
0.52 mm Large burner - simmer
18,000 BTU 1.93 mm Grill burner
Burner orifice spud
A
A. Size stamp
6. Place LP gas orifice spuds in plastic parts bag for future use
9
and keep with package containing literature.
Replace the burner base.
Replace burner cap.
Repeat steps 2 through 8 for the remaining burners.
Complete Installation
1.
2.
Refer to the “Make Gas Connection” section for properly
connecting the range to the gas supply.
Refer to the “Electronic Ignition System” section for proper
burner ignition, operation, and burner flame adjustments.
IMPORTANT: You may have to adjust the “LO” setting for
each cooktop burner.
Checking for proper cooktop burner flame is very important.
The small inner cone should have a very distinct blue flame
4" (0.64 cm) to %" (1.3 cm) long. The outer cone is not as
distinct as the inner cone. LP gas flames have a slightly
yellow tip.
Refer to “Complete Installation” in the “Installation
Instructions” section of this manual to complete this
procedure.
